Orava Meteo-1 User manual

1EN
Digital weather station
Meteo-1
Instruction manual EN

2EN
Intended use of the device
The device is intended exclusively for weather forecasting and temperature display, to the extent that is
determined by technical and operational parameters and functions, safety and user instructions and external
influences of the operating environment, supplemented by the function of “waking up with an audio tone”.
ORAVA electrical appliances are manufactured according to current state-of-the-art knowledge and recognized
safety and technical rules. Nevertheless, incorrect and unprofessional use or use contrary to the intended
purpose may result in the risk of injury or endangering the life of the user or a third person, or damage to
equipment and other material values.
Safety instructions for operation and use
The electrical equipment is designed and manufactured in such a way as to enable safe operation and use
by persons without professional qualifications. Despite all the measures taken by the manufacturer
performed for safe use, operation and use carry with them certain residual risks and possible dangers
associated with them.
To warn of possible dangers, the following symbols and their meaning have been used on the device and in
the accompanying documentation:
This symbol warns users that if the safety instructions are not followed when using and operating the
device, there is a risk of:
Risk of serious injury or life-threatening!
Risk of equipment damage or other property damage!
This symbol warns that the electrical equipment uses a safe low voltage for its operation.

3EN
This marking of electrical equipment means that the equipment is made with an outer cover that
partially protects the internal electrical functional parts and components from dust and against the
ingress of foreign objects with a diameter greater than 2.5 mm. Protection against splashing water at
a 60° angle in the amount of 10 l/min. at a pressure of 50-150 kN/m2 for 5 minutes.
Warning!
The degree of protection of the device is tested under specific technical conditions and does not mean that the
device is intended for use under conditions of permanent exposure to dust and water.
General safety instructions and warnings
• Before putting the device into operation, we recommend that you carefully study the operating instructions
and operate the device according to the specified instructions.
• The manufacturer is not responsible for any damage to health or property caused by non-compliance with
safety instructions and warnings.
• Always keep the user manual with the device for future use and use by new users.
• Use the device exclusively for its intended purpose and in the manner specified by the manufacturer. This is
not a professional device for commercial use.
Safety of the operating environment
• Do not use the device in an industrial environment or in an adverse outdoor environment!
• Do not expose the device to the effects of:
- sources and devices producing excessive heat,
- falls, vibrations and mechanical stress,
- excessive dustiness,
- water at the main control unit (outdoor unit, outdoor temperature sensor has IP33 protection, it is
waterproof - against outdoor rain)
- aggressive influences of the external environment.
• The operating environment of the device must always be in accordance with the established basic
characteristics.
IPX3

4EN
Characteristics of the operating environment
• The outdoor temperature sensor - (protection IPX3) is waterproof (do not submerge it in water, it is only
resistant to outdoor rain).
• The main device - control unit - the basic degree of protection by the IPX0 cover (when the device is
not protected by its cover against the effects of water) is not marked on the product and in the technical
parameters listed in the user manual.
• If the product’s degree of protection is different from the product’s cover
IPX0, this data is then indicated on the device label, possibly also in the technical parameters of the
operating instructions.
• The main device - the control unit is not primarily intended for use in an environment with a significant effect
of water.
Personal safety
• This device can be used by children from 8 years of age and persons with reduced physical, sensory or
mental capabilities or lack of experience or knowledge, if they have been supervised or have been instructed
in the safe use of the device and understand the dangers involved.
• Children must not play with the device.
Cleaning, maintenance and repairs
• Perform routine user cleaning and maintenance of electrical equipment only in the recommended manner.
Do not use chemical solvents or harsh cleaning objects for cleaning.
• Never clean the device in a way that could cause it to be immersed in liquid and cause the liquid to flow into
the device.
• Clean the device only with a damp cloth and wipe dry or let it dry.
• Keep the device clean and dry.
• Do not disassemble electrical/electronic equipment!
• Never repair electrical/electronic equipment yourself

5EN
Special safety instructions and warnings
• When transporting and carrying, be careful when moving to prevent the device from falling and damaging it.
• Before putting the device and accessories into operation, unpack and remove all its parts from the remains
of packaging materials, labels and tags. Put the packaging materials in a safe place, especially out of the
reach of children and incompetent persons, or dispose of them safely.
• If the device has been stored at low temperatures (e.g. in winter) or excessive humidity, first let it
“acclimatize” for about 1 hour at room temperature, which will remove any moisture in the electronic parts
that occurs when the ambient temperature changes.
• Do not expose the device intended for indoor use to water or excessive humidity. Do not place any
containers with water or other liquids on the device.
• Do not install the device near heat sources or other devices that produce excessive heat.
• Do not place any objects on the device that could cause a dangerous situation (e.g. burning candles, etc.).
• To avoid the risk of electric shock (in the case of a device operating on a hazardous main supply), do not
disassemble the device or attempt to repair it yourself. Leave any repairs of electrical equipment to qualified
personnel in a professional service.
Operation/Usage
Warning!
• In places where the use of mobile phones is not allowed, or where the device may
cause interference or danger, for example in hospitals and near highly sensitive
electronic medical devices, fuels, chemicals or places where explosive blasting is
carried out, mobile devices with a warning turn off.
• Follow all safety instructions and warnings at these locations.
• A digital weather station that operates in the 433 MHz band may interfere with other
wireless devices or networks.
• If this device is placed too close to other devices using the 433 MHz frequency band,
it may not work properly and problems such as blackouts caused by radio wave
interference may occur.

6EN
Warning!
• The manufacturer and supplier are not responsible for incorrect operation in the place
where interference occurs.
• If there is any difference in the weather forecast between the local weather station and
this device, the weather forecast of the local weather station takes precedence. The
manufacturer is not responsible for incorrect weather forecast provided by this device.
• This product must not be used to inform the public. Consider the weather forecast of
this weather station as indicative only. The manufacturer is not responsible for any
incorrect display of the weather forecast on the display of this weather station and for
the consequences that would result from this.
• The mains adapter must remain easily accessible during use. The device must not be
exposed to dripping or splashing water.
• Do not use the product in places where the use of electronic devices is not permitted.
• Do not place the product near interference fields, metal frames, computers, TVs, etc.
Electronic devices and window frames can negatively affect the functioning of the
product.
Technology
Frequency band
• This device uses the 433 MHz unlicensed radio frequency band.
Certifications
• This device complies with frequency limits and has been certified to demonstrate compliance with regulatory
requirements for frequency bands. Therefore, no wireless authorization is required.
• The interventions listed below are illegal:
- remove parameter labels
Determination of use
• This system is designed for general-purpose home use.
• Wireless transmission from an external sensor may adversely affect the functionality of electronic medical
devices.

7EN
• Do not use this system near equipment or in a high-frequency environment such as:
places with the presence of flammable gas,
places near automatic door systems, alarm devices like:
- airports,
- Hospital
- laboratories
- petrol stations, etc.
because broadcast interference can cause an accident.
Use range
• Use the outdoor wireless sensor at a distance of up to 10 m (no obstacles).
• Different types and environments, obstacles or interference may reduce the transmission range (e.g. metal
barriers, walls, people ...).
Interference with other devices
• If this weather station is located too close to other 433MHz bandwidth-enabled devices, it may not work
properly and problems may occur in the form of erroneous transmitted data or radio wave interference.
Other
• If you experience discomfort when using the wireless transmitter from the outside sensor, stop using the
device immediately.
• If any problem persists, contact your nearest ORAVA dealer.

8EN
Features:
• Time display (12/24 hours) with the option of manual setting, alarm clock, snooze function
• Calendar function, displaying days of the week in 8 languages (German, French, Italian, Dutch, Spanish,
Danish, English, )
• Measurement of humidity, temperature (outside/inside)
• Weather forecast with conditions: sunny, partly cloudy, cloudy, rain.
• Internal humidity from 25% to 95%.
• Optional 12/24-hour time display format
• Optional temperature display units (°C/°F)
• Measurement of outdoor temperature and humidity via wireless (RF) transmitter and receiver
• Brightness adjustment
• Displaying the phase of the moon
• Low battery indicator
• Transmitter battery power supply (DC 3 V): AAA x 2 (not supplied)
Weather station battery power supply (DC 3 V): AAA × 2 (not supplied) - only for saving settings Weather
station power supply (DC 5 V) from AC adapter (not supplied)
Power supply and charging of up to 2 devices from USB power connectors (DC 5 V, 2 A)
• Range between the external meter (transmitter) and the indoor weather station approx. 30 m.
• Accuracy:
Temperature +/- 1 °C.
Humidity +/- 5%.
Time +/- 2 seconds/day.

9EN
Power sources
Power supply from AC adapter
The indoor (main) device can be powered from a suitable AC adapter 5 V, 2 A (not supplied). Use the supplied
USB cable - mini connector. Connect the mini connector of the cable to the DC connector on the side of the
device, connect the USB cable to the USB connector on the appropriate AC adapter. Then plug the AC adapter
into an electrical socket.
Powered by batteries
The interior (main) device is also powered by 2 1.5 V AAA batteries. However, this power supply should only
serve to preserve the settings in the event of a power failure. If the device is powered only by batteries, the
brightness of the display will be affected (it will decrease). After 15 seconds, the display backlight turns off.
Insert the batteries into the device:
1 Open the back cover of the battery clamp and open the battery compartment.
2 Insert 2 1.5 V AAA size batteries into the battery compartment. Observe the correct polarity + and - marked
inside the compartment.
3 Close the battery compartment by replacing the cover.

10EN
Powering the outdoor temperature sensor from batteries
The sensor is powered by 2 1.5 V AAA batteries and has the following features:
• Waterproof (do not submerge it in water, it is only resistant to external rain)
• Bright surface to prevent it from being heated by the sun
• Wireless communication – remote transmission of external temperature and humidity by radio frequency
signal
• Wall mounting and table stand
• Temperature and humidity displayed on both the own and the main LCD display.
• Low battery indicator
• Temperature and humidity measurement step: 0.1 °C/1%
• Temperature and humidity measurement accuracy: ± 1°C/± 5%
• Transmission range: approx. 30 m in an open area
• Location: in the garage, on the outside wall/window or in the interior of another room, in the garden, etc.
Insert batteries into the outdoor sensor within three minutes of activating the indoor device. After inserting the
batteries, the sensor will start sending a signal and the outdoor temperature will be displayed on the indoor
device. If this does not happen within 15 minutes, remove the batteries from both the indoor and outdoor
devices and re-activate the indoor device first and then the outdoor device within 3 minutes.
1 Open the back cover of the outdoor temperature sensor and open the battery compartment.
2 Insert 2 1.5 V size AAA batteries into the battery compartment of the outdoor temperature sensor. Observe
the correct polarity + and - marked inside the compartment.
3 Close the battery compartment by replacing the cover.
4 Fix the outdoor temperature sensor in the selected place.
Note: To pair the outdoor and indoor units, the same channel (CH1 - CH3) must be selected on both units.

11EN
Place the sensor in an outdoor location with sufficient ventilation, away from sunlight (you can mount it on the wall
using the eyelet on the back).
Operating range is 30 m from the device (only without obstacles). We recommend placing it as close as possible to
the main device.
Notes
• Do not put any other objects in the battery compartment.
• If you are not going to use the device for a long time, remove the batteries to prevent possible leakage of the
battery contents and subsequent corrosion.
• Observe the correct + and - polarity. If the batteries are stored with the wrong polarity, there is a risk of
damage to the batteries and the device itself.
• Always replace the batteries if the outside temperature is no longer displayed.

12EN
Parts description
1 2 3 4 5
6
7

13EN
Control elements
The controls are located on the front of the device:
1 MODE button (Mode/Setting)
A short press switches the mode (Time - Alarm).
Press and hold for 3 seconds to activate the time setting, date or alarm mode.
2 ALERT button (Warning of exceeding temperature)
With a short press, you turn on/off the warning function for the set temperature.
Press and hold for 3 seconds to activate the alarm setting mode for the set temperature.
3 UP/CH (Up/Channel) button
A short press in the setting mode allows you to make settings in different setting modes. Press and hold for 3
seconds in operating mode to activate the search for a signal from an external sensor.
4 DOWN button
A short press switches between the current one. minimum and maximum measured temperature.
5 SNOOZE/LIGHT button (Snooze/Turning off the display backlight)
Press briefly to turn on the snooze function for the currently ringing alarm clock. Press briefly to turn off the
display backlight.
6 Output USB connector (2×)
Connecting devices for charging their batteries or powering them with an output DC voltage of 5 V, 1 A using
a suitable cable (not supplied). Charging/powering from these connectors is only possible when this device is
powered by an AC adapter (not supplied) from the mains.
7 DC connector
Connecting a suitable AC adapter 5 V, 2 A (not supplied) using the supplied cable.
Back side:
Battery compartment cover
Insertion of two 1.5 V AAA size batteries that power the device and at the same time back up the memory of
the set time and date in the event of a power failure

14EN

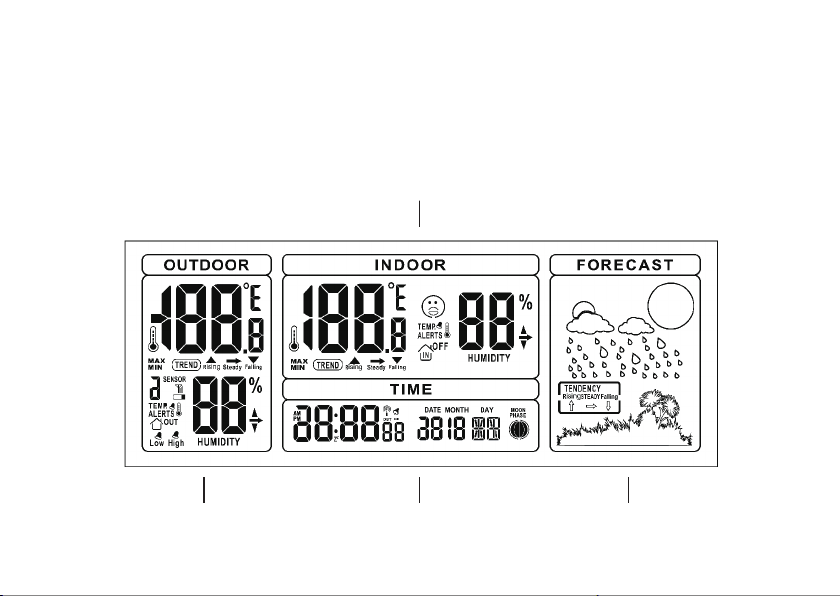

LCD display
1: Display information about indoor temperature and relative humidity
2: Display information about outdoor temperature and relative humidity
3: Display time (calendar)
4: Display of weather forecast symbols
1
2 3 4

15EN
External sensor
1 Low battery indicator
2 External humidity
3 Indicator of the signal channel of the connected external sensor
4 Outside temperature
5 Hole for wall mounting
6 °C/°F temperature unit switch button
7 External sensor channel switch (CH1, CH2, CH3)
8 TX button for linking the signal with the internal device
9 Battery compartment 12
34
5
6 7 8 9

16EN
General operations
Display
The display shows various information such as time, date and day of the week, weather forecast symbol, moon
phase, relative humidity and temperature, etc.
Temperature display
The device has a built-in ambient temperature sensor and a wireless outdoor temperature sensor, and the
temperature is displayed on the display.
You can display the temperature in °C/°F.
You can set the desired units in the setting mode and on the external sensor with the °C/°F button.
Display of maximum and minimum measured temperature and humidity
Press the DOWN button in standard mode to display the maximum and minimum measured values of
temperature and humidity.
After the first press of the DOWN button, the MAX icon will appear and the maximum values will be displayed.
After pressing the DOWN button a second time, the MIN icon will appear and the minimum values will be
displayed.
Displaying comfort in the interior using smileys
Smileys express the comfort of humidity and temperature in the room.
Neutral smiley (Dry):
If the humidity is less than 40% at a temperature in the range of 20-28 °C, it is a dry environment.
Smiley (Comforts):
In the temperature range of 20-28 °C and humidity of 40% to 70%, it is a comfortable environment expressed
by a smiling smiley.
Sad Smiley (Damp):
If the humidity is more than 70% at a temperature in the range of 20 - 28 °C, it is a humid environment.

17EN
If the humidity is in the range of 40% to 70%, but the temperature is outside the range of 20 - 28 °C, no
comfort information is displayed.
Notice!
When the device is in operation, it heats up slightly, which may result in a slight deviation in the accuracy of
displaying the current temperature (± 1 °C).
Console for placing the device on the table
The rear console has three opening and closing angles, which are 0°, 40° and 80°.
When the console is open to 40°, the angle between the device and the table is 17°.
When the console is open to 80°, the angle between the device and the table is 10°.
Selection of the set item
When the device is turned on, press and hold the MODE button to activate the setting mode (a beep will be
heard), and then press to cycle through the set items in order. The setting item flashes.
You can set the time/calendar, language, alarm, etc. The set items are:
12/24-hour cycle for time - Hours - Minutes - Year - Month - Day (day of the week is assigned automatically
according to the set date and language) - Language - Unit setting °C/°F).
After activating the setting mode and selecting the desired item, you can set it with the UP and DOWN buttons.
If you do not perform any operation for about 25 seconds, the standard mode will be restored.

18EN
Setting the clock/calendar
When the device is turned on, the display shows the time. The time is displayed in a 12- or 24-hour cycle.
With a 12-hour cycle, the PM indication indicates the time in the afternoon. You can select the calendar and
time setting mode by pressing and holding the MODE button in standard mode for approx. 3 seconds.
1 Press and hold MODE in clock display mode to enter setting mode.
The 12/24H clock mode will flash.
2 In the time setting mode, pressing MODE switches the set items in the order of 12/24H
mode - Hours - Minutes - Year - Month - Day - Language - °C/F° - Mode shutdown.
The currently selected item is flashing.
3 When 12/24-hour mode setting is selected (12/24H flashes), press the DOWN or UP
button to set the 24/12-hour time display mode.
4 Press the MODE button and press the DOWN or UP button to set the clock.
5 Press the MODE button and press the DOWN or UP button to set the minutes.
6 When the year setting is selected (the digit for the year is flashing), press the DOWN or
UP button to set the year.
7 Press the MODE button and press the DOWN or UP button to set the month.
8 Press the MODE button and set the day (date) by pressing the DOWN or UP button.
9 Press the MODE button and press the DOWN or UP button to set the desired language.

19EN
Available languages are GE (German), FR (French), IT (Italian), NE (Dutch), ES (Spanish),
DA (Danish) and EN (English). According to the set language, the name of the day of the
week is also displayed.
Languange Sunday Monday Tuesday Wednesday Thursday Friday Saturday
German (GE) SO MO DI MI DO FR SA
French (FR) DI LU MA ME JE VE SA
Italian (IT) DO LU MA ME GI VE SA
Dutch (NE) ZO MA DI WO DO VR ZA
Spanish (ES) DO LU MA MI JU VI SA
Danish (DA) SO MA TI ON TO FR LO
English (EN) SU MO TU WE TH FR SA
10 Press the MODE button and press the DOWN or UP button to set the temperature
display in °C or °F.
11 After completing the settings, press the MODE button.
The setting mode is also canceled automatically if you do not perform any operation for about 25
seconds. The settings are saved.

20EN
Setting the alarm clock (Alarm)
The device is equipped with an alarm clock.
1 After setting the clock correctly, press the MODE button once.
The “AL” (Alarm) icon will be displayed.
2 When the “AL” icon is displayed, press the UP or DOWN button once to turn on and off
the alarm mode.
When the alarm mode is on, the bell icon is displayed, when the alarm mode is off, the bell
icon is off.
3 When the bell icon “AL” is displayed, press and hold the MODE button to activate the
alarm setting mode (a beep will sound).
4 In the alarm time setting mode, pressing MODE switches the set items in the order Hours
- Minutes - Mode shutdown.
The currently selected item is flashing.
5 When the clock setting is selected, press the DOWN or UP button to set the clock.
6 Press the MODE button and press the DOWN or UP button to set the minutes.
7 After setting, press the MODE button.
The setting mode is also canceled automatically if you do not perform any operation for about 25 seconds.
The settings are saved.
