Orava Meteo User manual

1EN
Instruction manual EN
Digital weather station with alarm clock

2EN
Intended use of the device
The device is designed exclusively for weather forecast and
temperature display, to the extent determined by the technical
and operational parameters and functions, safety and user
instructions, and external influences of the operating environment,
complemented by the “beep sound” function.
ORAVA electrical appliances are manufactured according to the
state of the art and recognized safety rules. Nevertheless, improper
and unprofessional use or use contrary to the intended use may
result in injury or danger to the life of the user or third party.
damage to equipment and other material
values.
Safety instructions for operation and use
The electrical device is designed and manufactured in such
a way as to allow safe operation and use by persons without
professional qualifications. Despite all the measures that
have been carried out by the manufacturer for safe use, the
operation and use carry certain residual risks and associated
hazards.
The following symbols and their meanings have been used on
the device and in the accompanying documentation to warn of
potential hazards:
This symbol on the power adapter indicates that the
product is made of double insulation between hazardous
live parts (power supply dangerous parts) and parts
that are accessible under normal use. Use only identical
replacement parts for repair.

3EN
This designation of the electrical device means that the
device is provided with an outer cover which partially
protects the internal electrical functional parts and
components from dust and foreign objects with a diameter
greater than 2.5 mm. Protection against splashing water
at 60° at 10 l / min. at a pressure of 50-150 kN/m2 for 5
minutes.
Warning!
The degree of protection of the device is tested under
specific technical conditions and does not imply that
the equipment is intended for use under conditions of
permanent dust and water exposure.
General safety instructions and warnings
• Before operating the device, we recommend that you read
the manual instructions carefully and operate the device in
accordance with the instructions.
• Failure to follow the safety instructions and warnings will not be
the responsibility of the manufacturer for any damage to health or
property.
• Always keep the manual instructions together with the device for
future reference and use by new users.
• Use the device only for its intended purpose and in the manner
specified by the manufacturer.
It is not a professional commercial use device.
Safety of the operating environment
• Do not use the device in an industrial environment or in an
outdoor environment!
• Do not expose the device to:
- sources and equipment producing excessive heat,
- fall, vibration and mechanical stress,
- excessive dust,
- water at the main control unit (outdoor unit, outdoor
temperature sensor has IP33 protection, is waterproof -
outdoor rain)
- aggressive environmental influences.
• The operating environment of the device must always be in
accordance with the established essential characteristics.
Operating environment characteristics
• The outdoor temperature sensor (IP33) is waterproof (do not
immerse it in water, is only resistant to rain).
IP 33

4EN
• Main unit - control unit - basic protection class IPX0 (when the
device is not protected by its cover against the effects of water)
is not marked on the product and in the technical parameters
specified in the operating instructions.
• If the protection degree of the product is different from IPX0, this
is indicated on the rating plate of the device, possibly also in the
specifications of the operating instructions.
• Main equipment - The control unit is not primarily intended for
use in environments with significant water effect.
Personal safety
• This device may be used by children from 8 years of age and
persons with reduced physical, sensory or mental capabilities
or lack of experience or knowledge if they are supervised or
instructed to use the appliance safely and understand the
dangers involved.
• Children must not play with the equipment.
Cleaning, maintenance and repair
• Use only the recommended method for routine cleaning and
maintenance of electrical equipment. Do not use chemical
solvents or abrasive cleaning items for cleaning.
• Never clean the device in a way that may cause immersion in
liquid and liquid flow into the device.
• Clean the device only with a damp cloth and wipe dry or allow to
dry.
• Keep the appliance clean and dry.
• Do not disassemble the electrical / electronic equipment!
• Never repair the electrical / electronic equipment yourself!
Special safety instructions and warnings
• When transporting and carrying, take care when moving to avoid
dropping the device and damaging it.
• Unpack the equipment and accessories before putting them
into service and remove any parts of the packaging materials,
etiquettes and labels. Store packaging materials in a safe place,
especially out of the reach of children and incapacitated persons,
or dispose of them safely.
• If the device has been stored at low temperatures (eg winter) or
excessive humidity, allow it to “acclimate” at room temperature
for about 1 hour to remove any moisture in the electronic
components resulting from ambient temperature changes.

5EN
• Do not expose the device to indoor use to water or moisture. Do
not place any containers of water or other liquids on the device.
• Do not install the device near heat sources or other devices that
generates excessive heat.
• Do not place any objects on top of the device that may cause a
hazardous situation (eg burning candles, etc.).
• To avoid the risk of electric shock (in the case of equipment
that operates with hazardous AC power), do not disassemble
the device or attempt to service it yourself. Leave any electrical
equipment repairs to qualified service personnel.
Operation/Use
Caution!
• In places where the use of mobile phones is
not permitted, or where the device may cause
interference or danger, for example in hospitals
and near high-sensitivity electronic medical
devices, fuels, chemical substances, or places
where blasting operations are carried out, switch
off mobile devices with caution.
• Follow all safety instructions and warnings in
these locations.
• A digital weather station that operates in the
433 MHz band may interfere with other wireless
devices or networks.
• If this device is placed too close to other 433MHz
devices, it may not work properly and may cause
problems due to radio wave interference.
Warning!
• The manufacturer and the supplier are not
responsible for improper operation at the location
where interference occurs.
• If there is any difference in weather forecast
between the local weather station and this
device, the weather forecast in the local weather
station is preferred. The manufacturer is not
responsible for the incorrect weather forecast
provided by this device.

6EN
• This product may not be used to inform the
public. Only consider the weather forecast for this
weather station as a guide. The manufacturer
is not responsible for any improper display of
weather forecasts on the display of this weather
station and the consequences thereof.
• The AC adapter must remain easily accessible
during use. The device must not be exposed to
dripping or splashing water.
• Do not use the product in locations where the
use of electronic device is not permitted.
• Do not place the product near fields of
interference, metal frames, computers, TV, and
so on. Electronic devices and window frames can
adversely affect product performance.
Technology
Frequency band
• This device uses the 433 MHz unlicensed radio frequency band.
Certifications
• This device complies with frequency limits and has been certified
to demonstrate compliance with regulatory requirements for
frequency bands. Therefore, no wireless authorization is required.
• The interventions listed below are illegal:
- remove parameter labels
Determination of use
• This system is designed for general-purpose home use.
• Wireless transmission from an external sensor may adversely
affect the functionality of electronic medical devices.
• Do not use this system near equipment or in a high-frequency
environment such as:
places with the presence of flammable gas,
places near automatic door systems, alarm devices like:
- airports,
- Hospital
- laboratories
- petrol stations, etc.
because broadcast interference can cause an accident.

7EN
Use range
• Use the outdoor wireless sensor at a distance of up to 10 m (no
obstacles).
• Different types and environments, obstacles or interference may
reduce the transmission range (e.g. metal barriers, walls, people ...).
Interference with other devices
• If this weather station is located too close to other 433MHz
bandwidth-enabled devices, it may not work properly and
problems may occur in the form of erroneous transmitted data or
radio wave interference.
Other
• If you experience discomfort when using the wireless transmitter
from the outside sensor, stop using the device immediately.
• If any problem persists, contact your nearest ORAVA dealer.
Power Supplies
Battery power
The indoor (main) device can be powered by 3 1.5V AAA batteries.
Insert batteries into the device:

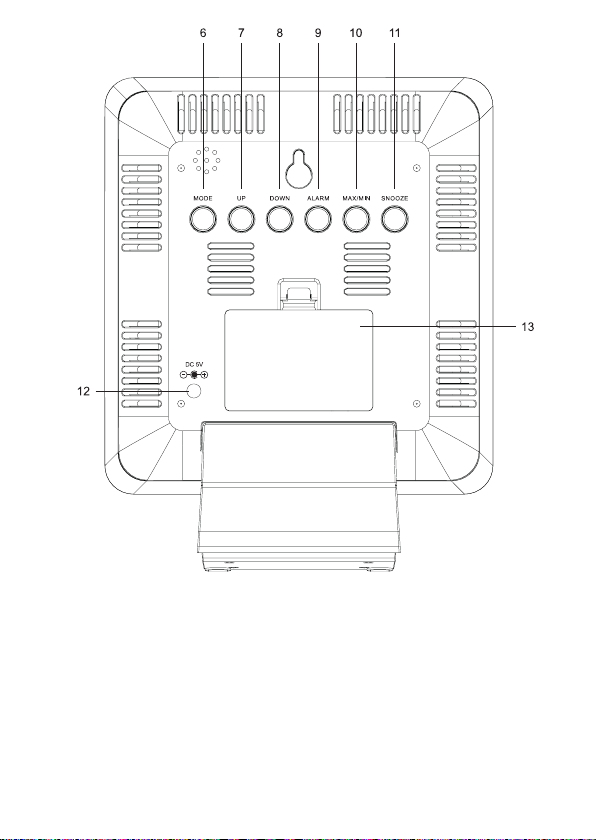

1 Open the back cover of the battery compartment and open the battery
compartment.
2 Insert 3 AAA 1.5V batteries into the battery compartment. Observe the
correct polarity + and - marked inside the compartment.
3 Close the battery compartment by inserting the cover.
Remark
When powering the device (main) from the batteries, the display turns off
after approx. 10 seconds. Press any button to turn the display back on.
Power from AC adapter
The indoor (main) device can also be powered from a 5V, 1.2A AC
adapter.

8EN
Supplying an external temperature sensor from batteries
The sensor is powered by 2 1.5V AAA batteries and has the following
features:
• waterproof (do not immerse it in water, resistant to rain only)
• a bright surface to avoid sun-warming
• wireless communication.
Insert the batteries into the outdoor sensor within three minutes of
activating the internal device. When the batteries are inserted, the
sensor starts to transmit a signal and the outside temperature will be
displayed on the internal device.
If this does not occur within 15 minutes, remove the batteries from the
external device and disconnect the internal device from the power
supply. Then first activate the indoor and then within 3 minutes the
outdoor device.

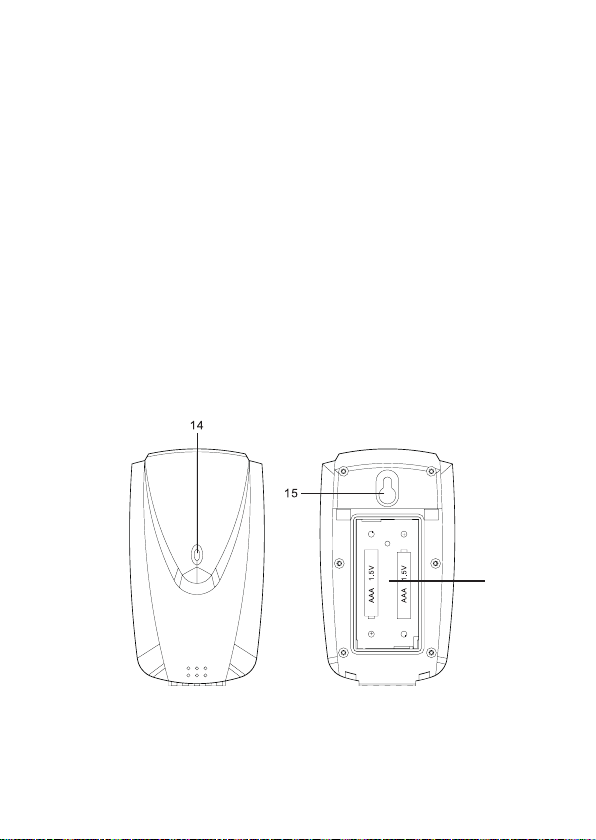

1 Open the outside temperature sensor cover and open the battery
compartment.
2 Insert 2 1.5V AAA batteries into the battery compartment of the outdoor
temperature sensor. Observe the correct polarity + and - marked inside
the compartment.
3 Close the battery compartment by inserting the cover.
4 Attach the outdoor temperature sensor to the selected location.
Place the sensor in an outdoor area with adequate ventilation, away
from sunlight (you can mount it on the wall with the eyelet on the back).
The operating range is 30 m from the unit (no obstacles only). We
recommend placing it as close as possible to the main device.
Notes
• Do not insert any other objects into the battery compartment.
• If you will not be using the unit for a long period of time, remove the
batteries to prevent battery leakage and corrosion.
• Observe the correct polarity + and -. If batteries are stored in the wrong
polarity, the batteries and the device itself may be damaged.
• Replace the batteries whenever the external display is no longer present
temperature.

9EN

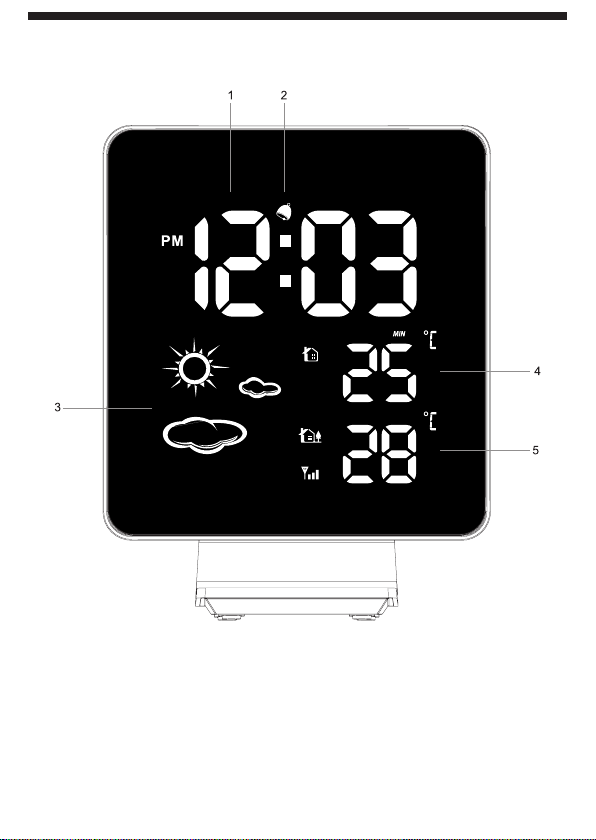

Parts description
LCD display
1: display time (calendar)
2: activated alarm indicator
3: display of weather forecast symbols
4: display of internal temperature
5: display of outdoor temperature

10EN
Control elements
The controls are located on the back of the device:
6: MODE button (mode/setting)
Press briefly to toggle between (time - date - alarm). Press and hold for 3
seconds to activate setting mode
7: UP button
Press briefly in the setting mode to make settings in various setting
modes.Press and hold for 3 seconds in run mode to clear the measured
temperature memory.

11EN
8: DOWN button
Press briefly in the setting mode to make settings in various setting
modes.
9: ALARM button (alarm mode on/off)
Press briefly to switch alarm mode on/off.
Press and hold for 3 seconds to activate alarm setting mode
10: MAX/MIN button (MAX and MIN temperature values)
Press briefly to switch between current/minimum/maximum temperature
display.
Press and hold for 3 seconds while displaying minimum/maximum
temperature and humidity to clear minimum/maximum temperature
records.
11: SNOOZE button
Briefly press to turn on the snooze function for the right alarm.
Press briefly in normal mode to adjust the brightness of the display.
12: DC connector
Connecting a suitable 5V, 1.2A AC adapter.
13: battery compartment cover
Inserting three 1.5V AAA batteries to power the device while backing up
the set time and date in the event of a power failure.
Outdoor sensor
14: LED indicator of the broadcast signal (red)
15: wall mounting hole
16: battery compartment (2x 1.5V AAA)
16

12EN
General operations
Display
The display shows various information such as time, date and day of the
week, weather forecast symbol, temperature, etc.
Temperature display
The device has a built-in ambient temperature sensor and a wireless
outdoor temperature sensor, and the temperature is displayed.
You can display the temperature in °C / °F.
Set the desired units in the setting mode.
Display of maximum and minimum measured temperature
Press the MEM button in standard mode to display the maximum and
minimum temperature readings.
Warning!
When in operation, it warms slightly, which may result in a slight deviation
in the accuracy of the actual temperature display (± 1 °C).
Selecting a set item
When the device is on, press and hold the MODE button to enter the
setting mode, and then press to toggle the item you want to adjust. The set
item flashes.
You can set both time / calendar and alarm (alarm clock). Items you set
are:
12- / 24-hour cycle for time - hours - minutes - year - month - day - unit
setting °C / °F
After activating the setting mode and selecting the desired item, you can
set it using the UP and DOWN buttons.
If no operation is performed for about 15 seconds, the default mode will be
restored.

13EN
Clock/calendar settings
When the device is on, the display shows the time. The time is displayed in
a 12- or 24-hour cycle.
For a 12-hour cycle, the PM display indicates the afternoon time.
To set the calendar and time setting mode, press and hold the MODE
button in standard mode for about 3 seconds.
1 Press and hold MODE in clock mode to activate the setting
mode. The 12- or 24-hour cycle will flash.
2 In the time setting mode, press MODE to toggle between 12/
24H mode - hour - minute - year - month - day - °C/ F° - mode
off.
The currently selected item is blinking.
3 When 12- / 24-hour mode is selected (12H flashes), press
the DOWN or UP button to set the 24- / 12-hour time display
mode.
4 Press the MODE button and press the DOWN or UP button
to set the hour.
5 Press the MODE button and press the DOWN or UP button
to set the minutes.
6 When the year setting is selected (the year digit flashes),
press the DOWN or UP button to set the year.
7 Press the MODE button and press the DOWN or UP button
to set the month.
8 Press the MODE button and press the DOWN or UP button
to set the day (date).
9 Press the MODE button and press the DOWN or UP button
to set the temperature display in ° C or ° F.
10 When the setting is complete, press the MODE button.
The setting mode is also cancelled automatically if about 15
seconds you will not perform any operation. The settings are
saved.

14EN
Alarm and time setting for snooze
function
The device is equipped with an alarm clock.
1 After setting the clock correctly, press and hold ALARM to
activate alarm setting mode (a beep sounds).
2 In ALARM time setting mode, press ALARM to toggle
between set items in the order of hours - minutes - off
mode.
The currently selected item and the bell icon are flashing.
3 When the clock setting is selected, press the DOWN or UP
button to set the hour.
4 Press ALARM and press DOWN or UP to set the minutes.
5 After setting, press ALARM.
The setting mode is also cancelled automatically if no operation
is performed for about 15 seconds. The settings are saved.
Upozornenie!
The alarm can only be set when the clock is set correctly.
Note!
In the standard time display mode, press ALARM to turn the alarm on and
off. The bell icon “ ” appears or turns off.

15EN
Snooze function
If the alarm time is set after the alarm has been set, and the alarm sound
is reproduced, press the SNOOZE button to temporarily turn off the alarm
sound. The snooze function will be active, as indicated by the “ZZ” icon.
If no other button operation is performed, the alarm sounds again after 5
minutes.
To turn off the snooze function (when active), press SNOOZE. To turn off
the alarm, press ALARM.
Thermometer
When the device is switched on, the current temperature value is
displayed.
You can change the temperature units °C / °F in the settings.
If the device does not receive an effective signal within 60 minutes from the
outside sensor, the outside temperature for that channel is displayed as
“-. - “.
When a signal is received, the external temperature display resumes.
The internal temperature measuring range is 0 - 50 °C, the measuring
period is every 30 seconds.
When the temperature is below 0 °C, LL is displayed, HH is displayed at
50 °C.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
The symbol on the product or on its packaging indicates that this product does
not belong to household waste. It is necessary to take it to a collection point for
electrical recycling
and electronic equipment.
By ensuring proper disposal of this product, you will help prevent negative
consequences
to the environment and human health that would otherwise be caused by
inappropriate disposal of this product. For more detailed information about
recycling of this product, please contact your local authority, your household waste
disposal service or the shop where you purchased the product.

16EN
Using the outdoor temperature sensor
Connecting a wireless outdoor temperature sensor
1 Insert the two 1.5-volt AAA batteries correctly as described
in the battery insertion guide into the supplied outdoor
temperature sensor.
2 After inserting the batteries, the sensor is activated and
data transmission begins.
About 3 minutes, the RF transmission symbol will flash on the
display and will start to appear when the sensor is connected.
The outside temperature in the exterior display and the RF
signal beam will light continuously.
Warning!
• Do not place the sensor near heat sources, power sources, or direct
sunlight. The measured values will be distorted.
• The sensor transmits the measured data every 3 minutes. At that time,
the red LED indicator flashes on it.
• There should be as few obstacles as possible between the sensor and
the device. Keep the distance as short as possible to avoid data loss
interruptions.
• Do not place other wireless sensors near this sensor to avoid
interference.
• If the outdoor temperature is no longer displayed on the main unit
display, the batteries in the sensor are weak and need to be replaced
with new ones.
• The internal temperature measuring range is -35 - 60 ° C, the
measurement accuracy is +/- 1 ° C.
• When the temperature is below -35 ° C, LL is displayed, HH is displayed
at temperatures above 60 ° C.

17EN
Weather forecasting
The device displays the weather forecast in the form of an appropriate
symbol icon.
Weather Forecast Symbols are as follows:
sunny
partly
cloudy
rain
Warning!
The weather forecast is only indicative and informative and may
not be accurate or true. It is not possible to take it as a binding and
incorrect display of the weather is not a reason for claiming the device.
Measurements are taken every 60 minutes.
Brightness adjustment - backlight
Press the SNZ button briefly in standard mode to adjust the backlight
intensity.
Three levels of backlight are available when powered from the AC adapter:
high - medium - off backlight
Two levels of backlight are available when running on batteries: high -
medium
Energy-saving mode
When running on battery power, the LED display goes out after 10 seconds
after any activity, and the device is in power saving mode.
In power save mode, the audio and touch activation function is activated.
The display lights up when you clap, loud, or touch any of the buttons on
the back of the device.

18EN
Maintenance
Cleaning the device surface
Use a soft cloth slightly moistened with water to clean the surface of the
device, panel, controls, and outdoor temperature sensor. Do not use
abrasive cloths, cleaning powders or solvents such as thinner, petrol or
alcohol.
They may damage the finish.
Technical specifications
Generally
LCD display:
Clock display (12- / 24-hour cycle), calendar, weather forecast, humidity and
indoor / outdoor temperature (° C / ° F)
Temperature measuring range:
Equipment: 0 - 50 ° C, deviation +/- 1 ° C
(Temperature outside this range is displayed as “LL” or “HH”.)
Outdoor Temperature Sensor: -30 - +60 ° C, +/- 1 ° C Deviation
(Temperature outside this range is displayed as “LL” or “HH”) “.)
Temperature control: Device: every 30 seconds
Outdoor temperature sensor: every 3 minutes
Power supply:
Equipment: DC: 5V from AC Adapter (5V, 1.2A) DC: 4.5V from Batteries, 3x
1.5V, Type AAA
Outdoor temperature sensor: DC: 3 V, 2 x 1.5 V batteries size AAA
Transmit frequency outdoor temperature and humidity sensor: 433.99 MHz
Subject to change!

19EN
DECLARATION OF CONFORMITY
Short text Declaration of Conformity:
ORAVA retail 1, a.s. hereby declares that the Meteo complies with the essential requirements and other relevant conditions
of Directive 2014/53/ EU of the European Parliament and of the Council.
The full text of the Declaration of Conformity is available at: www.orava.eu
This product meets all the essential requirements of the EU directives that apply to it.
Producer:
Importer:
ORAVA retail 1, a.s.
Seberíniho 2
821 03 Bratislava
Slovenská republika
ORAVA distribution CZ, s.r.o.
Ostravská 494
739 25 Sviadnov
Česká republika
ORAVA retail 1, a.s.
Seberíniho 2
821 03 Bratislava
Slovenská republika
