Orbital Systems Oas Indo OS8732 Ei2 User manual

Oas Indo Manual
Oas Indo EU PRE-INSTALLATION 190923 PRE-INSTALLATION

2
(34)
EU D ECLARATION OF C ONFORMITY (D O C)
We Orbital Systems AB,
Hans Michelsensgatan 10A
211 20 Malmö
Sweden
Hereby declare that this DoC is issued under our sole responsibility and belongs to the following product:
OS8732-Ei2
This declaration is in conformity with the relevant union harmonized legislations:
RED 2014/53/EU RoHS 2015/863 LVD 2014/30/EU
The following harmonized standards and technical specifications have been applied:
EN 300 328 v2.1.1 EN 301 489-1 v2.1.1 EN 301 489-17 v3.1.1
EN 300 330 v2.1.1 EN 62311:2008 EN 60335-2-105:2005+A1+A11
Additional standard that has been applied to the product:
UL 1951 IGC-330-18 FCC Part 15 B
EN 1717 BBR NSF55
EN 13076
The product has undergone mandatory or voluntary certification procedures in order to receive the following certifications:
KIWA TG 1503 KIWA K100686/01 IAPMO E10059
IAPMO C-11154 IAPMO W-11301
Signed for and on behalf of Orbital Systems AB
Place Date Name Position
Malmö 2019-08-28 Mehrdad Mahdjoubi CEO
Introduction & Safety Messages
This manual applies to model OS8732 Ei2.
Thank you for purchasing the Oas shower system. To enjoy the
full potential of the shower please read and follow the procedures
in this manual. Make sure that you fully understand how to
operate this shower and make sure that it is properly maintained
in accordance with the instructions given in this manual. Do
not throw this manual away, keep it handy for future reference.
EU DECLARATION OF CONFORMITY
This system is certified by IAPMO
R&T to NSF 55, Class B
The manufacture of this product has been made in accordance with the Construction Products
Certificate decision on production control and the documents submitted to the decision of issue
of this certificate.

4
(34)
WARRANTY
Introduction & Safety Messages
The Oas shower and its components are manufactured from high-quality
materials and assembled under strict standards.
Orbital Systems warranty covers defects which appear within a period of
two years from delivery of the product.
Orbital Systems warranty does not cover:
• Defects arising out of materials or a design specified by the Customer,
or by any alterations carried out without our consent.
• Defects that appear under conditions of operation not provided for
and under improper use of the product.
• Defects caused by faulty maintenance, incorrect installation or a faulty
repair.
Repairs should be carried out only by Orbital Systems, one of our
certified service partners or the customer only when certified.
For showers outside of the warranty period spare parts are available for
purchase directly from Orbital Systems or through one of our certified
partners.
SAFETY INSTRUCTIONS
The appliance shall be supplied by a switch that provide a full
disconnection under overvoltage category III incorporated in the fixed
wiring plant.
The appliance is designed for a fixed connection to the water mains. Do
not use a detachable water pipe or hose.
Unauthorized modification of internal components and wiring is
prohibited.
If the supply cable is damaged it must be replaced only by the service
assistance or person with similar qualification.

5
(34)
TABLE OF CONTENTS
Installation Overview 6
Pre-installation 11
Contact us
[e-mail]
www.orbital-systems.com
Europe CET: [phone]
Orbital Systems and our team of expert staincluding our certified
Service Partners are available to assist you should you require product
advice, experience any problems, need to purchase spare parts or to
set up a service visit.
We recommend your first point of contact should be your installer, who
will be able to oer all of the above services.
Alternatively you can also contact Orbital Systems who will be able
to assist you. Repairs should always be carried out only by Orbital
Systems or a certified partner.
SERVICE

6
(34)
INSTALLATION OVERVIEW

7
(34)(147)
7
1000 mm
Installation Overview
PRODUCT MEASUREMENTS
2190 mm
575 mm
184 mm 122 mm
145 mm
Ø 75 mm
932 mm
600 mm
145 mm
1266 mm
812 mm
440 mm

8
(34)
PREREQUISITES FOR INSTALLATION
Installation Overview
Electrical supply
EU-one phase: AC 220-240 V / 50 Hz / 16 A
Residual circuit breaker: One per shower required. Having a rated residual tripping current not exceeding 30 mA
Mains supply fixed cord: Min. 2.5 mm2(rated for 16 A circuit)
Connectivity
Internet connection: WiFi 2.4 GHz required
Circuit breaker: One per shower required
Plumbing / Water
Hot and Cold Water Inlet: Separate hot/cold inlet required - 1/2” BSPP (G) pipe connection needed
Temperature of inlet water: Cold: +4°C to +30°C
Hot: +40°C to +65°C
Water inlet flow: Min. 9 litres/minute hot and cold
Water pressure: Min. 3 bars/43,5 psi/0,3 MPa measured at the highest point of installation
Max pressure 10 bars / 145 psi / 1 MPa
Hardness of Water: Required: 3°dH-10°dH and Preferred: 6°dH-10°dH or a total hardness of 110-180 mg CaCO3/litres

9
(34)

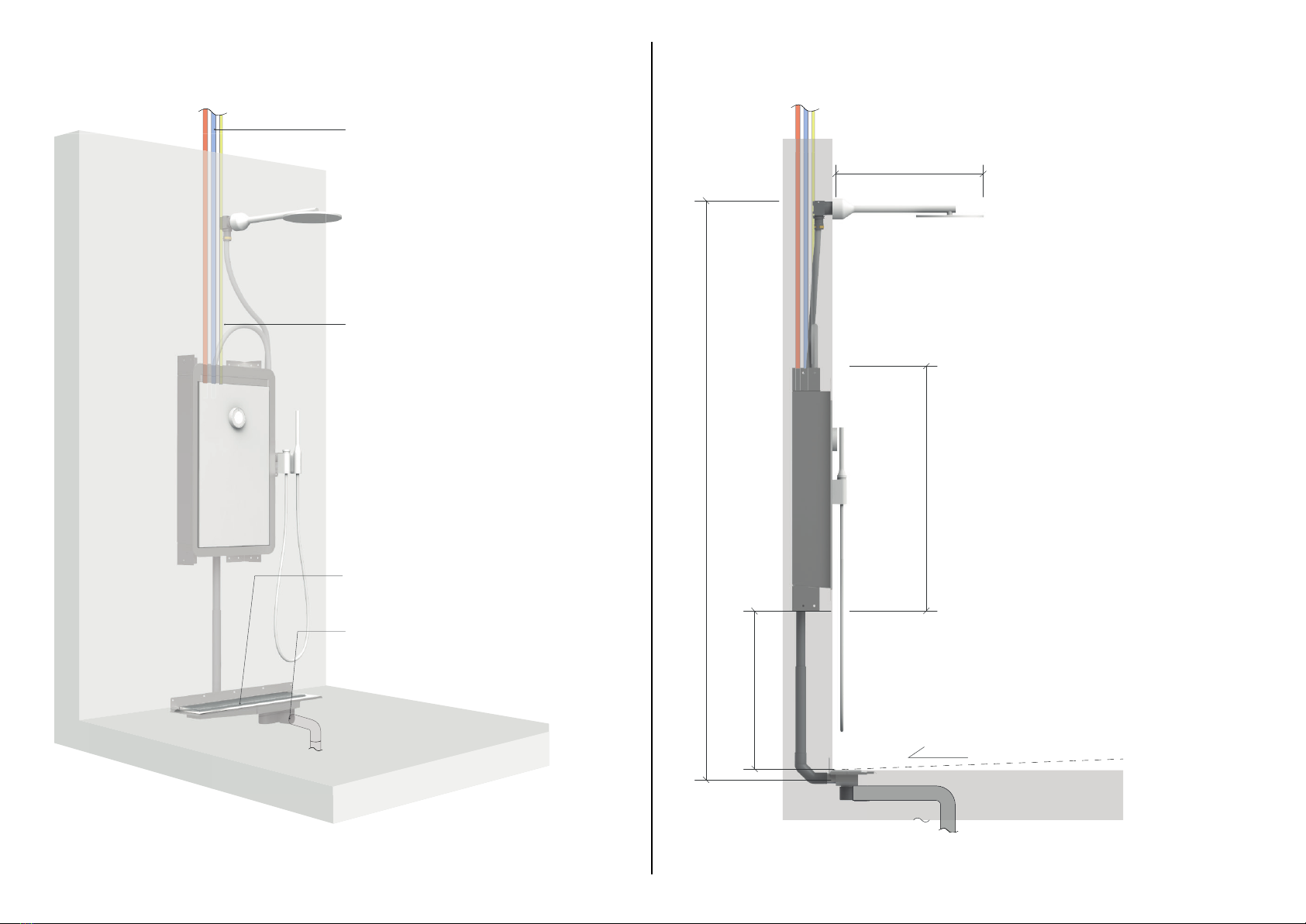

Drain unit dimensions:
HxWxD: 192 x 812 x 184 mm
Connection to drain:
Ø75 mm
Cold and hot water supply
Recommended Min: 9 litres/minute
Recommended Min: 3 bar,
maximum 10 bar
Electrical supply, power:
230 V/16 A
INSTALLATION OVERVIEW
Installation Overview
Core Wall Enclosure:
HxWxD: 932 x 538 x 145 mm
Min. 2%
600 mm
575 mm
2190 mm

10
(34)
+15-25%
+10-20%
+5-10%
Installation Overview

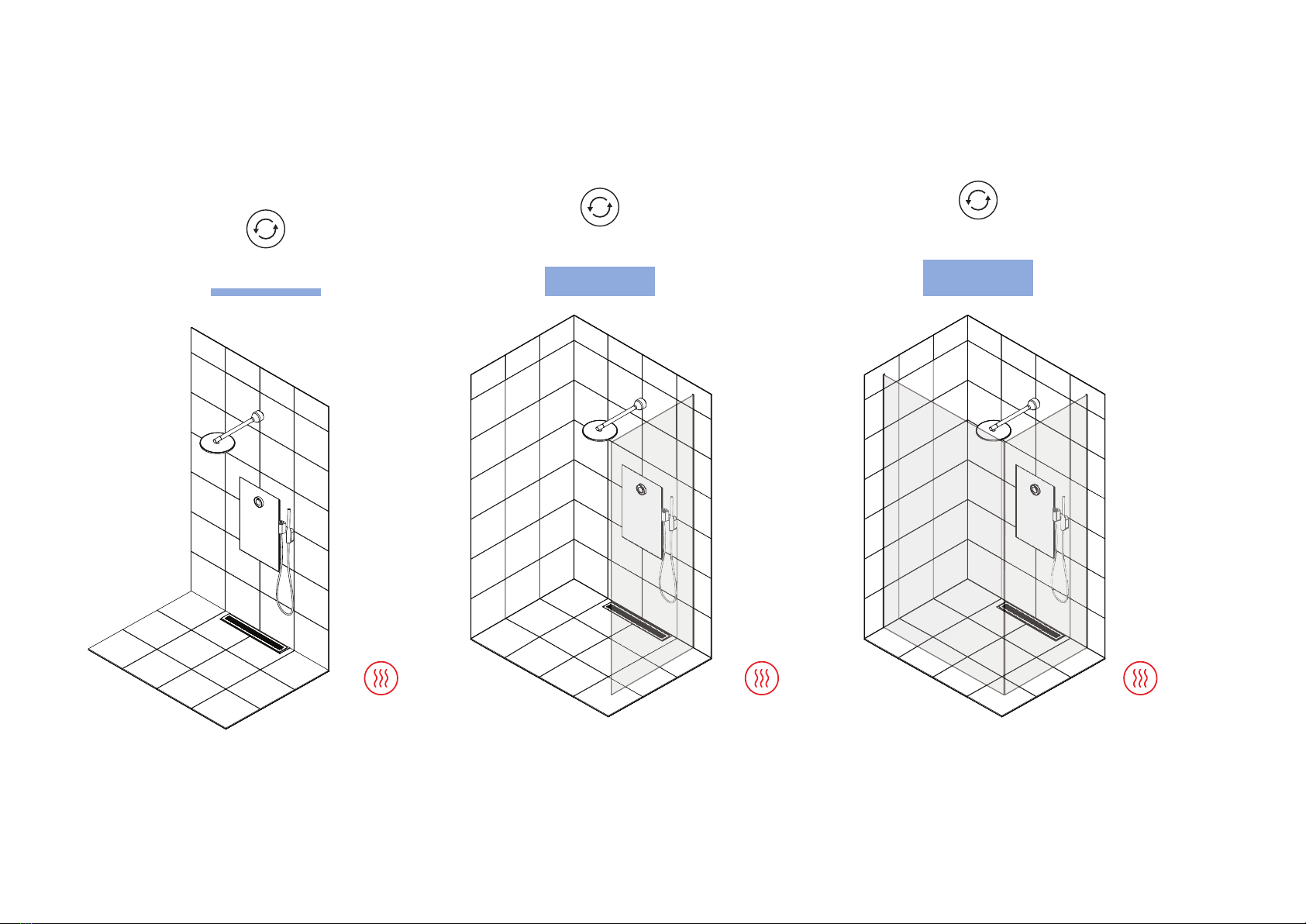

RECYCLING OPTIMISATION SITE SUGGESTIONS
Based on 8 minutes shower (7 minutes recycling)
in shower space with underfloor heating.
Fully enclosed shower space
Recommended installation by Orbital
Systems

11
(34)
PRE-INSTALLATION
watch video: https://bit.ly/2TOBJNA

12
(34)
8
9
10
1
2
6
5
3
4
11
8 9 10
7
12
13
14
COMPONENT OVERVIEW
Provided by customer
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Wall box UNI Push + Pan head screw, x4
Core Wall Enclosure
+ Pan head stainless steel screw, x8
Connection Pipe
Frame
Drain Unit + Countersunk stainless steel screw, x5
Outlet Unit (OS provides requested alternative)
PEX hose with corrugated sleeve
Hose connections
PEX hoses and corrugated sleeves, x2
Power Cable and corrugated sleeve
Grating
Hand Head Diverter kit + Countersunk stainless screw, x3
Pipe clamps, x2
Pipe support sleeves
Pre-installation

13
(34)
440 mm 145 mm
538 mm
452 mm
Ø40 mm
184 mm
122 mm
812 mm
114 mm
690 mm
Ø75 mm
145 mm
192 mm
650 mm
440 mm
150 mm
90 mm
932 mm
754 mm
201 mm
cc 40 mm
726 mm
853 mm

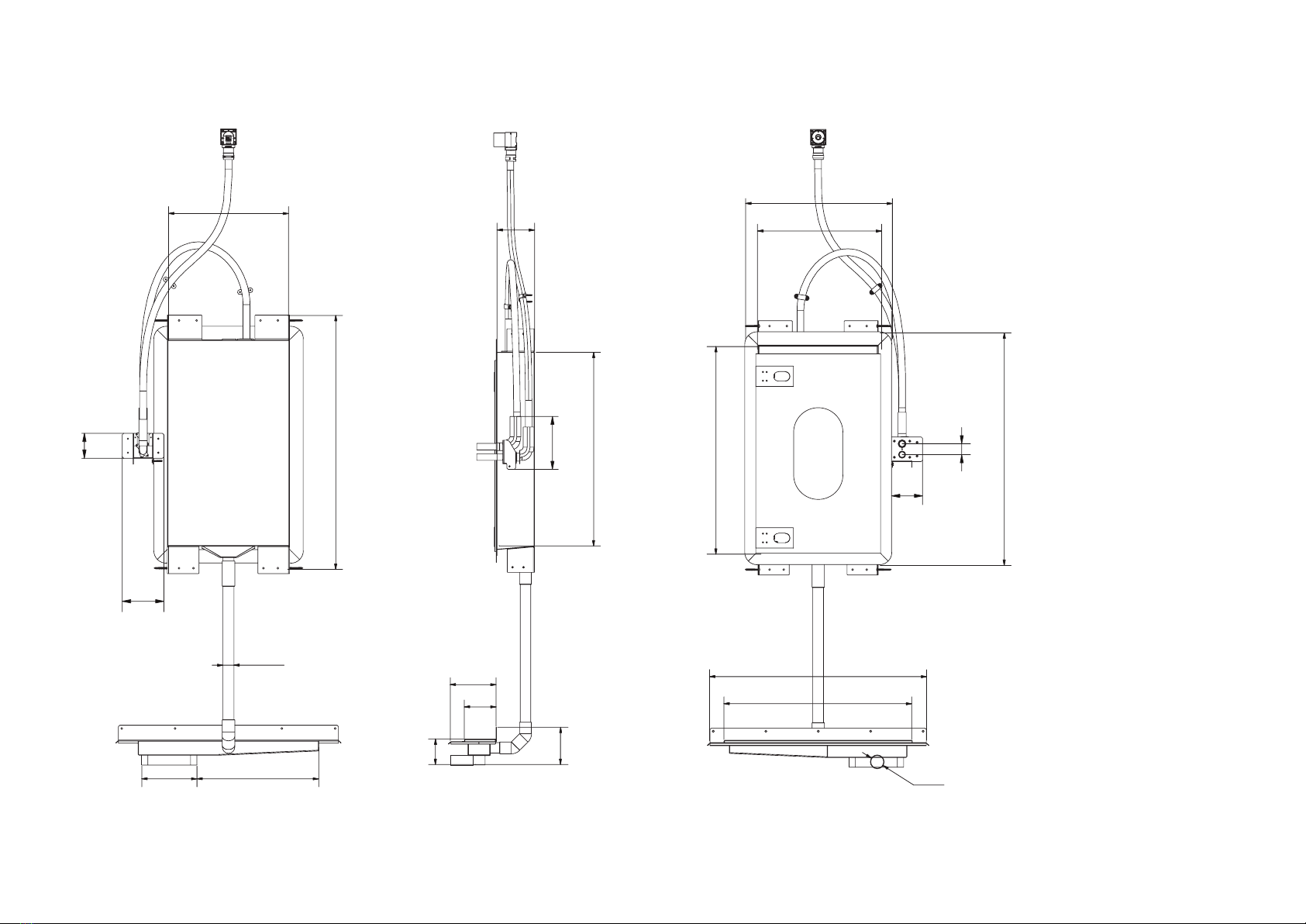

KIT MEASUREMENTS
Pre-installation

14
(34)
2125 mm
600 mm
1000 mm

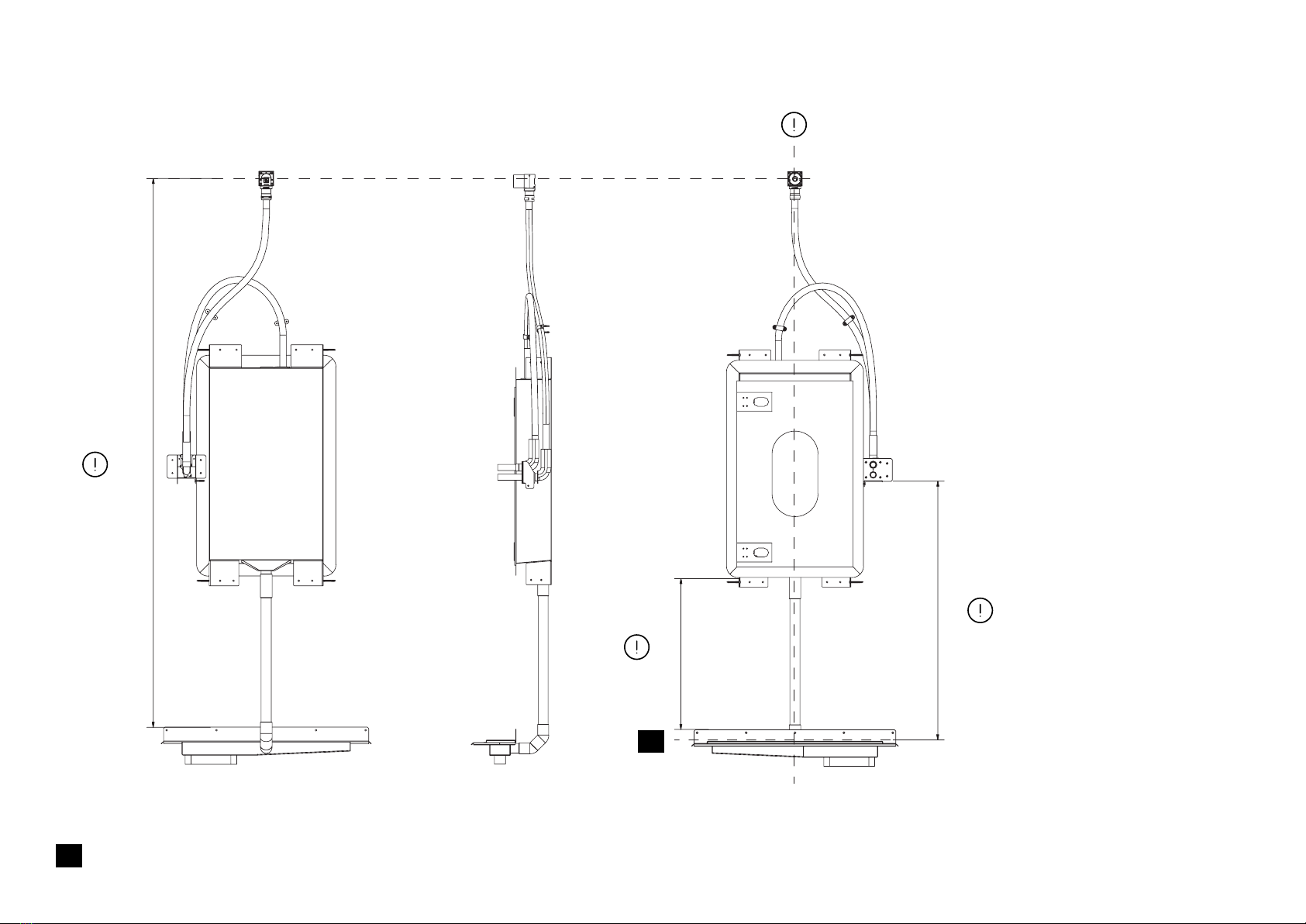

CRUCIAL KIT INSTALLATION MEASUREMENTS
Pre-installation
X
X
Finished floor height where it is level.

15
(34)
145 mm
442 mm
X
X
X
X
Y
50 mm
1620 mm 145 mm
Pre-installation
Mark the finished floor height,
where it is level (>145 mm).
Inclination will be accounted for at
a later stage.
X
X
Finished floor height where it is level.
Finished floor height where it is level.
Finished floor height where
Floor tiles are level with, or
higher than the Frame.
CAUTION. Crucial that all nogging pieces are in level and
set according to recommended measurements to avoid
misalignment in the shower installation.
YWall thickness after completed installation.
≥80 mm 145 mm
≥45 mm
≥45 mm
2100 mm
85 mm
>85 mm

16
(34)
Ø50 mm
Pre-installation
Apply wall covering according to local regulations.
Mirror slot in stud and wall covering depending on hand shower
placement.
CAUTION. Plumbing and electrical installation should be
performed according to local regulations by a licensed
professional.
B
A
x5
Countersunk
stainless steel
screw

17
(34)
X
X
Pre-installation
X
Z
≥30mm
Z Z
Finished floor height where it is level.
Drain unit is centred in the shower space.
Connect Drain Unit to the sewerage system as defined
by local regulations.

18
(34)

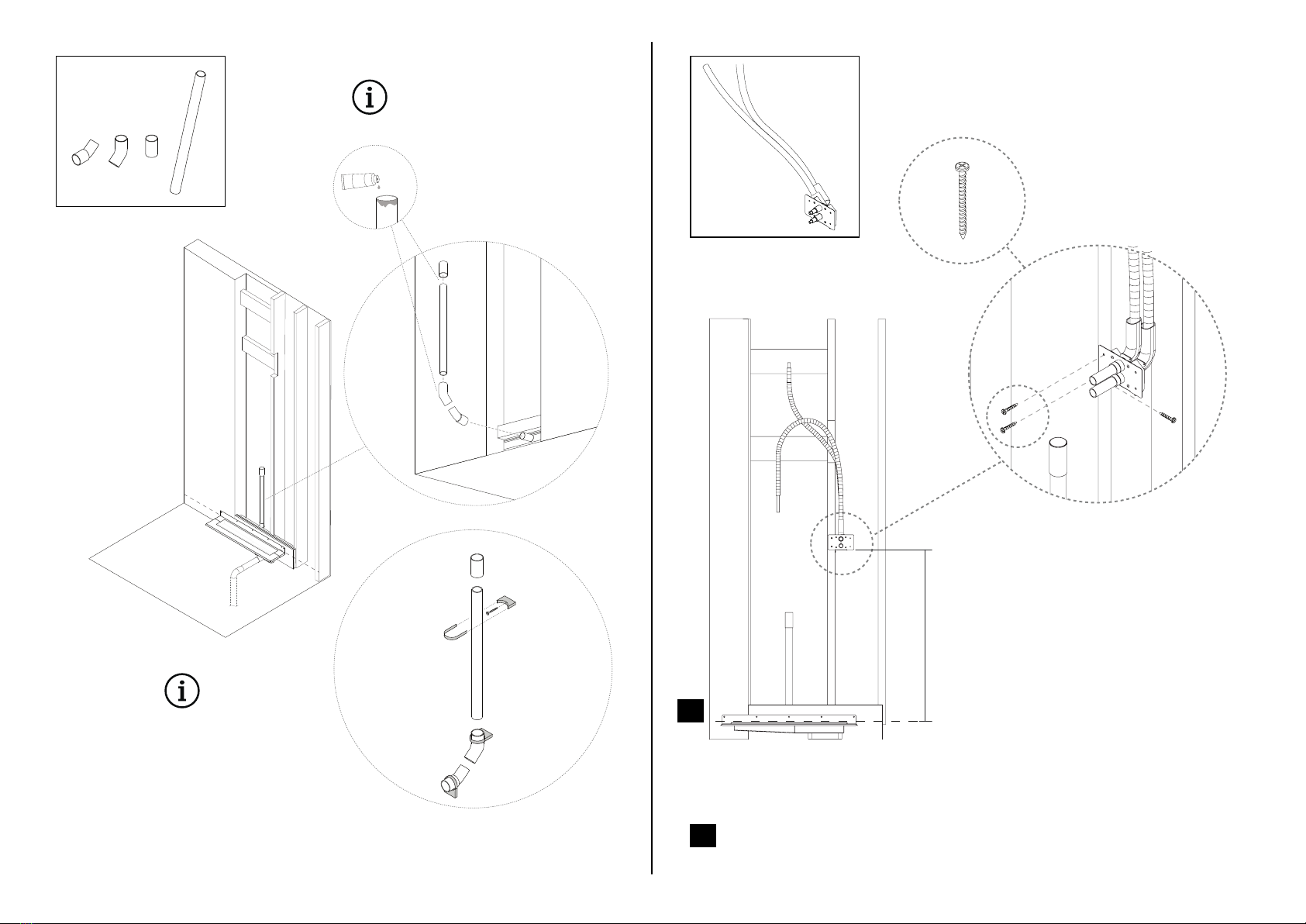

Anchor the Drain Piping according to local regulations.
Pre-installation
Apply lubricant
Anchors provided by
customer
X
1000mm
XFinished floor height, where it is level.
x3
Countersunk stainless
steel screw

19
(34)

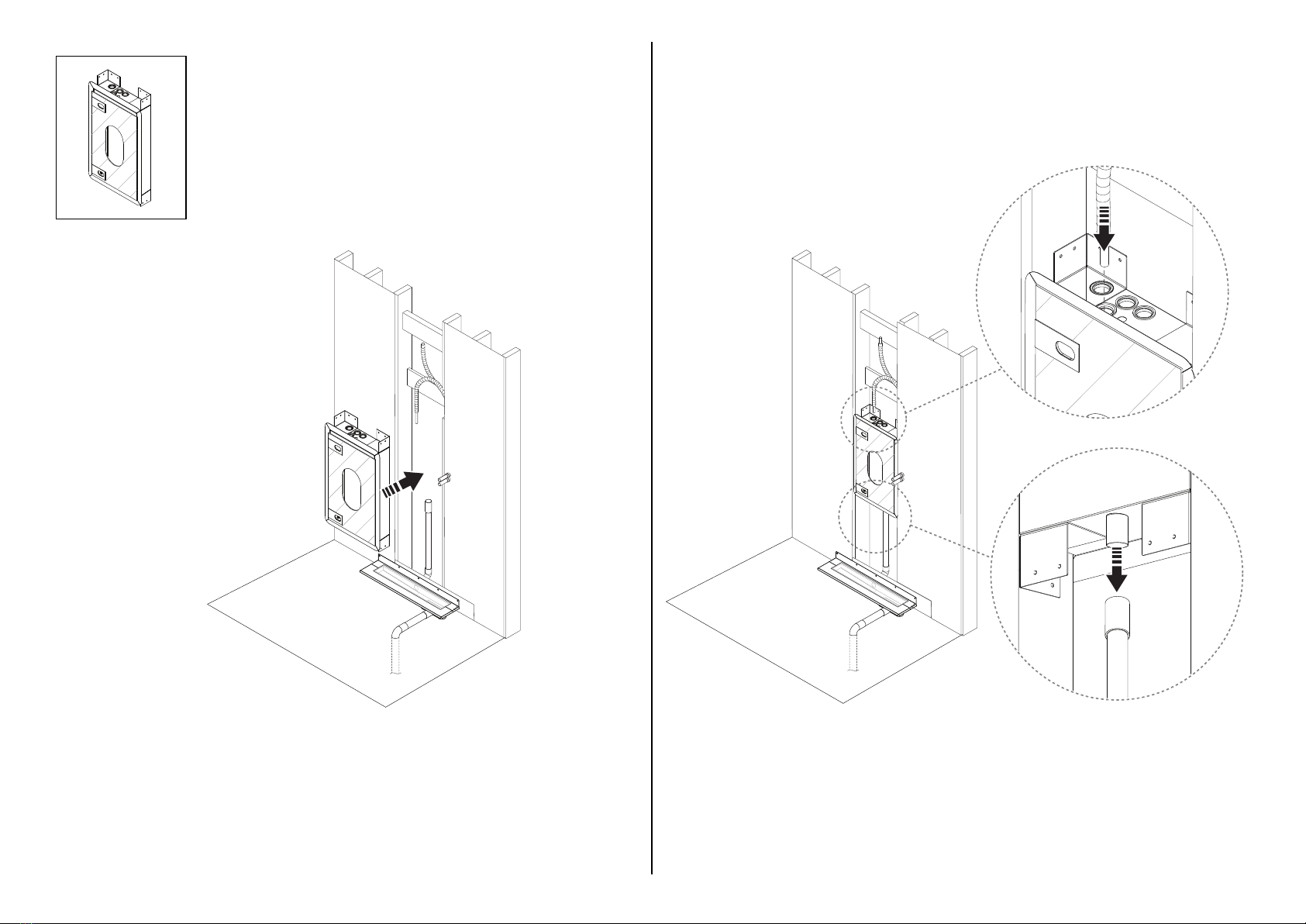

Secure pipe in slot in stud and anchor with pipe clamp.
Pre-installation
Apply wall covering according to local regulations.

20
(34)
Pre-installation

21
(34)
600 mm
x8
Pan head stainless
steel screw
Pre-installation
CAUTION. Check the
water tightness to
eliminate leakage.
Secure the pipe and anchor with pipe clamp.
