Origin 21 EDISON 1690VA-30-318-901-UM User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at
888-251-1026 , 8 a.m. - 8 p.m., EST, Monday - Sunday.
1690VA-30-318-901-UM O21 30-IN EDISON CHAMBRAY VANITY/ENGINEERED WHITE TOP
1690VA-30-318-925-UM O21 30-IN EDISON CHAMBRAY VANITY/ENGINEERED CARRARA TOP
1690VA-30-318-926-UM O21 30-IN EDISON CHAMBRAY VANITY/ENGINEERED CALACATTA TOP
MODEL NUMBER DESCRIPTION
MODEL #1690VA-30-318-901-UM; 1690VA-30-318-925-UM; 1690VA-30-318-926-UM
30-IN VANITY WITH TOP

2
TABLE OF CONTENTS
Package Contents...........................................................................................................................3
Hardware Contents..........................................................................................................................3
Safety Instructions...........................................................................................................................3
Preparation......................................................................................................................................4
Assembly or Installation Instructions...............................................................................................4
Care and Maintenance..................................................................................................................10
Warranty........................................................................................................................................10
Replacement Parts List.................................................................................................................11

3

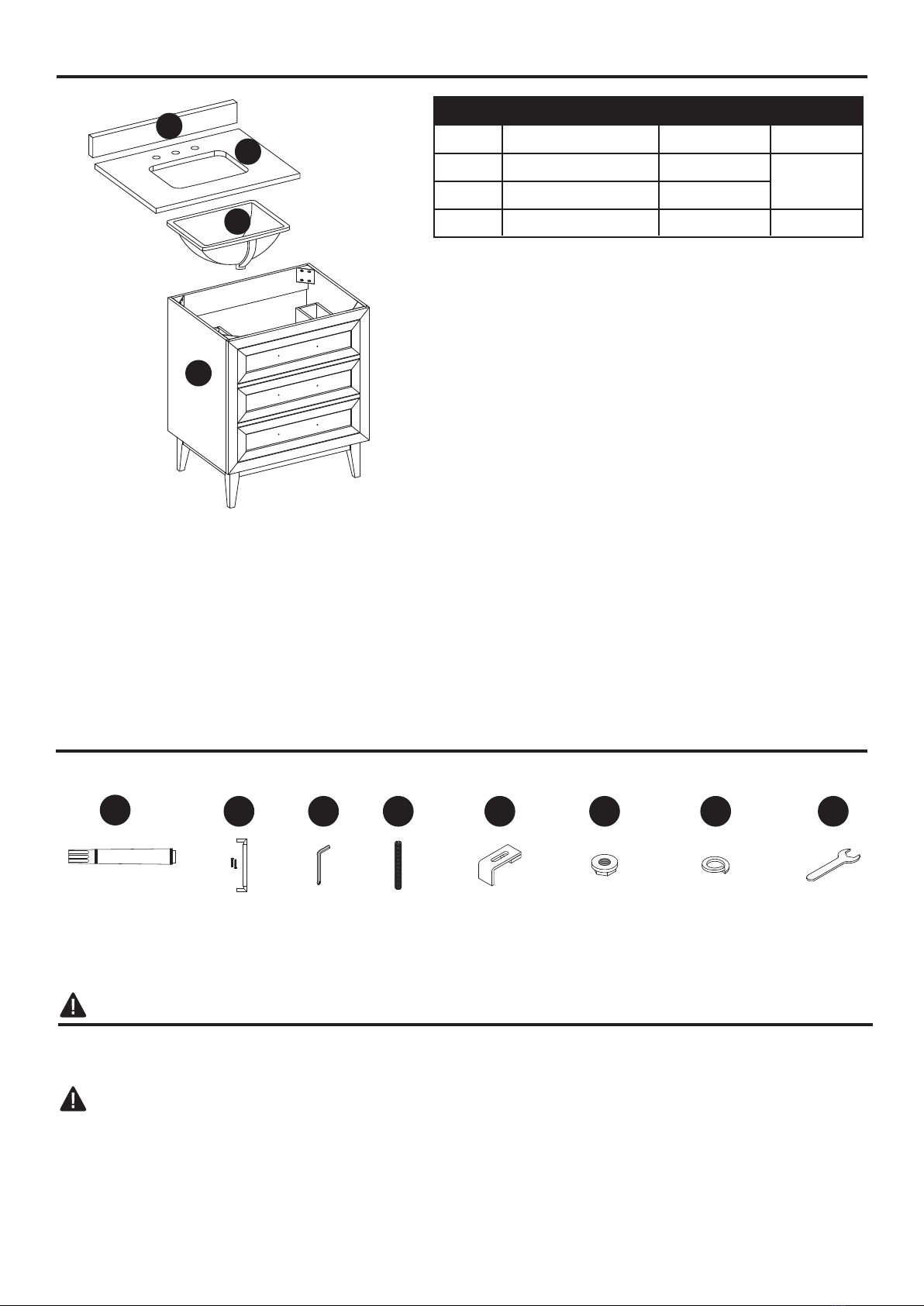

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• There are several assembly steps, including unpacking, that require two adults.
CAUTION
• Follow these instructions closely, take your time, and use care while assembling this vanity.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PART DESCRIPTION QUANTITY CARTON
A Vanity 1
B Top 1
D Sink 1
C Backsplash 1
Box 2 of 3
Box 1 of 3
Box 3 of 3
C
B
D
A
FF GG HH II JJ
Lock Washer
Qty. 4
Nut
Qty. 4
Wrench
Qty. 1
Bolt
Qty. 4
BB
Handle
Qty. 3
EE
Wrench
Qty. 1
Sink Bracket
Qty. 4
AA
Touch Up Pen
Qty. 1

4
INSTALLATION INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry).
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone
caulk, power drill with drill bit, measuring tape, level

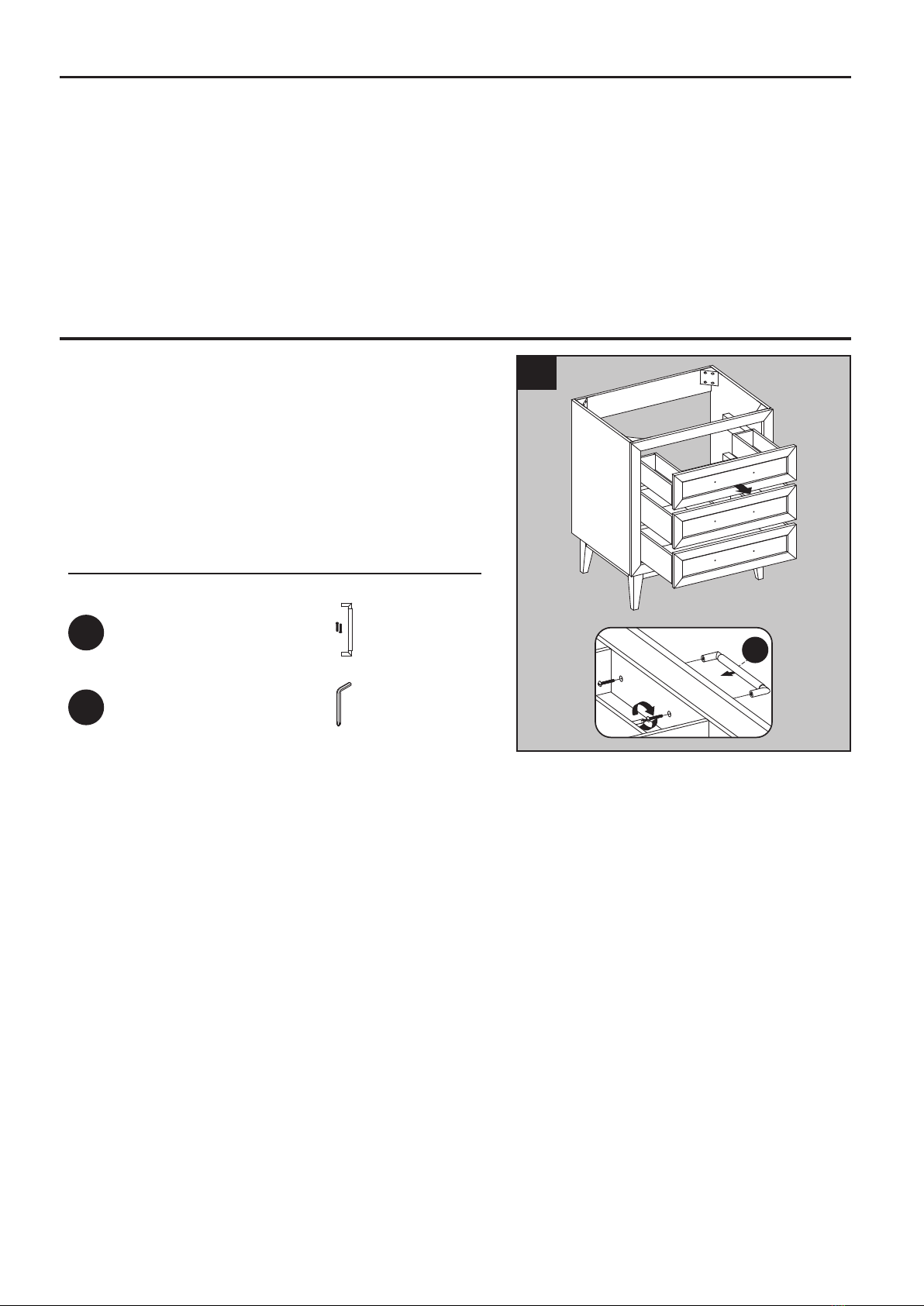

1. The hardwares are packaged separately in
the box. Attach the handle (BB) to the
drawer(s) by wrench (EE), as illustrated in
the diagram.
BB
Hardware Used
Handle x 3
EE Wrench x 1
1
1
2
BB

5
INSTALLATION INSTRUCTIONS
WARNING
Vanity (A) MUST be secured to wall.
Note: Clean area where the vanity (A) will be
permanently located prior to beginning installation,
ensuring the vanity (A) will not interfere with any
water supply and drain lines once mounted.
3. With two people, carefully place vanity (A)
against the wall in its final location.
While holding the vanity base firmly against the
wall, use the pre-assembled levelers on the
bottom of each leg of the vanity (A) to level the
item. Twisting the levelers counterclockwise
will raise the height of the vanity (A), and
twisting them clockwise will lower the vanity.
Once the vanity is in place, against the wall,
and level from front to back and side to side,
drill a hole through the vanity mounting area
and into the wall studs (as illustrated in
diagram 3). Using appropriate mounting
hardware (not included), secure the vanity (A)
to a wall stud. If possible, secure the vanity
(A) to two wall studs for increased stability.
2. As shown in the diagram, fully extend the
drawer and locate the plastic levers on the
metal glide tracks. Push the left-side and
right-side levers at the same time to
disengage the drawer from the drawer glides.
Gently lift the drawer up to remove it from
vanity (A).
2
A
12
3
12
A

6
INSTALLATION INSTRUCTIONS
4. Take out the top (B) and backsplash (C)
according to the steps indicated by the
drawings on the right, and place them face
down onto a scratch free surface such as a
foam sheet that came in the packaging.
4
Remove the top foam sheet
Remove the foam sheet
Remove the cutout foam
sheet & hardware
Remove the top and place it
on a scratch free surface
Remove the backsplash and place
it on a scratch free surface
C
C
Foam sheet
B
BACK
FRONT
Hardware
Pack
B12
BACK
FRONT
B
Foam sheet
BACK
FRONT
5
1
BACK
D
B
2
2
BACK
BACK
Sink Lip
Top
BACK
BACK
5. Apply silicone caulk (not included) to
the top edge of sink (D). With the help of
another adult, lower the sink onto the back
side of the stone top.
Make sure the sink over-flow hole is facing
the front of stone top.
Be sure to align the sink well with the stone top
cut out allowing for equal stone overhang on the
front, back and sides of the ceramic sink (D).
Note: To install the sink onto the top correctly,
ensure that the two "BACK" stamps on the sink
and the top are aligned on the same sides.
Use the guide lines marked on the sink and
bottom side of stone top to assist with sink
location.

7
INSTALLATION INSTRUCTIONS
Hardware Used
Sink bracket x 4
Nut x 4
x 4Lock Washer
Wrench x 1
7. Lower the sink brackets (GG) over the bolts
(FF) and allow to rest on the sink lip. Adjust
location of bracket to firmly grasp sink lip.
Lower lock washers (II) over bolts (FF) and
secure with nuts (HH). Hand tighten nuts (HH)
with included wrench (JJ).
DO NOT OVER TIGHTEN!
Tip: Check that the sink placement is well
centered front to back and side to side of the
stone top cut out before allowing the silicone
caulk to dry. If the sink is not centered well
unscrew sink clamps, re-adjust the sink position
and re-tighten the sink brackets.
7
1
GG
2
3
JJ HH
II
FF
D
B
BACK
BACK
GG
HH
II
JJ
Hardware Used
Bolt x 4
6. Screw bolts (FF) into the threaded holes of
stone top (B). 6
FF
D
B
BACK
BACK
FF

8
INSTALLATION INSTRUCTIONS

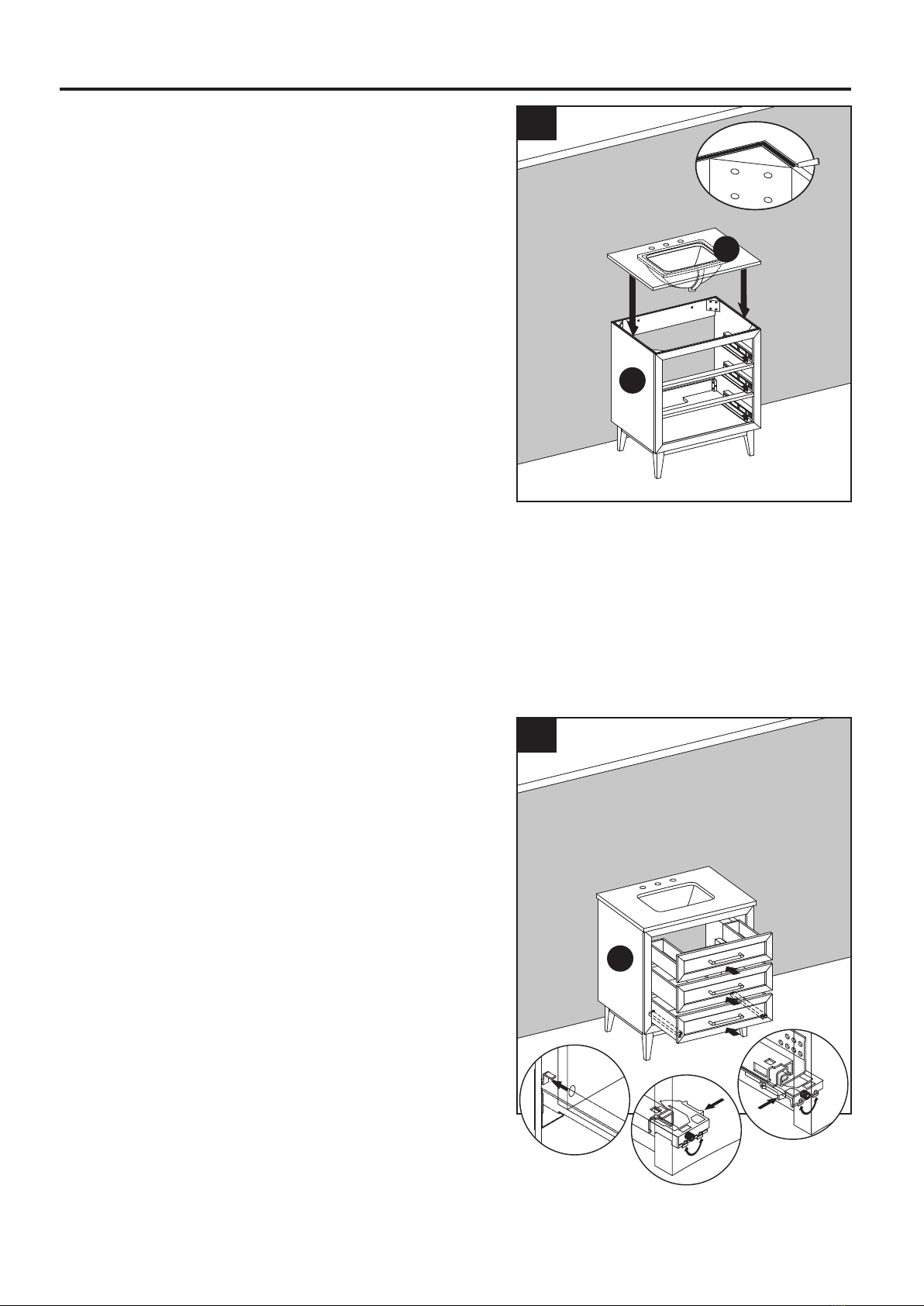

8. To install the top (B) to the vanity (A).
Apply silicone caulk to the top edge of the
wood cabinet. With the help of another adult,
gently lower the stone top with assembled sink
onto the cabinet. Make sure the stone top is flush
with the back side of the wood cabinet and the
stone overhang is equal on both sides over the
wood cabinet left and right side walls. Remove
any excess caulk before allowing to dry.
Helpful tip: it may be easier to install your
choice of faucet (not included) before securing
the vanity top (B) to vanity base (A).
9. To reinstall drawer(s) into vanity (A), fully
extend metal glide tracks. Gently lower and
slide drawer box into rear glide catch. Next,
lower drawer box down to completely rest
on extended glides. Then, push plastic levers
to lock the drawer box in place.
Repeat for remaining drawers.
Note: Drawer box alignment can be adjusted,
if necessary. As shown in the diagram, spin
the adjustment wheel to the left to raise the
drawer box, or to the right to lower the drawer
box. The left and right-side glide heights can
also be adjusted independently in order to find
the drawers best alignment position.
CAUTION
DO NOT force drawer or damage to glide(s) may
occur. If drawer does not slide in with ease,
remove and try again from the start.
8
1
A
2
2
B
9
3
2
1
A

9
INSTALLATION INSTRUCTIONS
10. Apply silicone caulk (not included) to unpolished
side and bottom of backsplash (C). Position
backsplash (C) on top (B) and against wall.
Clean any excess caulk before allowing
to dry.
Assembly is now complete. Install desired
faucet and drain assemblies (neither included)
per the manufacturers’ instructions to complete
the installation.
10
1
22
C
B

10
CARE AND MAINTENANCE
WARRANTY
IMPORTANT
• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the vanity with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• The stone top can be cleaned using standard marble cleaning agents available at your local
supplier.
• Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch; for worn areas,
stroke in direction of wood grain. Rub off excess colorant promptly with a soft cloth.
• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,
engineered stone). Stone tops will vary from product to product. Use caution placing items
such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or
similar item to protect the surface if placing any soap or fragranced products on the stone.
• If soap or fragranced products come in contact with the stone top, rinse the surface with water
and dry using a soft non-abrasive cloth.
• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use
restrictions before using on any stone. Damage to the stone may result. Vanity Manufacturer not
responsible for damage caused by improper cleaning agents or soaps used. Warranty will not
cover damage caused by the use of improper soaps or cleaning agents.
• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other
acids as these may cause damage to the stone surface.
• Periodically reseal the stone top using an appropriate stone sealer available from your local
home store. Follow the manufacturer’s directions on how to apply.
The manufacturer warrants this item against defects in materials and workmanship for a period of
one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer will not be held liable for damages caused from cleaners or soaps that etch or stain
the stone top. The manufacturer is not accountable whatsoever for product installation during the
warranty period. There is no further expressed warranty. The manufacturer shall not be legally
responsible for incidental, consequential or special damages arising at or in connection with
product use or performance except as may otherwise be accorded by law. The manufacturer
disclaims any and all implied warranties.

11

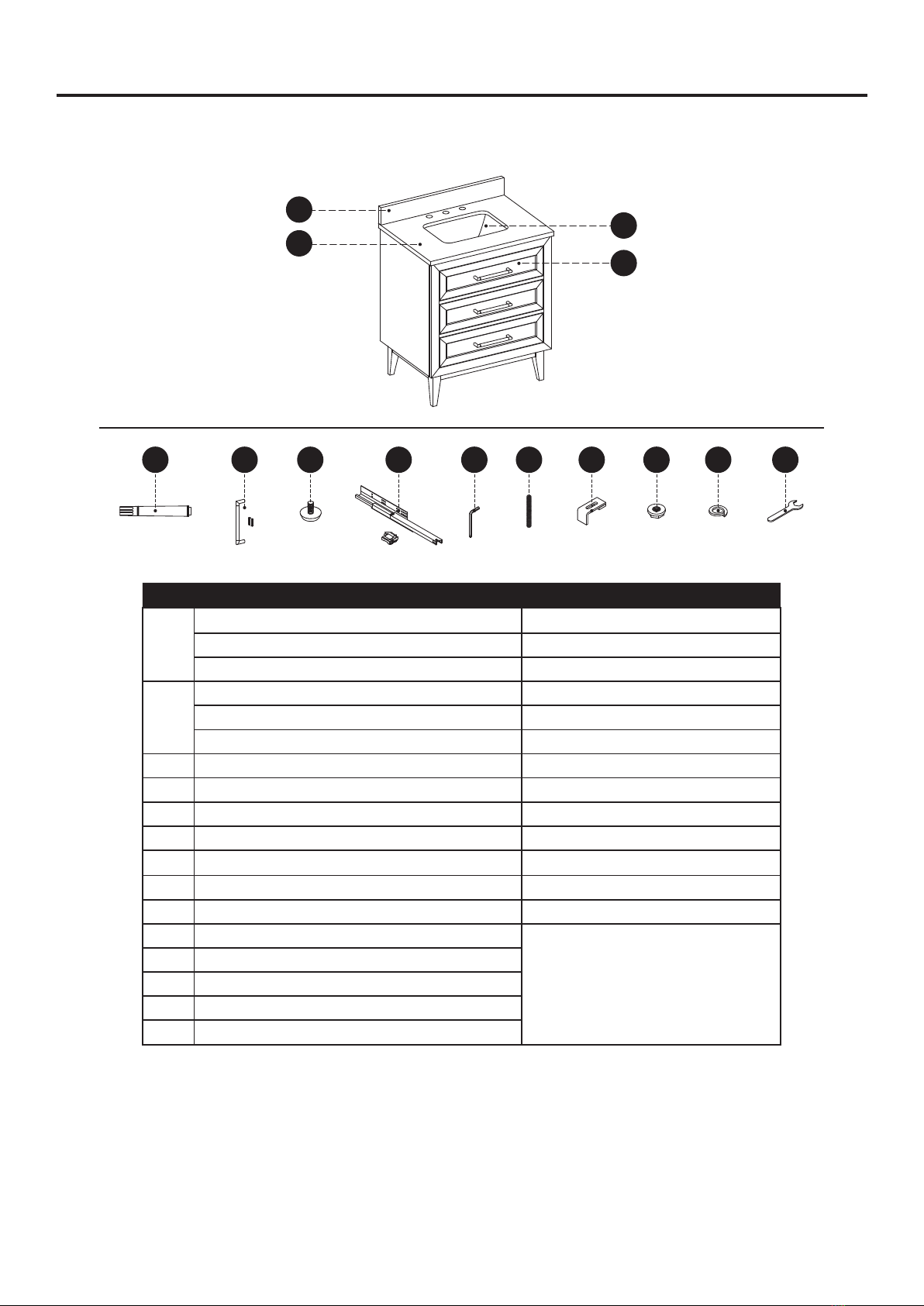

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1026, 8 a.m. - 8 p.m.,
EST, Monday - Sunday. You could also contact us at [email protected] or visit
www.lowespartsplus.com.
AA Touch-up pen M-1219
PUDTC-14X3-HANDLE
BB 1690-MB HANDLE Handle-matte black
CC
Drawer Glide Set
T-1007
DD
WRENCH 01WrenchEE
BoltFF
Sink BracketGG
GTC-SINK CLIPSNutHH
Lock WasherII
WrenchJJ
Leveler
PART DESCRIPTION PART#
Drawer Front
E1690VA-30-318-DRAWER FRONT
D PU17-18X14-SQUARE
Sink
PUBS-25-926-30
30" Engineered Calacatta Backsplash
PUBS-25-925-30
30" Engineered Carrara Backsplash
C
PUBS-25-901-30
30" Engineered White Backsplash
2500VT-30-926
Complete Set 30" Engineered Calacatta Top
2500VT-30-925
Complete Set 30" Engineered Carrara Top
B
2500VT-30-901
Complete Set 30" Engineered White Top
B
C
D
E
FFEE GG HH II JJ
