Origin 21 VS26EK-W User manual

ITEM #1064540
MODEL #VS26EK-W
Vertical Standard
Extender Kit
1
Español p. 15
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1026, 8 a.m. - 8 p.m., EST, Monday - Sunday.
Serial Number Purchase Date
You could also contact us at [email protected].
ATTACH YOUR RECEIPT HERE
ORIGIN 21 and logo design are trademarks
or registered trademarks of LF, LLC.
All rights reserved.
SS22167

2
TABLE OF CONTENTS
Package Contents ..........................................................................................................................3
Hardware Contents .........................................................................................................................4
Safety Information .........................................................................................................................5
Preparation ....................................................................................................................................5
Assembly Instructions ....................................................................................................................6
Operating Instructions ...................................................................................................................13
Care and Maintenance ..................................................................................................................14
Warranty .......................................................................................................................................14
Replacement Parts List ................................................................................................................14

PACKAGE CONTENTS
3
PART DESCRIPTION QUANTITY
26-IN Vertical Standard
Universal Wall Clip
Bottom Mount Wall Clip
Extender Bracket
1
2
1
1
A
DD
EE
FF
A
DD
EE
FF
DD

HARDWARE CONTENTS
4
M4 x 8
Screw
Qty. 6
CC
4.8 x 38
Panhead Screw
Qty. 4
BB
Wall Anchor
Qty. 4
AA
Universal
Wall Clip
Qty. 2
DD
Bottom Mount
Wall Clip
Qty. 1
EE
Vertical Standard
Connector
Qty. 1
FF

SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Please confirm all parts are correct before starting the assembly process.
• Please read all instructions carefully before beginning.
5
• Do not allow children to climb or play in, on, or around this product.
• Do not alter this product in any manner.
• Failure to obey installation instructions and warnings can result in injury or death.
• Use correct hardware for your specific wall type, the hardware provided is intended for 1/2 inch
drywall.
• Horizontal and Vertical Standards must be firmly secured to the wall.
• Do not overload.
WARNING
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included):
Tape Measure, #2 Phillips Screwdriver, Pencil, Drill Bits (1/8” & 5/16”), Drill, Level
PREPARATION
Find helpful install videos and tips at lowes.com
Tools Recommended for Assembly (not included):
Step Ladder, Stud Finder, Rubber Mallet

ASSEMBLY INSTRUCTIONS
6

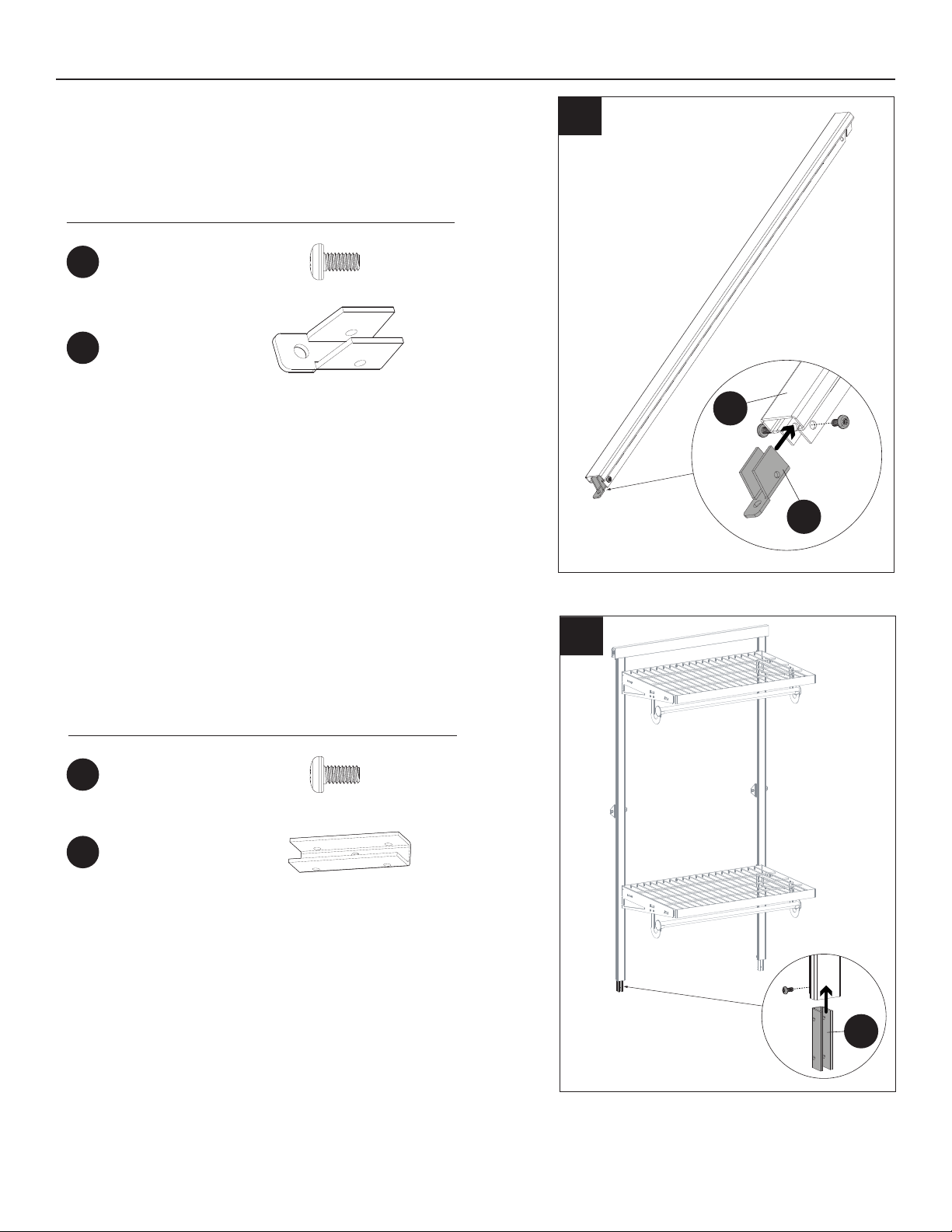

1. Insert the Bottom Mount Wall Clip (EE) into the
26-IN Vertical Standard (A) with tab facing down.
Fasten the Bottom Mount Wall Clip with M4 x 8 screws
(CC).
2. Insert the Extender Bracket (FF) into your existing
Vertical Standard (sold separately). Fasten the Extender
Bracket (FF) with a M4 x 8 screw (CC).
1
2
Find helpful install videos and tips at lowes.com
Hardware Used
CC x 2
M4 x 8
EE
Bottom Mount
Wall Clip
x 1
Hardware Used
CC x 1
M4 x 8
FF
Extender Bracket
x 1
EE
A
FF
NOTE:
Vertical Extender Kit can be used to extended an
existing Vertical Standard or installed directly on to
existing Horizontal Top Track as a shorter Vertical
Standard.

ASSEMBLY INSTRUCTIONS
7
3. With the Extender Bracket (FF) installed , mark
the hardware hole location.
4. Remove the Extender Bracket (FF) and using
5/16" drill bit, pre-drill marked hole locations into
drywall. Then
install Drywall Anchor (AA) into
pre-drilled drywall holes.
Do not drill through the
metal bracket.
4
3
FF
AA
If you are unsure if a stud is located
behind markings, use 1/8" drill bit to
drill all holes. If no stud is present,
then use 5/16" drill bit to make holes
larger for drywall anchors.
PRO TIP
Use a rubber mallet to lightly tap
Drywall Anchors (AA) into the drywall.
PRO TIP
Hardware Used
x 1
AA Drywall Anchor

Hardware Used
BB
4.8 x 38
x 1
5. Re-insert the Extender Bracket (FF) into your
existing Vertical Standard (sold separately). Fasten the
Extender Bracket (FF) with M4 x 8 screws (CC).
5
Hardware Used
CC x 2
M4 x 8
FF
Extender Bracket
x 1
FF
6. Secure the Vertical Standard Connector (FF) to
wall using 4.8 x 38 Panhead Screw (BB), then
slide
the 26-IN Vertical Standard (A) onto the Extender
Bracket (FF).
6
A
Find helpful install videos and tips at lowes.com
BB
FF
ASSEMBLY INSTRUCTIONS
8

8. Remove the 26-IN Vertical Standards (A) to reveal
the marks made in the previous step. Using 5/16” drill
bit to pre-drill holes into drywall. Then,
install Drywall
Anchors (AA) into pre-drilled drywall holes.
8
If you are unsure if a stud is located
behind markings, use 1/8" drill bit to
drill all holes. If no stud is present,
then use 5/16" drill bit to make holes
larger for drywall anchors.
PRO TIP
EE

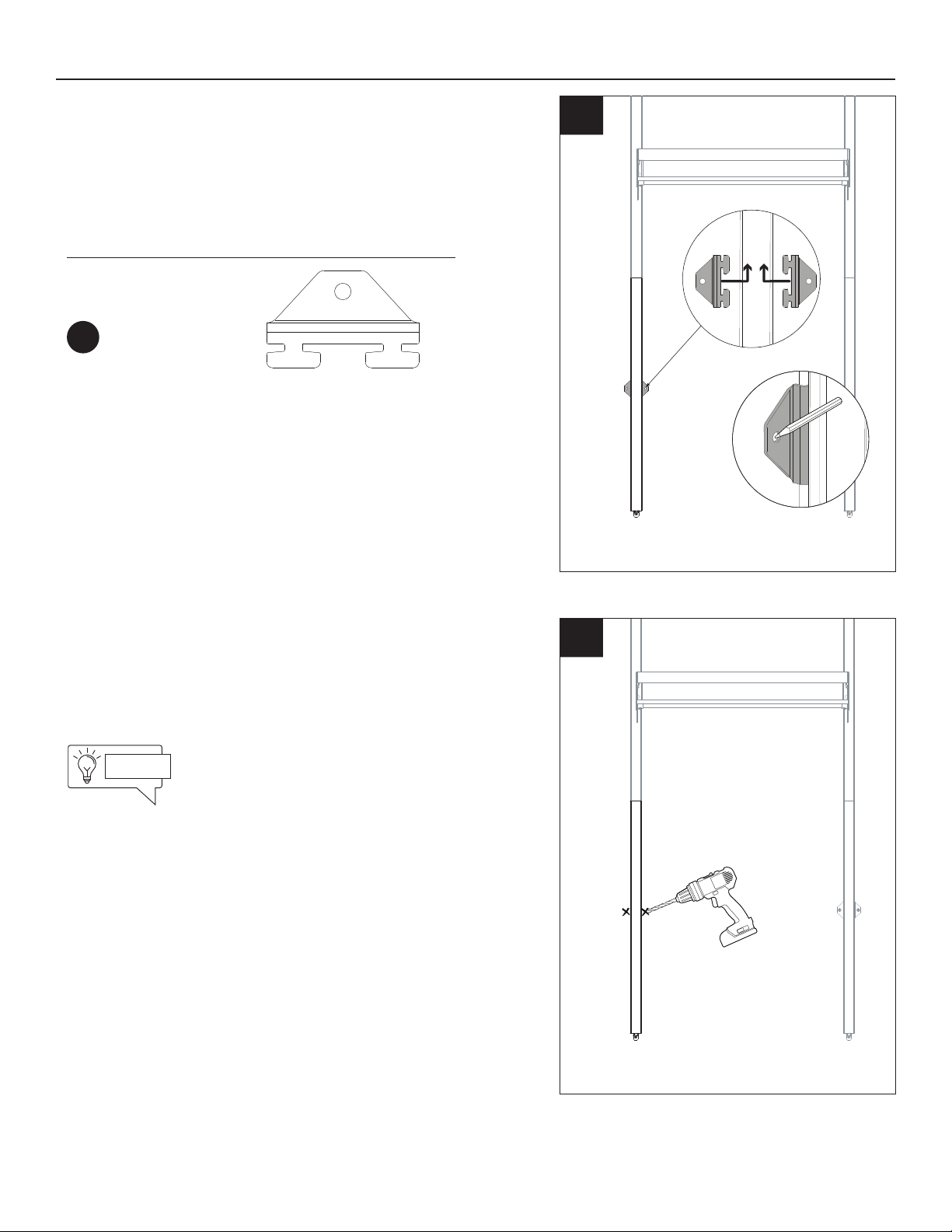

7. Use a Level to make sure the 26-IN Vertical
Standard (C) are straight. Then mark hole locations
of the
Bottom Mount Wall Clips (EE).
7
Hardware Used
x 1
AA Drywall Anchor
Use a rubber mallet to lightly tap
Drywall Anchors (AA) into the drywall.
PRO TIP
AA
ASSEMBLY INSTRUCTIONS
9

ASSEMBLY INSTRUCTIONS
10
9
Find helpful install videos and tips at lowes.com
9. Fasten 26-IN Vertical Standard (A) to the Vertical
Standard Connector (FF)
with M4 x 8 screws (CC).
Hardware Used
10
AA BB
EE
10. Secure the 26-IN Vertical Standard (A) to wall
through the Bottom Mount Wall Clip (EE) using 4.8
x 38 Panhead Screw White (BB).
Hardware Used
BB
4.8 x 38
x 1
CC
CC
A
CC x 2
M4 x 8

11
ASSEMBLY INSTRUCTIONS
12
12. Remove Universal Wall Clip (DD) and using
5/16" drill bit, pre-drill marked hole locations into
drywall. Do not drill through the metal brackets.
If you are unsure if a stud is located
behind markings, use 1/8" drill bit to
drill all holes. If no stud is present,
then use 5/16" drill bit to make holes
larger for drywall anchors.
PRO TIP
11
11. Insert the Universal Wall Clip (DD) into both
sides of the 26-IN Vertical Standards (A) near its
center point. Once inserted push clips up and
mark the hardware hole locations.
Hardware Used
DD
Universal Wall
Clip
x 2
NOTE:
Ensure Universal Wall Clip is installed in upward
direction for maximum support.

ASSEMBLY INSTRUCTIONS
12
14
13
13. Install Drywall Anchors (AA) into pre-drilled
drywall holes.
2x
AA
Hardware Used
x 2
AA Drywall Anchor
Use a rubber mallet to lightly tap
Drywall Anchors (AA) into the drywall.
PRO TIP
DD
Universal Wall
Clip
x 2
14. Re-install each Universal Wall Clip (DD) into
the 26-IN Vertical Standard (A) at marked hole
locations and secure Clips to wall using 4.8 x 38
Panhead Screw White (BB).
Hardware Used
BB
4.8 x 38
x 2

13
Example 26-IN Vertical Standard Kit Layouts
OPERATING INSTRUCTIONS

CARE AND MAINTENANCE
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1026, 8 a.m. - 8 p.m.,
EST, Monday - Sunday. You could also contact us at [email protected].
Printed in China
ADD
EE
FF
DD
PART DESCRIPTION QUANTITY
26-IN Vertical Standard
Universal Wall Clip
Bottom Mount Wall Clip
Extender Bracket
1014540-A
1014540-DD
1014540-EE
1014540-FF
A
DD
EE
FF
WARRANTY
This limited warranty covers the original purchase of this product used for normal personal or
household us. Origin 21 warrants its products will be free from defects in materials and
workmanship (normal wear and tear excepted), for a period of one (1) year from the date of
purchase, except as provided below. As the exclusive remedy under this warranty, Origin 21 will
repair or replace any defective component.
This warranty does not apply to damage caused by fire, accident, negligence, misuse, use other
than as stated in product instructions, improper cleaning or other circumstances not directly
attributable to defects in materials and workmanship.
Materials are warranted for one year from date of purchase. Proof of purchase is required in the
form of a receipt (copy or original) to validate the warranty.
• Use a soft, clean cloth that will not scratch the surface when dusting.
• Make sure all bolts/screws are tightly fastened before the unit is used, check bolts/screws
periodically and tighten them if necessary.
14

ARTÍCULO #1064540
MODELO #VS26EK-W
Kit de extensores
estándar verticales
15
Español p. 15
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 888-251-1026, de lunes a domingo de 8 a.m. a 8
p.m., hora estándar del Este. También puede ponerse en contacto con nosotros en
[email protected].
Número de serie Fecha de compra
ADJUNTE SU RECIBO AQUÍ
SS22167
ORIGIN 21 y el diseño del logotipo
son marcas comerciales o marcas
comerciales registradas de LF, LLC.
Todos los derechos reservados.

16
ÍNDICE
Contenido del paquete ................................................................................................................ 17
Aditamentos ................................................................................................................................. 18
Información de seguridad ............................................................................................................. 19
Preparación .................................................................................................................................. 19
Instrucciones de ensamblaje ........................................................................................................ 20
Instrucciones de funcionamiento ................................................................................................. 27
Cuidado y mantenimiento ............................................................................................................. 28
Garantía ....................................................................................................................................... 28
Lista de piezas de repuesto ......................................................................................................... 28

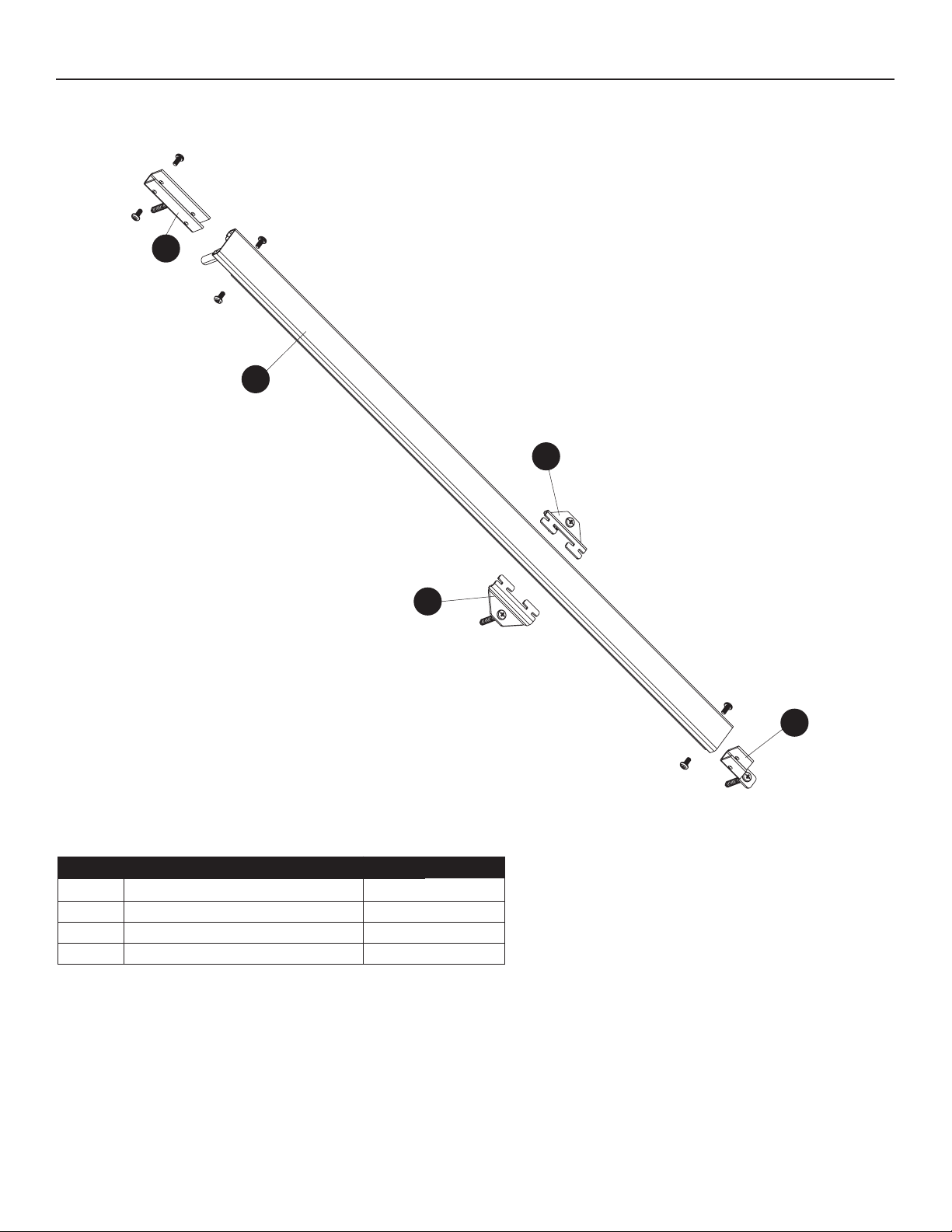

CONTENIDO DEL PAQUETE
17
PIEZA DESCRIPCIÓN CANTIDAD
Estándar vertical de 66,04 cm
Clip de pared universal
Clip de pared de montaje inferior
Soporte extensor
1
2
1
1
A
DD
EE
FF
A
DD
EE
FF
DD

ADITAMENTOS
18
M4 x 8
Tornillo
CC
Tornillo de cabeza
alomada de 4,8 x 38
BB
Ancla de expansión
de pared
Cant. 4
Cant. 4
Cant. 6
AA
Clip de pared
universal
Cant. 2
DD
Clip de pared de
montaje inferior
Cant. 1
EE
Conector estándar
vertical
Cant. 1
FF

INFORMACIÓN SOBRE SEGURIDAD
Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el
producto.
Confirme que todas las piezas sean las correctas antes de comenzar el proceso de ensamblaje.
Lea atentamente todas las instrucciones antes de comenzar.
• No permita que los niños se suban al producto o que jueguen cerca de él.
• No modifique este producto de ninguna manera.
• El no respetar las instrucciones de instalación y las advertencias puede ocasionar lesiones o la
muerte.
• Use los aditamentos correctos para su tipo de pared específico. Los aditamentos provistos están
diseñados para paneles de yeso de 12,7 mm.
• Los estándares horizontales y verticales deben estar firmemente asegurados a la pared.
• No los sobrecargue.
ADVERTENCIA
Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las
piezas con la lista del contenido del paquete y la lista de aditamentos. No intente ensamblar el
producto si falta alguna pieza o si estas están dañadas.
Tiempo aproximado de ensamblaje: 1 hora
Herramientas necesarias para el ensamblaje (no se incluyen):
Cinta métrica, destornillador Phillips n.º 2, lápiz, brocas para taladro (1/8" y 5/16"), taladro
PREPARACIÓN
Encuentre videos y consejos de instalación útiles en lowes.com
Herramientas recomendadas para el ensamblaje (no se incluyen):
Escalera de tijera, detector de vigas, mazo de goma
19

INSTRUCCIONES DE ENSAMBLAJE
20
1. Inserte el clip de pared de montaje inferior (EE) en
el estándar vertical (A) de 26 pulgadas con la lengüeta
hacia abajo. Sujete el clip de pared de montaje inferior
con tornillos M4 x 8 (CC).
2.
Inserte el soporte extensor (FF) en su estándar
vertical actual (se vende por separado). Fije el soporte
extensor (FF) con un tornillo M4 x 8 (CC).
1
2
Encuentre videos y consejos de instalación útiles en lowes.com
Aditamentos utilizados
CC x 2
M4 x 8
EE x 1
Aditamentos utilizados
CC x 1
M4 x 8
FF
Soporte extensor
x 1
EE
A
FF
NOTA:
El kit de extensores verticales se puede usar para
extender un estándar vertical existente o se puede
instalar directamente en el riel superior horizontal
existente como un estándar vertical más corto.
Clip de pared de
montaje inferior
