Origin 100BV Operation manual

Owners Operating Guide
Origin Cleaning Equipment
PO Box 526
South Windsor NSW 2652
[email protected]
Precision Engineered
Made in Australia
100BV / 150BV / 200BV

Pg. 1
SAFE AND PROPER USE OF THIS MACHINE
Make sure that this manual is read and understood by the operator. Only trained operators
should operate this machine once they are familiar with the adjustments and correct method. When
using this machine, basic safety precautions should always be observed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
1. DO NOT leave this machine unattended when it is plugged in. Unplug from the outlet when not
in use.
2. DO NOT pick up building materials such as plaster dust, wood shavings, sand etc. without using
an approved disposable liner bag fitted inside the filter bag.
3. Use this machine only as described in this manual. Use only manufacturer’s recommended accessories
4. DO NOT use with a damaged electric cable.
5. DO NOT use if this machine has been left outdoors and exposed to rain or water. Return the ma-
chine to an authorized dealer for examination.
6. DO NOT pull or carry the machine by the electric cable. DO NOT use the cable as a handle, close
a door on the cable, or pull the cable around sharp edges and corners.
7. KEEP the cable away from heated surfaces.
8. DO NOT unplug by pulling on the cable. To unplug, grasp the plug, not the cable. Wind the cable
from the machine end not from the plug, this will prevent the cable from twisting and extend its life.
9. DO NOT handle the plug or the machine with wet hands.
10. Make sure no openings are blocked that will restrict airflow.
11. DO NOT pick up hot coals, cigarette butts, matches or any hot, smoking or burning objects.
13. DO NOT pick up sharp objects such as glass, nails, screws, coins, etc. as the filter bag can be
damaged.
14. DO NOT use without all the filters in place. Use ONLY filters and accessories provided by the
manufacturer. Failure to do so will void the warranty.
15. Switch off vacuum cleaner before plugging or unplugging this machine into an electrical outlet.
16. DO NOT pick up flammable or combustible materials or use this machine in the presence of
explosive liquids or vapours.
17. DO NOT use in an enclosed space filled with vapours given off by oil based paints, paint thin-
ners,
flammable dust, powdered milk, or other explosive or toxic vapours. THIS IS NOT AN EXPLOSION
PROOF MACHINE.
18. Always store this machine indoors.
This appliance is not intended for use by young children or infirm persons, without proper super-
vision. Young children should be supervised to ensure that they do not play with this appliance.
DO NOT expose to rain and DO NOT pick up water or other liquids.
This machine is insulated for your protection. However, a shock can occur if the electric cable is damaged.
If the supply cable is damaged, it must be replaced by the manufacturer or its agent or retailer to ensure
the correct type of approved cable is supplied in order to avoid a hazard. Make sure that the cable is kept

Contents

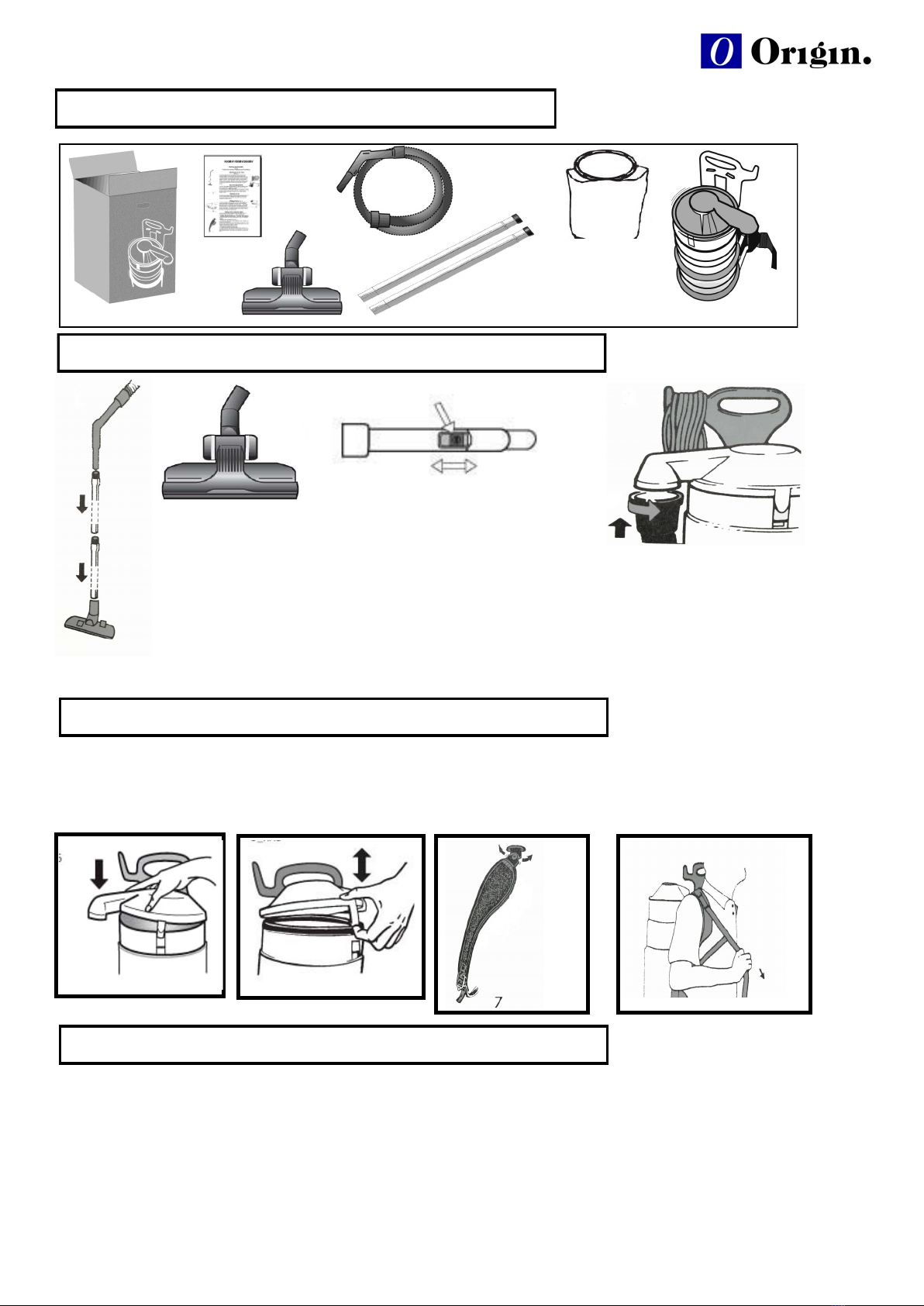

Attachment of Vacuum Tools
Fitting On and Removing the Lid
To remove the lid, place a finger under the tab in front of the unit. Pull tab out and up slightly to dis-
engage tab from the body and to clear the black ring on the filter bag. Grab the lid then pivot back
Pg. 2
3
1
2
4
The Handle Grip has a slider ( 2 ). When the slider is open the suction power is reduced. The
reduced suction allows vacuuming of furniture or drapery, etc.
The two piece wands fit into one another by inserting tapered end into end with
The black ring (3). Then fit handle grip on the hose into the wand’s black ring end,
Then fit the floor tool into the tapered end of the wands.
The Vacuum hose assembly is fitted to the elbow on the lid (lid should be fitted) by
Inserting and locating the swivel cuff (4) and turning clockwise to a locked position
The lid can be fitted so that the elbow (where the hose engages) is on the left or right side. This allows the
vac hose to be used by left or right handed operators. Remember to position the lid before fitting the unit to
your back. To fit the lid, make sure the filter bag is located inside the canister so that the black ring on the
filter bag is flush with the top of the canister. Then locate the lid over the filter bag ring so that the tabs on the
lid are in line with the indents on the canister. Push lid firmly down so that tabs lock
56
The unit comes with straps fastened for ease of packing. There are two distinct types of support pads.
1. Contour shoulder pads pivot at the top for comfort; Adjust Secondary Pads to suit. 2. Waist pads. Before
fitting the unit become familiar with various adjustments for safe and comfortable operation.
1. Shoulder strap adjustments (see Fig. 7)
Pivot pads to the side for neck comfort. To loosen the shoulder pads tilt up strap lock and allow webbing to
8
Fitting Unit to the Operators Back

Operating the Vacuum
Pg. 3
910 11
Fitting Unit to the Operators Back
N.B. Important - the unit is ergonomically correct when the weight is distributed over the hips and not
on the shoulders.
e) Now pull on the lower shoulder straps to make a final adjustment (see fig 10) to shoulder pads so that the
unit does not "pull" backwards but make sure no contact is made with the upper back. (see fig 11)
2. Waist back pad adjustments (see Fig. 9)
a) To unfasten hip belt pull Velcro flaps apart.
b) To tighten waist belt pull both flaps until firm tension is felt from the supporting side elastic and make sure
that the flap with the Velcro (right side) is against the body. Then fasten the left side flap to the right side firmly.
Now that adjustments are understood proceed to fit unit for operation
a) Preferably lift the vac onto a table or countertop for ease of fitting.
b) Loosen the shoulder straps (do not detach) slide arms under the shoulder straps so that padding is over the
shoulders. Make sure straps do not twist. Adjust secondary pads to suit.
c) Sit the vac on your back so that the Back Support is on top of the hips into the lower back.
d) Tighten hip belt so that the unit is snug into the lower back on top of the hips. This requires pulling so that
the elastic is stretched to a comfortable position.
12 13
A removable extension cable is supplied with this vacuum cleaner to allow ease of replacement for damaged
cables. PLEASE make sure that you follow the instructions to properly fit this extension cable through the cable
protector fitted to the vacuum cleaner (see Cable sheet). Release cable ties from the extension cable and en-
sure that the cable is not coiled when in use.
a) Plug in electric cable into a safe socket. To switch on, reach back with your left hand to the lower side of the
unit and flick the switch. (see fig. 12)
Remember to bend at the knees when plugging in the cord or when bending to pick something up.
b) Stand upright as much as possible, (see fig. 13) your arm on the handle grip should be almost straight, this
will ensure that your arm is more re-

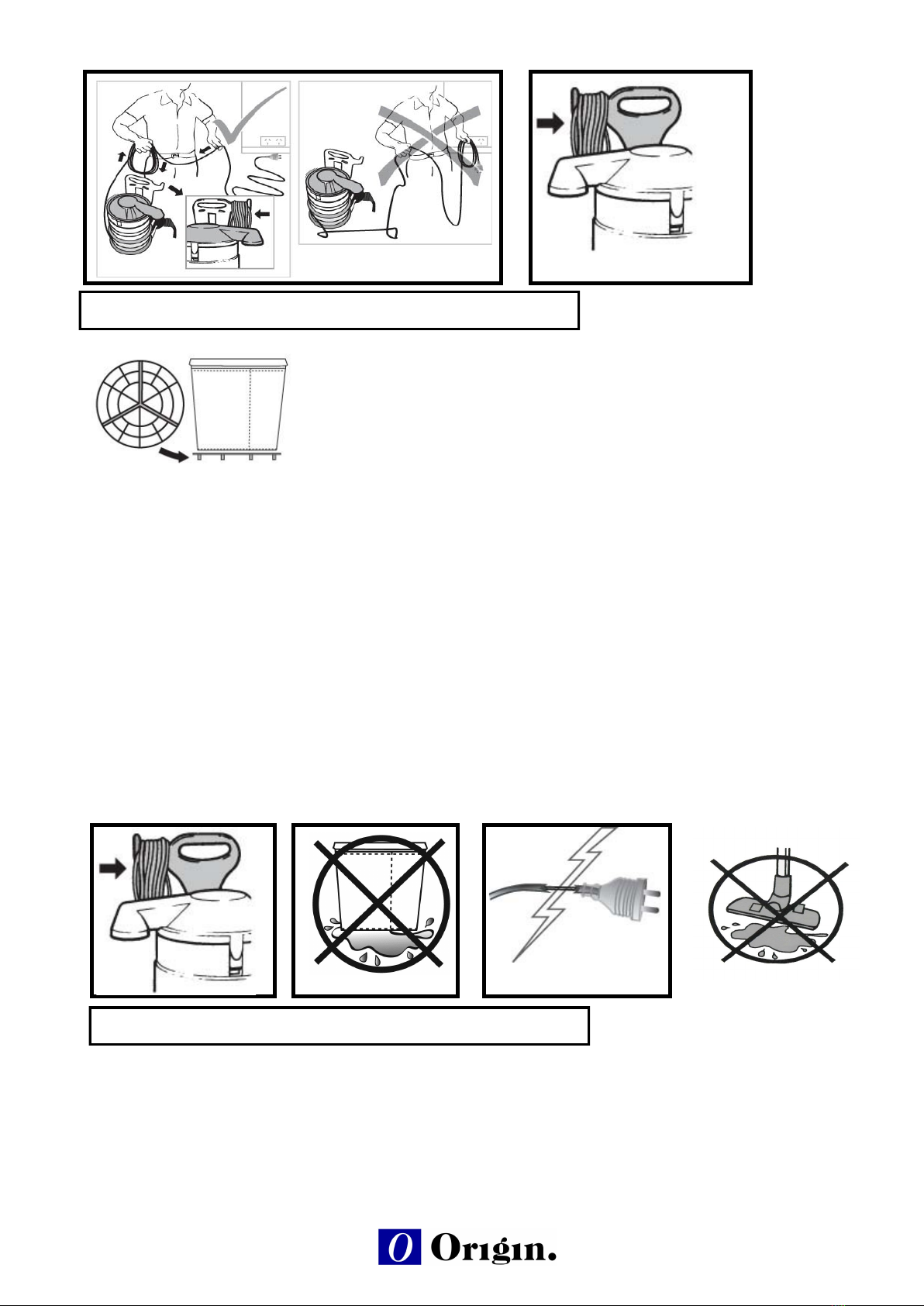

Removal of the Vacuum
1. Flick off switch.
2. Unfasten Flaps on hip belt .
3. Loosen shoulder straps slightly. Slide pad off one shoulder and then off the other shoulder - grabbing the
handle or lower the unit onto a table.
4. Unplug electric cord and wind the cord starting from the machine end of cord - not the plug end (see fig.
14) This will help prevent the cable from twisting and causing premature failure. When the cable is wound,
place over the hook on the carry handle DO NOT wrap cable around the machine or place between the
body and the carry handle. (see fig. 15)

Maintenance and Storage
Pg. 4
14 15
1. Always empty the filter bag when full.
2. Make sure the bag support stand is in position at the bottom of the
canister under the filter bag (see Fig. 15). N.B. This support stand must
always be in position to maintain vacuuming performance. If your vac
uses a secondary filter disc - it must be on top of the bag support.
Bag Support
Filter Bag
15
Remember this vacuum has powerful suction and can pull fine dust out of a carpet
that other vacs may not have been able to do. This can mean that fine dust will coat
the inside of the filter bag effecting the vacuum performance. It could take a week or
two to get all the fine dust out of commercial carpets.
5. If fine dust, like talc, cement/plaster or clay is picked up - the filter bag will be clogged and reduce the
suction. Therefore, brush clean the inside of the filter bag after use. Alternatively, on commercial sites use
a spare vacuum cleaner to vacuum the bag. However for the best results in this type of environment fit a
paper bag inside the cloth filter bag.
6. Never wash the filter bag.
7. After use detach hose from the lid and clean around the outside of the swivel cuff - this can be done by
tilting and rotating detached cuff at the vacuum inlet with vac switched on. Check hose, tubes, floor tool and
lid regularly for blockages.
8. When electric cord is unplugged check for any damage - especially cuts. If damaged replace cord. See below
under servicing.
9. Store unit upright on its base or hang by the carry handle. Always store cable as in Fig. 16. DO NOT wrap
15
16
This vacuum cleaner is double insulated and is flame retardant for your safety and protection.
However, a shock can occur if the electric cable is damaged. If the supply cable is damaged, it
must be replaced by the manufacturer or its agent or retailer to ensure the correct type of
approved cable is supplied in order to avoid a hazard.
This appliance is not intended for use by young children or Infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Warning

Motorised Power Brush
Pg. 5
Servicing
Make sure this vacuum cleaner is serviced regularly. Frequency of service depends on use, however carbon
brushes must be checked the first time within 300 hours of use. Clean out or replace internal foam insulation
and replace cloth filter bag every 300 hours unless you are using paper bags inside the cloth bag. Replace
This unit may be fitted with a 240V receptacle for a motorised power floor brush. Most power-heads can
be adapted to this receptacle. See your supplier to ensure that the proper plug and hose fittings are used.
Motorised Power Brush Battery Powered
PB3800
A Commercial Battery powered brush that enhances the performance
of any vacuum cleaner. No cables to tangle or damage and can
attach to any model vacuum cleaner.
Although your vacuum cleaner is designed to be used without paper bags, there are some advantages to using them. This open end bag
design allows them to be re-used. If the paper bag is fitted with the ring supplied then it can be lifted and emptied and fitted back into place.
However the cloth bag must be in place. Unlike other paper bag designs this one can be re-used as the negative pressure is supported by
the cloth bag.
1. Using a paper bag allows ease of emptying and keeps the cloth bag clean and a clean bag helps vacuum performance.
2. Using a paper filter bag also offers another stage of dust filtration.
Disposable Paper Filter Bags
FITTING THE PAPER FILTER BAGS
 Remove the Lid
 Open the paper bag and fit inside the cloth filter bag. (see Fig. 17)
 Then fit the paper bag ring inside the paper bag.
 Gently rest the paper bag ring on the lip of the clothe filter bag. (see Fig. 18)
17 18 19
REMOVING THE PAPER FILTER BAGS
 Remove the Lid
 Grab the paper bag with the paper bag ring. (see Fig. 20)
 Hold over a rubbish bin and pull out the paper bag ring and then dispose the paper bag. (see Fig. 21)
 The paper bag can be re-used a number of times -if to be re-used then remove with the ring attached
and shakeout the dust by holding the ring in place then re-fit to the machine.
20
21

WARRANTY
Origin Cleaning Equipment Pty Ltd (Origin) warrants to the original purchaser that this product is free from defects
in workmanship and materials under normal use and service for a period of 12 months from date of purchase,
provided such claims are submitted through and approved by Origin authorized dealers. Origin will under warranty
repair or replace without charge, except for transportation costs, parts that fail under normal use and service when
operated and maintained in accordance with the applicable operation and instruction manuals.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as
brush roller, belt and elbow. All batteries have a pro rata warranty.
All warranted items become the sole property of Origin Cleaning Equipment Pty Ltd.
This limited warranty is in lieu of all other warranties, expressed or implied, and releases Origin from all other
obligations and liabilities. Origin is not responsible for costs for repairs performed by persons other than those
specifically authorized by Origin. This warranty does not apply to damage from transportation, alterations by
unauthorized persons, misuse or abuse of the equipment, or damage to property, or loss of income due to
malfunction of the product.
If a difficulty develops with this product, you should contact the dealer from whom it was purchased.
Origin Cleaning Equipment Pty Ltd
[email protected]
