Orlaco Economy User guide

Sets Economy Rearview
System Manual
Set numbers 0410000
0410010
0410040
Manual No. SM0974080 A 02
07/2012
English

System manual
2SM0974080 A 02
Safety
In order to guarantee safe operation, these safety
instructions must be read before you start using this
equipment.
• Do not open the enclosure. This can cause damage,
shortcircuiting or electrical shocks.
• Do not expose the equipment to extreme temperatures.
This can cause deformation of the enclosure or
damage to internal components.
• Repairs may only be made by the manufacturer.
• The equipment must be installed as shown in this
manual.
Before you start using this equipment, please read this manual
carefully and follow all instructions. This installation manual
describes the functions of the equipment, outlines the
connection options and explains how to put the equipment into
operation. We recommend that you keep this manual in a safe
place for reference purposes.
If you have any questions or issues concerning the operation
of this equipment, consult the relevant section in the manual or
contact the Orlaco Products BV Service department.
All data subject to change without notice. All dimensions are for
commercial purpose only. The camera/display systems from
Orlaco comply with the latest CE, ADR, EMC and mirror-directive
regulations, where applicable. All products are manufactured in
accordance with the ISO 9001 quality management system, IATF
16949 quality automotive, ISO 14001 environmental management
systems, where applicable.
Contents page
1. Sets Economy Rearview 3
2. System overview Sets 4
3. Monitor placement 5
4. EMC 6
5. Electrical connections Sets 7
6. Technical specificatons Monitor 7” 9
7. Dimensions Monitor 7” Economy 9
8. Mounting and demounting Monitor 10
9. Mounting the cable clamp 11
10. Maintenance and cleaning 12
11. Disposal 12
12. Genaral terms and conditions 12
13. Release notes 12
Sets Economy Rearview
Monitor 7” Economy
Camera FAMOS 118°PAL
*
Cable 0,5m Economy Line Display
Cable 1m + 1m Economy Line Display
DDIN adapter adjustable bracket UNI

System manual
SM0974080 A 02 3
1. Sets Economy Rearview
Article No. Description Article No. Description
Set
0410000
Set Economy Rearview
0207711
0303070
0400610
0171010
0301920
Monitor 7” Economy
Cable 0,5meter Economy Line Display
DDIN Adapter adjustable bracket UNI
Camera FAMOS 118° PAL*
Cable 16m UNI
Set
0410010
Set Economy Rearview Built In
0207711
0303070
0171010
0301920
Monitor 7” Economy
Cable 0,5meter Economy Line Display
Camera FAMOS 118° PAL*
Cable 16m UNI
Set
0410040 Set Economy Rearview 2 Cam
0207711
0304081
0400610
0171010
0301920
Monitor 7” Economy
Cable 1m + 1m Economy Line Display
DDIN Adapter adjustable bracket UNI
2x Camera FAMOS 118° PAL*
Cable 16m UNI
Available documentation:
Data sheet DS0962070-0207711 Monitor 7” Economy
Data sheet DS0960160-0303070 Cable 0,5m Economy Line Display
Data sheet DS0960282-0304081 Cable 1m + 1m Economy Line Display
Data sheet DS0963351-0400610 DDIN adapter adjustable bracket UNI
Data sheet DS0961003-0171010 Camera FAMOS 118 PAL
*
User Manual UM0972040 Monitor 7” Economy
*Please consult price list for up to date Set content

System manual
4SM0974080 A 02

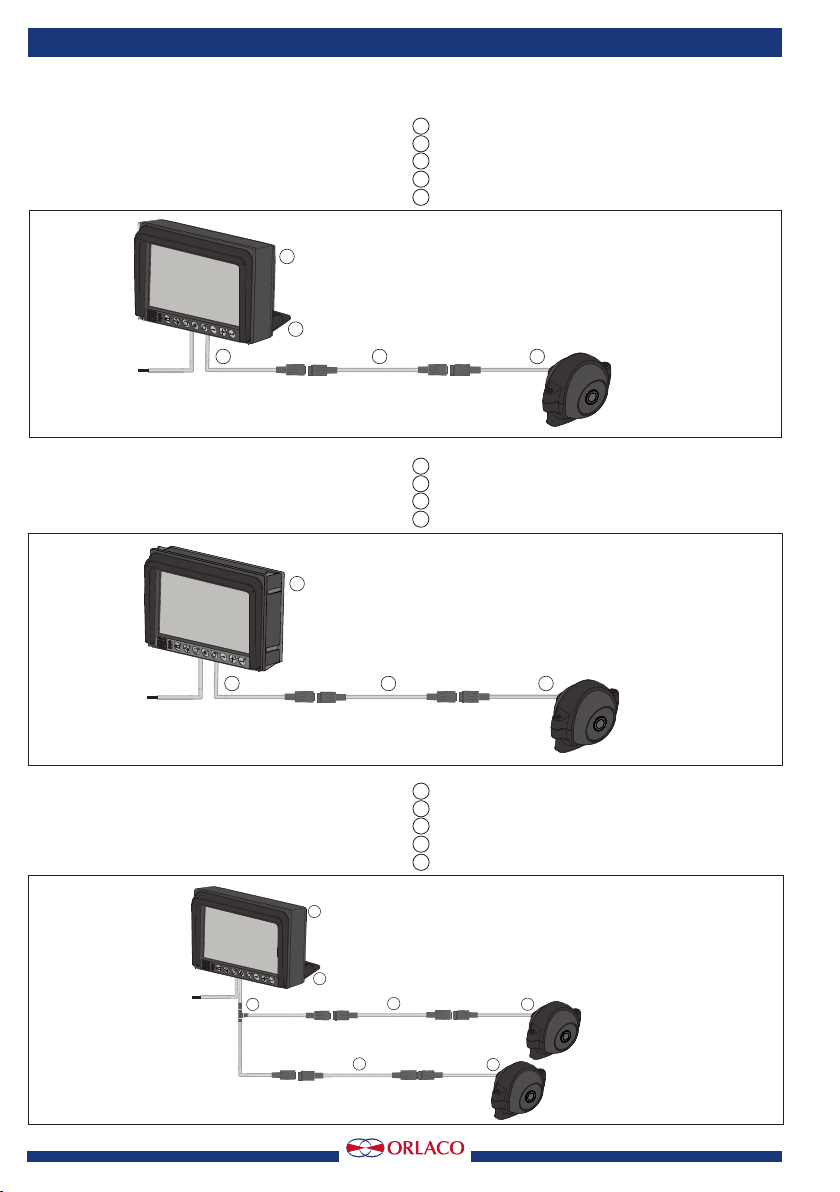

2. System overview Sets
Set Economy Rearview
Set No. 0410000
1 0207711 Monitor 7” Economy
2 0303070 Cable 0,5m Economy line display
3 0400610 DDIN adapter adjustable bracket UNI
4 0171010 Camera FAMOS 118° PAL
*
5 0301920 Cable 16m UNI
1
2 5 4
3
Power
2 5 4
Power
1
Set Economy Rearview Built In
Set No. 0410010
1 0207711 Monitor 7” Economy
2 0303070 Cable 0,5m Economy line display
4 0171010 Camera FAMOS 118° PAL
*
5 0301920 Cable 16m UNI
Set Economy Rearview 2 Cam
Set No. 0410040
1 0207711 Monitor 7” Economy
2 0304081 Cable 1m + 1m Economy line display
3 0400610 DDIN adapter adjustable bracket UNI
4 0171010 Camera FAMOS 118° PAL
*
5 0301920 Cable 16m UNI
254
Power
54
1
3

System manual
SM0974080 A 02 5
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm 150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm 150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm 150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm 150 cm
Moderate Bad
Bad Good
Bad
Good Moderate
0° 15° 30°
Bad
Good
Moderate
0°
10°
20°
15°
0°
30°
15°
30°
Good
Good
Moderate
Moderate
Bad
Bad
Moderate (incidental)
0°
40°
Bad
Good
Bad (continual)
40 cm 75 cm 150 cm
Moderate Bad
Bad Good
3. Monitor placement (guideline)
The correct placement of the monitor depends on the
type of the vehicle. Please take note of the following
guidelines when installing the monitor.
Obstruction of the eld of vision
The monitor must be placed in such a way that the field
of vision of surrounding traffic and the work area is
obstructed as little as possible.
Obstruction of the operation
The monitor may not obstruct the basic operation within
the vehicle.
Viewing distance
View point on the monitor
Posture
View point on the monitor
Viewing direction of the monitor

System manual
6SM0974080 A 02

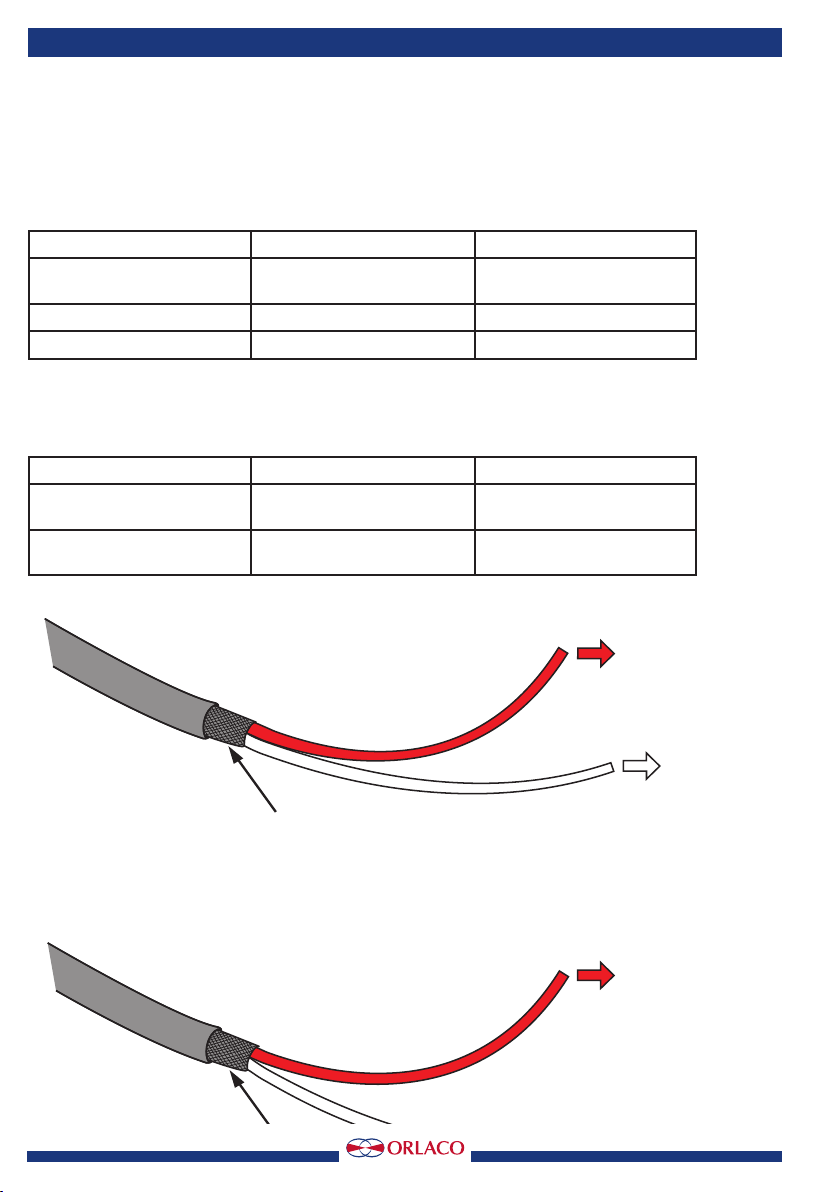

4. Electromagnetic compatibility installation instructions (EMC).
Preferred installation
Installation especially for forklifttrucks.
Warning! On vehicles with separated powerwiring like electrical forklifttrucks no other installation is allowed, the
screening may NOT in any way be connected to the battery:
Color/wire Function Vehicle connection:
Red wire +(plus) powersupply +(plus) voltage of the vehicle
(12..24V/Dc, 5A fuse)
White wire -(minus) GND powersupply -(minus) of the vehicle
Screening powercable Eliminate EMC disturbances Chassis of the vehicle
Alternative installation
If no separate 0V/minus is available on the vehicle and the minus of the battery is connected to the chassis of the
vehicle; connection is as follows:
Color/wire Function Vehicle connection:
Red wire +(plus) powersupply +(plus) voltage of the vehicle
(12..24V/Dc, 5A fuse)
White wire and
Screening powercable
-(minus) GND powersupply
and EMC
Chassis of the vehicle combined
with -(minus) of the vehicle
Preferred installation
Red wire
+ (Plus)
Power supply White wire
-(Minus) GND
Shielding
To +(Plus) voltage
of the vehicle
To - (Minus)
of the vehicle
Red wire
+ (Plus)
Power supply
White wire
-(Minus) GND
Shielding
To the chassis
and -(Minus)
of the vehicle
Alternative installation To +(Plus) voltage
of the vehicle
Connect shielding to the chassis
and -(Minus) of the vehicle. Wire not included.
Connect shielding to the chassis of the vehicle. Wire not included.

System manual
SM0974080 A 02 7
Figure 1
1
1314
2
Crimp side
Female connector
4
1
23
Monitor side 16p
Connector housing
4p Moulded female connector
camera side
Power
14p female connector
display side
Lenght 500mm
Units in mm
1
2
3
4
567
Camera side
Front side
4p Female connector

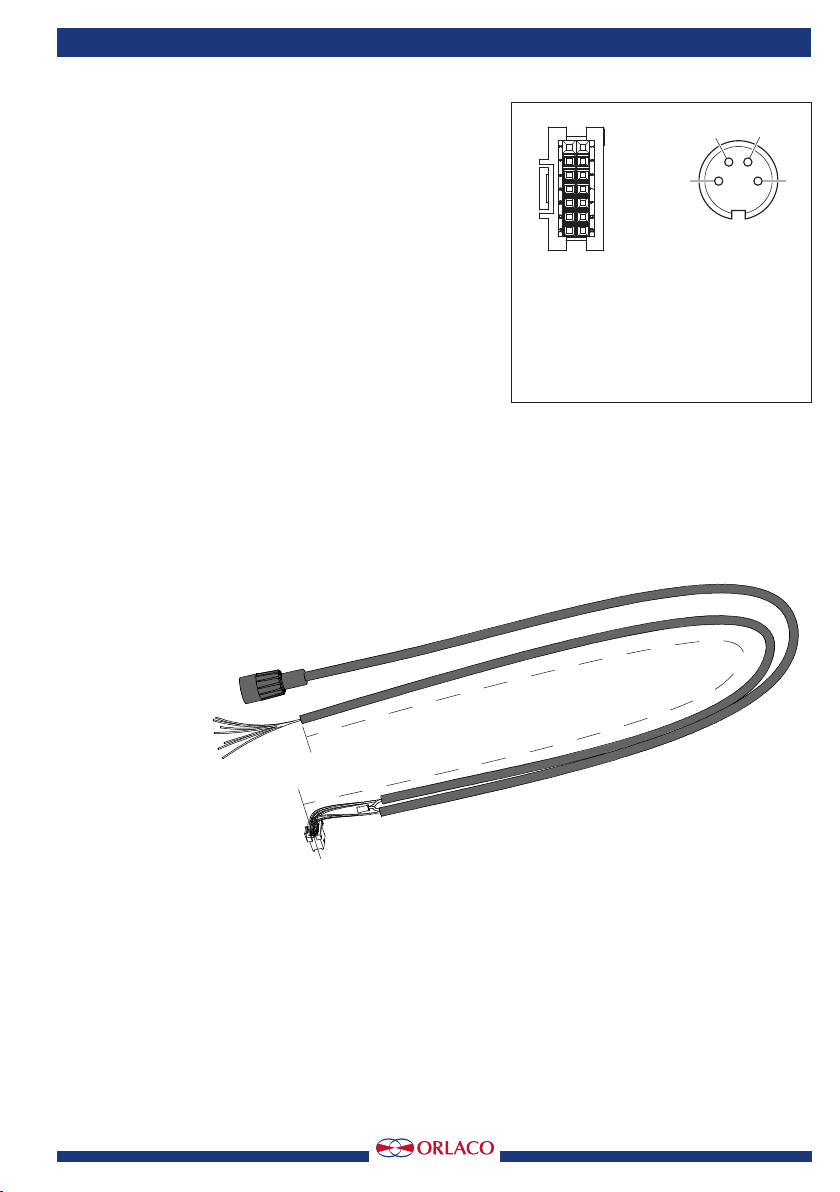

5. Electrical connections Sets
Art no. 0303070
Cable 0,5m Economy Line Display, see figure 1.
Connections to the Monitor.
1 = Red = Power
2 = White = 0V
3 = Blue = Camera 1
4 = Brown = Camera 2
5 = White/Yellow = Camera 3
6 = Grey = Aux 1
7 = Yellow = Aux 2
8 = Coax core = Video
9 = Coax shielding = Video GND
10 = Red = Power
11 = Black = 0V
12 = N.C.
13 = N.C.
14 = N.C.
Connections to the camera.
1 = Coax core = Video
2 = Coax shielding = Video GND
3 = Red = Power
4 = Black = 0V

System manual
8SM0974080 A 02
4
1
23
CAM.1
CAM.2
Power cable
to Display 7”
1234
5
6
7
Units in mm
2015
1000
1000
Cam 1 or Switcher
Cam 2 or Cam 4
Art no. 0304081
Cable 1.0m + 1.0m Economy Line Display, see figure 2.
Connections to the Monitor
1 = Red = Power
2 = White = 0V
3 = Blue = Camera 1
4 = Brown = Camera 2
5 = White/Yellow = Camera 3
6 = Grey = Aux 1
7 = Yellow = Aux 2
8 = Coax core = Camera 1
9 = Coax shielding = Camera 1 + 2
10 = Red = Power output 12V/DC
11 = Black = Power output OV
12 = N.C.
13 = N.C.
14 = Coax core = Camera 2
Connections to camera 1.
1 = Coax core = Video signal
2 = Coax shielding = Video GND
3 = Red = Power +12V/DC
4 = Black = 0V
Connections to camera 2.
1 = Coax core = Video signal
2 = Coax shielding = Video GND
3 = Red = Power +12V/DC
4 = Black = 0V
Figure 2
1
1314
2
Crimp side
Female connector
Monitor side 16p
connector housing
Camera 1 + 2
Front side
4p Female connector

System manual
SM0974080 A 02 9
7. Dimensions Monitor 7” Economy
54,6
188
120
181
53,1
112,5
units in mm
6. Technical specications Monitor 7” Economy, Article No. 0207711
Type Automotive 7 inch TFT liquid crystal display module LED backlight.
Resolution WVGA 800xRGBx480 pixels.
Viewing 70° horizontal and 60° vertical.
LED Life Time 30000 Hrs.
Typical performance Center luminance of white: 600cd/m2, Contrast ratio 650:1, Response time 5 ms (Tr).
Softwaremenu On-Screen-Display (OSD) functionality for CMOS, CCC and AMOS rearview cameras.
ABC mode Improved Auto Brightness Control (ABC) including one-touch day/night setting and adjustable minimum and maximum
levels for automatic control.
UV Resistance Exposure to intense direct sunlight (UV radiation) may increase the degradation of the display.
Operating temperature -40°C ..+85°C.
Storage temperature -40°C ..+125°C.
Electrical
Input voltage range 12V / 24V/DC +/-10%.
Power consumption 4.8W at 24V.
Protection >30V overvoltageprotection, <10V undervoltageprotection, protected against loaddumps, spikes and surges, reverse polarity
on all wiring.
Power-output 12.8V/DC 1,5A for powering 2 cameras.
Video input 1Vtt, 75Ω, Pal 50 Hz, 4,43MHz color sub carr. NTSC 60 Hz, 3,58MHz color sub carr.
Certication
Water- and dustproof IP54 according IEC60529
EMC certication Automotive 30V/M radiated immunity
Quality & environment Units are manufactured by Orlaco in the Netherlands; ISO 9001:2000, ISO14001: 2004, ISO TS 16949.
FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.

System manual
10 SM0974080 A 02
Clamp
Bracket
Display housing
40
80
∅ 6,2 4x
units in mm
objects in
monitor are
closer than
they appear
objects in
monitor are
closer than
they appear
objects in
monitor are
closer than
they appear
Disassembling of the display (from bracket):
23
4
Insert the U shaped demounting
tool into the holes as shown.
Tweak the dismounting tool in both
holes and pull the display slightly
a little out of the bracket.
Do the same thing on the
other side and pull the display
slightly a little out of the bracket
1
Remove the sun mask by
sliding it upwards in the arrow
direction and then forwards.
objects in
monitor are
closer than
they appear
5
objects in
monitor are
closer than
they appear
Then you can completely remove
the display from the bracket.
8. Mounting and demounting Monitor 7" Economy line
DDIN adapter Adjustable bracket, Art no. 0400610, only applicable
to the sets; 0410000, 04100020 and 0410040; see figure 3.
Figure 3

System manual
SM0974080 A 02 11
Figure 4
Put the connector
against the clamp
clamp connector clamp
clamp
connector
connector
monitor
Step 1 Step 2
Step 1. Turn the cable first to the outside and push it to the clamp.
Step 2. Push the cable with a twisting motion between the hooks.
clamp monitor
ridge
Install the cable clamp
to the connector side and put it through
the back side cover from the monitor.
2
34
1
Press the cable clamp
under the ridge of the housing and
push the cable clamp to the monitor cover.
9. Mounting the cable clamp

System manual
12 SM0974080 A 02

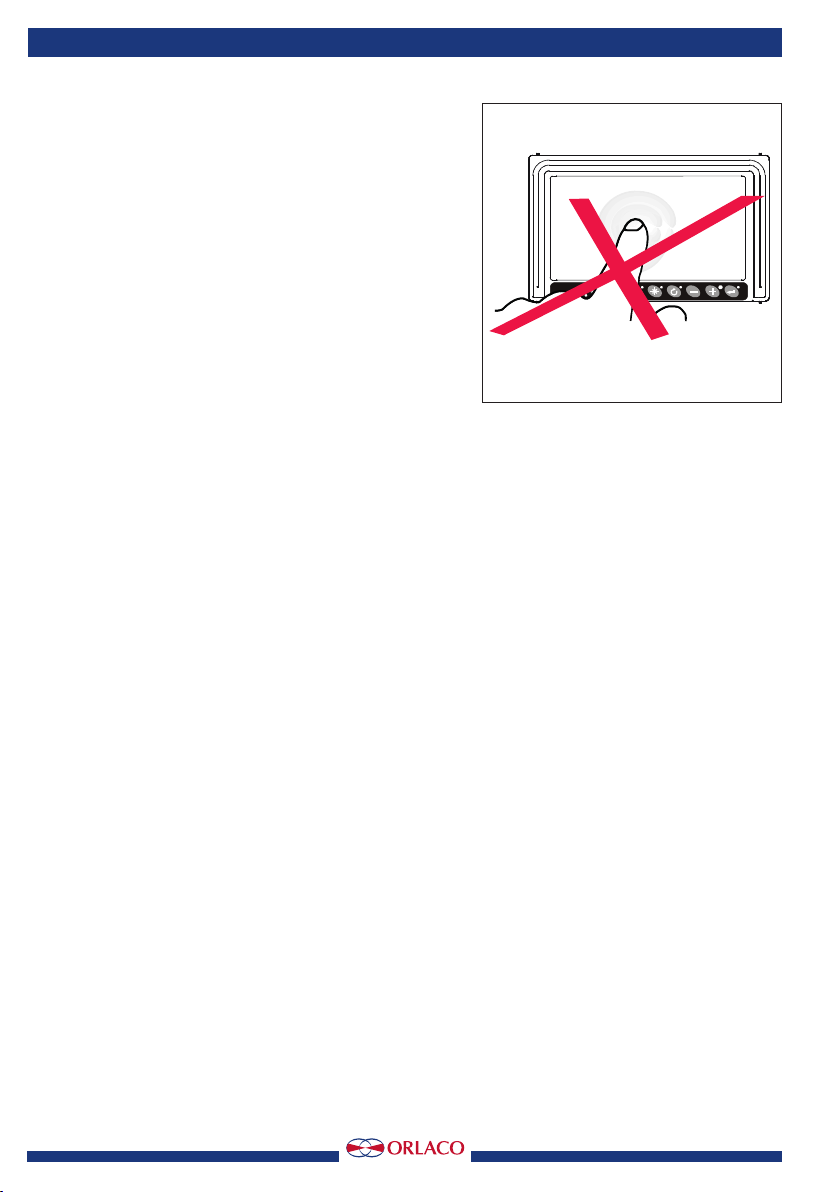

10. Maintenance and cleaning
First, do not touch the screen with your fingers. The underlying
transistors will react to the static electricity in your fingers, or may
get damaged by the pressure thus exerted. This will eventually
produce dead pixels; tiny, inoperative, or colored dots impairing
picture quality.
So take care when cleaning your delicate LCD Screen. Use a high
quality and safe foam cleaner and a soft cloth. Do absolutely not
use aggressive chemicals or abrasive cleaning agents.
11. Disposal
Disassembly, removal and disposal. Local regulations for dealing
with waste must be followed when disposing of disassembled
components or entire units.
12. General terms and conditions
Orlaco Products BV is not liable for damage resulting from
inadequate servicing, incorrect usage or alterations made to the
equipment without informing the manufacturer in writing.
This installation manual has been made available by Orlaco
Products BV. All rights reserved. No part of this manual may be
reproduced and/or made public in printed form, in photocopy
form or on microfi lm, or in any other way, without the prior
written permission of Orlaco. This also applies to the associated
drawings and figures.
Orlaco reserves the right to make changes to components at any
time without informing customers beforehand or directly. All
dimensions given are for commercial purposes.
For information regarding repairs that is not covered in this
manual, please contact the Orlaco Products BV service department.
This manual has been prepared with all due care and attention.
However, Orlaco Products BV cannot be held responsible for any
errors in this manual or any consequences thereof.
13. Release Notes
R1-0. First edition, 07/2012.
R1-1. Two sets added, camera added to sets, 10/2012.
R1-2. Input volfage range (specifications) changed, 11/2012
R1-3. Specs changed, page 10, 02/2015
R1-4. Specs changed, page 10, 02/2016
R1-5. Art. No. Monitor changed to 0207711, 08/2016
A 01. Sets deleted, Camera changed, 06/2021
A 02. Specs changed, page 10, 08/2021
objects in
monitor are
closer than
they appear

ORLACO
www.orlaco.com
Orlaco is a Manufacturing company that specializes in making
cameras and monitor systems for commercial vehicles, fork-lift
trucks, cranes, off shore and maritime.
Our objective is to design and produce camera systems for the
professional market that improve the drivers’ view and increase
operating efficiency.
At our facility in Barneveld we locate our design, manufacturing,
warehousing and service department.
Vision is our mission®. Orlaco therefore deploys the development,
manufacture, supply and service of camera and Monitor systems
that will improve safety and efficiency of all vehicles,
machinery and vessels. Our systems give the end user a view on
each blind spot and will create comfort and improved working
conditions. Our active approach will support market demands
and innovations and will lead to enthusiastic ambassadors in the
market; our customers.
For more information: www.orlaco.com
