ORTAL Clear 40 Front Installation guide

Homeowner’s Operation and Maintenance Manual
EU
ORTAL Heating Systems Ltd.

2 Homeowner's Operation and Maintenance Manual
Welcome to ORTAL.
ORTAL, providing heating solutions for over 25 years, is well known for its wide selection of modern gas
fireplaces, produced with close attention to detail, finishing, heating efficiency and quality. ORTAL’s products
combine traditional and modern design with the technology innovation that ensures a green product with
high efficiency ratings. Our advanced technology produces eye catching fires that are safe, beautiful and
economical. Our product sophistication allows installation in more locations inside the home.
ORTAL offers large selection of modern gas fireplaces available in an array of sizes to suit design and
architectural needs, integrating heat into the aesthetics of life. Our high quality fireplaces are CE certified.
ORTAL fireplaces are available around Europe via selected distributors and dealers who each have a strong
commitment to offer the best installation and service.
Green Statement: ORTAL offers a green, environmentally friendly heating solution for the modern
era. With ORTAL’s high efficiency ratings and contemporary designs, you don’t have to sacrifice form for
function. The unique design maximizes the fireplace’s radiant heat. Additional efficient components include
ORTAL’s use of direct vent technology, electronic ignition (instead of a standing pilot) and low maintenance
requirements.
We appreciate you choosing ORTAL for your fireplace needs.
Thank you,
Ortal

Homeowner's Operation and Maintenance Manual 3
Table of Contents
Introduction ....................................................................................................................................................4
Fireplace Safety Information and Warnings ................................................................................................... 4
Initial Operation and Flame Appearance ........................................................................................................ 7
Initial Burning Period................................................................................................................................. 7
Flame Effects ............................................................................................................................................. 7
Operating the Remote Control ....................................................................................................................... 8
Important Safety Information ................................................................................................................... 9
Handset Design and Technical Details .................................................................................................... 10
Operating Instructions............................................................................................................................. 10
Replacing the Batteries ................................................................................................................................. 18
Cleaning and Maintenance ........................................................................................................................... 19
Routine Care............................................................................................................................................ 19
Annual Maintenance ............................................................................................................................... 19

4 Homeowner's Operation and Maintenance Manual
Introduction
Congratulations on the purchase of your new ORTAL fireplace. ORTAL fireplaces are constructed with the highest
quality materials and utilize modern, efficient heat producing methods, so you can benefit from many years of
enjoyment.
This booklet provides important safety information and instructions about how to operating and maintaining
your fireplace. Please read the booklet carefully before using the unit for the first time, and then store it in a safe
place for reference.
Fireplace Safety Information and Warnings
This section provides safety guidelines and instructions. It is important to SAVE THESE INSTRUCTIONS and to
make yourself fully aware of all the safety protocols and the many features of the ORTAL direct vent gas fireplace
appliance.
WARNING –FIREPLACE TEMPERATURE
This appliance is designed as an efficient heating device and all parts become very hot during use. Except for
the control knob and the control access door, which are designed to stay cool, all parts are working surfaces
and should not be touched. Children and adults should be alerted to the hazards of high surface temperature
and should stay away to avoid burns or clothing ignition.
Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies. All combustible material such as clothes, curtains, etc. should not be positioned within 1 meter
of the appliance.
The appliance is not designed as a dryer and should not be used in such a manner. Do not place any articles
within 30 cm of the appliance, as thismay result in damage to the articles.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at-risk individuals in the house. To restrict access to a fireplace or stove, install an
adjustable safety gate to keep toddlers, young children and other at-risk individuals out of the room and
away from hot surfaces. Additional barriers may be required to deal with the special hazards that exist in
nurseries and other places where there are young children or aged or infirm persons.

Homeowner's Operation and Maintenance Manual 5

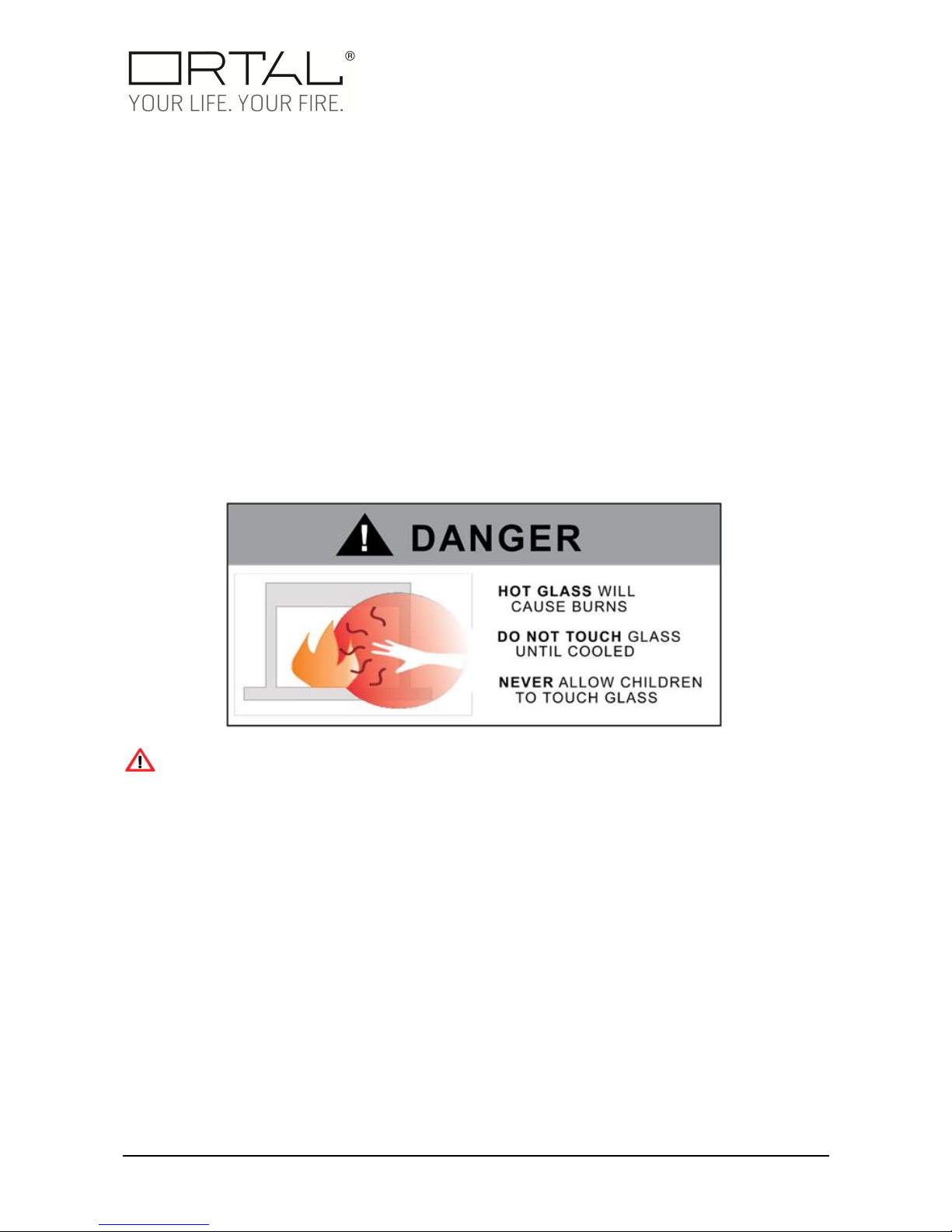

WARNING –FLAMMABLE OBJECTS
Do not place flammable objects or materials within 1 meter of the appliance. Pay special attention to
furnishings and ornaments around the fireplace.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance.
WARNING –APPLIANCE OPERATION
If the information in these instructions are not followed exactly, a fire or explosion may result, causing
property damage, personal injury or loss of life.
The appliance should not be used if the glass is broken, and should never be used with the door open.
If the Flame Supervision Device is extinguished either intentionally or unintentionally, no attempt should
be made to re-light the gas until at least 3 minutes haveelapsed.
WARNING –GLASS HANDLING
Do NOT open the glass. The glass must be removed ONLY by an authorized and/or qualified installer.
If removing the glass becomes necessary, please contact your ORTAL dealer.
WARNING –IF YOU SMELL GAS
If you smell gas, take the following action immediately:
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Call your gas supplier from a neighbor’s phone, and follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
WARNING –ANNUAL MAINTENANCE
It is essential that the fireplace, vent and complete venting are cleaned and inspected annually by an ORTAL
dealer.

6 Homeowner's Operation and Maintenance Manual
The following Ortal models are covered by this Homeowner's Manual:
Clear 40 Front, Clear 40
RS/LS/TS, Clear 40 Tunnel, Clear
40 SA TS, Clear 40H70 Front,
Clear 40H70 RS/LS/TS, Clear
40H70 Tunnel, Clear 40H90
Front, Clear 40H90 RS/LS/TS,
Clear 40H90 Tunnel, Small
Square, Classic corner, Modern
corner, Modern Classic
Clear 75 Front, Clear 75 RS/LS/TS,
Clear 75H RS/LS/TS (HARK), Clear
75 SA, Clear 75 SA TS, Space
Creator 75, Clear 7565 Front,
Clear 7565Tunnel, Clear 7565H
Front, Clear 7565HTunnel, Clear
6080 Front, Clear 6080 Tunnel,
Minimal 110, Minimal 110
RS/LS/TS, Minimal 130, Minimal
130 RS/LS/TS, Island 70, Circle 70,
Circle 270, Oval 60*80, Oval 120
Clear 90, Clear 90
RS/LS/TS, Clear 90
Tunnel, Space
Creator 90, Clear
90H, Clear 90H
RS/LS/TS, Clear 95
Front, Clear 95
RS/LS/TS, Minimal
110, Minimal 130
Clear 110 Front, Clear 110
RS/LS/TS, Clear 110 Tunnel,
Clear 110H Tunnel, Clear 110
Stand Alone, Clear 110H Front,
Clear 110H RS/LS/TS, Clear
110HH Front, Clear 110HH
Tunnel, Clear 130 Front, Clear
130 RS/LS/TS, Clear 130 Tunnel,
Clear 130H Front, Clear 130H
RS/LS/TS, Clear 130H Tunnel,
Clear 140 Front, Clear 140
RS/LS/TS, Space Creator 120,
Space Creator 120 Mini, Space
Creator 120 Midi, Island 130
Clear 150 Front, Clear 150
RS/LS/TS, Clear 150 Tunnel, Clear
150 Stand Alone, Clear 150H
Front, Clear 150H RS/LS/TS, Clear
150H Tunnel, Space Creator 150,
Clear 170 Front, Clear 170
RS/LS/TS, Clear 170 Tunnel, Clear
170H Front, Clear 170H RS/LS/TS,
Clear 170H Tunnel, Island 150
Clear 200 Front,
Clear 200 RS/LS/TS,
Clear 200 Tunnel,
Clear 200H Front,
Clear 200H
RS/LS/TS, Clear
200H Tunnel, Space
Creator 200, Clear
250 Front, Clear 250
RS/LS/TS, Clear
250H Front, Clear
250H RS/LS/TS,
Clear 250 Tunnel,
Clear 250H Tunnel

Homeowner's Operation and Maintenance Manual 7
Initial Operation and Flame Appearance
The following sections explain what to expect in initial and subsequent burning periods.
Initial Burning Period
Your ORTAL fireplace has been painted with a high quality, high temperature paint. It will give off an odor and
you may see some white smoke during the first few hours ofoperation. This is normal and harmless.
In order to fully cure the paint, please run the fireplace for 12 hours, at least 4 of them continuously. During this
process you will see a white buildup on the glass. This is normal and can easily be cleaned off by your dealer.
After the initial 12-hour burning period, contact your dealer to clean and check the gaskets. To ensure years of
trouble-free operation, have your dealer perform inspection and maintenance at least once a year.
Flame Effects
The appearance of the flame may vary depending on fuel type, altitude, venting and media placement.
You may notice moisture onthe glass at start up. Please allow 15-20 minutes for your fireplace to achieve the
best look.

8 Homeowner's Operation and Maintenance Manual
Operating the Remote Control
The following sections provide safety information and instructions for remote control operation.
Read these instructions carefully before lighting the fire.

Homeowner's Operation and Maintenance Manual 9
Important Safety Information
Read the following instructions carefully. Failure to follow them could result in a fire or explosion causing
property damage, personal injury or loss of life.

10 Homeowner's Operation and Maintenance Manual

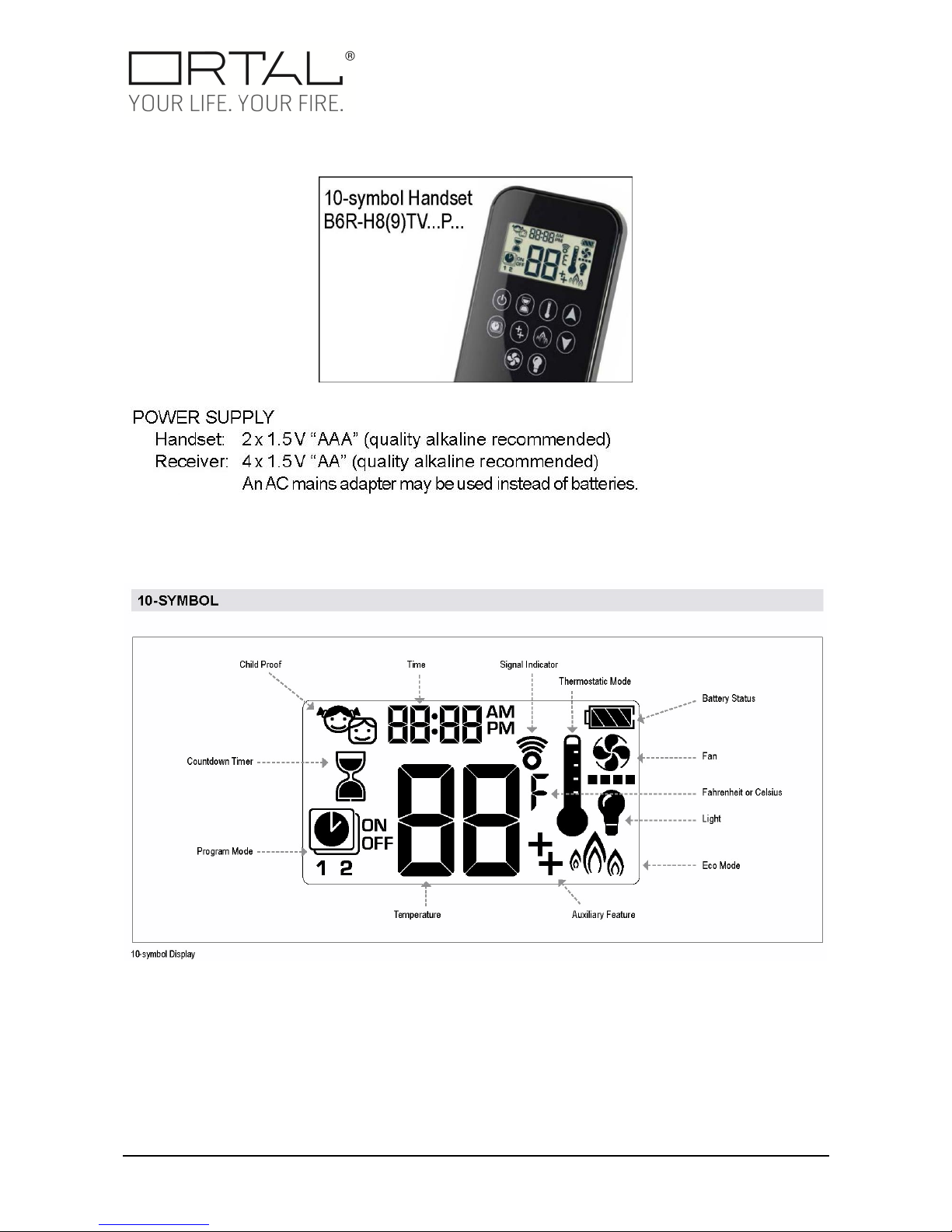

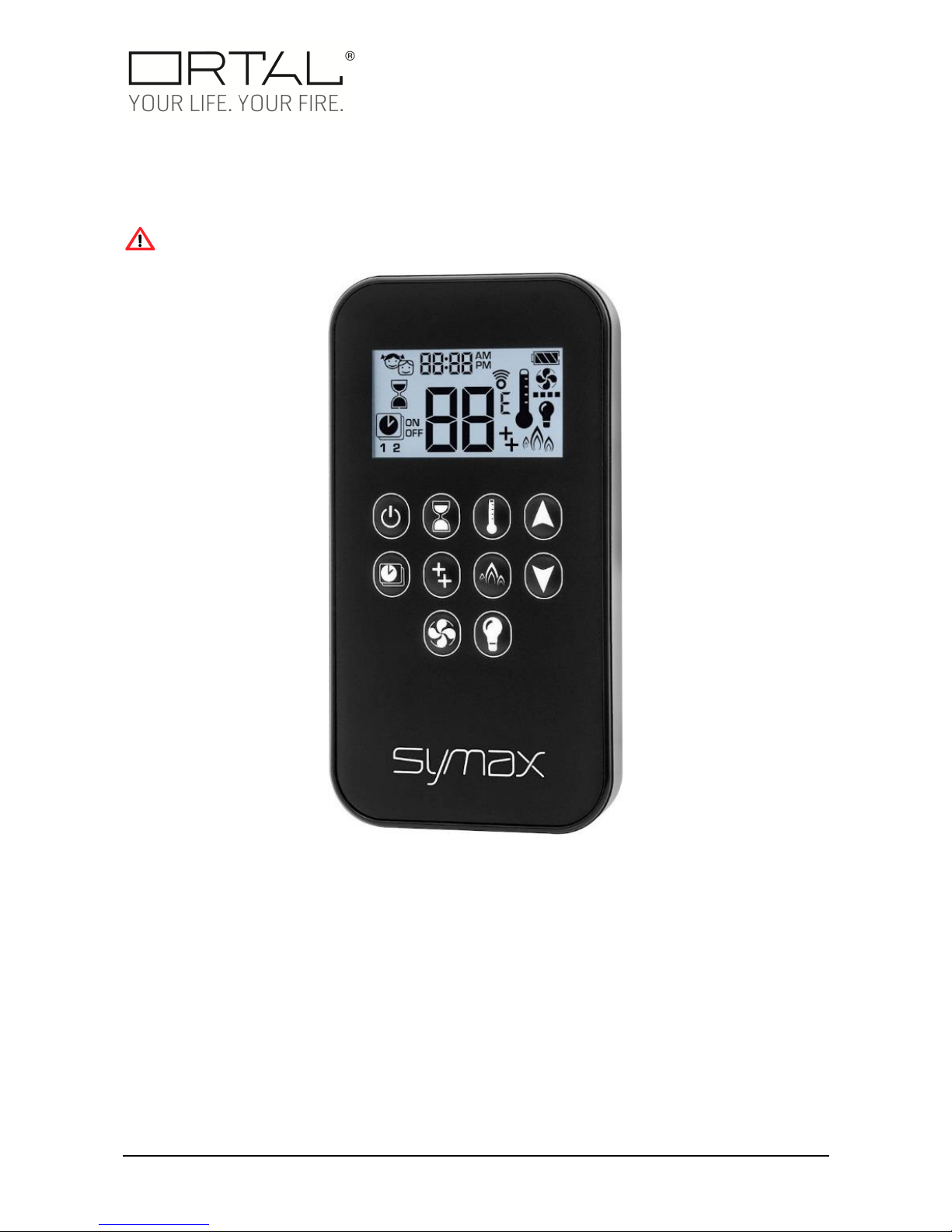

Handset Design and Technical Details
Operating Instructions

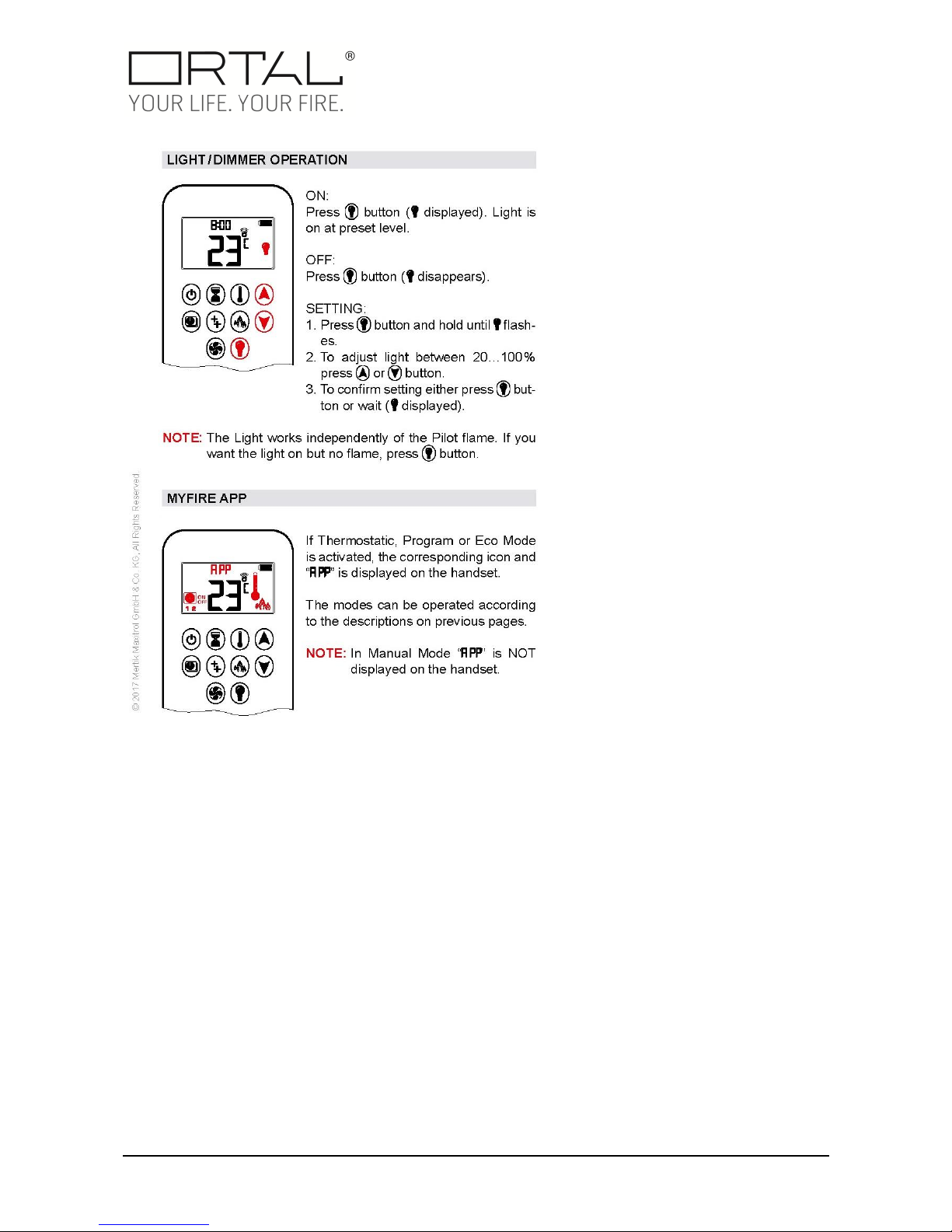

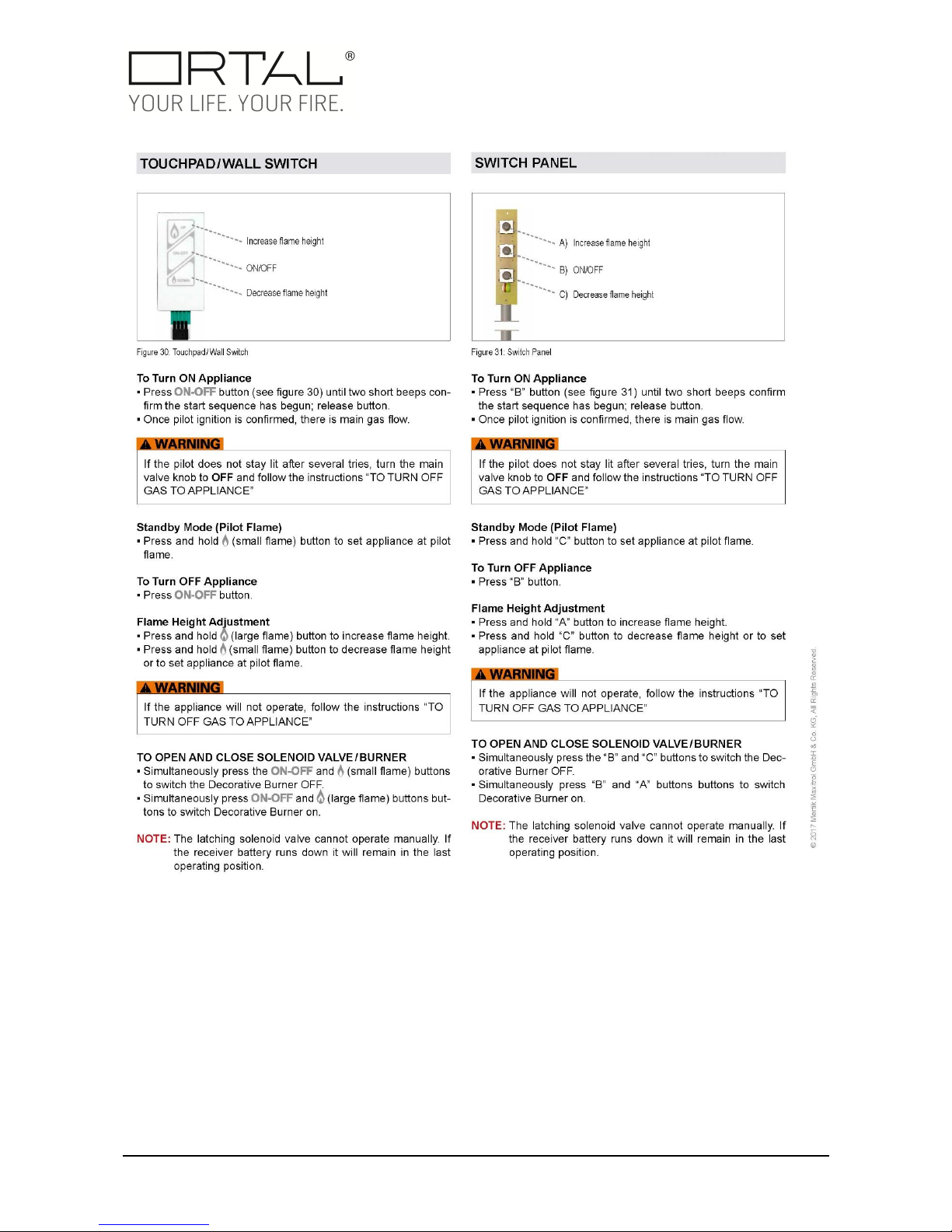

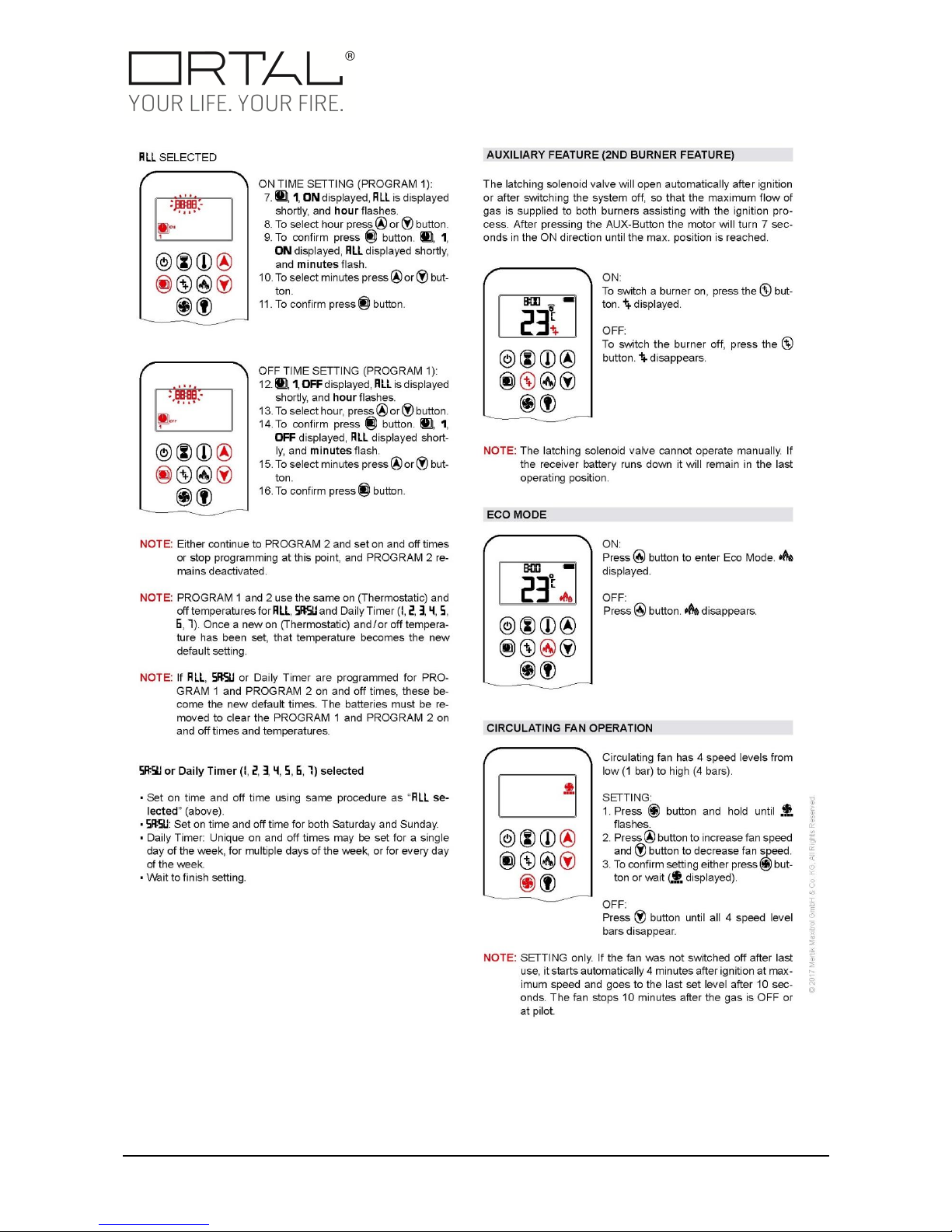

Instructions are shown in the diagrams below. Some options on the remote may not be available for all units.

Homeowner's Operation and Maintenance Manual 11

12 Homeowner's Operation and Maintenance Manual

Homeowner's Operation and Maintenance Manual 13

14 Homeowner's Operation and Maintenance Manual

Homeowner's Operation and Maintenance Manual 15

16 Homeowner's Operation and Maintenance Manual

Homeowner's Operation and Maintenance Manual 17

18 Homeowner's Operation and Maintenance Manual
Replacing the Batteries
The hand-held transmitter/receiver batteries have a service life of approximately one year. We recommend that
you use alkaline batteries. Rechargeable batteries are not permitted.
The procedures below explain how to replace the batteries. Be sure to follow the instructions carefully. If the
batteries are inserted incorrectly, the electronics or drive may be irreparably damaged.
Replace the batteries only after the appliance has been completely switched off.
To replace hand-held transmitter batteries:
1. Open the cover on the back of the transmitter.
2. Remove the batteries from the battery compartment.
3. Place three new 1.5V batteries (AAA type) in the battery compartment, as indicated.
4. Close the cover.

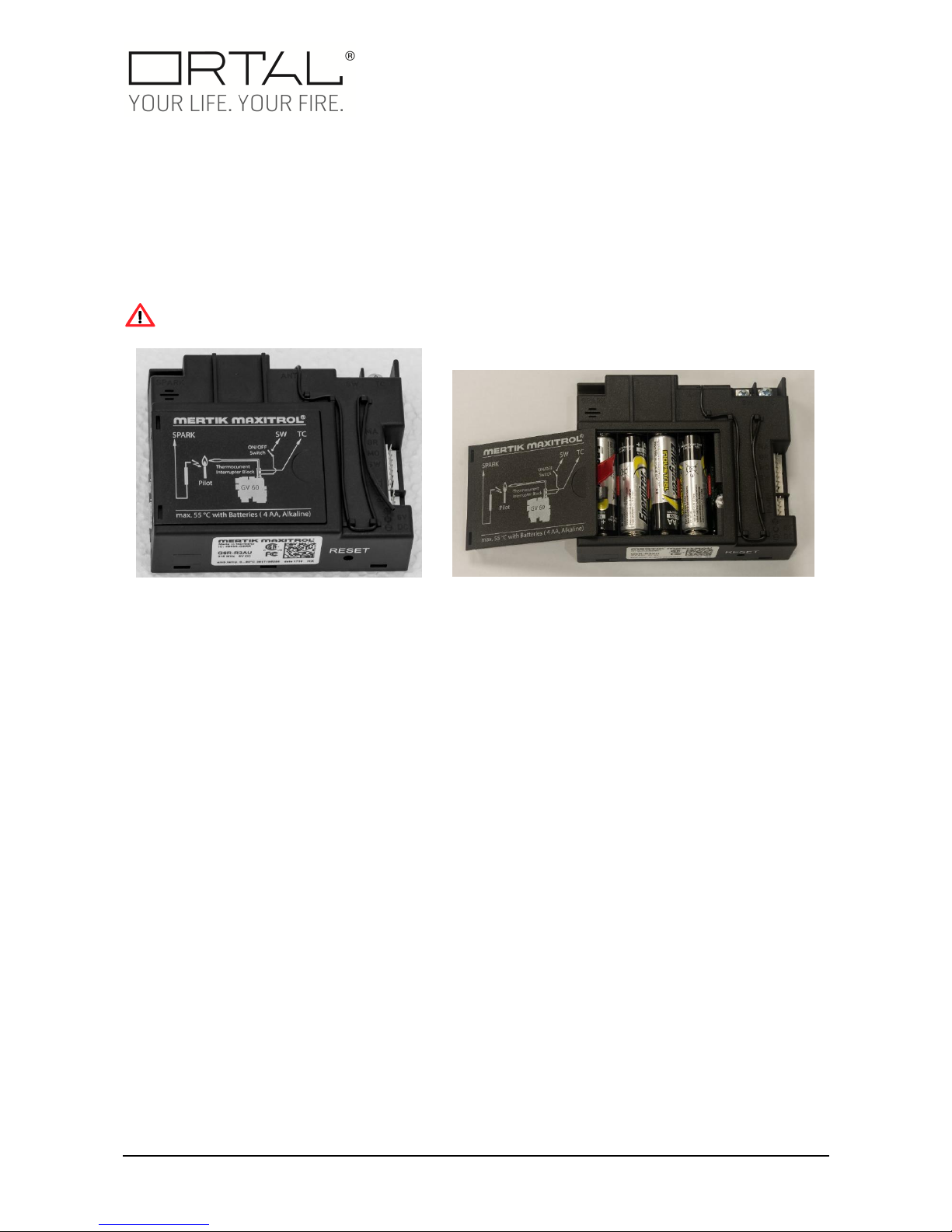

To replace receiver batteries:
1. If you have an access panel, open it and carefully pull the receiver out. Do NOT disconnect any
wires.
2. Open the cover.
3. Remove the batteries from the battery compartment.
4. Place four new 1.5V batteries (AA type) in the battery compartment, as indicated. The negative
end (-) of the battery must always be at the contact spring end of the compartment.
5. Close the cover and return the receiver to its place.

Homeowner's Operation and Maintenance Manual 19
Cleaning and Maintenance
The following sections describe how to care for your ORTAL fireplace.
Routine Care
Exterior parts of the fireplace should be cleaned as necessary with a dry, lint-free cloth and a non-ammonia glass
cleaner. Never use scouring powder, aggressive cleaners or ammonia cleaners on your fireplace.
Allow the fireplace to cool down completely before cleaning.
The recommended frequency of cleaning depends on the degree of dirt buildup. Infrequent cleaning can cause
the glass to become dull and more difficult to clean.
DO NOT OPEN THE GLASS. For all other cleaning or maintenance, contact your ORTAL dealer.
CRACKED OR BROKEN GLASS:
If the glass becomes cracked or broken, do NOT operate the fireplace and call your ORTAL dealer
immediately to replace the glass.
Broken ceramic heat-resistant glass may not be placed in a glass recycling container. Dispose of it in your
normal household waste.
Annual Maintenance
To ensure continued safe operation of your fireplace, it is essential that the appliance, the flue and the burner air
intake be inspected and cleaned by an ORTAL dealer at least once a year.
