Otson OTS-3000 User manual

User Manual V 7.8
Model : OTS-3000
Stardand Package
Professional Package
Golden Package
Solvent-base
Waterborne

P 2
MAINTENANCE SCHEDULE Page 3 ~ 4
INTRODUCTION Page 5 ~ 7
OVERVIEW.........................................................................................P .5
FEATURES.……………………………………………….………............P .6
SPECIFICATIONS……………………………………….….….........……P .7
SAFETY MANAGEMENT Page 8 ~ 10
INSTALLATION Page 11 ~ 20
Installation of Round ( TIN ) Nozzle.............................................P .12-13
Installation of Round ( FRP ) Nozzle...........................................P .14~15
Installation of Flat ( FRP ) Nozzle............................................. P .16~20
LIQUID ELECTROSTATIC POWER SUPPLY……………......…..….P .21
MANUAL LIQUID ELECTROSTATIC SPRAY GUN………............…P .22
ASSEMBLY…………………………………………………….....…P .23~24
OPERATION AND ADJUSTMENT Page 25~ 27
PRE-SPRAY INSPECTION ……………...…………...........…......P. 25~27
PROCESS OF OPERATION………………………………............P. 28~29
TROUBLESHOOTING GUIDE Page 30
FAQ Page 31-33
LIMITED WARRANTY Page 34
CONTENTS

P 3
Maintenance Daily Schedule
Be sure to comply with the SAFETY MANAGEMENT stated on the P3- 5 of USER
MANUAL in advance.
ALL PERSONS IN THE SPRAY AREA MUST BE GROUNDED AT ALL TIMES !!
This may be accomplished safely by the use of conductive soled shoes, disposable
conductive boots.
 Avoid the nozzle being struck. A clogged or damaged air spray nozzle usually results
in faulty spray patterns.
Daily Schedule
1. Safe grounding is a matter of proper equipment maintenance. Inspect all ground wires daily.
2. Verify that Solvent Safety container is grounding.
3. Before operation, please check the electrostatic output. Ref.: 30 KV – 60 KV
4. Checkandcleanorreplacepaintlterasneeded.
5. After per coating work. TURN ELECTROSTATIC POWER OFF andthenushthenozzlewith
suitable solvent, such as xylene or toluene.
6. Wipe the gun and cable exterior with a solvent dampened rag.
7. Inspect all conveyor apparatus, hooks, hangers, etc. If there is any accumulation of dried
coating Material on any of these objects, remove it before using them.

P 4
Maintenance Weekly Schedule
Weekly Schedule
1. Inspect all equipment for damage, leaks, or build-up of paint.
2. Whenshuttingdownovertwodaysorlonger,eithercirculatethepaintorushsystemwith
solvent and leave solvent in the lines.
3. Always circulate and agitate metallic paints and any other materials that settle out rapidly.
But avoid excessive agitation which introduced air into the paint stream, giving the appearance
ofleakinguidvalves
4. Suspendhosesandcablesofftheoor(notfromheatedlinesorcords)andavoidkinks
5. Remove nozzle only when necessary for cleaning or replacement.
6. To aid in the removal of dried paint during clean-up, apply a light coat of petroleum jelly to the
exterior surface of the gun.
Thank you for the opportunity given to OTSON and trust that OTSON shall be your good partner !!
For further technical supports:
Please contact local agent or OTSON.

P 5
OTS-3000 User Manual - Introduction
INTRODUCTION
OVERVIEW
In using the liquid electrostatic spray gun. The high compress air tends to throw the paint away
when the paint passes through the special nozzle, the paint is atomized , then negatively charged
to the object , thus having a less negative charge than the paint. The charged objects are given their
initial momentum from the paint pressure and air pressure. In this case , the expelling effect appears
between the paint carrying electrostatic and the live particles as to cause further atomization of paint
andthusformmuchnerthinfog.Duetotheocclusionofelectrostatic,thelostpaintsaresucked
back to the workplace in generating a kind of surrounding electrostatic effect. In this way , the
purposeofelectrostaticcoatingisachievedwhichisabletooffertranferefciencyupto95%and
minimize the over spraying phenomenon obviously.
OTS-3000 Manual Liquid Electrostatic Spray System
OTS - 3000 Manual Liquid Electrostatic Spray Gun contains the required standard equipment
such as an air regulating valve , electrostatic power supply , electrostatic spray gun and
Round ( TIN ) nozzle , one set each ( Round ( FRP ) and Flat ( FRP ) nozzle are available for
the customer’s option). The above-said electrostatic spray gun in conjunction with paint tank
doublediaphragmpump,paintlter,paintstabilizingvalve,airdryerandaircompressorforms
one complete set of liquid electrostatic spraying equipment for the customer to carry out spray
operation simply by pouring paint into the bucket.
OTS-10
Air Powered
Double Diaphragm Pump
Air Compressor
Paints Supply Line
Air Supply Line
Paint Tank
Electrostatic Power Supply
Ground
AC 110 ~ 240 vAC 110 ~ 240 v
Object
High Voltage Cable
Air Hose
Spray Gun
Spray Booth
Air Dryer
Earthing Cable
Conveyor
Small Particle Atomization
+

P 6
OTS-3000 User Manual - Introduction
FEATURES
1. The spray gun weighs 470g only, which is the lightest electrostatic model in the world.
2. With the ergonomic design, it is compact, easy to handle and smooth for operation without
feeling fatigue during lengthy spraying.
3. The spraying range adjusting valve is installed on the left side of the spray gun for the easier
operation of the user.
4. By using the newly patented No. 75875 high-atomization tin nozzle, it improves the productivity
and meets the requirement of high-quality coating surface.
5. Hammer and valve seats are made of friction-resistant tungsten copper for prolonging the service
life.
6. The gun is made of HV-resistant material, while the handle is made of low-impedance compound.
The structure of the gun is longer than ordinary design for 1 cm to effectively reduce the back
owofpaint.
7. Safecircuitdesigncanquicklydisconnectpower,dischargeitandtriggerthebuzzerforimproving
the operation safety in case of erroneous operation, abnormal voltage or current
.
8. Low failure rate and cheaper parts maintenance. Further, the parts replacement has even been
moresimpliedduringmaintenance.
APPLICATION
• OA Machinery • Electric Appliances
• Steel Furniture • Woodworking Products
• Control Panel • Metallic Protector
• Auto Parts • Household Appliances
• Hardware • Heavy Industrial Machinery

P 7
OTS-3000 User Manual - Introduction
SPECIFICATIONS
Input Voltage 0~70KV DC(-)
Gun Length 225 mm
Gun Weight *(no nozzle , hv cable ,spraying tube and air tube ) 470 g
Fluid and Air Pressure 0 ~ 7 kg/cm2(6.86 bar) (0~100) psi
Operating Pressure Air Supply
Coatings Solvent-base & Waterborne Coatings
Liquid Electrostatic Spray Gun
Electrostatic Power Supply
Round ( TIN ) Nozzle
Round ( FRP ) Nozzle
Flat ( FRP ) Nozzle
Specification
Out Voltage 0~70KV DC(-)
Out Current 50 microamperes
Input Voltage 110 V~240 V AC (50/60 Hz)
Intercepting current 20~150 microamperes
Weight 12 kg
Dimensions 300(L)x120(W)x350(H) mm
Gauge : 22 mm
Atomization air pressure : 4 ~ 6 PSI
Flow Rate : 20 ~ 300 ml/min
Fan pattern width : 70 mm
Air : 180 Nl / min
Gauge : 12 mm
Atomization air pressure : 4 ~ 6 PSI
Flow Rate : 50 ~ 300 ml/min
Fan pattern width : 160 mm
Air : 180 Nl / min
Gauge : 3 mm
Atomization air pressure : 4 ~ 6 PSI
Flow Rate : 100 ~ 400 ml/min
Fan pattern width : 300 mm
Air : 180 Nl / min

P 8
OTS-3000 User Manual – Safety Management

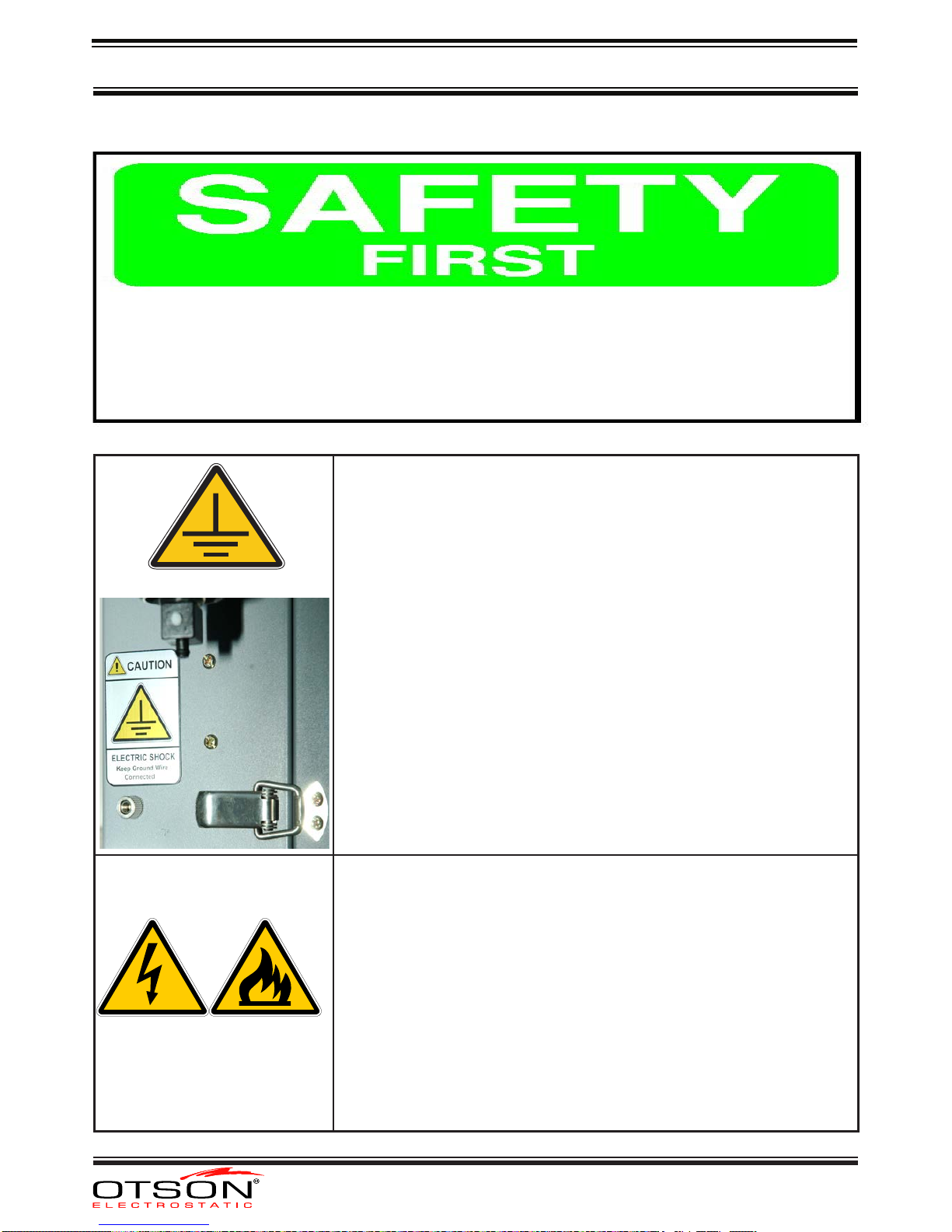

SAFETY MANAGEMENT
1. The liquid electrostatic power supply must be properly
earthed before use:
The grounding of the liquid electrostatic power supply is a basic
requirementforasaferoperation.Intheliquidelectrostaticpower
supply, a HV generator is provided for absorbing the electrons
of earth and sending to the power supply through the grounding
wire. These electrons are sent back to earth though the power
supply, spray gun and the coated object for forming a circuit.
Poor grounding will result in ineffective liquid electrostatic
enclosing or cause damage to the liquid electrostatic power
supply by the false potential inside the unit.
2. The sprayed object should be kept in grounding status
constantly.
Normally the sprayed object is grounded through a conveyer.
If the paint adheres onto the part where the sprayed object
contacts the lifting tool, it may result in poor conductivity of the
object and make it become engaged; thus, causing a poor liquid
electrostatic enclosing effect or even generating sparks for
causingre.Therefore,thepaintadheringtotheliftingtoolmust
be removed regularly.
To improve the operational safety and ensure the over time use of the
manual liquid electrostatic spray gun, be sure to comply with the following
requirements:

P 9
OTS-3000 User Manual – Safety Management
1. Wear leather bottom shoes or liquid electrostatic shoes
during spraying:
The air around the spraying room is exposed to the ionization
of high voltage current. When wearing shoes with rubber or
synthetic resin bottoms, the body will be inducted and exposed
to electric shock upon contacting the grounded rinsing cabinet
or other objects. To keep the liquid electrostatic from staying
in the body, it is therefore required to wear liquid electrostatic
shoes when performing the spraying work. To ensure smooth
current ow of liquid electrostatic shoes, the paint lumps
attached to the shoe bottom shall also be removed.
2. Disconnect the power of the HV generator before cleaning
the nozzle:
Before cleaning the nozzle or when the spray operation is
interrupted, be sure to disconnect power to avoid electric shock
due to inadvertently touching the trigger.
3. Do not use any metallic brush when cleaning the nozzle:
The nozzle is a key part of the liquid electrostatic spray gun.
The use of metallic brush or the collision may hurt the nozzle
and uniformed spray shape cannot be achieved as to affect the
productionsignicantly.
4. Donotsoakthespraygun,HVcablesortheexibletube
in the solvent:
Serious failure may happen if soaking the spray gun, HV
cablesandexibletubeinthesolvent.
DO NOT USE
METALLIC BRUSH !
DO NOT SOAK !

P 10
OTS-3000 User Manual – Safety Management

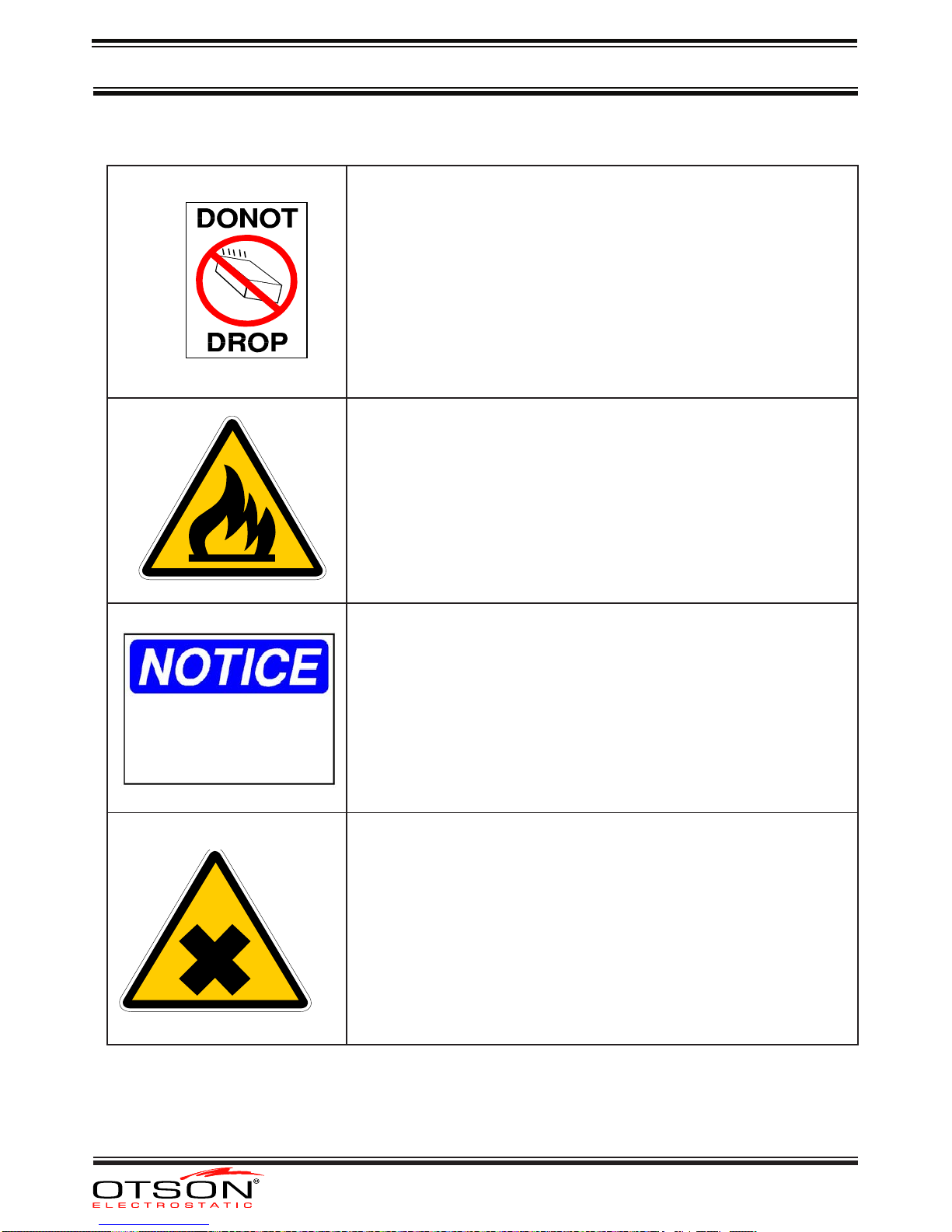

1. Do not drop and drag the HV cables , exible tube  and
electrostatic spray gun on the ground.
If the gun is drop on the ground, it will affect your
transferenceefcientwhenyouarecoating,otherwise,
the gun will be damage.

8. The spraying room and the exhaustion device shall be
cleaned regularly:
If the residual paints are left in the spraying room and the
exhaustiondevice,thentheseresiduesmaybecomeammable
substancesincaseofre.
9. The air compressor shall be fully drained:
If the air compressor contains moisture, it may result in a poor
spraying surface. So special care should be used for draining
the moisture.
10.Please do not disassembly parts of electrostatic power
supply and gun. if you have any question , please contact
with local distributor or OTSON Technologies Corp.
KEEP DRY !

P 11
OTS-3000 User Manual - Installation
INSTALLATION
OTS - 3000-GTFL Golden Package
Item Description Q'ty ( Set )
OTS-3000-GTFL OTS - 3000 Golden Package 1
Including Manual Electrostatic Spray Gun 1
Electrostatic Power Supply 1
Round (Tin) Nozzle 1
Round (FRP) Nozzle 1
FLAT (FRP) Nozzle 1
High Voltage Cable ( 5.0 m ) 1
TeonSprayingTube(6.0m) 1
PU Air Tube ( 5.0 m ) 1
Tool Box 1

P 12
12
34

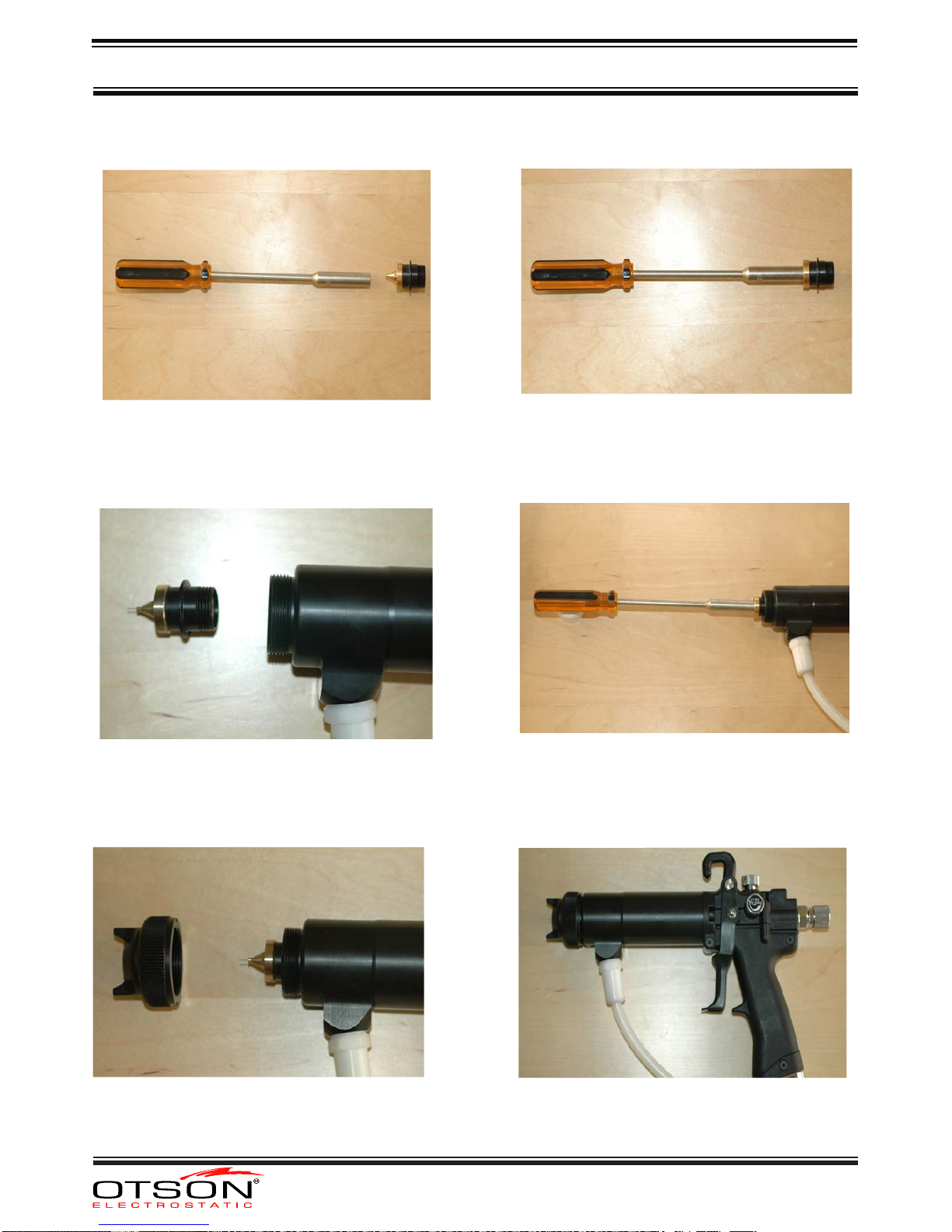

Installation of Round ( TIN )
OTS-3000 User Manual - Installation

P 13
1 1
2 2
3 3
4 4
5 5
6 6
A A
B B
C C
D D
Modle NO
3000AL
lillian3d 2012/5/14
1 / 1
OTSON TECHNOLOGIES
3000AL-
V 1.0
Allan
Designer Checker Approver Date
Version Drawing
OTS-3000

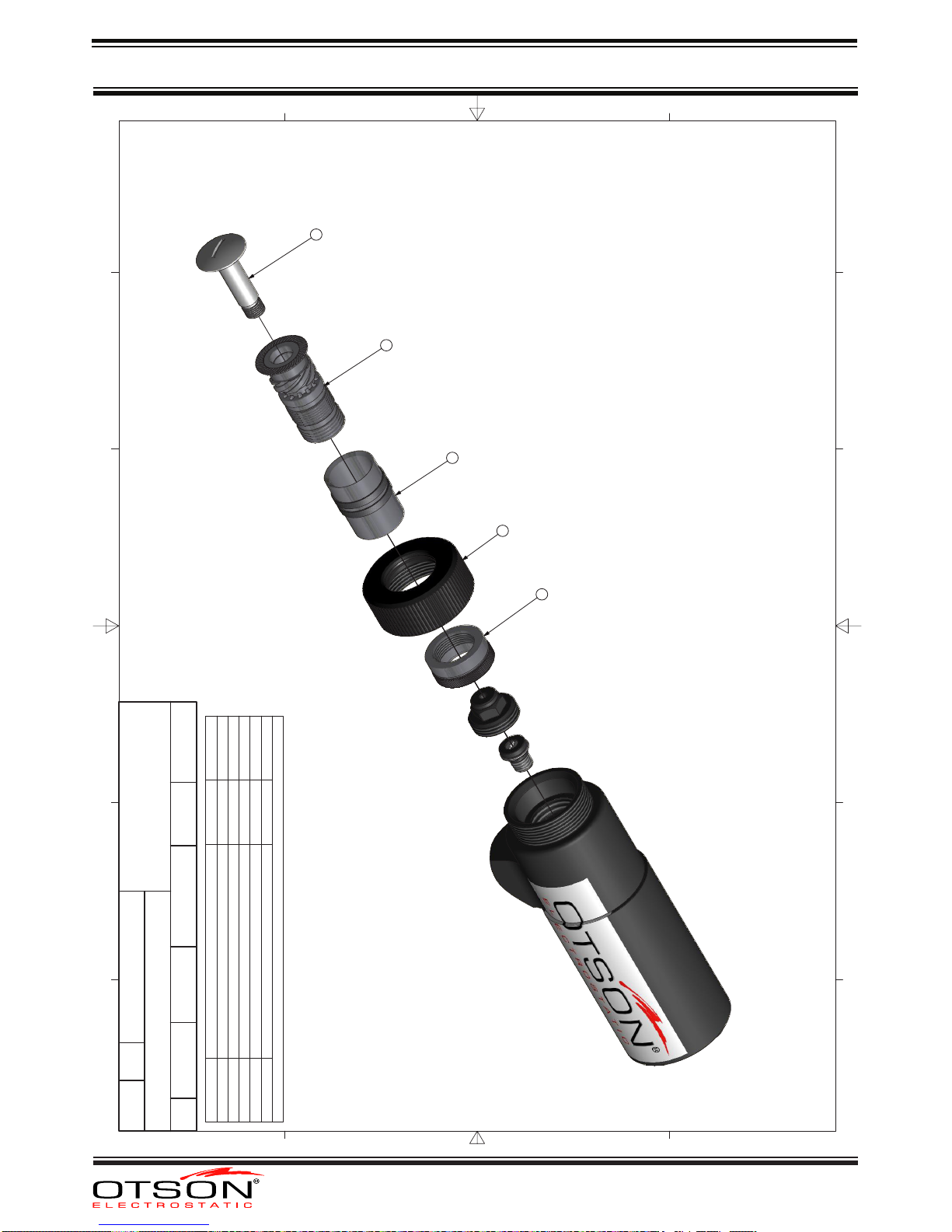

3000AL-Round TIN Nozzle - Parts List Table ( Figure 1)
NUM Part# Description Qty/pcs
1 3000AL01 Air Front Cap (TIN) 1 23000AL02 Round Nozzle Body(TIN) 1 3 3000AL03 Air Cap Retaining Outside Cover(TIN) 1 4 3000AL04 Air Cap Retaining Outside Ring(FRP) 1 5 3000AL05 Air Cap Retaining Outside Ring(TIN) 1
1
2
3
4
5
B
C
B+C

P 14
OTS-3000 User Manual - Installation

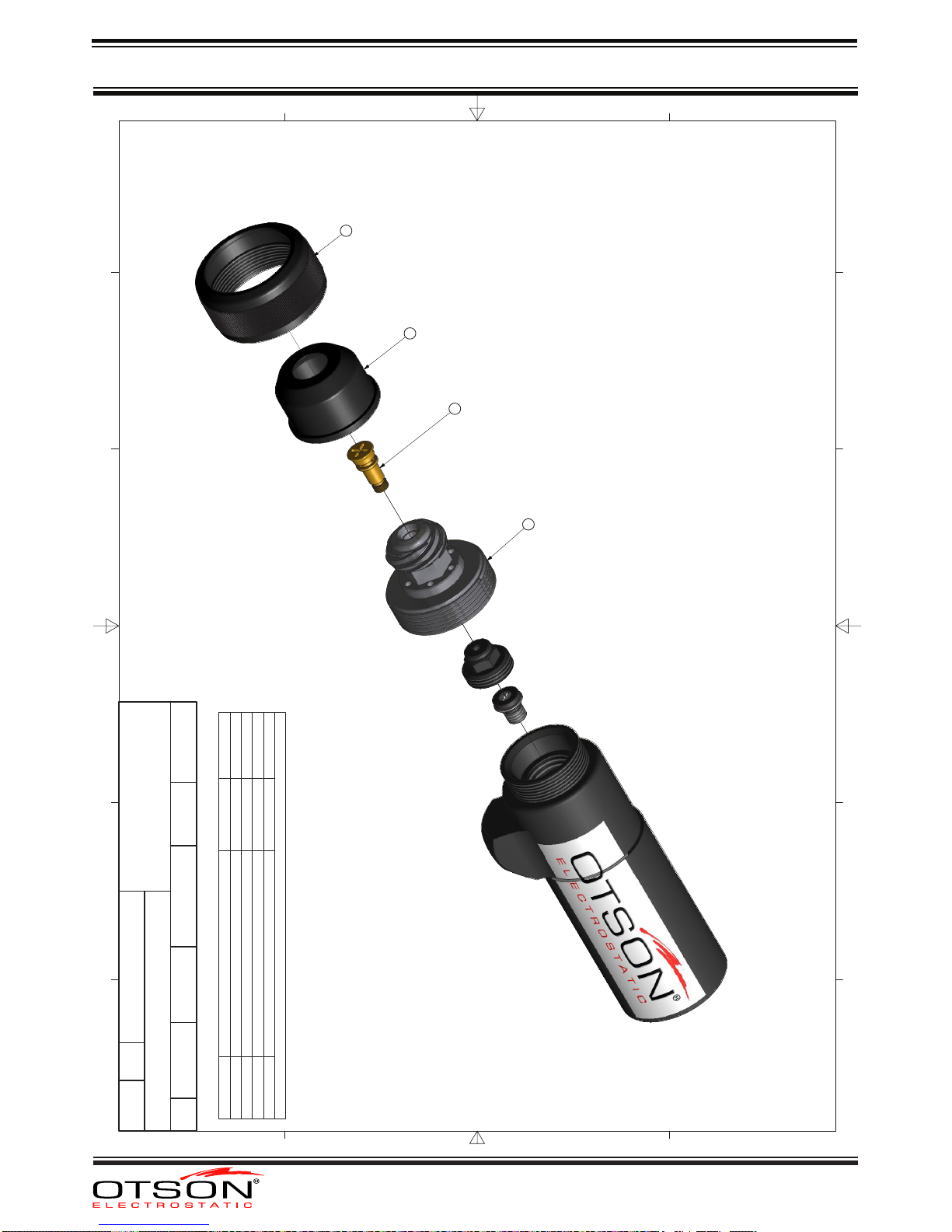

Installation of Round ( FRP ) Nozzle
12

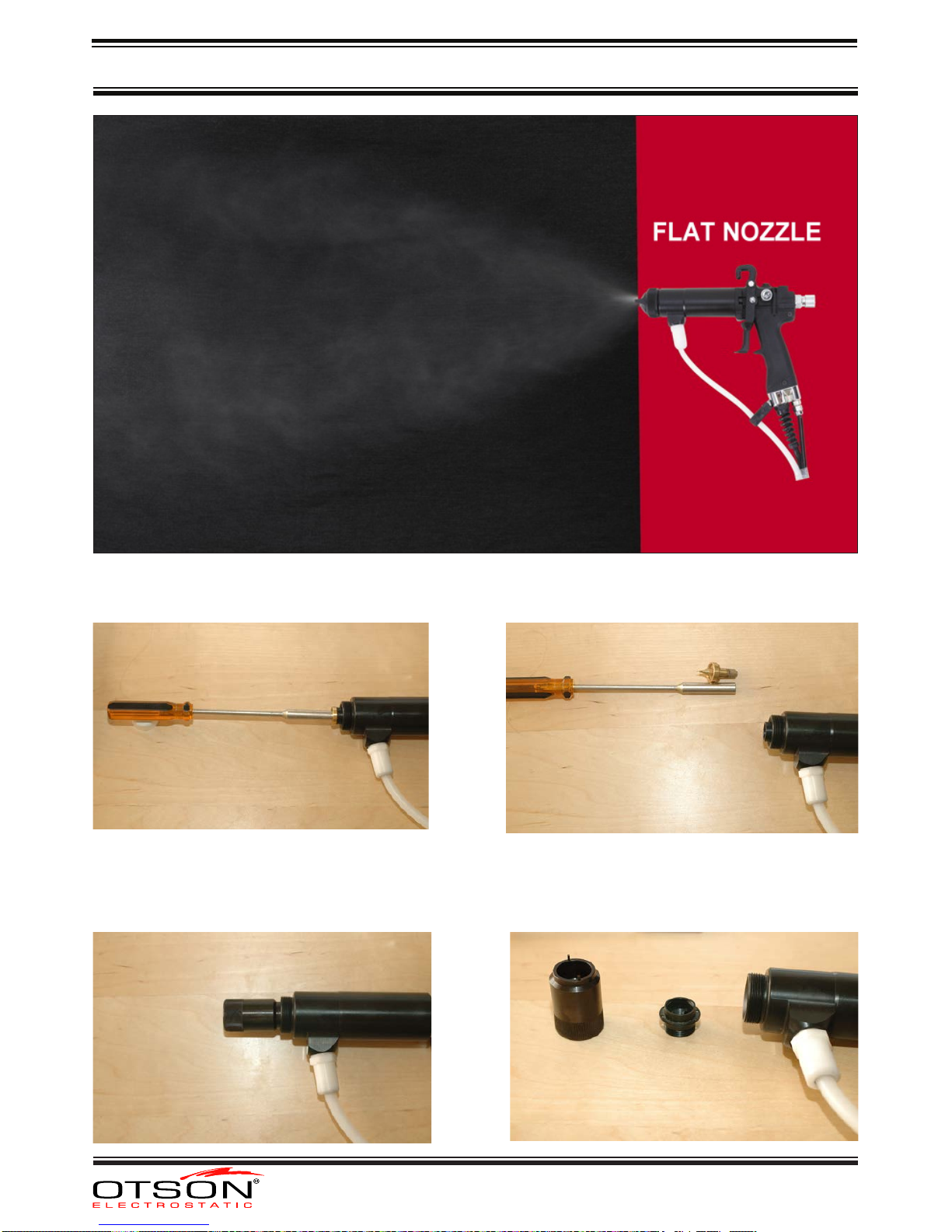

3The Spray Direction of High Atomized Nozzle

P 15
1 1
2 2
3 3
4 4
5 5
6 6
A A
B B
C C
D D
Modle NO
3000AK
lillian3d 2012/5/9
1 / 1
OTSON TECHNOLOGIES
3000AK-
V 1.0
Allan
Designer Checker Approver Date
Version Drawing
OTS-3000
2
3
4
1
3000AK-Round FRP Nozzle - Parts List Table ( Figure 1)
NUM Part# Description Qty/pcs
1 3000AK01 Air Cap Retaining Outside Ring (FRP Round) 1 2 3000AK02 Air Cap Retaining Inside Ring (FRP Round) 1 3 3000AK03 Round Nozzle Neddle 1 4 3000AK04 Round Nozzle Body (FRP Round) 1
B
C
B+C

P 16

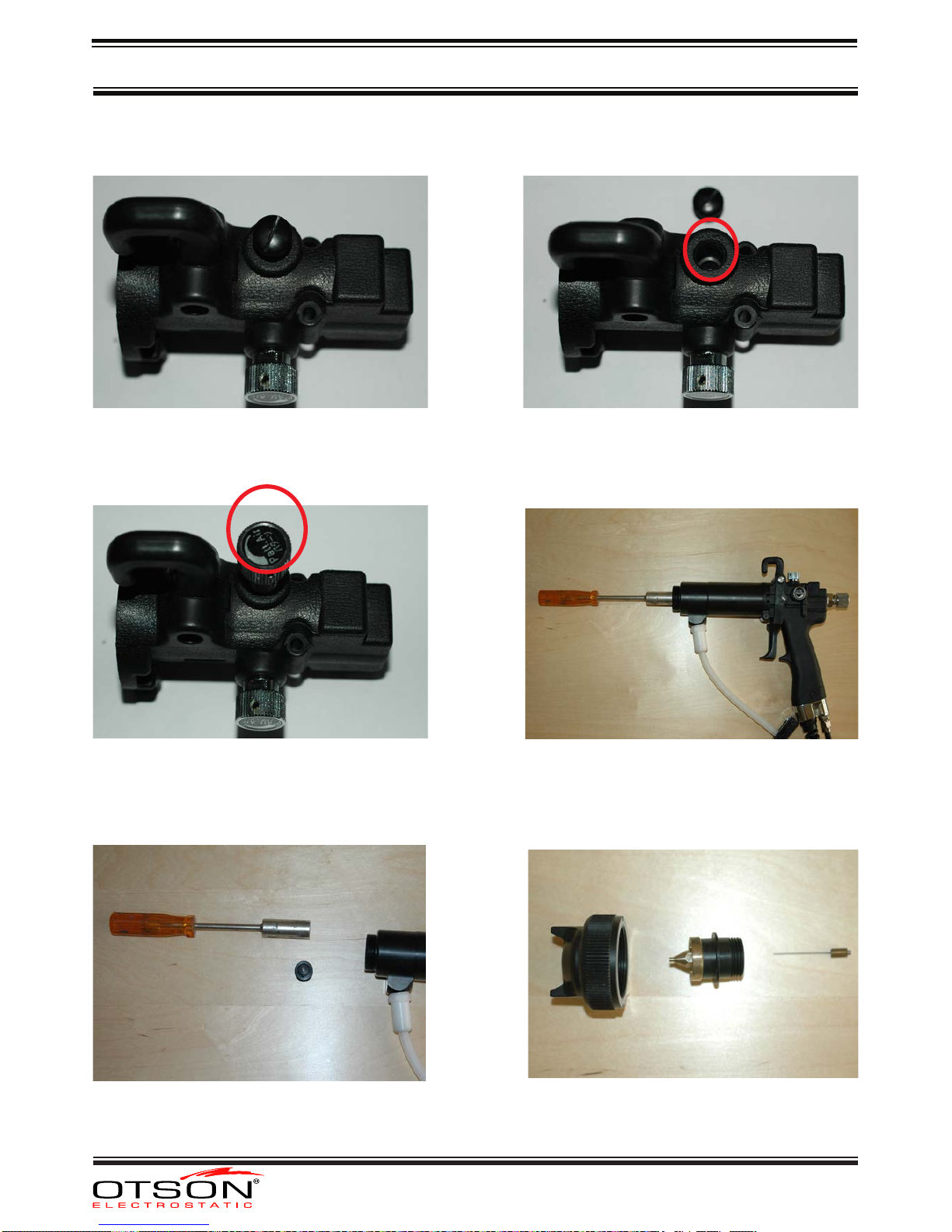

OTS-3000 User Manual - Installation
Installation of Flat ( FRP ) Nozzle - (1)
34
6
5
3
2
1
Note : Air Flow Regulating Knob
( Flat nozzle only).
Note : Using 6PT metric Hand Socket
12 mm to open Hammer Front Seat
Hammer Front Seat

P 17
OTS-3000 User Manual - Installation
Installation of Flat ( FRP ) Nozzle - (2)
78
910
11 12
Note : Make sure no gap between metal
and plastic.
(Using 6PT metric Hand Socket 8 mm )
Note : Make sure no gap between nozzle
and gun.
(Using 6PT metric Hand Socket 8 mm )
Note : Using 6PT metric Hand Socket
8 mm to close head of Flat Nozzle.
Note : Make sure neddle insert in head of
metal and plastic.
(Using 6PT metric Hand Socket 8 mm )

P 18
OTS-3000 User Manual - Installation
Installation of Flat ( FRP ) Nozzle - (3)
How to disassemble Flat nozzle ?
12
34
Note : Using 6PT metric Hand Socket
8 mmtoopenmetalheadofat
nozzle

P 19
Important Notice :
Note : Using 6PT metric Hand Socket
12 mm to close Hammer Front Seat
in gun.
Make sure no gap between
Hammer Front Seat and gun.
How to change Flat nozzle to Round (TIN and FRP ) nozzles on
electrostatic spray gun?
Hammer Front Seat
12
3
After these steps ,please see page 12-13
, these pages include how to install round
(TIN) and (FRP) nozzles.

P 20
1 1
2 2
3 3
4 4
5 5
6 6
A A
B B
C C
D D
Modle NO
3000AQ
lillian3d 2012/5/14
1 / 1
OTSON TECHNOLOGIES
3000AQ-
V 1.0
Allan
Designer Checker Approver Date
Version Drawing
OTS-3000
3000AQ-Flat FRP Nozzle - Parts List Table ( Figure 1)
NUM Part# Description Qty/pcs
13000AQ01 Air Cap (FRP Flat) 1 23000AQ02 Air Cap Retaining Outside Ring(FRP Flat) 1 33000AQ03 Air Cap Retaining Inside Ring (FRP Flat) 1 43000AQ04 Flat Nozzle Body (FRP Flat) 1 53000AQ05 Flat Nozzle Neddle 1
B
C
B+C
1
2
3
4
5
