Outbound 084-6693-4 User manual

ASSEMBLY, INSTALLATION AND USE MANUAL
Trileaf Distribution
Trifeuil Toronto, Canada
M4S 2BS
Toll-free: : 1-866-567-4089
IMPORTANT:
Please read and understand this manual
carefully before assembly. Before
beginning assembly of product, make
sure all parts are present. Compare parts
with packaging contents list. If any part
is missing, or if you have any questions,
contact the vendor’s customer service
department at 1-866-567-4089
13x10' (4x3m) TRAMPOLINE
AND ENCLOSURE
Model No: 084-6693-4
084-6693.indd 1 12/5/2014 1:06:29 PM

2
Model No. 084-6693-4
TM
Technical Specifications 12
Important Safety Instructions 13-5
Key Parts Diagram 16
Parts List 17
Assembly 18-19
Information on trampoline use 120-23
Cleaning and Maintenance 124
Warranty 124-25
TABLE OF CONTENTS
TECHNICAL SPECIFICATIONS
CHAPTER PAGE
114 x 156” (289.5 x 396 cm)
250 lb
(113.6 kg)
Dear Customer,
Thank you for choosing an Outbound trampoline. We hope it will provide many
hours of quality exercise to make you feel better, look better and enjoy life to
its fullest. It is proven that a regular exercise program can improve physical and
mental health. The Outbound trampoline provides a convenient and simple way
to get your body in shape and achieve a happier and healthier lifestyle. Enjoy!
084-6693.indd 2 12/5/2014 1:06:31 PM

3
Model No. 084-6693-4
TM
IMPORTANT SAFETY INSTRUCTIONS
Safety instructions for trampoline
• Misuse and abuse of this trampoline is dangerous and can cause serious
injuries or death. Trampolines, being rebounding devices, propel the user to
unaccustomed heights and into a variety of body movements.
• Do not attempt or allow somersaults. Landing on the head or neck can cause
serious injury, paralysis or death, even when landing in the middle of the
trampoline.
• Do not allow more than one person on the trampoline. Use by more than one
person at the same time can result in serious injuries.
• Use the trampoline only with the supervision of a mature, knowledgeable
person.
• Trampolines over 20" (51 cm) tall are not recommended for use by children
under six years of age.
• Keep small children and pets away from the trampoline at all times, including
during use and assembly of the trampoline.
• Inspect the trampoline before each use. Make sure the frame padding is
correctly and securely positioned. Replace any worn, defective or missing
parts.
• Climb on and off the trampoline. It is a dangerous practice to jump from the
trampoline to the floor or ground when dismounting, or to jump onto the
trampoline when mounting. Do not use the trampoline as a springboard to
other objects.

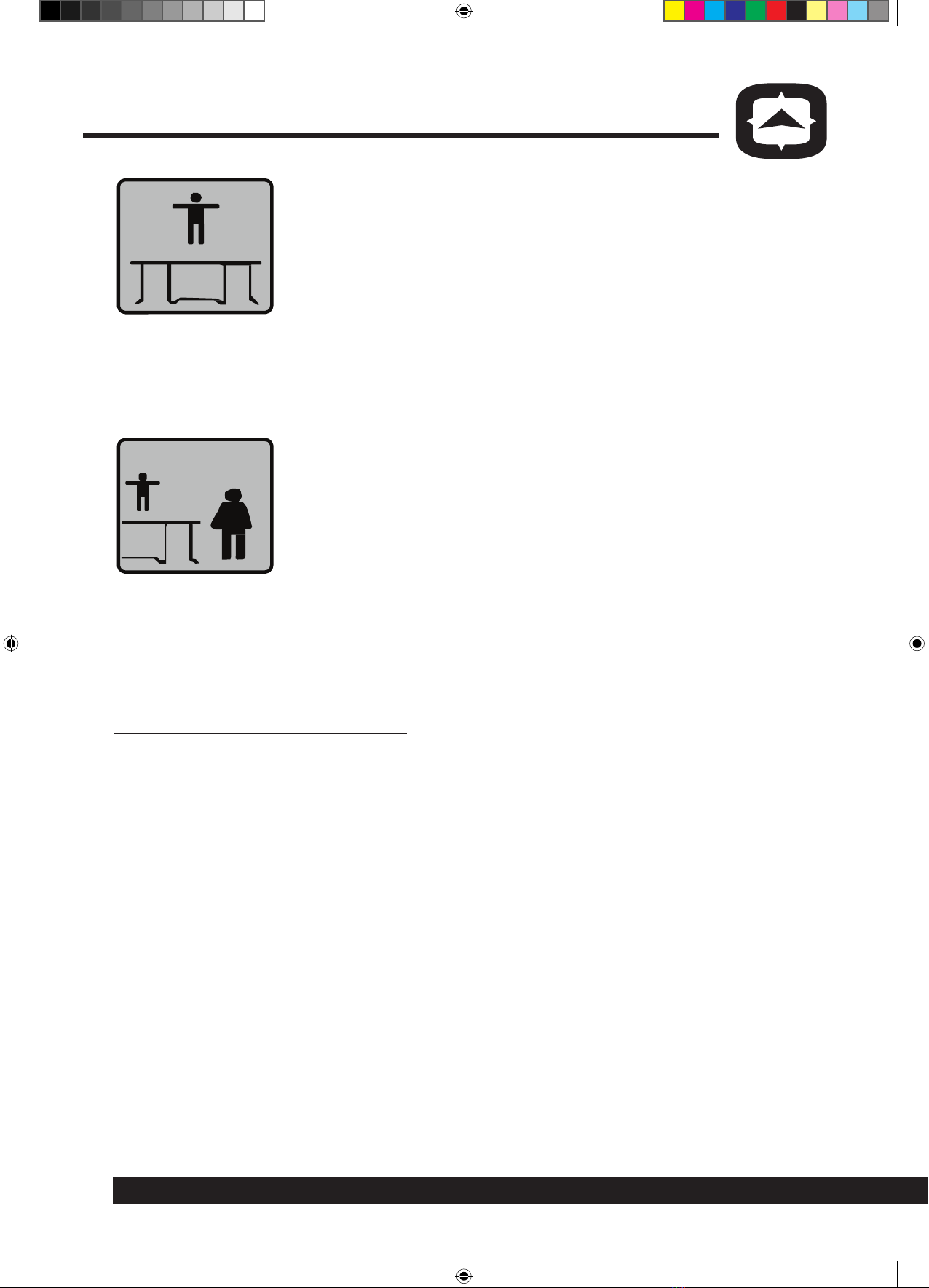

Only one person at a time is allowed on the trampoline. If more than
one person uses the trampoline at the same time, the danger of losing
control, collisions or falling from the trampoline increases. This might
lead to injuries to the head, neck, back, arms or legs.
Do not land on your head or neck. This poses danger of paralysis fol-
lowed by death, even when landing in the middle of the jumping bed. To
avoid the danger of a head or neck injury never attempt to do somer-
saults on the trampoline.
Only use the trampoline with a responsible adult supervising.
WARNING
TO REDUCE THE RISK OF SERIOUS INJURY, READ THE FOLLOWING SAFETY
INSTRUCTIONS BEFORE ASSEMBLING AND USING THE TRAMPOLINE.
084-6693.indd 3 12/5/2014 1:06:32 PM

4
Model No. 084-6693-4
TM
IMPORTANT SAFETY INSTRUCTIONS
• Stop bouncing by flexing knees as feet come into contact with the
trampoline bed. Learn this skill before attempting others.
• Learn fundamental bounces and body positions thoroughly before trying
more advanced skills. A variety of trampoline activities can be carried out
by performing the basic fundamentals in various series and combinations,
performing one fundamental move after another, with or without feet
bounces between them.
• Avoid bouncing too high. Stay low until bounce control and repeated landing
in the centre of the trampoline can be accomplished. Control is more
important than height.
• With the head erect, focus eyes toward the perimeter of the trampoline. This
will help control bouncing.
• Avoid bouncing when tired. Keep turns short.
• Properly secure the trampoline when not in use. Protect it against
unauthorized use. If a trampoline ladder is used, the supervisor should re
move it from the trampoline when leaving the area to prevent unsupervised
access by children under six years of age.
• Keep objects away that could interfere with the user. Maintain a clear area
around the trampoline.
• Do not use the trampoline while under the influence of alcohol or drugs.
• For additional information concerning the trampoline equipment, contact the
manufacturer.
• For information concerning skill training, contact a certified trampoline
instructor.
• Bounce only when the surface of the bed is dry. Wind or air movement should
be calm to gentle. The trampoline should not be used in gusty or severe
winds.
• Read all instructions before using the trampoline. Warnings and instructions
for the care, maintenance and the use of this trampoline are included to
promote safe, enjoyable use of this equipment.
• This trampoline is for home use only. Do not use for institutional or
commercial purposes. Failure to follow this warning could result in minor or
moderate injury.
• The weight limit on the trampoline is 250 lbs. (113.6 kg).
084-6693.indd 4 12/5/2014 1:06:32 PM

5
Model No. 084-6693-4
TM

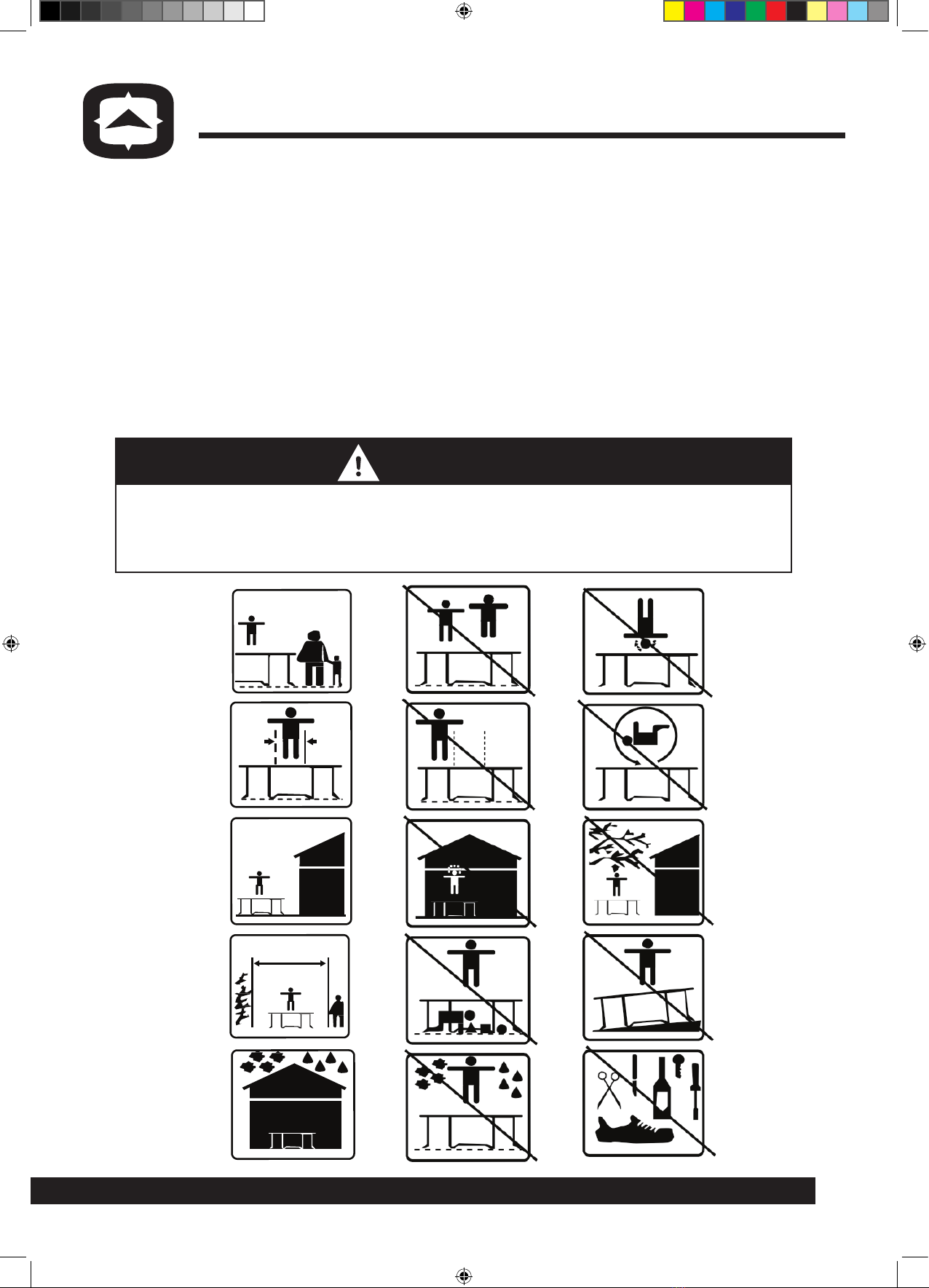

IMPORTANT SAFETY INSTRUCTIONS
Safety instructions for enclosure net
• Do not bounce against the trampoline net.
• This enclosure net is only to be used with a trampoline of a size for which the
enclosure is designed.
• Make sure that no fire is lit close to the enclosure. In windy conditions, sparks
and embers can travel significant distances and burn holes in the enclosure
net.
• Any large trampoline with an enclosure net installed can be blown around
in high winds and cause personal injury or property damage. We recommend
removing the trampoline enclosure and disassembling the trampoline in
strong winds.
WARNING
Before starting any exercise or conditioning program consult a personal
physician to see if you require a complete physical exam. This is especially
important if you are over the age of 35, have never exercised before, are
pregnant or suffer from any illness.
084-6693.indd 5 12/5/2014 1:06:33 PM

6
Model No. 084-6693-4
TM
KEY PARTS DIAGRAM
084-6693.indd 6 12/5/2014 1:06:34 PM

7
Model No. 084-6693-4
TM

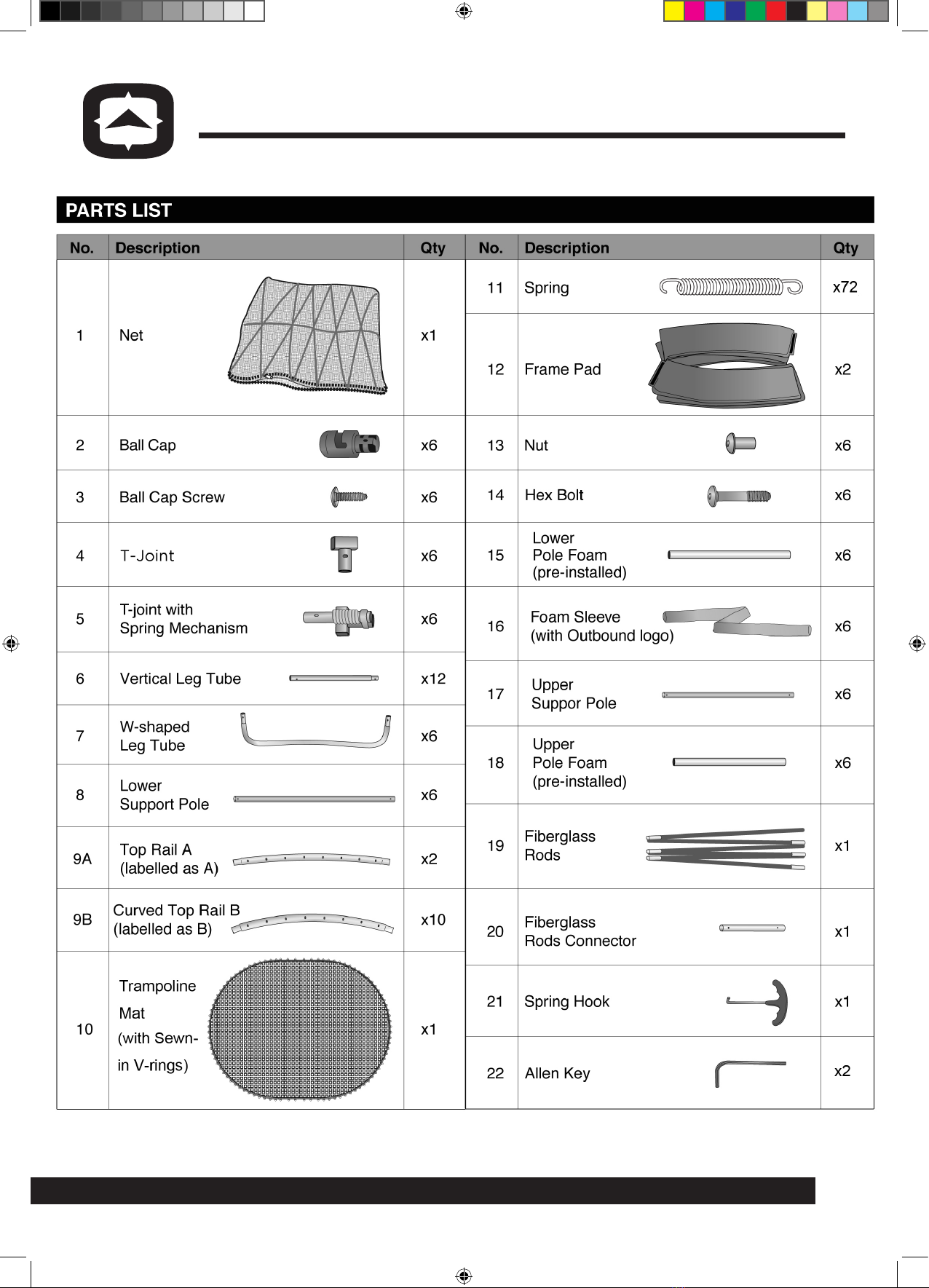

PARTS LIST
084-6693.indd 7 12/5/2014 1:06:34 PM

8
Model No. 084-6693-4
TM
ASSEMBLY
Place all parts from the box in a cleared area and position them on
the floor in front of you. Remove all packing materials and place
them back in the box. Do not dispose of the packing materials until
assembly is completed. Read each step carefully before beginning
assembly and make sure you understand each step. If you are missing
a part, please call our toll-free number for assistance:
1-866-567-4089.
WARNING
• Always use two or more strong people to assemble the
trampoline. Failure to use two or more strong people may allow
the springs to strike back and hit someone, which could cause
serious injury or death.
• Keep children and pets away from the trampoline during assembly.
• Keep fingers away from the places where they can be pinched
or trapped.
• The frame pad must be installed before using the trampoline.
• Do not attempt to assemble the trampoline if any parts are missing.
• Adequate overhead clearance is essential. A minimum of 8 m (24 feet)
from ground level is recommended. Provide clearance for wires, tree
limbs, and other possible hazards.
• Lateral clearance is essential. Place the trampoline away from
walls, structures, fences and other play areas. Maintain a clear space on
all sides of the trampoline.
• Place the trampoline on a level surface before use.
• Use the trampoline in a well-lit area. Artificial illumination may be required
for indoor or shady areas.
• Secure the trampoline against unauthorized and unsupervised use.
• Remove any obstructions from beneath the trampoline.
• The owner and supervisors of the trampoline are responsible for making
all users aware of practices specified in the user instructions.
084-6693.indd 8 12/5/2014 1:06:35 PM

9
Model No. 084-6693-4
TM

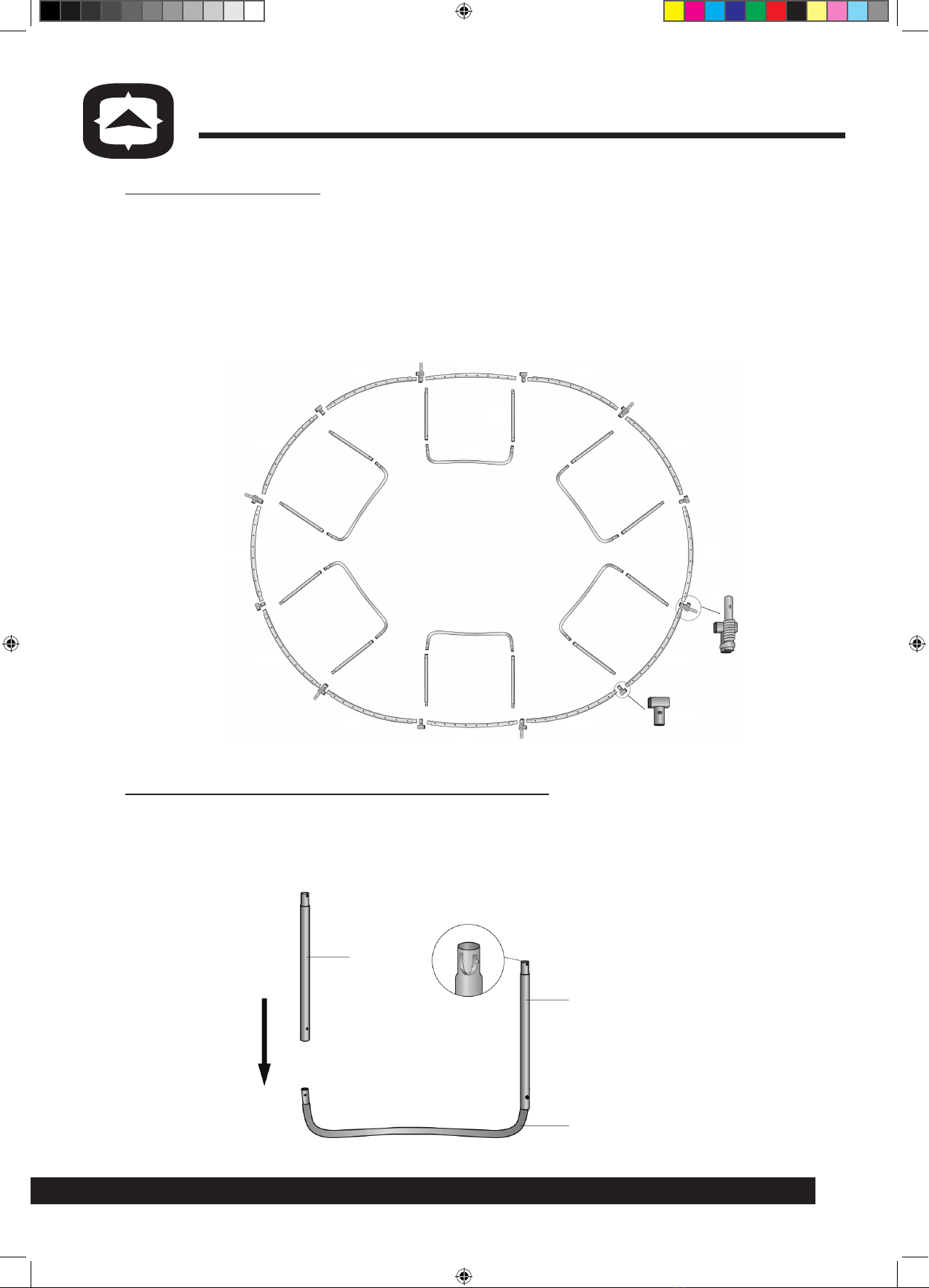

Step 1: Preparation
• Place the Top Rail Tubes (9A & 9B), T-Joint (4), T-Joint with Spring
Mechanism (5), Vertical Leg Tubes (6) and W-shaped Tubes (7) on a level
surface, as shown in the picture below. This provides an overview of the parts
and the way they should be assembled.
• The two types of T-Joints (4 & 5) must be alternately placed (4 – 5 – 4 – 5)
before connecting the top rail pieces.
Step 2: Assembling the vertical leg tubes
• Connect the Vertical Leg Tube (6) with W-shaped tubes (7).
Ensure spring-loaded locking pins are aligned with locking holes and pin
locks into the secured position.
9B
9B
9B
9B 9B
9B
9B
9B
9B
9B 9A
7
6
9A
4
5
6
6
7
ASSEMBLY
084-6693.indd 9 12/5/2014 1:06:36 PM

10
Model No. 084-6693-4
TM

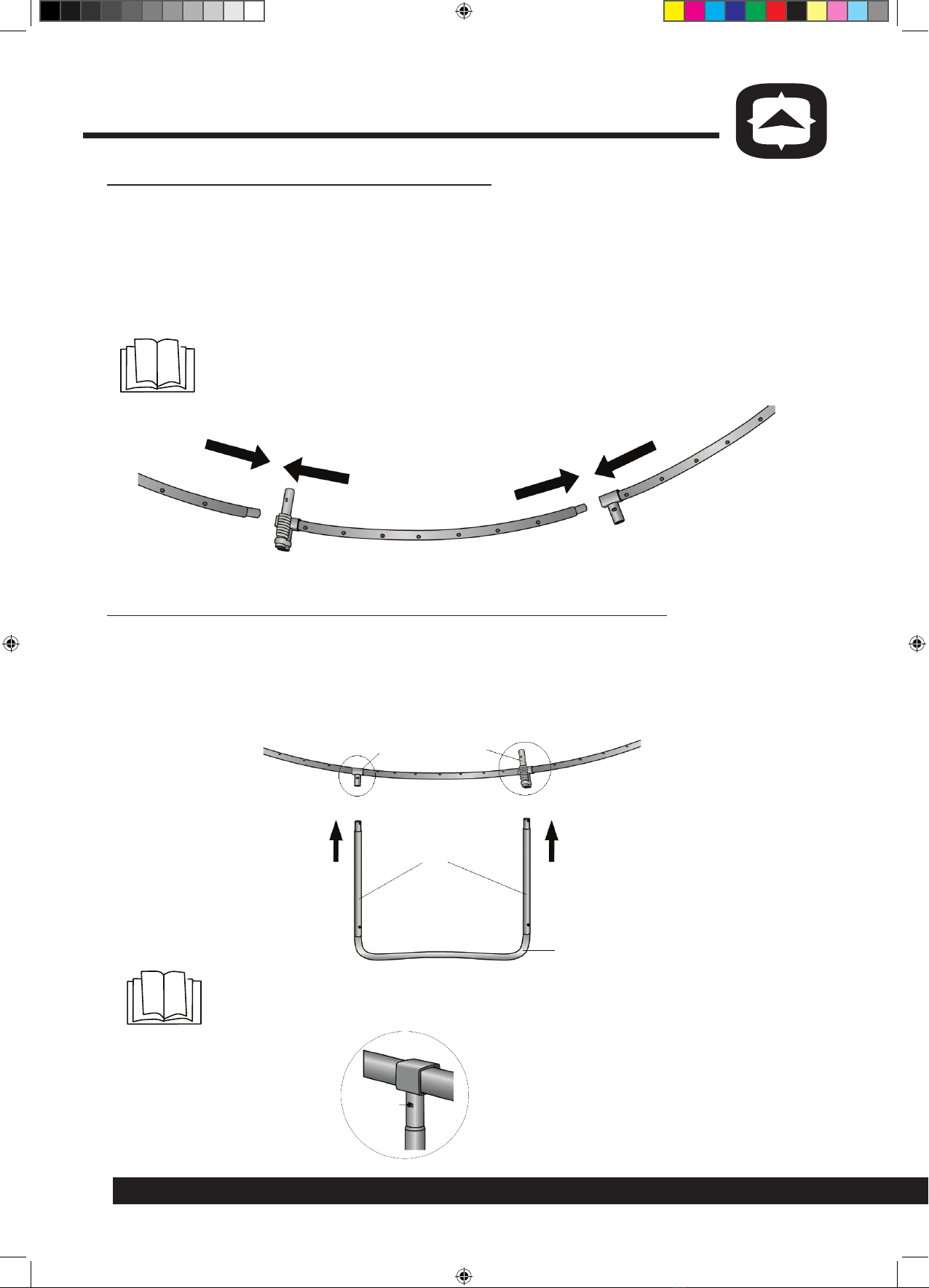

Step 3: Assembling the top rail frame
• Connect Top Rail Tubes (9A & 9B) to the T-Joints (4 & 5). Make sure
on T-Joints (5), the side with Spring Mechanism faces away from the
centre of the trampoline. Always slide the bigger end of the Top Rail
Tube (9A & 9B) into the T-shaped Joints (4 or 5) first. Repeat this step
with the other 11 rail tubes, making a total of 12 top rail sections.
• Connect all 12 assembled sections into one circle.
STEP 4: Assembling the leg tubes to the top rail tubes
• Connect the assembled Leg Tubes to the assembled Top Rail Frame.
• Slide the T-joints (4 & 5) into the Vertical Legs (6), make sure that the
locking tabs on the Vertical Leg Tubes (6) go through the hole on the
T-Joints (4 & 5).
Locking
tab
6
45
7
ASSEMBLY
Note: Make sure all the locking holes and tabs are facing inner
toward the jumping mat.
Note: When connecting the Top Rail Tubes (9A & 9B) to the
T-Joints (4 or 5) be sure that the hole on each T-Joint is facing the
inner side of the Top Rail Frame.
084-6693.indd 10 12/5/2014 1:06:38 PM

11
Model No. 084-6693-4
TM

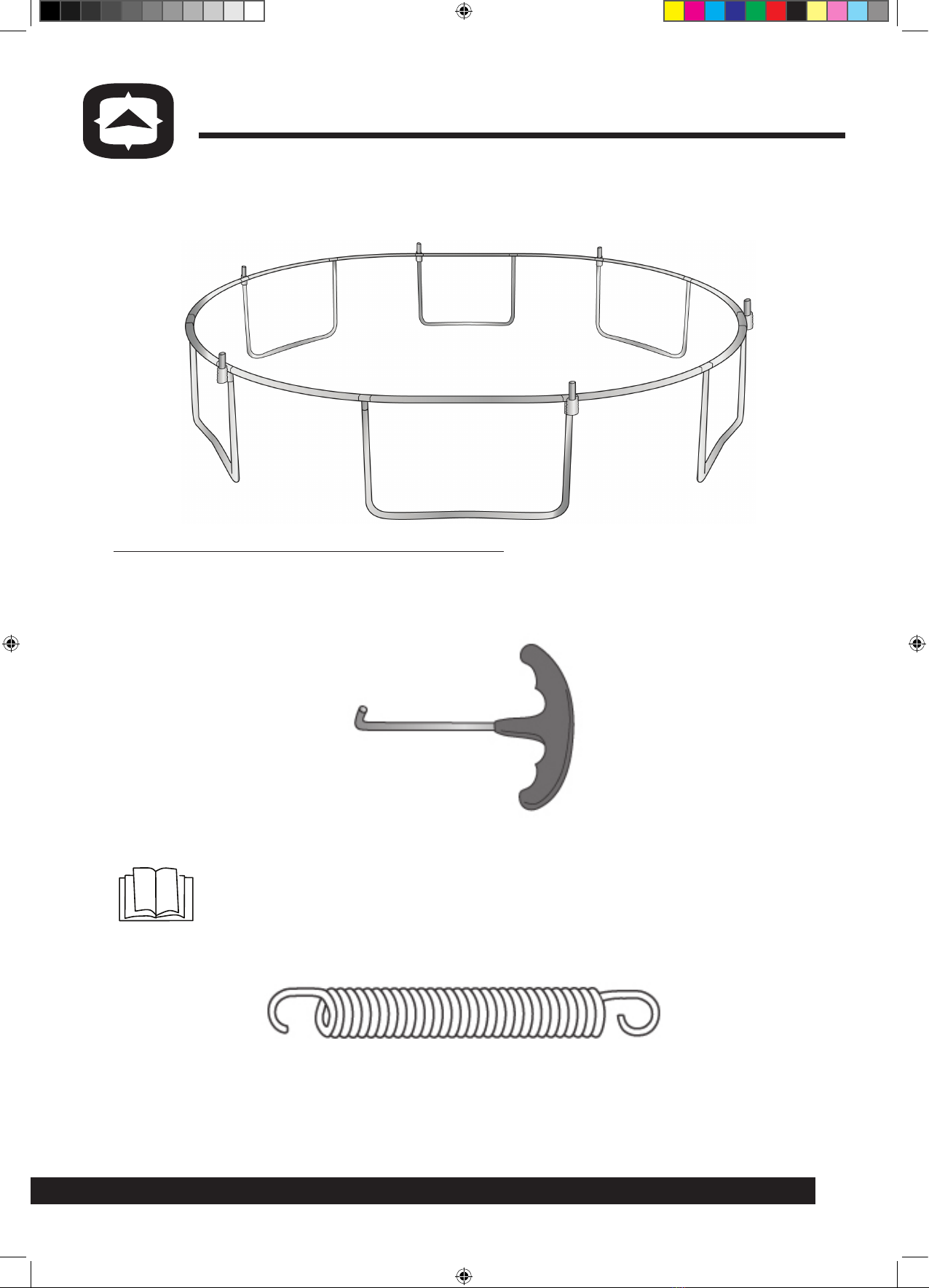

• After completing the assembly, the trampoline frame should look like
the illustration below.
STEP 5: Preparing the trampoline mat
• To facilitate the assembly of the springs to the mat, please use the Spring
Hook provided to pull the springs during assembly.
Note: The hooks at each end of the spring dierent in the opening.
One is wider, and the other is narrower. See the spring as this:
ASSEMBLY
Spring hook
Wider opening Narrower opening
084-6693.indd 11 12/5/2014 1:06:38 PM

12
Model No. 084-6693-4
TM

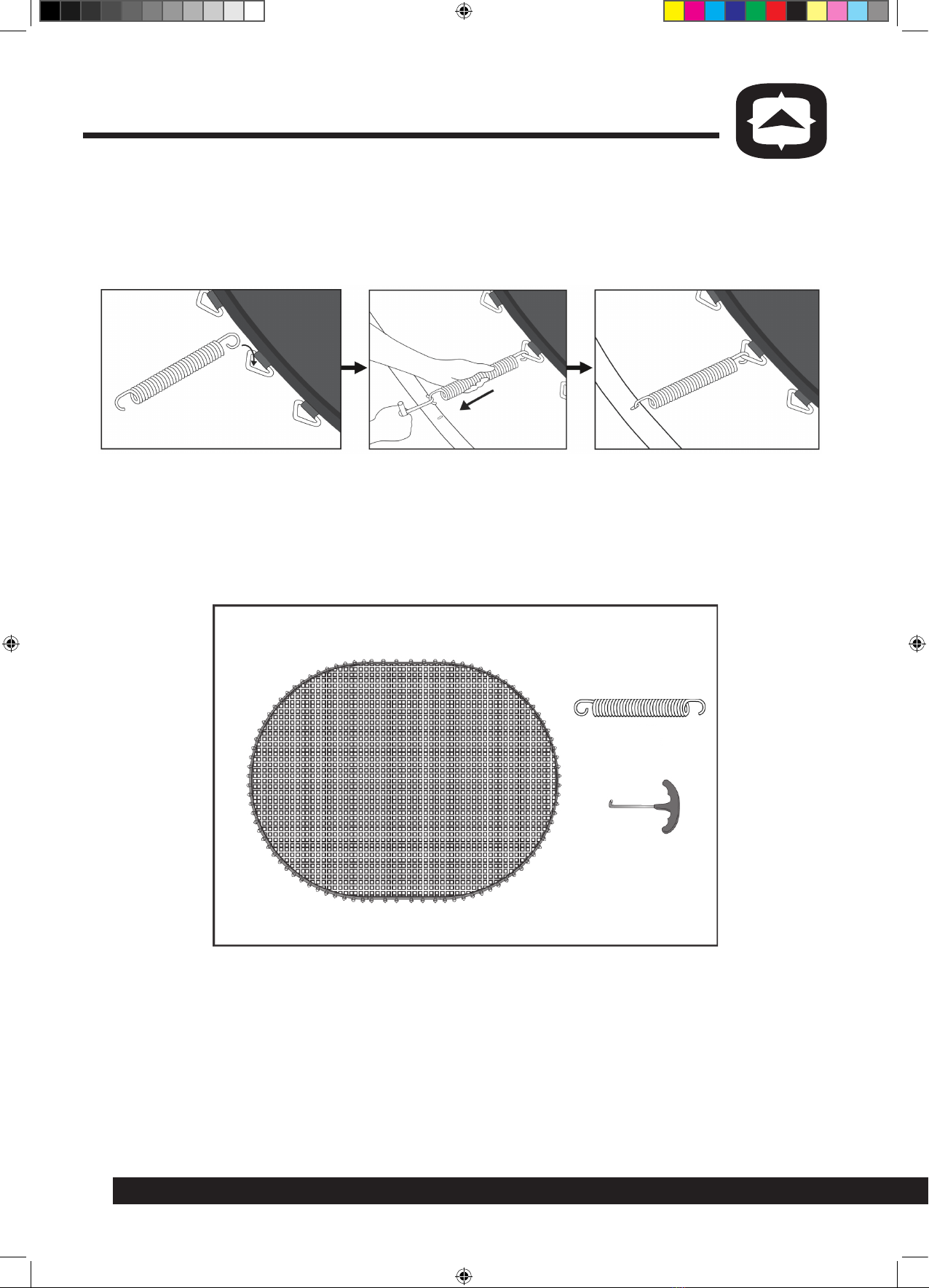

• Put the end with narrower opening to the V-ring, and the end with
wider opening to the holes on the top rail. Please see below illustrations:
• Unfold the Trampoline Mat (10).
• Have the Springs (11) and Spring Hook Tool (21) ready for assembly.
x 1
x 72
ASSEMBLY
084-6693.indd 12 12/5/2014 1:06:39 PM

13
Model No. 084-6693-4
TM
ASSEMBLY

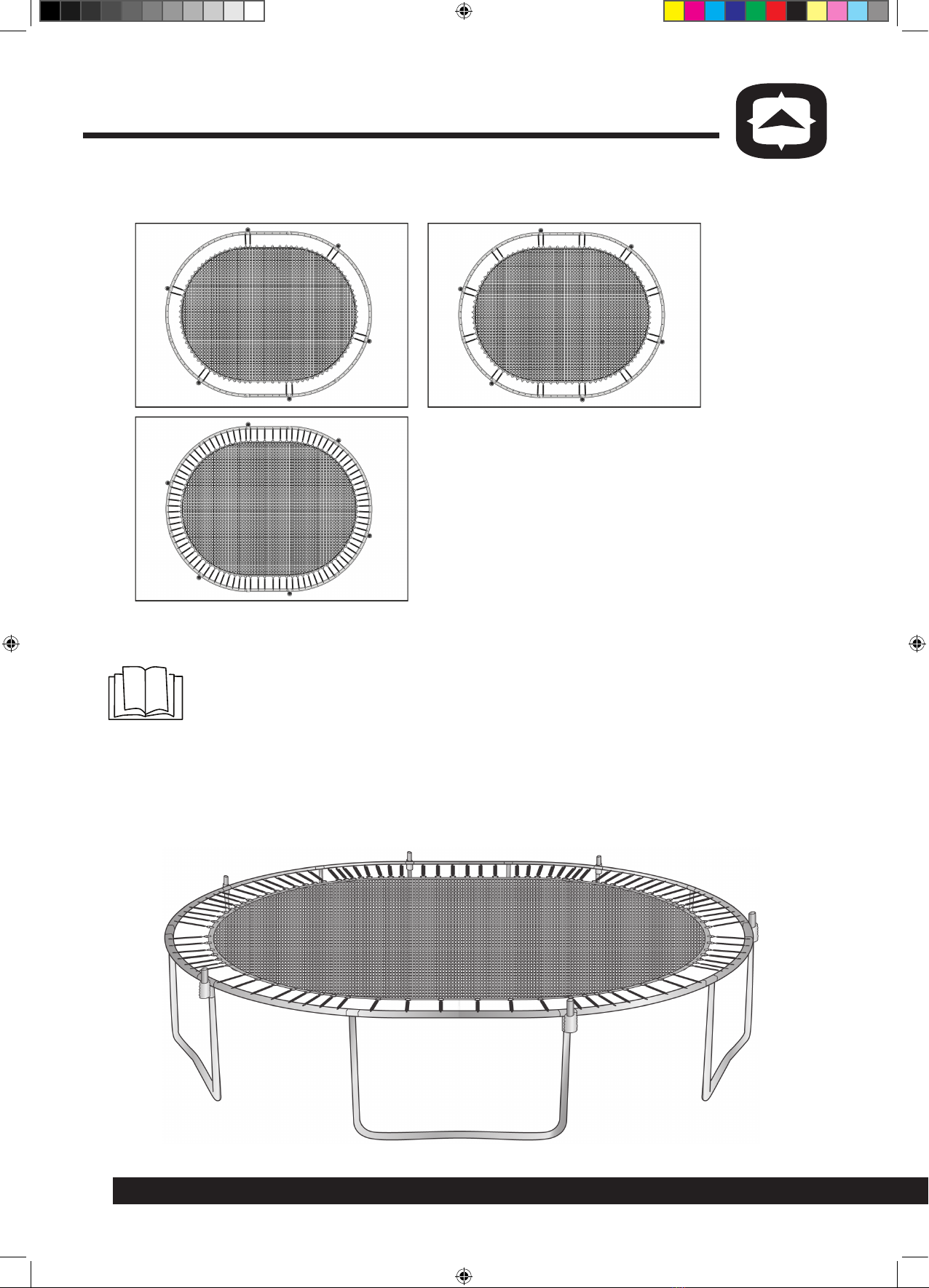

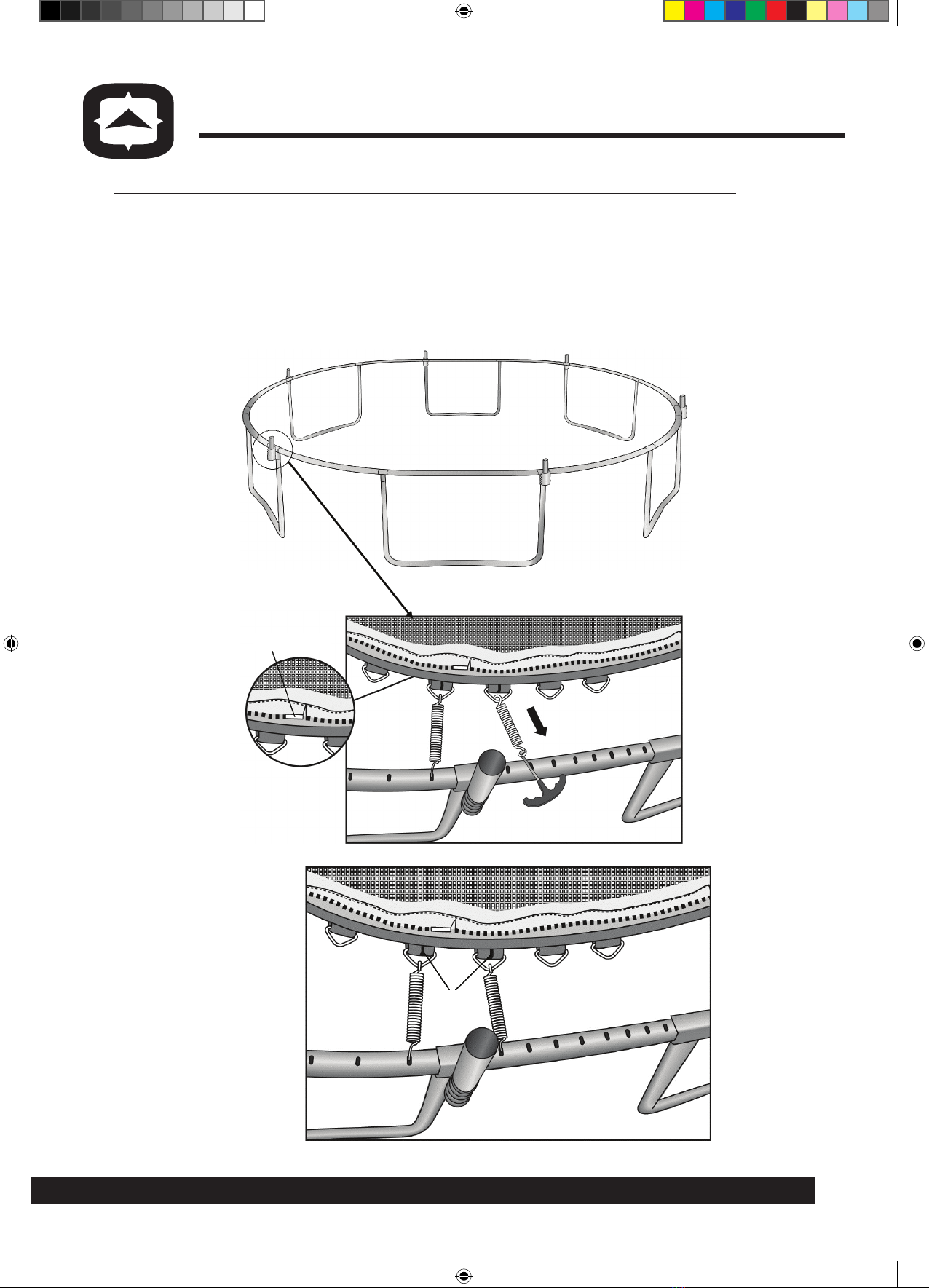

STEP 6: Connecting the trampoline mat to the top rail frame
• Hang the Trampoline Mat (10) on the Top Rail Frame using the
provided Springs (11).
• Locate the Zipper Start/End in the trampoline mat and align it to the
T-joint (5). There is a red line pre-sewn at the V-ring straps. The T-joint (5)
will be placed between these two V-ring straps. When the position
confirmed; place 2 springs (11) as shown in below.
Zipper
Start/End
Red
Lines
084-6693.indd 13 12/5/2014 1:06:40 PM

14
Model No. 084-6693-4
TM
• Repeat the same at the rest of the T-joint with Spring Mechanism, as
shown below.
• After completing the assembly, the Trampoline Frame and Mat should look
like the illustration below.
Note:
• The even distribution of tension is a critical factor in the proper
assembly of the Trampoline Mat.
• If the Springs (11) can only be inserted with the use of extensive
force, they are not inserted in the correct order and manner.
• Make sure that the Springs (11) are always inserted at an angle
of approximately 90° to the holes on the Top Rail Frame.
ASSEMBLY
084-6693.indd 14 12/5/2014 1:06:41 PM

15
Model No. 084-6693-4
TM
ASSEMBLY
Hole
Locking
tab
3
2

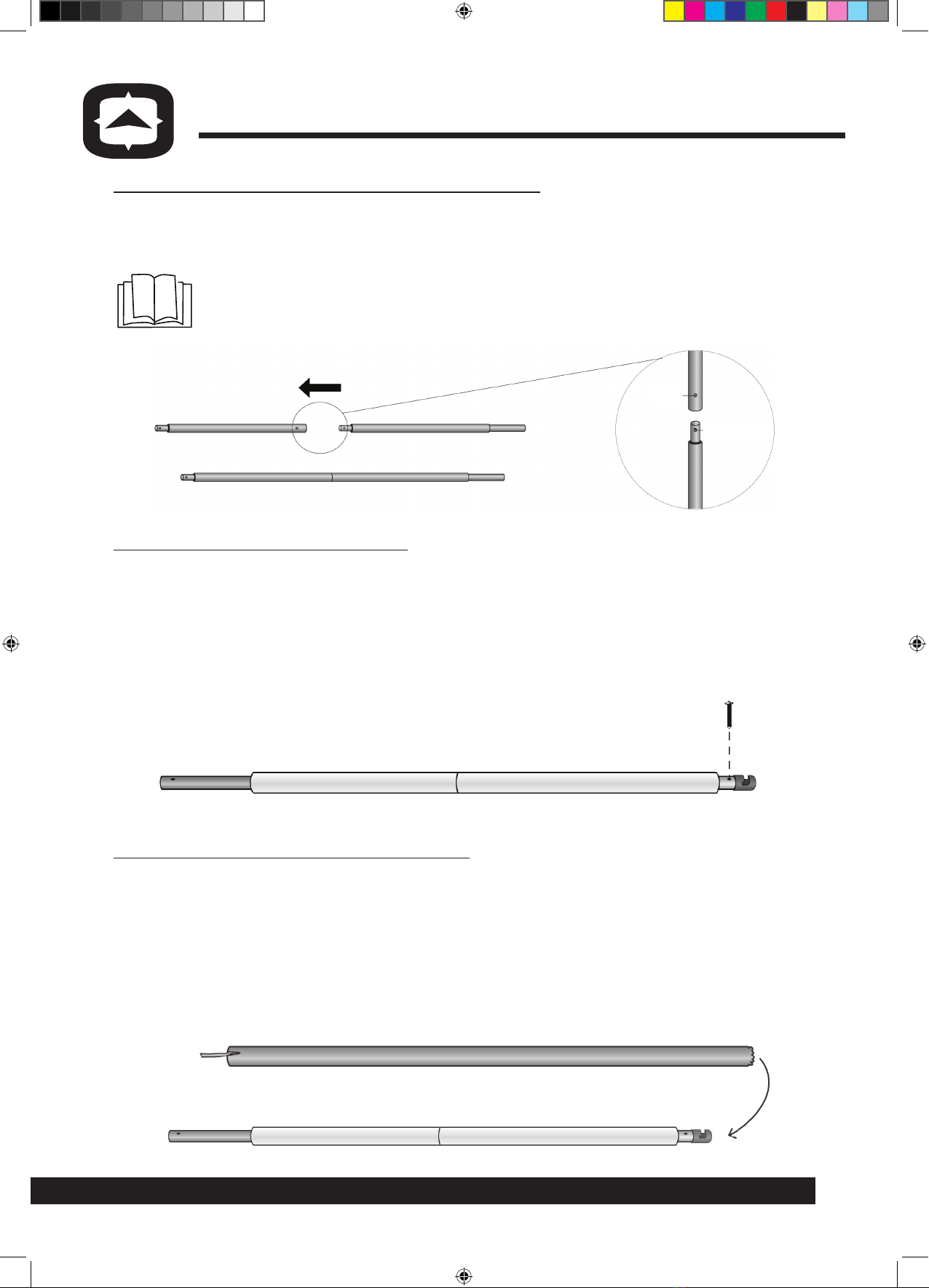

STEP 7: Assembling the supporting poles
• Connect all six Upper Supporting Poles (17) to the six Lower Supporting
Poles (8). Make sure that the locking tabs “click” into the holes of the Upper
Supporting Poles (17).
STEP 8: Axing the ball cap
• Place a Ball Cap (2) onto the top end of each Upper Supporting Pole (17).
Make sure that the screw hole on the Ball Cap (2) is aligned with the screw
hole on the top end of the Pole.
• Fasten the Ball Caps (2) using the Ball Cap Screws (3).
STEP 9: Attaching the foam sleeve
• Insert the assembled Upper and Lower Supporting Poles (17, 8) into the
wider opening of the Foam Sleeve (16).
• Slide the assembled poles in until the top end of the Upper Supporting
Pole (18) comes out on the opposite side.
• Make sure that the Sleeve (16) covers the entire pre-installed foam of the
Supporting Poles.
Note: All of the Supporting Poles come with pre-installed
Pole Foams (18 or 15).
084-6693.indd 15 12/5/2014 1:06:42 PM

16
Model No. 084-6693-4
TM
Allen KeyAllen Key
14 14
5
13
13
8

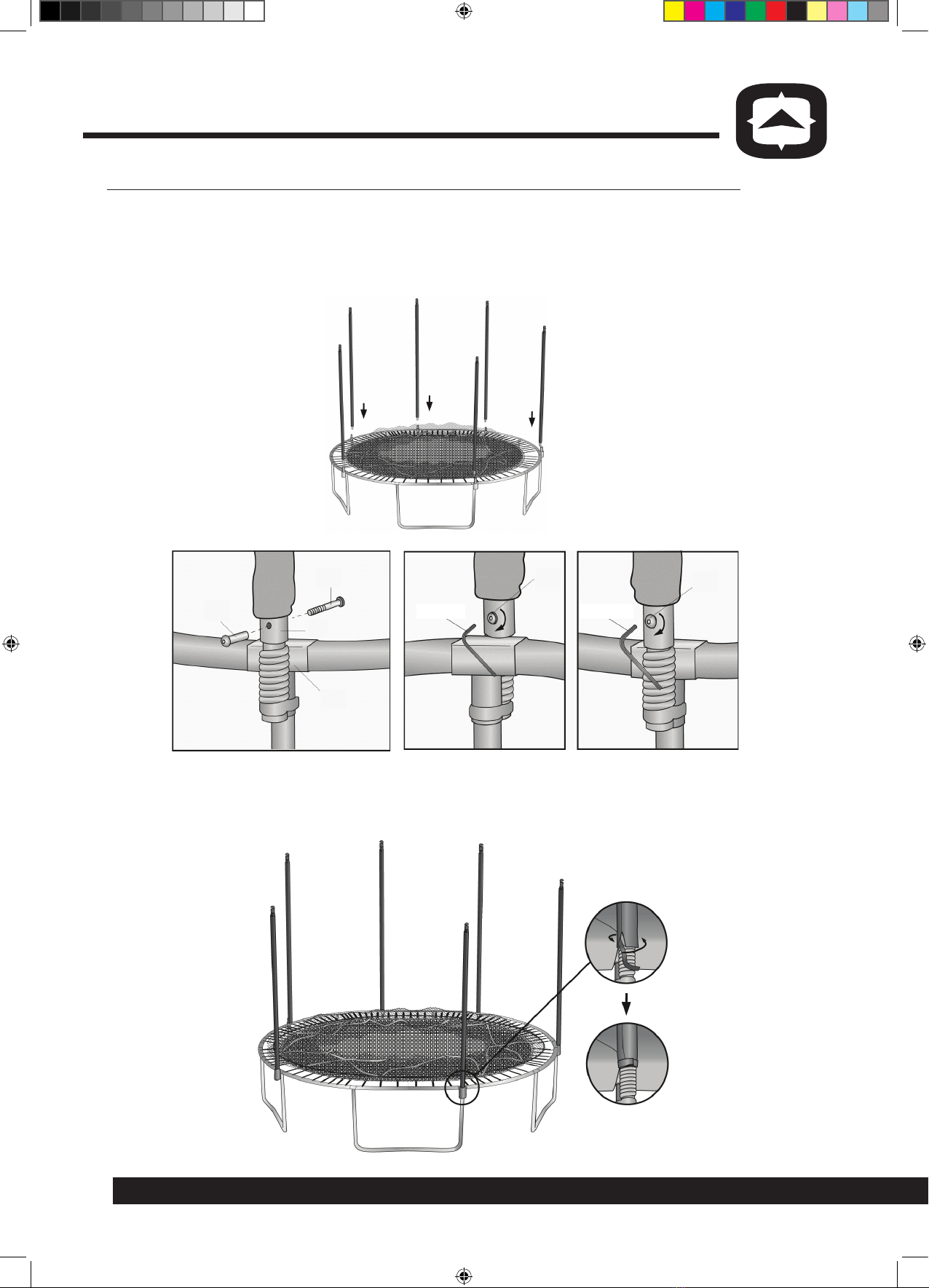

STEP 10: Axing the supporting poles to the trampoline legs
• Connect the Lower Supporting Poles (8) to the trampoline by inserting them
into each of the T-joint with Spring Mechanism (5).
• Secure each Lower Supporting Pole (8) with a Hex Bolt (14) and Nut (13)
using Allen Key (22).
• There is a hook-and-loop tapes added at the lower end of the pole foam
sleeves to prevent the whole pole foam & sleeves from sliding down to
cover up the red spring pole mechanism. Secure it as shown below.
ASSEMBLY
084-6693.indd 16 12/5/2014 1:06:42 PM

17
Model No. 084-6693-4
TM
ASSEMBLY

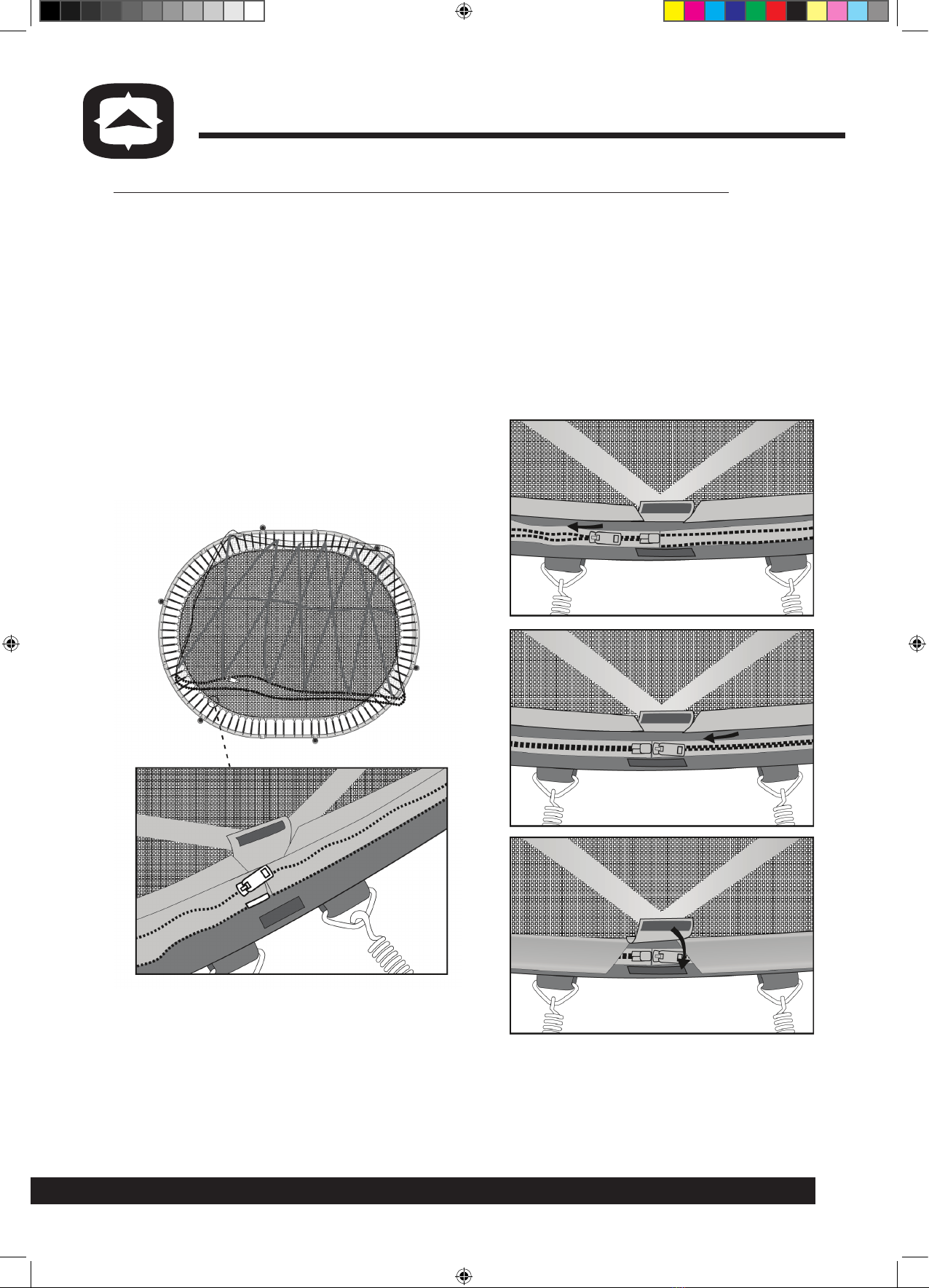

STEP 11: Connecting the jumping mat and the enclosure net
• Locate Zipper Start/End on the jumping mat align with the Zipper Puller
on the net. Zip around the whole zipper of the mat and net; and end at
the Zipper Start/End secure the hook-and-loop tapes to keep zipper pull
in position. Please see below figures.
084-6693.indd 17 12/5/2014 1:06:43 PM

18
Model No. 084-6693-4
TM
ASSEMBLY

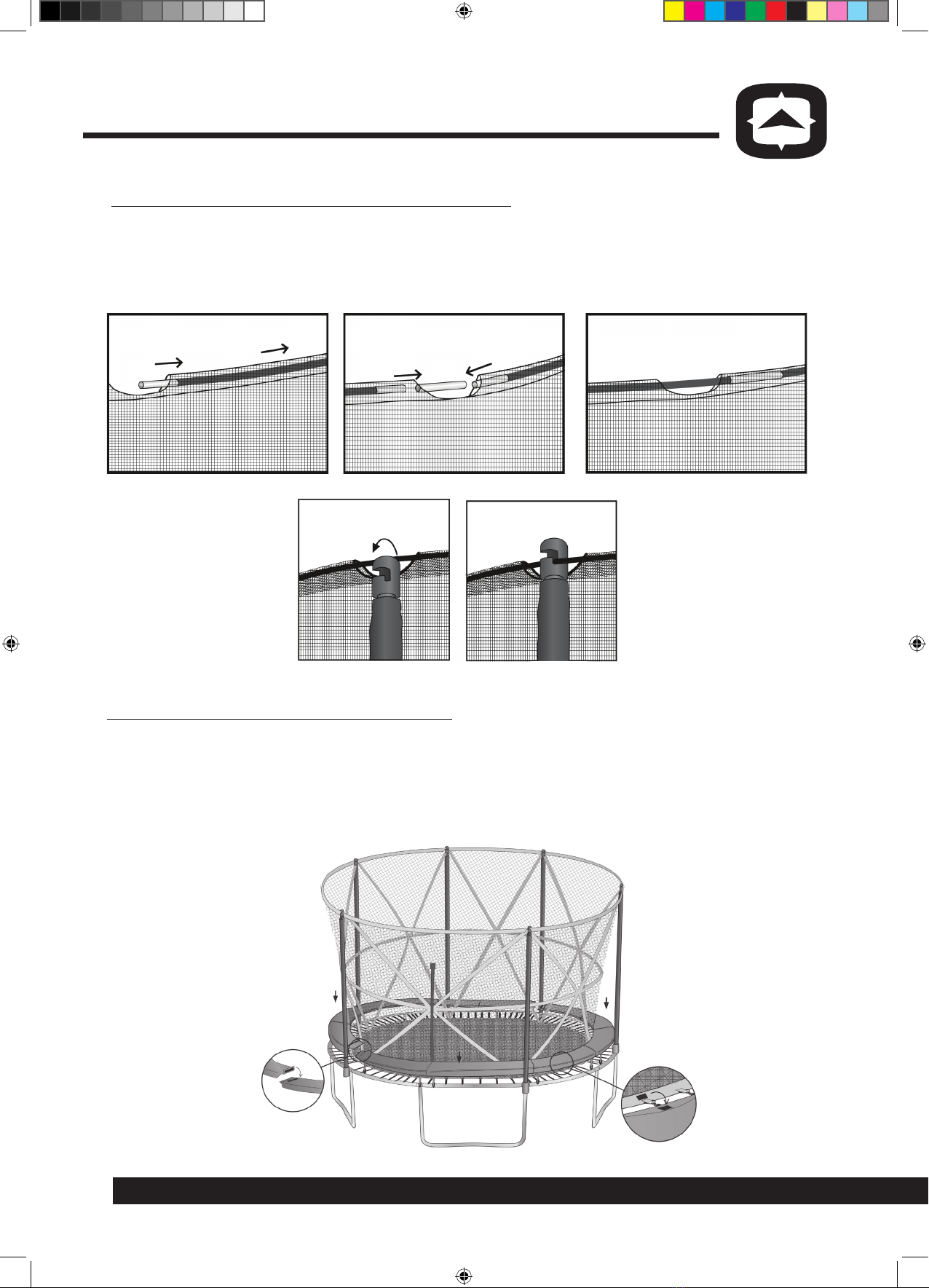

STEP 13: Attaching the frame pad
• Place both Frame Pads (12) on the trampoline and secure them together
with the pre-sewn hook-and-loop tapes at the end of each pad.
• Connect the pre-sewn hook-and-loop tapes at the inner side of the frame
pad and the net.
19 20
STEP 12: Assembling the enclosure net
• Slide the Fiberglass Rod (19) into the passage at the top of the Net. Connect
the Fiberglass Rod (19) together by the Fiberglass Rod Connector (20) and
place the joined fiber glass rod into the slot of the ball cap.
084-6693.indd 18 12/5/2014 1:06:44 PM

19
Model No. 084-6693-4
TM
ASSEMBLY

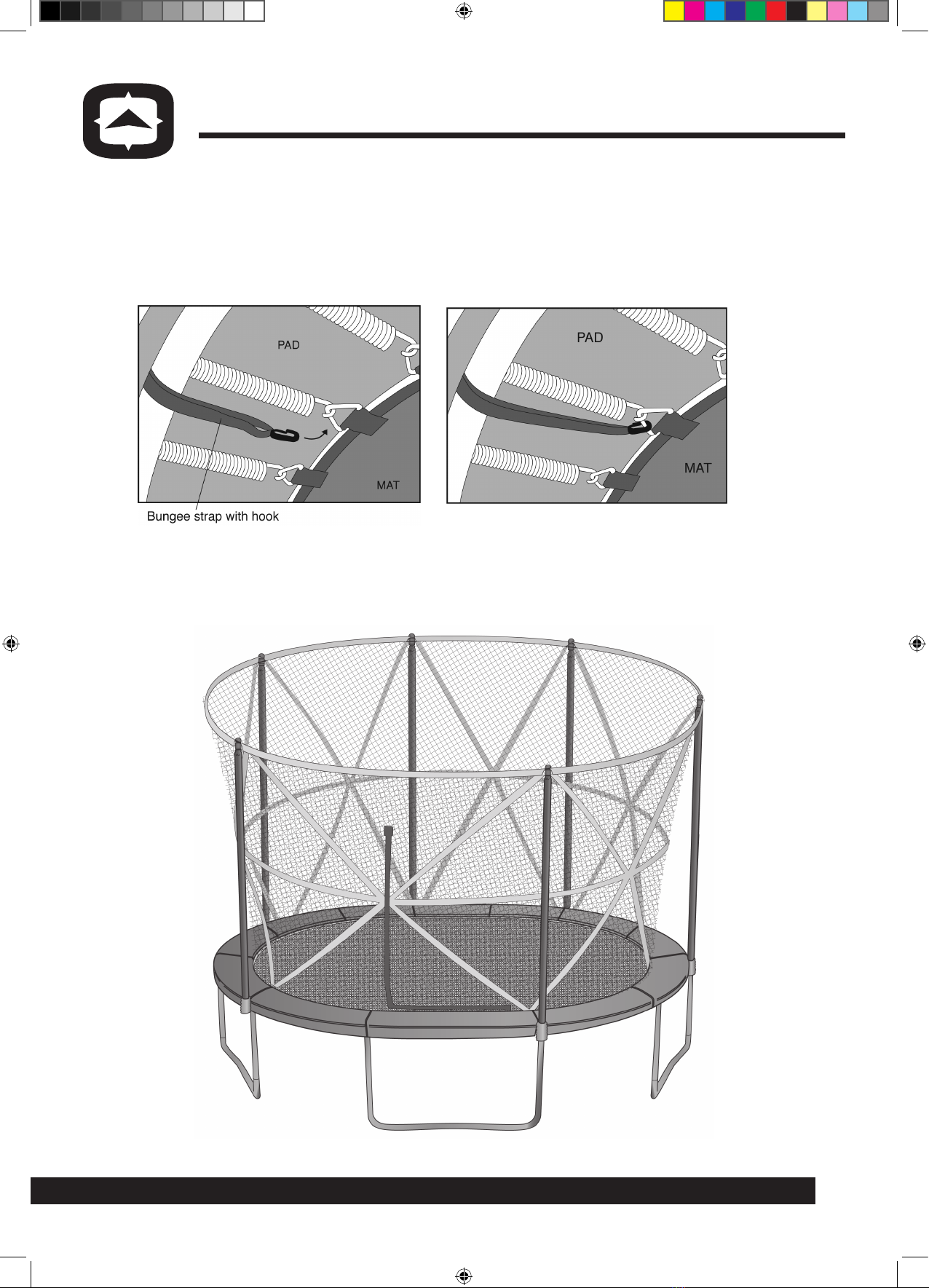

• Now the trampoline and enclosure are assembled.
• Straighten and adjust the part of the pad that hangs over the side of the
trampoline.
• Bring the bungee strap with clip around the outside of the frame and
084-6693.indd 19 12/5/2014 1:06:45 PM
under the pad. Pull the bungee strap and clip to the nearest V-ring.

20
Model No. 084-6693-4
TM
INFORMATION ON TRAMPOLINE USE
Jumpers, please pay attention to:
• Do not use the trampoline if you are tired or under the
influence of alcohol or drugs.
• Do not jump too high. To avoid fatigue, do not jump too
long. Control your jumps. When using the trampoline,
a supervisor has to be present. Do not jump alone.
• Do not wear clothes with hooks or parts that might
become entangled in the jumping bed.
• Climb onto the trampoline. Do not jump from the
trampoline. Do not use the trampoline as a springboard
to other objects.
Supervisors, please pay attention:
• It is the responsibility of the owner or the supervisor to
ensure that all users of the trampoline are sufficiently
informed about all warnings and safety instructions and to
enforce them.
• All trampoline users need a supervisor, regardless of their
age or capabilities.
• Remove all objects that might interfere with the jumper
from the surroundings of the trampoline. Pay attention to
what is above, below and around the trampoline.
• When it is not in use, keep the trampoline secured to
prevent it from being used without supervision.
Training with the trampoline
Fundamental trampoline skills
Stop bouncing
This technique allows the jumper to gain control by stopping quickly. It is
achieved by keeping the feet in contact with the mat, and absorbing the
rebound of the trampoline with the knees and waist. This skill should be the first
skill learned and should be employed whenever you feel out of balance, or land
away from the centre area.
• Stand in the centre of the mat with your feet about hip-width apart.
• Attempt about three easy bounces, keeping them low and controlled.
• To keep your balance, focus your eyes toward the perimeter of the trampoline
while bouncing.
• Stop bouncing by bending your knees and at your hips when your feet come
into contact with the mat.
Bouncing
The most important thing about bouncing is that it should be done with control
in the centre of the mat. The basic bounce should always be low. High, reckless
bouncing should never be allowed.
084-6693.indd 20 12/5/2014 1:06:46 PM
