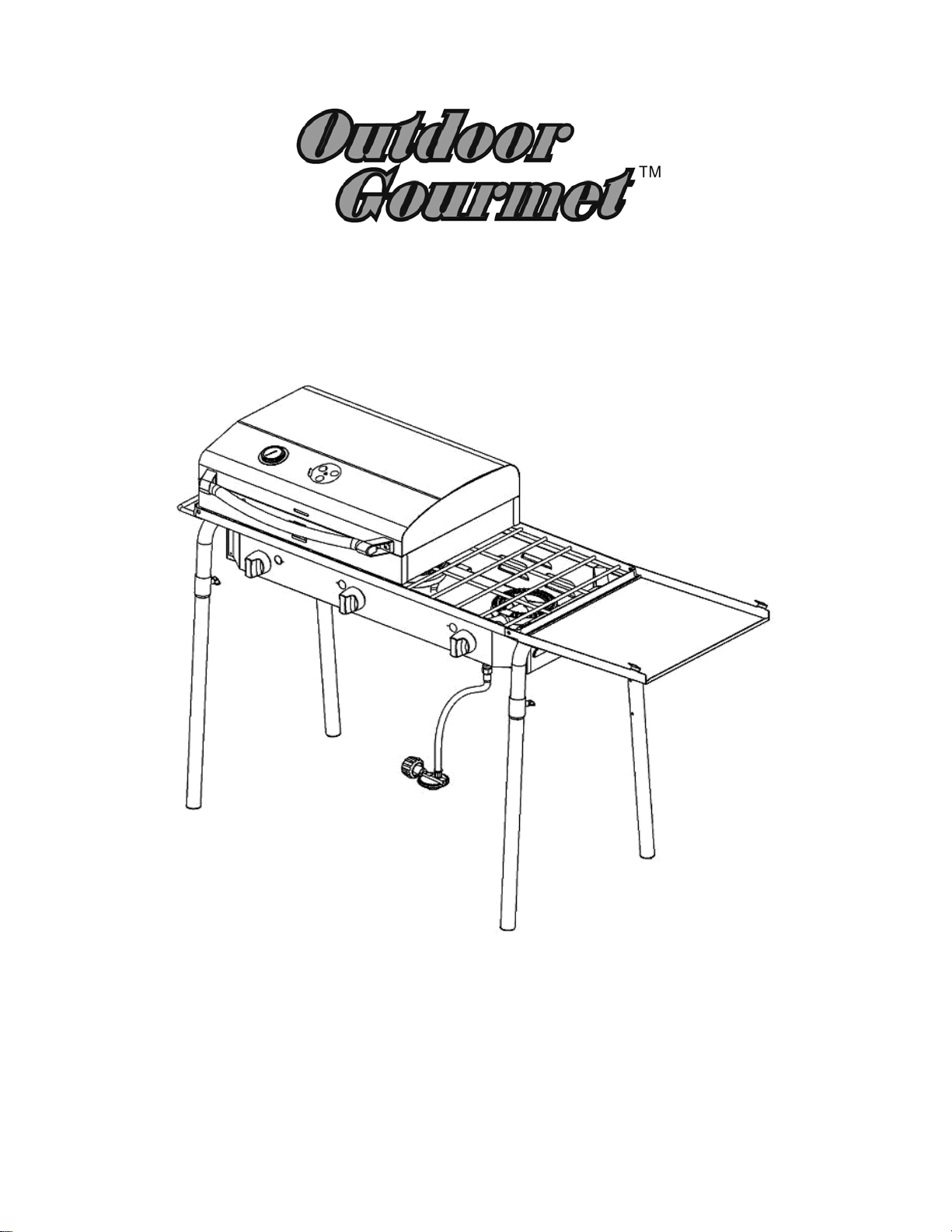

Outdoor Gourmet GR1017-012224 User manual

3 BURNER STOVE WITH GRILL BOX
Model# GR1017-012224
For Outdoor Use Only

DANGER
DANGER: Indicates an immediately hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if
not avoided, may result in minor or moderate injury.
This instruction manual contains important information necessary for the proper assembly and safe
use of the grill. Please read and follow all warnings and instructions before assembling and using
the grill.
Keep this owner’s manual for future reference.
! !
! !
! !

DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid
If odor continues, keep away from the appliance and immediately call your gas
suppliers or your fire department.
Failure to follow these instructions could result in fire or explosion which could
cause property damage, personal injury or death
WARNING
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of
this or any other appliance.
An LP cylinder not connected for use shall not be stored in the vicinity of this or
any other appliance.
DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet (3.05m) of any structure,
combustible material or gas cylinder.
3. Never operate this appliance within 25 feet (7.5m) of any flammable liquid.
4. If a fire should occur, keep away from the appliance and immediately call your
fire department. Do not attempt to extinguish an oil or grease fire with water.
Failure to follow these instructions could result in fire or explosion or burn hazard,
which could cause property damage, personal injury or death
WARNING
Installation must conform with local codes or, in the absence of local codes, with
either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code. B149.2, or
the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and CSA Z240 RV
series, Recreational Vehicle Code, as applicable.
! !
! !
! !
! !

WARNING
zThis outdoor cooking gas appliance shall be used only outdoors, and shall not be
used in a building, garage or any other enclosed area.
zThis outdoor cooking gas appliance is not intended to be installed in or on boats.
This appliance is not intended to be installed in or on recreational vehicles.
zNever leave the appliance unattended. Keep children and pets away from the
appliance at all times.
zThe use of alcohol, prescription or non-prescription drugs may impair the consumer’s
ability to properly assemble or safely operate the appliance.
zThis appliance is not intended for and should never be used as a heater.
zWhen cooking, the appliance must be on a level, stable non-flammable surface in an
area clear of combustible material. An asphalt surface (blacktop) may not be
acceptable for this purpose.
zKeep the fuel supply hose away from any heated surfaces.
zDo not place empty cooking vessel on the appliance while in operation. Use caution
when placing anything in cooking vessel while the appliance is in operation.
zIn the event of rain, snow, hail, sleet or other forms of precipitation while cooking,
cover the cooking vessel immediately and turn off the appliance burners and gas
supply. Do not attempt to move the appliance or cooking vessel.
zDo not move the appliance when in use. Allow the cooking vessel/grill to cool to
room temperature before moving.
zNever attempt to attach this appliance to the self-contained LP gas system of a
camper trailer or motor home.
zDo not let children operate or play near this grill. Failure to follow these instructions
could result in serious personal injury and/or property damage.
zWhen grill is not in used, turn off control knob and detach regulator from gas tank.
zCarefully follow instructions in this manual for proper assembly and leak testing. Do
not use appliance until leak test has been completed. If leak is detected at any time,
turn OFF gas supply and DO NOT use until leak source is corrected.
zCooking area should be kept clear and free from combustible materials, gasoline,
bottle gas in any form and other flammable vapors and liquids. Do not obstruct flow
of combustion and ventilation air.
zEnsure proper bottle position prior to lighting grill.
zNever try to light grill with lid closed! Buildup of gases is very dangerous and could
cause an explosion.
! !

WARNING
Installation Safety Precautions
zOnly cylinders marked “propane” must be used. The cylinder must be disconnected
when the appliance is not in use.
zInstallation must conform with local codes or, in the absence of local codes, with
either the National Fuel Gas Code,ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSAB149.1, or Propane Storage and Handling Code. B149.2, or
the Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192, and CSA Z240 RV
series, Recreational Vehicle Code, as applicable.
zThis appliance is safety certified for use in the United States and Canada only. Do
not attempt to modify this appliance in any way. Any Modifications may result in a
safety hazard.
zThis appliance shall be used only outdoors and shall not be used in a building garage
or any other enclosed area.
zUse appliance at least 10 ft from any wall or surface. Maintain 10ft clearance to
objects that can catch fire or sources of ignition such as pilot lights on water heaters.
zApartment Dwellers: Check with management to learn the requirements and fire
codes for using an Propane Gas appliance at an apartment. If allowed, use outside
on the ground floor with a 10ft clearance from walls or rails.
zBefore opening LP tank valve, check the coupling nut for tightness. When appliance
is not in use, turn off control knob and LP tank valve.
zNever move appliance while in operation.
zIf grease or other hot material drips from appliance onto valve, hose or regulator, turn
off gas supply at once. Determine the cause, correct, clean and inspect valve, hose
and regulator, and perform a leak test before continuing.
zThe regulator may make a humming or whistling noise during operation. This will not
affect safety or use of appliance.
zClean and inspect hose before each use of the appliance. If there is evidence of
abrasion, wear, cuts or leaks, the hose must be replaced prior to the appliance being
put into operation.
! !

WARNING
zThe outdoor cooking gas appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during any pressure testing of
the gas supply piping system at test pressure equal to or less than 1/2 psi (3.5kpa)
zNever operate appliance with LP tanks out of correct position specified in assembly
instructions.
zAlways close LP tank valve and remove coupling nut before moving LP tank from
specified operating position.
zAppliance shall not be used for commercial cooking.
zThis appliance will be hot during and after use. Use insulated oven mitts or gloves for
protection from hot surfaces.
DANGER
(a) Do not store a spare LP-gas cylinder under or near this appliance
(b) Never fill the cylinder over 80% full; and
(c) If the information in (a) and (b) is not followed exactly, a fire causing death or serious
injury may occur.
LP Tank Removal, Transport and Storage
zTurn OFF all control knobs and LP tank valve. Turn coupling nut counterclockwise by
hand only – do not use tools to disconnect. Install safety cap onto LP tank valve.
Always use cap and strap supplied with valve. Failure to use safety cap as directed
may result in serious personal injury and/or property damage.
zA disconnected LP tank in storage or being
transported must have a safety cap installed
as shown. Do not store an LP tank in
enclosed spaces such as a carport, garage,
porch, covered patio or other building. Never
leave an LP tank inside a vehicle which may
become overheated by the sun.
zDo not store LP tanks in an area where
children play.
! !
! !

LP Tank
The LP tank used with the appliance must meet the following requirements:
zPurchase LP tanks only with these required measurements: 12” diameter x 18” tall with
20lb capacity maximum.
zThe LP-gas supply cylinder to be used must be constructed and marked in accordance
with the specifications for LP-gas cylinders of the US Department of Transportation
(DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and
Tubes for the Transportation of Dangerous Goods.
LP tank valve must have:
zType 1 outlet compatible with regulator or appliance.
zSafety relief valve.

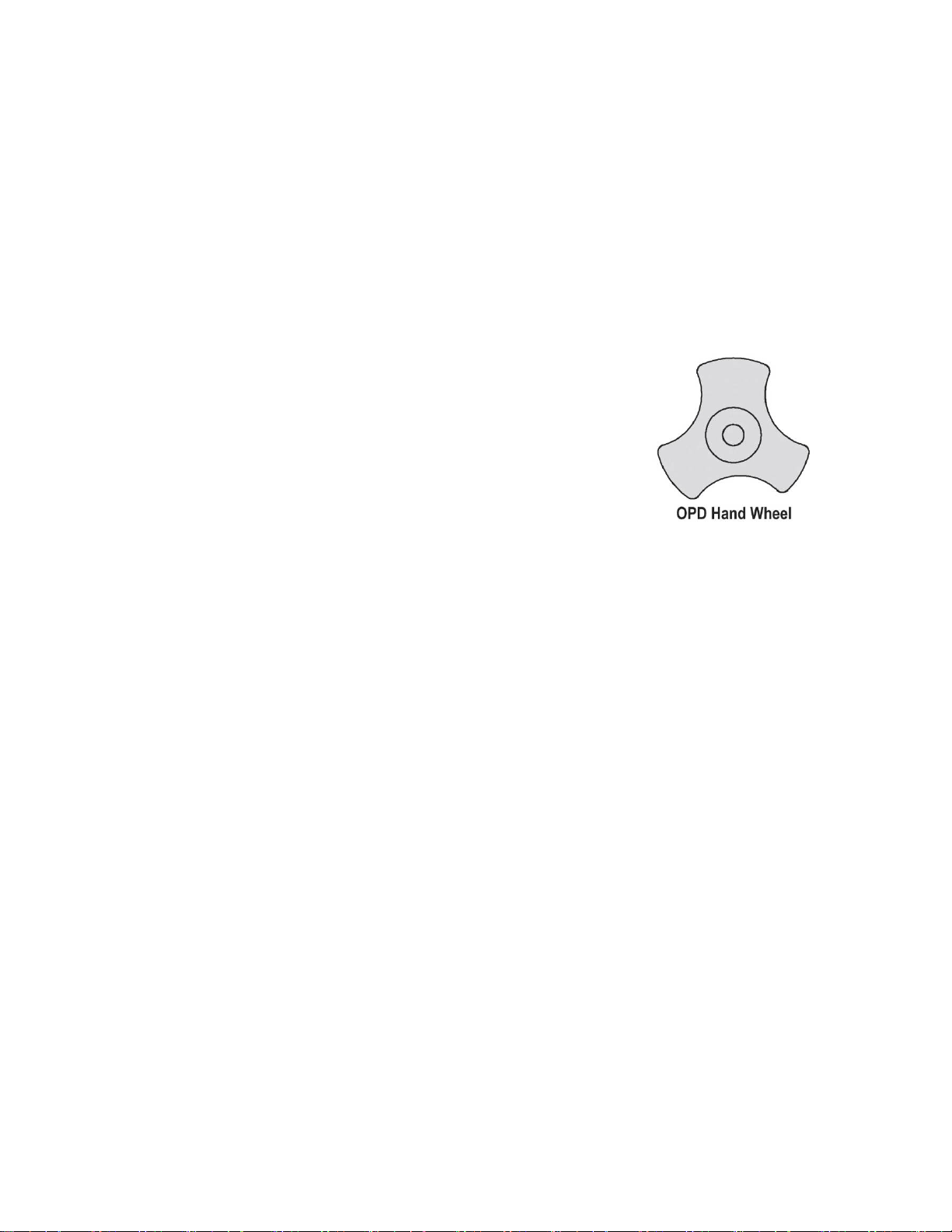

zUL listed Overfill Protection Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel.
Use only tanks equipped with this type of valve.
zLP tank must be arranged for vapor withdrawal and include
collar to protect LP tank valve.
LP (Liquefied Petroleum Gas)
zLP gas is non toxic, odorless and colorless when produced. For safety, LP gas has
been given an odor (similar to rotten cabbage) so that it can be smelled.
zLP gas is highly flammable and may ignite unexpectedly when mixed with air.
LP Tank Filling
zUse only licensed and experienced dealers.
zLP dealer must purge tanks before filling.
zDealer should NEVER fill LP tank more than 80% of LP tank volume. Volume of
propane in tanks will vary by temperature.
zAfrosty regulator indicates gas overfill. Immediately close LP tank valve and call local
LP gas dealer for assistance.
zDo not release liquid propane (LP) gas into the atmosphere. This is hazardous
practice.
zTo remove gas from LP tank, contact an LP dealer or call a local fire department for
assistance. Check the telephone directory under “Gas Companies” for nearest certified
LP dealers.
LP Tank Exchange
zMany retailers that sell appliances offer you the option of replacing your empty LP
tanks through an exchange service. Use only those reputable exchange companies
that inspect, precision fill, test and certify their cylinders. Exchange your tank only for

an OPD safety feature-equipped tank as described in the “LP Tank” section of this
manual.
zAlways keep new and exchanged LP tanks in upright position during use, transit or
storage.
zLeak test new and exchanged LP tanks BEFORE connecting to appliance.
LP Tank Leak Test
zFor safety, LEAK TEST must be repeated each time LPtank
is exchanged or refilled.
zDo not smoke during leak test.
zDo not use an open flame to check for gas leaks.
zAppliance must be leak checked outdoors in well-ventilated
area, away from ignition sources such as gas fired or
electrical appliances. During leak test, keep appliance
away from open flames or sparks.
Use a clean paint brush and 50/50 soap and water solution.
Use mild soap and water. Do not use household cleaning agents. Damage to
components can result. Brush soapy solution onto all weld seams and entire valve area.
WARNING
If “growing” bubbles appear, do not use or move the LP tank. Contact an LP gas supplier
or fire department.
Connecting Regulator to the LP Tank
1. Place LP tank on a secure, level, and
stable surface.
2. Turn control knob to the OFF position.
3. Turn LP tank OFF by turning hand
wheel clockwise to a full stop.
4. Remove the protective cap from the
LP tank valve. Always use cap and
strap supplied with valve.
! !

Do not use a POL transport plug (A) (plastic part with external
threads)! It will defeat the safety feature of the valve.
5. Hold regulator and insert nipple (B) into LP tank valve. Hand tighten coupling nut,
holding regulator in a straight line (C) with LP tank valve so as not to cross thread the
connection.
6. Turn the coupling nut clockwise to tighten to a full solid stop. The regulator will seal
on the back-check feature in the LP tank valve, resulting in some resistance. An
additional one-half to three quarters turn is required to complete connection.
Tighten by hand only – do not use tools.
NOTE: If you cannot complete connection, disconnect regulator and repeat steps 5 and 6. If
you are still unable to complete the connection, do not use this regulator!
WARNING
zDo not insert any tool of foreign object into the valve outlet or safety relief valve. You may
damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe
personal injury, or death.
zNever attempt to attach this appliance to the self-contained LP gas system of a camper,
trailer, or motor home.
zThe pressure regulator and hose assembly supplied with the appliance must be used.
Replacement pressure regulator and hose assemblies must be those specified by the appliance
manufacturer.
Nipple must
be centered
into the LP
tank valve
Hold
coupling
nut and
regulator
as shown
for proper
connection to LP tank
valve.
! !

WARNING
zDo not use appliance until leak checked.
zIf leak is detected at any time, STOP.
zIf you cannot stop a gas leak, immediately close LP tank valve, leave area of appliance, and
call LP gas supplier or your fire department!
Leak Testing Valve, Hoses and Regulator
1. Turn all control knob(s) to OFF.
2. Be sure regulator is tightly connected to LP tank.
3. Completely open LP tank valve by turning hand wheel counterclockwise. If you hear a
rushing sound, turn gas off immediately. There is a major leak at the connection.
Correct before proceeding.
4. Brush soapy solution onto indicated connections shown at figureAand B.
5. If “growing” bubbles appear, there is a leak. Close LP tank valve immediately and
retighten connections. If leaks cannot be stopped, do not try to repair. Call for
replacement parts. Order new parts by giving the model number and name of items
needed to the Customer Service Center. Use only replacement parts specified by
manufacturer.
6. Always close LP tank valve after performing tank leak test by turning hand wheel
clockwise.
! !

Orifice Fitting
Insert the brass hose fitting going through the smaller size of spring and then through the
air damper and finally into the burner. Rotate the burner until it is tightened. Be sure not to
strip threads on brass fitting. DO NOT OVERTIGHTEN. Proper connection is critical for
correct operation of unit.
Lighting Instructions
Do not lean over LP gas appliance
Without Grill box
1. Remove all appliances from the burner to create a free flow of air.
2. Turn regulator control valve to OFF position.
3. Fully open LP tank valve.
4. Light match and place it over burner. Slowly turn ON the regulator control valve. Do
NOT stand with head or arms over cooker.
5. If ignition does not occur in 5 seconds, turn the burner control(s) off, wait 5 minutes,
and repeat the lighting procedure.
Air damper
Burner
Spring
Valve
Burner
Valve
The orifice is pre-assembly in the
valve and it must go into burner for
operation. And in between orifice and
burner, there is an air damper and a
spring in between as per above photo.
Orifice
Burner

With Grill box
1. Turn regulator control valve to OFF position.
2. Fully open LP tank valve.
3. Light match and put it on the extension wire. Place the match over burner by going
through the ignition hole next to control knob. Slowly turn ON the regulator control
valve. Do NOT stand with head or arms over cooker.
4. If ignition does not occur in 5 seconds, turn the burner control(s) off, wait 5 minutes,
and repeat the lighting procedure.
Curing of paints and parts will produce an odor only on first use.
CAUTION
CAUTION: If burner does not light, turn knob(s) to OFF, wait 5 minutes, try again.
If the burner does not ignite with valve open, gas will continue to flow out of the
burner and could accidentally ignite with risk of injury.
Burner Flame Check
1. Light burner; rotate knob(s) from HIGH to
LOW. You should see a smaller flame in
LOW position than seen on HIGH.
2. Always check flame prior to each use.
3. The air damper mounted on the back of
your burner helps to control the amount
of primary air that mixes with the LP gas.
4. A blue flame with little or no yellow flame
provides the best heat.
5. Adjust the air damper by turning it clockwise or
counterclockwise until the desired flame is
achieved.
Turning LP Cooker Off
Turn all knobs to OFF position. Turn LP tank OFF by turning hand-wheel clockwise to a full
stop.
Hose Check
Before each use, check to see if hoses are cut or worn. Replace damaged hose assembly
before using appliance. Use only valve/hose/regulator specified by manufacturer.
! !

Cleaning the Burner
WARNING
Spider’s nests or wasp’s mud inside the burner may cause fire at the air damper. If a fire
occurs, immediately turn off gas supply at LP cylinder valve.
NOTE:
Spiders and small insects can spin webs and build nests inside the burner. This especially
occurs in late summer and fall before frost when spiders are most active. These nests can
obstruct gas flow and cause operator injury and serious damage to the appliance. To help
prevent a blockage and ensure full heat output, clean and inspect burner tube often (once
or twice a month). NOTE: Water or air pressure will not normally clear a spider web.
Steps for cleaning burner
1. Turn the damper to fully open.
2. To remove the above obstructions, use an
accessory flexible venturi brush or bend a
small hook on one end of a long flexible wire
or use an air hose.
3. Inspect and clean the burner if needed.
CAUTION
All cleaning and maintenance should only be done when the appliance is cool and with
the fuel supply turned off at the LP cylinder. DO NOT clean any part in a self-cleaning
oven. The extreme heat will damage the finish.
Cleaning and Maintenance
Correct care and maintenance will keep your appliance operating smoothly. Clean
regularly as determined by the amount of use. NOTE: Clean the entire appliance each
year and tighten all hardware on a regular basis (1-2 times a year, or more depending on
usage). Cleaning should be done where detergents won’t harm patio, lawn, or the like.
! !
! !

Suggested Cleaning Materials
zMild dish washing liquid detergent
zWire brush
zNylon cleaning pad
zHot water
zPaper clip
zSoft brass bristled brush
Component Cleaning
BURNER: Wire brush loosens corrosion from burner exterior. Clean clogged gas port holes
with an opened paper clip. Replace corroded or damaged burners that would emit excess
gas.
COOKING SURFACES, POTS AND PANS: Clean the cooking surface with soapy water
and a nylon cleaning pad.
After appliance has cooled, wipe areas where paint and finish have burned off to minimize
rusting. Then brush a layer of vegetable oil on the area.
Component List

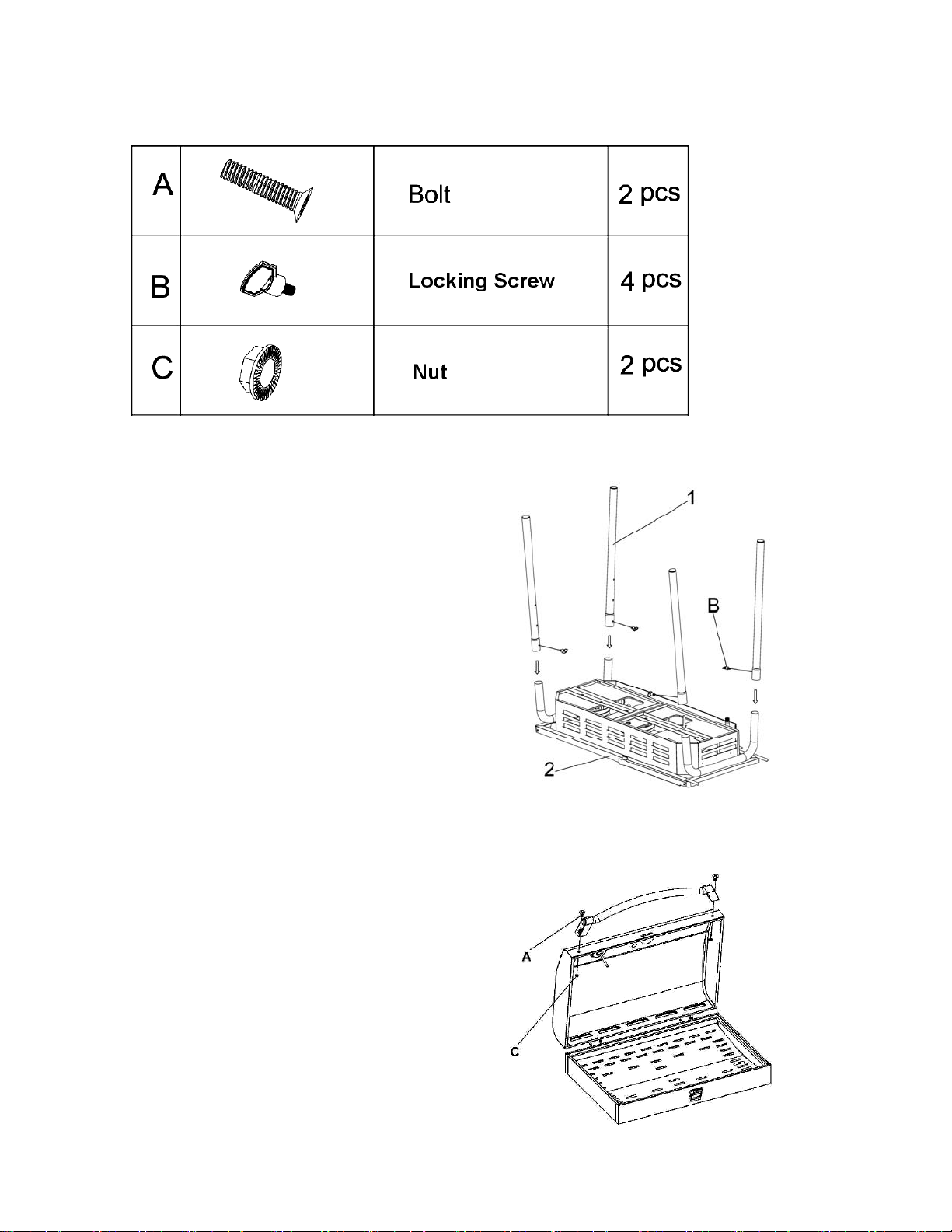

Hardware List
Assembly Instruction
Step 1
Assembly the four legs (1) to the fryer
bottom (2). Then tighten the locking
screw (B) to hold the four legs in
position.
Step 2
Attach the front handle (3) to the grill box
by inserting handle bolt (A) through handle
(3) bracket on left and right, and through
holes of top lid of grill box (4), attach with
nuts (C) and tighten screws (A).

Step 3
Put the grill box (4) on the left side of the
cooker.
Step 4
Then put the cooking grate (5) inside the
grill box.
Step 5
Thread wire hook through hole on side of
regulator.
Step 6
When transporting or storing LP cooker
without tank attached, hook regulator onto
frame of stand to prevent damage to
regulator.
If all parts are not included, do not attempt to assemble grill, and call customer
service at (888)-922-2336
