Outdoor Router EZR34 Series User manual

6
EZR34.OutdoorRouter.xyz
Scan QR code or visit URL link to see the
complete edition of the online manual.
EZR34 SERIES QUICK GUIDANCE
PACKAGE CONTENTS
Outdoor Router 4G & WiFi Antennas 10-Meter LAN Cable
PLUG
for UK / EU
/ US / AU
L-Bracket & T-Wrench
PoE Injector Mounting Kit
Check and count the package contents.
INTERFACE OVERVIEW
4G ANTENNA
MAIN
4G ANTENNA
WIFI ANTENNA
BREATHER VALVE
OPEN THE ENCLOSURE
Use hexagon head on the
T-wrench to lose bolts in
anti-clockwise direction
CLOSE THE ENCLOSURE
Use T-wrench to tighten
bolts in clockwise direction
HEXAGON
BOLT
LOCKHOLE
ARE EMBOSSED NUMBERS
ON THE ENCLOSURE
~
WIFI
ANTENNA
CROSS
5MM HEX
5MM HEX
T-WRENCH
GLAND
1
1
3
4
5
6
6
STEP 1.1
STEP 1.2
STEP 2.4

BARREL
PoE
SIM CARD
ANTENNAS
STOPPER
RJ45 CONNECTOR
PoE INJECTOR
CAP
Smaller
LAN CABLE
AC PLUG
PUSH
BUTTON
RESET PoE & LAN DC WAN
MOTHERBOARD
SIM CARD & PoE
TURN OFF POWER BEFORE
INSERTING THE SIM CARD
* WARNINGS *
Use activated SIM card in the router *
Make sure the SIM card is working well *
Insert SIM card in the SIM1 slot *
Locate SIM#1 slot on top right corner
Hold and slide left to open the SIM lid
Put a Nano SIM card in the SIM card slot
The gold pins should be face down
Cover the SIM lid and slide right to lock it
1.
2.
3.
4.
5.
6.
7.
Take cap off from the gland.
Push out the stopper from
the inside of the gland.
Take one end of the LAN
cable through the cap.
Put LAN cable through
the barrel screw and plug
in the PoE & LAN port on
the motherboard.
Clamp the stopper on the LAN
cable and settle it in the barrel.
Turn the cap in the clockwise
direction to tighten it on the
barrel screw.
Connect another end of the
LAN cable to PoE port on the
PoE injector.
Connect AC plug on the PoE
injector to electrical outlet until
set up all the below steps (to 3.3).
NOTE
To exchange the AC plug, press and
hold the Push button then push the
AC plug upword to take it off.
i.
ii.
.1
.2
.3
LAN CABLE
Connect a computer to the
LAN port on the PoE injector
to get the Ethernet connection.
To use another router, connect its WAN
port to the LAN port on the PoE injector.
Close the lid & press it with your hand.
Use T-wrench to tighten four pieces
hexagon bolts on the lid.
Ensure no gap after tightening the screws!
8. ETHERNET
* The smaller end faces the outside.
STEP 2.1
STEP 2.2
STEP 2.5
STEP 2.4
STEP 2.3
4
2
5
6
3
Make sure the mobile carrier has
a strong enough signal in your area
The modem sensitivity is -101dBm
equals to approx. 2-bar on a phone
Refer to https://ezen.link/signal-test
Locate embossed numbers
1~6 on the top & bottom sides
1 & 3 for 4G antennas
4 & 6 for WiFi antennas
Turn the hex part on the
antennas in the clockwide
direction to tighten them
BRACKET & MOUNTING
FIRMWARE CONFIGURATION
Walk around with a mobile phone and check the network type and signal bars.
Then choose a location with a 4G LTE network reception and strong signal reception.
After turning on power (step 2.3.7), use a phone or computer to join the Wi-Fi hotspot
Outdoor-WiFi-xxx or connect the computer to the LAN port on the PoE injector (step 2.3.8).
Open a web browser, enter the router IP
http://192.168.30.1 on the address bar.
Click the Login button to access the admin panel.
Use the cross end on T-wrench and M6 cross-head screws to
install the L-shape bracket on the backside of the enclosure.
Find a pole with diameter of Ø35~50mm.
1.
2.
Clasp the pole with U-bolts and holders, attach them on
either side of the L-shape bracket.
On another side of the bracket, put washers, spring washers,
and hex nuts on U-bolts. Tighten the nuts with an M10 spanner.
** Turn the bracket to be parallel with the pole if it's horizontal.
WASHER
SPRING WASHER
WASHER
SPRING WASHER
HEX NUT
U-BOLT HOLDER
HEX NUT
HOLDER
U-BOLT
INSTALL ON A POLE
http://192.168.30.1
AUTHORIZATION REQUIRED
Please enter your router password!
Password Login
Default has no password!
If unable to access, recheck the Wi-Fi and LAN
connections and clean the web browser cache.
*
POLE IS EXCLUDED
STEP 3.1
STEP 3.2
STEP 3.3
STEP 4.1

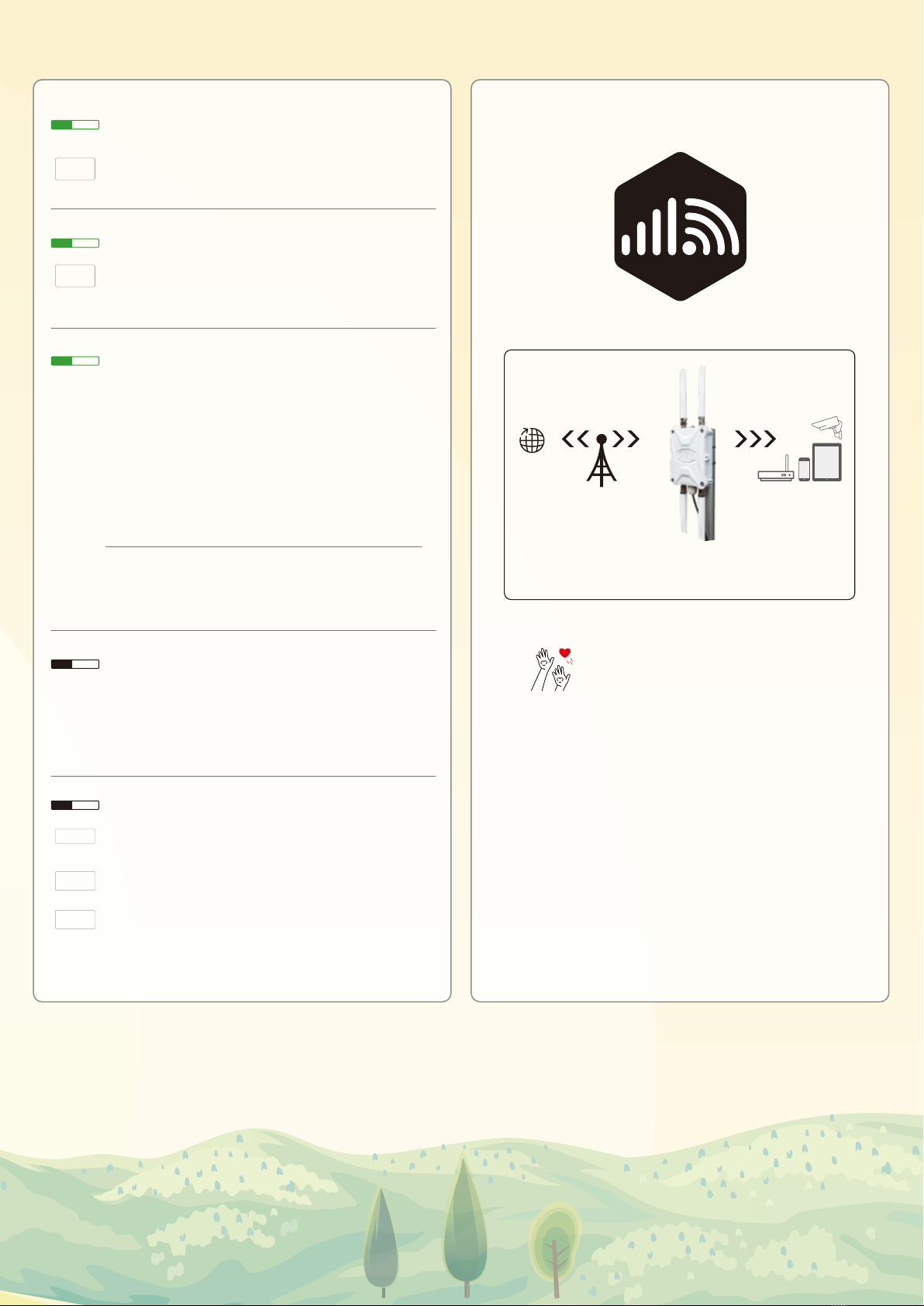

WORKING PRINCIPLE
Mobile
Internet
Cell
Tower
Wi-Fi & Ethernet
Secondary
Router
EZR34
Outdoor
4G Router
Thanks for reading! If you have questions while using the router,
please check the online manual at ezr34.outdoorrouter.xyz
Please feel free to contact us if you need any further assistance.
After accessing the router admin panel, navigate to System > System from the top menu.
Under the tab of General Settings, click the Sync with browser button to sync the time.
Go to System > Administration, input new custom router password twice, and save settings.
*Keep the new password in a safe place.
Go to Network > Wireless, click the Edit button on SSID: Outdoor-WiFi-xxx (Mode: Master).
Scroll down to Interface Configuration, change Wi-Fi SSID on ESSID field.
Click the tab of Wireless Security, choose WPA-PSK/WPA2-PSK on Encryption.
Input the Wi-Fi password on the Key field, then save settings.
V4 is the 2.4GHz hotspot, and V5 is the 5.8GHz hotspot.
On the front page, check the modem status and the signal strength on the
right-side DEVICE section.
Go to Network > Interfaces, check the IP and traffic flow of the MOBILE interface.
It is non-necessary to change APN unless the mobile carrier requires to do so.
Click the Edit button on the MOBILE interface to change the APN settings.
* Check the APN tutorial on https://ezen.link/APN.
It is also not necessary to change the protocol unless default one is no supported.
* Check the protocol tutorial on https://ezen.link/protocol.
Turn on DHCP mode on the phone or computer to obtain a local IP address from the
4G router. To use a static IP address, please comply with the below format.
Computer IP
Subnet mask
Gateway (Router IP)
192.168.30.100~249 ( pick one IP from 100~249 )
255.255.255.0 ( 24 on Windows )
192.168.30.1
Status
Disabled
Connection attempt failed
Network device is not present
Connected but no internet
Solution
Check if the SIM card is locked.
Re-insert the SIM card and check the signal strength.
The Guardian module is resetting. Wait for 2-3 minutes.
Check if the data plan supports use on a 4G router.
1. Status
2. Interface
3. APN
4. Protocol
MOBILE MODEM
LOCAL NETWORKS
The router might have glitches after running for days or weeks.
Reboot the router could solve most of the issues.
You may go to System > Reboot or unplug the PoE injector to reboot the router.
If the router works unstable after made changes to the firmware, please go to
System > Backup / Flash Firmware. Click the Perform reset button to run a soft reset.
If unable to access the router admin panel, please run a hard reset.
When the device is powered on, tap and hold the round Reset button for 5 seconds.
Then release it and wait for 4 minutes to boot up.
! IMPORTANT ! DO NOT TURN OFF POWER WHILE RESETTING THE ROUTER!
RECOVERY
5. Debug
STEP 4.5
STEP 4.6
STEP 4.2
STEP 4.3
Router
password
Wi-Fi SSID
& password
Reboot
Soft
Reset
Hard
Reset
STEP 4.4
