Ovente ST101 Series User manual

Before use, please read this manual thoroughly and save for future reference.
ovente.com
Vacuum
ST101 series
multipurpose
cleaner
ST101BGD ST101BR ST101WP

TABLE OF CONTENTS
MULTIPURPOSE VACUUM CLEANER
ST101 series
3
5
6
10
..........
..........
..........
..........
Important safeguards
Parts & Features
Using your multipurpose vacuum
Care & maintenance

3ovente.com
IMPORTANT SAFEGUARDS
Whenusingbaglessconvertiblestickvacuum,basicsafetyprecautionsshouldalwaysbefollowedtopreventriskoffire,electricshock,burns,
orotherinjuriesordamages.
Use the appliance only for its intended use.
To protect against the risk of electric shock,do not immerse
any part of the system in water or any other liquids.
This vacuum is not intended to be used by people (including
children)with reduced physical,sensory and mental
capabilities.This vacuum is not for people with a lack of
experience and knowledge unless they have been given
supervision or instructions concerning the use of the vacuum
by a person responsible for their safety.
Never yank the cord to disconnect from the outlet;instead,
hold the plug and pull to disconnect.
Do not allow the cord to touch hot surfaces.
Do not run appliance over cord.
Do not operate the system with a damaged cord or plug,or if
the appliance or any other part of the system has been
dropped or damaged.To avoid the risk of electric shock,do
not disassemble or attempt to repair the BAGLESS
CONVERTIBLE STICK VACUUM.
Close supervision is necessary for any appliance being
used by or near children.Do not leave the appliance
unattended while connected.
Hair,loose clothing,fingers,and other body parts should
be kept away from openings and moving parts at all
times.
Do not use to pick up flammable or combustible liquids
such as gasoline or use in areas where they may be
present.
Do not pick up anything that is burning or smoking such
as cigarettes,matches,or hot ashes.
Use extra care when cleaning on stairs.
Do not use the vacuum without the dust cup filter in
place.
This appliance is intended only for household use.
Follow all user instructions in this manual.
Do not leave the BAGLESS CONVERTIBLE STICK
VACUUM plugged in when unattended.Unplug the
electrical cord when not in use and before servicing.

4ovente.com
Do not allow it to be used as a toy.Close attention is
necessary when used by or near children,pets,or
plants.
Use only as described in this manual.Use only the
manufacturer’s recommended accessories.
Do not pull the cord,use the cord as a handle,close a
door on the cord,or pull the cord around sharp edges or
corners.
Turn off all controls as applicable before unplugging
from the electrical outlet.
Do not handle plug or vacuum with wet hands or operate
without shoes.
Do not put any objects into openings.Do not use with
any opening blocked.Keep free of dust,lint,hair,and
anything else that may reduce airflow.
Store your appliance indoors in a cool,dry area.
Keep your work area well-lit.
Keep the end of the hose,wands,and other openings
away from your face and body.
Use only on dry surfaces.
Using improper voltage may result in damage to the
motor and possible injury to the user.Correct voltage is
listed on the rating label.
This appliance is provided with double insulation.Use
only identical replacement parts.See instructions for
Servicing of Double-Insulated Appliances.
IMPORTANT SAFEGUARDS
Whenusingbaglessconvertiblestickvacuum,basicsafetyprecautionsshouldalwaysbefollowedtopreventriskoffire,electricshock,burns,
orotherinjuriesordamages.

5ovente.com
parts & features
1|Handle
-For easy-grip and maneuver
2|Quick Release Cord Hook
-Store your cord conveniently
3|Extension Tube
4|Power Cord
-4-meter power cord length
5|Dust Cup Container
-1L dust cup capacity
6|Crevice Nozzle
-Perfect for cleaning corners, and between cushions
7|Extension tube/Release button
8|On/Off Power Switch
9 | Dust Cup Lock
- Empty your dust cup easily
10 | Floor Brush
-Suited for all kinds of flooring,including carpeted
and tiled floors.

6ovente.com
USING your MULTIPURPOSE VACuUM
PRECAUTIONARY MEASURES
IMPORTANT:If the suction opening in the unit or the hose
is blocked,switch off the vacuum cleaner and remove the
blocking substance before you start the unit again.
DO NOT operate the vacuum cleaner too close to heaters,
radiators,or cigarette butts.
Before inserting the power plug into the wall outlet,make
sure that your hands are dry.
Before you start vacuuming,make sure to remove large or
sharp objects that might damage the dust cup filter.
When pulling out the power plug from the wall outlet,pull
the plug,not the power cord.
DO NOT pick up anything that is burning or smoking such as
cigarettes, matches, or hot ashes.
Do not use without a dust cup lter in place

7ovente.com
USING your MULTIPURPOSE VACuUM
Operating Instructions
Always remove the power plug from the wall outlet before
assembling or removing accessories.
INSERTING THE METAL HANDLE INTO THE MAIN BODY
Insert the extension tube in the hole,until the locking clip is
sitting firmly on the handle.(Fig.1)
When you finish using the handy vacuum,push the release
button and pull out the metal tube (Fig.2)
ATTACHING THE CREVICE TOOL AND THE FLOOR BRUSH
TO THE MAIN BODY
Push the crevice tool or floor brush into the suction hole
opening.(Fig.3)
The following are recommendations for accessory usage:(Use only with
accessories and attachments that come with this product)
CREVICE TOOL
For radiators,crevices,corners,baseboards,and between
cushions.
SWIVEL FLOOR BRUSH
Rotating floor brush for all kinds of flooring,including
carpeted and tiled floors.
Fig.3
Fig.2Fig.1
Handle Port

8ovente.com
USING your MULTIPURPOSE VACuUM
Winding &Unwinding the Power Cord
This vacuum cleaner is equipped with a convenient cord
storage feature.This unit also has a quick-release cord
hook
Wind power cord around the quick-release cord hook and
the cord winding hook.(Fig.4) To unwind the power cord,
simply twist the quick-release cord hook to the left or
right.
OPERATING INSTRUCTIONS
CAUTION:The suction hole opening must be always
open and free of any obstructions.Otherwise,the motor
will overheat and could become damaged.
POWER SWITCH
The On/Off power switch has two different positions.(Fig.
5)
Push on the "I"side to turn the vacuum ON.
Push on the "O"side to turn the vacuum OFF.
USING THE UNIT AS AN UPRIGHT VACUUM
Insert the extension tube into the hand vacuum.
Choose the appropriate accessory (crevice tool or floor
brush)and attach it to the suction hole opening on the
dust container
Quick-Release Hook
Fig. 4
Fig. 5

9ovente.com
NOTE:You may choose not to attach the crevice tool or
floor brush when operating as an upright vacuum.
Press the “1” position on the On/Off power switch turns
the unit on.When finished using the unit,press the “0”
position on the On/Off power switch to turn the unit off.
When finished using the unit,wind the power cord around
the cord winding hooks for easy storage.
USING THE UNIT AS A HAND VACUUM
Disconnect the extension tube from the hand vacuum by
releasing the handle port from the locking clip and
removing the extension tube from the hand vacuum
handle.
NOTE:You may choose to leave the crevice tool or floor
brush attached to the hand vacuum when operating as
such.
Press the “1” position on the On/Off power switch to turn
the unit on.When finished using the unit,press the “0”
position on the On/Off power switch to turn the unit off.
USING your MULTIPURPOSE VACuUM

10 ovente.com
CARE & maintenance
Changing and Cleaning the Dust Cup Filter
To achieve the best performance,empty the dust cup
container and clean the dust cup filter after each use.
To remove the dust cup container,press down on the dust
cup container release button (Fig.6)
and separate the dust cup container from the main unit.
(Fig.7)
Pull out the dust cup filter.(Fig.8)
Empty the dust from the dust cup container.
Rinse the dust cup filter in cold water,and then let it air dry
for 24 hours before replacing it back in the dust cup
container.
Fig. 6 Fig. 7
Fig. 8
1
2
3
4

11 ovente.com
CARE & maintenance
IMPORTANT NOTE:DO NOT use a washing machine to
clean the dust cup filter.Do not use a hairdryer to dry it.AIR
DRY ONLY.
Replace the dust cup filter carefully into the dust cup
compartment.NEVER OPERATE THE STICK VACUUM
WITHOUT THE DUST CUP FILTER IN PLACE.
Attach the dust cup container to the unit’s main body.
NOTE:It is recommended that the dust cup filter be
replaced every three (3) months (depending on usage)to
ensure peak performance of the unit.Dust cup can be
purchased separately.
CHANGING AND CLEANING THE EXHAUST HEAP FILTER
To clean or replace the exhaust HEAP filter,press down the
release button on the exhaust board.(Fig.9)
Take out the HEAP filter.(Fig.10)
Clean or replace the HEAP filter
Fig.9Fig.10
5
6
1
2
3

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
CARE & maintenance
VACUUM WILL NOT OPERATE
VACUUM WILL NOT PICK UP OR
SUCTION POWER IS WEAK
DUST ESCAPING FROM VACUUM
1. No power in the electrical outlet
supplying the transformer.
1. Dust cup container is full.
2. Dust cup filter needs cleaning or
replacement.
1. Dust cup container is full.
2. Dust cup filter is not installed
correctly.
3. Puncture/hole is dust cup filter.
1. Check fuse or breaker.Replace
fuse/reset breaker.
1. Empty dust cup container
2. Remove dust cup filter and check
for the object(s)in air duct and
remove.Clean or replace the dust
cup filter.
1. Empty dust cup container.
2. Review dust cup filter installation
instructions.
3. Replace the dust cup filter.
12

PLEASE NOTE:
The Dust Cup Filter is washable.It should,however,be replaced every three (3) months (depending on usage)to
ensure peak performance of your vacuum.Replacement Dust Cup filters are sold separately.
IMPORTANT:
Make sure that ALL filters are completely dry before re-installing back in the vacuum.
13
CARE & maintenance
Voltage:120V
Hertz:60Hz
Wattage:600W
ELECTRICAL REQUIREMENTS

OVENTE WARRANTY
ovente.com
LIMITED ONE (1) YEAR WARRANTY
At Ovente,we aim to make your life easier by producing top-quality housewares,designed with you in mind.We have
pledged to uphold all our offerings to the highest standards,and we back all our vacuums with a one-(1) year warranty
from the date of purchase from an authorized retailer.This warranty covers defects in workmanship and materials.It does
not include damage due to abuse,misuse,commercial use,accidents or natural wear and tear.In case of replacement,
ship-
ping and handling fees may apply.
LIMITATIONS
The warranty stated above is the only warranty applicable to this product.Other expressed or implied warranties are
hereby disclaimed.No verbal or written information given by the Manufacturer,its agents or employees shall create a
guarantee or in any way increase the scope and duration of this warranty.Repair or replacement as provided under this
warranty is the exclusive remedy of the consumer.The manufacturer shall not be liable for incidental or consequential
damages resulting from the use of this product.Any implied warranty of merchantability or fitness for a particular purpose
on this product is limited to the applicable warranty period set forth above except to the extent prohibited by law.Proof
of purchase may be required to validate the order.Promotional items may not be covered under any warranty.Consumer
rights may vary from state to state.
For product support email [e-mail] or call 1-855-926-2626.
Visit us at ovente.com
Facebook.com/ovente @oventeTweets youtube.com/ovente@Ovente

Before use, please read this manual thoroughly and save for future reference.
ovente.com
Vacuum
ST101 series
multipurpose
cleaner

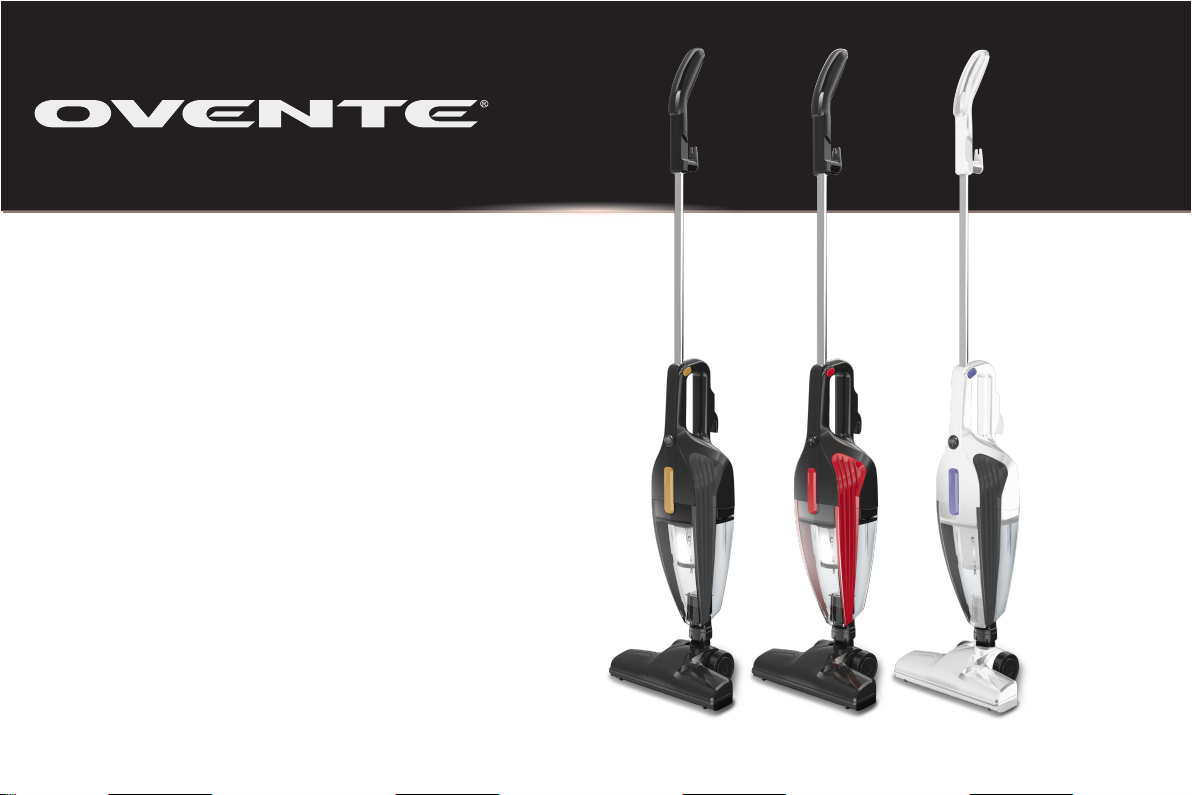

ST101BGD ST101BR ST101WP

Defining Housewares
