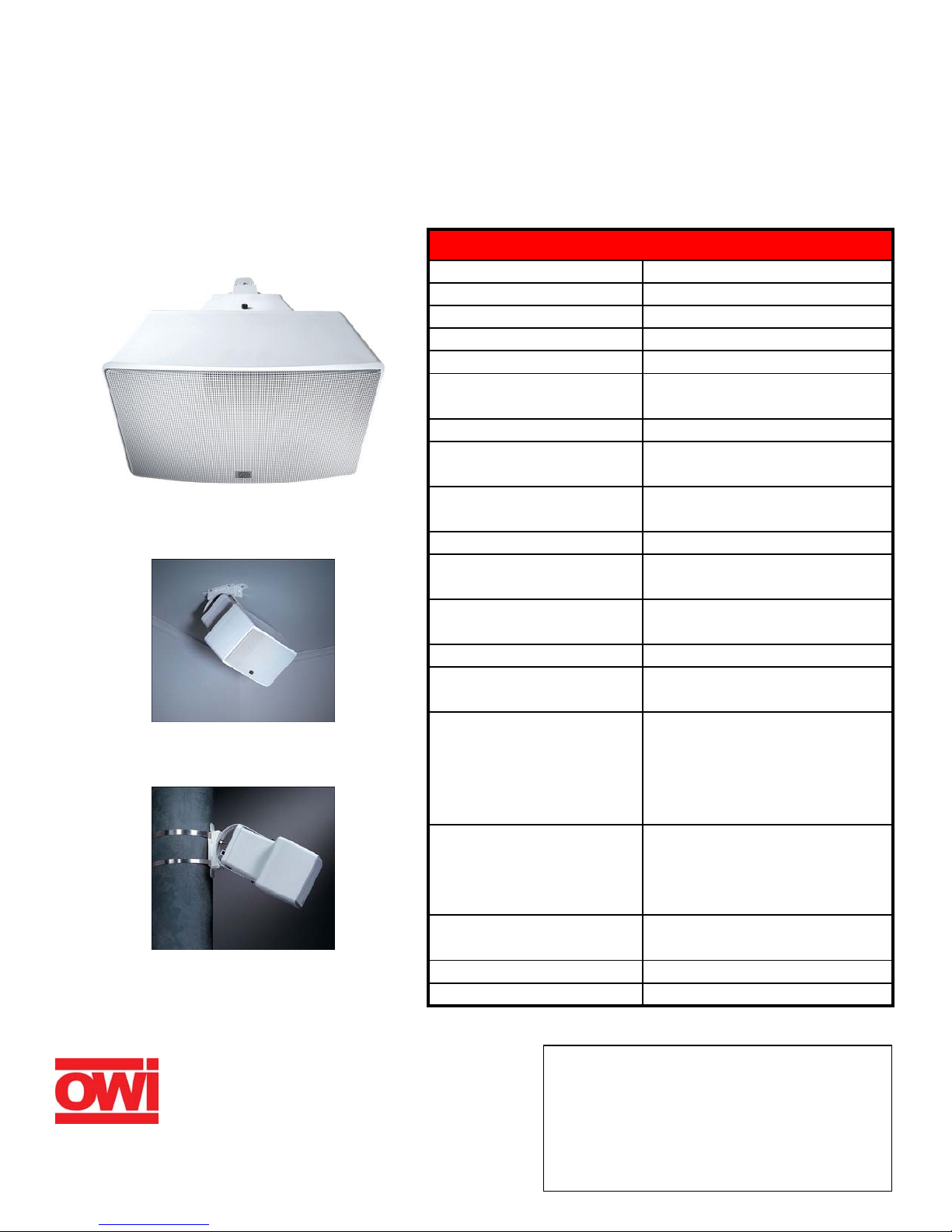

OWI AMP04TRP User manual

A
RCHITECTS AND ENGINEER
S
SPECIFICATIONS / TECHNICAL DAT
A
GENERAL SPECIFICATION
S
MODEL NUMBER: AMP04TRP
POWER: 25 Watts
FREQUENCY RESPONSE: 20 Hz - 30 kHz +0-2 dB
NOISE FLOOR: Better than 90 dB
DISTORTION: Better than .1% at 10 Watts
INPUT: Line Input -10 to +4 dB
INPUT CONFIGURATION: Differential, Balanced
DC Isolated
VOLUME CONTROL: Step for Mechanical Level Memory
PROTECTION: Short Circuit, Heat and
Over Current
MAXIMUM POWER 400 Ft. with 16 Gauge Wire
SUPPLY WIRE LENGTH:
MULTIPLE AMPLIFIERS: Yes, Line Input In Parallel
EACH AMPLIFIER Four Speaker Total per Amp
MAY POWER:
INPUT/OUTPUT: Each Amplifier has a Line Level
Input and Output
CONNECTOR TYPE: Phoenix Connector
CONDUIT ENTRY: Two 1/2" Conduit Access Holes
with Knock Outs
TYPICAL LINE LEVEL CD Player, Audio Mixer, Background
SOURCES: Music Service, Telephone PBX
Dry Audio Pair Hooked to the
Balanced +,- Input. There is No
Shield on a Telephone Input.
HOOK UP FOR Wired through the Conduit Entry,
ADDITIONAL HORNS: Use the 4 Way Binding Posts for
Additional High Level Speakers
Hooked up to the Amplifier.
FOR FOUR HORNS: Wire them Series Parallel to
Achieve a 4 Ohm Load Impedance
POWER SUPPLY: 12 Volts
COLOR: White
AMPLIFIED SPEAKER:
TRUMPET
OWI Incorporated
17141 Kingsview Avenue, Carson, CA 90746 USA
T
el: 310.515.190
0
T
oll Free: 800.638.169
4
Fax: [phone]
Web: www.owi-inc.com
E-mail: [email protected]
®
