OWIM HG07890A-MSF User manual

IAN 114324
FUNK-WETTERSTATION
Bedienungs- und Sicherheitshinweise
RADIO-CONTROLLED
WEATHER STATION
Operation and safety notes
RADIO-CONTROLLED W EATHER STATION
IAN 365202_2101

GB/IE/NI Operation and safety notes Page 5
DE/AT / CH Bedienungs- und Sicherheitshinweise Seite 33

x2x2
x1x1
A
B
1 2
26 18 19
7 8 9 10
632
32
33
33
5
15 14 13 3 4
31
12
20
20
11
17

C
D
24
23
16
18
5
21
22
25
30
27
28
29

5GB/IE/NI
List of pictograms used................................................................................Page 6
Introduction.........................................................................................................Page 7
Intended use...........................................................................................................Page 7
Parts description.....................................................................................................Page 7
Technical data........................................................................................................Page 8
Scope of delivery...................................................................................................Page 10
General safety instructions ......................................................................Page 10
Safety instructions for batteries/rechargeable batteries ....................................Page 11
Start-up...................................................................................................................Page 12
Setting up the products..........................................................................................Page 13
Starting the outdoor sensor/changing batteries.................................................Page 13
Starting the main station/changing batteries......................................................Page 13
The MSF signal (time transmitter)..........................................................................Page 15
Information in base mode ........................................................................Page 16
The clock field ........................................................................................................Page 16
The barometric pressure field................................................................................Page 17
The indoor temperature field.................................................................................Page 19
The outdoor temperature field...............................................................................Page 20
Settings...................................................................................................................Page 22
Basic settings..........................................................................................................Page 22
Temperature alarm.................................................................................................Page 24
Activating the temperature alarm..........................................................................Page 24
Alarm ......................................................................................................................Page 25
Accessing stored data ...........................................................................................Page 26
Manually activating signal reception ...............................................Page 27
Activating MSF signal reception...........................................................................Page 27
Activating reception from the outdoor sensor......................................................Page 27
Background lighting...............................................................................................Page 28
Reset function .........................................................................................................Page 28
Troubleshooting...............................................................................................Page 28
Cleaning and care...........................................................................................Page 29
Disposal .................................................................................................................Page 29
Simplified EU declaration of conformity .........................................Page 30
Warranty ..............................................................................................................Page 31
Warranty claim procedure....................................................................................Page 31
Service....................................................................................................................Page 32

6 GB/IE/NI
List of pictograms used
Direct current/
voltage Radio controlled
Alternating
current/ voltage Splashproof
Safety class II Polarity of output
terminal
Outdoor temperature
display Time display
100M transmission
range between trans-
mitter and receiver
station
Alarm clock
Indoor temperature
display
Include mains
adapter
Humidity display Included batteries
Snooze function
CE mark indicates con-
formity with relevant EU
directives applicable
for this product.
Use the product in dry
indoor spaces only.
Protection class II:
The power adaptor has
a double insulation.
ta Rated maximum am-
bient temperature
No protection against
water
US Level VI efficiency

7GB/IE/NI
Radio-controlled weather station
Introduction
We congratulate you on the purchase of your new product. You have
chosen a high quality product. The instructions for use are part of the
product. They contain important information concerning safety, use and
disposal. Before using the product, please familiarise yourself with all
of the safety information and instructions for use. Only use the product
as described and for the specified applications. If you pass the product
on to anyone else, please ensure that you also pass on all the docu-
mentation with it.
Intended use
This product displays the indoor and outdoor temperature, indoor and
outdoor humidity, and barometric pressure. It features a radio-controlled
clock and several alarm functions. The probable weather trend is cal-
culated based on data collected. The product is not intended for com-
mercial use.
Parts description

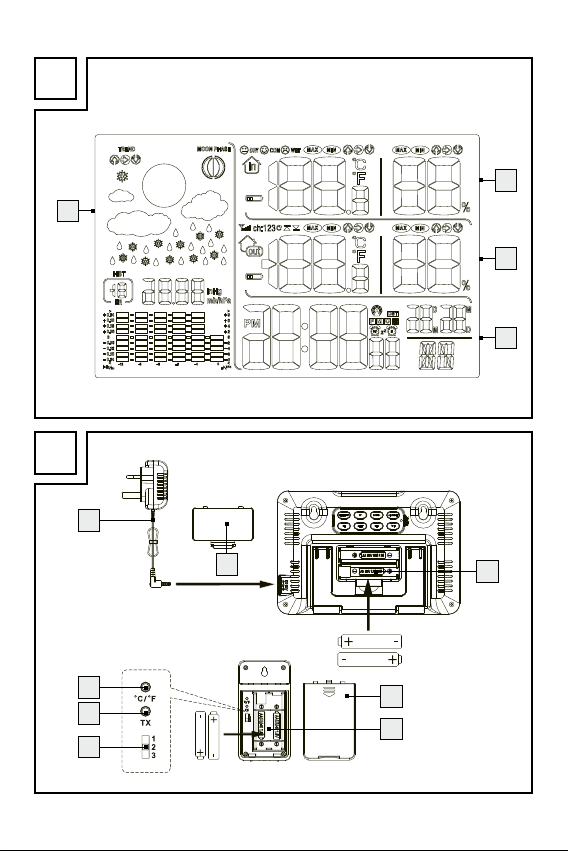

Main station
1Display
2SNOOZE-/LIGHT field
3Keypad
4Main station eyebolt
5Battery compartment cover
6Stand
7SET-/HISTORY button
8UP button
9DOWN-/ button
10 ALARM-/SET button
11 Reset button
12 °C/°F button
13 MEM button

8 GB/IE/NI
14 ALERT button
15 CH button
16 Battery compartment
Outdoor sensor
17 Signal LED
18 Battery compartment cover
19 Outdoor sensor eyebolt
20 Outdoor sensor stand
21 Outdoor sensor battery
compartment
Display
22 Indoor temperature field
23 Outdoor temperature field
24 Clock field
25 Barometric pressure field
26 Outdoor sensor display
Outdoor sensor buttons next
to battery compartment
27 °C/°F button
28 TX button (Channel reset
button)
29 Channel selector switch
Optional power supply
30 Mains adapter
31 Mains adapter socket
Mounting materials:
32 Screw (Ø 3mm)
33 Dowel (Ø 8mm)
Technical data
Main station:
Temperature measurement range: 0°C to 50 °C
32°F to 122°F
Humidity measurement range: 20% to 95%
Radio-controlled clock: MSF
Batteries: 2 x LR06 (UM-3), 1.5V (size AA)
Barometric pressure
measurement range: 850hPa to 1050hPa
25.1 inHg to 31.1 inHg
Frequency band: 60kHz, 433.050MHz to
434.790MHz

9GB/IE/NI
Mains adapter:
Information Value Unit
Manufacturer’s name or trade
mark, commercial registration
number and address
OWIM GmbH & Co. KG
HRA 721742
Stiftsbergstraße 1, 74167
Neckarsulm, GERMANY
Model identifier DM6308-BS-WH for
HG07890B-MSF
DM6308-BS-BL for
HG07890A-MSF
Input voltage 100–240 V∼
Input AC frequency 50/60 Hz
Output voltage 5.0 V
Output current 1.0 A
Output power 5.0 W
Average active efficiency 76.97 %
No-load power consumption 0.07 W
Protection class II
Outdoor sensor:
Temperature measurement range: -20°C to +50 °C
-4.0°F to + 122°F
Humidity measurement range: 20% to 95%
Wireless range: max. 100m (open area)
Batteries: 2 x LR06 (UM-3), 1.5V (size AA)
Protection class: IPX4
Frequency band: 433.050MHz to 434.790MHz
Transmitted maximum
radio-frequency power: 433.92MHz, -10.77dBm

10 GB/IE/NI
Scope of delivery
1 Main station
1 Outdoor sensor
4 Batteries, type LR06, 1.5V
1 Mains adapter
3 Screws
3 Dowels
1 Set of operating instructions
General safety instructions
Before using the product, please familiarise yourself with all of the
safety information and instructions for use! When passing this product
on to others, please also include all the documents!
This product may be used by children age 8 years and
up, and persons with reduced physical, sensory or
mental capacity or lacking experience and knowledge,
when supervised or instructed on the safe use of the product and
the associated risks. Children should not be allowed to play with
the product. Cleaning and user maintenance should not be per-
formed by children without supervision.
Do not use the product if it is damaged.
Do not expose the main station to moisture or direct sunlight.
Before using the product, ensure that the available mains voltage
corresponds with the operating voltage required for the mains
supply (100‒240V~, 50/ 60 Hz).
Before using the product, verify the product and the mains supply
and the cable connection aren‘t damaged! Never operate a
damaged product!
The product must be plugged into an easily accessible socket so
it can easily be unplugged in the event of an emergency.
This product does not contain any parts that can be serviced by
the user. The LEDs cannot be exchanged.
