OWT OZCO Project 213 User manual

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
roofing shown translucent for clarity
OZCO Project #213 -
12x12 Pavilion
6x6 Posts
Pavilion Overview

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
14'0"
12'0"
11'3 1
2"
shown without roofing for clarity

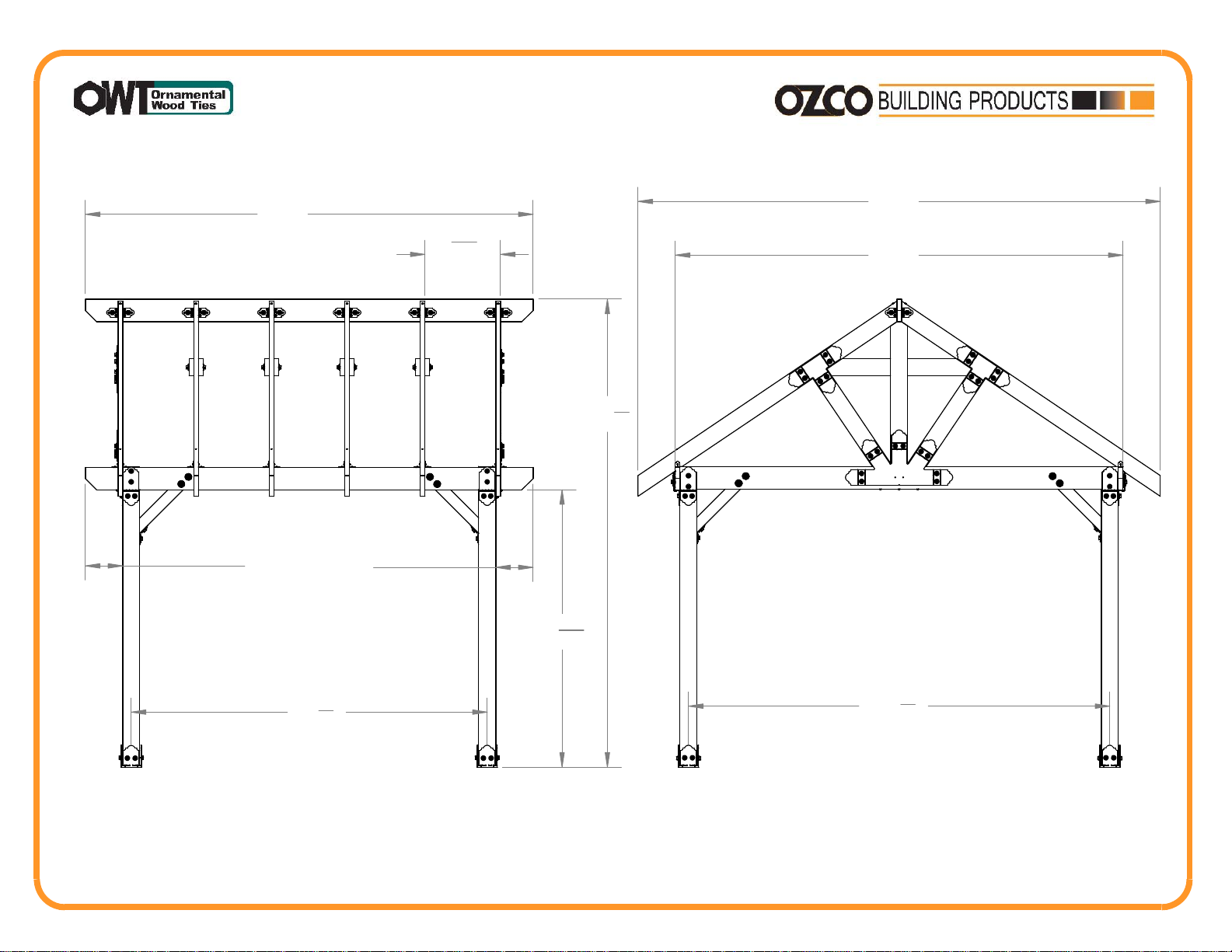

OZCO Project #213 - 12x12 Pavilion w 6x6 Posts
Pavilion Overview
12'0"
9'6 1
2"
7'5 3
16 "
12'6 1
2"
1'0" 1'0"
2' 5
16 "
typ

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.

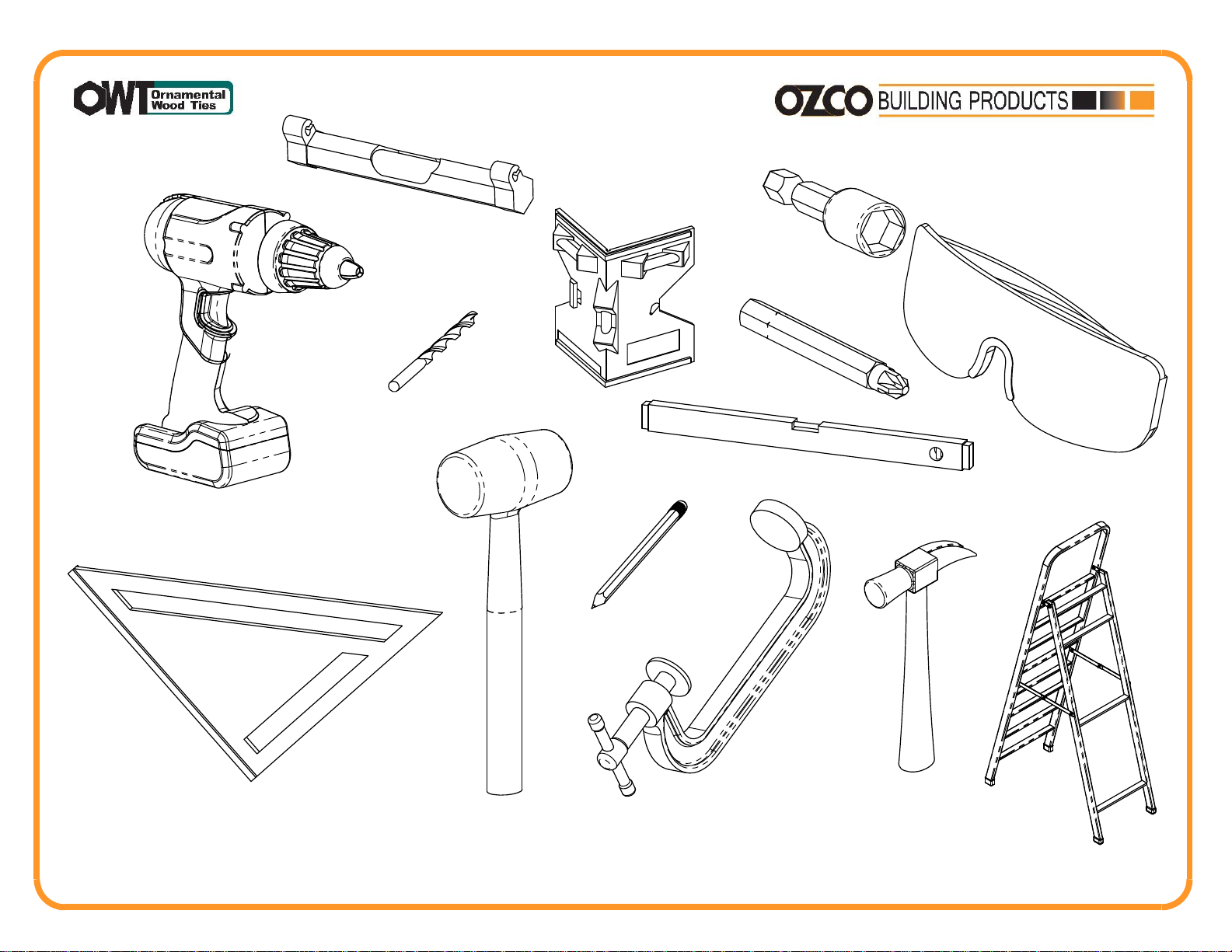

Suggested Tools
(others may be required)
Pavilion Overview

V2.00 - Installation Instructions, Specifications and Project Plans are effective 3/12/2018 . This information is updated periodically
and should not be relied upon after 2 years from 3/12/2018 . Please visit OZCOBP.com to get current information.
Material List
1
OZCO Project #213 Material List
QTY. PART NUMBER DESCRIPTION
4 56608 6x6 Post Base
(
6x6-PB-LS
)
4 56636 Post to Beam Bolt Offset
(
P2B-BO-LS
)
2 56668 4” Flush Inside 45
(
FI45-LS-4
)
16 56650 OWT Timber Bolt 6-8"
8 56680 2" Timber Bolt Heavy Duty Washer
(
OWT-TBW-2
)
2 56619 Truss Base Fan 8:12
11 56611 Truss Accent
(
TA-LS
)
2 56625 OWT Timber Screw 1-3/4"
2 56612 "T" Tie Plate
(
TTP
)
4 56649 OWT Timber Bolt 4-6"
3 56617 2" Standard Rafter Cli
p
(
RC-LS-2
)
3 56618 4" Standard Rafter Cli
p
(
RC-LS-4
)
1 56627 OWT Timber Screw 3-3/4"
1 56647 OWT Timber Screw 10"
1 56629 OWT Timber Screw 7-1/2"
4 6x6x8L 6x6x8
2 4x4x10L 4x4x10
7 2x8x12L 2x8x12
2 2x8x10L 2x8x10
2 2x6x8L 2x6x8
1 2x6x16L 2x6x16
12 2x6x10L 2x6x10
8 2x6x6L 2x6x6

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
56668
56650
56608 56636
56612
56619
56680
56628
56647
56627
56625
OZCO
Scan QR barcode with smartphone for quick access to product installation instructions
Pavilion OZCO
56677
(20' Pavilion only)
56618
56611
56649
56617

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
2 great styles
Same functionality
choose your
connection lifestyle
both styles available for
most products
Ironwood
(517XX series)
Laredo Sunset
(566XX series)
Laredo Sunset & Ironwood
Laredo Sunset & Ironwood
2

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.

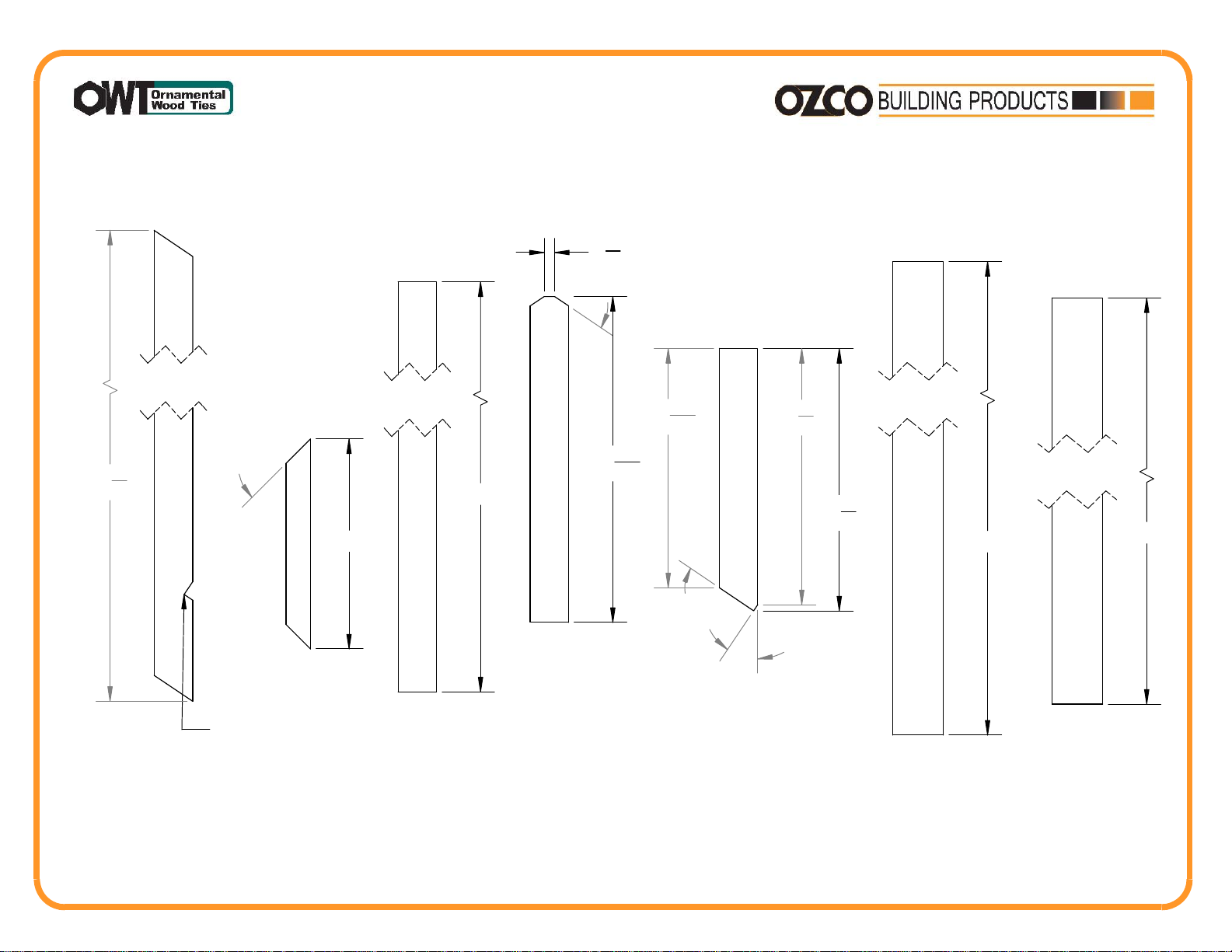

12x(length) Pavilion cut list: common to all 12' wide Pavilions
Pavilion Cutlist 12
see Birds
Foot
template
2x6 Board 100.13" 8:12 Rafter cut
8'8 1
8"
4x4 Post 30" with Beauty cut removed
45°
2'6"
6x6 Post 8
8'0"
2x6 Board 46.582" 8:12 King Post
56°
9"3'10 16
1 1
2"
2x6 Board 37.5" 8:12 Web cut
" "
8
3' 5
2'10 3
16
34°
56°
3'1 1
2"
2x8 Board 141"
11'9"
2x8 Board 130"
10'10"

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
Birds Foot 1:1 template
Pavilion Cutlist 12
2x6 Board 100.13" 8:12 Rafter cut
A
8'8 1
8"
1'2 1
2"
1'5 1
8"
1 1
2"
90°
56°
1 1
4"

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.

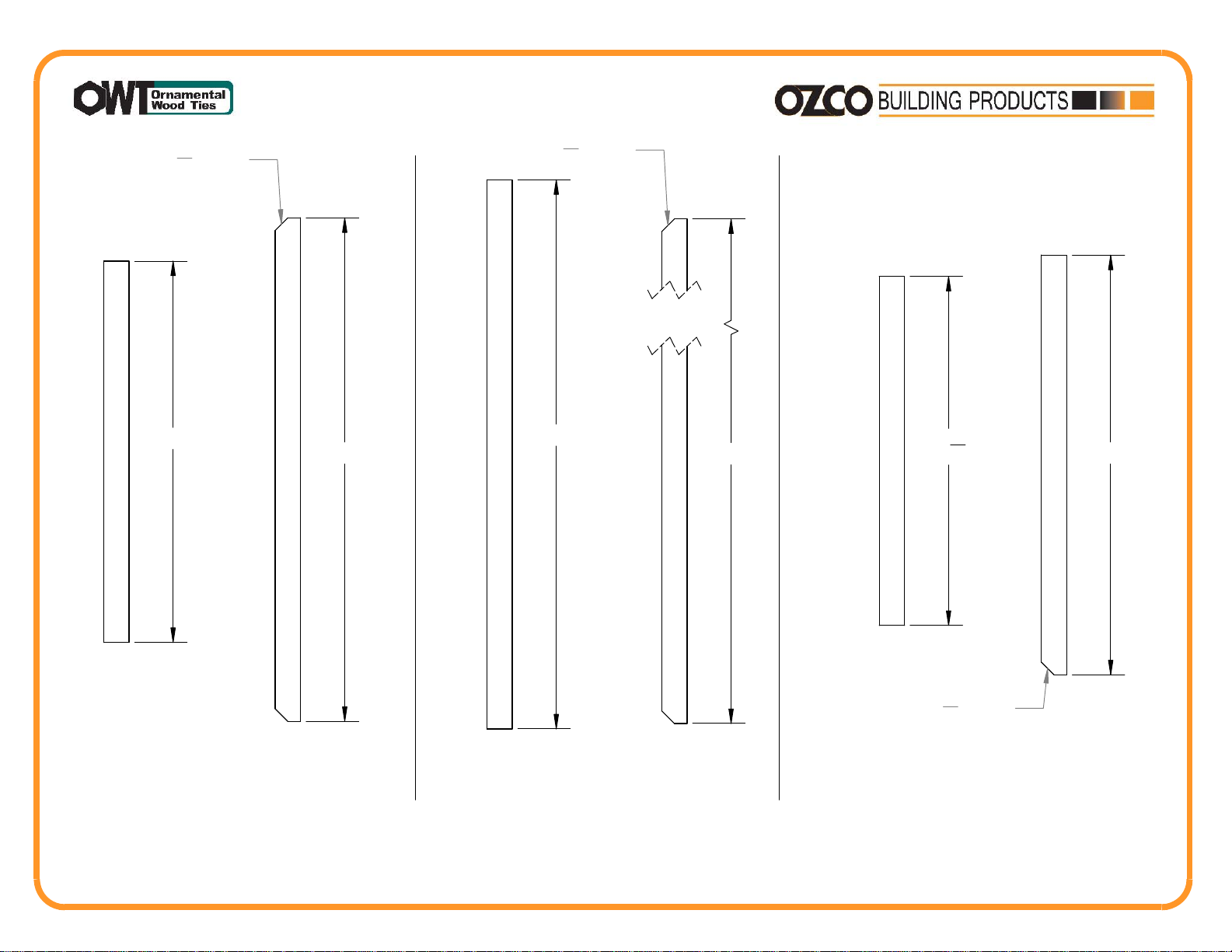

12x(length) Pavilion cut list: 2x8 length wise boards
Pavilion Cutlist 12
12x12 12x16 12x20
2x8 Board 16 with 45 cuts
35
8" X 45°
16'0"
2x8 Board 99.75"
8'3 3
4"
2x8 Board 109"
9'1"
2x8 Board 10 with one 45 cut
35
8" X 45°
10'0"
2x8 Board 157"
13'1"
2x8 Board 12 with 45 cut
35
8" X 45°
12'0"

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
14'9 3
8"
11'3 1
2"
9'6 1
2"
if site is not level,
see Ozco Site
Leveling
instruction

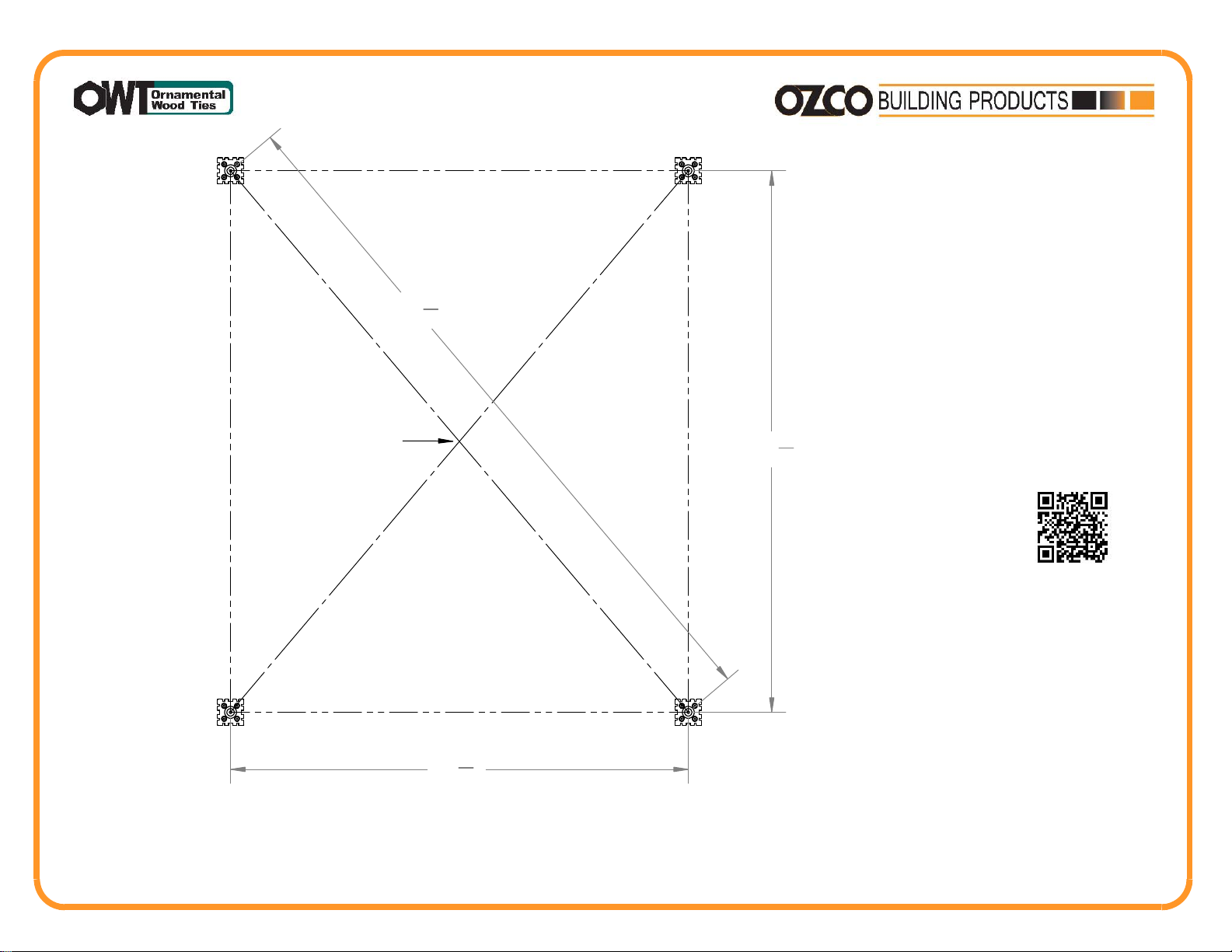

Site Plan - OZCO Project #213 - 12x12 Pavilion w 6x6 Posts
Pavilion Site Plan
Locate desired
center of structure

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
3
2
1
OZCO Project #213 - 12x12 Pavilion w 6x6 Posts ledge
Pavilion Base
ITEM
NO. QTY. PART NUMBER DESCRIPTION
1 4 6x6 Post 6x6x8'0"
2 4 56608 6x6 Post Base Kit (6X6-PB-
LS)
3 4 56636 Post to Beam Bolt Offset
(P2B-BO-LS)

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
97 8 6
4532ITEM
NO. QTY. PART NUMBER DESCRIPTION
11
Pavilion
Base
OZCO
Project #213
- 12x12
Pavilion w
6x6 Posts
22 2x8
Board 2x8x12'0"
32 2x8
Board 2x8x11'9"
42 2x8
Board 2x8x10'10"
52 2x8
Board 2x8x9'1"
6 8 4x4 Post 4x4x2'6"
7 2 56668 4" Flush Inside 45
(FI45-LS-4)
8 8 56650 OWT Timber
Bolt 6-8"
8 56680 2" Timber
Bolt Heavy
Duty Washer
(OWT-TBW-2)
9 8 56650 OWT Timber
Bolt 6-8"
4 56680 2" Timber
Bolt Heavy
Duty Washer
(OWT-TBW-2)

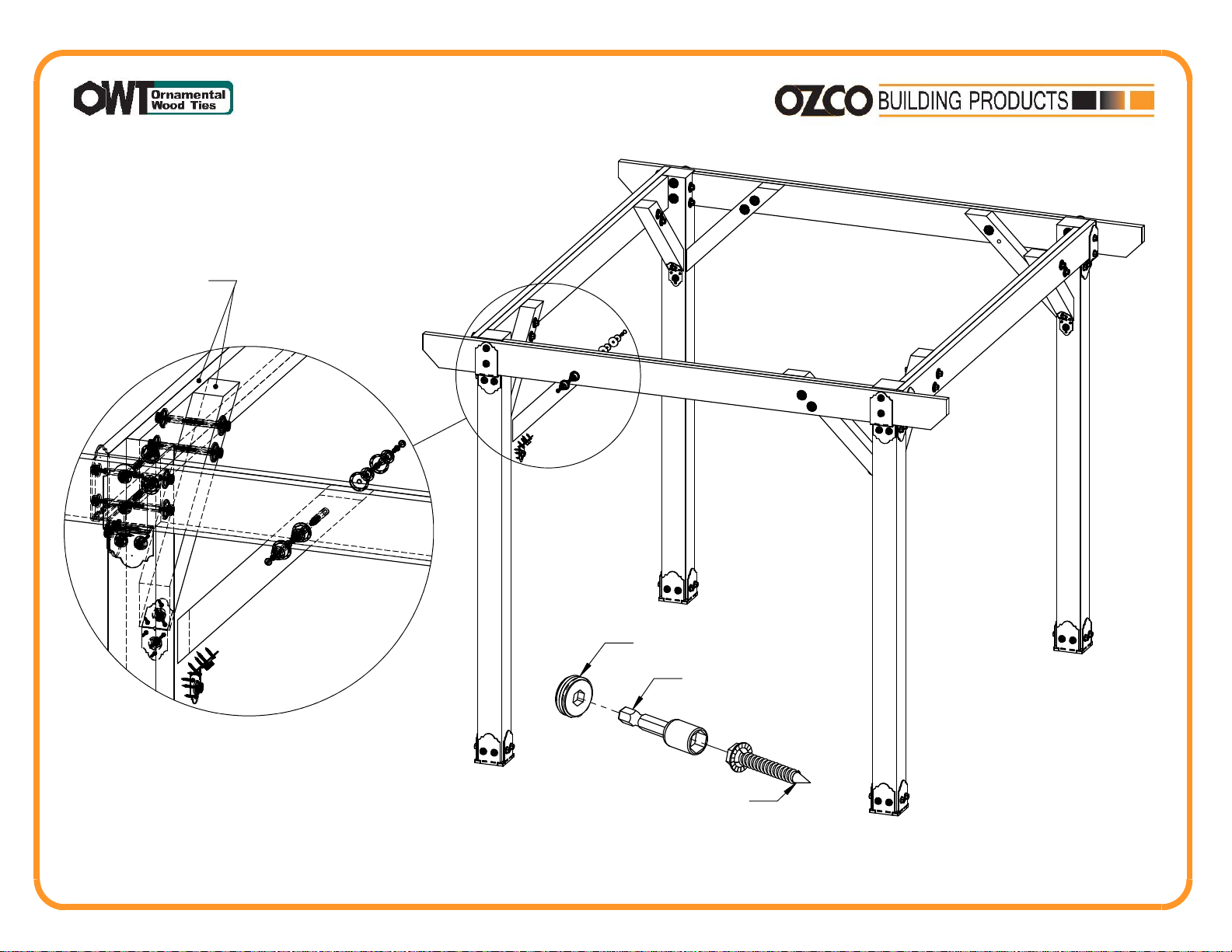

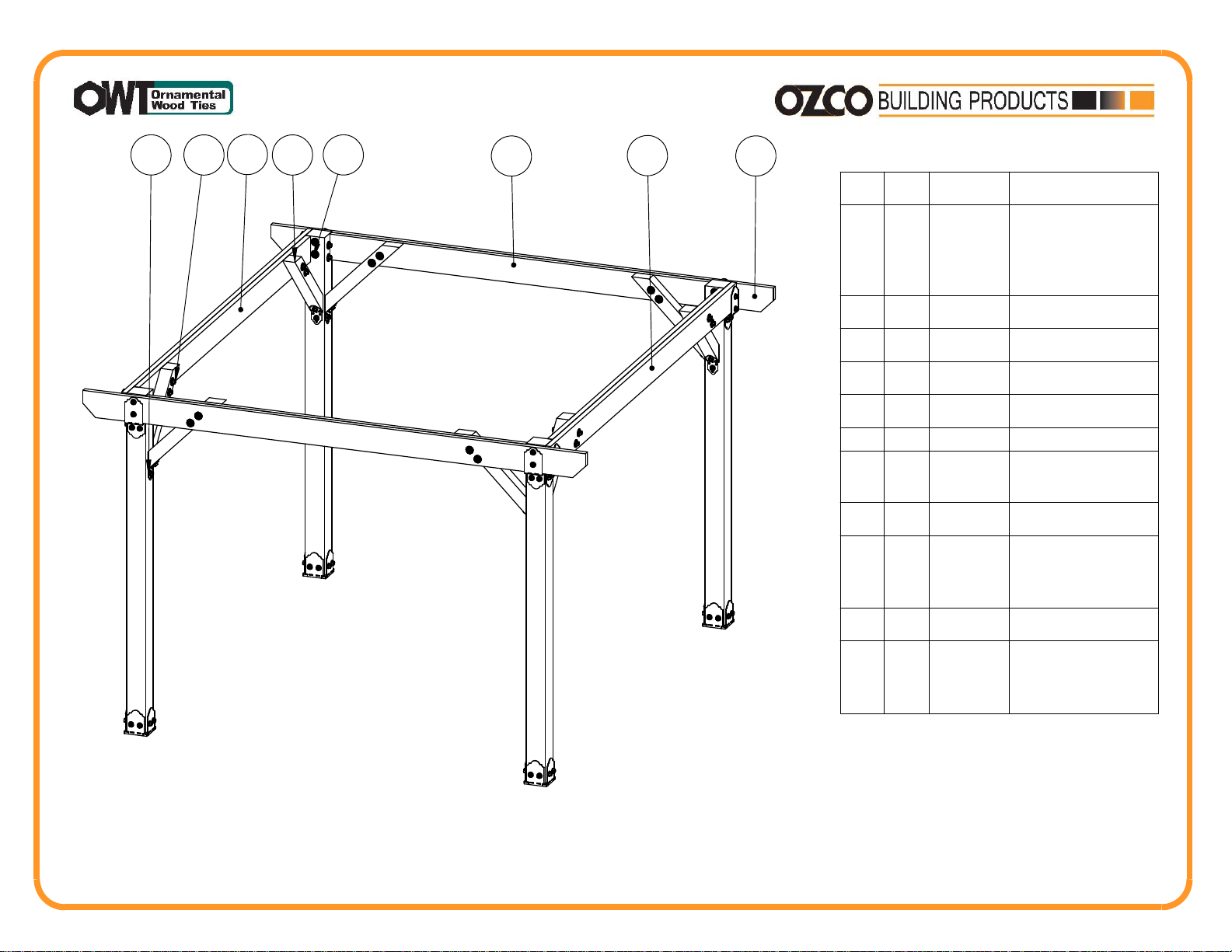

OZCO Project #213 - 12x12 Pavilion w 6x6 Posts
Pavilion Beam & Support

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
step 1 Outer Beams
Pavilion Beam & Support
to all size Pavilions
Simple 3 step
procedure common
Building your Canopy...
use this procedure for all
size Pavilions (10x10 shown).
same construction steps
and techniques apply
repeat on all sides
10x10 Pavilion shown
=
=
Tool Required
(HCN) provided
3/8" Driver
(OWT Timber Screw)
provided

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
step 2 Inside Beams
Pavilion Beam & Support
Secure with nails or screws
Repeat on all sides
for additional beam rigidity
apply polyurethane adhesive
between boards
repeat on all sides

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
flush
Tool Required
3/8" Driver
(HCN) provided
(OWT Timber Screw)
provided
step 3 Knee Braces
Pavilion Beam & Support
repeat on all sides

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
ITEM
NO. QTY. PART NUMBER DESCRIPTION
11
Pavilion
Beam &
Support
OZCO Project
#213 - 12x12
Pavilion w 6x6
Posts
2 2 56619 Truss Base Fan
8:12
5 56611 Truss Accent
(TA-LS)
1 56625 OWT Timber
Screw 1-3/4"
3 2 56612 "T" Tie Plate
(TTP)
6 56611 Truss Accent
(TA-LS)
1 56625 OWT Timber
Screw 1-3/4"
4 1 56629 OWT Timber
Screw 7-1/2"
5 1 56647 OWT Timber
Screw 10"
6 1 56627 OWT Timber
Screw 3-3/4"
7 4 56649 OWT Timber
Bolt 4-6"
4 56680 2" Timber Bolt
Heavy Duty
Washer (OWT-
TBW-2)
8 3 56617 2" Standard Rafter Clip (RC-
LS-2)
9 3 56618 4" Standard Rafter Clips
(RC-LS-4)
10 1 2x8 Board 2x8x12'0"
11 2 2x6 Board 2x6x3'10 9/16"
12 4 2x6 Board 2x6x3'1 1/2"
13 12 2x6 Board 2x6x10'0"
14 8 2x6 Board 2x6x6'0"

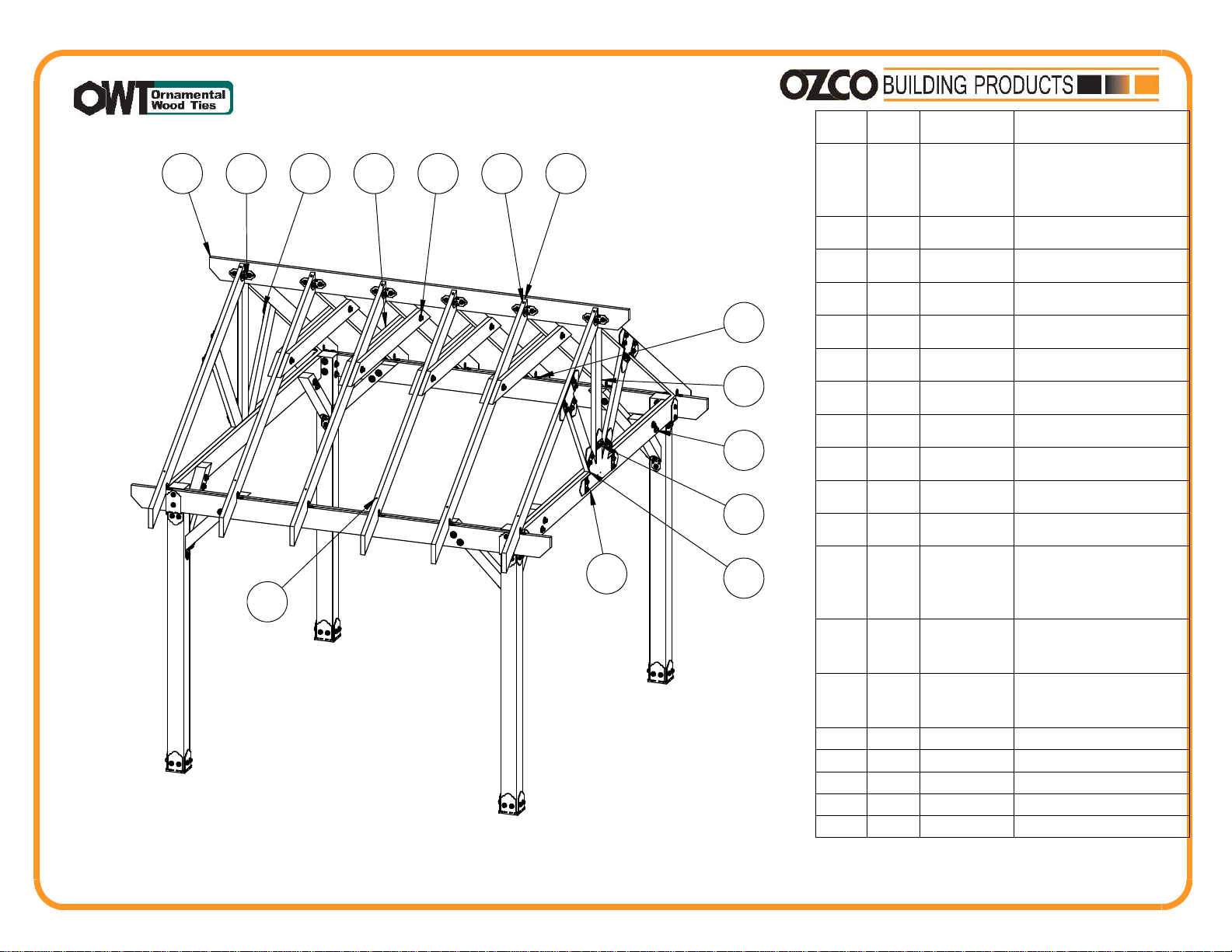

OZCO Project #213 - 12x12 Pavilion w 6x6 Posts
Pavilion Truss 12
4
10 9 3 14 7 6 13
8
11
1
2
12
5

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
Tool Required
3/8" Driver
(OWT Timber Screw)
predrill holes
10x10 Pavilion shown
temporary securing of
Ridge Beam necessary
(not shown)
repeat step
Building your Truss...
Simple 7 step
procedure common
to all size Pavilions
use this procedure for all
size Pavilions (10x10 shown).
same construction steps
and techniques apply
step 1
Pavilion Truss 10

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
Tool Required
3/8" Driver
(OWT Timber Screw)
predrill holes
10x10 Pavilion shown
repeat step
= =
step 2
Pavilion Truss 10
tip: rafter screw heads might interfere
with roofing. secure flush/below rafter
or modify roofing materal as needed.

V2.00 - Installation Instructions, Specifications and Project Plans are effective 2/21/2017 . This information is updated periodically
and should not be relied upon after 2 years from 2/21/2017 . Please visit OZCOBP.com to get current information.
10x10 Pavilion shown
repeat step 2
see overview page
for spacing and
quantity of Trusses
Tool Required
3/8" Driver
(OWT Timber Screw)
step 3
Pavilion Truss 10
