Ozito OZSHD1050WA User manual

Spade Handlle
Drill
1050 Watt
Operation Manual
3 Year Replacement Warranty
OZSHD1050WA
To view the full range visit: www.ozito.com.au
0509

2
Motor: 1050W
Input: 230V ~ 50Hz
No load speed: 0 - 550 /min
Max. torque: 119 Nm
Net weight: 3.7kg
Drilling capacities: Steel 13mm
Timber 50mm
Features Metal gear casing
Soft grip
1. 13mm keyed chuck
2. Metal gear case
3. Three position side handle
4. Multi-position spade handle
5. Switch lock-on button
6. Rear handle with soft grip
7. On/off trigger switch
8. Variable speed dial
9. Forward/reverse lever
9
7
5
8
1
2
4
3
6
SPECIFICATIONS - MODEL NO. OZSHD1050WA

3
TABLE OF CONTENTS
SPECIFICATIONS…………………………………………
TABLE OF CONTENTS…………………………………..
INTRODUCTION………………………………………...
SAFETY INSTRUCTIONS………………………………..
OPERATION ……………………………………………..
MAINTENANCE …………….…………………………..
CONTENTS ……………………………………………...
WARRANTY………………………………………………
Page 2
Page 3
Page 4
Page 4
Page 8
Page 11
Page 12
Page 13

4
INTRODUCTION
SAFETY INSTRUCTIONS
ELECTRICAL SAFETY
Congratulations on purchasing an Ozito Spade Handle
Drill. We aim to provide quality tools at an affordable price.
We hope you will enjoy using this tool for many years.
Your Ozito Spade Handle Drill OZSHD1050WA has been
specifically designed for low speed and high torque drilling
and mixing applications. It is intended for DIY use only.
Warning! When using mains-powered tools, basic safety precautions,
including the following, should always be followed to reduce risk of fire,
electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off, in
an emergency, before operating the tool.
Save these instructions and other documents supplied with this machine for future reference.
The electric motor has been designed for 230 - 240V only. Always check that the power
supply corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia
and New Zealand.
This tool is double insulated in accordance with AS/NZS 3100: 2002; therefore
no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power
tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury
resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool.Before
use, inspect the extension lead for signs of damage, wear and ageing.Replace the
extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an
extension lead not suitable for the power input of the tool or which is damaged or
defective may result in a risk of fire and electric shock.
!
!

5
GENERAL
Warning! Read all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious injury. The term
“Power Tool” in all of the warnings listed below refers to your mains
operated (corded) power tool or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging in
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
!
!

6
GENERAL (cont.)
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices
can reduce dust related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power
tool that can not be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools, unplugged & out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from intended could result in a
hazardous situation.
h) This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
i) Children should be supervised to ensure that they do not play with
the appliance.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
b) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.

7
SAFETY INSTRUCTIONS FOR SPADE HANDLE DRILLS
Before drilling into walls, ceilings etc, ensure there are no concealed
power cables or pipes in the cavity.
Always use the side or spade handle, this gives you greater control should
an accessory become jammed.
Keep the cord clear of the accessory being used, do not wrap the cord
around your arm or wrist.
Hold the tool by the insulated gripping surfaces when performing an
operation where the accessory may contact hidden wiring or its own cord.
Accessories used with this product must be rated for at least the speed
recommended on the tool rating label.
Warning! Some dust created by power sanding, sawing,
grinding, drilling and other construction activities contain
chemicals known to cause cancer, birth defects or other
reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks, cement and other masonry products, and;
• Arsenic and chromium from chemically-treated timber.
The risk from such exposures vary depending on how often you do this
type of work. To reduce your exposure to these chemicals; work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specifically designed to filter out microscopic
particles. Always wear eye protection and a dust mask for dusty
applications and when drilling/chiselling overhead. Sanding particles can
be absorbed by your eyes and inhaled easily and may cause health
complications.
!
!

8
OPERATION
Warning! Always turn off the tool and disconnect from the power
supply prior to change any accessories or making any
handle adjustments.
Side Handle
The side handle will provide additional control, support and guidance when
using the tool. The side handle can be assembled to the left, top or right
side of the metal gear casing. Align the thread on the end of the side handle
with the corresponding hole in the metal gear casing, screw the side handle
clockwise till secured.
Spade Handle
The rear spade handle provides additional control and support when using
the tool. It can be attached either horizontally, vertically or should you
require it, diagonally. To assemble, place the spade handle into the locating
boss at the angle you desire, secure in place by screwing the spade handle
securing knob (clockwise) into the recess. To change the angle simply loosen
the securing knob (anti-clockwise), pull the handle off the locating boss,
replace the handle back into the locating boss at the angle desired. Secure
as previously described.

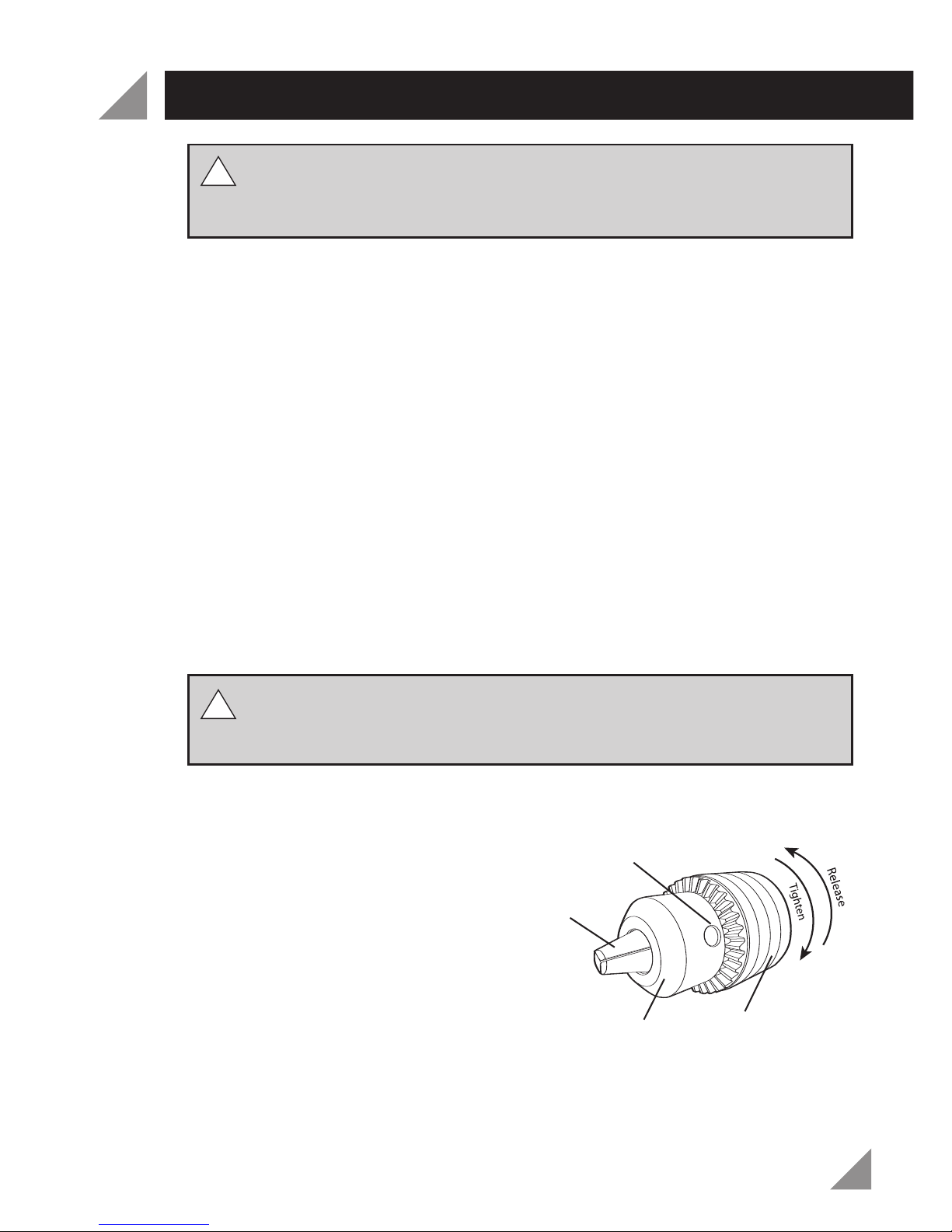

Keyed Chuck Use
Warning! Prior to inserting or removing accessories always
disconnect the tool from the power supply. Drill bit accessories can
be sharp, always wear gloves to prevent cuts or lacerations.
To insert a bit or accessory, follow the below steps:
•Open the chuck jaws by turning the
collar your with fingers.
• Insert the drill bit into the chuck
ensuring the end of the drill bit
does not touch the screw inside the
chuck.
• Once the jaws hold the bit or
accessory firmly, use the chuck key to
further tighten the jaws by placing it
into each of the 3 holes on the chuck
body and rotating the key clockwise in each position.
Note: Always use the chuck key on all three holes on the chuck body to
ensure each jaw is equally tightened.
Jaws
Chuck key hole
Body Collar
!
!
!
!

9
To remove the drill bit or accessory follow the below steps:
Warning! Drill bits can be hot after use, always wear gloves to
prevent burns or lacerations.
• First loosen the chuck jaws with the chuck key (rotate chuck
key anti-clockwise).
• Remove the drill bit or accessory by hand.
On/off Trigger Switch
Warning! Prior to turning on the drill ensure you have a secure
hold of the main handle.
To turn the drill 'ON', depress the trigger; to stop the drill, release the
trigger. The drill has a variable speed trigger, the further you depress the
switch the higher the speed of the drill.
Note: Use lower speeds for starting holes without a centre punch, drilling
in metal or plastics, driving screws or drilling ceramics. Higher speeds are
better for drilling wood and composition boards and using abrasive and
polishing accessories.
Lock on Button
The switch has a lock on button incorporated to the side of the main
handle. As the name suggests it enables the trigger switch to be locked
'ON' without the need to continuously hold in the trigger.
This feature is intended for use when the drill has been mounted in a drill
stand or otherwise firmly held, not by hand (drill stand not manufactured
by Ozito). Avoid locking the switch 'ON' when drilling by hand so that you
can always instantly release the trigger should the bit bind in the hole.
To engage the lock on feature, depress the trigger, then depress the lock
on button with the side of the thumb. Once you release both the trigger
and lock on button, the trigger should remain engaged. To turn off the
drill when the lock on button has been engaged; simply squeeze and
release the trigger.
Warning! Ensure the lock on button has been released before
disconnecting the plug from the power supply. This is done when
turning the drill off by squeezing and releasing the trigger. Failure
to do so will cause the tool to start immediately the next time it is
plugged in resulting in possible bodily harm or property damage.
OPERATION (cont.)
!
!
!
!
!
!

10
OPERATION (cont.)
Variable Speed Dial
The trigger switch has a variable speed dial. By rotating the dial you are able
to limit the maximum speed of the drill. See the dial for the direction of
which to rotate for higher or lower speeds.
Forward/Reverse Lever
The direction of the chuck is controlled by the forward/reverse lever located
above the switch.
FORWARD ROTATION: Move the lever to the right.
FOR REVERSE ROTATION: Move the lever to the left.
The reverse rotation is used for withdrawing bits from tight holes and removing
screws. After any reversing operations, return the lever to the forward position.
Note: Do not change the direction of rotation while the chuck is still in
motion. Damaged caused to the gear box by such actions will not be
covered under warranty.
Drilling
Warning! When changing bits or accessories always turn off the tool
and disconnect from the power supply.
When drilling in timber, use twist spade bits, drill bits, power auger bits, or
hole saws. When drilling in metal, use high speed steel twist drill bits or
hole saws.
Always ensure the materials to be drilled are secured prior to drilling. When
drilling, apply pressure straight in line with the bit. Pressure used should keep
the drill bit biting into the material yet not enough to stall the drill. Should
the drill stall, do not squeeze and release the trigger in an attempt to get the
drill started again, release the trigger immediately and remove the bit from
the material. The drill most likely stalled due to overloading by applying too
much pressure. Proceed to drill using a lighter pressure. When removing the
bit after having drilled a hole, keep the trigger depressed which will ease the
bit being removed and help prevent jamming.
!
!

11
• After each use, blow air through the tool housing to ensure it is free
from all dust particles that may build up. Build up of dust particles
may cause the tool to overheat and fail.
• If the enclosure of the tool requires cleaning do not use solvents but a
moist soft cloth only. Never let any liquid get inside the tool; never
immerse any part of the tool into a liquid.
• When the carbon brushes wear out the tool will spark and/or stop. The
brushes are a wearing component of the tool and should be replaced
prior to the carbon wearing out fully. Brushes will wear out after many
uses but before they do take the tool to an Authorised Ozito Service
Agent for quick and low cost replacement. Always replace both
brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused by
the repair of the tool by an unauthorised person or by mishandling of the tool.
MAINTENANCE
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
Nm Newton meter VSR Variable Speed Reversing
ø Diameter Max. Maximum
n o No load speed
DESCRIPTION OF SYMBOLS

CONTENTS
OZITO INDUSTRIES PTY LTD
AUSTRALIA (Head Office)
1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175
Telephone: [phone]
Website: www.ozito.com.au
Email: [email protected]
1 x Spade Handle Drill OZSHD1050WA
1 x Auger bit
1 x Side handle
1 x Spade handle
1 x Chuck key
1 x Operation manual
CARING FOR THE ENVIRONMENT
12
Power tools that are no longer usable should not be
disposed of with household waste but in an environmentally
friendly way. Please recycle where facilities exist. Check with
your local council authority for recycling advice.
Recycling packaging reduces the need for landfill and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.

WARRANTY
THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD BE
RETAINED BY THE CUSTOMER AT ALL TIMES
The warranty is only made available by returning the product to your nearest
Bunnings Warehouse with a confirmed Bunnings register receipt.
PURCHASED FROM:__________________________________________________
DATE PURCHASED: __________________________________________________
3 YEAR REPLACEMENT WARRANTY
Your Ozito tool is guaranteed for a period of 36 months from the original date of
purchase and is intended for DIY (Do it yourself) use only.
WARNING
The following actions will result in the warranty being void.
• Professional, Industrial or high frequency use.
• If the tool has been operated on a supply voltage other than that specified on the
tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• If the tool is disassembled or tampered with in any way.
Note: Warranty excludes consumable parts such as carbon brushes, auger bit
accessories, lubricant, sanding sheets, dust bags, drive belts and other accessories.
YOUR WARRANTY FORM SHOULD BE RETAINED
BY YOU AT ALL TIMES.
SHOULD YOU HAVE ANY QUESTIONS PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY OR
REPAIR PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER
AND DATE OF PURCHASE AVAILABLE. AN OZITO CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.
