Ozito PXDATS-018 User manual

STANDARD EQUIPMENT
LOCK
211917
LOCK
211917
LOCK LOCK
LOCK LOCK
PXDATS-018
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 18V
Chuck Size: 2-13mm Keyless /
6.35mm (1/4”) Hex
No Load Speed: 0-450 / 0-1,600/min
Torque Setting: 21
Max. Torque: 45Nm
Drilling Capacities: 32mm (Timber)
13mm (Metal)
Weight: 1.57kg
ozito.com.au
0122
Cordless Multi Chuck Drill
with Straight Chuck & Bit
Holder
Offset Chuck, Right Angle
Chuck & Belt Clip
22 Piece Accessory Kit &
Kitbox
MULTI CHUCK
DRILL
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty and are excluded from the warranty extension. Warranty excludes
consumable parts.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
211917
LOCK LOCK
LOCK
1. Straight Chuck
2. Keyless Locking Collar
3. Integrated Hex Driver
4. Torque Collar
5. Variable Speed Trigger
6. Forward/Reverse Lever
7. Gear Selector
8. Accessory Holder
9. LED Worklight
10. Right Angle Chuck
11. Offset Chuck
This tool is compatible with all batteries & chargers from the Ozito Power X Change
range.
CORDLESS MULTI--CHUCK DRILL

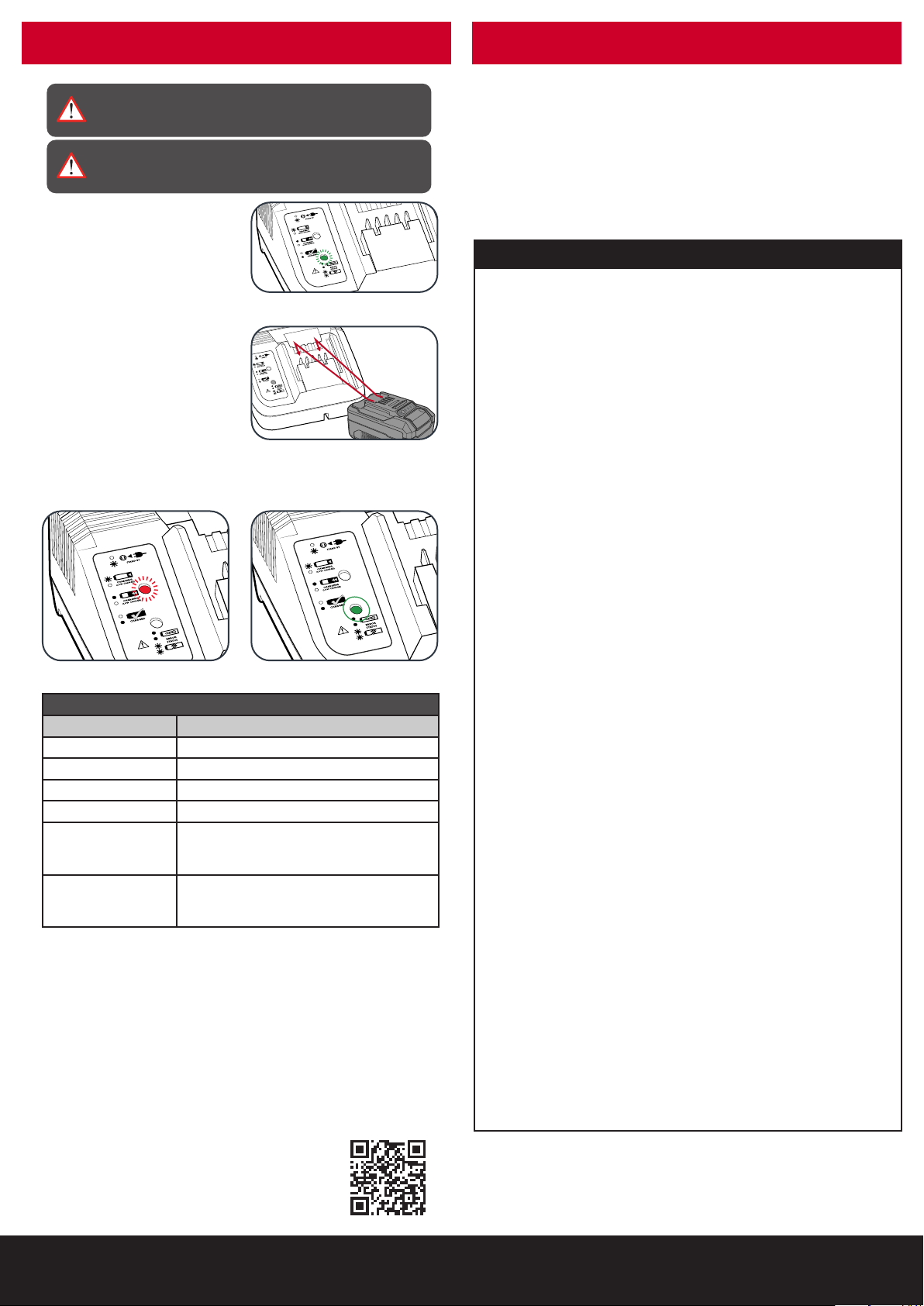

BATTERY & CHARGER
KNOW YOUR PRODUCT
1. ASSEMBLING THE TOOL
SETUP & PREPARATION
1 2 3 4 65 7
891011
Changing The Chuck
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
1. Pull the locking collar towards the
front of the chuck and push it onto the
driver on the front of the tool.
2. When the chuck has clicked into
place, release the locking collar.
Note: if the chuck doesn’t click
into place, spin the collet of the chuck until
the locking collar locks into place.
3. To remove the chuck, pull the locking collar forwards again and pull the
chuck off the tool.
Attaching The Belt Clip & Accessory Holder
1. Remove the screw on either side of the tool
base.
2. Push the tabs on the accessory holder into the
slots on the tool and then replace the screw.
3. Repeat the above steps with the belt clip on
the other side of the tool.
Installing The Battery Pack
1. Slide the battery into the tool base
until it clicks into place.
2. To remove the battery, hold down
the battery release button and
slide the battery out.
LOCK
211917
a.
b.
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
LOCK
LOCK
211917

2. ATTACHING ACCESSORIES 3. CONTROLS
OPERATION
Forward/Reverse Lever
1. To drill or drive screws, push the
forward/reverse button towards
the left of the drill.
2. Push the button towards the
right of the tool to reverse the
rotation.
Variable Speed Trigger
1. Squeeze the variable speed
trigger to start the tool.
Note: The more the variable
speed trigger is depressed, the
faster the drill bit will rotate.
2. Release the trigger to stop drilling.
Adjusting Torque
1. Rotate the torque collar to the
desired setting.
Note: Selecting a higher torque
setting will allow the drill to use
more torque to drive the screw in or
out. To prevent damaging the screw
head, it is recommended to start at
a low torque setting and increase
when necessary.
Note: Set the torque collar to the
drill icon when drilling holes.
Speed Control
The gear selector controls the speed of the drill. First gear allows slower
drilling with more torque, while second gear is suitable when less torque
but higher speed is required.
1. Slide the switch backwards to
select rst gear.
2. Slide the switch forwards to
select second gear.
Installing A Drill Bit
The timber drill bits can be used with the straight chuck.
1. Rotate the chuck collar anti-clockwise to open
the chuck.
2. Insert the drill bit, making sure it
is centred in the chuck.
3. Tighten the chuck by turning the chuck collar
clockwise.
4. Pull on the bit to ensure it is rmly secured.
5. To remove the bit, rotate the
chuck collar top open it and
remove the drill bit.
WARNING! DO NOT HANDLE ACCESSORIES
WITHOUT GLOVES AS THEY ARE SHARP & CAN
BECOME HOT AFTER USE, POTENTIALLY CAUSING
INJURY.
Using The Driving Bits
The driving bits and magnetic extension
bit can be used with the integrated hex
driver, the offset chuck and the right
angled chuck.
1. Install the offset chuck or
right angled chuck to suit your
application.
2. Push the required bit into the
driver on the chuck until it clicks
into place.
LOCK
211917
LOCK
211917
211917
LOCK
1
LOCK
211917
LOCK
211917
FORWARDS
REVERSE
LOCK
211917
LOCK
211917
LOCK
1
2nd Gear
1st Gear
LOCK
211917
b.
a.
LOCK
211917
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND THE BATTERY IS REMOVED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.

4. DRILLING 5. HELPFUL TIPS
PXDATS-018
Drilling
Before starting to drill, perform a few simple checks.
1. Press and release the variable
speed trigger to ensure it is not
locked on.
2. Check the forward/reverse lever
is on the desired setting.
3. Secure the material to be drilled in a vice or clamp to stop it turning
whilst drilling.
4. Hold the drill rmly and place the
bit at the point to be drilled.
5. Press the variable speed trigger to start
the drill.
6. Move the drill bit into the workpiece.
Note: Do not force the drill or apply side pressure to elongate the hole.
Let the drill do all the work.
Drilling To A Preset Depth
A simple way of achieving a hole at a desired depth is to use masking tape.
1. Measure along the drill bit to the desired
depth.
2. Wrap a small piece of masking tape
tightly around the drill bit.
3. Drill into the material until the
surface reaches the start of the
tape.
Torque Settings
Torque settings can alter the depth to which you can drill or drive into a
surface. To determine the torque setting required to drive a screw perfectly
ush to the work surface, follow the below steps.
1. Set the torque collar to the
lowest setting and tighten the
rst screw.
2. If the clutch ratchets and makes a clicking
sound before screw is ush, increase the
collar setting and continue tightening.
3. Repeat until you reach the
correct setting/screw depth. Use
this setting for the remaining
screws.
Note: When drilling hard, smooth surfaces, use a centre punch to mark
the desired hole location. This measure will prevent the drill bit from
slipping off centre as you start the hole.
WARNING! THE SUPPLIED DRILL BITS ARE FOR
TIMBER ONLY. USE APPROPRIATE DRILL BITS WHEN
WORKING WITH METAL.
Note: When drilling metals, use light oil on the drill bit to keep it from
overheating. The oil will prolong the life of the bit and increase drilling
action.
LOCK
211917
LOCK
211917
FORWARDS
REVERSE
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
211917
LOCK
211917

Variable speed trigger is locked
Ensure that the forward/reverse button is in the correct position; pressed
left for forwards direction, pressed right for backwards direction. If it is in
between the two settings the variable speed trigger will be locked.
The drill is stripping the screw head
Ensure you are starting with a low torque setting and holding the drill
securely onto the screw head. Increase the torque setting as required.
Drill has cut out during use
The battery charge could be completely depleted. Place the battery on the
charging cradle for 3-5 hours.
Battery protection system
The tool is equipped with the battery protection system, which helps to
ensure a long service life. The output power automatically cuts off during
operation when the tool and/or battery are placed under the following
situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload,
then pull the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during
use or immediately after using the tool.
TROUBLESHOOTING
DESCRIPTION OF SYMBOLS
Diameter
Newton metres Ampere hours
Warning
Regulatory Compliance Mark
(RCM)
VVolts Hz
mm
AhNm
Hertz
~
n0
Ø
/min
Alternating current millimeters
No load speedRevolutions per minute
Direct current
Read Instruction Manual
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly
way. Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
CARING FOR THE ENVIRONMENT
SPARE PARTS
Spare parts can be ordered from the Special Orders
Desk at your local Bunnings Warehouse.
For further information, or any parts not listed here,
visit www.ozito.com.au or contact Ozito Customer
Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
MAINTENANCE
WARNING! BEFORE CLEANING OR CARRYING OUT
ANY MAINTENANCE PROCEDURE, ENSURE THAT
THE BATTERIES HAVE BEEN REMOVED.
Cleaning
• Keep the ventilation slots of the tool clean at all times to ensure efcient
operation.
• After each use, blow air through the tool housing to ensure it is free from
all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to
overheat and shorten the life of the tool.
• If the housing of the tool requires cleaning, do not use solvents. Use of a
cloth only is recommended.
• Never allow any liquid to get inside the tool, never immerse any part of
the tool into liquid.
Storage
When not in use, the tool should be stored in a dry, frost free location, keep
out of children’s reach.
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the tool by an unauthorised person or by
mishandling.

WARNING! This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Wear ear protectors when drilling. Exposure to noise can cause hearing loss.
• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping surfaces, when performing an operation where
the drilling/screwing accessory may contact hidden wiring or its own cord. Accessories
contacting a “live” wire may make exposed metal parts of the power tool “live” and could give
the operator an electric shock.
• Before drilling into walls, ceilings etc, ensure that there are no concealed power cables or
pipes in the cavity.
• Accessories and tools get hot during operation, it’s recommended to wear gloves when
handling them.
• Do not use this tool for prolonged periods of time. Take regular breaks. Use gloves to provide
extra cushioning in order to avoid any injury from the vibrations of the tool.
• Always use safety glasses. Everyday glasses are not Safety Glasses.
WARNING! Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated area and work
with approved safety equipment, such as dust masks that are specially designed to filter out
microscopic particles.
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of fire, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an
emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New
Zealand.
This tools charger is double insulated; therefore no earth wire is required.
Note: Double insulation does not take the place of normal safety precautions when
operating this tool. The insulation system is for added protection against injury resulting
from a possible electrical insulation failure within the tool.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in
order to avoid a hazard.
The power supply for this products charger should be protected by a residual current device (rated
at 30mA or less). A residual current device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
DRILL DRIVER SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you
to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a
second.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling and control of the tool in unexpected
situations.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or
temperature above 130°C may cause explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures
outside the specified range may damage the battery and increase the risk of fire.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by
the manufacturer or authorized service provider.

Before using the charger or battery read all instructions and cautionary markings on the charger, battery pack and the
product using the battery pack. Do not lose these safety instructions.
Battery Warnings
1. The battery pack is not fully charged out of the carton. First read the safety instructions and then follow the charging
notes and procedures.
2. For optimum battery performance avoid low discharge cycles. Charge the battery pack frequently.
3. Use and store the battery pack in dry conditions with low humidity between 0-50°C, ideally at 15°C. Avoid exposing
battery pack and charger to direct sunlight.
4. Do not keep battery pack in places where temperatures are liable to reach over 50°C, such as in a car, metal shed or
similar that is in direct sunlight.
5. Do not ignite the battery pack or expose it to re. There is a risk of explosion!
6. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common
cause of exhaustive discharge is long-term storage and continued use of low-charge batteries. Always store the
battery with some charge. Charge the batteries every 2-3 months to restore charge. Stop working as soon as the
performance of the battery falls noticeably or the electronic protection system triggers.
7. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside
the battery housing without this overheating being apparent externally.
8. Avoid damage and shocks. Do not use batteries which have been dropped from a height of more than one meter or
strong external impact, even if the housing of the battery pack appears to be undamaged. The battery cells inside
the battery may have suffered serious damage. 
9. If the battery pack suffers overloading and overheating, the integrated protective cut-off will switch off the equip-
ment. Do not press the ON/OFF switch on the tool if the protective cut-off has actuated. This may damage the
battery pack. Allow the battery to cool to room temperature before use.
10. Use only original battery packs. The use of other batteries may result in injuries, explosion and a re risk.
11. Protect your rechargeable battery against moisture, rain and high humidity. Moisture, rain and high humidity can
cause dangerous cell damage. Never charge or use batteries which have been exposed to moisture, rain or high
humidity.
12. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack is damaged, do not
use the battery.
13. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a re.
14. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If accidental contact occurs, ush
with water and seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.
15. Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredict-
able behaviour resulting in re, explosion or risk of injury.
16. Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature above 130°C
may cause explosion.
17. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer.
18. 18. Do not disassemble Battery. This may result in a risk of electric shock, electrocution or re.
Charger Warnings
19. Please check the data marked on the rating plate of the battery charger. Ensure to only connect the battery charger
to a power supply with the voltage marked on the rating plate.
20. Protect the battery charger and its cable from damage and sharp edges. Have damaged cables repaired by an
authorised service agent before use.
21. Keep the battery charger, batteries and the cordless tool out of children’s reach.
22. Do not use damaged battery chargers.
23. Do not use the supplied battery charger to charge other cordless tools. Only charge Ozito Power X Change
rechargeable batteries with an Ozito Power X Change Charger.
24. The battery pack may become warm during use. Allow the battery pack to cool to room temperature before
commencing with the charging.
25. Do not over-charge batteries. Do not exceed the maximum charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or partly charged battery pack will result in over-charging and
cell damage. Do not leave fully charged batteries in the charger.
26. Charge the battery pack in dry conditions with low humidity between 10-40°C. Avoid exposing battery pack and
charger to direct sunlight.
27. Do not use batteries which have suffered deformation during the charging process or shows any other signs of
abnormalities including, excessive curvature of the housing, gassing, hissing or cracking.
28. Never fully discharge the battery pack. A complete discharge of the battery pack will lead to premature ageing of
the battery cells.
29. Never charge the batteries unsupervised.
30. Do not cover or place any object on top of the charger, place the charger away from heat sources.
31. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the
charger.
32. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or
stress.
33. An extension cord should not be used unless necessary. Use of an improper extension cord could result in the risk of
re, electric shock or electrocution.
34. Do not disassemble charger. This may result in a risk of electric shock, electrocution or re.
35. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning. Removing the
battery pack will not reduce this risk.
36. Do not use the cordless tool or the battery charger near vapours and inammable liquids.
BATTERY & CHARGER SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the following, should
always be followed to reduce risk of re, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool. Save these instructions and other documents supplied with this tool for future reference.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation
system is for added protection against injury resulting from a possible electrical insulation failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for
signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the
power input of the tool or which is damaged or defective may result in a risk of re and electric shock.
To reduce the risk of electric shock, we recommend the use of a residual current device (rated 30mA or less).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of with
household waste but in an environmentally friendly way. Please recycle
where facilities exist. Check with your local council authority for
recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
DESCRIPTION OF SYMBOLS
Watt Hour
Do not store or use battery in
temperatures exceeding 50°C
Volts Hertz
Alternating Current
Direct Current
Milliamperes
Watts
Amp Hour
Ah
Wh
W
HzV
ac/~
mA
Warning
Lithium Ion Battery
Do not put in the rubbish
Do not get battery wet
Recycle Battery
Do not incinerate
dc
Regulatory Compliance
Mark (RCM)
Read Instruction Manual
Do not store battery when the charge
is low; store between 40-60%.
Do not expose to rain.
40-60%
0%
2.5Ah BATTERY
INSTRUCTION MANUAL
PXBP-250
SPECIFICATIONS
Input: 18V
Battery Capacity: 2.5Ah Li-ion
Power Consumption: 45Wh
Weight: 0.46kg
1
1. Battery Release Button
2. Charge Indicator Button
3. Battery
ozito.com.au
2 3

BATTERY CHARGE INDICATOR
The purchased battery is equipped with a
battery charge indicator to show the state of
the battery charge.
Press the charge indicator button and look to
see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state of charge.
BATTERY PROTECTION SYSTEM
The tool is equipped with a battery protection system, which helps to ensure longevity
of the battery.
The output power automatically cuts off during operation when the tool and/or battery
are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the trigger switch and remove causes of overload, then pull
the switch trigger again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way damage the tool.
Note: The indicated capacity may be lower than the actual level during use or
immediately after using the tool.
WARRANTY
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are
entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under
this warranty, however, where you have suffered any additional direct loss as
a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
36 MONTH REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the original date
of purchase and is intended for DIY (Do It Yourself) use only. If a product is
defective it will be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
OZITO Australia/New Zealand (Head Ofce)
25 Fox Drive, Dandenong South, Victoria, Australia 3175.
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
PXBP-250
1. OPERATION
CHARGING YOUR LITHIUM ION BATTERY
This battery has been shipped in a low charge condition, and requires charging prior to
use. Allow several cycles of charging and discharging (through use with a compatible
tool) for the battery to reach its optimum performance / runtime.
Only use the battery pack with Ozito Power X Change 18V cordless products.
This battery is compatible with chargers from the 18V Ozito Power X Change range
available through your local Bunnings Warehouse. Product availability may differ.
1. Insert the power plug of the charger into the mains socket outlet. The green LED
will begin to ash when properly connected to power supply.
2. Insert the battery pack into the battery charger .
3. Remove battery from the charger once fully charged. Disconnect the charger from
the power supply.
Note: The battery pack can become a little warm during the charging. This is normal.
If the battery pack fails to charge, check:
if there is voltage at the socket outlet
that the battery and charger are properly connected.
If the battery pack still fails to charge, please contact our customer service center.
1220
WARNING! DO NOT COVER OR PLACE ANY OBJECT ON
TOP OF THE CHARGER; PLACE THE CHARGER AWAY
FROM HEAT SOURCES.

CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of with household
waste but in an environmentally friendly way. Please recycle where facilities exist.
Check with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials. Reuse of
recycled material decreases pollution in the environment. Please recycle packaging
where facilities exist. Check with your local council authority for recycling advice.
DESCRIPTION OF SYMBOLS

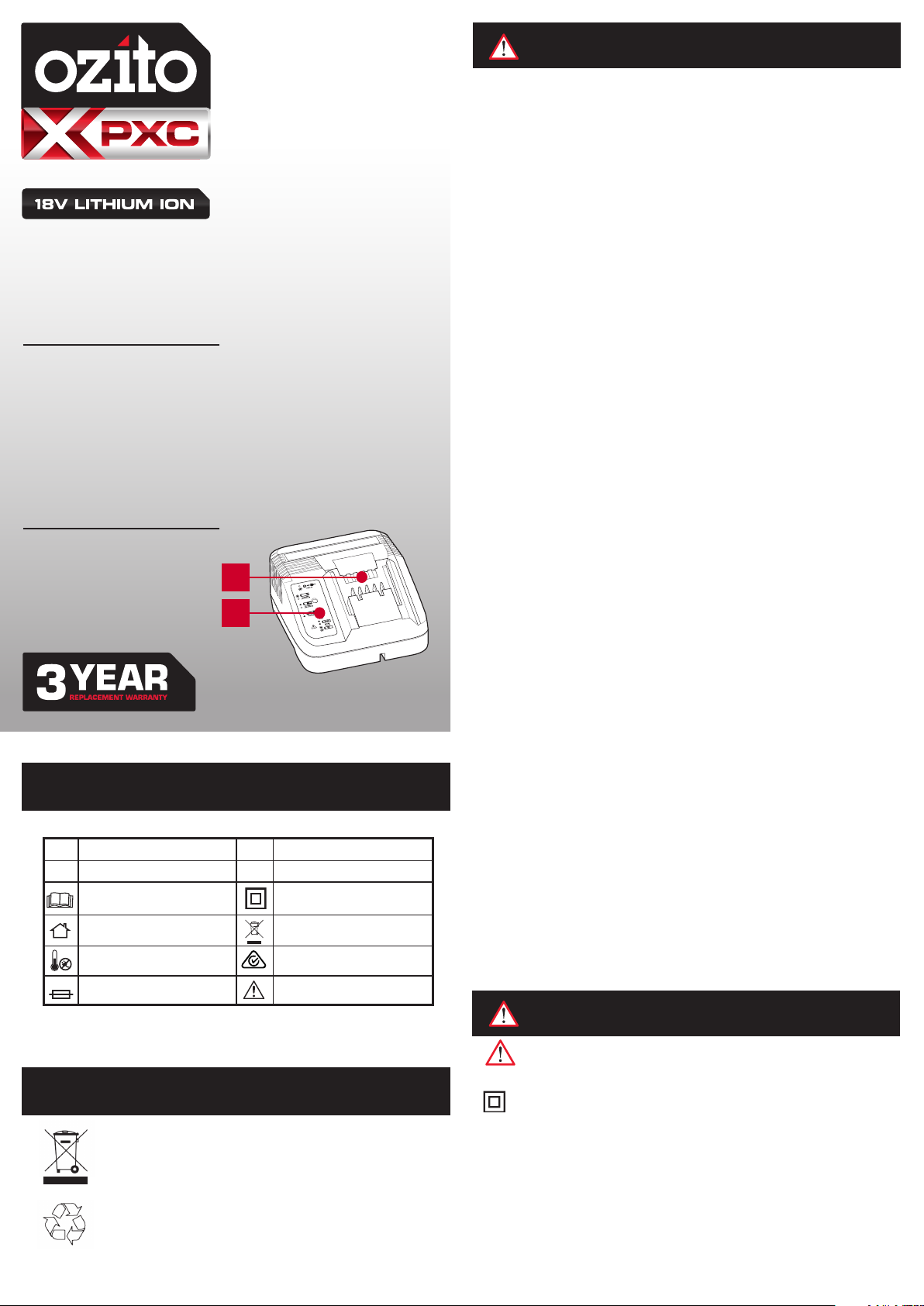

2
1. Charging Unit
2. Charging Unit LED
ozito.com.au
1
COMPACT
FAST CHARGER
INSTRUCTION MANUAL
PXCG-030C
SPECIFICATIONS
Input: 200-250V ~AC 50-60Hz, 72W
Output: 20V DC, 3A
Battery Charge Time: 30Min - PXBP-150 (18V 1.5Ah)
40Min - PXBP-200 (18V 2.0Ah)
50Min - PXBP-250 (18V 2.5Ah)
60Min - PXBP-300 (18V 3.0Ah)
75Min - PXBP-400 (18V 4.0Ah)
120Min - PXBP-520 (18V 5.2Ah)
100Min - PXUBP-520 (18V 5.2Ah Ultra)
Double Insulated
Volts Hertz
Amperes Amp Hour
Read Instruction Manual
Indoor Use Only Do not dispose of in rubbish
Regulatory Compliance
Mark (RCM)
Do not charge battery in
temperatures exceeding 40°C
3.15A Slow Blow Fuse Warning
>40°C
V Hz
A Ah
T3.15A
Before using the charger or battery read all instructions and cautionary markings on the charger, battery pack and the
product using the battery pack. Do not lose these safety instructions.
Battery Warnings
1. The battery pack is not fully charged out of the carton. First read the safety instructions and then follow the charging
notes and procedures.
2. For optimum battery performance avoid low discharge cycles. Charge the battery pack frequently.
3. Use and store the battery pack in dry conditions with low humidity between 0-50°C, ideally at 15°C. Avoid exposing
battery pack and charger to direct sunlight.
4. Do not keep battery pack in places where temperatures are liable to reach over 50°C, such as in a car, metal shed or
similar that is in direct sunlight.
5. Do not ignite the battery pack or expose it to re. There is a risk of explosion!
6. Do not exhaustively discharge batteries. Exhaustive discharge will damage the battery cells. The most common cause
of exhaustive discharge is long-term storage and continued use of low-charge batteries. Always store the battery with
some charge. Charge the batteries every 2-3 months to restore charge. Stop working as soon as the performance of the
battery falls noticeably or the electronic protection system triggers.
7. Protect batteries and the tool from overloads. Overloads will quickly result in overheating and cell damage inside the
battery housing without this overheating being apparent externally.
8. Avoid damage and shocks. Do not use batteries which have been dropped from a height of more than one meter or
strong external impact, even if the housing of the battery pack appears to be undamaged. The battery cells inside the
battery may have suffered serious damage. 
9. If the battery pack suffers overloading and overheating, the integrated protective cut-off will switch off the equipment.
Do not press the ON/OFF switch on the tool if the protective cut-off has actuated. This may damage the battery pack.
Allow the battery to cool to room temperature before use.
10. Use only original battery packs. The use of other batteries may result in injuries, explosion and a re risk.
11. Protect your rechargeable battery against moisture, rain and high humidity. Moisture, rain and high humidity can cause
dangerous cell damage. Never charge or use batteries which have been exposed to moisture, rain or high humidity.
12. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack is damaged, do not
use the battery.
13. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals
together may cause burns or a re.
14. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If accidental contact occurs, ush with
water and seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.
15. Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable
behaviour resulting in re, explosion or risk of injury.
16. Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature above 130°C may
cause explosion.
17. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer.
18. 18. Do not disassemble Battery. This may result in a risk of electric shock, electrocution or re.
Charger Warnings
19. Please check the data marked on the rating plate of the battery charger. Ensure to only connect the battery charger to a
power supply with the voltage marked on the rating plate.
20. Protect the battery charger and its cable from damage and sharp edges. Have damaged cables repaired by an
authorised service agent before use.
21. Keep the battery charger, batteries and the cordless tool out of children’s reach.
22. Do not use damaged battery chargers.
23. Do not use the supplied battery charger to charge other cordless tools. Only charge Ozito Power X Change rechargeable
batteries with an Ozito Power X Change Charger.
24. The battery pack may become warm during use. Allow the battery pack to cool to room temperature before commencing
with the charging.
25. Do not over-charge batteries. Do not exceed the maximum charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or partly charged battery pack will result in over-charging and cell
damage. Do not leave fully charged batteries in the charger.
26. Charge the battery pack in dry conditions with low humidity between 10-40°C. Avoid exposing battery pack and charger
to direct sunlight.
27. Do not use batteries which have suffered deformation during the charging process or shows any other signs of
abnormalities including, excessive curvature of the housing, gassing, hissing or cracking.
28. Never fully discharge the battery pack. A complete discharge of the battery pack will lead to premature ageing of the
battery cells.
29. Never charge the batteries unsupervised.
30. Do not cover or place any object on top of the charger, place the charger away from heat sources.
31. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the
charger.
32. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or
stress.
33. An extension cord should not be used unless necessary. Use of an improper extension cord could result in the risk of
re, electric shock or electrocution.
34. Do not disassemble charger. This may result in a risk of electric shock, electrocution or re.
35. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning. Removing the
battery pack will not reduce this risk.
36. Do not use the cordless tool or the battery charger near vapours and inammable liquids.
BATTERY & CHARGER SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including the following, should
always be followed to reduce risk of re, electric shock, personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool. Save these instructions and other documents supplied with this tool for future reference.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation
system is for added protection against injury resulting from a possible electrical insulation failure within the tool.
Using an extension lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for
signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the
power input of the tool or which is damaged or defective may result in a risk of re and electric shock.
To reduce the risk of electric shock, we recommend the use of a residual current device (rated 30mA or less).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

1. CHARGING A BATTERY 2. MAINTENANCE
• Disconnect the charger from power source before cleaning.
• Keep the charger in a dry place out of reach of children.
• If the enclosure of the charger requires cleaning, do not use solvents. Use a dry, soft
cloth only to wipe down the surface. Never let any liquid get inside the charger; never
immerse any part of the charger.
• There are no other parts inside the charger which require maintenance. Do not
take the charger apart. If the charger is damaged, contact your supplier or the
manufacturer.
Mounting The Charging Unit On A Wall
The charging unit can be mounted to a wall or workbench.
The correct dimensions for drill holes can be found on the back of the charging unit; a
template for the mounting hole locations can also be found on the Ozito website.
Note: When mounting on a wall you must use suitable screws, e.g.M3 pan-head
screws, in order to prevent damage to the housing and risk of falling.
OZITO Australia/New Zealand (Head Ofce)
25 Fox Drive, Dandenong South, Victoria, Australia 3175.
WARRANTY
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are
entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under
this warranty, however, where you have suffered any additional direct loss as
a result of a defective product you may be able to claim such expenses by
contacting our customer service helpline above.
36 MONTH REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the original date
of purchase and is intended for DIY (Do It Yourself) use only. If a product is
defective it will be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
PXCG-030C
Charger LED Indicator Lights
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is fast charging (mid charge)
GREEN (Illuminated) Battery is 85% - 100% charged and is ready for use.
BOTH(Illuminated) Battery pack is too hot or too cold (charging will begin
automatically when battery reaches correct charging
temperature).
BOTH (Flashing) The battery is deffective, charging is no longer
possible. Do not charge. Contact Ozito Customer
Service.
2. Align and then slide the ribs on
the battery into the recess in the
charger.
1. Connect the charger to the power
supply and the LED will ash
green showing power is being
supplied to the charger.
3. The red LED will illuminate while
the battery charges.
4. The green LED will illuminate
once the battery is charged.
1220
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
WARNING! DO NOT COVER OR PLACE ANY OBJECT ON
TOP OF THE CHARGER; PLACE THE CHARGER AWAY
FROM HEAT SOURCES.
WARNING! THE CHARGER SHOULD BE PROTECTED BY
A RESIDUAL CURRENT DEVICE (RATED AT 30MA OR
LESS).
