Pacific Steamex AIR BLOWER Manual

AIR BLOWER
The BLAST
READ THIS BOOK
This operator’s book has important information for the use
and safe operation of this machine. Read this book care-
fully before starting the machine. Keep this book and tell
all operators to read the book. If you do not follow the
instructions, you can cause an injury or damage equipment,
furniture or buildings.
For new books write to:
Pacific Steamex, Inc.
2259 S. Sheridan
Muskegon, MI 49442-6252
Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately
with the delivering carrier.
The contents of this manual are based on the latest product
information available at the time of publication. Pacific
Steamex reserves the right to make changes or improve-
ments to its machines without notice.
FOR YOUR CONVENIENCE, RECORD THE
MACHINE MODEL AND SERIAL NUMBER:
MODEL_______________________________
SERIAL NUMBER______________________
OPERATING & MAINTENANCE
INTRODUCTION INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS
BEFORE USING THIS APPLIANCE!
WARNING! To reduce the risk of fire, electric shock, or injury:
1. Unplug from outlet when not in use and before servicing.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual.
5. Do not use with damaged cord or plug. If appliance should not work as it should, has been dropped or
damaged, left outdoors, or dropped into water, return it to service center.
6. Do not pull or carry by cord, use cord as handle, close a door on cord or pull cord around sharp
edges or corners. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord
8. Do not handle plug or appliance with wet hands.
9. Do not put any objects into opening. Do not use with any opening blocked: keep free of dust, lint,
hair and anything that may reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
11. Turn off all controls before unplugging.
12. Do not use in areas where flammable or combustible liquids such as gasoline may be present.
13. Connect to a properly grounded outlet only.
This machine must be grounded. If it should malfunction or break down,
groundingprovidesapathofleastresistanceforelectriccurrenttoreducethe
riskofelectricshock. Thismachineisequippedwithacordhavinganequip-
ment-grounding conductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed and grounded in accor-
dancewith all local codes and ordinances.
WARNING- Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
servicepersonifyouarein doubt astowhether the outletisproperly grounded.
Donotmodifytheplug provided with the machine - if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
This machine is for use on a nominal 120-volt circuit, and has a grounded

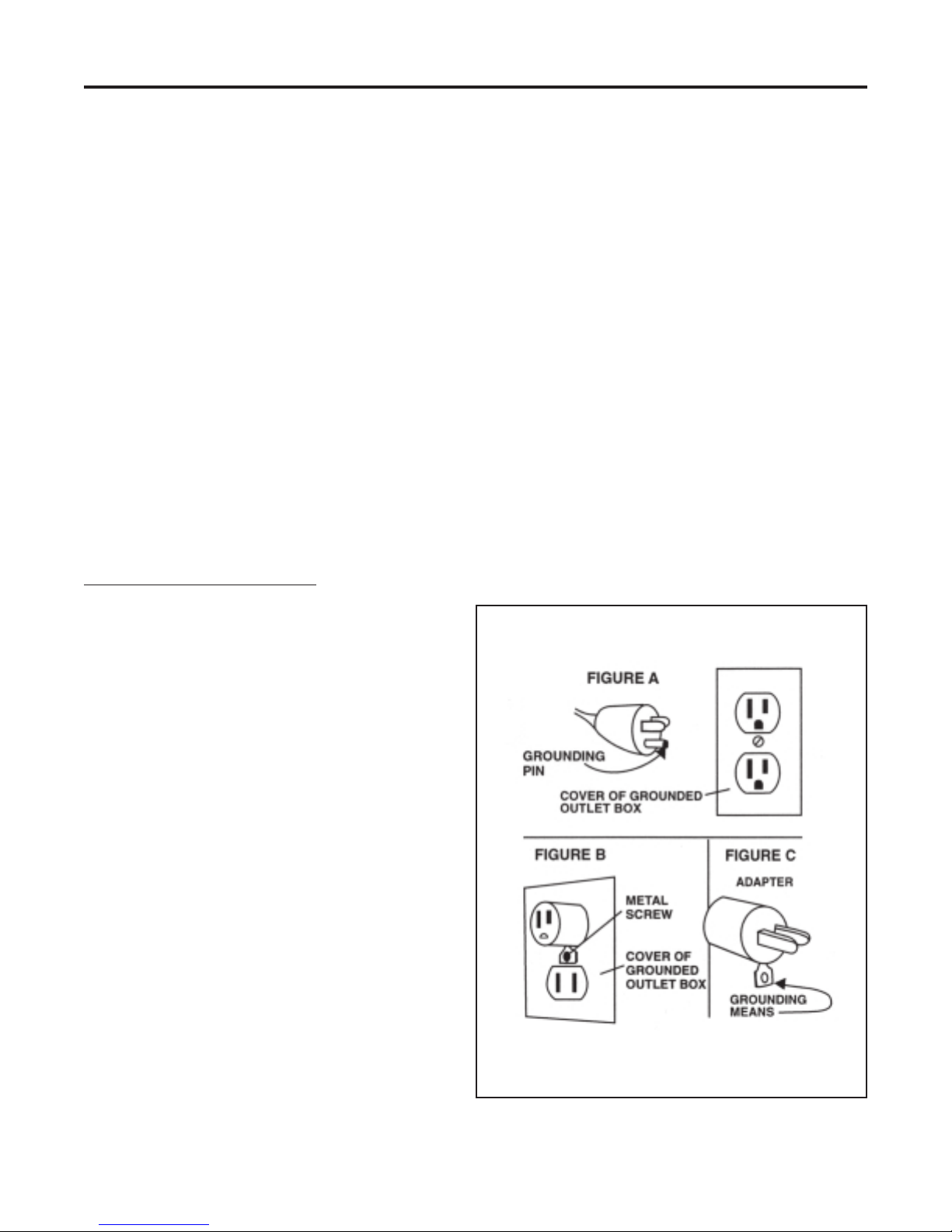

plugthatlooks like the plug illustrated in figure A. A temporary adapter that
looks like the adapter illustrated in figures B and C may be used to connect
this plug to a 2-pole receptacle as shown in figure B if a properly grounded
outlet is not available. The temporary adapter should be used only until a
properly grounded outlet (figure A) can be installed by a qualified electri-
cian. Thegreen colored rigid ear,lug, or thelike extending from the adapter
mustbeconnectedtoa permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal
screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code
EXTENSIONCORDS
Useonlythree-wire 16/3 or largergaugeapprovedextensioncords that have
three-prong grounding type plugs and three-pole receptacles that accept the
appliance’s plug. Replace or repair any damaged cords or plugs.
Whenservicing, refer to authorized person only. Useonly identical replace-
mentparts.
Grounding Instructions
NOTE: Do not use adapters shown in figures B & C in Canada

THE BLAST
1234
567
8
9
10
11
12
13
14
15

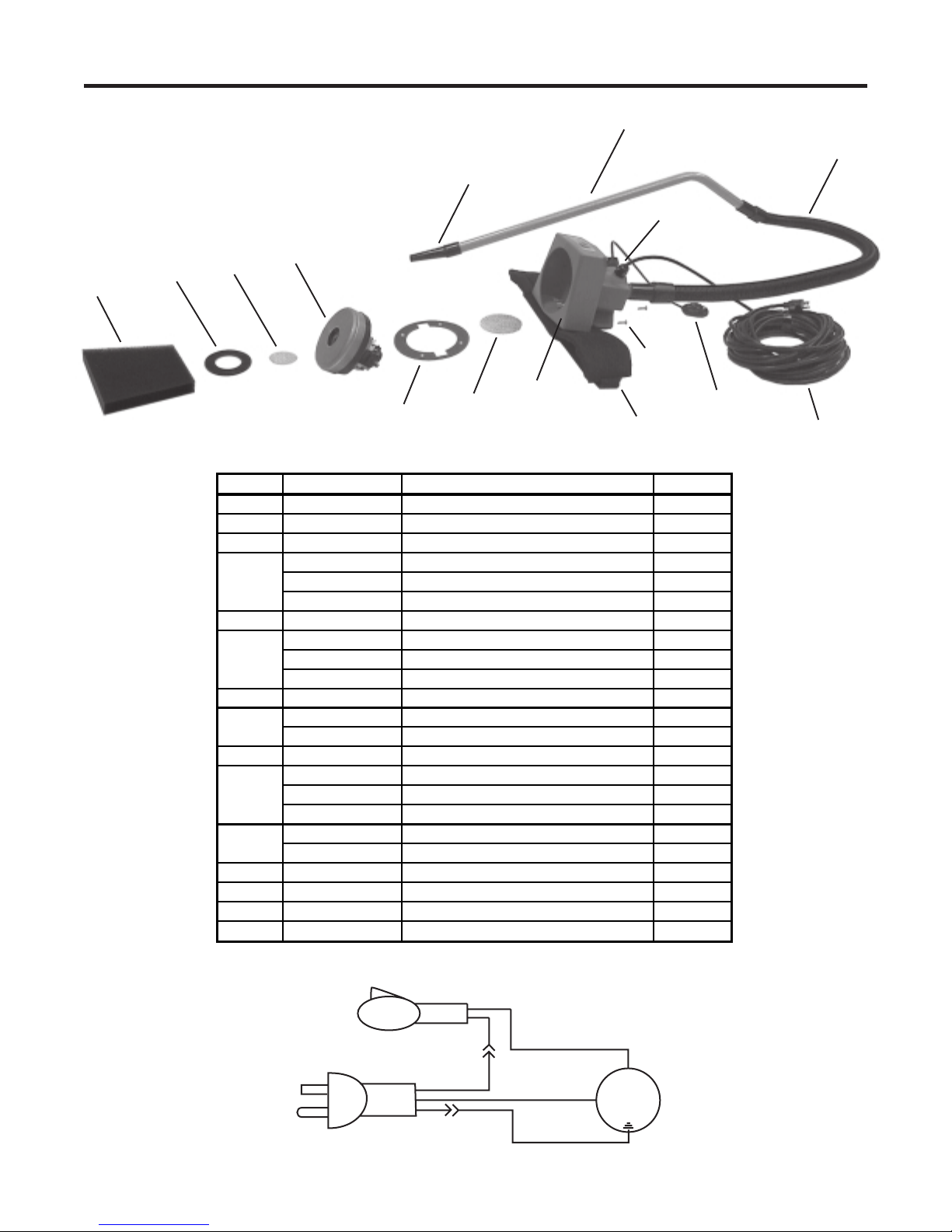

ITEM PART NUMBE
R
DESCRIPTION QTY
1 223385 Filter, Intake 1
2 633401 Gasket, Screen 1
3 228501 Screen, Inlet 1
4 655204 Motor, 115V 1
650904 Carbon Brush, 115V Motor 2
911229 Terminal, 3/16 Female 2
5 633403 Gasket, Motor Mount 1
6 608570 Screen, Outlet 1
930006 Pop Rivets 3
980033 Washer, Flat 3
7 224285 Housing 1
8 631301 Belt, Shoulder Strap 1
W310D Screw, Belt: 10-32x1/2 FHP 2
9 962089 Screw, Motor Mount: 10x3/4 AB PHP 4
10 908064 Cord with Pendent Switch 1
S936P Terminal, Male 1
S948P Terminal, Female 1
11 908065 Cord, Power 1
911157 Connector, Ground 1
12 632401 Strain Relief, Cord 2
13 224180 Hose Assembly 1
14 229880 Wand 1
15 638808 Tool, Blower Nozzle 1
908064
908065
POWER CORD
VAC
MOTOR
WHT
BLK WHT
GRN

WARRANTY POLICY
BLAST AIR BLOWER
The Pacific Steamex Inc. BLAST Air Blower has been manufactured, tested and inspected in accordance with specific engi-
neering requirements and is WARRANTED to be free from defects in workmanship and materials as follows:
Five (5) years – Rotational molded components.
One (1) year – All other components unless excluded below.
This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific
Steamex Inc. Operating and Maintenance instructions.
This warranty does not apply to the following wear parts and accessories of the machine including:
Part Number Part Name
223385 Filter
650904 Carbon Brush
224180 Hose Assembly
908065 Cord Assembly
Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts
including motors, tools, etc., is subject to incoming inspection of those items.
To secure repair under this warranty, the following procedure should be taken:
•The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges
prepaid. If unable to locate the Dealer, you may contact Pacific Steamex Inc. at the address listed herein for the location
of the nearest Pacific Steamex Inc. repair center or agent or for other instructions pertaining to your warranty difficulty.
•Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or
cost to the user.
•Only Pacific Steamex Inc. or its authorized dealers and agents may make no charge warranty repairs on this product. All
others do so at their own risk.
This warranty limits Pacific Steamex Inc. liability to the repair of the product and/or warranted parts replacement and does
not include incidental or consequential damages arising from the use of a Pacific Steamex Inc. machine whether defective or
not.
This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.
PACIFIC STEAMEX, INC.
2259 S. SHERIDAN
MUSKEGON, MICHIGAN 49442-6252
800-968-1332
FAX: [phone]
10/99 225685
