Pacifica AutoClean AC7 Mars User manual

KEEP IN A SAFETY PLACE
Before operating this hood,
Please read the instruction carefully
AC7 Mars
AutoClean Chimney Hood

Parts Name
1
S/Steel Flue On / Off
Switch
Air Chamber
LED Light
Oil Cup S/Steel
Baffle Filter

2
Packing List
AutoClean Cooker Hood
User manual
Warranty card
Marking label
Aluminium soft ducting
Oil cup
Cooker hood bracket
Aluminium tape
Adjustable duct connector
Screw
Duct cover bracket
STA4 x 10 Screw
M4 x 8 Screw
Small bottle/amy mild detergent
Water jar
Connector
Items
1
1
1
1
1
1
1
1
Qty
5
5
1
2
1
1
1
1
QtyItems

Closely follow the instructions set out in this manual.
not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is
destined only for domestic use.
The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and instal-
lation, however, remain the same.
!It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together
with the product.
!Read the instructions carefully: there is important information about installation, use and safety.
!Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
!Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer
and do not proceed with the installation.
Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not
supplied.

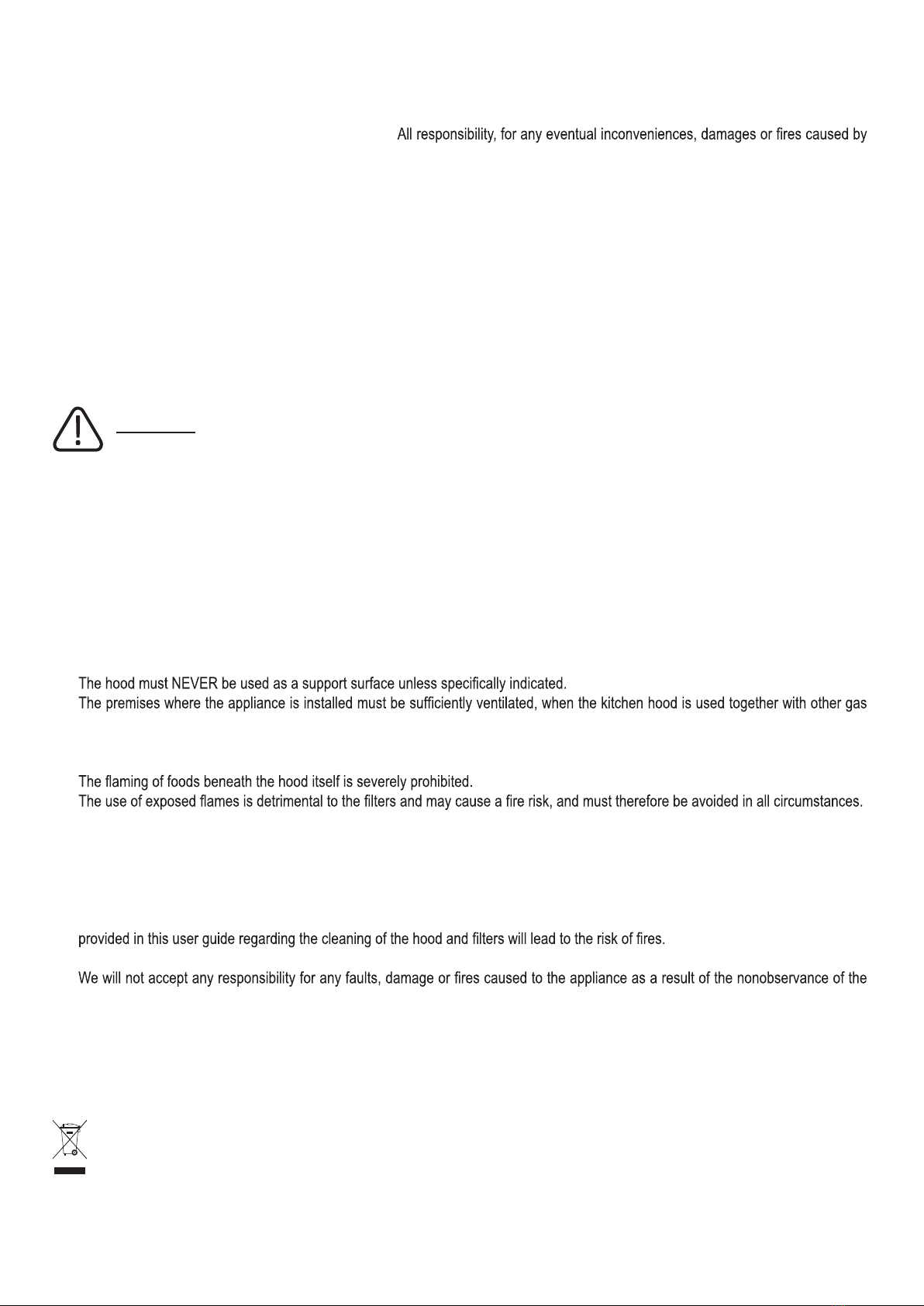

CAUTION
WARNING!
!Do not connect the appliance to the mains until the installation is fully complete.
!Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains
electrical supply.
!Always wear work gloves for all installation and maintenance operations.
!The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in
experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible
for their safety.
!This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.
!This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the
appliance.
!Never use the hood without effectively mounted grating!
!
!
combustion devices or other fuels.
!The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other
purpose such as discharging exhaust fumes from appliances burning gas or other fuels.
!
!
!Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
!Accessible parts of the hood may became hot when used with cooking appliance.
!With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations
provided by the local authorities.
!The hood must be regularly cleaned on both the inside and outside (AT LEAST 2 WEEKS ONCE).
!This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions
!Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
!
instructions included in this manual.
!By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this product.
!In the event that wiring/cable or plug is damage or defect, please contact sole distributor/customer service/manufacturer for service
checking appointment, to arrange qualified or appointed technician to replace new wiring/cable/plug.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as
household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equip-
ment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate
department of your local authorities or the local department for household waste or the shop where you purchased this product.
Warm Reminder
3

Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking
and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and
use boost(s) only in extreme situtations. Clean the baffle filter(s) 2 weeks once to maintain a good grease filter efficiency. Use the maximum
6” - 8” diameter (150 - 180 ) of the ducting system to optimize efficiency and minimize noise.
Additional Installation
, if not supplied, purchase the correct screws type.
WARNING!
USE
Ducting version
In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top
The hood is designed used for ventilation system.
of the hood.
Attention! The exhausting pipe is not supplied and must be purchased apart.
Diameter of the exhausting pipe must be equal to that of the connection ring.
In the horizontal runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room
to the outside.
Attention!
Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic
Connect the hood and discharge holes on the walls with a diameter equivalentto the air outlet.
increase in noise.
Any responsibility in the matter is therefore declined.
!Use a duct of the minimum indispensible length.
!Use a duct with as few elbows as possible (maximum elbow angle: 90°).
!Avoid drastic changes in the duct cross-section.
!Use a duct as smooth as possible inside.
CAUTION
- For domestic house hold cooking use only and for ventilating use. Take extra care when using detergent for cleaning.
Do not use to exhaust hazardous or explosive materials and vapors.
- AutoClean the cooker hood frequently. Grease should not be allowed to accumulate on fan or baffle filter.
- Keep fan & baffle filter surface clean.
- Use high speed setting on hood only when necessary (for heavy cooking).
- Dont leave the cooker hood unattended when cooking.
- Installation work and electrical wiring must be done by qualified installer in accordance with all applicable codes and standards.
- Suffucient air is needed for power combustion and exhausting of smoke through the ducting to prevent back-drafting. Follow the
manufacturer’s guideline and safety standard advice.
- When cutting or drilling into wall, roof or ceiling, do not damage electrical wiring and other hidden utilities (please check with owner).
- Ducted fans must always vent to the outdoors.
- NEVER place a switch where it can be reached from a water sink or shower place.
- Ensure the power is off before installing, maintenance & service cleaning.
!
4

5
Installation
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must
be not less than 67cm from gas hob/electric hob or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
Electrical connection
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the
(direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with
standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with
installation instructions.
Warning!
is correctly assembled.
Mounting
Very heavy product; hood handling and installation must be carried out by at least two persons/qualified and experience installer.
Before beginning installation:
•Check that the product purchased is of a suitable size for the chosen installation area.
•
•Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), warranty card &
This hood are to be mounted with ventilation system only.
user manual, eventually removing them from the box and keeping them.
•If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling.
for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
•In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket
is available and it is possible to connect a fumes discharge device to the outside (only suction version).
•Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).
•Install the cooker hood on the metal bracket fixed at the wall. Ensure the hood is well installed and aligned.
•Refer figure 2:
Ensure 5 wall plug with proper screw into the metal bracket hole in the middle, to prevent the cooker hood from vibration
or falling off from the wall.
•Ensure the wall is solid & good for hood fixing, drilling & installation work to be carry out.
INSTALATTION GUIDE provided must carefully observed and install by experienced and qualified installers only.
- This cooker hood must only install with Aluminium ducting only and meant for ventilation system. (The Cooking residues such as
heat, hot air and ordour, to be channel out from the kitchen).

6
Plug
(13 Amp)
Metal Bracket
tighten the
screw into wall
plug on the hood
bracket
Hood Bracket
Aluminium
flexi-ducting Top cabinet
panel
Position
air outlet
Expansion wall plugs are provided to secure the hood to most types of walls.ceilings. However, a qualified installer mus verify suitability
of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not
tile, grout or silicone this appliance to the wall. Surface mounting only.
Connect to
Hood Air
Outlet
Ducting Adaptor
Connection of Aluminium
Ducting to adjustable white
air duct (external)
Connect to
External
Wall Outlet
(from 150 - 170 ducting size
to be decide by customer)
Note: Recycle system or using filter is NOT ALLOWED. Installation clearance must be straightly observed as shown. As
recommended min clearance is 670mm-750mm from the bottom hood to built-in / freestanding gas hob surface or electric hob.
Figure 2

7
Control Panel Indication
Switch ON/OFF
- Touch one time to select 7 function/modes available on the control panel, as per following & its function.
Smart Air Circulation
- Air changing in every 5 hours after switch on, with low speed or you may on this function after cooking
to have air change
Booster Fan (3 minutes)
- This mode allow high spped suction to channel hot air, grease, ordour for 3 minutes.
Fan Speed Selection
- Touch 1 times for Stirfy, heavy cooking.
- Touch 2 times for mild cooking.
- Touch 3 times for water boiling, soup cooking.
Energy Saving 2W LED Light x 2
- Press 1 time, LED light is switch ON. Press 2 times, LED light is switch OFF.
Clock Setting
- Please touch “+” to set the time.
Clock Adjust
- Touch 1 times to adjust hour setting.
- Touch 2 times to adjust minutes setting.
- Touch 3 times to confirm time setting.
Auto Cleaning (40 sec)
Frequent of cleaning cycle is required, the cooker hood is best maintained with optimum
performance as per following:-
- Once a week (for heavy and oily cooking) and every 2 week once (less oily cooking or less cooking).
- Simply prepare a water jar provided, fill in 2 drops of mild dishwashing detergent (non-chemical) and mix
with plain water (up to 500ml) as per shown in water jar.
- Shake and mix well the detergent + water = soapy water, slowly fill into water inlet water tank on top cooker hood
(top right hand, open the inlet cap to fill in the detergent).
- Touch AutoClean button for 2sec to start the process, fan reduce to low speed for 5sec, detergent injet
spray into fan blade to cleaning the grease residue in 7sec. Follow by the dirty grease water will flow in oil cup
under the Baffle Filter.The fan will go to high speed spining for 28sec to end AutoClean process.
- Please remove the oilcup to pour away the dirty grease water, clean and wipe dry, fix back the oilcup under the
baffle filter.
REMARK!
To release/stop the Auto-cleaning Flashing light and “Beep” sound
i) The Flash lighted and “Beep” sound will be on if the water tank is no more soap detergent or finished.
Recommended: To fill in soap water into the water tank.
ii) After 40 hours without auto-cleaning washing the cooker hood. That the Flash lighted and “Beep”
sound will continued for long time.
Recommended: 1st fill in soap water into the water tank. Step 2, Touch for 2 second to release/stop the Flashing light
and “Beep” sound , or Touch 2 times, to release and stop the Flashing light and “Beep” sound.
iii) You may proceed with Auto cleaning functions and continue with cooker hood fan suction operation.
Note: 1 full cup of water jar filled with soapy detergent (mild detergent + water) into water tank, Allows the users conveniently
to use auto cleaning function up to 3 times.

8
AutoClean
Ionizer
LED Light
Control Board
Red
Red
Black
Brown
Blue
Yellow / Green
3 Pin Plug
On / Off
Operational
Panel
5 PIN
Black
White
Black
Orange (zero wire)
White (Booster)
Yellow
Red
Capacitor
Motor
Grey
(High Speed)
Black
(Mid Speed)
Green
(Low Speed)
Blue
(Air Changing)
Electrical Diagram
Recomended checking/solution
After checking the range hood still not working, please contact customer care/technician : 03-7805 7725
(after sales service department) for checking appointment.
If you found any unsual issue, please stop using and unplug the power socket, and check according to the following
information.
Problems
All machine function
are not function
Motor and light
not working
Motor working but the
light did not working
Motor did not working
but the light working
The smoke can not
perform effective
Range hood vibration
Plug in the outlet not connected Pls switch on the plug
Plug has no power
Plug has no power
The light not turn on
Motor maybe broken
Overheating protection of motor
Circuit/capasitor board was broken
Control board was broken
The clearance between range hood
and cooking hob is to high
Speed slow
Too much air cant go through
or pressurized tightly
Air block
Rang hood did not install correctly
The body of the hood is not level
The blower wheel is spoilt
Light may broken
Switch may broken
Lighting cable is spoilt/melt
Pls call the electrician to check & repair
Main circuit board fuse broken
Plug in the outlet not connected
Pls call the electrician to check & repair
Check the user manual to turn on the light
Pls replace the LED light
Pls replace the control board or switch
Pls call technician reconnect the lighting cable
Pls call office to check, may need replace the motor
Pls replace the motor
Pls replace the circuit/capasitor board
Pls replace the control board
Pls follow suggest installation guide
clearance of installation
Pls adjust the max speed
Pls closed part of windows & doors
Pls check the ducting any interuption or leakage
Pls re-install the hood
Pls replace the blower fan
Mechanical noise
The blower fan has spoilt caused the jiggly
sound and blower caused to concuss fan
Foreign object fell into the ducting
Air/wind outlet is not open
Pls replace the blower fan
Pls remove the foreign object from the ducting
Adjust the wind outlet to the normal state
Pls check if plugs in or not
Pls replace the circuit board
Reason Check/Solution
Check List

9
Remove Oil Cup
*Reminder: To operate AutoClean function once a
week to wash oilly grease from the fan. Please
take out oil cup for wash, dry & fix back.
*Reminder: Please remove plug first, to continue
internal fan take out for cleaning.
Please wear glove to proceed further. Carefully
take out S/Steel flue.
*Reminder: Unscrew first, to remove outer motor
casing. Remember to put back all screw after
cleaning.
*Reminder: Remove Oil chamber first for cleaning.
Please do not use water pipe to spray direct into
fan chamber.
You may call customer service to fix cleaning service appointment subject to current cooker hood cleaning charges.
*Reminder: Remove internal fan for cleaning,
unscrew, take out the fan to soak with mild
soap water for 30 minutes. To wash & brush the fan
GENTLY to remove the grease. Clean & Dry properly
the inner fan before fix back.
*Reminder: Remove 2 screw (outer baffle filter),
follow by 4 screw (inner baffle filter),take out baffle
filter for easy cleaning.
*Reminder: Remove baffle filter, Wash, Dry & Fix back
accordingly. Baffle filter must always attach with cooker
hood for safety purpose.
Remove 2 screw Remove Baffle Filter
Remove
S/Steel Flue
Remove
Outer Motor
Casing
Remove
Oil Chamber
Remove
Internal
Fan for
Cleaning
Maintenance
MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the
connector and removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.
Cleaning
-
Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
The cooker hood should be cleaned regularly (at least once a week (AutoClean) baffle filter once 2 weeks) internally and externally. Clean
WARNING:
Therefore, we recommend observing these instructions.
to observe the above safety recommendations.
Baffle filter
Traps cooking grease particles.
The grease must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be
To remove the baffle filter, remove oil cup then remove screw underneath.
Replacing lamps
Disconnect the appliance from the electricity.
Warning! Prior to touching the light bulbs ensure they are cooled down.
The hood is equipped with a lighting system based on LED technology.
The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.
For replacement, contact the technical service.
Step by step easy cleaning baffle filter (every once a month)
Step by step easy cleaning internal fan (at least once a year) to maintain optimum performance

10
AC7 Product Dimension (Unit:mm)
Product Information
Model No.
AC7
Dimension
(W x D x H)
Smell/odour
reduce efficency Grease separating Static Pressure
(H)
(L)
Noise
Level Net weight
Voltage Frequency Motor input power
Input power Ducting
LED Light
Airflow
Air Pressure
kg
Product Info & Dimension

Menara Lien Hoe (HQ)
Sole Distributor:
Ge Green Sdn. Bhd.
Lot 18.2, 18th Floor,
Menara Lien Hoe,
8, Persiaran Tropicana,
47410 Petaling Jaya,
Selangor.
