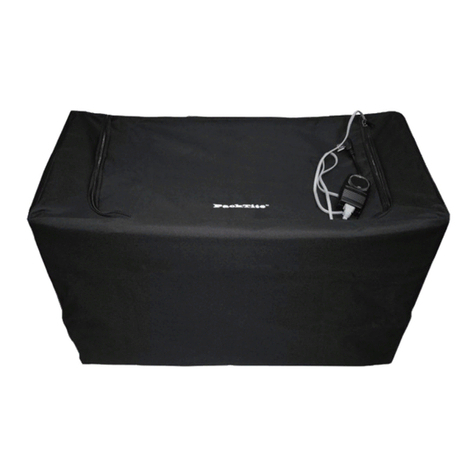

PackTite 2 User manual

PackTite 2™
ASSEMBLY AND OPERATING
INSTRUCTIONS
Patent pending heating system safely eliminates
all stages of bed bugs.
Read these instructions carefully before using this device.
For demonstrations on assembly and use,
go to the PackTite page on Facebook (www.facebook.com/packtite)
SERVICE & SUPPORT
Patent Pending
EPA Est. No. 85055
Packtite 2™ is assembled in the United States from components made in China, Taiwan and the U.S.A.
PT2 V1 03152014
In the event service of the device is required or if you have any questions,
please contact us at:
[e-mail]
Working Voltage: 120V AC/60Hz
Amps: 12.5
Wattage: 1500W (+5%-10%)
SPECIFICATIONS
SAFETY FEATURES
1. A thermal overload protector is built in to
the heater to prevent overheating.
2. If an overheat temperature is reached,
the heater will automatically shut off. It
can only resume operation when the user
resets the unit.
To reset the heater:
1. Turn Control to OFF.
2. Unplug the unit and wait 30 minutes.
3. Plug in and operate normally.

2
WARNING
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of fire, electrical shock and
injury to persons, including the following:
1. Read all instructions before using this
device.
2. Use the heater unit only as described in
this manual.
3. Do not use extension cords with the
heater.
4. ALWAYS plug heaters directly into a wall
outlet/receptacle.
5. DO NOT plug heater into any other
cord-connected device, such as a power
strip, surge protector, multiple outlet
adapter, cord reel or outlet-type air
freshener. e use of such devices may
create a fire hazard.
6. Plug unit directly into a 120V wall outlet
only.
7. Be sure that the plug fits snugly in the
outlet before each use. A loose plug can
overheat. Faulty wall outlet connections
may cause the wall outlet to overheat.
Check to make certain the heater plug
is not overheating. If necessary, have a
qualified electrician check and/or replace
the wall outlet.
8. DO NOT use this heater with any solid
state speed control devices.
9. DO NOT OVERLOAD CIRCUITS.
10. Make certain the power source conforms
to the electrical requirements of the
heater.
11. Only connect heater to a properly
grounded outlet.
12. Keep combustible materials out of
contact with the heating unit and heating
elements.
13. Clean the PackTite 2™ unit after every
use. DO NOT allow dust, hair, insects or
other debris to build up in the unit.
14. DO NOT operate this device around
children, animals or invalids.
15. DO NOT use this device where oxygen
tanks are used or stored.
16. Always unplug the device when not in
use.
17. DO NOT operate this device with a
damaged cord or plug or after the device
has malfunctioned, has been dropped or
damaged in any manner.
18. DO NOT use this device outdoors.
19. e heater and heater housing are HOT
when in use. To avoid burns, DO NOT
let bare skin touch the hot surfaces.
Always use the heater handle and the
enclosure handles when moving the unit.
20. DO NOT operate in bathrooms, laundry
areas and similar indoor locations where it
may come into contact with water. Never
locate the device where it may fall into a
bathtub or other water container.
21. DO NOT run cord under carpeting
or cover cord with throw rugs, runners
or similar coverings. Arrange cord and
device away from traffic areas and where it
will not be tripped over.
22. Before unplugging the device, turn the
heater setting knobs to OFF.
IMPORTANT OPERATING INSTRUCTIONS
!
7
CLEANING & MAINTENANCE
IMPORTANT
Never leave the unit unattended while it is
operating.
THE FOLLOWING ITEMS SHOULD
NOT BE TREATED IN THE
PackTite 2™: medications, liquid, food,
aerosol cans, flammable materials.
PackTite 2™ is not recommended for treating
electronic devices, including cameras, laptop
or other computers, phones, ipods, MP3
players, etc.
Always operate the PackTite 2™ unit in
ambient temperature conditions of at least 70°
F. Colder ambient temperatures may prevent
the device and the contents from reaching
temperatures needed to kill bedbugs. Take
care not to overfill the PackTite 2™ unit.
e black heater housing may become hot
while the unit is operating. To avoid burns,
do not touch the housing or the heater until
the unit is OFF and completely cooled down.
1. Always unplug the PackTite 2 before
cleaning.
2. Remove the heater from the heater
housing.
3. Lightly run a vacuum cleaner nozzle (with
brush attachment) over the shelf and on
the interior surfaces of the enclosure.
4. Carefully wipe the enclosure interior with
a soft, damp cloth and then again with a
dry cloth.
5. Leave the flap open and allow the
enclosure to dry completely before using.
6. Store the PackTite 2 in the original carton
in a cool, dry location.
Heater Cleaning/Maintenance
WARNING: To reduce the risk of electrical
shock and fire please observe the following
instructions.
Cleaning the heater regularly will help to
maintain its efficiency.
1. Always unplug the heater before cleaning.
2. Clean the unit with a soft cloth moistened
with a mild soap and water solution.
3. NEVER use abrasive or flammable
solvents to clean the unit.
4. After cleaning, be sure to completely dry
the unit with a cloth or towel.
5. Store heater in a cool, dry location.

3
23. DO NOT cover or obscure the top vent
of the enclosure.
24. DO NOT insert or allow foreign objects
to enter any ventilation or exhaust
openings in the heater as this may cause
an electric shock or fire, or damage the
heating unit.
25. DO NOT leave the unit unattended while
in operation.
26. DO NOT overfill the device.
27. DO NOT put damp or wet items in the
device. Do not use the device as a dryer.
28. DO NOT use this device in areas where
gasoline, paint or other flammable
materials are used or stored.
29. DO NOT plug the heater into the same
circuit as other appliances.
30. It is normal for the plug to feel warm to
the touch; however, a loose fit between the
AC outlet (wall receptacle) and the plug
may cause overheating and distortion of
the plug. Contact a qualified electrician
to replace loose or worn outlets.
31. Use of this device is not recommended for
persons with reduced sensitivity to heat or
an inability to react to avoid burns.
32. is device includes an Overheat
Protection System that shuts the heating
unit offif it overheats due to abnormal
conditions. If this occurs, turn the heater
off, and unplug it. Allow the device to
cool for a few minutes, plug it back in,
and resume normal operation.
33. DO NOT place infants or animals in the
enclosure or allow them to get inside the
enclosure.
34. is device is intended for use by persons
18 years and older.
35. Never pull this devise by the electrical
cord.
36. DO NOT bend or pinch the cord and do
not use if the cord is damaged.
37. DO NOT attempt to open or repair this
device yourself.
38. NEVER allow pets or children near an
electric heater. Accidental contact could
result in serious shock or burns.
39. is appliance has a polarized plug (one
blade wider than the other). To reduce
the risk of electrical shock, the plug is
intended to fit in a polarized outlet only
one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician. Do
NOTE: ONLY operate the PackTite 2™ with the heater that came with the product. Other types of units
may cause the unit to malfunction or overheat, resulting in fire or injury or may cause damage to the unit.
e heater housing on the PackTite 2™ is specifically designed for use with the heater provided.
NOTE: If the heater stops and starts intermittently or shuts down altogether:
a. Make sure the top vent on the bag enclosure is not blocked in any way.
b. Turn the heater controls to OFF and unplug the heater. Allow the unit to cool completely, then plug in
and restart the unit.
IMPORTANT OPERATING INSTRUCTIONS
c. Make sure the heater is sitting upright
on the base of the heater housing and is
positioned behind the front bracket.
d. Move the heater backwards
approximately 1 inch (keeping it inside the
housing) and restart.
DO NOT ATTEMPT TO OPEN OR
REPAIR THE HEATER YOURSELF.
DOING SO COULD CAUSE DAMAGE OR
PERSONAL INJURY OR DEATH.
If the problem cannot be resolved by the steps
listed above, contact technical assistance at
[email protected].
TROUBLE SHOOTING TIPS
Studies show that it is necessary to reach and
hold a specific temperature in order to kill
all life stages of bed bugs (egg, larvae and
adult). To insure elimination of all bedbugs,
MONITOR the temperature of items being
treated to insure they reach (and hold) this
lethal temperature.
Luggage
Place the temperature probe inside the
pocket of a piece of clothing inside the
luggage or attach the probe to the item using
a clip or clothespin. Alternatively, place
the temperature probe inside a pouch or
compartment of the luggage.
Personal Items
Heating of personal items in the PackTite 2™
will vary, depending upon number and types
of items being treated. For clothing, place the
temperature probe inside the pocket of a piece
of clothing or attach the probe to the item
using a clip or clothespin. For other items,
place the probe in the center of the item being
treated (purse, shoe, backpack, etc.).
If the internal temperature of the item does not
reach the required lethal temperature within a
reasonable time, the PackTite 2™ unit may be
overloaded. Remove some items and restart
the unit.
Do not treat items that are enclosed in paper
wrapping, Styrofoam, cardboard or plastic
tubs. ese materials act as heat insulators
and will prevent items from reaching critical
the temperature. Remove items from such
packaging and treat packaging separately.
NOTE: For tips and demonstrations on treating specific
items, visit the PackTite page on facebook:
(facebook.com/packtite).
Recommended
Temperature Cycles
118 degrees (F) - hold for 1.5 hours
120 degrees (F) - hold for 1 hour
125 degrees (F) - hold for 1/2 hour
TEMPERATURE MONITORING
6

4
IMPORTANT OPERATING INSTRUCTIONS
not attempt to defeat this safety feature.
40. DO NOT block air intakes or exhaust
in any manner. Do not place on soft
surfaces, like a bed, where openings may
become blocked.
41. DO NOT depend on the on/offswitch
as the sole means of disconnecting power
when servicing or moving the heater.
42. Make sure room is equipped with a
working smoke detector.
43. is heater is not suitable for use in
hazardous locations. Please refer to
National Electric Cod (NEC) Article
500 or applicable state or local codes
or standards relating to electrical
requirements for Hazardous locations.
44. is heater does NOT meet the
requirements of NEC article 500 (2008).
45. DO NOT insert or allow foreign objects
to enter any ventilation or exhaust
opening as this may cause an electric
shock or fire, or damage the heater.
46. SAVE THESE INSTRUCTIONS.
ASSEMBLY INSTRUCTIONS
Set up Bag Enclosure
1. Remove PackTite enclosure (and shelf),
heater and heater box from the box and
remove all packaging materials (plastic
cover, bubble wrap, etc.).
2. Unfold the bag so that the vent is on top
and the heater bracket is facing to the
right.
3. Place the unit on a firm, level surface and
at least 3 feet away from walls, furniture,
curtains, plants or combustible materials.
4. Unzip the top flap and shift or adjust
the shelf so that the bottom of each leg
sits firmly in the bottom corner of the
enclosure.
5. Pull up the support bar on each side of
the shelf to an upright position until the
metal guides on either side lock into place
just on top of the shelf.
6. Position the unit so that the “PackTite”
logo is facing to the front.
Attach Heater
1. Attach the heater housing to the opening
window frame for the heater by hooking
the bottom metal clip underneath the
window frame and hooking the two side
clips around each side of the window
frame.
Opening for
the heater
<ebilÛm[^abg]ieZlmb\
bg]hhkhg[hmmhf
Zg]^Z\alb]^'
Heater
Housing
Clips
2. Insert heater into the heater housing from
the top.
3. e heater should sit level inside the
housing with the front touching the
placement bracket
4. e front of the heater should face
towards the enclosure and the cord should
be extended from the back of the heater
out of the heater housing.
5. Plug the heater cord directly into the wall
outlet.
Load and Operate
1. Place items to be treated on the shelf and
distribute evenly.
2. Take care not to overfill the unit. For
proper operation, items should not extend
beyond the orange strips on either side
of the shelf or above the height of the
support bar. DO NOT BLOCK THE
VENT.
3. When treating luggage, open luggage
top and unzip any pouches or exterior
compartments to allow heat to circulate
through the interior. When treating
personal items (purses, backpacks, etc.)
open or unzip any interior or exterior
compartments.
4. is unit comes with a thermometer/
timer device. Place the thermometer
probe inside any item to be monitored
(pocket, shoe, suitcase, etc.). Zip the top
flap closed with the thermometer cord
extending out the upper corner of the flap.
Be careful to not zip the flap too tightly.
is will damage the thermometer cord
and reduce the life of the device.
5. Set both controls on the heater to the
highest settings (heat and air flow).
Shut Down Procedure
1. When finished with a treatment cycle,
leave the airflow setting on HIGH and
turn the heat setting to FAN. Unzip the
top flap and run in this manner for at
least 10 minutes.
2. Turn the heater controls to OFF, unplug
the heater, unzip the top flap and remove
contents.
ASSEMBLY INSTRUCTIONS
TROUBLE SHOOTING TIPS
If the heater shuts offunexpectedly or fails
to operate, the above-mentioned safety
feature may have been activated to prevent
overheating.
1. Be sure the power cord is plugged into a
working electrical outlet.
2. Make sure the circuit breaker or fuse is
working properly.
If the heater runs for several minutes
and shuts offrepeatedly, the heater is
overheated.
a. Make sure the back of the unit (heater
end) is at least 3 feet from any object.
b. Make sure the contents being treated
are not blocking air from exiting the vent
in the top of the enclosure
5
