Barton 96968 Original instruction manual
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
1500W LAMP HEATER
ITEM # 96968
SAFETY INFORMATION
Read all safety warnings and instrucons. Failure to follow the warnings and instrucons may result in
injury and/or property damage. Save all warnings and instrucons for future reference.
The warning and safety instrucons in this manual are not meant to cover all possible condions and
situaons that may occur. Common sense, cauon and care must be exercised when operang or
cleaning tools and equipment. Always contact your dealer, distributor, service agent or manufacturer
about problems or condions you do not understand before operang the product.
1
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this
heater in small rooms when they are occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
Failure to comply with the precauons and the instrucons provided with this heat lamp can result in
death, serious injury and propert damage or loss from hazards of re, explosion and burns.
To prevent and avoid the risk of burns, re, electric shock, or Injury:
• Use this device only for its intended purpose as described in this manual.
• Do not leave unit on when unaended. Unplug from outlet when not in use.
• Keep children away from and do not allow children to operate the lamp.
To disconnect from the power outlet, turn all controls to the “o’ posion and then remove the power
cord from the power source outlet.
NEVER operate this device with the protected heang element opening blocked. Keep this opening
free of lint, hair, etc. Never operate on or near a so surface such as a pillow, blanket, or bed where
this air opening may be blocked.
NEVER drop or insert any object into the protected heang element opening. Do not touch the heang
element with any object. Do not touch the internal workings of the lamp. Do not aempt to make any
repairs yourself.
DO NOT operate this device if the power cord or plug is damaged. If it is not working properly, or has
been damaged, call your nearest authorized service center.
DO NOT pull or carry this device by the power cord. Keep the power cord away from hot or wet
Store lamp in dry environment- avoid excessive moisture.
This heater is not intended for use in bathrooms, laundry areas and similar indoor locaons. NEVER
locate heater where it may fall into a bathtub or other water container. To protect against electrical
hazards, DO NOT immerse in water or other liquids.
SAFETY INFORMATION SAFETY INFORMATION
1 2
SAVE THESE WARNINGS
DO NOT touch the control panel or plug with a wet hand.
DO NOT run cord under carpeng. DO NOT cover cord with throw rugs, runners or similar coverings.
Arrange cord away from trac area and where it will not be tripped over.
DO NOT insert or allow foreign objects to enter any venlaon or exhaust opening as this may cause
an electric shock or re, or damage the heater.
To prevent a possible re, DO NOT block the air intakes or exhaust in any manner. DO NOT use on so
surfaces, like a bed, where openings may become blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint,
explosive and/or ammable liquids are used or stored. Keep unit away from heated surfaces and open
ames.
Avoid the use of an extension cord because the extension cord may overheat and cause a risk of re.
To avoid re or shock hazard, plug the unit directly into a 110-120V electrical socket outlet.
ALWAYS place the heater on a at, level surface. This heater should only be hung from a ceiling.
WARNING: To reduce the risk of re or electric shock, DO NOT use this unit with any solid-state speed
control device.
DO NOT aempt to repair or adjust any electrical or mechanical funcons on this unit. Doing so will
void your warranty. The inside of the unit contains no user serviceable parts. Qualied personnel
should perform all servicing only.
Connect to properly grounded outlets only.
WARNING: This heater is not equipped with a device to control the room temperature. Do not use this
heater in small rooms when they are occupied by persons not capable of leaving the room on their
own, unless constant supervision is provided.
The heater must not be located in front of a socket outlet.
• These appliances must be earthed.
• Before installing or replacing the bulb, the appliance must be always being disconnected from the 110-
120V supply.
• The appliance must be disconnected from the 110-120V supply before the lid is opened.
• The appliance mist be installed exclusively in perfect horizontal posion
INSTALLATION INFORMATION
3 4

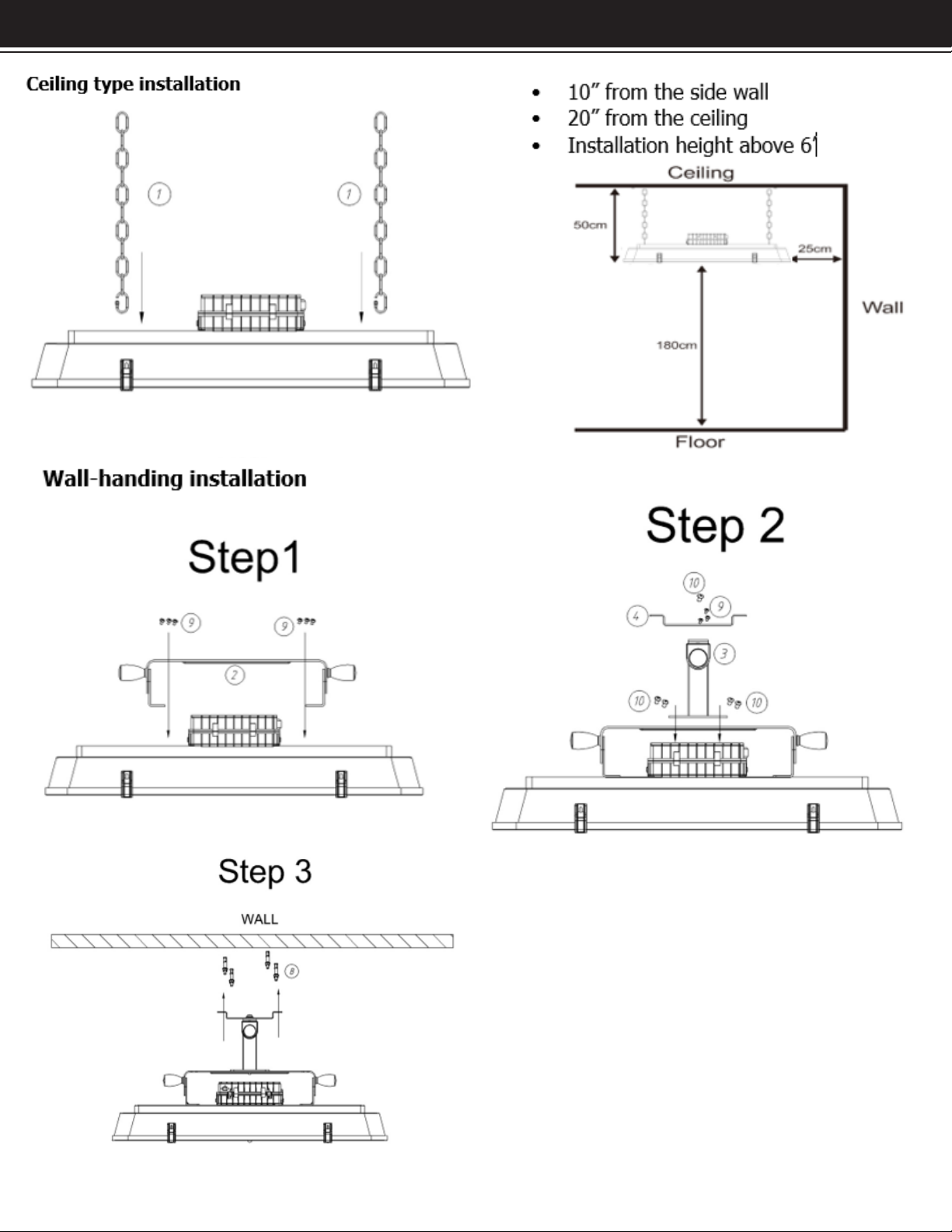

When xing the heater to a wall, ensure hinges are in the underside so that the lid hands down in the
open posion.
Minimum required distances:
• 10 inches from the side wall
• 20 inches from the ceiling
• Installaon height above 6
• The heater must be xed to a wall with the bracket supplied to allow adequate venlaon.
• Never x or place heater near ammable or combusble materials.
• Generally heaters must be placed at a safe distance (clear space) of at least 2.0m from combusble
materials and glass walls. If installed in workshops or garages where inammable or combusble paints
are used, the heaters must be installed at a distance of at least 4.0m from the source of danger.
• If the heaters are placed in areas where spray painng of any descripon is taking place, they should
not be used during the painng operaons.
• Never use the heater in parcularly dusty and explosive areas.
ACCESSORIES
INSTALLATION
3 4
MAINTENANCE / TROUBLESHOOTING
5
1. Connect the power cable to a 13amp supply that is
located in a safe, dry area.
• The Electric Pao Heater is equipped with one heat seng
• The switch on the heater head is used to control the
power. (I) posion for turn on. (0) posion for turn o.
OPERATION AND MAINTENANCE
2. Acvang buon on the heater is to operate heater
by manually. Press one me for 1500 W,
Press two mes for turn o the heater.
• The Remote control is also used to control the heat. (I) for heat seng 1500W,
the 0 posion is o.
• Although the pao heater is shower proof, do not use when raining or in wet
condions.
• Always disconnect the power cable from the electrical supply, when the pao
heater is not in use.
MAINTENANCE
Unplug the unit and let it cool completely.
• To keep the heater clean, the outer shell may be cleaned with a so, damp cloth. You may use a
mild detergent if necessary. Aer cleaning, dry the unit with a so cloth.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the
heater. This may cause damage or deterioraon to the surface of the heater.
• Although this heater is outdoor approved, DO NOT immerse the heater in water for your safety.
Wait unl the unit is completely dry before use.
STORAGE
If the heater will not be used for a long period of me, store it in a cool, dry locaon when not in use.
To prevent dust and dirt build-up, use the original packaging to repack the unit.
TROUBLESHOOTING
If the heater will not operate, please check the following before seeking repair of service:
• Check if the power cord is plugged into an electrical outlet, if not plug in.
• Check if electricity to the main fuse is working.
• Make certain the power switches are turned on. If not, choose a seng.
6
5
DISCLAIMER
6
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN CHINA
