Pager Genius RE-100 User manual
Pager Genius
Range Extender
USER MANUAL
RE-100
Range Extender
www.pagergenius.com
Pager Genius, INC.
9852 W Katella Ave, Suite #500, Anaheim, CA 92804
www.pagergenius.comUser manual 1
RE-100
Thank you for purchasing
The Pager Genius Range Extender
We provide an excellent paging product and USA based customer service.
Please familiarize yourself and sta with the contents of this manual to
operate and maintain your system correctly. If you have any questions or
service problems, please contact us.
Please keep this manual in a safe place for the sta and managers to
view in the future.
1-800-289-3823
9852 W Katella Ave, Suite #500,
Anaheim, CA 92804
www.pagergenius.comUser manual 2
RE-100
TABLE OF CONTENTS
HOW TO SET-UP THE RANGE EXTENDER FOR OPERATION
TESTING THE RANGE
PAUSING BETWEEN PAGES
FAQ'S AND TROUBLE SHOOTING ISSUES
WARRANTY
HOW TO SET-UP THE RANGE EXTENDER FOR OPERATION

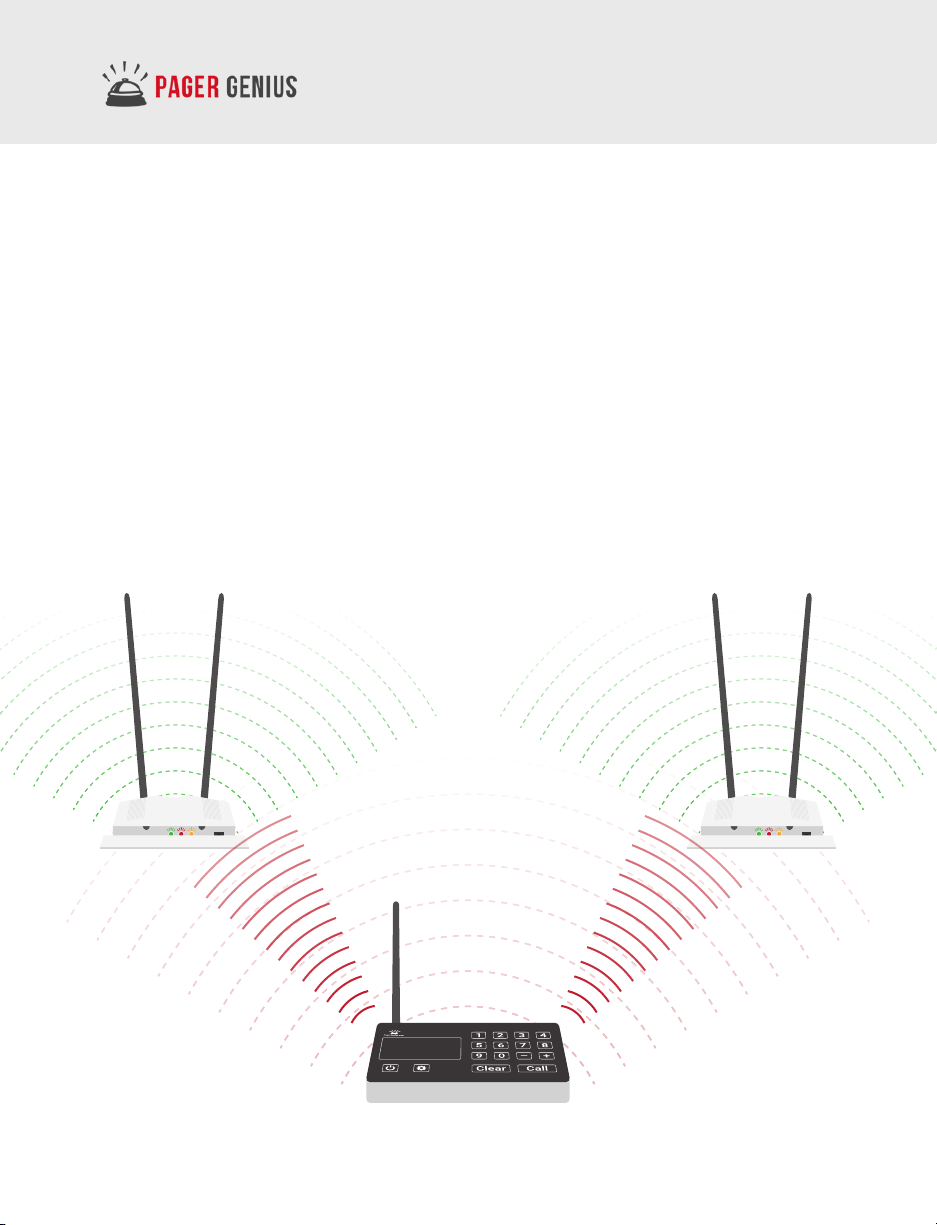

The RE-100 Pager Genius Range Extender is a plug and play unit. Install
the two antennas and extend them from the base. This unit can sit at or
mounted on a wall or ceiling. Plug the unit into power within range of the
transmitter or another range extender. Try to nd a power outlet to install
the range extender toward the direction you would like to extend the range.
Have someone send a test page from the transmitter, if you see the range
extender's indicator lights change colors the test was successful.
You can have as many range extenders installed on the property as needed
to cover any size property.
2
4
5
5
6
www.pagergenius.comUser manual 3
RE-100
Antenna Inputs
Power Supply Input
Power Indicator Light
REAR VIEW
FRONT VIEW
Signal Received Indicator Light Signal Sent Indicator Light
www.pagergenius.comUser manual 4
RE-100
TESTING THE RANGE
Once you have found the right spot to install your Pager Genius Range
Extender, it is time to see the improvement of range. Walk away from the
newly installed range extender with a pager and have someone page that
pager from the transmitter. Walk further away from the range extender and
test the new range.
Note: For faster testing, bring an undone paperclip to get to the buttons
on the bottom of the pager to cancel a page. When the pager alerts during
testing, press the stop button on the bottom of the pager. Otherwise, you
will have to wait for the pager to time out before doing another test page.
www.pagergenius.comUser manual 5
RE-100
PAUSING BETWEEN PAGES
Now that you have a range extender installed, wait 2.5 seconds in between
pages at the transmitter before you page again. Waiting 2.5 seconds gives
the range extender a chance to process the signal from the transmitter.
Ifmultiple pages are quickly inputted into the transmitter, the range
extender will not have an opportunity to process them.
FAQ'S AND TROUBLE SHOOTING ISSUES
Q: How many range extenders can I use to extend the range?
A:
You can use many range extenders as needed to cover any size area.
Q: I have two separate Pager Genius Systems with dierent signals in the
same building, will the range extender work with both of my systems?
A:
Yes the range extender will work together with both your systems, as long
as it is installed within range of both systems.
Q: We installed the range extender, but it did not help much on the range.
A:
Make sure the range extender indicator lights are changing color and
receiving the signal from the transmitter.
www.pagergenius.comUser manual 6
RE-100
WARRANTY
Pager Genius warranties this product against any defects that are due
to faulty material or workmanship for a standard two-year period after
the original date of consumer purchase. The warranty does not include
damage to the product resulting from accident, misuse, improper electrical
connection, or failure to charge the product within 35 days of receipt.
Rechargeable pagers are required to stay on charge while not in use.
Rechargeable pagers that are left o of charge for longer than 35 days will
have a negative impact on the life of the batteries requiring them to be
replaced thus voiding the warranty. If this product should become defective
within the warranty period, we will repair or replace it with a replacement
product, free of charge.
Pager Genius Customer Support
1-800-289-3823
9852 W Katella Ave, Suite #500,
Anaheim, CA 92804
www.pagergenius.comUser manual 7
RE-100
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference. (2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF warning statement: The device has been evaluated to meet general
RF exposure requirement. The device can be used in portable exposure
condition without restriction.
