1.1 Scope of delivery
Included in the delivery:
PAJ GPS Finder 01 by PAJ GPS
M2M SIM card (is already inserted/ do not
replace)
Cable harness
Velcro fastener with adhesive strip on the back
Note: The latest version of this manual is available
at:
www.paj-gps.com/finder
The PAJ-GPS team wishes you lots of fun with your
PAJ GPS Finder!

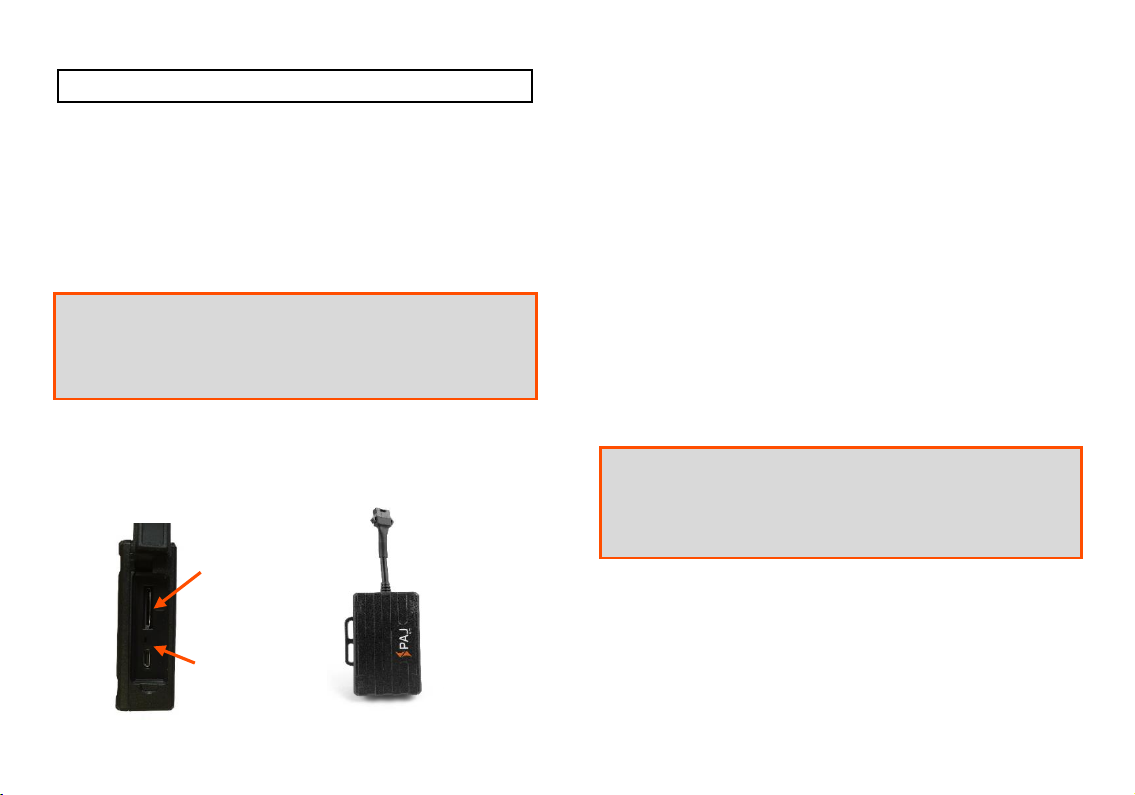

1.2 Product graphics
1.3 Startup operations
Please observe the following points before
connecting the device to the vehicle battery:
SIM card is in the PAJ GPS Finder
The PAJ GPS Finder should not be attached to
fuel lines or other combustible components.
No other components of your vehicle should be
damaged by the attachment.
Installing the PAJ GPS Finder on the vehicle to
power the device may discharge the vehicle's
battery. Before connecting, check whether your
vehicle has a discharge protection and retrofit it
if necessary. In idle mode, the finder requires
approx. 10-20 mAh.
Please always observe the manufacturer's
specifications for your vehicle. Compensation
claims due to incorrect connections are hereby
excluded.
1.4 Activation
In order to use PAJ's PAJ GPS Finder, it must first be
activated online.
SIM card slot
LED-signals

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
4
2.
1.
2.
Note: To activate you need the device ID. Please
make a note before installing your FINDER.
To do this, please go to
www.start.finder-portal.com
and follow the instructions.
1.5 Installation
Please proceed as follows when connecting the
Finder to your car battery. The following figure serves
as a guide.
1. Connect the PAJ GPS Finder to the cable harness
using the black plug-in function.
2. Connect the device to the battery. Connect the red
cable with the fuse to (+). Connect the black cable
to Minus (-).
Attention! The poles must never be reversed.
Note: When connected to the power supply, the
PAJ GPS Finder switches on immediately and the
LED lights emit a signal.
1.6 Turning on
After a successful activation you can switch on the
PAJ GPS FINDER.
By connecting the FINDER to the power supply, the
device has already been switched on.
For the initial startup of the PAJ GPS Finder
uncovered locations, such as the garden or the
terrace (i. e. not inside the home, the garage, the
cellar or the like) are recommended.
1.7 Use
Once the activation and switching on of the FINDER
has been successful, you can attach the FINDER to a
location of your choice and view the position of the
FINDER using a smartphone, tablet or PC. Please use
our app or go to the following website:
Battery
12-24V
Black
Red
Fuse

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
5
www.finder-portal.com
The portal will support you step by step in its
functions.
1.8 Meaning LED lights
green LED –GPRS status
SIGNAL
MEANING
The green LED is off
Standby mode
The green LED flashes
every 2–3 seconds
GPRS signal is available
blue LED –GPS status
SIGNAL
MEANING
The blue LED flashes
every 2–3 seconds
GPS reception available
The blue LED is off
standby mode
If the GPS tracker is not (no
longer) moved, the GPS
signal turns off. As soon as
the GPS tracker is moved
again, the GPS signal
automatically switches on
again.
The blue LED is
constantly lit
No signal available
GPS tracker is looking for a
signal.
1.9 Technical data
Dimensions
71 x 49 x 22mm without
cables
Length of cables
Approx. 150 cm
GPS accuracy
Up to 5 meters
Internal battery standby
time
Approx. 1 day
Battery
3,7V 200mAh Li-ion
Weight
56 g
Time to start
Cold start: 1-3 min
Standby: 35 s
In operation: 10 s
Network
WCDMA/GSM/GPRS
Band
GSM 850/900 MHz (max.
2W)
DCS 1800 MHz (max. 1W)
PCS 1900 MHz (max. 1W)
WCDMA 850/900/
1900/2100 MHz (max. 1W)
GPS chip
-U-BLOX 7
WCDMA/GSM/GPRS
module
MTK6276

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
6
GPS reception
-159 dBm
External battery
connection
9-75 V
Storage temperature
from -20°C to +50°C
Operating environment
from -10°C to +50 C
1.10 Safety instructions
Signal words
The following signal words are used in this manual:
WARNING! This classifies a hazard of medium risk
level. Failure to comply with the warning may result in
serious injury.
Please note: This is a warning about possible damage
to property.
Proper use
Please read the safety instructions for this PAJ
FINDER, hereinafter only referred to as GPS tracker,
carefully before use in order to be able to deploy it
properly. The intended use is to employ the GPS
tracker only as described in this manual to locate a
vehicle. Please bear in mind that it is a criminal
offence to monitor third parties using a GPS tracker
without their consent. If you use it in any other way,
this is considered improper use and can lead to
damage to property or even personal injury. Please
note that the GPS tracker is not a toy for children.
In other countries and regions there are different laws
on digital positioning and localization of people,
animals and/or objects. PAJ GPS is not responsible if
such laws or regulations are violated, this is the sole
responsibility of the user.
Caution: Please note that changes or modifications
not expressly approved by the party responsible for
compliance could void the user's authority to operate
the equipment.
Please note: The manufacturer and dealer accept
no liability for damage caused by improper or
incorrect use.
Safety
WARNING! RISK OF ELECTROCUTION!
A faulty electrical installation or an excessive mains
voltage may cause an electric shock.
Before use, adjust the mains voltage of the socket
with the information on the type plate.
Before use, make sure that the mains voltage of
the socket corresponds with the information on
the type plate.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
7
To be able to disconnect the charging cable from
the mains as quickly as possible in the event of a
failure, connect the power supply unit where it is
easily accessible.
If you notice any visible damage to your GPS
tracker or charging cable, do not use it.
Use only the original parts supplied to charge the
GPS tracker. If the charging cable is damaged,
replace it only with original accessories from the
manufacturer.
Never place the GPS tracker near an open fire or
hot surfaces.
The GPS tracker is not protected against humidity
and water. Please use and store it only in a dry
environment.
Keep the charging cable away from humidity and
do not kink it.
Do not open the housing of the GPS tracker.
Leave the repair to qualified specialists. However,
if you carry out repairs yourself, connect the GPS
tracker incorrectly or operate it incorrectly,
liability and warranty claims are excluded.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures: --Reorient or relocate the receiving
antenna. --Increase the separation between the
equipment and receiver. --Connect the equipment
into an outlet on a circuit different from that to which
the receiver is connected.
--Consult the dealer or an experienced radio/TV
technician for help.
Battery mode
WARNING! DANGER OF EXPLOSION AND FIRE!
Below you will find information and instructions on
how to use the battery:
The GPS tracker runs by a lithium ions battery. It
is not exchangeable and must not be removed or
opened.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
8
Make sure that the GPS tracker is kept away from
heat sources and high temperatures, such as
direct sunlight in a vehicle. Disregard of this
instruction may result in destruction of the
battery and overheating, explosion and fire.
Only use the original accessories for the charging
process. If the battery is charged otherwise, this
may result in overheating, explosion or fire.
Do not burn or pierce the GPS tracker. Protect it
from mechanical damage.
Do not remove the battery with sharp or pointed
objects. Do not drop, disassemble or modify it.
If a child swallows the battery, seek medical aid
immediately!
If you want to have the battery replaced, then
please contact our support.
WARNING! DANGER OF CAUTERIZATION!
Batteries that leak due to damage may cause burns in
contact with the skin. Therefore, never open the
battery. However, if the battery leaks, please wear
protective gloves.
Electromagnetic compatibility
Please observe all rules and prohibitions and switch
off the GPS tracker immediately in danger areas and
if it might cause interference. Furthermore, it should
not be used in the vicinity of, for example, medical
equipment, fuels and chemicals, or in blasting areas.
With mobile devices, malfunction due to interference
may occur and affect performance. Transformers and
very strong magnetic fields must be avoided.
Otherwise there may be deviations in the
transmission. Disregard of these instructions may
cause interference or damage to the GPS tracker.
Cleaning
WARNING! RISK OF DAMAGE!
Below you will find information and instructions on
how to clean the GPS tracker:
Do not use aggressive cleaning agents or brushes
for cleaning. Do not clean the GPS tracker with
metallic cleaning objects (e.g. knife, metal
sponge). This may damage the surface.
Never put the GPS tracker in water, in a
dishwasher (or the like) and do not use a steam
cleaner.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
9
Correct cleaning:
1. The surface may be wiped clean with a slightly
damped cloth.
2. The GPS tracker should then be wiped dry
completely.
Please note: Improper use of the tracker may
result in damage.
Dangers for children and people in need of help
Please do not let people (including children) with
limited physical, sensory or mental abilities use the
GPS tracker. It is considered an exception if they have
previously received instructions from a person
responsible for their safety on how to use the device.
Please be sure that they not play with small parts (e.g.
accessories, etc.). These may be swallowed, leading
to suffocation. Inform your child about the dangers
and about how to use the GPS tracker.
Storage
If you are not using the GPS tracker for a lengthy
period of time, turn it off. Place the tracker in its
original packaging or in a carton of the same size.
Protect the tracker from dirt and humidity. Keep out
of the reach of children.
Declaration of conformity
PAJ GPS Inc. hereby declares that the radio
equipment type Tracker, model PAJ GPS Finder 01
complies with Directive 2014/53/EU. The full text of
the EU Declaration of Conformity is available at:
www.paj-
gps.com/konformitaetserklaerung/
Disposal of packaging
Dispose of the packaging according to type.
Add cardboard to the paper bank, plastics to
the recyclables collection.
Disregard of these instructions may shorten the
life of the built-in battery or cause damage to the
GPS tracker in general.
FCC Radiation Exposure Statement
The transmitter must not be colocated or operated in
conjunction with any other antenna or transmitter.
This equipment complies with the FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed and
operated with a minimum distance of 20cm between
the radiator and any part of your body.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
10
Information to Users
According to the FCC Part 15.19, 15.21, and 15.105
rules, for this EUT, the instructions or operation
manual furnished the user shall include the following
or similar statement, placed in a prominent location
in the text of the manual:
FCC Warning
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTE 1: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
NOTE 2: Any changes or modifications to this unit
not expressly approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
NOTE 3: This equipment should be installed and
operated with a minimum distance of 20cm from any
part of your body.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
11
1.11 Note on the Disposal of Used Batteries
The following instruction is aimed at those who
use batteries or products with built-in batteries
and do not resell them in the form supplied to
them (end users).
Acceptance of returned used batteries free of charge
Batteries must not be disposed of with household
waste. You are legally obliged to return used batteries
so that proper disposal can be guaranteed. You can
dispose of used batteries at a municipal collection
point or at a local retailer. As a distributor of batteries,
we are also obliged to take back used batteries,
whereby our obligation to take back only applies to
the type of used batteries that we have or had as new
batteries in our range. Used batteries of the above
type can therefore either be returned to us with
sufficient prepayment or directly to our shipping
warehouse at the following address free of charge:
PAJ GPS Inc.
444 Brickell Ave, Suite 51270
Miami, FL 33131
USA
e-mail: [e-mail]
Meaning of the battery symbols
Batteries are marked with the symbol of a crossed-
out dustbin (see following illustration). This symbol
indicates that batteries must not be disposed of with
household waste. Batteries containing more than
0.0005 mass percent of mercury, more than 0.002
mass percent of cadmium or more than 0.004 mass
percent of lead additionally bear the chemical name
of the pollutant they contain below the
waste bin symbol. The abbreviation "Cd"
stands for cadmium, "Pb" stands for lead
and "Hg" stands for mercury.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
12
1.12 Note on the Disposal of Electric
Appliances
The Electrical and Electronic Equipment Act
(ElektroG) contains a large number of requirements
for the handling of electrical and electronic
equipment. The most important ones are listed here.
1. Separate collection of old appliances
Electrical and electronic equipment that has become
waste is referred to as old appliances. Owners of
WEEE must have it collected separately from unsorted
municipal waste. In particular, old appliances must
not be disposed of with household waste, but in
special collection and return systems.
2. Batteries and accumulators
Owners of WEEE must normally separate used
batteries and accumulators which are not enclosed
by the WEEE from WEEE before returning them to a
collection point. This does not apply if the old
appliances are handed over to public waste
management authorities and separated from other
old appliances for the purpose of preparation for
reuse.
3. Return options for old appliances
Owners of WEEE from private households can hand it
in at the collection points of the public disposal
authorities or at the collection points set up by
manufacturers or distributors within the meaning of
the ElektroG. An online list of collection and return
points can be found here: https://www.ear-
system.com/ear-verzeichnis/sammel-und-
ruecknahmestellen.jsf
4. Data protection notice
WEEE often contains sensitive personal data. This
applies in particular to information and
telecommunications technology devices such as
computers and smartphones. In your own interest,
please note that each end user is responsible for
deleting the data on the old devices to be disposed of.
5. Meaning of the symbol „crossed-out dustbin“
The crossed-out dustbin symbol regularly
displayed on electrical and electronic
equipment indicates that the respective
device must be collected separately from
unsorted municipal waste at the end of its
service life.

PAJ GPS Finder 01 by PAJ GPS with Online-Tracking V.1.0 EN
© PAJ GPS Inc.
13
6. Manufacturer registration number
As a manufacturer in the sense of the ElektroG we are
registered at the responsible foundation Elektro-
Altgeräte Register (Benno-Strauß-Str. 1, 90763 Fürth)
under the following registration number: DE33887550
Do you have any questions?
Just contact us,
we are happy to help you!
PAJ GPS Inc.
444 Brickell Ave, Suite 51270
Miami, FL 33131
USA
e-mail: [email protected]om
phone: [phone]
web: www.paj-gps.com
Best wishes,
your PAJ team
