pakite PAT-220 Mounting instructions

FCC STATEMENT
§15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
§15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
§15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
*RF warning for Mobile device:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.

The copyright of this manual belongs to the manufacturer.
Esteemed Customers:
Thank you for purchasing our product!
You will enjoy the fun brought by Wireless Audio Video Transmitter
along with all the global users who firmly support us. Please do read this
guide book carefully and thoroughly for better use of this product. It
works for home use. Every check of this product (if it works normally)
before uses it is necessary. If there any default or damage of this product,
please maintain or repair it in time.
This final explanation of the content written in this manual book belongs
to its manufacturer. Anyone or any party is not allowed to copy all or
partial content of this Manual Book. It is not authorized to anyone or
any party. No notifications would be given, if any change of this Manual
Book.
Thanks for buying our products along with the global users. “The Digital Wireless STB
Sharing device” is a kind of electronic product, which can realize the audio video
signal sharing in different rooms for family entertainment. It consists of a transmitter
and a receiver. Adopting advanced 2.4GHz wireless transmission schemes and
having advantages of long distance transmission, strong anti-interference and high
mobility. By means of radio waves, it can transmit the signal from DVD player, DVR,
CCTV camera, IPTV, Satellite receiver, Digital TV Set Top Box or any other AV
devices at transmitter end to TV sets in different room at receiver end. it can support
the IR remote control at the receiver end to realize the function of wireless control of
devices from another place. So that you can enjoy freely wireless HD AV sharing data
and Hi-Fi audio and video effect.
1. Function & Features
Use 2.4GHz ISM frequency band, multiple selective channels supported for
anti-interference from wireless.
Support 1 group of AV signal input/output.
Keep Transmitter and receiver setting at the same channel, it can support 1
transmitter and more receivers at the same time.
Support DVD, DVR, IPTV, CCTV Camera, Satellite receiver, Digital STB and
other AV output devices.
Support superheterodyne 433MHz infrared remote signal transmission, while
Compatible for 38KHz infrared carrier control signal.
Transmitter have built-in infrared signal emission or infrared transmission
extension cable, so that you can do remote control the signal from DVD, DVR,
STB, IPTV, and other device.
Supports video transmission of PAL/NTSC system and stereo audio transmission,
Pictures received are clear, flamboyant and stable.
Full hardware design without installing any software, plug and play, simple and
convenient. Fashionable design, Machine dimensions: 10×8.5×3.0 cm.
■
■
■
■
■
■
■
■
■

2. Standard accessories
Transmitter ………………………………………………………………………………
Receiver …………………………………………………………………………………
Power Adapter ……………………………………………………………………………
RCA Wire …………………………………………………………………………………
IR Extender Wire ………………………………………………………………………..
Use Manual………………………………………………………………………………
3. Specifications
Power input: DC 5V 1000mA
Video input: 1Vp-p(PAL/NTSC)
Audio input: 1.5Vp-p (dual channel)
Video output: 1Vp-p(PAL/NTSC)
Audio output: 1.5Vp-p (dual channel)
1. Allocation
1 set
1 set
2 pcs
2 pcs
1 pcs
1 copy
2. Transmitter panel description
3. Receiver panel description

4. Transmitter installation
■Put the transmitter near to STB and other AV output devices, connect the AV
cable with the audio video output signal of STB corresponding to colors(Red,
White, Yellow).
■Put the transmitter above the STB or other device so that the IR transmitting
window extrudes out by 1 to 2 cm and vertically aims at the receiving window of
the IR signal of the STB or other device.
Hints：
The receiving window of the IR signal of the STB or other device is generally
marked with “IR”. Please vertically aim at the IR signal transmitting window of
the transmitter. And keep the transmitter away from other devices and metal
devices to avoid effecting wireless signal transmitter.
5.Receiver installation
Put the transmitter near to STB and other AV output devices, connect the AV cable
with the audio video input signal of TV corresponding to colors(Red, White, Yellow),
and modulate the TV channels to video channel until it shows receiving pictures.
Hints：
After receiver connects the TV sets, you should change from TV to AV channels and
keep the transmitter away from other devices and metal devices to avoid effecting
wireless signal transmitter.
6. Allocation of 433MHz antenna
Please pay attention to the allocation of the 433MHz antenna. Make sure there is
no obstacle around the 433MHz antenna, especially metal obstacles which may
seriously impact wireless retransmission of IR signals.

Hints:
When arranging the transmitter and receiver, make sure there is no obstacle around
the 2.4G/2.4G antenna and the 433MHz antenna. Otherwise transmission of the
signal will be affected.
3. 433MHz Wireless IR Remote Extender
2.4G/2.4G Digital STB wireless sharing device needs no remote controller. If the STB
or other device is equipped with a remote controller, you can use it to remotely control
the receiver end to realize the function of wireless remote control from another place.
Transmitting RF：
1. Transmission frequency: 433.92MHz±200KHz Superheterodyne
2. Carrier frequency: 38KHz
3. IR signal Receiving: ≤10m
Receiving RF：
1. Transmission frequency: 433.92MHz±500KHz Superheterodyne
2. Carrier frequency: 38KHz
3. IR signal Transmitting:≤5m
1. Power switch
Pressing the power switch can switch on or off the power to the transmitter or
receiver and enable it to transmit or not transmit the signal.
Hints:
To ensure that the product can be used normally, the product should be connected when
power off In case the product be damaged. Switch on when finish connection and never
plug in or out at will. Please turn off the product if long time not use it.
2. 2.4GHz channel selection
Press the Channel switches can be free to choose 2.4GHz transmission channel.
AV signal can be transmitted normally only when the transmitter and the receiver are on
the same channel.
■2.4GHz /2.4GHz transmission channel(turn the switch down)：
Hints:
Please select the 2.4GHz transmission channel with the best image and sound effect
according to the actual operation environment. If there is interference from the router
signal in the environment, please select another 2.4GHz transmission channel to avoid
the interference source.
Hints:
If the Wireless IR Remote Extender is not sensitive, you can adjust the relative
locations of the transmitter and the receiver. Keep them away from the AV connection
wires or other metal objects to ensure barrier-free signal transmission.

1. If the indicator lamps do not light up and there is no image.
A. Please check the power connection of the transmitter and receiver, open the
power switch.
B. Please try to change the 2.4GHz transmission channel for the transmitter and the
receiver.
C. Please check if the transmitter and the receiver are connected correctly (Refer to
installation instruction).
2. IR remote controller fails to work.
A. Adjust the location of the transmitter and the receiver.
B. Plug out the transmitter and the receiver and restart 1~2 minutes later.
C. Please check whether the transmitter bulge 1-2 cm out of the STB or not.
3. The image is interfered.
A. Please adjust the angle of the antenna for 2.4GHz transmitter and the
receiver.
B. Please try to change the 2.4GHz transmission channel for the
transmitter and the receiver.
C. If allowed, please put the transmitter and the receiver in a higher place to
strengthen the wireless transmission.
Switch on only after finishing the connection and never plug in or out at will. The
product is for home use instead of professional industrial use. Please don’t take
apart without proper professional knowledge.
1. Warranty is only available to customers who buy this product
through legal approach.
2. After-sales promise：
Every customer designated dealers to buy products in our company, if there is
product quality problems under the normal use within 3 months from the day you
buy the machine, user can bring the valid credentials or sales invoice to the
original dealer where you bought it to replace the same model of the products.
If there are product quality problems within 12 months, you can request free
warranty (not including common accessories).
3. Additional fee will be charged in any of the following situations:
A. The warranty period is expired.
B. Failure or damage caused by connecting other device.
C. Failure or damage caused by repairing or transforming by yourself.
D. Failure or damage caused by not following the operation instructions of the
product.
E. Failure or damage caused by collision, falling or other non-quality problems.
F. Damage cause d by fi re, lightning stri ke or other unexpected disasters.
For repairing products which are damaged by the above situations, users should
bear the fee of replacement of the damaged components as well as the shipping fee.
Solemn Statement:
The manufacturer assumes no liability for irreversible damage or damages to other
devices caused by these situations.

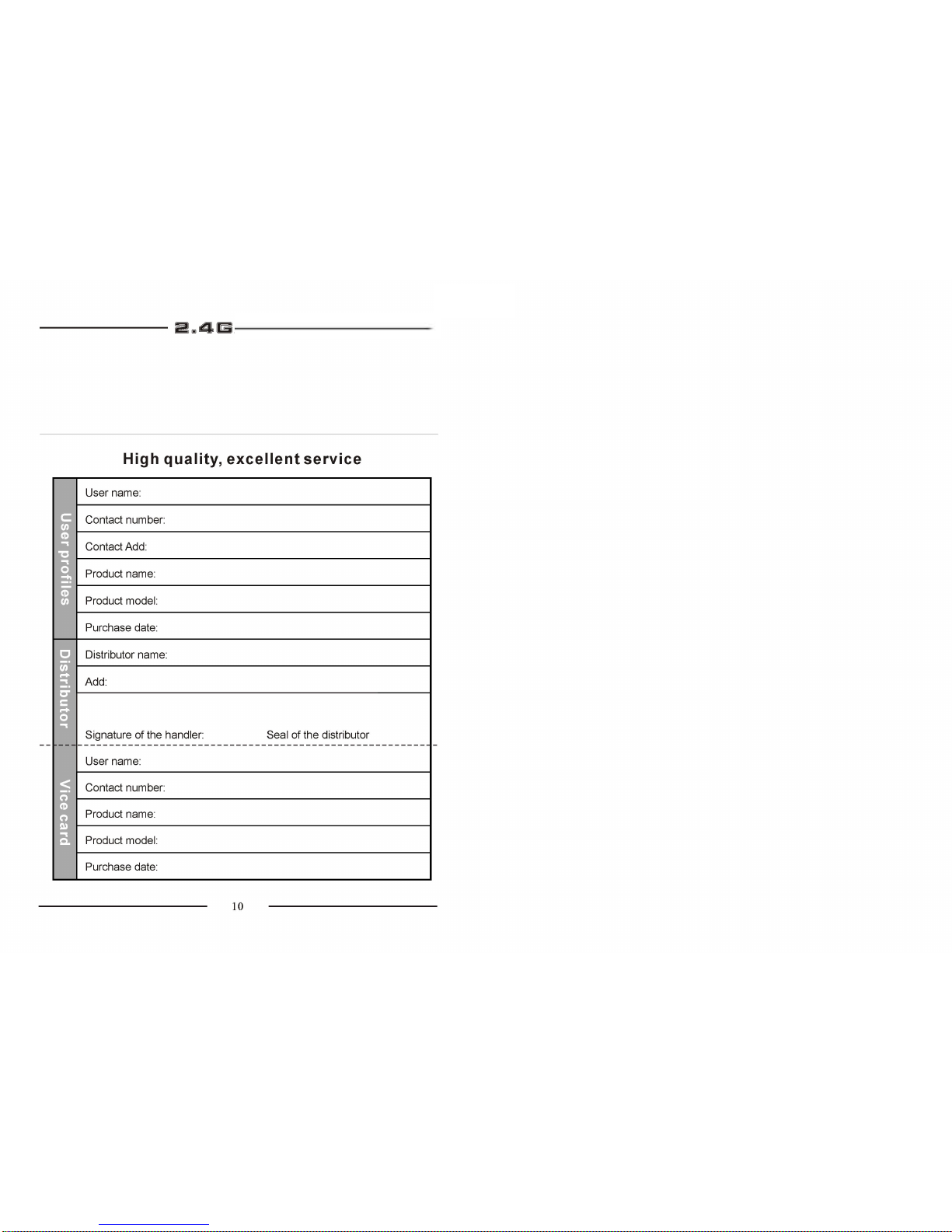

Dear user:
Thank you for buying this device. In order to ensure that you can fully enjoy our perfect
after-sale service of our company, please carefully read the comments of this product
service card.

Comments:
1. Please reserve this card carefully. If you lose it, you can not get another copy.
2. Please show this card together with your purchase receipt when applying for
warranty service.
3. This card is invalid without the seal of the distributor.
