Pakole GTV Series User manual

EN
www.pakole.com
PROPANE OR NATURAL GAS-FIRED GTV-TYPE
WARM AIR BLOWERS
GTV-68A
GTV-78A
GTV-87A
GTV-97A
GTV-107A
GTV-116A
Appliance types:
GTV-20A, C, CL
GTV-27A, C, CL
GTV-33A, C, CL
GTV-40A, C, CL
GTV-48A, C, CL
GTV-58A, C, CL
009_009-014_011_180712_V001_EN

GTV FORCED CONVECTION AIR HEATERS Contents
Contents
���������������������������������������������������������������������������������������������������������������������� 4
�������������������������������������������������������������������������������������������������������������������� 5
Data board ������������������������������������������������������������������������������������������������������������������������������������ 5
Corrosive materials ����������������������������������������������������������������������������������������������������������������������� 6
Standards and laws ���������������������������������������������������������������������������������������������������������������������� 6
Safety signs ���������������������������������������������������������������������������������������������������������������������������������� 6
Safe usage������������������������������������������������������������������������������������������������������������������������������������ 6
�������������������������������������������������������������������������������������� 7
��������������������������������������������������������������������������������������������������������������������� 7
Appliance types����������������������������������������������������������������������������������������������������������������������������� 8
����������������������������������������������������������������������������������������������������������������������������������� 9
Appliance installation �������������������������������������������������������������������������������������������������������������������� 9
Regulation possibilities ����������������������������������������������������������������������������������������������������������������� 9
Optional accessories������������������������������������������������������������������������������������������������������������������� 10
������������������������������������������������������������������������������������������������������������� 10
Ventilation ����������������������������������������������������������������������������������������������������������������������������������� 10
Protective distances�������������������������������������������������������������������������������������������������������������������� 11
������������������������������������������������������������������������������������������������������������������ 11
Start, restart �������������������������������������������������������������������������������������������������������������������������������� 11
Control and regulation of appliance �������������������������������������������������������������������������������������������� 12
����������������������������������������������������������������������������������������������������������������������������������� 13
Maintenance procedures ������������������������������������������������������������������������������������������������������������ 13
Gas change��������������������������������������������������������������������������������������������������������������������������������� 14
���������������������������������������������������������������������������������������������������������������������� 14
��������������������������������������������������������������������������������������������������������������������������������� 17
Enclosure 1 / A � : Appliance performance data �������������������������������������������������������������������������� 17
Enclosure 1 / B : Gas consumption��������������������������������������������������������������������������������������������� 18
Enclosure 2�: Appliance dimensions per types ��������������������������������������������������������������������������� 19
Enclosure 3�: Flue longs, allowed pressure drops ���������������������������������������������������������������������� 20
Enclosure 4�:Target countries/gas categories ����������������������������������������������������������������������������� 21
ECO-Design Declaration of conformity ��������������������������������������������������������������������������������������� 22

GTV FORCED CONVECTION AIR HEATERS User’s Manual
3
GENERAL SAFETY NOTICES
Disregard of instructions and notices of this Manual can cause serious bodily injuries or damages
as follows: burning, explosion, suffocation, carbon monoxide poisoning, electric shock and in extreme
case death!
This appliance can only be used and serviced by such persons who understood and follow the instruc-
tions of this Manual
If you need help or information concerning the appliances – for example installation guide or labels
etc. – in that case contact with the manufacturer!
that the children do not handle it and do not play with devices!
building materials, papers, or carton unites away from heater according to the instructions! Never
-
materials!
WARNING! This appliance can not be used in domestic circumstances or mobile home!
WARNING! For your safety, if you smell gas do the followings:
- Open windows.
- Do not try to light any appliance.
- Do not use electrical switches.
- Do not use any telephone in your building.
- Leave the building.
instructions.
- If you cannot reach your gas supplier, call the Fire Department.
for heating of industrial rooms! The function of these heater appliances to ensure heating of appointed workplace temporarily or continu-
ously! In case of proper using the appliance guarantees safety and energy-saving operation! The combustion products issued during
etc�! Concerning the detailed content of these standards the local Bureau of Standards can help�
Carbon- monoxide poisoning:
and/or nausea! If these symptoms are observed in that case the appliance probably does not work satisfactorily! First of all go fresh air,
ventilate the rooms and have the appliance investigated!
Propan-gas: The propan-gasis odourless! Mercaptan-derivative as scented component is mixed into the gas to be able to observe the
possible escape! In spite of the typical smell is not felt the propan gas can be present in the environmental air in case of escaping!
Read and understand this manual thoroughly before installing starting or servicing this equipment. The
improper installation or using can cause serious damages! Keep this manual in a safe place in order to
obtain information in case of incidental problems!
1.

GTV FORCED CONVECTION AIR HEATERS User’s Manual
4
Make sure that read and understood all the warnings, correct keeping of which can guarantee the safety and faultless operation !
During the installation be always circumspect! Follow the valid instructions and recommendations!
protection!
The appliance must not be used in the open air!
The application of device is STRICTLY PROHIBITED in such rooms, which are used for sleep or continuous stay!
In the interests of avoiding of dust explosion do not used the device in such rooms where the degree of dust concentration is
high if the device is installed without outside air supply!
In case of Propan-gas operation never install the device in basement or from that lower being rooms! The propan-gas is heavier
Before every starting of heater appliance check the condition of connecting gas hose and if it is particularly worn or damaged in
• Fix the appliance on such stable surface, which during operation despite warming of appliance preserves its stability !
Never block the air supply and exhaust pipes!
Never service/mend such devices, which are hot and during operation or electrical charged!
Never mount such air duct unit on front or back side of device, which is not approved by manufacturer!
kind of substitute parts can cause serious damages concerning the operation of appliance!
• Fix the appliance on such stable surface, which during operation despite warming of appliance preserves its stability !
Never block the air supply and exhaust pipes!
Never service/mend such devices, which are hot and during operation or electrical charged!
Never mount such air duct unit on front or back side of device, which is not approved by manufacturer!
kind of substitute parts can cause serious damages concerning the operation of appliance!
-
1. picture: Data board
2.
Data board
II2H3B/P
PAKOLE Trade Kft.
8000 Székesfehérvár,
Börgöndi út 8–10.
Pconnecting min.:
20 mbar
218,5 VA
Category:
Electrical power:
30 Pa
Stat. air pressure:
2270 m³/h
Manufacturer
Type
Nominal input:
20,25 kW
Naturalgas
Pconnecting max.:
51-7432-4272
Series number:
RS
Targeted country:
1008 17
Gas type:
Electrical protection:
Electrical connection:
Max.current entry:
IP20
AC 230V 50Hz
Dat e/place of production
2017.01.24.
60 mbar
1,3 A
Airflow:
Jet pressure:
7 mbar
GTV-20A
NOx
4
PIN:
1008 CQ 2928

GTV FORCED CONVECTION AIR HEATERS User’s Manual
5
WARNING! Do not use the appliance in such place where corrosive materials can be in the air!
If the appliance has to be applied in this circumstances outside air has to be ensured for combustion
air and circulation as well („CL” type)!
This responsibility concerns completely the installer�
materials, halo hydrocarbons etc�), and with knowledge of these materials must be planed the heater system!
-
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
CAUTION
!
DANGEROUS
OPERATION
CAUTION
!
DANGEROUS
OPERATION
CAUTION
!
HIGH
TEMPERATURE
CAUTION
!
DISCONNECT
POWER LINE
ATTENTION
!
COMPULSORY:
EARTHING
ATTENTION
!
THE USIGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
!
COMPULSORY:
USE PROTECTIVE
GLOVES
ATTENTION
!
ONLY
QUALIFIED
PERSON
ATTENTION
!
FORBIDDEN!
CAUTION
!
DANGER
!
ATTENTION
!
ONLY
QUALIFIED
PERSON
Installation must be carried out always strictly complying with the current standards of the
country where the appliance is going to be used and following, of course, the instructions given by
the producer�
trained personnel only�
-
-
tions�
ATTENTION
!
COMPULSORY:
EARTHING
ATTENTION
!
ONLY
QUALIFIED
PERSON
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
Always make sure that the unit and all its electrical parts have been cor-
rectly earthed prior starting up the unit�
CAUTION
!
DANGER
!
ATTENTION
!
ONLY
QUALIFIED
PERSON
ATTENTION
!
COMPULSORY:
USE PROTECTIVE
GLOVES
If you have to disassemble the unit, use special protective gloves�
Beware of sharp edges inside the unit!
Beware of roof corners of outdoor units!
Keep suction grids always clear!
CAUTION
!
DANGER
!
CAUTION
!
DANGEROUS
OPERATION
ATTENTION
!
FORBIDDEN!
Before cleaning or maintaining the unit, make sure that all electrical parts
and cannot be inadvertently started prior to opening inspection panels�
in the electric fan�
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
CAUTION
!
DISCONNECT
POWER LINE
We recommend to install a safety switch which can be easily reached to
-
Before opening the unit, make sure that all electrical parts have been
-
vertently started prior to opening inspection panels�
CAUTION
!
DANGER
!
Should the unit work in a house where disabled people and/or children live, it must be placed safely away from their
reach� Always make sure that the access door to the inside control board stay locked�
An incorrect installation can cause damages to people, animals and property� In case of erroneous installation, the manu-
facturer cannot be held responsible for such damages�
• The manufacturer cannot be held responsible for such damages by improper uses, errate uses, etc.
Corrosive materials
Standards and laws

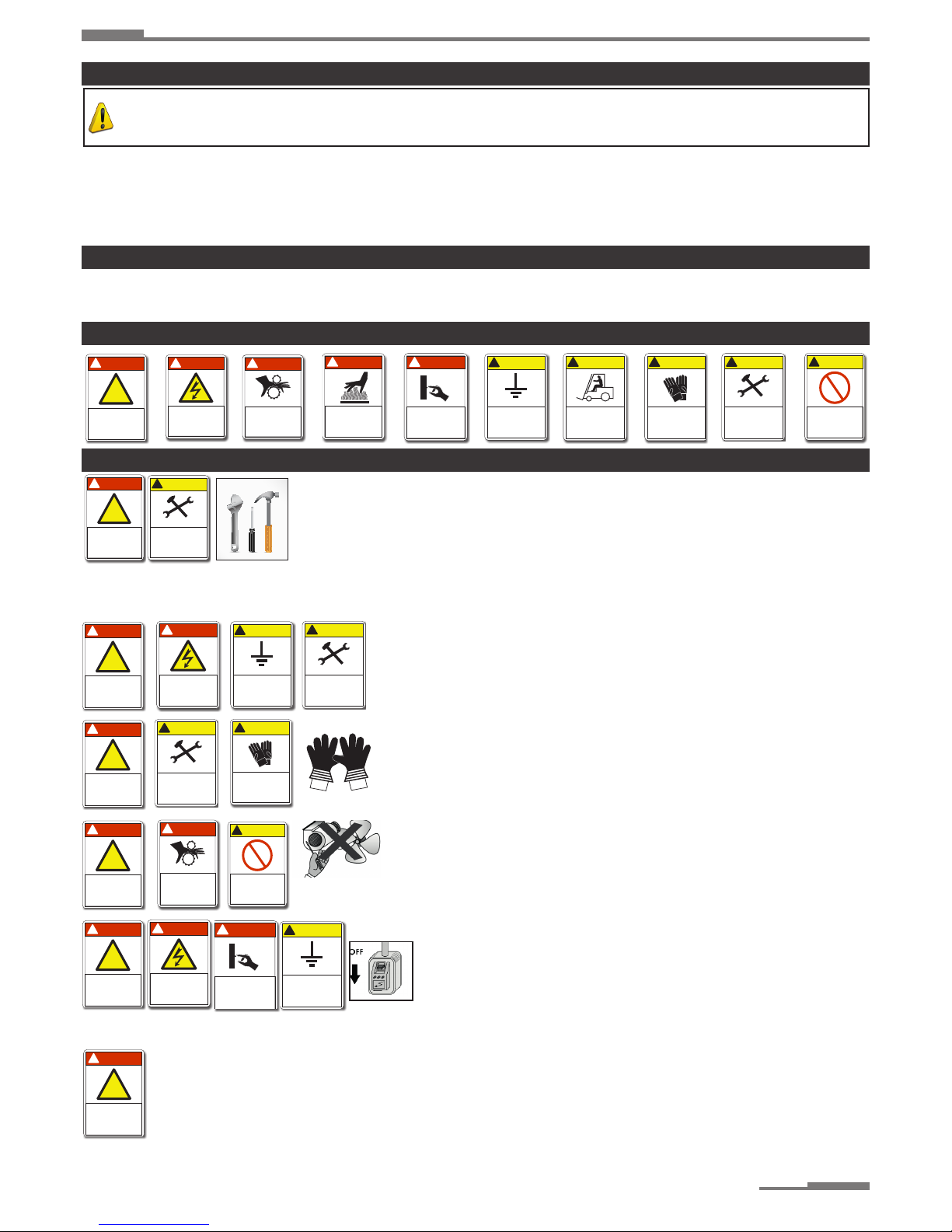

Safety signs
Safe usage
ATTENTION
!
COMPULSORY:
EARTHING

GTV FORCED CONVECTION AIR HEATERS User’s Manual
6
ATTENTION
!
FORBIDDEN!
Never leave tools, spare parts, etc� inside the unit�
Make sure that all inspection panels are closed properly�
ATTENTION
!
ONLY
QUALIFIED
PERSON
harm to anyone in any way�

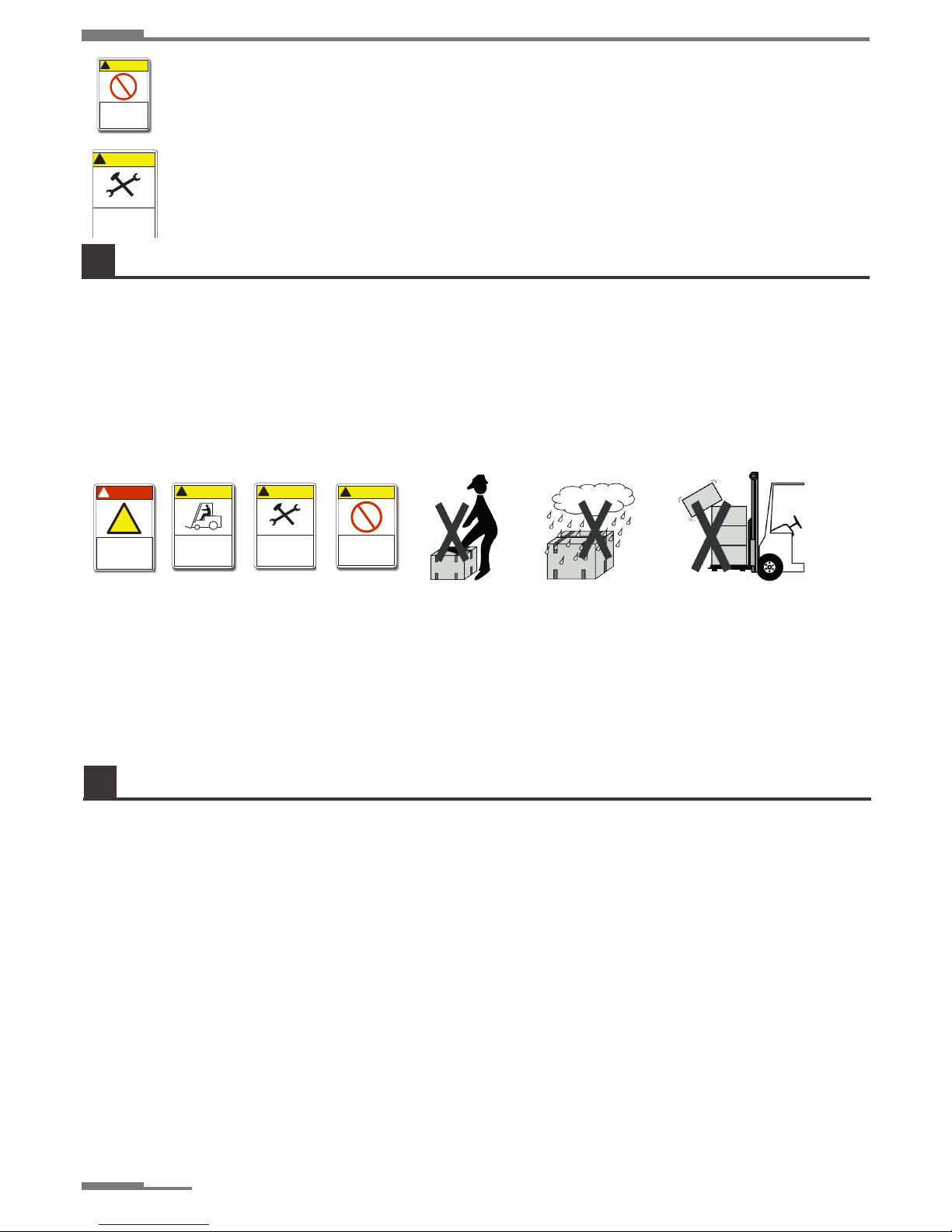

The delivery must be made according to the following:
The package must be carefully secured in the loading space�
The package must be transferred in a closed space (always keep packing parts away environmental impacts)�
The unit has a special safety packing for transport and delivery which must be kept in good conditions till the unit is positioned
on the installation place�
Check if there are any damages and if the unit abbreviation is the same as the one of the ordered model�
Every unit is factory tested before shipment, therefore, if there are damages, report them immediately to the carrier�
CAUTION
!
DANGER
!
ATTENTION
!
THE USIGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
!
FORBIDDEN!
ATTENTION
!
ONLY
QUALIFIED
PERSON
The device is placed in cardboard box, one-way pallets are delivered�
Unpacking process:
side of pallet hereby the device can be removed from pallet�
do not remove the protection caps from device and gas installing set until the gas attachment
investigate the device if it is not damaged during the transportation
if it is damaged in that case notify the retailer from whom the device was bought!
-
vices and the warranty documents�
The appliance operates based on direct heater principle, that means the heater air is blowed into the heated room directly for assuring of
Principle: The warm air blower appliance burns up the sucked mixture of combustion air and gas (S-,L-,Propan or natural gas), in this
way making the heater air,which is blowed into the heated room (by direct blowing or through air duct) in order to ensure the keeping of
The heating and consumption values to be found as per appliance and gas types in the enclosure 1.b.
The supply of combustion air of appliance can be realized in two ways:
directly from the heated place (A,C)
from open air (CL), it can be used in case of such plants, which are working with dangers materials as follows: painting work-
shops and workshops,which are using explosive or corrosive materials etc…
fan circulates the sucked inside or outside air through the heat exchanger assuring the needed warm air for heating� (the heater air is
average 50°C)
The air supply of blower fan can be solved in two ways:
by direct sucking in from the heated place (A, C, CL types),
by sacking in from outside (CL type)�
The made warm air can be passed into the heated place in two ways:
by direct blowing in through the leading lamellas (A, C types),
by blowing in and leading through air duct to the demanded places (in this case there are no lamellas on the device)�Such as
the C and CL type of GTV�
The technical data of appliance can be found in the enclosure 1.
3.
4.

GTV FORCED CONVECTION AIR HEATERS User’s Manual
7
The overal dimension of appliances are in enclosure 2�
Features:
suction in of heater air is executed from the heated place, it can not be connected to air duct
owing in of warm air is executed directly through the air leading lamellas
Features:
suction in of heater air is executed from the heated place,
blowing in of warm air is executed directly through the air leading lamellas or through the attached air duct to the demanded
places
5. picture: Axial fan-type warm air blower
6. picture: Centrifugal fan-type with lamella execution
Features:
suction in of heater air can be from inside or outside respectively in case of installed „winter-summer” mode relay the suction
in of mixed inside-outside air is executed through air duct
blowing in of warm air is executed through the attached air duct system to the demanded places
7/a. picture: Centrifugal fan-type with air duct execution
Appliance types

GTV FORCED CONVECTION AIR HEATERS User’s Manual
8
7/b. picture: Air duct execution at „CL” type
installation is possible,
the mounting of appliance can be executed by cantilever respectively suspension
the appliance has to be placed in that way that its every part be accessible�
5.
Appliance installation
8. picture: Electrical connection for 5- or 6-pole plug
9. picture: Possible regulation mode controlled by AHP-1-type thermostat
Regulation possibilities
L
N
AHP-2
AHP-1
V
1
típusú hőms.
szab. esetén
Nem a készülékhez
rendszeresített hőms.
szab. esetén
V
2
V
N
L
V1
N
L
AHP-1
AHP-2
típusú hőm.
szab. esetén
Nem a készülékhez
rendszeresített hőm.
szab. esetén
V2
V
N
LFázis
Védőföld
Dióda
1N4007
Vezérlőszál
Nulla
Jelmagyarázat
vezérelt fázis
AHP...
Legend
LPhase
Ground
Null
Diode
VControl
Legend
LPhase
Ground
Null
VControl
At other type ter-
mostat
AHP...
At other type
termostat
Control
phase
Two-pole
isolating
switch
Air-heater
termostat
phase
null
earth
control

GTV FORCED CONVECTION AIR HEATERS User’s Manual
9
Recommended temperature regulators for appliances:
21. picture: AHP-1, AHP-2, AHP-3, AHP-Mod type of termostat
Optional accessories
24. picture: Possible regulation mode controlled by AHP-2-type thermostat
termostat + sensor
phase
null
earth
control
This type of control is the so-called PILOT control, at which the communication between the programme clock and warm air blower is
transmitted control signals from the temperature regulator – transmitted by the mentioned control cable – and as a function of these
Two-pole
isolating
switch
Air-heater
The appliance operates either using of inside air or outside air respectively inside-outside mixed air,which can be sucked in through of
located air duct system�
If the appliance uses indoor air than need replace the air by ventilation�
6.
Ventilation

GTV FORCED CONVECTION AIR HEATERS User’s Manual
10
and distances!
Minimal dimensions of protective distances:
25. picture: Protective distances
Protective distances
The properly installed appliance according to the control sign received from temperature regulator - in the present case heating – starts
the exhaust fan,which executes the 30 seconds prepurge time� This time period is also enough for biggest power appliance to ensure
the satisfactory air exchange namely the triple of combustion air volume� When the ventilation happened the sparking is started and the
dual magnetic valves are opened the gas ignites�
If the continuous burning is formed within 5-10 seconds the appliance is operating normally the green control lamp is lighting��During
control intervenes in the process�
-
sic/standstill position in that case the automatic electronic control stops the gas supply by closing of magnetic valves and controls the
appliance in error mode moreover the red control lamp located on front side of device is lighting�
and controls the appliance in error mode moreover the red control lamp is lighting�
the automatic control prohibits the operation as follows:
stops the gas supply
stops the operation of exhaust fan
controls the appliance in error mode and red control lamp is lighting
ATTENTION! The restart of appliance, which is in safety status can only be possible by
pushing of „RESET” push button located on the PCB (inside of appliance) or on the tem-
perature regulator!
General information:
7.
Start, restart

GTV FORCED CONVECTION AIR HEATERS User’s Manual
11
-
appliance according to the temperature�
-
and weekly programming possible�
this way the air heater and the thermostat can communicate by one wire, it is the so-called PILOT control�
AHP-3:
The appliance is controlled by a HEATING/0/COOLING selector and RESET button� It has a time switch� Use the two rotatable knob to
set the temperature� Thermostat can TURN ON and TURN OFF the appliance, it depends on the room temperature� You have a chance
daily and weekly programming with time switch�
Thermostat and appliance: Appliance is under voltage with selector� In this case the green lamp is lighting and you can chose from he-
ating or cooling mode�
Operation:
In heating mode, use the knob to set the maximal pressure (2 red lamp is lighting) and after turn the buttun back (50 % LED is lighting)
Control and regulation of appliance
42.picture: AHP-1 and AHP-2 temperature regulator 43.picture: AHP-3 and AHP-MOD temperature regulator
L
N
L1 L2
E
1 2 1G 2 PE
L
N
L1
N1
S1
AHP-MOD:
Controller has HEATING / 0 / VENTILATION switch, „RESET” button, MODULATION/100% switch and has PROGRAM HOURS� Set
day and night temperature by two calibrated rotary knobs� The programmable thermostat turn on device depending on the time of day if
Set control device: turn on the device by switch 0/1 (green LED lights up) Turn on HEATING by HEATING / VENTILATION mode
switch�
Setting mode: In heating mode set the knob to 30°C then the device working at 100%� Set the solenoid valve at maximum upper pres-
valve at minimum pressure� After that set the room temperature value�
ATTENTION! The GTV warm air blowers can be operated by AHP-1 and AHP-2-type tem-
perature regulator, which may be purchased at appliance manufacturer . In case of us-
ing different temperature regulator, please contact with the manufacturer in interest of
proper installation!

GTV FORCED CONVECTION AIR HEATERS User’s Manual
12
The GTV-type warm air blowers apart from the checking of suspension and cleaning of cover, lamellas and circulating fan do not need
extra maintenances but to be able to preserve the long lifetime of appliance it is recommended to have yearly supervision done with a
Maintenance supervisions by the costumer: (recommended half a yearly)
supervision of circulating fan, if needed clean it (by high pressure air),
supervision of outblowing apertures (lamellas)
supervision of suspension points/surfaces by survey
WARNING! Before every maintenance the appliance must be detached from the electrical supply
by switching off the main-switch and disconnecting the connection plug located on the back side
of appliance!
ATTENTION! In case operational circumstances of appliance (atmosphere is contaminated with cor-
rosive substances,dirt) need it, then supervision and cleaning may have done more often! The main
Maintenance procedures
10.
check of the condition of pressure regulator
check of the protective ground
check of the electrical connection
check of the exhaust fan and circulating fan: check the free rotation of fan and remove the possible contaminations from the
impellers
supervision of the heat exchanger
supervision of working of the temperature controller
check of the exhaust fan and circulating fan, if necessary clean those
ATTENTION! After every maintenance the appliance must be again adjusted !
Constructional components,which ensure the suitable operation:
• double-closed solenoid valve
• automatic burner control
• electrical board (sign processing)
•
• exhaust fan
• combined thermostat (bimetal),
• heat-limiter thermostat (100oc),
• circulating fan
Never change the original adjustments what the expert made!
Never allow that water or water –vapour can be got on the appliance!
Apart from cleaning of exhaust fan and circulating fan the a�m� components do not need maintenance! The cleaning of fans is expe-
dient to carry out by high pressure air�

GTV FORCED CONVECTION AIR HEATERS User’s Manual
13
ATTENTION! In case you would like to operate your appliance by another type of gas(e.g. by Natural
department!
Gas change
ATTENTION! This action can only be realized by outhorized expert or service!
ATTENTION! If the heater appliance is working, than it is prohibited to close the shutters completely!
There are installed mode indicator lamps on the front side of appliance:
• GREEN: operation indicator lamp
• RED: error indicator lamp
11.

GTV FORCED CONVECTION AIR HEATERS User’s Manual
14
12.
Modell GTV-20A GTV-27A GTV-33A GTV-40A GTV-48A GTV-58A
Inpout (NCV) kW 20,25/13,5 27,05/18,12 33,4/22,38 40,35/27,03 47,3/31,69 58,8/39,4
Outpout (NCV) kW 18,6/12,2 24,9/16,4 30,8/20,2 37,2/24,4 43,6/28,6 54,3/35,6
Effeciency [3 pont/Mod] % 72,7/73,4 72,8/73,6 72,6/73,4 72,7/73,5 72,7/73,5 72,8/73,5
Gas Consumption Natural gas m3/h 2,15/1,44 2,87/1,92 3,54/2,37 4,27/2,86 5,01/3,36 6,23/4,17
Propan kg/h 1,67/1,12 2,23/1,49 2,76/1,85 3,33/2,23 3,9/2,61 4,85/3,25
Air flow m3/h 2350 2900 3600 4300 5200 6100
Quanity of pressure db 1 1 1 1 1 1
Different of air temperature ∆T [max/min] °C 25,2 25,6 25,1 24,8 25,7 25,3
Air throw m 12 16 18 20 22 25
Exhaust pipe / air supply diameter mm Ø100/Ø100
Gas connection G1/2” ISO 228 OD
Electrical connection 230V / 50Hz
Nominal current consumption A 0,9 0,9 1,77 1,77 1,9 1,9
Electrical performance W 0,21 0,21 0,41 0,41 0,44 0,44
Noise level dB(A) 53 53 55 55 55 57
Weight kg 64 86 95
IP protection of device IP21
Modell GTV-68A GTV-78A GTV-87A GTV-97A GTV-107A GTV-116A
Inpout (NCV) kW 68,03/45,58 79,1/53,0 85,48 98,9 103,4 118,8
Outpout (NCV) kW 63,1/41,7 72,9/48,3 78,9 91,0 95,2 109,1
Effeciency [3 pont/Mod] % 73,5/74,3 72,4/73,2 - - - -
Gas Consumption
Natural gas m3/h 7,21/4,83 8,38/5,61 9,06 10,48 10,95 12,58
Propan kg/h 5,61/3,76 6,53/4,37 7,05 8,16 8,53 9,80
Air flow m3/h 7300 8100 8300 8300 11000 11000
Quanity of pressure db 1 1 1 1 1 1
Different of air temperature ∆T [max/min] °C 24,2 26,2 25,1 26,2 25,4 26,2
Air throw m 33 33 35 35 37 37
Exhaust pipe / air supply diameter mm Ø100/Ø150
Gas connection G3/4” ISO 228 OD
Electrical connection 230V / 50Hz
Nominal current consumption A 4,15 4,15 4,15 4,15 4,25 4,25
Electrical performance W 0,95 0,95 0,95 0,95 0,98 0,98
Noise level dB(A) 67 69 72
Weight kg 148 167 198
IP protection of device IP21
Enclo sur e 1 / A . : Appl ian ce p erfor man ce d ata

GTV FORCED CONVECTION AIR HEATERS User’s Manual
15
Enclosure 1 / B : Gas consumption
Modell GTV-20C,CL GTV-27C,CL GTV-33C,CL GTV-40C,CL GTV-48C,CL GTV-58C,CL
Inpout (NCV) kW 20,25/13,5 27,05/18,12 33,4/22,38 40,35/27,03 47,3/31,69 58,8/39,4
Outpout (NCV) kW 18,6/12,2 24,9/16,4 30,8/20,2 37,2/24,4 43,6/28,6 54,3/35,6
Effeciency [3 pont/Mod] % 72,7/73,4 72,8/73,6 72,6/73,4 72,4/73,6 72,7/73,5 72,8/73,5
Gas Consumption
Natural gas m3/h 2,15/1,44 2,87/1,92 3,54/2,37 4,27/2,86 5,01/3,36 6,23/4,17
Propan kg/h 1,67/1,12 2,23/1,49 2,76/1,85 3,33/2,23 3,9/2,61 4,85/3,25
Air flow m3/h 2350 2900 3600 4300 5200 6100
Quanity of pressure db 1 1 1 1 1 1
Different of air temperature ∆T [max/min] °C 25,2 25,6 25,1 24,8 25,7 25,3
Air throw m 12 16 18 20 22 25
Exhaust pipe / air supply diameter mm Ø100/Ø100
Gas connection G1/2” ISO 228 OD
Electrical connection 230V / 50Hz
Nominal current consumption A 7,9/4,1 7,9/4,1 8,3/5 8,3/5 9,2/6 9,2/6
Electrical performance kW 943 943 1150 1150 1380 1380
Noise level dB(A) 56 58 56 58 58 58
Weight C kg 70 93 121
Weight CL kg 75 98 126
IP protection of device IP21
Type
Input Output Gas consumption
2 point 3 point/
modulation 2 point 3 point/
modulation 2 point 3 point/
modulation 2 point 3 point/
modulation
[kW] [kW] Natural gas [m3/h] Propan [kg/h]
GTV-20 20,25 20,25/13,5 1,6 18,6/12,2 2,15 2,15/1,44 1,67 1,67/1,12
GTV-27 27,05 27,05/18,12 24,9 24,9/16,4 2,87 2,87/1,92 2,23 2,23/1,49
GTV-33 33,4 33,4/22,38 30,8 30,8/20,2 3,54 3,54/2,37 2,76 2,76/1,85
GTV-40 40,35 40,35/27,03 37,2 37,2/24,4 4,27 4,27/2,86 3,33 3,33/2,23
GTV48 47,3 47,3/31,69 43,6 43,6/28,6 5,01 5,01/3,36 3,90 3,9/2,61
GTV-58 58,8 58,8/39,4 54,3 54,3/35,6 6,23 6,23/4,17 4,85 4,85/3,25
GTV-68 68,3 68,03/45,58 63,8 63,1/41,7 7,21 7,21/4,83 5,61 5,61/3,76
GTV-78 79,1 79,1/53,0 72,9 72,9/48,3 8,38 8,38/5,61 6,53 6,53/4,37
GTV-87 85,48 - 78,9 - 9,06 - 7,05 -
GTV-97 98,9 - 91,0 - 10,48 - 8,16 -
GTV-107 103,4 - 95,2 - 10,95 - 8,53 -
GTV-116 118,8 - 109,1 - 12,58 - 9,80 -
* The 2-point regulaon’s appliance does not have an energy cercate.

GTV FORCED CONVECTION AIR HEATERS User’s Manual
16
200
200
Enclosure 2.: appliance dimensions per types
Type A a b M e
GTV -20A 470 370 625 700 135
GTV -27A 470 370 625 700 135
GTV -33A 610 510 625 805 187
GTV-40A 610 510 625 805 187
GTV-48A 750 650 625 805 252
GTV-58A 750 650 625 805 252
Type A a b M e
GTV-68A 810 700 840 970 238
GTV-78A 810 700 840 970 238
GTV-87A 960 850 840 970 318
GTV-97A 960 850 840 970 318
GTV-107A 1110 1000 860 990 412
GTV-116A 1110 1000 860 990 412
Type A a b M e
GTV-20C 470 370 625 990 135
GTV-27C 470 370 625 990 135
GTV-33C 610 510 625 1040 187
GTV-40C 610 510 625 1040 187
GTV-48C 750 650 625 1110 252
GTV-58C 750 650 625 1110 252

GTV FORCED CONVECTION AIR HEATERS User’s Manual
17
chart shows!
Enclosure 3.: Flue longs, allowed pressure drops
Type A a b c d M D e
GTV-20CL 470 350 600 350 500 1050 50 135
GTV-27CL 470 350 600 350 500 1050 50 135
GTV-33CL 610 500 600 400 550 1100 50 187
GTV-40CL 610 500 600 400 550 1100 50 187
GTV-48CL 750 650 600 450 600 1150 50 252
GTV-58CL 750 650 600 450 600 1150 50 252
Type GTV-20A, C, CL GTV-27A, C, CL GTV-33A, C, CL GTV-40A, C, CL GTV-48A, C, CL GTV-58A, C, CL
Venng set
type Maximal lenght of venting set Ø 100 mm [m]
B22 3 4 6 6 8 8
C12 3 4 6 6 8 8
C32 3 4 6 6 8 8
C52 3 4 6 6 8 8
Venng set
type Maximal pressure drop of venng set Ø 100 mm [Pa]
B22 6 8 12 12 16 16
C12 6 8 12 12 16 16
C32 6 8 12 12 16 16
C52 6 8 12 12 16 16
See the following:
the pressure drop of 1m inox Ø100mm pipe is 2Pa
Supplement: The fresh air supply and venting set can contain an elbow 90°� In case of use more elbows, you need to reduce the length
of fresh air supply and venting set, as follow:
It is allowed to use longer fresh air supply and venting set with isolation and condensate outlet. In
this case, contact the manufacturer!

GTV FORCED CONVECTION AIR HEATERS User’s Manual
18
Enclosure 4.:Target countries/gas categories
Modell Appliance
category
Gas pressure
of connection (mbar) Target countries
GTV-20A, C, CL
GTV-58A, C, CL
GTV-68A ... GTV-116A
I2H 20 DK, EE, FI, LT, LV, NO, SE
I2E 20 LU, DE
I3P
37 BE, FR
50 CY, DE
I2H3P
20, 28-30 BA, BG, MD, RO,
RU, SK, UA, HR, RS
20, 37 CH, ES, GB, IE, PT, SI
20, 28-30, 37 CZ, GR, IT
20, 50 AT, TR
I2E3P 20, 37 PL
GTV-20A, C, CL...
GTV-58A, C, CL I2HS3P 25, 28-30, 50 HU
GTV- 68A... GTV-116A
I2H3P 25, 28-30, 50 HU
I3P 50 NL
Type GTV-68A GTV-78A GTV-87A GTV-97A GTV-107A GTV-116A
Venng set
type Maximal lenght of venting set Ø 100 mm [m]
B22 12 14 16 18 20 20
C12 12 14 16 18 20 20
C52 12 14 16 18 20 20
Venng set
type Maximal pressure drop of venng set Ø 100 mm [Pa]
B22 24 28 32 36 40 40
C12 24 28 32 36 40 40
C52 24 28 32 36 40 40

ECO-Design Megfeleősségi nyilatkozatok
Model: GTV-20A / C / CL-3P 3-point controlled gas-red forced convecon air heater with axial fan
B1Warm air heater: No
C2Warm air heater: No
C4Warm air heater: No
Type of fuel: Gas
Item Symbol Value Unit Item Symbol Value Unit
Capacity Useful eciency
Rated
heang capacity Prated,h 18,59 kW Useful eciency at rated
heang capacity hnom 82,73 %
Minimum
capacity Pmin 12,22 kW Useful eciency at minimum
capacity hpl 81,19 %
Electric power consumpon Other items
At rated heang
capacity elmax 0,068 kW Envelope loss factor Fenv 0,0 %
At minimal
capacity elmin 0,050 kW Ignion burner power
consumpon Pign 0,0 kW
In standby
mode elsb 0,0 kW
Regulaon (EU) 2016/2281
Emission eciency hs,ow 94,21 %
Seasonal space heang energy
eciency hs,h 72,7 %
Model: GTV-20A / C / CL-MOD Modulated Indirect gas-red forced convecon air heater with axial fan
B1Warm air heater: No
C2Warm air heater: No
C4Warm air heater: No
Type of fuel: Gas
Item Symbol Value Unit Item Symbol Value Unit
Capacity Useful eciency
Rated
heang capacity Prated,h 18,59 kW Useful eciency at rated
heang capacity hnom 82,73 %
Minimum
capacity Pmin 12,22 kW Useful eciency at minimum
capacity hpl 81,19 %
Electric power consumpon Other items
At rated heang
capacity elmax 0,068 kW Envelope loss factor Fenv 0,0 %
At minimal
capacity elmin 0,050 kW Ignion burner power
consumpon Pign 0,0 kW
In standby
mode elsb 0,0 kW
Regulaon (EU) 2016/2281
Emission eciency hs,ow 94,21 %
Seasonal space heang energy
eciency hs,h 73,4 %
Contact
details PAKOLE Trade K. H-8000, Székesfehérvár, Börgöndi út, 8-10

Model: GTV-27A / C / CL-3P 3-point controlled gas-red forced convecon air heater with axial fan
B1Warm air heater: No
C2Warm air heater: No
C4Warm air heater: No
Type of fuel: Gas
Item Symbol Value Unit Item Symbol Value Unit
Capacity Useful eciency
Rated
heang capacity Prated,h 24,94 kW Useful eciency at rated
heang capacity hnom 83,09 %
Minimum
capacity Pmin 16,40 kW Useful eciency at minimum
capacity hpl 81,55 %
Electric power consumpon Other items
At rated heang
capacity elmax 0,068 kW Envelope loss factor Fenv 0,0 %
At minimal
capacity elmin 0,050 kW Ignion burner power
consumpon Pign 0,0 kW
In standby
mode elsb 0,0 kW
Regulaon (EU) 2016/2281
Emission eciency hs,ow 93,70 %
Seasonal space heang energy
eciency hs,h 72,8 %
Model: GTV-27A / C / CL-MOD Modulated Indirect gas-red forced convecon air heater with axial fan
B1Warm air heater: No
C2Warm air heater: No
C4Warm air heater: No
Type of fuel: Gas
Item Symbol Value Unit Item Symbol Value Unit
Capacity Useful eciency
Rated
heang capacity Prated,h 24,94 kW Useful eciency at rated
heang capacity hnom 83,09 %
Minimum
capacity Pmin 16,40 kW Useful eciency at minimum
capacity hpl 81,55 %
Electric power consumpon Other items
At rated heang
capacity elmax 0,068 kW Envelope loss factor Fenv 0,0 %
At minimal
capacity elmin 0,050 kW Ignion burner power
consumpon Pign 0,0 kW
In standby
mode elsb 0,0 kW
Regulaon (EU) 2016/2281
Emission eciency hs,ow 93,70 %
Seasonal space heang energy
eciency hs,h 73,6 %
Contact
details PAKOLE Trade K. H-8000, Székesfehérvár, Börgöndi út, 8-10
This manual suits for next models
24
Table of contents
Other Pakole Blower manuals
