Palsonic MODEL 5910PF User manual

PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL:[phone]
FAX:[phone]
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA:1300 657 888
59CM CORDLESS REMOTE COLOUR TELEVISION
MODEL: 5910PF
OWNER'S MANUAL
Type Tested
Electrical
Safety
AS/NZS 3250 Lic 4166
Standards Australia
APP No: N15899
PURE FLAT HI-VISION TELEVISION

.
.
.
.
.
.
.
.
.
1. Digital Colour Transient Improver (CTI)
Enhance the tint and make the original picture brighter and fresher
2. 3H digital comb filter
To attain the complete separation of brightness and colour signals. To reduce colour
interface, blurry and dotted interruptions. To make the picture clearer.
3. Digital Luminance Transient Improver (LTI)
Adopts the digital delay line and achieves the outline correction. To make the picture
clearer and better definition.
4. Black level stretch circuit
To extend the dynamic scope of the picture.
5. Scan Velocity Modulation & white peak suppressed circuit
To enhance lines and borders-between bright and dark images. To improve the focus of the
picture white peak and white characteristics, to make the picture and letters brighter and
clearer.
Main features
59cm pure flat picture tube
PAL/NTSC/SECAM Multi - System
Hyperband
ENGLISH/CHINESE on - screen menu display
Surround sound and super woofer
Three groups of S-VIDEO/VIDEO/AUDIO input terminals and one group of MONITOR
output terminals
Auto/manual search
OFF timer and ON timer, Auto-Power-Off & blue background display
Advanced 5D picture improvement circuit

Congratulations on your purchase of this colour PURE FLAT Hi -Vision
Palsonic television receiver.
We recommend that you thoroughly read this manual before use to fully enjoy the
many functions and excellent effects of this receiver.
Retain is manual in an easily accessible location for future reference.
Contents
Main features
Notes for operation ....................................................................................................
Installation and appearance ..................................................................................... 2
3
Antenna connection ....................................................................................
Battery installation .....................................................................................
Apperance ...............................................................................................
The remote controller ..................................................................................
3
3
4
5
Operation ................................................................................................................... 6
Switching on/off ..........................................................................................................................
Preseting channels .......................................................................................................................
Channel selection ........................................................................................................................
Picture and sound adjustment .....................................................................................................
Other functions ............................................................................................................................
6
7
10
11
14
External equipment connections .............................................................................. 16
Trouble shooting ........................................................................................................ 18
Specifications ............................................................................................................. 18
1

NOTES FOR OPERATION
* Do not let the TV set be in standby condition for a long period of time. When it is not in use,
please turn off the power supply and remove the power plug. When it is to be left for a
prolonged period of time, it is recommended to disconnect the connection to the outdoor
aerial, to avoid thunder strike.
* Please follow cautions for safety in the TV set instructions, and all warnings and descriptions denoted
on the TV set.
Cautions For Safety
2
Note: This TV set can be operated on an AC power of 240V, 50Hz. You should not use power
supply of the other type.
When an unusual situation
occurs, turn off the power
switch at once and remove the
plug from the wall outlet.
Contact a qualified service
department in your local area.
Do not expose the TV set to
rain or excessive moisture, to
prevent tire disaster or
electric shock. Avoid using
the set in very warm or damp
places. Never use it in a
bathroom.
There exists High Voltage in
this TV set. Do not remove
the cover to avoid danger.
The TV set should be placed
on an adequate place without
exposing it to direct sunlight
and other sources of heat to
prevent the deformation of the
cabinet or damage to
components.
When the TV set is to be left
unattended, please turn off the
power switch and remove the
plug from the wall outlet.
In order to wipe dust off the
picture tube or off the cabinet,
you should remove the power
plug from the wall outlet first.
You can wipe lightly with a
piece of dry, clean, soft cloth.
Do not cover the Ventilating
holes in the cabinet. Keep a
space of more than 5 cm from
the walls to the TV set, to
guarantee the good ventilation.
When the power cord or the
plug is damaged, please
contact a qualified service
department to get service.

Installation and appearance

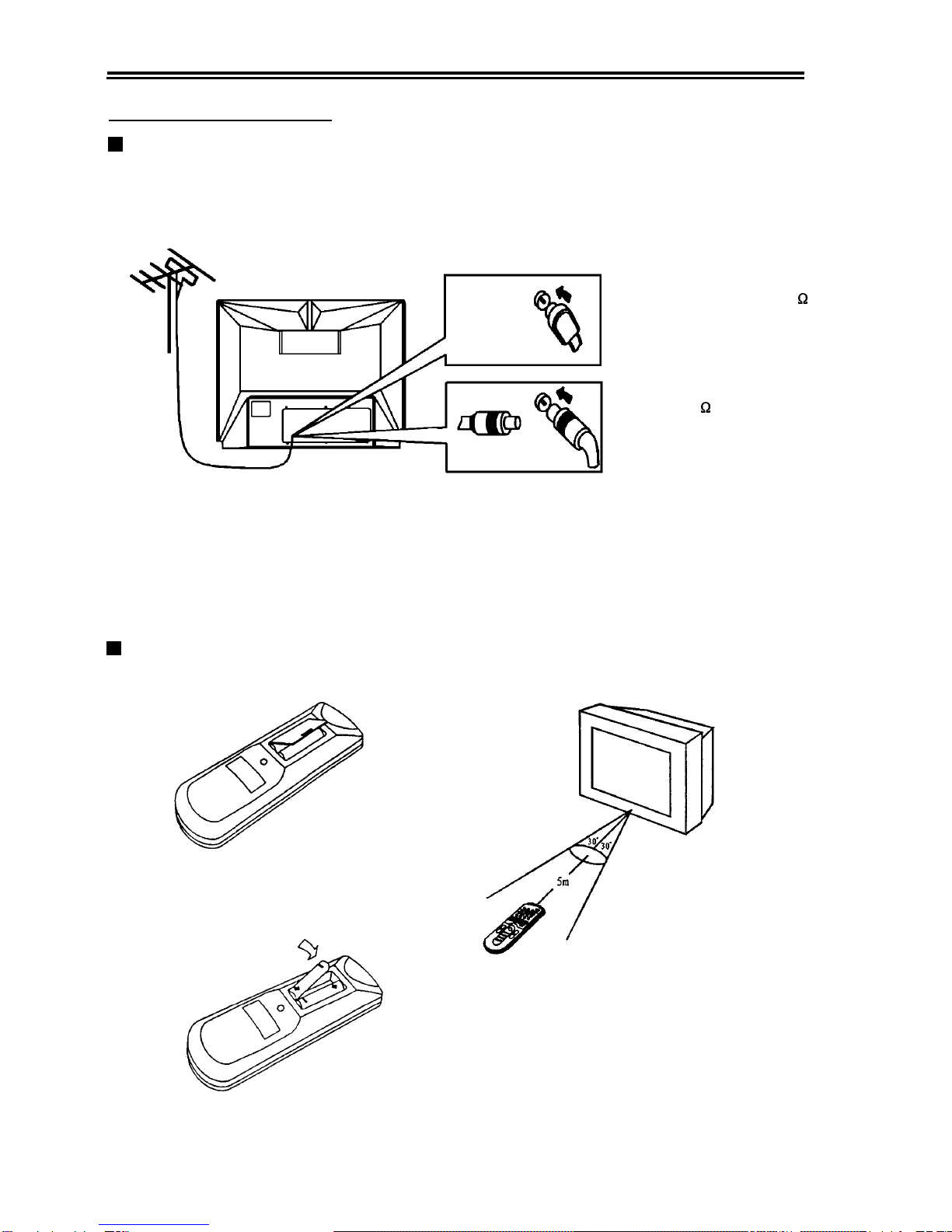

Antenna connection
To ensure a bright - coloured and clear picture, you should use an outdoor aerial or CATV
cable. If the signals are strong enough, you may use an indoor aerial.
Note:
When you connect the outdoor aerial cable to the aerial terminal on the TV set, please turn off
the power switch on the TV while connecting the antenna lead.
In thunder and lightning, weather, please disconnect the connection to the outdoor aerial to avoid
thunder/lightning strike.
Battery Installation:
1) Remove the back battery cover.
2) Insert two size AAA batteries according to
the polarity indication inside the remote
controller.
3
Effective range of the remote control
operation
1. When the remote controller is not used for
an extended period of time or the batteries
are worn out, please remove the batteries in
time to avoid battery leakage.
2. Avoid moisture and mechanical shock to the
remote controller.
Note: In case of using the
Twin-lead aerial feeder (300 )
for UHF/VHF aerial, use a 300-75
ohm adaptor (not supplied)
When using the coaxial cable (not
supplied) (75 ) for UHF/VHF
aerial, connect the plug into the
75 ohm aerial socket directly.
Note:

Appearance
Front view
Back view
4
Note: Functions of MENU, TV/AV, SYS, CH , VOL are also provided
to the remote controller.
Antenna input MONITOR output terminals
{VIDEO, AUDIO L/MONO, R}
(1) Video 1 input terminals
{S-VIDEO, VIDEO, AUDIO L/MONO, R}
(2) Video 2 input terminals
{S-VIDEO, VIDEO, AUDIO L/MONO, R}
POWER SWITCH
VOLUME UP
VOLUME DOWN
CHANNEL DOWN
CHANNEL UP
MENU
TV/AV
SYSTEM
Headphone socket
(3) Video 3 input terminals
{S-VIDEO, VIDEO,
AUDIO L/MONO, R}

The Remote Controller
5

1. Push the main power switch on, if the set is in Standby mode, the power indicator is red;
If there are pictures appearing on the screen, the indicator is yellow.
2. If no picture appears on the screen, push the power button on the remote controller to
turn the set on, the indicator turns to yellow.
Without using the remote controller, you can push any of the VOLUME + / - , CH
or VIDEO button to turn on the TV.
Note: If there are no input signals to the TV when the TV is on, a blue background will
appear on the screen. After 15 minutes if there are still no signals to the TV, it will
enter into standby mode automatically.
3. Push the main power switch to turn off the set.
4. If you want to turn off the TV temporarily, push the button on the remote controller to
switch the set to standby mode, the indicator turns to red.
Operation
Switching on/off
Special indication:
Last-Mode-Memory: after turning off the power, the last TV mode picture and sound
setting mode and preset channels all are memorised. Therefore, the next time you turn on
the TV, the TV will work in the previous setting mode.
If you directly pressed the main power switch on the TV to turn it off, you must press the
main power switch to turn on the TV.
If you pressed the main power switch to turn off the TV when in standby mode, press the
main power switch and then operate from the remote controller to turn the TV on.
Auto-Power-off function: there are two kinds of Auto-Power- Off function:
If a vacant channel is tuned or TV broadcast for a day is finished, the TV will automatically
turn off after about 15 minutes.
OFF - timer function. However, if the OFF - timer is operating, it takes precedence, that
is, the function of Auto-Power-Off, if no signals received will be ineffective.
6
.
.
1.
2.

1.3 Press the or button to enter into the sub-menu of
Presetting the channels
There are two ways to preset channels: to preset
channels automatically and to preset channels manually.
Below we will describe how to preset the channels
by making use of the menu.
1. To enter into menu
1.1 Press the MENU button to enter into the main
menu.
1.2 Press menu item select button or to select
The MENU button refers to the MENU button on
the remote controller or on the TV set, the or
button refers to the or button on the re-
mote controller or CH on the TV
set, the or button refers to the or
button on the remote controller or the VOLUME
+ / - button on the TV set.
Press the menu item select button or to select
AUTO SEARCH (the caption on the screen
is red).
Press or button, the TV begins to search TV
channels automatically. All active channels will be
preset and stored into the memoriser automatically.
After presetting, the TV will return to the first
channel program.
Before auto - search begins, you had better press
"SYS" button to set the current sound system to
B/G and the colour system to "AUTO" .
Press the MENU button to
display the main menu
AUTO SEARCH
12 VHFH
After presetting is finished
it returns to the first
channel
1
MENU
7

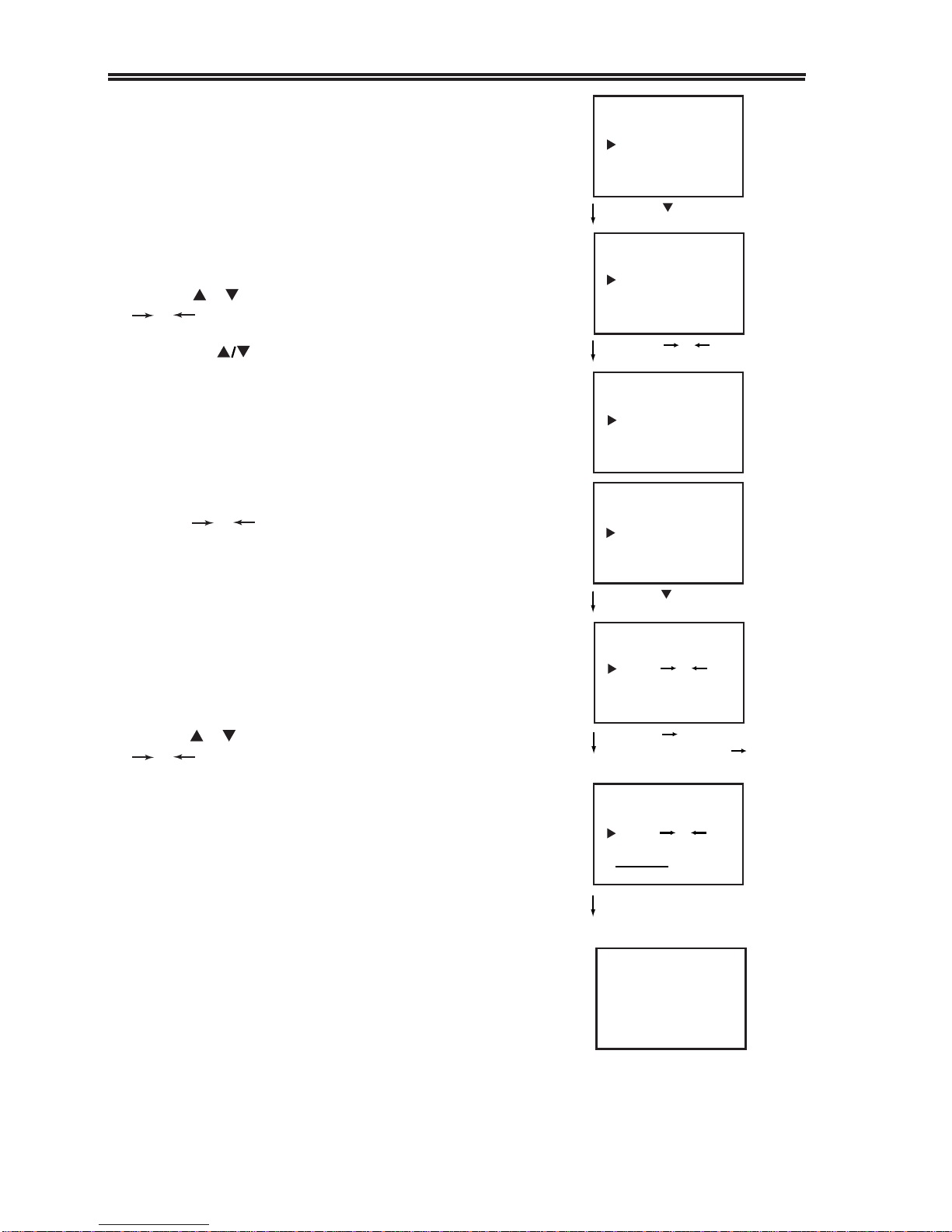

Press the or button
to select SEARCH
MENU
SEARCH
Press the or button
to display the sub-menu
of SEARCH
SEARCH
MANUAL SEARCH
AUTO SEARCH
Press the button to
select AUTO SEARCH
Press the or button
it begins searching
automatically
2. AUTO SEARCH
SEARCH
SEARCH
Note:
2.1
2.2
Note:
lllllllllllll
llllllllllllllllllllll

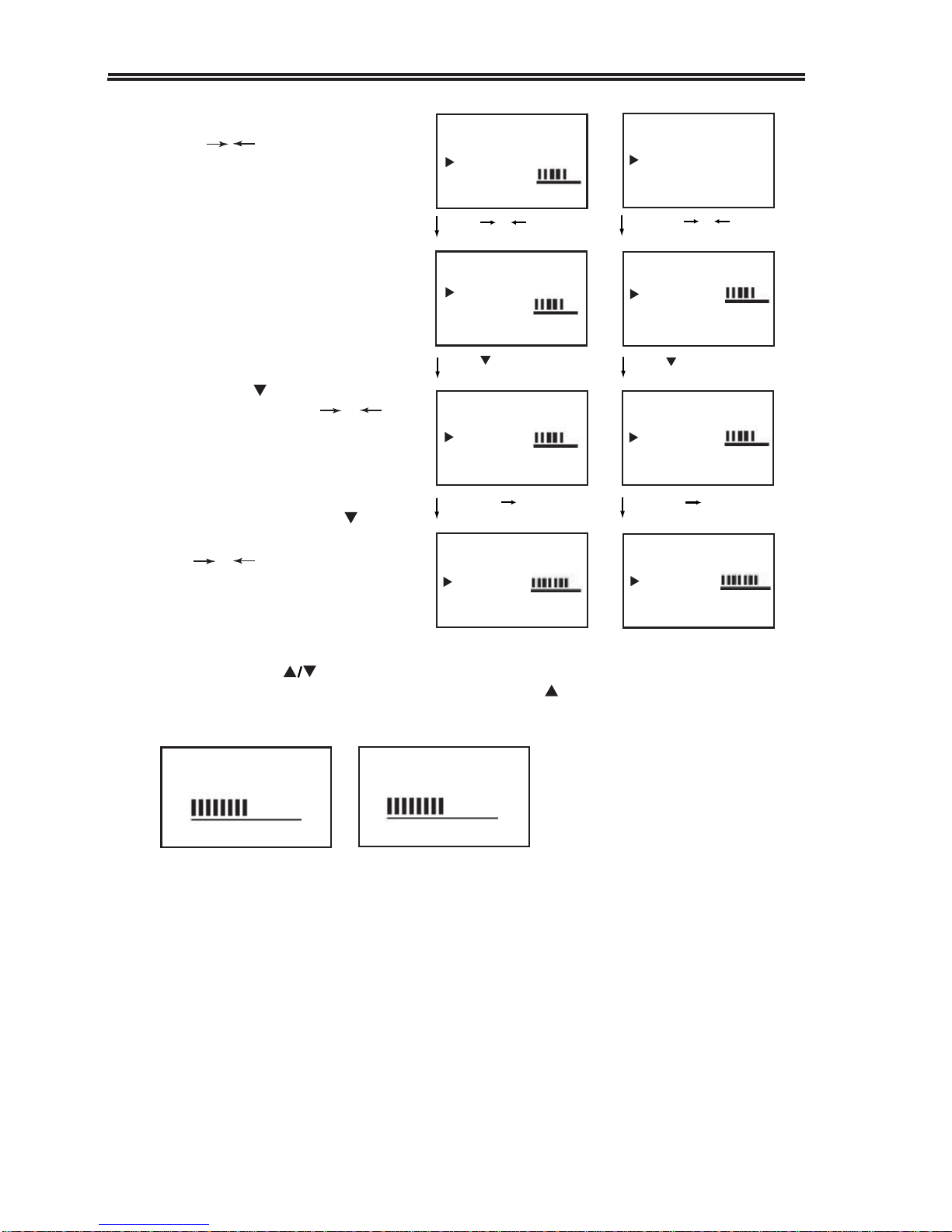

3. MANUAL SEARCH
If AUTO - SEARCH cannot preset the desired channels,
or you want to preset the desired channels one by
one with the preferred channel numbers - please make
use of MANUAL SEARCH.
Press the menu item select button or to select
MANUAL SEARCH (the caption on the screen are
red).
Press the or button to enter into the sub - menu
of MANUAL SEARCH.
Press the or button to choose POSITION.
(the caption on the screen are red) , press the or
button to select the needed program number (from
00 ~ 99.
Push the or button to select a channel number
within 0.7 of a second. Push and hold the or
button for more than 0.7 of a second to select a
decimal number.
Press the or button to select SEARCH, push
the button to search channels from current channel
to higher channel. Push the button to search
channels from current channel to lower channel.
When a channel is located, the searching stops, this
channel is then memorised with a present channel
number.
You can also make use of band selection to quicken
the searching process in your desired band. Pressing
the or button moves the band to the next step
in the sequence below.
SEARCH
MANUAL SEARCH
AUTO SEARCH
Press the or button
to display the menu of
MANUAL SEARCH
MANUAL SEARCH
MANUAL SEARCH
8
Press the button to
select the wanted channel
number
When a station is searched
the searching stops
Press the button
it begins searching
Press the or button
to select SEARCH
POSITION 22
Press the or button
select SEARCH
SEARCH
POSITION 22
VHFL UHF
VHFH
Press the or button
to select MANUAL
SEARCH
SEARCH
3.1
3.2
3.3
Note:
3.4
Note:
SEARCH
llllllllllllll- - - - -
POSITION 10

When you want to store and memorise another
channel with another position, repeat steps 3.3, 3,4.
After presetting the channels, you can skip unwanted
program numbers to select your desired channels.
Repeat steps 3.1 to 3.3 to select the unwanted pro-
gram position of the unwanted channels .
Press the or button to select SKIP. Press the
of button to select SKIP ON.
After completion of the channel presetting, when you
press the CH button to select channel, the
unwanted channels will be skipped.
If you want to skip other unwanted channels, repeat
step 4.1 above to change the channel numbers.
If you want to restore the skipped program numbers,
do step 4. 1 to select these program numbers, then
press the or button to select SKIP OFF.
5. Manual Fine Tuning
When sound and picture's effect of a channel is poor
(for example : one or two CATV channel's sound and
picture are not standard) , you can correct by the use of
Manual Fine Tuning.
Repeat steps 3. 1 to 3.3 to select the channels you
want to manually fine tune.
Push the or button to select MFT, then press
or button, the channel begins to search until
the optimum picture and sound is achieved.
If some channel's colour or sound is abnormal, it
may be that the setting of the colour or the sound
system is wrong, please do the following step 6 to
set the colour and sound system.
After finishing the preset operation, press the
MENU button repeatedly until the "on - screen"
display disappears and exits from the main menu.
MANUAL SEARCH
MANUAL SEARCH
9
Press the button to
select SKIP
Press the or button
select SKIP
SKIP OFF
SKIP ON
POSITION 10
POSITION 14
Press the button to
select MFT
MFT
Press the button it
begins fine tuning in
direction.
Press the MENU button
repeatedly until on-screen
display menu disappears
3.5
4. Skip unwanted program numbers
4.1
llllllllllllll- - - - -
4.2
5.1
5.2
Note:
MFT

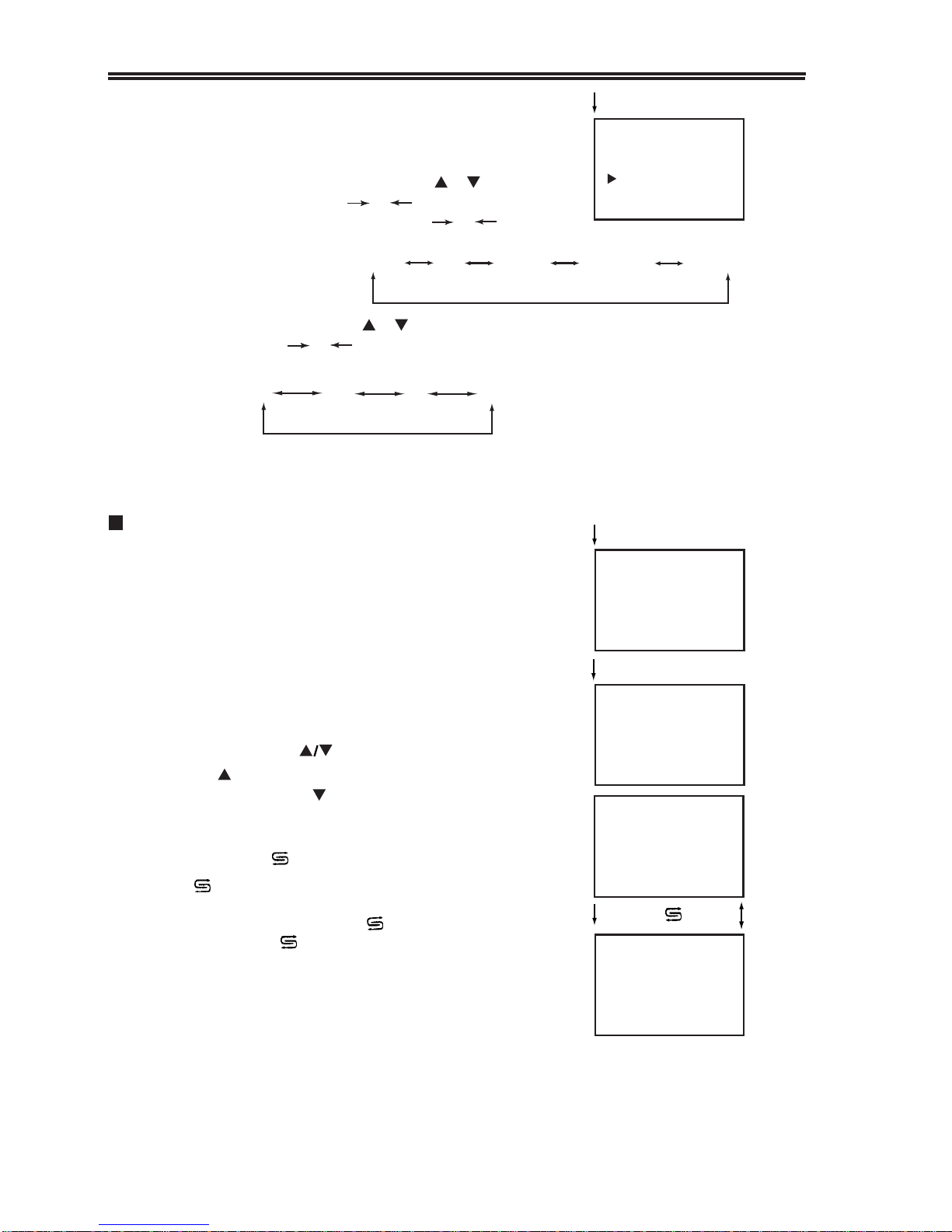

6. The setting of colour and sound system
Press the SYS button, the screen will display colour and
sound system.
If the displaying colour is abnormal, press the or button
to select COLOR, then press the or button to select
the right colour system. Every time you press or button,
the colour system will change in the sequence on the right.
Press the SYS button
SYSTEM
COLOR AUTO
If the sound is abnormal, press the or button to select
SOUND, then press the or button to select the right
sound system. The sound system will change in the sequence
on the right:
Now you can watch the broadcasting TV program at the
preset channel.
You can select your desired TV program by one of the following
methods.
2. Making use of the CH button
Press the CH button, the channel number will increase
progressively. Press the CH button, the channel number
will decrease progressively.
10
AUTO PAL SECAM NTSC 4.43 NTSC 3.58
IM B/G
D/K
Making use of the direct select buttons 0 ~ 9 and - /- -
To select a one - digit channel, press - /- - button to display
" - " on the upper right corner of the screen, then directly
press a number button of 0 ~ 9. To select a two - digit channel,
press the - / - - button to display "- - " on the upper right
corner of the screen, then press the number buttons.
The channel range is 0 ~ 99.
10
Press the - / - - button
Press the 0 ~ 9 button
- -
3. Making use of the button
Press the button, it can switch back quickly to the previous
channel. For example, the channel you previously watched is
2, the present channel is 8, press the button, it will return
to channel 2, press the button it will return to channel 8.
2
8
Press the button
Channel selection
6.1
6.2
6.3
1.

Press the | button, you can quickly select two
modes of picture and sound quality standard:
One is standard mode ( on the screen displays
(STANDARD) ;
The other is personal select mode (on the screen
displays "MEMORY").

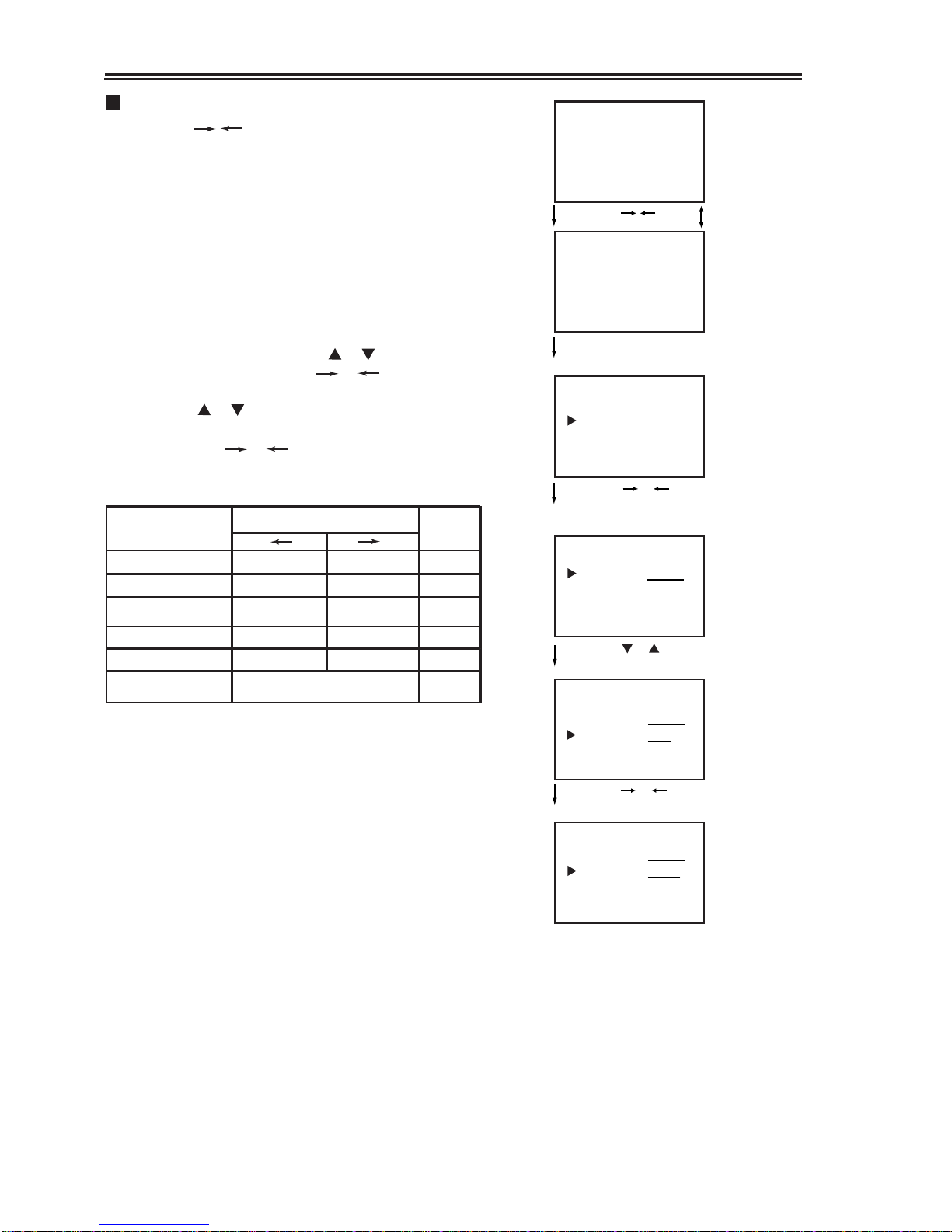

1. Picture adjustment
Complete the following steps and you will adjust the
picture quality.
Press the MENU button, on the screen will dis-
play the main menu, press the or button to
select PICTURE, then press or button to
enter into the sub - menu of PICTURE
Press the or button to select the items you
want to adjust (the caption on the screen is red),
then press the or button to adjust the level of
picture control amount.
STANDARD
Press the MENU button
to display the main menu
Press the or button
to display the menu of
Press the or button to
select adjustment item
Press the or button to
adjust the level
Adjustment
item Pressing (Memory mode) Standard
Mode
COLOUR paler deeper 50
BRIGHT darker lighter 70
CONT (Contrast) weaker stronger 70
SHARP weaker stronger 20
TINT purplish bluish 0
BBK
(Blue background) ON (OFF) ON PICTURE MEMORY
COLOR 70
BRIGHT 50
PICTURE MEMORY
COLOR 70
BRIGHT 60
PICTURE MEMORY
COLOR 70
BRIGHT50
MENU
MEMORY
Press the | button
11
lllllllll
Picture and sound adjustment
If the signal being received is weaker, adjust SHARP to lower
level to reduce the noise.
If the signal being is stronger, adjust SHARP to higher level to
improve the picture quality.
1.1
1.2
lllllllll
llllll
lllllllll
llllllll
Note:
Only when the colour system is NTSC, there is
TINT item
*
*

Press the or button
to select adjustment mode
2. Sound adjustment
Complete the following steps and you will adjust the
sound quality.
Press the MENU button to display the main
menu. Press the or button to select
SOUND , then press the or button to enter
into the sub - menu of SOUND.
Press the or button to select your required
sound adjustment item (the caption on the screen
is red), then press the or button to adjust
the sound quality.
You can select the sound quality according to the
programme content and personal preference.
Press the MENU button
and button
MENU
SOUND
Press the or button
to display the menu of
sound
12
Adjustment
item
BASS
TREBLE
BALANCE
S. WOOFER
S. WOOFER
Pressing (Memory mode)
weaker
weaker
decrease right
side sound
on/off
weaker
stronger
stronger
decrease left
side sound
on/off
stronger
Standard
mode
50
50
0
Off
50
SOUND MEMORY
BASS 50
TREBLE 50
SOUND MEMORY
BASS 50
TREBLE 50
Press the or button
to adjust the level
SOUND MEMORY
BASS 50
TREBLE 70
Press the | button
mode changes between
STANDARD and MEMORY
SOUND STANDARD
BASS 50
TREBLE 50
BASS
Strong
weak
middle
TREBLE
Strong
weak
middle
on
off
off
Tone quality
suitable for listening to music
suitable for listening to news, language.
standard
SURROUND
2.1
2.2
llllll
llllll
llllll
llllll
llllll
llllllll
llllll
llllll
If the TV signals are too weak and you can not watch
the program normally, blue background will appear
automatically to overcome the picture. If you insist
on watching the program, you can select "BBK"
item to shut off the blue background. We suggest
you turn "BKK" on in ordinary circumstances.
*
SURROUND
SURROUND
on/off
weaker
on/off
stronger
Off
50
S.WOOFER
on
off
off

Note: During the process of picture and
sound adjustment, every time you
press the button, STANDARD/
MEMORY is displayed on the screen
alternatively. When picture and tone
quality are adjusted to your desired
level, the mode is in memory mode.
SOUND MEMORY
Press or button
to select S.WOOFER ON
To make use of super woofer, complete
steps 2.1 & 2.2 to select S.WOOFER
ON, and press the button to select
S. WOOFER, then press the or
button to adjust it. To turn off super
woofer, select S. WOOFER OFF.
To make use of surround sound,
complete steps 2. 1 & 2. 2 to select
SURROUND ON, and press the
button to select SURROUND, then
press the or button to adjust its
effect. To turn off surround sound,
select SURROUND OFF.
3. Super woofer and surround sound
Making use of super woofer and surround
sound, you can enjoy the dynamic sound
effect that is like being in a music hall.
4. Adjusting the volume and muting the sound.
You can press the VOL button to adjust the volume, and you can press the MUTE
button to mute the sound. Press the MUTE button again or VOL button or operate
any item of SOUND menu, the sound is restored to normal.
13
VOLUME 50 MUTE 50
S. WOOFER OFF
S. WOOFER 50 SURROUND OFF
Press the or button to
to select SURROUND ON
S.WOOFER ON
S.WOOFER 50 SURROUND ON
Press button
to select S.WOOFER
S.WOOFER 50
Press button to
select SURROUND
SURROUND 50
Press the button to
increase super woofer Press the button to increase SURROUND
S.WOOFER 70 SURROUND 70
3.2
3.1
|

Press the or button to select OFF TIME. Pressing
the or button set ONCE/EVERY OFF TIME. Every
time you press the or button, it will change in the
sequence of OFF EVERY ONCE OFF EVERY
------. When the setting is ONCE or EVERY OFF
TIME, press the or button to select time to turn off
the set, then press the or button to set the time to
turn off the TV, at the preset time the TV will automatically
switch to standby mode. To cancel OFF TIME, set
OFF TIME OFF.
Other functions
2. ON Timer/OFF Timer
With the timer, you can set the TV to turn on/off automatically at a preset time.
In the menu of TIMER you can set : CLOCK, ON TIME, OFF TIME.
2.1 OFF TIME
With the OFF timer, the TV will automatically switch to
standby mode at a preset time.
Press the MENU button to enter into the main menu, press
the or button to select TIMER, and press the or
button to enter into the sub - menu of TIMER
2.2 ON TIME
With the ON timer, the TV will automatically turn on to preset
channel at a preset time.
menu of TIMER
OFF TIME EVERY
14
TIMER
OFF TIME OFF
0:00
TIMER
10:00
2.2.1 Do Step 1.1.1 to enter into the sub - menu of TIMER
2.1.1
2.1.2
1.1 BBK (blue background) ON/OFF
When there are no inputs signals or the receiving channels are weak, it you have selected
BKK ON, the blue background will appear on the screen. Otherwise spots or weak
signals will be displayed on the screen.
When adjusting, press MENU button to enter into the main menu, press the or
button to select PICTURE, press the or button to enter into the sub-menu of
PICTURE, press or button to select BBK ON/OFF, then press or button
to select BBK ON or OFF.

Press the or button to select ON TIME.
Pressing the or button set ONCE/EVERY ON
TIME. Every time you press the or button , it
will change in the sequence of OFF EVERY
ONCE OFF EVERY......... When the setting is
ONCE or EVERY ON TIME, press the or but-
ton to select time to turn on the set, then press the
or button to set the time to turn on the TV.
After the setting, press the or button to select
POS., then press the or button to select your
desired program number.
Pressing the button set the TV into standby mode.
At the preset time the TV will automatically turn on
to preset channel. To cancel ON TIME, set ON
TIME OFF.
2.3 CLOCK
The built - in clock employs the 24 - hour system.
Do step 1.1.1 to enter into the sub-menu of
TIMER.
Press the or button to select CLOCK.
Pressing the or button set the present
hour and minute.
To make use of ON TIME and OFF TIME,
set the clock firstly and check the correct
time.
2.4 SLEEP
To make use of SLEEP function, press the SLP
button every time, the letters displaying on the
screen will change in the sequence of OFF
120 min 110min ......10min OFF..... At the
preset time, the TV will automatically switch to
standby mode.
SLEEP 30min
3. Selecting the menu language
You can select the menu language: ENGLISH or
CHINESE( ).
Press the MENU button to enter into the main
menu, press the or button to select LANGUAGE.
Press the or button to enter into the sub-menu.
Press the or button to select ENGLISH or
Press the MENU button repeatedly until the set exits
from menu - display mode.
ENGLISH
TIMER
CLOCK 10:30
15
2.3.1
2.3.2
Note:
3.1
3.2
3.3
menu of TIMER
TIMER
ON TIME OFF
0:00
TIMER
ON TIME EVERY
6:00
2.2. 2
2.2.3.

External Equipment Connections
The following describes how to use and connect the TV with other equipment. Refer to the
owner's manual of the other equipment to be connected as well.
1. To Connect to AV input
You can video equipments such as a VTR and video camera to this TV and enjoy the
high quality picture and sound.
If your video equipment has an S-VIDEO output terminal, connect it to the S-VIDEO
input terminal (special S-VIDEO type) of the unit. If not, connect it to the VIDEO terminal
(photo type).
16

To select the input press the VIDEO button on the TV set or the AV button on the remote
controller repeatedly until you see the corresponding input indication on the screen. To return to
aerial input, press the AV button until it displays programme number, or press direct channel
select button or the CH button.
VIDEO 1 VIDEO 2 VIDEO 3
If the colour of video input is abnormal, the colour system setting may be incorrect. Press the
SYS button button to display COLOUR AUTO If not, press the or button until normal colour
appears
Note on the S-VIDEO terminal
The S-VIDEO input terminal has priority over the video 1, video 2 VIDEO terminals on the
rear and the video 3 VIDEO terminals on the left side. To use equipment connected to the video
terminals, disconnect any plug from the S-VIDEO terminal
2. To connect MONITOR output terminals
You can connect a stereo system to the MONITOR output terminals (photo type) on the set
to enjoy a high - quality sound from the stereo system. The MONITOR output terminals out-
put the video and audio signals being displayed on the screen.
17
TV

18
.
.
.
.
.
.
.
.
.
.
.
.
X1~Z37
X~Z+2, S1~S41
A-6 - A-1, A - W, AA~FF
X~Z+2, S1~S41
630 (W) x 513.5 (H) x 501 (D)
140W
Dimensions (mm):
Weight (kg):
PAL-D/K
PAL-B/G
PAL-I
NTSC-M US
SECAM-B/G
SECAM-D/K
Troubleshooting Guide
Before calling service personnel, please check the following chart for a possible cause to the
trouble you are experiencing.
Spots appear on the screen
Stripes appear on the screen
Double images or "ghosts"
Snowy picture
The remote controller does not work
TV cabinet creaks
Specifications
Power supply:
Power consumption:
CRT
TV system & channel range
System VHF UHF
Be sure the power cord is plugged in.
Contrast, colour, tint are not correctly
adjusted
Possible interferences of automobiles,
motorcycle, trolley bus, neon lamps, etc.
Possible interference of electronic
interference from another TV set, a
computer, an electronics game machine, a
broadcast station, etc.
This may be caused by reflections from
nearby mountains or buildings.
Check the antenna direction.
It is possible that the aerial “lead-in” is
damaged or comes off.
Check the antenna direction
The batteries may be worn out.
The batteries may be installed with their
polarity reversed.
Even if the picture or the sound is normal,
changes in the room temperature
sometimes make the TV cabinet expand or
contract, making a noise. This does not
indicate a malfunction.
AC 240V, 50Hz
35
59cm PURE FLAT picture tube.
CATV
1-12
2-12
2-12
2-13
2-12
1-12
13-57
21-69
21-69
14-79
21-69
21-69
Colour system: PAL/SECAM/4.43NTSC/NTSC3.58
Sound output: 4W + 4W (L+R), 7W (super woofer)
Accessory:
* Note: Design and specifications are subject to change without notice.
one remote controller
Poor colour, poor tint
No power, red indicator is not lit up
Symptoms Check the following items
