MANUAL P SW-118 | SP + VARIANTS (ANALOGUE, AES, D)
Read the manual carefully before putting the device into operation.
The manual must be retained.
V 1.0
Shapely.
Versatile.
Functional.

© Pan Acoustics GmbH V 1.0 Page 2 of 22
General information
Manual Pan Subwoofer Series
P SW-118 | SP
P SW-118 | SP | AES
P SW-118 | SP | D
Version: 1.0
Language: EN
Doc.-No.: 2021_01332
Copyright © 2021 Pan Acoustics GmbH, all rights reserved
DANTE® is a registered trademark of Audinate Pty Ltd and describes a digital audio network.
This document must be kept with the product or in a safe place so that it is available when
needed.
If the product is resold, the document must be handed over to the new owner in printed or electronic
form.
Pan Acoustics reserves the right to change / update the document without prior notice. The latest
version of this document can be downloaded from the Pan Acoustics website.
Pan Acoustics GmbH
Schweigerstr. 13d | 38302 Wolfenbüttel
Tel: [phone] | Fax: [phone]
E-mail: [email protected]

© Pan Acoustics GmbH V 1.0 Page 3 of 22
Manual
Table of contents
1. Product description 4
2. Symbols and explanation 4
3. General information and target group 4
4. General Safety Regulations 5
5. Safety instructions 6
6. Setup location 6
7. Scope of delivery 7
7.1. P SW-118 | SP 7
7.2. P SW-118 | SP | AES 7
7.3. P SW-118 | SP | D 7
8. Denition 7
9. Connections 8
9.1. P SW-118 | SP connector panel and variants 8
9.1.1. P SW-118 | SP and P SW-118 | SP | AES connector panel 8
9.2.1. P SW-118 | SP | D connector panel 9
9.2. Mounting plate and stacking recesses 9
9.3. System creation with PB 08 from the Pan Beam series 10
10. Initial operation 11
10.1. Mains power connection 11
10.2. Connection – audio and control data 12
10.3. Connection – additional passive subwoofer system 13
11. Error description 14
12. Service and repair 15
13. Maintenance measures 15
14. EC conformity (CE Mark) 15
15. WEEE declaration (disposal) 15
16. Contact address 15
17. Appendix 16
17.1. Pan Net – RJ45 pin assignment 16
17.2. Alarm contact (alarm loop) 16
17.3. Control via media controller 17
17.3.1. Pan Net 17
17.3.2. Crestron 17
17.3.3. Pan Net / Crestron interface conguration 17
17.4. Dante 18
17.4.1. Setup 18
17.4.2. Routing 18
17.4.3. Device conguration 18
17.4.4. Network conguration 19
17.4.5. Status 19
17.4.6. Pan Net (AES/EBU) to Dante interface 20
17.4.7. Dante LED status indicator 20
17.4.8. Alarm contact (alarm loop) in connection with Dante 21
17.4.9. Dante media controller 21
18. Technical data 21

© Pan Acoustics GmbH V 1.0 Page 4 of 22
Manual
1. Product description
Thank you for choosing a product from Pan Acoustics. The active subwoofer P SW-118 | SP from the
Pan Subwoofer series with DSP technology combines an architecturally appealing design with  exible
audio connections (Line, AES/EBU, DANTE® /AES67). The loudspeakers are set up and controlled via
the Pan Beam Setup software.
The Pan Subwoofer series o ers a comprehensive range of loudspeakers for di erent applications
such as traditional AV installations, theatre, immersive sound and outdoor applications. All subwoof-
ers from the Pan Subwoofer series feature:
• appealing design
• natural and unaltered audio reproduction
• powerful audio DSP
• effi cient digital ampli ers
• simple networking (Pan Net)
•  exibility through modularity
• low current consumption and low quiescent current
The active loudspeaker systems of the Pan Subwoofer series can only be con gured and maintained
(e.g. by  rmware update) using the Pan Beam Setup con guration software. An appropriate exter-
nal Pan Net interface such as Pan Con or Pan Splitter or the installation of the Dante controller from
Audinate Pty Ltd on the computer is required to connect the speakers to a PC.
Please read this manual carefully before putting the device into operation to ensure trouble-free op-
eration and allow the product to develop its full potential.
This symbol provides important instructions for the proper handling of the
product. Failure to observe this instruction may result in damage to the
product or malfunctions.
2. Symbols and explanation
This symbol indicates a hazard with a high level of risk. If this hazard is not
avoided, serious injury or death may result.
This symbol indicates a hazard with a medium level of risk. If this hazard is
not avoided, moderate to serious injury or death may result.
This symbol indicates a hazard with a low level of risk. Failure to observe this
instruction may result in minor injuries or damage to property.
All information in this manual is based on the product properties available at the time of writing and
the safety regulations applicable at that time.
This manual describes the con guration, function and connection of the Pan Subwoofer loudspeaker
system variants P SW-118 | SP to the mains power supply and audio sources. It is aimed at system
technicians and persons assigned the task of installing and operating a relevant system.
Pan Acoustics reserves the right to make changes and modi cations within the scope of legal regula-
tions and product improvements without prior notice.
This manual and all additional information required for operation (see also: latest versions of the “Pan
Beam Setup” and “Pan Net” manuals) must be read before use by all persons involved in putting the
device into operation. The manual and all additional information required must be kept within easy
reach near the device.
All necessary information and documents can be obtained from the Pan Acoustics website,
www.pan-acoustics.de, or per email from [email protected].
3. General information and target group

© Pan Acoustics GmbH V 1.0 Page 5 of 22
Manual
4. General Safety Regulations
The following safety regulations must be read completely and diligently before putting the device into
operation and must then be kept in a safe place near the device. Reading the manual does not replace
the knowledge and observance of all valid local safety rules and regulations. The information and
technical speci cations published in this document are based on data available at the time of publica-
tion. We reserve the right to make changes to the product aimed towards product improvement and
adjustment to new applicable standards.
To prevent electric shock,
• the product must not be connected to the mains power supply when the enclosure is open.
• the product must only be used with intact power cords.
• the product must only be connected to a mains power supply if the mains voltage matches the
voltage indicated on the device.
• the product must only be mounted and  xed when disconnected from the mains power supply.
• one must never pull on the cord, but only on the plug when unplugging the device.
• no objects must be placed on top of the power cord of the device.
• the power cords must be installed in such a way that they are protected from damage due to foot
traffi c, pinching and tensile stress.
• it must be ensured that all devices connected to each other via signal lines are operated with earthed
sockets on a common protective earth.
To minimise the risk of  re or electric shock,
• the product must not be exposed to moisture or humidity.
(Exception: versions with an appropriate IP protection class).
• no objects  lled with liquid (e.g. bottles) must be placed on top of the device.
• ventilation slots must not be covered up with objects (e.g. textiles).
• the device must not be exposed to excessive heat, direct sunlight,  re or the like.
• no open  re sources (e.g. candles) must be placed on top of the device.
To prevent injury, this product must be taken out of operation, clearly marked and secured against
accidental operation if the product
• shows signs of visible damage.
• contains loose parts.
• no longer works  awlessly.
• has been stored for a long time under unfavourable conditions (e.g. in humid rooms).
• was exposed to severe transport stress (e.g. with unsuitable packaging).
To avoid damage to the device and injury,
• this product must be kept out of the reach of children.
• the product must be installed in a stable position.
• only accessories o ered and approved by Pan Acoustics for the product must be used for mobile
applications and  xed installations.
To avoid injuries such as hearing damage due to excessive volume levels, persons should
• never stand directly in front of a connected loudspeaker.
• not be exposed to high volume levels over a long period of time.
The device conforms to protection class 1 – protective earthing. For safety reasons, the device must
only be operated on a properly installed socket with earth contact. The earth contact connection
must never be disconnected. The voltage of the mains power supply must match the rated voltages
indicated on the device. To prevent injuries, electric shock and  re, ensure that all persons involved
in the set up, operation, dismounting or installation of the device / system have read this manual.

© Pan Acoustics GmbH V 1.0 Page 6 of 22
Manual
To prevent damage to the product, avoid
• generating acoustic feedback.
• playing back distorted signals of high power over a long period of time.
• generating impulse-like sounds (e.g. popping noises) which occur when a media player is switched
on, connected or disconnected.
• connecting the product to the mains power supply for a long period of time without using it.
• operating the device in environments with high humidity.
• operating the device without suffi cient possibility of air circulation.
Device protection and operating safety
• The device is completely disconnected from the mains power supply by pulling the mains power plug.
• The device may only be cleaned from the outside using a dry cloth.
• The original packaging or an appropriate transport box ( ight case) should be used when
transporting the device. The device must be protected against vibrations.
All products from Pan Acoustics are developed and manufactured in Germany according to the lat-
est safety regulations. Each product is thoroughly inspected prior to shipping according to in-house
quality guidelines.
The device conforms to the current CE regulations for operation in residential, business,
commercial and industrial areas.
The device must be carefully inspected upon receipt for transport damage and completeness. In
case of damage, the transport company and the shipper must be noti ed without delay.
Safety may be compromised if the product:
• shows signs of visible damage.
• no longer works correctly.
• has been stored for a long time under unfavourable conditions.
• has been transported incorrectly (e.g. unsuitable packaging).
If the product shows signs of impairments that no longer guarantee safe operation, the device must
be secured and labelled accordingly. It must also be ensured that no intentional or accidental oper-
ation by third parties is possible.
The loudspeaker may only be operated in dry places guaranteeing suffi cient air circulation. The loudspeaker
must be set up in a level position and must be protected by suitable means against live loads that could
cause the loudspeaker to tip, slide or fall over.
The device may be damaged by condensation. It should therefore be appropriately
acclimatised before operation.
The ambient temperature during operation of the device should not exceed 40 °C and should not fall below
0 °C.
If the ambient temperature is higher than 40 °C, appropriate measures must be taken to protect
the device against overheating. If the loudspeaker overheats, it shuts o automatically and only
turns on again after it has cooled down.
When unpacking, it is important to pay attention to the temperature di erence between the ambient
temperature and the device. If the temperature di erence is high, it is necessary to wait a suffi ciently
long time before operating the device to avoid damage due to condensation.
5. Safety instructions
6. Setup location

© Pan Acoustics GmbH V 1.0 Page 7 of 22
Manual
Depending on the loudspeaker model, the scope of delivery of the loudspeakers includes the following:
Description Quantity
P SW-118 | SP 1
powerCON TRUE1 power cord (country-speci c) 1
Shipping information 1
Description Quantity
P SW-118 | SP | AES 1
powerCON TRUE1 power cord (country-speci c) 1
Shipping information 1
Description Quantity
P SW-118 | SP | D 1
powerCON TRUE1 power cord (country-speci c) 1
Shipping information 1
Product-speci c accessories such as protective covers, transport castors and spacer bars are not part
of the scope of delivery and can be obtained from a Pan Acoustics trade partner or distributor. For safe
operation of the device, only accessories from Pan Acoustics may be used.
Pan Subwoofer
Product series for active and passive subwoofer systems
Pan Net
Audio signals, control signals and monitoring of active Pan Acoustics loudspeakers
Pan Beam Setup software
Software for setting up active Pan Acoustics loudspeakers
RJ45 / etherCON
Plug connection for the transmission of signals
powerCON TRUE1
Power connection for devices that can be plugged and unplugged under load
analog audio
Transmission of analogue balanced audio signals
100V
Transmission of analogue audio signals over long distances via two wires
AES/EBU
Digital audio signal for the transmission of signals between di erent devices according to AES3
DANTE
Digital audio network protocol for the transmission of audio signals via a 1 Gigabit LAN
USB
Serial port for data connections to devices, e.g. a computer
7. Scope of delivery
7.1. P SW-118 | SP
7.2. P SW-118 | SP | AES
7.3. P SW-118 | SP | D
8. Defi nition

© Pan Acoustics GmbH V 1.0 Page 8 of 22
Manual
9. Connections
Pan Net is Pan Acoustics’ control and audio distribution network. Depending on the Pan Net interface,
one or more daisy chain cables or other cable types are supported. Depending on the interface, the Pan
Net cabling supports two-channel analogue and digital (AES3) audio. In a Dante/AES67 network, the
control data from Pan Net are tunnelled through the IP-based audio network.
Daisy chain cabling
Cabling type in which the devices are connected serially, i.e. in series one after the other
General Purpose Interface (GPI)
Describes a platform-independent connection between devices from di erent manufacturers

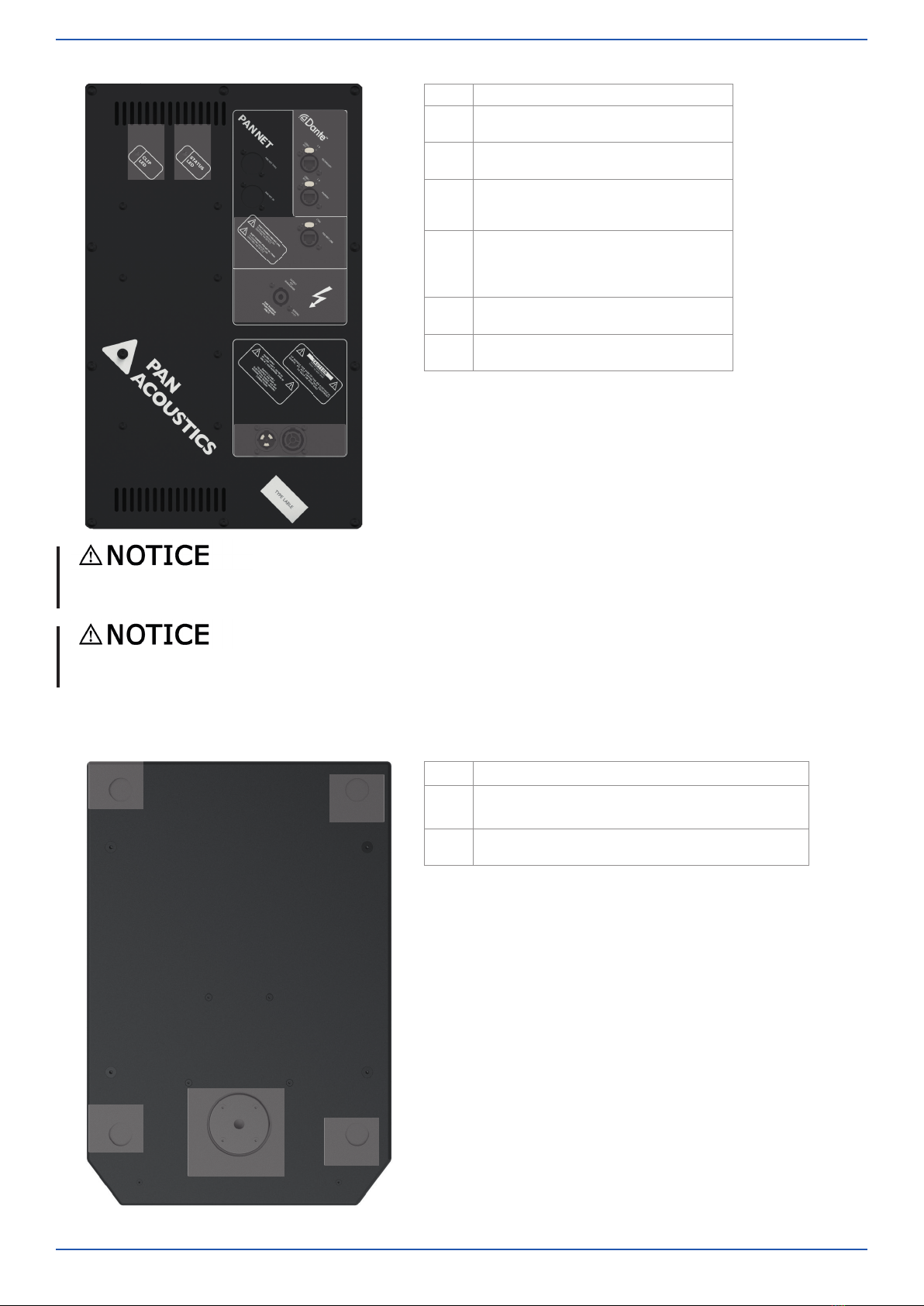

9.1. P SW-118 | SP connector panel and variants
9.1.1. P SW-118 | SP and P SW-118 | SP | AES connector panel
No. Description
[1] Clip LED
Display for input overload
[2] Status LED
Display for operating status
[3] Pan Net IN / THRU
Input & output for audio signals (ana-
logue and AES3), control signals and
relay contact (GPI)
[4] Ext. subwoofer output
Connection for passive P SW-118
[5] powerCON TRUE1 In/Out
Mains power connection
[3]
[1] [2]
[4]
[5]
To avoid malfunctions, the recommended bending radius of the mains power and signal connection
cables must be observed.
The warnings on the connector panel must be observed.

© Pan Acoustics GmbH V 1.0 Page 9 of 22
Manual
9.2.1. P SW-118 | SP | D connector panel
No. Description
[1] Clip LED
Display for input overload
[2] Status LED
Display for operating status
[3] Dante / AES67 connection
Primary port
Secondary port
[4] Pan Net Link
Analogue audio input
Digital audio output (AES3), control
signals and relay contact (GPI)
[5] Ext. subwoofer output
Connection for passive P SW-118
[6] powerCON TRUE1 In/Out
Mains power connection
[3]
[1] [2]
[5]
[6]
[4]
To avoid malfunctions, the recommended bending radius of the mains power and signal connection
cables must be observed.
The warnings on the connector panel must be observed.
9.2. Mounting plate and stacking recesses
No. Description
[1] Mounting plate with M20 thread
for spacer bar
[2] Stacking recesses
[2] [1] [2]
[2] [2]

© Pan Acoustics GmbH V 1.0 Page 10 of 22
Manual
Only accessories approved by Pan Acoustics may be mounted and used on the mounting plate with
M20 thread in order not to endanger the stability. When a spacer bar is used to mount a top, the device’s
centre of gravity changes. The loudspeaker must therefore be set up in a level position and must be protected
by suitable means against live loads that could cause the loudspeaker to tip, slide or fall over. The spacer bar
(article no. 802455) must not be used in the extracted position. If several devices are stacked on top
of each other, it must be ensured that the devices sit securely in the stacking recesses. The stacked
devices must be protected by suitable means against live loads.
The P SW-118 | SP + variants can be combined with a PB 08 from the Pan Beam series to a loud-
speaker system. The following items are needed to create such a system:
Article no. Description
802455 Accessory, “RingLock” spacer
bar (BK)
801843 Accessory, tripod mount II, P
xx / PB xx, stainless steel
div. Pan Beam PB 08 (variant)
9.3. System creation with PB 08 from the Pan Beam series

© Pan Acoustics GmbH V 1.0 Page 11 of 22
Manual

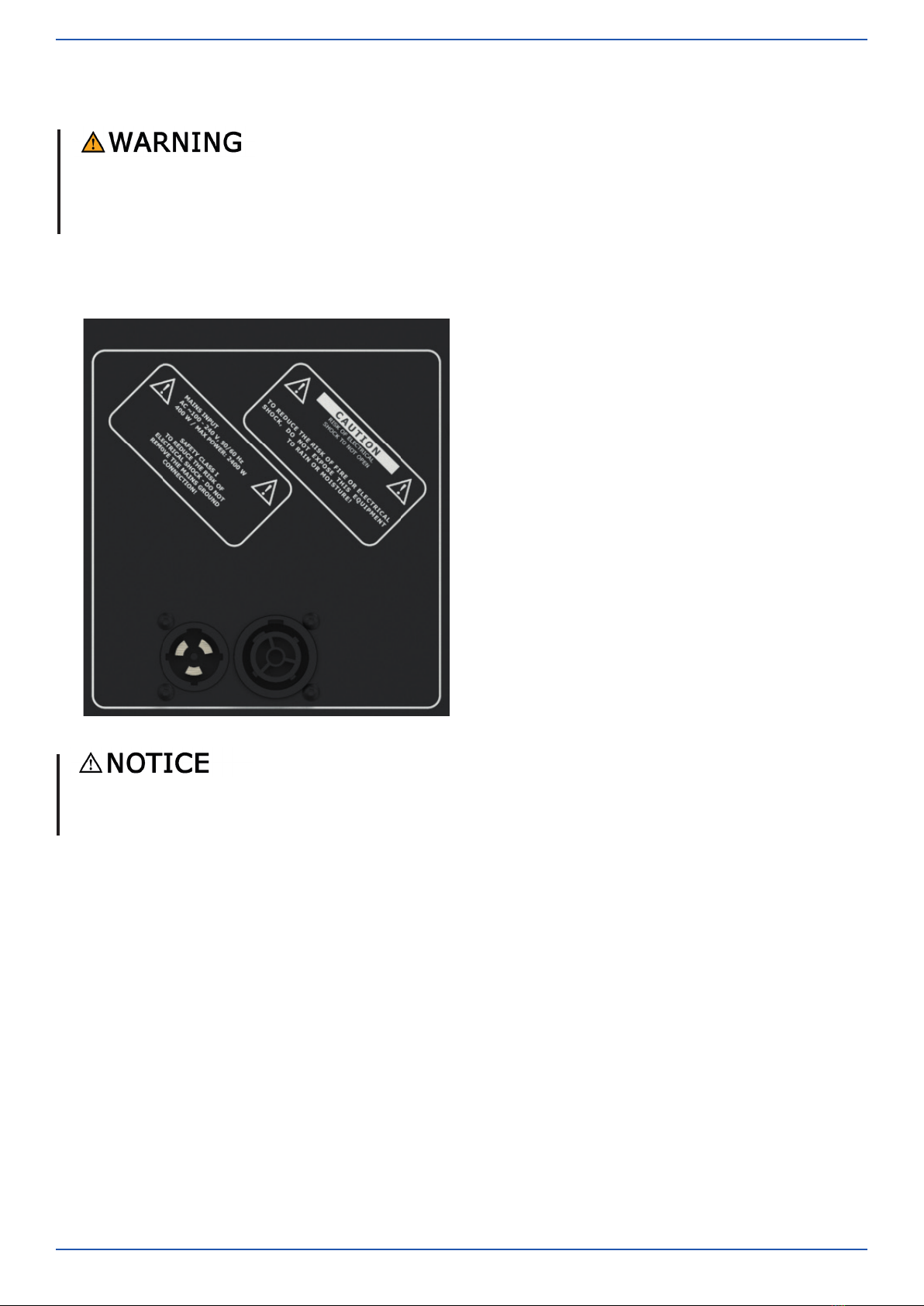

Before connecting the device to the mains power supply, it must be ensured that the speci cations
regarding voltage and frequency match the speci cations on the device’s connector panel. The spec-
i cations can be found near the mains power connection.
10. Initial operation
10.1. Mains power connection
The number of devices per mains phase depends on the maximum possible current load of the
phase. The latter must not be exceeded. If the full output power of the device is needed, it is
strongly recommended to operate only one device per mains phase.
• Only operate the device on mains power supplies with earth contact.
• Damaged mains power cables or plugs must be replaced with a faultless mains power cable or plug.
• It must be ensured that the mains power plug is always freely accessible to be able to disconnect the
device from the mains power supply in case of danger or malfunction.
Mains voltage range:
100 to 240 VAC, +50/60 Hz, max. 2400 W.
The device is connected to the mains power
supply by means of a powerCON TRUE1 plug
connection. The connection on the back of the
device is designed as input / output so that
another device can be connected to the device
via a powerCON TRUE1 connection cable.

© Pan Acoustics GmbH V 1.0 Page 12 of 22
Manual
10.2. Connection – audio and control data
Pan Net
Interface
USB
Audio
Lan
Analogue / AES3
Pan Net Dante Pan Net
High-quality cables must be used for safe and reliable signal cabling. At least CAT6 S/STP or CAT6 F/
STP network cables must be used for the Pan Net cabling. At least CAT6 network cables with appropriate
shielding must also be used for the cabling of IP networks. For more information on Pan Net, see the Pan
Net manual.

© Pan Acoustics GmbH V 1.0 Page 13 of 22
Manual

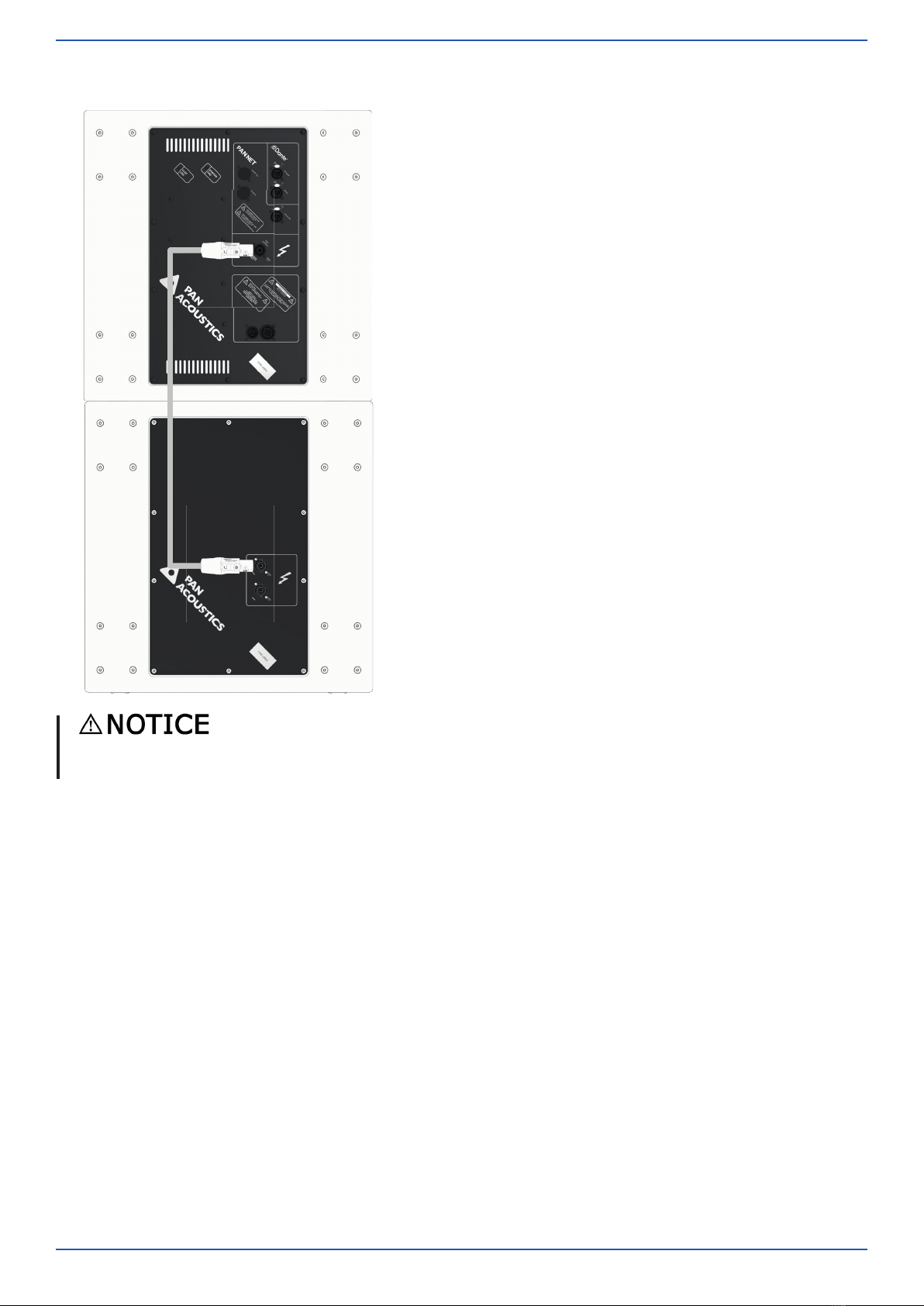

10.3. Connection – additional passive subwoofer system
The active P SW-118 | SP subwoofer system can drive one passive P SW-118.
An NL4 loudspeaker cable must be used for the connection between the active subwoofer and the passive sub-
woofer.

© Pan Acoustics GmbH V 1.0 Page 14 of 22
Manual
Problem Cause Remedy
Signal LED o Speaker has no power Check the connection
to the mains power supply
Signal LED is /
ashes red Loudspeaker has detected an error Contact service department
Signal LED ashes orange Communication between
software and loudspeaker,
communication between
media controller and loud-
speaker
None, as this is normal
behaviour
Connected loudspeaker does
not appear in the software Pan Beam not connected to Pan Net or Dante Check connection, verify IP address/subnet in
Dante controller
1G status LED on the loud-
speaker-Dante interface o Check the connection to the switch of the PC and the
loudspeaker
COM status LED on the
loudspeaker-Dante inter-
face does not ash
Start software correctly and
select Dante interface cor-
rectly
No audio playback No audio signal connected Connect audio signal via audio
input on the interface,
crosspoint not set in Dante
controller routing matrix
No audio playback despite
connection Wrong audio input chosen Check audio connection for correct connection
No audio playback despite
correct connection No audio signal, cable defective Check audio signal, check cable to the source
Dante
Distorted audio playback Incorrect sample rate or limited bandwidth in the
network
Set the sample rate correctly,
check bandwidth in the net-
work
No connection via Pan Net
Interface USB cable not plugged in cor- rectly
USB cable defective
USB cable plugged into USB
port after Pan Beam Setup
program launch
Check cable for correct
connection
Replace USB cable
Relaunch Pan Beam Setup
program
Media controller does not
work Pin assignment incorrect
Baud rate incorrect
Faulty instruction set
Check pin assignment
Set correct baud rate
Check instruction set
11. Error description
Status
LED Is green
No power supply
Display
O
Flashes orange
Is / ashes red
Meaning
Ready for operation
Communication
Error

© Pan Acoustics GmbH V 1.0 Page 15 of 22
Manual
12. Service and repair
Service and repair work may only be carried out by Pan Acoustics or by persons and partners
authorised and instructed by Pan Acoustics.
No service or repair work may be carried out on the device beyond the stated maintenance
measures.
For contact details, see chapter 16.
The declaration of conformity for the relevant product from the Pan Subwoofer series can
be requested from Pan Acoustics.
14. EC conformity (CE Mark)
13. Maintenance measures
The following measures must be carried out at regular intervals:
Cleaning
The enclosure should be regularly dusted o with a damp cloth and checked for damage.
Visual and functional check
The installed device should be regularly subjected to a visual check.
The following checks must be carried out:
• Check signal connections and mains power connection for correct  t and damage
• Check that the grille is  rmly inserted into the enclosure
• Check the enclosure for damage
• Check ventilation slots in the connector panel; ventilation must not be impaired by foreign bodies
If the error is not speci ed in the above table or cannot be remedied using the measures men-
tioned, please consult the technical support of Pan Acoustics GmbH.
For contact details, see chapter 16.
Pan Acoustics GmbH
Schweigerstr. 13d
38302 Wolfenbüttel
Germany
Tel: [phone]
Fax: + 49 (0) 5331 900 95 79
E-mail: [email protected]
The waste bin symbol indicates that electrical and electronic devices must not be disposed
of with household waste after their useful life. This symbol can be found on the type plate
of our products. Dispose of the device in accordance with the applicable regulations and
any contractual agreements. If you have any questions about disposal, please contact
your dealer, distributor or us.
15. WEEE declaration (disposal)
16. Contact address

© Pan Acoustics GmbH V 1.0 Page 16 of 22
Manual
17. Appendix

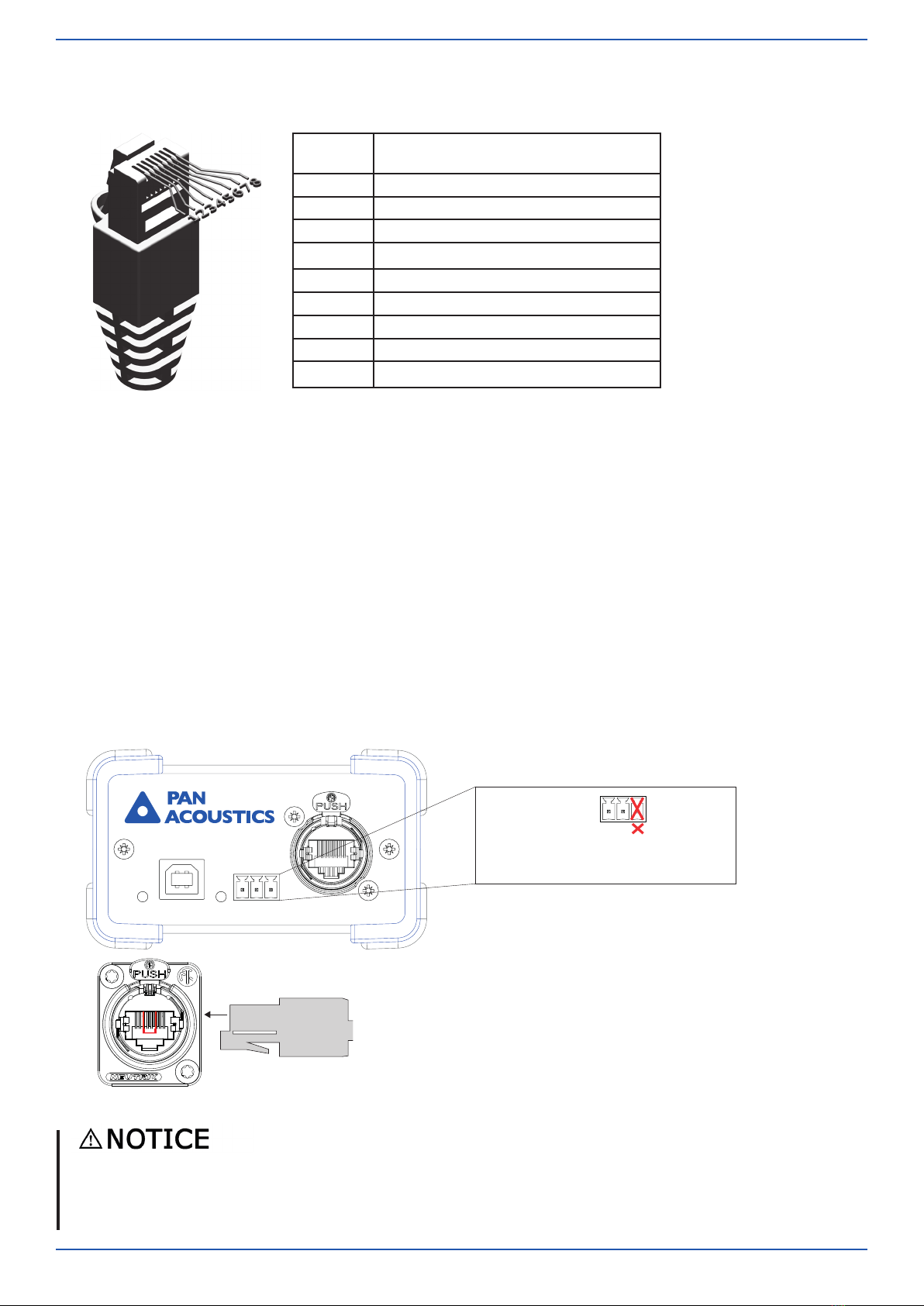

17.1. Pan Net – RJ45 pin assignment
Pin Description
1 Input A +
2 Input A -
3 Relay contact +
4 Input B + (AES/EBU)
5 Input B - (AES/EBU)
6 Relay contact -
7 RS485 +
8 RS485 -
Enclosure PE (earth / ground) shielding
17.2. Alarm contact (alarm loop)
Each Pan Subwoofer loudspeaker has an alarm contact. The loudspeaker can indicate a detected error
via this alarm contact. For this purpose, a switch relay is installed in the loudspeaker, which is closed
in normal operating status. If the loudspeaker is not in operation, if there is no power supply or if an
internal error is signalled via the DSP, the relay is opened.
In a Pan Net with analogue AES/EBU audio signals, all devices on a Pan Net line are connected to
each other by means of daisy chain cabling. In order to close the loop for the alarm contact, a jumper
must be set between pin 3 and pin 6 (see chapter 17.1. “Pan Net – RJ45 pin assignment”) on the
device located at the end of the cabling. The Pan Net jumper plug (article no.: 804105) can be used
for this purpose.
Via the Pan Con and Pan Splitter interfaces, the alarm loop can be evaluated via all connected devices
of a Pan Net line, e.g. via a GPI on the media controller. For this purpose, the 3-pin connector on the
Pan Net interface must be connected to the device accordingly.
Pan BeamAlarm
USB
PWR
Pan Con 485
TRX
[1] [2] 3
63
Pan Net jumper plug
# 804105
Pan Net via Dante / AES67
If the Pan Net is tunneled via Dante / AES67 networks, it is also possible to evaluate the alarm con-
tact at the loudspeaker with Dante interface. This is done via the Pan Net Link connection. For the
assignment, see chapter 17.1.
[1] Alarm loop --> etherCON pin 6
[2] Alarm loop --> etherCON pin 6
Example: Pan Con 485

© Pan Acoustics GmbH V 1.0 Page 17 of 22
Manual
17.3. Control via media controller
Via the Pan Net interfaces, Pan Splitter 4/4 and Pan Splitter 2/6, the presets stored in the loudspeak-
ers can be activated using a media controller. To do so, connect the media controller to the speci ed
interfaces via the RS485 interface.
The following control commands must be transmitted completely to activate the presets stored in the
loudspeakers. The indicated timing must be taken into account. There is no feedback about the exe-
cution of the command to the controller. All active Pan Acoustics loudspeakers with Pan Net support
that are in the same Pan Net area execute the command.
17.3.1. Pan Net
Timing
A waiting time of at least 3 s must be adhered to between the individual commands.
Mixed operation on the RS485 bus with other devices of third-party manufacturers is not permitted
due to the di erent protocols!
This may lead to a malfunction and/or failure of the connected loudspeakers. Reactivation is only
possible via technical support.
Parallel operation of a media controller and the Pan Beam Setup program is not possible and must
be avoided.
Control commands
Calling up presets String (HEX)
Preset 1 0x02 0x46 0x46 0x46 0x45 0x52 0x1C 0x30 0x31 0x1C 0x30 0x32 0x30 0x32 0x0D
Preset 2 0x02 0x46 0x46 0x46 0x45 0x52 0x1C 0x30 0x32 0x1C 0x30 0x32 0x30 0x33 0x0D
Preset 3 0x02 0x46 0x46 0x46 0x45 0x52 0x1C 0x30 0x33 0x1C 0x30 0x32 0x30 0x34 0x0D
Preset 4 0x02 0x46 0x46 0x46 0x45 0x52 0x1C 0x30 0x34 0x1C 0x30 0x32 0x30 0x35 0x0D
Preset 5 0x02 0x46 0x46 0x46 0x45 0x52 0x1C 0x30 0x35 0x1C 0x30 0x32 0x30 0x36 0x0D
RS485 interface con guration
Baud rate 38,400 ± 3%
Data bits 8
Parity none
Stop bits 2
Flow control none
17.3.2. Crestron
A corresponding module is available for operation with a Crestron media controller. The module can
be obtained from the Crestron website or from Pan Acoustics.
17.3.3. Pan Net / Crestron interface confi guration
The pre x 0x in the string (HEX) must be adapted or can be omitted depending on the media control-
ler used. Please refer to the manual of the media controller used for the relevant information.

© Pan Acoustics GmbH V 1.0 Page 18 of 22
Manual
17.4. Dante

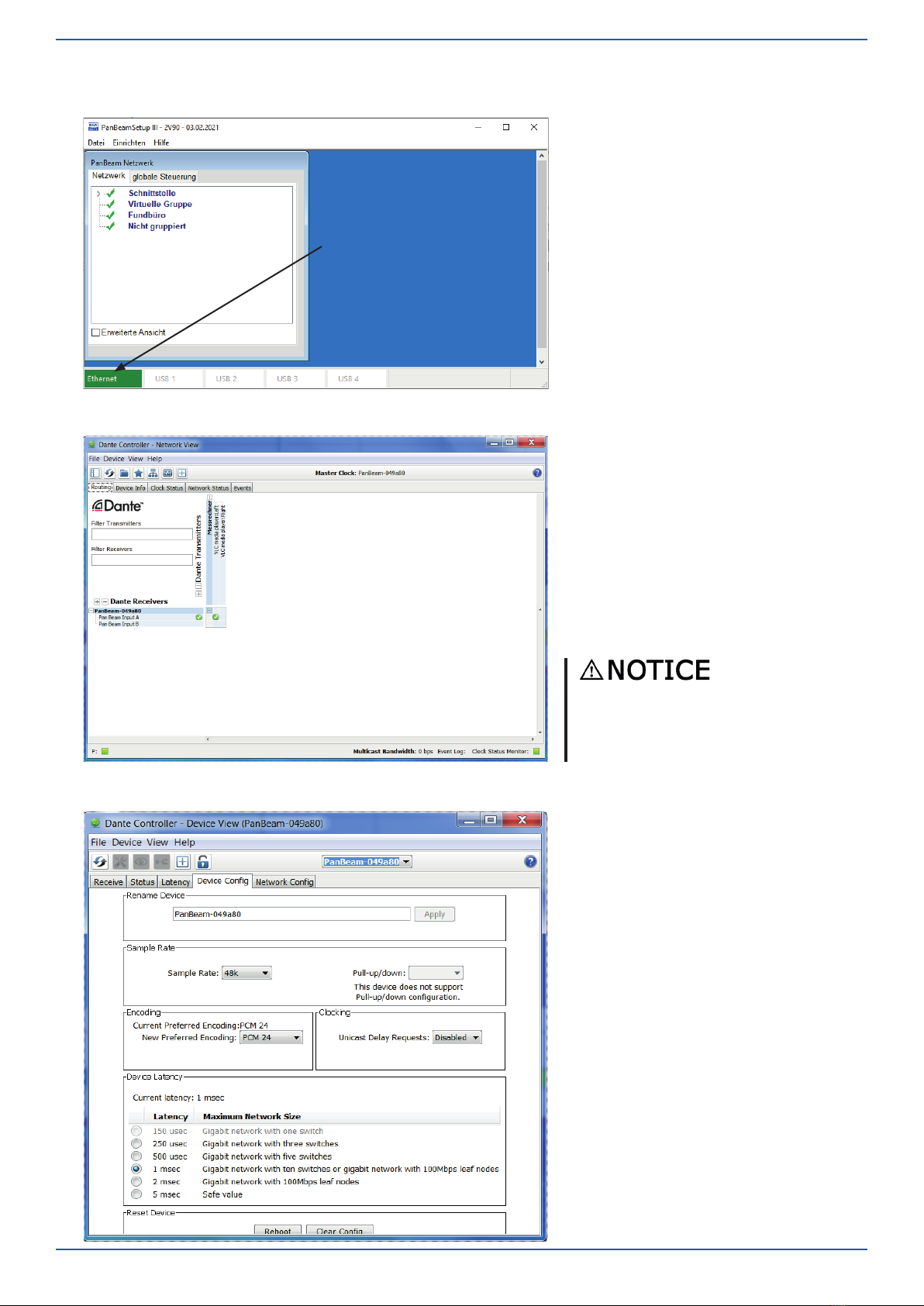

17.4.1. Setup
The loudspeakers of the Pan Subwoofer
series must be set up via the Pan Beam
Setup software. The Dante Controller
software from Audinate must be installed
to access a Dante network via the
software. After successful installation,
the Dante interface (Ethernet) appears
in the footer of the Pan Beam Setup
software.
The latest version of the Dante Controller
software must be installed accordingly.
Link for download: https://www.audi-
nate.com
17.4.2. Routing
A Pan Acoustics loudspeaker appears
in the Dante network under the “Dante
Receivers” tab. The loudspeaker has
two inputs, Input A and Input B.
For audio routing, the relevant
connection must be set between the
desired Dante transmitter and the
Pan Beam loudspeaker.
The relevant audio source (Input A
and/or Input B) must also be activated
in the loudspeaker via the Pan Beam
Setup software.
17.4.3. Device confi guration
Various settings in the Dante interface
of the loudspeakers can be made via
the “Device Con g” tab.
Rename device:
Assign a name for the speaker
Sample rate:
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Encoding:
Pan Beam loudspeakers support PCM24
and PCM32 encoding
Device latency and clocking
See Audinate Dante information at
http://www.audinate.com

© Pan Acoustics GmbH V 1.0 Page 19 of 22
Manual
17.4.4. Network confi guration
The Dante interface of the loud-
speakers supports the “switched”
and “redundant” modes in the Dante
network.
Switched:
If the Dante interface is set to “switched”,
an additional Dante device, e.g. a stage
box, can be connected to the secondary
port and operated in the Dante network.
Connecting another Dante-capable
device to the secondary port in the
“switched” mode is technically possible,
but not recommended.
Redundant:
If the Dante interface is set to
“redundant”, the Pan Beam loudspeaker
can be connected to the redundant
Dante network with a second network
cable.
17.4.5. Status
Via the “Status” tab, information on the
device,  rmware and software version,
clock status and network interface can
be called up.

© Pan Acoustics GmbH V 1.0 Page 20 of 22
Manual
17.4.6. Pan Net (AES/EBU) to Dante interface
[1] Pan Net Link
Via the Pan Net Link etherCON port on the loudspeaker,
additional Pan Acoustics loudspeakers with AES/EBU
interface can be connected in daisy chain.
Attention must be paid to the correct sequence (input
/ output).
When connecting loudspeakers with AES/EBU interface
from the Pan Beam or Pan Subwoofer series, attention
must be paid to the correct connection sequence (input
/ output). If both audio channels A/B are needed on the
connected AES/EBU loudspeakers, the corresponding
cross point must be set in the Dante controller.
[1]
17.4.7. Dante LED status indicator
Above the etherCON ports for the Dante or AES67 net-
work, there are two LEDs for status indication:
The [LINK/ACT] LED is green if everything is connected
correctly.
The [1 G] LED is orange if a 1 Gigabit network has been
detected.
The [COM] LED  ashes red if the loudspeaker commu-
nicates with the “Pan Beam Setup” software via the
Dante network.
