MANUAL PAN SUBWOOFER P SW-108 | RJ
Read the manual carefully before putting the device into operation.
The manual must be retained.
V 1.0
Shapely.
Versatile.
Functional.

© Pan Acoustics GmbH V 1.0 Page 2 of 16
General information
Manual
Pan Subwoofer P SW-108 | RJ
Version: 1.0
Language: English
Doc. No.: 2022_01531
Copyright © 2022 Pan Acoustics GmbH, all rights reserved
This document must be kept with the product or in a safe place so that it is available when
needed.
If the product is resold, the document must be handed over to the new owner in printed or electronic
form.
Pan Acoustics reserves the right to change / update the document without prior notice. The latest
version of this document can be downloaded from the Pan Acoustics website.
Pan Acoustics GmbH
Schweigerstr. 13d | 38302 Wolfenbüttel
Tel.: [phone] | Fax: [phone]
E-mail: [email protected]

© Pan Acoustics GmbH V 1.0 Page 3 of 16
Manual
Table of contents
1. Product description 4
2. Symbols and explanation 4
3. General information and target group 4
4. General safety regulations 4
5. Safety instructions 6
6. Scope of delivery 6
7. Setup location 6
8. Assembly and connection 7
8.1. Assembly of mounts (accessories) 7
8.2. Electrical connection 8
8.2.1. P SW-108 | RJ (low impedance) 8
8.3. Important notice regarding the network cable and amplier power 10
8.3.1. Permissible cable cross sections and lengths 10
8.3.2. RJ pin assignment 10
8.3.3. RJ adapter 10
8.4. Operation on the power amplier 11
9. Operating conditions 11
10. Service and repair 11
11. Maintenance measures 11
12. Declaration of conformity 11
13. WEEE declaration (disposal) 11
14. Warranty 12
15. Contact address 12
16. Mounts 12
17. Technical data loudspeaker 13
17.1. P SW-108 | RJ 13
18. Technical drawing loudspeaker 14
18.1. P SW-108 | RJ 14

© Pan Acoustics GmbH V 1.0 Page 4 of 16
Manual
1. Product description
Thank you for choosing a product from Pan Acoustics. The passive loudspeakers from the Pan Sub-
woofer series combine architecturally appealing design with fl exible connections. Depending on the
model, low impedance and RJ variants are available.
The Pan Subwoofer series off ers a comprehensive range of loudspeakers for diff erent applications
such as traditional AV installations, theatre, immersive sound and live sound applications.
All loudspeakers from the Pan Subwoofer series feature:
• appealing design
• natural and unaltered high-performance audio reproduction
• fl exibility and modularity
Please read this operating manual carefully prior to startup in order to guarantee fault-free operation.
This symbol provides important instructions for the proper handling of the
product. Failure to observe this instruction may result in damage to the
product or malfunctions.
2. Symbols and explanation
This symbol indicates a hazard with a high level of risk. If this hazard is not
avoided, serious injury or death may result.
This symbol indicates a hazard with a medium level of risk. If this hazard is
not avoided, moderate to serious injury or death may result.
This symbol indicates a hazard with a low level of risk. Failure to observe this
instruction may result in minor injuries or damage to property.
All information in this operating manual is based on the product properties available at the time of
preparation and the safety regulations applicable at that time.
This operating manual describes the setup, function and connection of the Pan Subwoofer loudspeaker
system P SW-108 | RJ. It is aimed at system technicians and persons assigned the task of installing
and operating a relevant system.
Pan Acoustics reserves the right to make changes and modi cations within the scope of legal regula-
tions and product improvements without prior notice.
This operating manual and all additional information required for operation must be read prior to
use by all persons involved in commissioning. The operating manual and all additional information
required must be kept within reach near the device.
All necessary information and documents can be obtained from the Pan Acoustics website,
https://www.pan-acoustics.de/en/service/download, or by sending an e-mail to
[email protected].
3. General information and target group
4. General safety regulations
The following safety regulations must be read completely and diligently before putting the device
into operation and must then be kept in a safe place near the device. Reading the operating manual
does not replace the knowledge and observance of all valid local safety rules and regulations. The
information and technical speci cations published in this document are based on data available at
the time of publication. We reserve the right to make changes to the product aimed towards product
improvement and adjustment to new applicable standards.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH V 1.0 Page 5 of 16
Manual
In order to prevent falling object injuries,
• this device is to be fastened to building  xtures with friction-locking connections using suitable
connector elements according to the installation instructions. The base surface is to be checked
for suitability of installation and, where required, prepared by quali ed personnel.
• the connections and components delivered by Pan Acoustics or expressly mentioned in this manual
are to be used.
• the load-bearing elements and connections are to be checked regularly for wear and loosening.
To minimise the risk of  re or electric shock,
• the product must not be opened. It does not contain any parts that can be serviced by the user.
• the product must not be exposed to moisture or humidity, except for loudspeakers with an
appropriate IP protection class.
• no objects  lled with liquid (e.g. bottles) must be placed on top of the device.
• the device must not be exposed to excessive heat, direct sunlight,  re or the like.
• no open sources of  re (e.g. candles) must be placed on top of or under the device.
To prevent injury, this product must be taken out of operation, clearly marked and secured against
accidental operation if the product
• shows signs of visible damage.
• contains loose parts.
• no longer works fl awlessly.
• has been stored for a long time under unfavourable conditions (e.g. in humid rooms).
• was exposed to severe transport stress (e.g. with unsuitable packaging).
To avoid injuries such as hearing damage due to excessive volume levels, persons should
• never stand directly in front of a connected loudspeaker.
• not be exposed to high volume levels over a long period of time.
To prevent injuries, electric shock and  re, ensure that all persons involved in the set up, operation,
dismounting or installation of the device/system have read this operating manual.
To prevent damage to the product, avoid
• generating acoustic feedback.
• playing back distorted signals of high power over a long period of time.
• generating impulse-like sounds (e.g. popping noises) which occur when a media player is switched
on, connected or disconnected.
Device protection and operating safety
• The device is completely disconnected from the signal network by disconnecting the signal
connection.
• The device may only be cleaned from the outside using a dry cloth.
• The original packaging or an appropriate transport box (fl ight case) should be used when trans-
porting the device. The device must be protected against vibrations.
NOTICE
CAUTION
WARNING
DANGER

© Pan Acoustics GmbH V 1.0 Page 6 of 16
Manual
All products from Pan Acoustics are developed and manufactured in Germany according to the latest
safety regulations. Each product is thoroughly inspected prior to shipping according to in-house
quality guidelines.
The device conforms to the current CE regulations for operation in residential, business, commercial
and industrial areas.
The device must be carefully inspected upon receipt for transport damage and completeness. In case
of damage, the transport company and the shipper must be noti ed without delay.
Safety may be compromised if the product:
• shows signs of visible damage.
• no longer works correctly.
• has been stored for a long time under unfavourable conditions.
• has been transported incorrectly (e.g. unsuitable packaging).
If the product shows signs of impairments that no longer guarantee safe operation, the device must be
secured and labelled accordingly. It must also be ensured that no intentional or accidental operation
by third parties is possible.
The loudspeaker is suitable for indoor operation. In outdoor areas, the loudspeaker must only be oper-
ated with a suitable IP protection class (IP54 or IP65). Suffi cient air circulation must be ensured when
operating the device indoors.
The device may be damaged by condensation. It should therefore be appropriately accli-
matised before operation.
The loudspeaker may only be operated in the speci ed ambient temperature --> see chapter 17 “Technical
data loudspeaker”.
When unpacking, it is important to pay attention to the temperature diff erence between the ambient
temperature and the device. If the temperature diff erence is high, it is necessary to wait a suffi ciently
long time before operating the device to avoid damage due to condensation.
5. Safety instructions
6. Scope of delivery
7. Setup location
Inspect the product for completeness upon delivery. The scope of delivery includes:
1 x Pan Subwoofer P SW-108 | RJ
1 x manual download information
WARNING
The speakON NL4 or NL2 plugs are not included in the scope of delivery.
NOTICE

© Pan Acoustics GmbH V 1.0 Page 7 of 16
Manual
8. Assembly and connection
8.1. Assembly of mounts (accessories)
Various mounts are available from the “Pan Accessories” range for installing the loudspeaker on walls
and ceilings
--> see chapter 16 “Mounts”.
The installation and commissioning of loudspeakers must only be carried out by quali ed personnel.
Ensure that the mount chosen corresponds to the requirements on the wall or ceiling structure, along
with operating requirements.
National safety regulations for operation and assembly must be followed.
CONNECTION WITH THE BUILDING STRUCTURE
• It must be ensured that the ceiling/wall area where the device is to be installed is structurally
suitable.
• The mount must lie fl at on the surface of the building structure. The surface must not show any
settlement eff ects even in the long term.
• For a safe and durable connection, plug and screw connections must be dimensioned according to
the acting forces that may occur through lever eff ects.
• In case of doubt as to the type and composition of the building structure, consult a structural engineer.
CONNECTION OF THE LOUDSPEAKER AND MOUNT
• All mounts sourced via Pan Acoustics for the Pan Subwoofer series are delivered with suitable
installation material for connection with the loudspeaker.
• The connection between the loudspeaker and the mount is made by  xing points (e.g. slot nuts,
which are inserted into the rear slots of the loudspeaker and tightened with two M10 set screws

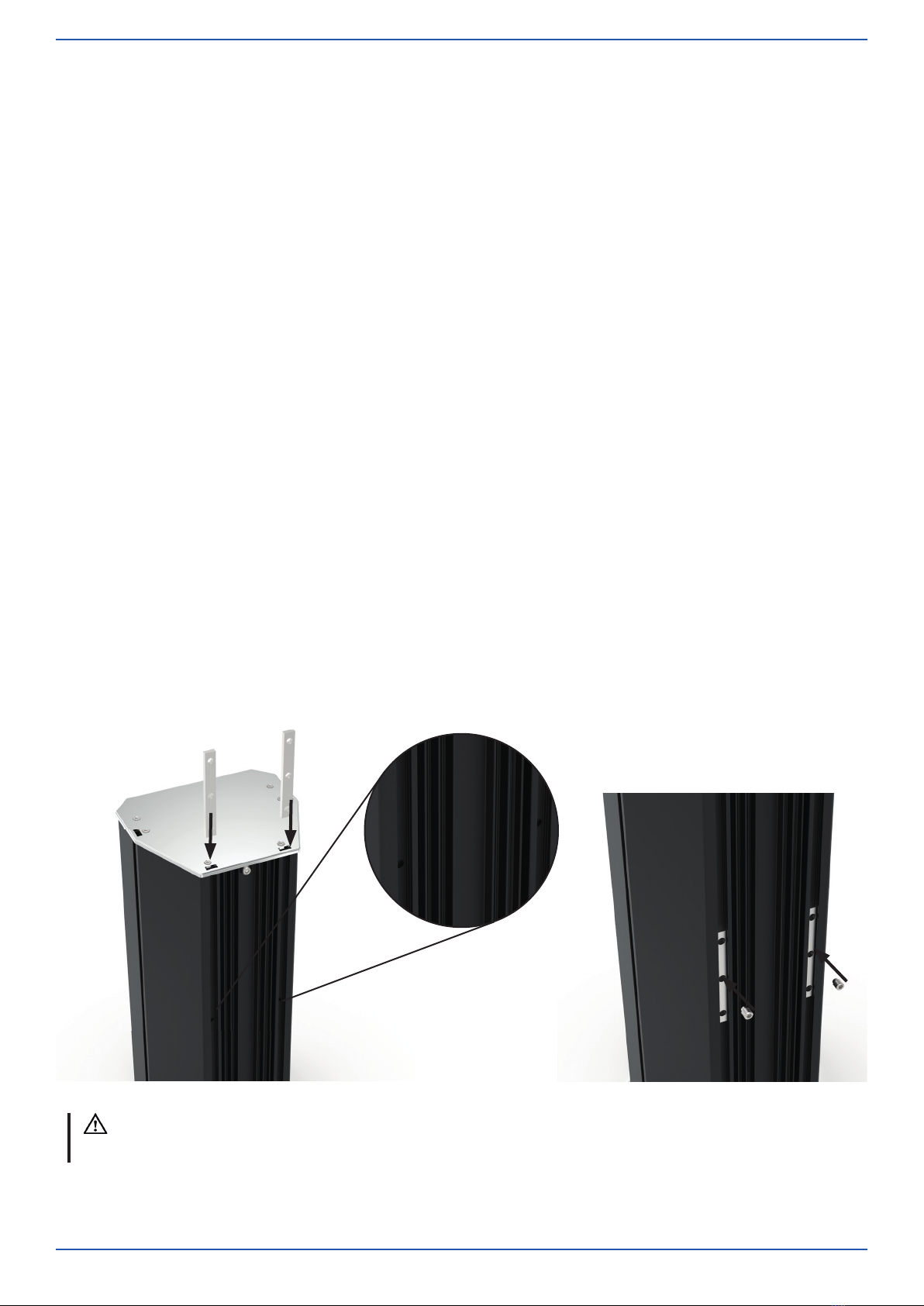

each). For exact positioning of the slot nuts in the middle of the loudspeaker, there is a blind hole
in the rear slots, see diagram below.
• To avoid damage to the mounts and the loudspeakers, no screws longer than the original ones
must be used. Longer screws may destroy the stability of the loudspeaker or cause short circuits
inside the loudspeaker.
• A tightening torque of 10 Nm must be observed for the screw connection between the mount and
the loudspeaker.
You can  nd the installation instructions for the selected mount on our website in the download area.
NOTICE

© Pan Acoustics GmbH V 1.0 Page 8 of 16
Manual
8.2. Electrical connection
8.2.1. P SW-108 | RJ (low impedance)
SECURING THE LOUDSPEAKER
The loudspeaker P SW-108 | RJ has an additional securing point at the back of the enclosure. An
eye bolt with an M10 thread can, for example, be screwed in here to secure the loudspeaker against
falling down by means of a safety rope.
The low impedance variant of the loudspeaker P SW-108 | RJ is equipped with an RJ45 socket with
high electrical and mechanical load capacity at the back. The contacts of the RJ45 socket are wired in
such a way that 4 wires of a network cable are combined for low-impedance signal transmission. This
connection variant permits to connect the loudspeaker to power ampli ers with corresponding socket
and assignment using 23 AWG or 24 AWG network cables. Alternatively, an adapter cable is available
to operate the loudspeaker with DSP power ampli ers that do not have an RJ45-compatible port.

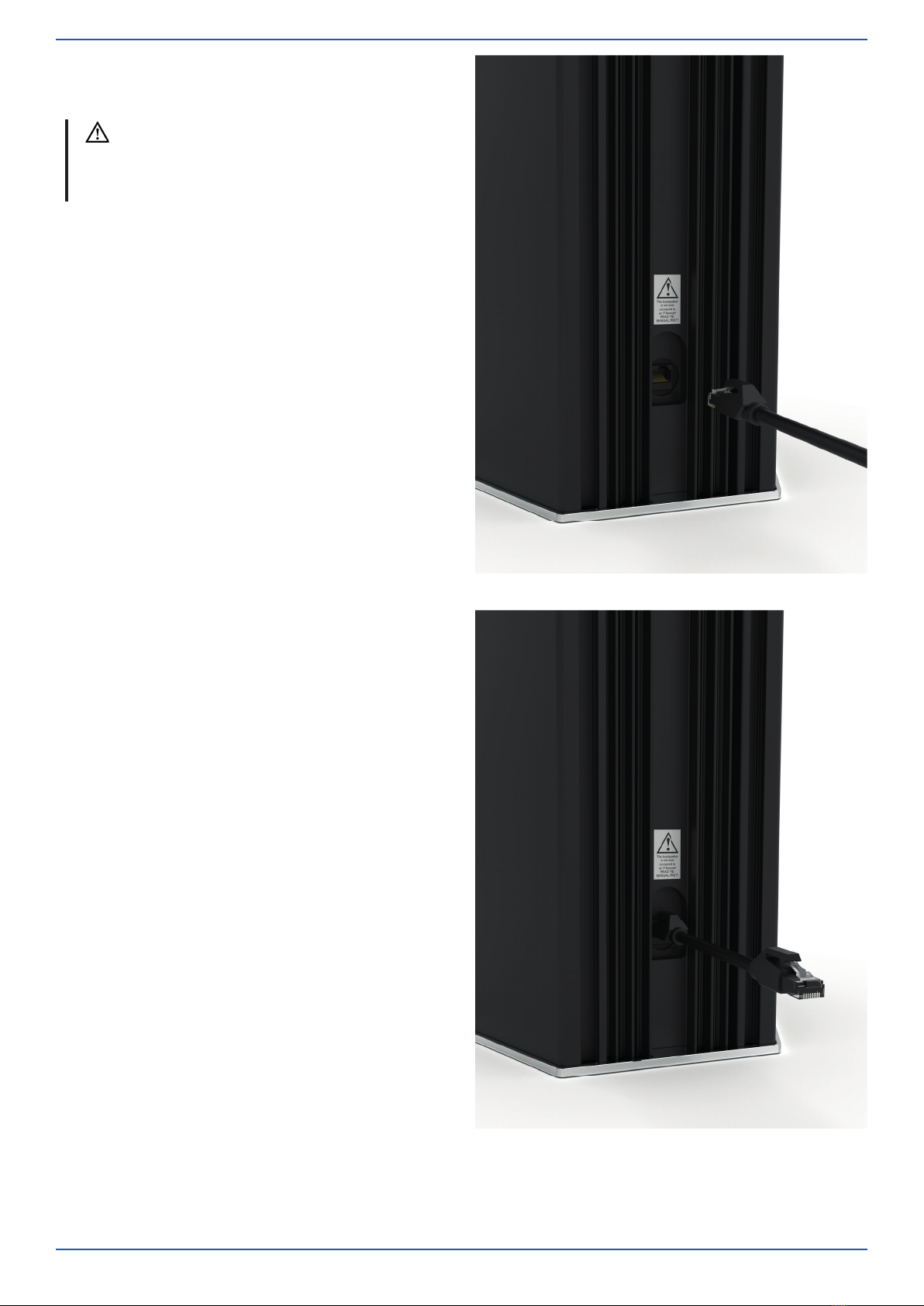

Step 1:
Make the connection panel accessible.
Connection cables must not be used for  xing or suspending loudspeakers.
WARNING
To avoid damage to the product or to other IT
equipment, e.g. switches (PoE), the loudspeak-
er must not be connected to such devices.
CAUTION

© Pan Acoustics GmbH V 1.0 Page 9 of 16
Manual
Step 3:
Connect the network cable to the socket of the
loudspeaker and snap it into place.
Step 2:
Run the network cable with the RJ45 plug to
the loudspeaker.
Check the locking mechanism of the connection
cable for function to prevent the cable from
slipping out.
NOTICE

© Pan Acoustics GmbH V 1.0 Page 10 of 16
Manual
8.3. Important notice regarding the network cable and ampli er power
8.3.1. Permissible cable cross sections and lengths
8.3.2. RJ pin assignment
The following information is to ensure the safe operation of the loudspeaker with power ampli ers.
The maximum cable lengths and cable cross sections that may be used are indicated below.
Pan Acoustics loudspeakers have a high effi ciency. Due to the high sensitivity of the systems, a con-
siderable sound pressure can already be generated from little applied power. The RJ variants of the
loudspeakers therefore do not have to be driven to the maximum in order to produce a sound level
that is suffi cient for the room, e.g. in conference applications.
Network cables are not suitable for transmitting high currents. It is therefore important to adjust the
power of the DSP power ampli er to the conditions, max. 20 watts (programme) / 60 watts (peak).
Cables have an electrical resistance and can heat up considerably depending on the cable cross sec-
tion. To prevent a cable  re, the cross section of the cable must be suffi ciently dimensioned.
WARNING
1
8
CAT5e or CAT6 cables are suitable for adapted power transmission if their cross sections correspond
to 23 AWG or 24 AWG cables. Shielded cables are NOT required.
For optimum power transmission, only use cables with copper cores.
NOTICE
8.3.3. RJ adapter
CAT cable cross section Cable length (1 dB attenuation) Cable length (1 dB attenuation)
22 AWG (0.326 mm²) 36 m @ 8 ohms 72 m @ 4 ohms
23 AWG (0.258 mm²) 28 m @ 8 ohms 56 m @ 4 ohms
24 AWG (0.205 mm²) 22 m @ 8 ohms 44 m @ 4 ohms
The maximum cable length (24 AWG cable) between the power ampli er and the loudspeaker with RJ
socket should not exceed the length of 100 m @ 4 ohms and 60 m @ 8 ohms.
The contacts of the loudspeaker’s RJ socket are wired in such a way that 4 wires (blue/brown) and 4
wires (green/orange) are combined to one wire (+) and one wire (-). This assignment results in no
polarity reversal when using a crossed network cable.
For connection to a DSP power ampli er that is not equipped with a correspondingly assigned RJ
socket, but e.g. with a 2-pin connection terminal, an adapter with Keystone socket is available.

© Pan Acoustics GmbH V 1.0 Page 11 of 16
Manual
The loudspeaker P SW-108 | RJ must be operated on a correctly con gured DSP ampli er or ampli er
with upstream audio DSP. The ampli er to be used must be chosen according to the technical data
of the loudspeaker.
Technical data --> see chapter 17 ”Technical data loudspeaker”.
DSP settings for various DSP ampli ers and DSP audio platforms for sound equalisation can be down-
loaded from the Pan Acoustics website www.pan-acoustics.de. If you have any technical questions,
you can also contact our support team at [e-mail].
The declaration of conformity for the relevant product from the Pan Subwoofer series can be requested
from Pan Acoustics.
The waste bin symbol indicates that electrical and electronic devices must not be dis-
posed of with household waste after their useful life. This symbol can be found on the
type plate of our products. Dispose of the device in accordance with the applicable regu-
lations and any contractual agreements. If you have any questions about disposal, please
contact your dealer, distributor or us.
The product is suitable for operation in an ambient temperature from -10 °C to +50 °C. If the prod-
uct is operated below 0 °C, the device must be operated by means of a continuous signal in order to
prevent the loudspeaker chassis from freezing.
Before operating the device for the  rst time, it must be acclimatised. Avoid exposing the device to
aggressive chemical liquids and vapours. The device must not be covered up by textiles. Take pre-
cautions to prevent the enclosure from heating up due to direct exposure to sunlight or powerful
spotlights. The device must also not be exposed to strong vibrations.
8.4. Operation on the power ampli er
Service and repair work may only be carried out by persons and partners authorised by Pan Acoustics.
No service or repair measures are to performed on the device that exceed the statements made in
chapter 11 “Maintenance”.
Contact data:
--> see chapter 15 “Contact address”.
The following measures must be carried out at regular intervals:
Cleaning
The enclosure should be regularly dusted off with a damp cloth and checked for damage.
Visual and functional check
The installed device should be regularly subjected to a visual check.
The following checks must be carried out:
• Check the wall and ceiling mount for a  rm  t.
• Check the enclosure for damage.
• Check the connection cable for damage.
9. Operating conditions
10. Service and repair
11. Maintenance measures
12. Declaration of conformity
13. WEEE declaration (disposal)

© Pan Acoustics GmbH V 1.0 Page 12 of 16
Manual
Pan Acoustics stands by its products and gives up to 10 years warranty on its loudspeakers for
any material or manufacturing defects. New products manufactured in accordance with protection
classes IP54 and IP65 as well as digital audio interfaces (Dante®) from Audinate Pty Ltd and re-
chargeable batteries are excluded from the 10-year warranty. A warranty period of 3 years is granted
for loudspeakers in accordance with protection classes IP54 and IP65. For further information on the
warranty, please refer to the Pan Acoustics warranty conditions.
https://www.pan-acoustics.de/en/service/warranty
Recommended mounts for mounting products from the Pan Subwoofer series on walls and ceilings or
for mobile use include:
Tripod mount
Pan Acoustics GmbH
Schweigerstr. 13d
38302 Wolfenbüttel
Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Ceiling mount (BK)
Depending on the length and weight of the loudspeaker, a corresponding number of mounts must be
used and, if necessary, additional measures for stability or fall protection must be taken.
Information on additional measures or the number of mounts to be used can be found in the manual
of the corresponding accessory. If you have any technical questions, you can also contact our support
team at [email protected].
NOTICE
Wall mount, TWM IV (BK)
When using, for example, ceiling mounts or other mounts that have only one mounting surface, an
adapter plate must also be used.
Swivel bracket Adapter plate, WMP
14. Warranty
15. Contact address
16. Mounts

© Pan Acoustics GmbH V 1.0 Page 13 of 16
Manual
17. Technical data loudspeaker
17.1. P SW-108 | RJ
TECHNICAL DATA P SW-108 | RJ
*Under anechoic half-space conditions without DSP settings.
Frequency range: -10 dB under anechoic half-space conditions.
ACOUSTIC PROPERTIES
Conguration: Direct radiating speaker
Lower cut-o frequency: 30 Hz
Driver: 1 x 8“ HQ
Rated power: 1000 W (peak) / 500 W (programme) / 250 W (AES)
Recommended amplier: DSP power amplier
Sensitivity: 85 dB 1 W / 1 m
Maximum SPL: 109 dB* (peak) @ 1 m
Impedance: 4 ohms
Connections: 1 x RJ45**
Temperature range: -10 °C to +50 °C (ambient temperature)
MECHANICAL PROPERTIES
Enclosure: Aluminium prole
Grille: Powder-coated perforated metal sheet
Standard colours (with silver lids):
(optional: lids in enclosure colour)
RAL 9005 (black), silk matt
RAL 9010 (white), silk matt
Dimensions (H x W x D): 555 x 244 x 210 [mm]
Weight: 9 kg
Mounting option: Extensive range of mounting accessories available

© Pan Acoustics GmbH V 1.0 Page 14 of 16
Manual
18. Technical drawing loudspeaker
18.1. P SW-108 | RJ
555 mm
210 mm
244 mm

© Pan Acoustics GmbH V 1.0 Page 15 of 16
Manual

CONTACT:
Pan Acoustics GmbH | Schweigerstr. 13d | D-38302 Wolfenbüttel | Germany
Tel.: [phone] | Fax: [phone] | E-mail: [email protected]
www.pan-acoustics.de
QUALITY
MADE IN GERMANY
SINCE 2002
