Panasat DSD 642 User manual

Contents
Unpacking ...........................................2
Safety ...............................................2
Preface ..............................................2
Digital Satellite Services ...............................2
Conditional Access ...................................3
Smart Card ...........................................3
Inserting the Smart Card ...........................3
The Digital Satellite Decoder (DSD) ......................4
Rear Panel Connections .................................4
Remote Control Unit ..................................5
Replacing Batteries in the RCU ...........................5
Getting Started .......................................6
Installation of the satellite dish and cabling to the decoder .......6
Installation Indemnity ..............................6
Setting-up the System ..................................6
Switching on the decoder at the Mains ......................6
Tuning Your TV .......................................6
Adding a Modem .......................................7
Standby and Normal Modes ..............................7
Optional Decoder Connections ............................8
Introduction .....................................8
Hints to Quality TV System Configurations .............8
Decoder, TV (using SCART or RF Interfaces) ..........8
Decoder, TV (SCART or RF Interfaces), Hi-Fi ..........9
Decoder, VCR, (SCART Interface), TV (SCART Interface),
Hi-Fi ..........................................10
Decoder, VCR, TV, Hi-Fi (using RCA Connectors) .....11
Two Decoders, TV, (using AUX SCART
and RF Interfaces) ...............................12
RCU UHF Button Selection Functions ..........12
Selecting Specific Services .............................13
Selecting Services Directly .........................13
Stepping through Services .........................13
Stepping using the RCU .....................13
Stepping using the Decoder Front Panel Keys ....13
Selecting Specific Services from the EPG .............13
Selecting Services from the Information Bar ...........13
Controlling the Show ...................................13
Volume Control using the RCU Keys .................13
Volume Control using the Decoder Keys ..............13
Mute ..........................................14
Displaying Subtitles ..............................14
Clock .........................................14
Selecting Soundtracks ............................14
Power Reset ....................................14
Signal Selection .................................14
Open TV Electronic Programme Guide ..................14
Using the EPG .......................................15
Open TV Information Bar ..............................16
Reminders ..........................................17
Parental Blocking ....................................17
Menu Navigation Route ...............................18

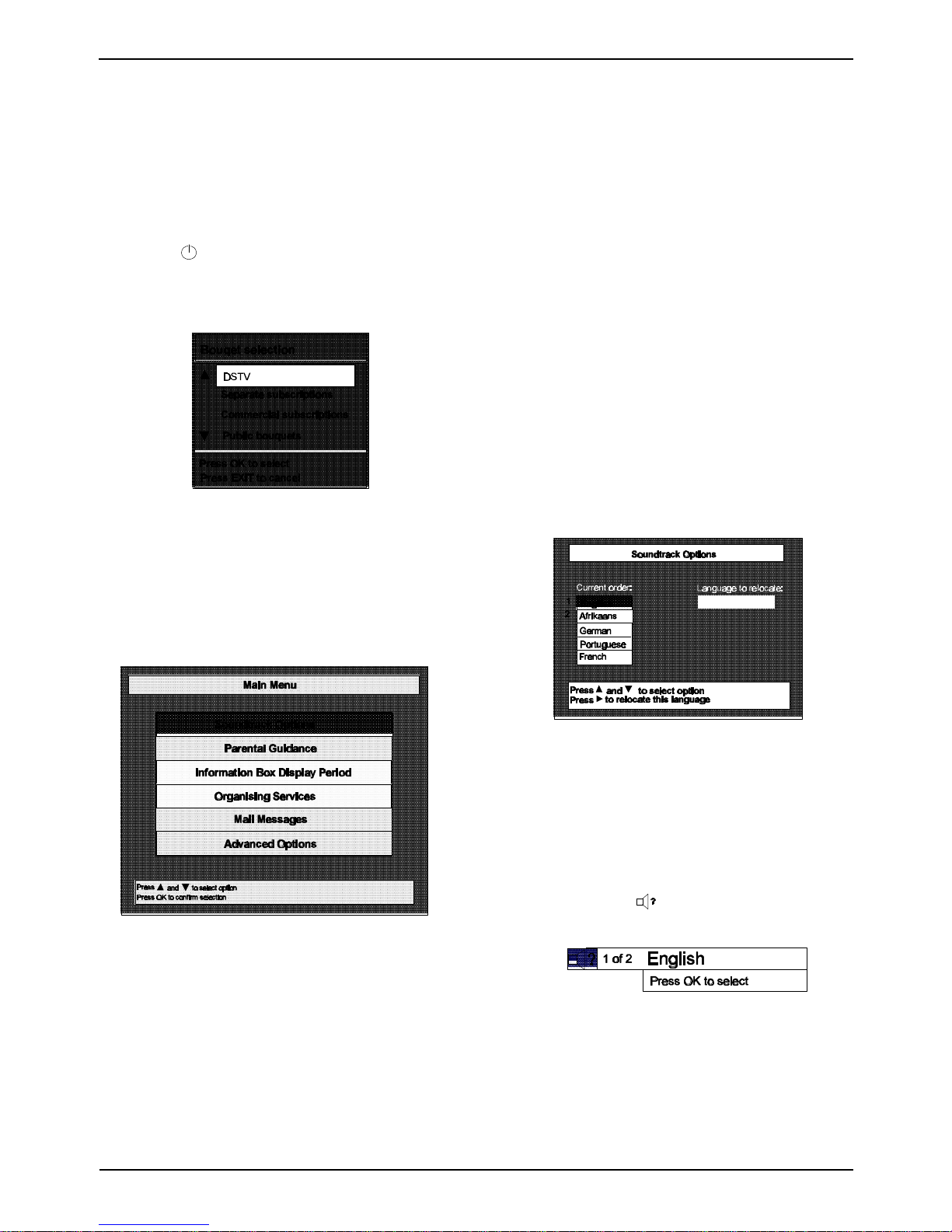

Using Menus ........................................19
Soundtrack Options ...................................19
Parental Guidance ..................................... 20
Setting the Parental Level ........................... 20
Changing the Parental Pin Code ..................... 20
Information Box Display Period ............................ 20
Organising Service ..................................... 20
Skip TV Services ................................. 21
Sort TV Services ................................. 21
Reset TV Services ................................ 21
Skip Audio Services ............................... 22
Sort Audio Services ............................... 22
Reset Audio Services .............................. 22
Full Rescan ..................................... 22
Mail Messages ........................................ 22
Advanced Options ..................................... 22
Change Dish Installation ........................... 22
Change LNB Settings ........................ 22
Set LNB Power ............................. 22
Set LNB Frequency .......................... 23
Change Manual Tuning Parameters ............. 23
Tune DSD ................................. 23
Reset to Factory Defaults ..................... 23
Signal Detection .................................. 23
Information ...................................... 23
DSD Status ................................ 23
CA Status ................................. 24
TV Installation ................................... 24
TV Type ................................... 24
Aspect Ratio ............................... 24
UHF Tuning ................................ 24
Scart Source ............................... 24
Scart Video Output .......................... 24
Change Modem Settings (if fitted) .................... 25
Local Time ...................................... 25
DSD Upgrade .................................... 25
Troubleshooting ...................................... 26
Specification ......................................... 29
Multichoice DSTV Hotlines ............................. 30
Installation Settings ................................... 30
Notes ............................................... 31

DSD 642 OPERATING INSTRUCTIONS 3
UNPACKING
Ensure that the following items are included with the Digital Satellite
Decoder (DSD):
1 x Remote Control Unit (RCU)
2 x AAA Batteries
1 x Flylead
1 x Mains Cable
1 x User Manual
SAFETY
This decoder exceeds International Safety Standards. Please read the
following recommended safety precautions carefully.
MAINS SUPPLY: 210-250 V AC 50 Hz ONLY.
LIQUIDS: Keep liquids away from the decoder.
SMALL OBJECTS:Small objects, such as coins, must not be placed
on the decoder as they could fall through the ventilation slots and cause
serious damage.
CLEANING: Before cleaning, disconnect the decoder from the wall
socket.Useacloth lightlydampened withwater (nosolvents) toclean the
exterior.
VENTILATION: Do not block the decoder ventilation slots. Ensure that
freeairflowismaintainedaroundthedecoder.NEVERstandthedecoder
on soft furnishings or carpets. Do not use or store the decoder where it
is exposed to direct sunlight, or near a heater. Never stack other
electronic equipment on top of the decoder.
ATTACHMENTS: Do not use any attachment that is not recommended
bythe manufacturer,as itmay causea hazardor damagethe equipment.
CONNECTION TO THE SATELLITE DISH LOW NOISE BLOCK
(LNB): The LNB connector cable has a voltage on its centre core. It is
thereforerecommendedthatthedecoderisdisconnectedfromthemains
power before connecting or disconnecting this cable. FAILURE TO DO
SO COULD DAMAGE THE LNB.
SERVICING: Do not attempt to service this product yourself. Any
attempt to do so will make the warranty invalid. Refer all servicing to
qualified service agents.
LIGHTNING:If the decoder is installed in an area subject to intense
lightningactivity,protectiondevices forthe decodermains connectorand
modem telephone line are essential. The individual manufacturer’s
instructions for safeguarding other equipment, such as TV set, Hi-Fi,
etc., connected to the decoder, must also be followed during lightning
storms.
EARTHING: The earth of the LNB cable MUST BE DIRECTLY
CONNECTED to the system earth for the satellite dish. The earthing
system must comply with local regulations.
Refer to the Installation Indemnity on page 6.
PREFACE
The digital satellite decoder introduces exciting new technology. This
manual provides full information on how to use the decoder and enjoy
the benefits of all its features.
The decoder is easy to use, even for those users unfamiliar with, or
intimidated by, modern technology. The more advanced and more
complex features can be avoided until you become comfortable with the
basic operation of the system.
The manual provides:
#Important safety precautions; please study them.
#Overview material; read only those parts that interest you. It is
not
necessary to study the manual from cover to cover before using
the decoder.
#Step-by-step instructions on how to use the decoder and its
advanced features.
#Step-by-step instructions on how to install the decoder and
connect it to basic sound and TV systems. It is beyond the
scope of this manual to include all of the possible configurations
or installation procedures.
#Troubleshooting guide to assist you if you have difficulty with
operating the decoder correctly, or if technical problems occur.
The operation of the decoder can be upgraded using over-the-air
signals (typically in the morning). This manual and the menus
downloaded in the decoder are therefore subject to change at any time.
This document and the information contained herein are the subject of
copyrightandintellectualpropertyrightsunderinternationalconvention.
All rights are reserved. No part of this document may be reproduced,
stored in a retrieval system or transmitted in any form by any means,
electronic, mechanical or optical, in a whole or in part, without the prior
written permission of UEC Commercial (Pty) Ltd, the Manufacturer.
DIGITAL SATELLITE SERVICES
The decoder has been designed to receive and process digital signals
from the PanAmSat 4, Astra and EutelSat satellites. The satellites act
as mirrors in the transmission process, beaming the Service Provider’s
signals back to your satellite dish. Compared to conventional TV
(analogue), digital technology presents higher quality pictures, sound
comparable to that of a CD, and many more services.
Satellite technology also enables excellent reception of satellite TV
services in remote rural areas where good quality terrestrial reception
has never before been possible.
The term “Services” is used instead of “Channels” because
compressed digital TV and audio technology efficiently uses available
bandwidth, allowing several services to use the bandwidth of one
channel.
In addition to the digital TV and audio signals, satellite signals also
contain data that the decoder extracts, processes and stores. This
provides up-to-date text information on the content and status of the
various services at the touch of a button. Convenient facilities are also
provided to manipulate received data in order to customise viewing and
listening preferences.
Due to the nature of compressed digital TV, many more features will
become available in the near future.

4OPERATING INSTRUCTIONS DSD 642
CONDITIONAL ACCESS
Although some satellite TV and audio services are free to air, most TV
and audio services are only available on a subscription basis and can
only be enjoyed via the conditional access components. These are the
removable Smart Card and a built-in conditional access process already
fitted into the system.
Smart Card
You should have purchased a Smart Card from the dealer when you
purchased the decoder. The Smart Card looks similar to a credit card
and is inserted into the slot behind the right-hand front flap of the
decoder.
A valid Smart Card entitles you to view and listen to all the services you
choose to subscribe to. Full details of subscription options are supplied
with the card.
Your Personal Identification Number (PIN) and subscription details are
stored in the Smart Card.

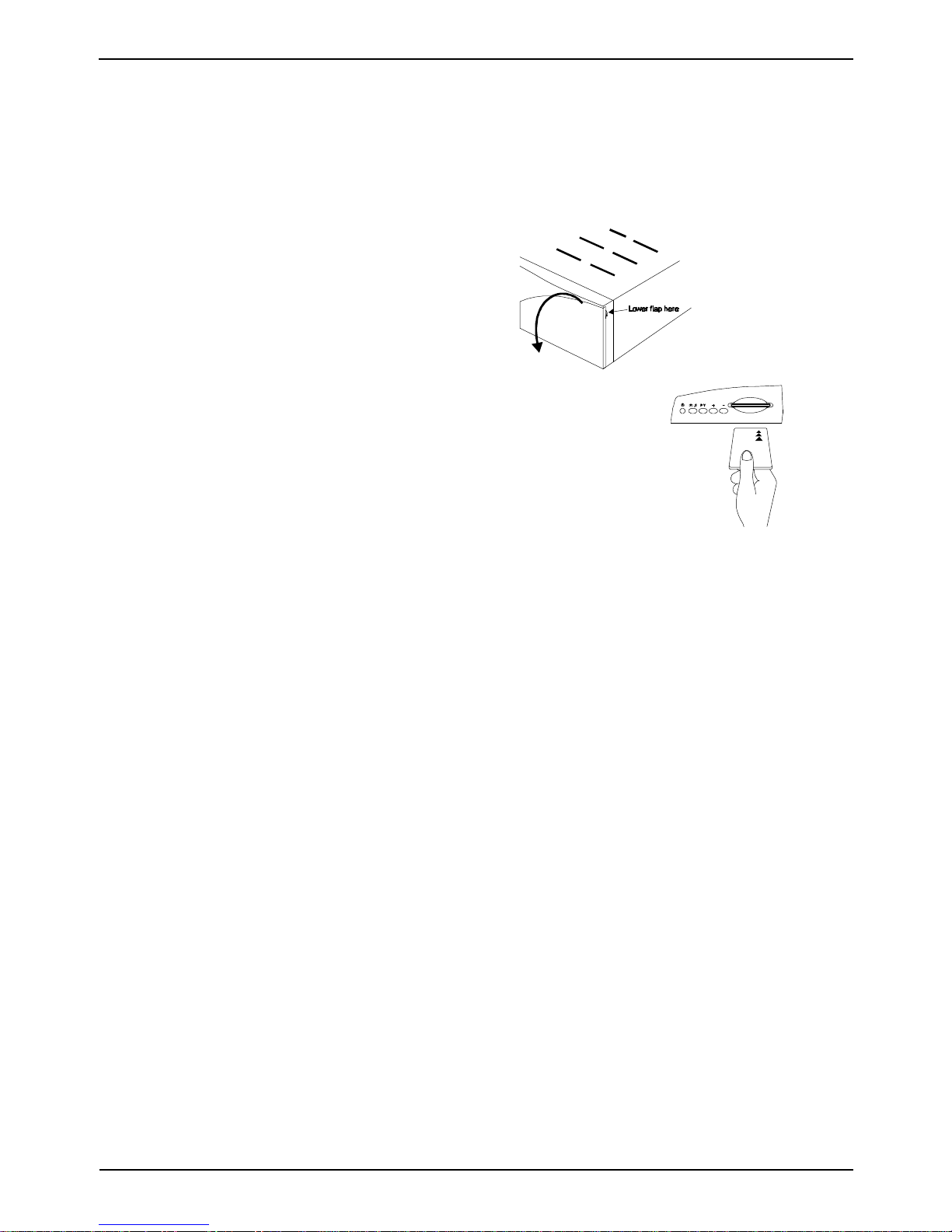

Inserting the Smart Card
The Smart Card is the key to unlocking the decoder. The decoder will not
decode scrambled TV or audio services if the card is not inserted or is
incorrectly inserted.
Inserting the Smart Card into the decoder allows instant access to all the
services you subscribe to.
The Smart Card is not required for access to menus except for the
Parental Guidance sub-menu, which requires the PIN code to be
entered.
The Smart Card, which is supplied separately and forms part of your
subscription, is updated over-the-air when your PIN code or subscription
details change, for instance, each time you purchase additional products
(details regarding these products will be announced in the future).
To insert the Smart Card, follow the instructions carefully.
1Open the right hand flap on the front of the decoder (see figure)
Swing the flap downwards to expose the card slot to the right of
the row of keys.
2Hold the Smart Card horizontally with the logo on top and the
threearrowspointedtowardsthefrontofthecard.Insertthecard
fully into the slot.
NOTE: Observe the buttons next to the smart card slot,
as these can be used as an alternative interface
to the decoder.

DSD 642 OPERATING INSTRUCTIONS 5
THE DIGITAL SATELLITE DECODER
(DSD)
The DSD combines a high quality MPEG-2 and DVB compliant satellite
receiver, integrated with a sophisticated decoder in one package. The
DSD provides all that you need to exploit the exciting new satellite
services that are now available.
Green Dot -
DSD in
standby
mode
Service No
17 selected Green light - Audio
Services
selected.
Rotating
signal,
searching
for service
information
Service not
found, or of
inferior
quality
Download
in progress Green Dot - flashes
when RCU
keys are
pressed
Yellow light
- Mail
Messages
waiting
Red light
Error
indication
Menu
selected
REAR PANEL CONNECTIONS
Key Description
Switches the decoder between normal and standby
modes.
TV +Switches between TV and Audio services.
PV Switches between programme selection and volume
control.
+Selects next service on list (up) or increases volume
level.
-Selects previous service on list (down) or decreases
volume level.
and
- (down)
When pressed simultaneously, reset the operation of
the decoder.

6OPERATING INSTRUCTIONS DSD 642
Remote Control Unit (RCU)
Easy, quick and effortless use of the decoder is possible using the
Remote Control Unit and the on-screen displays.
RCU
Keys Description
Switches the decoder between normal and standby
modes.
ALT Used to toggle between current and last services
UHF Toggles between the various output sources when
pressed once and released. When pressed, held for
5 seconds, then released, displays the UHF tuning
channel. Press once to remove the tuning channel.
Displays the local time on the screeen for 5 seconds
or removes the local time display from the screen.
iDisplays the programme information bar on the
screen. When pressed twice displays the extended
event information screen.
MENU Displays the Main Menu options on the TV screen.
TV
GUIDE Displays a list of the EPGs available on the TV
screen.
Cursor keys - used to step through programmes,
browse, move the highlight and move through
values in menus.
EXIT Press to go to the previous menu, exit the menu
system when in the main menu, or exit the
Electronic Programme Guide or Information Bar.
OK Selects a programme when in the Electronic
Programme Guide and selects highlighted options
or values in menus.
Saves any changed settings in menus.
P+ P- Cycles up or down through the available services.
V+ V- Adjusts the volume up or down.
Keypad Keys 0-9-select either a TV or audio service, or
used to key in numbers in menus (e.g., parental and
installation PIN codes).
+Selects audio services.
TV Displays Bouquet Selection menu on TV, or when in
Audio Services, returns to TV services.
Displays the soundtrack information bar for 5
seconds.
Mute.
Switches the display of subtitles or teletext (where
applicable).
Replacing Batteries in the RCU
The RCU is powered by two AAA size batteries. The life of the batteries
is about one year. Replace the batteries as required.
Note the following:
a. Insert the new batteries with their polarities (+ and -) aligned
correctly.
b. If you do not intend to use the RCU for long periods of time,
remove the batteries and store them in a cool, dry place.
c. Remove and dispose of used batteries immediately.
d. Do not use used and new batteries together. Never use an
alkaline battery with a manganese battery.
Load the batteries as follows:
1Insert small screwdriver blade or fingernail into slot in battery
compartment lid. Press lid downwards, then lift off.
2Insertthebatterieswith theirpolarities aligned,as indicatedinside
the battery compartment.
3Replace lid.

DSD 642 OPERATING INSTRUCTIONS 7
GETTING STARTED
NOTE:Unless absolutely necessary, do not change
installation, connections or decoder setup, or
carry out any retuning on a working system. If
changes are made, note all changed settings in
the table on page 30.
Installation of the satellite dish and cabling to the
DSD
Installation procedures for satellite dishes and cabling to DSDs are
outside the scope of this manual. Please refer to the manuals provided
with your satellite dish and associated equipment if you decide to do the
installation yourself.
Installation Indemnity
1For the decoder to operate, it is required to correctly install and
align a satellite dish and a Low Noise Block (LNB) converter.
2Each and every INSTALLER acts as an independent contractor
and is not a servant, sub-contractor or agent of the manufacturer.
The manufacturer is, therefore, not liable for any loss or damage
of any nature whatsoever caused by the conduct of the installer,
including but not limited to:
a. Any direct, indirect or consequential damages of any
nature or any loss of profit or other special damages of any
nature which the USER may suffer as a result of any
breach by the INSTALLER of any of its obligations to the
USER.
b. Any loss or damage to any property of the user or any third
party, situated on the USER’s premises even if loss or
damage arises out of any part of the INSTALLER.
3The manufacturer does not directly or indirectly warrant or
guarantee or make any representations whatsoever with regard
to any equipment, including, but not limited to any dish, LNB, or
cabling, used by the INSTALLER.
4Subject to any express warrant or guarantee given by the
manufacturer, in writing, the manufacturer does not:
a. Give any warranty or guarantee or make any
representation whatever in respect of any work carried out
by the INSTALLER.
b. Accept any liability for any latent or other defect in any
work carried out by the INSTALLER.
Setting-up the System
1Install and align satellite dish (installer).
2Connect the decoder to the TV set (either SCART to SCART or
RF OUT on the decoder to RF IN on TV). (See Optional Decoder
Connections).
Switching on the Decoder at the Mains
When you switch on the decoder at the mains, it goes through a power-
up sequence, then attempts to find a signal at the specific factory-set
frequency. During this process, various indications are displayed on the
decoder display and TV, as shown in the following sequence of
drawings:
NOTE: If the TV is not tuned to the channel chosen to view
the satellite services, the sequence is still the same,
but the TV will not display the scanning screen. To
tune the TV to the decoder services, tune the TV as
per Tuning Your TV.
If your TV has been tuned to accept the decoder
services, but your smart card has not been inserted
into the decoder, an error message will appear on
your TV screen.
Tuning your TV
If your TV is not tuned correctly, you will not be able to view the satellite
services. Your VCR, decoder and TV can also interfere with each other
unless they are tuned in correctly. The output of the decoder can be
tuned over the whole UHF band using the following recommended
method (refer to the following figures):
1Connect the satellite dish and terrestrial antenna (installer).
2Connect the installation as shown (if VCR installed).
3Switch on the TV and select an unused channel to use with your
VCR.
4Switch on your VCR, then set its test signal to ON (see VCR
instruction manual).
5Tune the TV to the test signal from the VCR. Switch off the VCR
test signal.

8OPERATING INSTRUCTIONS DSD 642
6On the TV, select any unused channel on which you wish to view
your satellite programmes. Once selected, all your satellite
services will be viewed on this channel, selection of the service
being made using the RCU.
7Press and hold UHF on the RCU for 5 seconds to display UHF
on the decoder display. Tune your TV set to receive the decoder
test signal display (see following figure).
A Channel number (initially 46) will be displayed on the decoder
front panel display.
Press UHF to remove the test signal.
Check that the decoder does not interfere with signals received
on the VCR.
Check all tuned channels on the TV for interference.
8If any interference is noticed, change the UHF channel number
as follows:
Press and hold UHF on the RCU for 5 seconds to display UHF
on the decoder display and the UHF test screen on the TV.
Change the channel number to 2 more or 2 less than the existing
number by pressing =or <twice on the RCU. Press OK to
save. The following will happen as soon as =or <is pressed:
a. The TV display is lost because the TV is not tuned to the
new channel.
b. The new channel number is displayed on the front panel
of the decoder.
On the TV, retune the channel allocated to the decoder until the
decoder test pattern is clearly visible.
Repeat step 8 until interference on all channels is eliminated.
NOTE: Afterchanges havebeen made,the decodermust not
be switched off for at least 3 minutes to allow for the
new setting to be saved.
Ifinterference isstill present,it isrecommended thatgood quality
screened cables (preferably double screened) are used for
interconnecting all other equipments to the decoder.
Adding a Modem
Many exciting interactive features will be available in the future (Impulse
Pay Per View, Video on Demand, etc.). The decoder is ready for these
features as it can accommodate an optional built-in modem. A modem
port for connection to your telephone line via an external (faster) modem
is provided on the rear panel.
Standby and Normal Modes
The decoder does not have a power on/off switch and it is recommended
that, for normal viewing, it remains connected to the mains after
installation.
When the decoder is not in use, it should be switched to the standby
mode using the symbol on the front panel or on the RCU.
The standby mode is indicated by a constant small green dot on the right
of the decoder display panel. To use the decoder after the initial
installation:
1Switch on the TV and any other equipment included in the system.
2Select the channel on the TV that you have allocated to the digital
television channel.
3If the decoder is in the standby mode, press on either the
RCU or decoder front panel, to return to the normal viewing mode.
A service number will be displayed on the front panel indicator.
4Press TV on the RCU. A Bouquet selection box is then displayed
ontheTVscreen.Selectthebouquetyouhavesubscribedto(e.g.,
DSTV), then press OK.
5If you wish to select the Audio Services, press the +key on the
RCU, or +on the decoder front panel. If subscribed to, an audio
servicewillbeheard,andtheaudioprogrammeinformationboxwill
be displayed on the TV. A green indicator on the left of the front
panel display is illuminated while the decoder is in the Audio
Services mode.
TV Services are restored by pressing TV on the RCU, or TV on
the decoder front panel.
NOTE: When switching from normal to standby then back
to normal, the decoder automatically returns to the
previously selected service. If a SCART VCR is
connected, it is not necessary to take the decoder
out of standby to view VCR play back.
6The decoder is set up to the local default settings by the
manufacturer. If necessary, change the installation parameters in
the decoder, as follows:
i. PressMENUontheRCU,thenselectAdvancedOptions
menu (see Advanced Options).
ii. Select Change Dish Installation then enter Installation
PIN code (9949).
iii. Select Change LNB Settings.
NOTE: LNB power is factory set to ON.
iv. The LNB power is set to ON for normal home
installations and OFF for communal (SMATV)
installations.PressOKtoreturnto ChangeLNB Settings
options. Select Set LNB Frequency.
v. Ensure that the decoder is set to the correct LNB
frequency by following the Set LNB Frequency
procedure. Press OK to save.
vi. Select the Change Manual Tuning Parameters option,
then follow the Change Manual Tuning Parameters
instructions. Press OK
vii. Select Tune DSD. The decoder then goes through a
scanning process and on completion returns to the last
service viewed.
The decoder is now ready for normal use.

DSD 642 OPERATING INSTRUCTIONS 9
IRDETO CRYPTOLOGY
210-250V ~ 50Hz 30W
DESIGNED AND MANUFACTURED BY UEC COMMERCIAL (Pty) Ltd
Rep. of South Africa
F
I
X
E
D
V
A
R
I
A
B
L
E
STEREO SOUND
OUTPUTS
MONO
AUDIO VIDEO OUT
DATA SERVICE
EXTERNAL MODEM
LNB IN
LNB OUT
AUX
TV
VCR
RF OUT
RF IN
L
R
SCART CONNECTOR
FLYLEAD
REAR PANEL
400 mA max.
Optional Decoder Connections
Introduction
There are several ways of connecting the decoder to an existing
audio/TV system.
The following more common examples enable you to view satellite
services and terrestrial channels, record and playback from a VCR and
listen to CD quality stereo sound.
Consult your local supplier for assistance in setting up an audio/video
configuration best suited to your requirements.
Hints to Quality TV System Configurations
#Where possible, connect cables via audio/video outputs/inputs
(SCART or RCA) instead of RF connectors.
#Use an appropriate, correctly installed satellite dish system.
#Ensure that the system is properly earthed and protected against
lightning.
#Use high quality stereo TV and Hi-Fi equipment.
#Use high quality screened cables.
NOTE: When Video and Audio Inputs/Outputs are used, it may
be necessary to select a Video mode on the VCR and TV
in place of a TV mode.
Decoder, TV (using SCART or RF Interface)
1As the LNB carries a small voltage on its centre connector, it is
recommended that the mains supply to the LNB is switched off
before connecting or disconnecting the LNB. Connect the
terrestrial antenna connector to the RF IN socket on the decoder.
2Using the supplied SCART-to-SCART cable, connect the
TV SCART socket on the decoder to the SCART socket on the
TV.
3If the TV does not have a SCART connector, use the supplied
flylead to connect the RF OUT socket on the decoder to the RF IN
socket on the TV.
4Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. The
connector on the coaxial cable should be turned until it is finger
tight.

10 OPERATING INSTRUCTIONS DSD 642
Decoder, TV (SCART or RF Interfaces), Hi-Fi
1Switch off the mains supply to the decoder before connecting or
disconnectingthe LNB. Connectthe terrestrialantenna connector
to the RF IN socket on the decoder.
2Connect a flylead between the variable stereo sound outputs on
the decoder and the audio inputs on the Hi-Fi.
3Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. The
connector on the coaxial cable to the decoder should be finger
tight.
4Using the supplied SCART-to-SCART cable, connect the
TV SCART socket on the decoder to the SCART socket on the
TV.
5If the TV does not have a SCART socket, use the supplied
flylead to connect the RF OUT socket of the decoder to the
RF IN socket on the TV.

DSD 642 OPERATING INSTRUCTIONS 11
Decoder, VCR (SCART Interface), TV (SCART Interface), Hi-Fi
1Switch off the mains supply to the decoder before connecting or
disconnectingtheLNB.Connecttheterrestrialantennaconnector
to the RF IN socket on the decoder.
2Using the supplied flylead, connect the RF OUT socket on the
decoder to the RF IN socket on the VCR.
3Using the flylead supplied with the VCR, connect the RF OUT
socket on the VCR to the RF IN socket on the TV
.
4Connect the coaxial cable from the satellite dish to the LNB IN
socket on the decoder. Tighten the connector finger tight.
5Using the SCART-to-SCART supplied cable, connect the
TV SCART socket on the decoder to the SCART socket on the TV.
6Using another SCART cable, connect the VCR SCART socket on
the decoder to the SCART socket on the VCR.
7Connect the VARIABLE LEFT and RIGHT HI-FI AUDIO OUT
sockets on the decoder to the LEFT and RIGHT AUDIO INPUT
sockets on the Hi-Fi.
8Switch the power on to the decoder.
9Set TV and VCR Scart Source and Set TV and VCR Scart Video
Output at the TV Installation menu. See page 23.

12 OPERATING INSTRUCTIONS DSD 642
Decoder, VCR, TV, Hi-Fi (using RCA Connectors)
1Switch off the mains supply to the decoder before connecting or
disconnectingtheLNB.Connecttheterrestrialantennaconnector
to the RF IN socket on the decoder.
2Using the supplied flylead , connect the RF OUT socket on the
decoder to the RF IN socket on the VCR.
3Using the flylead supplied with the VCR, connect the RF OUT
socket on the VCR to the RF IN socket on the TV.
4Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. Tighten the
connector finger tight.
5If the TV and VCR have AV connectors, connect as shown in the
diagram.
6Connect the VIDEO OUT socket on the decoder to the VIDEO IN
socket on the VCR.
7Connect the MONO AUDIO socket on the decoder to the AUDIO
IN socket on the VCR.
NOTE: If your VCR has a stereo audio input,connect the
FIXED stereo audio outputs from the decoder to the
VCR stereo audio connector.
8Switch the power on to the decoder.

DSD 642 OPERATING INSTRUCTIONS 13
Two Decoders, TV (using AUX SCART and RF Interfaces)
The AUX SCART connector has audio, video (RGB) and composite
video input connections that can be used to connect a second analogue
or digital decoder. If a second decoder is connected, signals from
selected sources are automatically routed internally in the decoder to the
TV SCART connector.
1Switch off the mains supply to the decoder before connecting or
disconnectingtheLNB.Connecttheterrestrialantennaconnector
to the RF IN socket on the decoder.
2Using the supplied SCART-to-SCART cable, connect the
TV SCART socket on the decoder to the SCART socket on the
TV.
3If the TV does not have a SCART connector, use the supplied
flylead to connect the RF OUT socket of the decoder to the RF IN
socket on the TV.
4Connect the coaxial cable connector from the LNB on the satellite
dish into the socket marked LNB IN on the decoder. The
connector on the coaxial cable should be turned until it is finger
tight.
5On the first decoder, connect a second RF cable with F-type
connectors(not supplied),from theLNB OUTconnector toLNB IN
connector on the second decoder.
6Connect a second SCART to SCART connector (not supplied)
between the AUX SCART connector on the decoder and the TV
SCART on the second decoder.
RCU UHF Button Selection Functions
Pressing UHF on the RCU with the second decoder connected and
operating, selects the TV viewing source in the sequence VCR, AU1, TV
and IRD. If AU1 is selected, the satellite picture is routed to the TV and
VCR from the second decoder.
If a second decoder is being used, the polarity of the LNB is controlled by
the first decoder.

14 OPERATING INSTRUCTIONS DSD 642
Selecting Specific Services
Specific TV or Audio Services can be selected, either:
#Directly
#By stepping through services
#By using the Open TV Electronic Programme Guide (EPG), or
#By using the Open TV Information Bar.
Selecting Services Directly
Services can only be selected directly using the RCU. To select a
specific service, do the following:
1To select an audio service, press +on the RCU. Press TV to
restore TV services.
2PressthenumberoftherequiredserviceontheRCU’snumerical
keypad.
The specific service will be heard/displayed after a few moments
accompanied by an information box at the bottom of the TV
screen with details of the selected service.
NOTE: Toselect servicesrequiring two-digitnumbers, i.e.,
10-99, press the first digit, then the second digit
without pausing.
TIP:When the key for the first digit is pressed on the RCU, the
corresponding number is displayed on the left of the front panel
numerical display on the decoder. After a few moments, the
number moves to the right. The second digit of two digit numbers
must be keyed in before this move takes place.
Stepping through Services
Stepping through services is possible using either the RCU or decoder
front panel keys.
Stepping using the RCU
To step through services using the RCU, do the following:
1Select the type of service required, TV or audio.
2Press P+ to step to the next service or P - to step to the previous
service in the list of available services.
After pressing P+ or P -, an information box is displayed at the
bottom of the TV screen with details of the service. After a few
seconds, the relevant service is displayed/heard.
3If required, continue stepping by pressing P+ or P - until you find
the service you prefer. It is not necessary to wait for services to
be displayed/heard before stepping to the next or previous
service.
If you decide to watch or listen to a service you have stepped to,
waitfortheservicetobedisplayed/heard.Theinformationboxwill
disappear after a short while or can be removed immediately by
pressing EXIT.
NOTE: When you reach the last available service in the list
and press P+ you are returned to the first service in
the list.
TIP:Use the convenient selecting and sorting facilities to personalise
the services list. After using these facilities, your favourite
services will be in your order of preference. Refer to page 19.
Stepping using the Decoder Front Panel Keys
To step and select a specific service using the decoder front panel keys,
do the following:
1Select the type of service required, by pressing TV +to switch
between TV services and audio services. Selection of the audio
service is indicated by a green indicator on the front panel display.
2Press + (up) to step to the next service or - (down) to step to the
previous service in the list of available services.
After pressing + or -, an information box is displayed at the bottom
of the TV screen with details of the service. After a few seconds
the relevant service is displayed/heard.
3Continue stepping, by pressing + or - until you find the service you
prefer. It is not necessary to wait for services to be displayed/heard
before stepping to the next or previous service.
To view/listen to any service you have stepped to, wait for the
service to be displayed/heard. The information box will disappear
after a short while.
NOTE: When you reach the last service in the list and press
+, you are returned to the first service in the list. The
+ and - symbols have dual functions and cannot be
used for stepping while the volume control box is
displayed on the screen. This box is displayed when
setting the volume, see page 12.
Selecting Specific Services from the EPG
NOTE: Fora descriptionof theElectronic ProgrammeGuide
(EPG) refer to page 14.
Selecting Services from the Information Bar
NOTE: A description of the Information Bar is on page 15.
Controlling the Show
Volume Control using the RCU Keys
NOTE: It is recommended that you first select a terrestrial
channel, then set the volume on the TV to a
comfortable listening level.
To change the volume level on the decoder, select your satellite service,
then press V+ to increase the volume level or V- to reduce the volume
level. The following is displayed on the TV screen when adjusting volume:
The volume level is depicted by the length of the highlight bar.
NOTE: The Fixed Stereo Sound Outputs (Left and Right)
cannot be controlled with the volume control keys
on the RCU.
Volume Control using the Decoder Keys
To change the volume level, press PV on the decoder. The following is
displayed for a brief time:
While the volume control window is displayed, press and release + or -
respectively to increase or reduce the volume level in separate steps. The
change in volume level is depicted by the changing length of the highlight
bar.

DSD 642 OPERATING INSTRUCTIONS 15
NOTE: The Variable Stereo Sound Outputs (Left and Right)
can be controlled using the volume control keys on
the RCU.
Mute
To mute the audio do the following:
1Presson the RCU. The following window is displayed for
5 seconds and the audio muted:
2To restore the audio press again. The audio is
restored at the previous level and the volume control window
displayed for 5 seconds.
3Adjust the volume level using V+ and V-.
NOTE: The mute function is disabled when the FIXED
STEREO audio outputs (Left and Right) on the
decoderare used.This ensuresa fixedvolume level
for recording purposes. The VARIABLE STEREO
audio outputs (Left and Right) of the decoder can,
however, be muted.
Displaying Subtitles or Teletext
If subtitles are available, display them on the screen as follows:
1Press on the RCU. Subtitles, if available, are
displayed.
NOTE: If subtitles are not available, a “No subtitles”
window is displayed for 5 seconds..
2To remove the subtitles from the screen, press again.
NOTE: Some services (e.g., CNN) have an additional
teletext service. This can be selected by pressing
on the RCU with the service selected, i.e., CNN.
If teletext is not available, a “No teletext” window is
displayed for 5 seconds..
Clock
To view the time do the following:
1Presson the RCU. The date and time are displayed for
a few seconds.
Selecting Soundtracks
Available soundtracks, included with programmes, can be viewed and
selected at any time while watching a programme.
NOTE: Preferred soundtrack languages for automatic
selection can be set using the menu system. Refer
to Soundtrack Options (page 19).
To view and select available soundtracks, do the following:
1Press on the RCU. The current soundtrack language is
displayed.
2Press the symbol again. If there are additional soundtracks
available, the next soundtrack option is listed in the window.
Continue pressing to cycle through all the available soundtracks.
3Press OK to select a soundtrack language. The soundtrack
window is displayed and the new soundtrack is heard.
Power Reset
Should your TV picture freeze, it is possible to reset the decoder without
unplugging it from the power supply. Simultaneously press then release
theand - (down) buttons on the decoder front panel.
Signal Selection
Switching between signal source devices is automatic using the UHF
button on the RCU. To select between the various sources, a single
press-releaseof theUHF buttonin normalrunning mode(i.e., notin menu
or EPG) switches to the next source. This is an override selection in that
it will switch to VCR even if a VCR is not playing.
The available options are:
- Decoder (IRD): Satellite signal. Switches any other device (VCR,
Analogue decoder) to Off or Standby.
- VCR: Press Play on the VCR to view.
- AUX (AU1): Second decoder. Switch on to view.
- TV (tv): View terrestrial channels.
In these cases, the appropriate video and audio will be selected.
OPEN TVELECTRONIC PROGRAMME
GUIDE
The decoder stores up-to-date information, received over the air, of all the
currently subscribed to TV Services and on-air Audio Services, as well as
the next and extended programmes scheduled for each TV and Audio
service.Theinformationforeachprogrammeincludes,whereappropriate:
#The service number and name
#Title of the programme
#Censorship classification of the programme
#Brief information on the programme
#Start and finish times of the current programme
#Reminders
#Impulse Pay Per View symbol (when available)
The TV programmes are transmitted in subscribed packages called
BOUQUETS, each bouquet containing a series of services. The decoder
has provision for several bouquets, any of which can be selected by
pressing TV on the RCU, then following the on-screen instructions. If a
selected bouquet is not subscribed to, a message “E38 Service is not
currently running” will appear on the TV screen.
When a subscribed to bouquet is selected, the services in that bouquet
will be listed numerically in the Electronic Programme Guide, when
selected.

16 OPERATING INSTRUCTIONS DSD 642
Services
Now/Next EPG
Extended EPG
Theme Search
Press OK to select
Press EXIT to cancel
5 Jupiter Moon 12:30 - 13:00
SciFi Space SchoolFam
20 Striptease 11:05 - 13:05
TMMC Drama 18
21 Blue River 11:30 - 13:00
Hall Drama Fam
22 The Picture of Dorian Gray 12:30 - 14:20
DramaFam
30 Motorsport Magazine 13:00 - 14:00
SS ReportsFam
20 The Bridge on the River Kwai 15:05 - 17:50
TMMC Classical DramaP13
21 Bye Bye Birdie 15:00 - 17:15
Hall Comedy Fam
22 White Heat 14:20 - 16:15
TNT Psychotic Fam
30 Argus Tour 16:00 - 18:00
SS Cycling Fam
31 Spanish Soccer 17:30 - 18:00
SS2 Highlights Fam
1 DMX - Symphonic 12:07 - 00:07
Symph Classical Fam
2 DMX - Chamber Music 12:30 - 00:30
Chamb ClassicalFam
3 DMX - Opera 13:07 - 00:30
Opera Classical Fam
4 DMX - Light Classical 13:37 - 01:37
LiteC DramaFam
5 DMX - Beautiful Instrumentals 14:07 - 02:07
Beaut InstrumentalsFam
Using the EPG
1On the RCU, press TV GUIDE. An on-screen menu is displayed
as follows:
NOTE: When pressing any of the arrow controls on the
RCU, the colour of the displayed arrow in the EPG
screens darkens to indicate activity.
Now/Next EPG
Selecting Now/Next EPG displays a programme guide, as shown in the
following diagram, that provides short text descriptions of the TV and
audio programmes contained in the selected bouquet, as well as the next
programmes scheduled for each TV and audio service.
NOTE: TV programmes are not displayed and audio not
heard while the EPG screen is displayed.
2Use the cursor keys >or ?to scroll up or down the list, as only
five events are shown on the screen. When the last event is
highlighted and you press ?,five new events are displayed and
the highlight is put at the top of the list. This also works for
scrolling up.
The list is continuous, so after the last service the Guide starts
displaying service 1 again.
The current programmes are listed when NOW is selected and
the programmes to follow are listed when NEXT is selected.
3To move between the NOW or NEXT programmes, press =or
<on the RCU.
4Select the highlighted programme to view/hear by pressing OK.
NEXTprogrammescannotbeviewedbeforetheirstarttime.When
attempting to view them the following screen is displayed:
Pressing OK sets a programme reminder and a clock symbol
appears under the programme time, indicating a reminder. To
removethereminderpressOKagain;theclocksymboldisappears.
5Additionalinformation onthe programmeis displayedwhen ionthe
RCU is pressed with a service on the the EPG selected. Press
EXIT to return to the EPG.
6Press +on the RCU to enter the Audio guide. The Audio guide
behaves exactly the same as the TV guide. Pressing TV on the
RCU takes you back to the TV guide.
7Press OK to return to normal viewing/listening.
8Inallprogrammeguides, additionalinformation onthe programmes
is displayed when ion the RCU is pressed while the EPG is
displayed and programme highlighted.

DSD 642 OPERATING INSTRUCTIONS 17
MULTICHOICE
DStv
Theme Search Setup 16/3/1998
11:10
Press OK to start the search
Press EXIT to quit
Select the day Today
Select the time of day Whole Day
Select the theme Movies
Select the subtheme Action
MULTICHOICE
DStv
Today - Whole Day 16/3/1998
11:10
Press the INFO button for more event information
Press OK to tune to (22)TNT
Press EXIT to return to the setup screen
Action
13:05 Press TV Guide, then ifor more info
15:05 Action (20) TMMC 18
02:00 The Gypsy Moths
04:00 Action, (22) TNT Fam
Extended EPG
SelectingExtendedEPGprovidesaguideastotoday’sprogrammesand
the next 7 days, as per the following diagram:
Pressing <on the RCU, selects the TV guide for tomorrow’s
programmes. Pressing and holding the <button pages through each
day’s programme until the end of the 8 days.
Pressing and holding the =button, returns you to today’s programme
guide.
Theme Search
Selecting Theme Search allows you to search for a particular type of
programme, as shown in the following diagram:
Scrollingdown usingthe ?buttontransfers thehighlight andleft andright
arrows to the selected box. Pressing the arrows selects various options.
Making a selection in the sub-theme box, then pressing OK presents a
display as per the following diagram:
OPEN TV INFORMATION BAR
At any time whilst watching TV services or listening to radio services, the
viewer can obtain information about the current programme and
select available programmes via the Information Bar.
1Press ion the RCU. The following window is displayed:
2Use the cursor keys >or ?to scroll up or down through titles on
other services, whilst simultaneously watching the current service.
The current programmes are listed when NOW is selected and the
programmes to follow are listed when NEXT is highlighted.
Pressing iwith the Information Bar displayed, provides additional
information on the programme.
The local time will also be displayed on the TV when the
Information Bar is displayed.
3Move between the NOW or NEXT programmes by pressing <or
=on the RCU.
4With NEXT selected, an Information Bar appears that displays the
next programme. Pressing OK sets the reminder and a clock
symbol appears in the Information Box. Pressing OK again
removes the reminder.
NEXT programmes cannot be viewed before their start time.
To exit the Information Box, press EXIT.
5When viewing a programme, to tune to another programme press
the numbered keys on the RCU. The Information Bar will be
displayedforXseconds(seeInformationBoxDisplayPeriod,page
20).

18 OPERATING INSTRUCTIONS DSD 642
REMINDERS
The procedure for setting and removing a reminder has already been
detailed.
Refer to Open TV Electronic Programme Guide page 14 or Open TV
Information Bar page 16. At the right time a reminder message pops up.
If you intend to watch the booked programme, press OK on the RCU
which tunes the decoder to the new service. Otherwise press EXIT to
remove the message, while remaining tuned to the original service.
PARENTAL BLOCKING
When the user has selected a service where there is a parentally blocked
programme, a “key” symbol is displayed in the Information Bar (bottom
right). The message above the Information Bar indicates that the user
should press OK to unblock the programme.
1Press OK. A screen requiring the Parental PIN code is displayed.
2Enter your Parental PIN code using the keypad. Refer to Parental
Guidance Options page 20. The programme is then unblocked.

DSD 642 OPERATING INSTRUCTIONS 19
Soundtrack Options
Parental Guidance
Information Box Display Period
OrganisingServices
Mail Messages
Advanced Options
Press and to select option
Press OK to confirm option
Main Menu
Soundtrack Options Soundtrack Options
Parental Guidance Censorship Classification
Change PIN
PIN Code
Change PIN Code- Old/New
Information Box Display Period Display Period (seconds)
Organising Services
Sort TV Services
Current Order List
Reset TV Services
Sort Audio Services
Reset Audio Services
Current Order List
Full Rescan
Mail Messages Mail Message Box
Advanced Options Change Dish
Installation Change LNB Settings
Set LNB Frequency
Change Manual
Tuning Parameters
Tune DSD
Signal Detection
Information DSD Status
CA Status
TV Type
TV Installation
Change Modem Settings
Local Time
DSD Upgrade
Aspect Ratio
UHF Tuning
SCART Source
SCART Video
Output
Reset to Factory
Defaults
Skip TV Services
Current Order List
Relocate
Skip Audio Services Current Order List
Relocate
Coarse Tune
Fine Tune
PIN Code for
Installation
PIN Code for
Installation
MENU NAVIGATION ROUTE

20 OPERATING INSTRUCTIONS DSD 642
NOTE: The menu structure is occasionally upgraded over
the air by the Service Provider and may differ
slightly from that shown in these instructions.
USING MENUS
To use the Menu system:
1Ensure that the decoder is not in standby mode by
pressing , if necessary.
2Press TV on the RCU. The following window is displayed in the
top right of the TV:
Highlight the selected
option then press OK.
This selection sets the services available in the subscribed
bouquet, which can be viewed by pressing TV GUIDE.
3Press MENU on the RCU. The following Main Menu is displayed,
which provides access to all other menus as shown in the
following figure:
All the menus are navigated as follows:
1Use >or ?buttons to scroll the highlighted bar up or down in a
(sub)menu or a vertical list box.
2Select a highlighted menu option and go one level lower within the
menu hierarchy by pressing OK on the RCU. This applies to the
Main Menu screen and all submenu screens.
In screens where parameters can be set, OK is used to save the
settings.
3Use EXIT to return to the preceding menu (go one level higher
within the menu hierarchy).
In screens where the parameters can be set, EXIT is used to
cancel any settings that may have been entered without saving.
4Use =and <buttons to change the value of an input field having
preprogrammed values.
5Use MENU to exit all menus and return to the TV or audio
programme.
6Use numbered buttons to enter numerical values.
Soundtrack Options
Soundtrack Options allows users to set the programme language of the
decoder, where one is available.
To select the text language of your choice do the following:
1Press MENU on the RCU.
The Main Menu options list is displayed.
NOTE: On initial selection of the Main Menu, the default
setting is for Soundtrack Options.
2Press OK to select Soundtrack Options. The following option list is
displayed:
3On the RCU, press >or ?arrows to highlight the preferred
language that you wish to relocate from the list.
4Press <to move the highlighted language option into the relocation
window.
NOTE: Only two languages can be relocated into positions
1 and 2.
5Press OK to confirm your selection.
NOTE: Pressing on the RCU displays the following
window at the top of the TV screen:
Pressing OK toggles between the two options. The programme
automatically returns to the previous service.
