Panasonic AW-PS510AN User manual

Operating Instructions
AC Adapter
Model No. AW-PS510AN
Before operating this product, please read the instructions carefully and save this manual for future use.
VQTB0300-1
AW-PS510AN(VQTB0300-1)英.indd 1 2008/09/05 11:47:58
責任者 担当者
2008 年 月 日
法規
船
本
難
波
関
口
919

-2-
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (service) instructions in the
literature accompanying the appliance.
indicates safety information.
WARNING:
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, KEEP THIS EQUIPMENT AWAY FROM
ALL LIQUIDS. USE AND STORE ONLY IN
LOCATIONS WHICH ARE NOT EXPOSED TO THE
RISK OF DRIPPING OR SPLASHING LIQUIDS,
AND DO NOT PLACE ANY LIQUID CONTAINERS
ON TOP OF THE EQUIPMENT.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
AW-PS510AN(VQTB0300-1)英.indd 2 2008/09/05 11:47:58

-3-
Contents
Features ............................................................................. 4
Precautions ....................................................................... 5
Major operating controls and their functions ................ 6
Front panel ................................................................. 6
Rear panel ................................................................. 7
Connection ........................................................................ 8
Troubleshooting .............................................................. 10
Appearance ..................................................................... 11
Maintenance .................................................................... 12
Specifications ................................................................. 13
Accessories .................................................................... 14
Warning:
Do not install this product near any object that burns easily.
In case of using a halogen lamp, installation of it near such
an object could cause a fire due to the heat generated by
the lamp.
For U.S.A
This digital apparatus does not exceed the Class A limits
for radio noise emissions from digital apparatus set out
in the Radio Interference Regulations of the Canadian
Department of Communications.
For CANADA
The serial number of this product may be found on the
bottom of the unit.
You should note the serial number of this unit in the space
provided and retain this book as a permanent record of
your purchase to aid identification in the event of theft.
Model No.
Serial No.
AW-PS510AN(VQTB0300-1)英.indd 3 2008/09/05 11:47:58

-4-
Features
This AC adapter is designed to be used with convertible cameras and their peripherals, with multi-purpose cameras and their
peripherals, and with live switchers.
The DC cable with the 5.5 mm diameter plug [Model No. VEEB0115A] and the DC cable with the 6.5 mm diameter plug
[Model No. VEEB0116A] have different “+” and “–” polarities, so check the markings on the product to which the cable is to
be connected and on the cable itself.
When this unit is to be discarded at the end of its service life, ask a specialized contractor to dispose of it properly in order
to protect the environment.
Caution

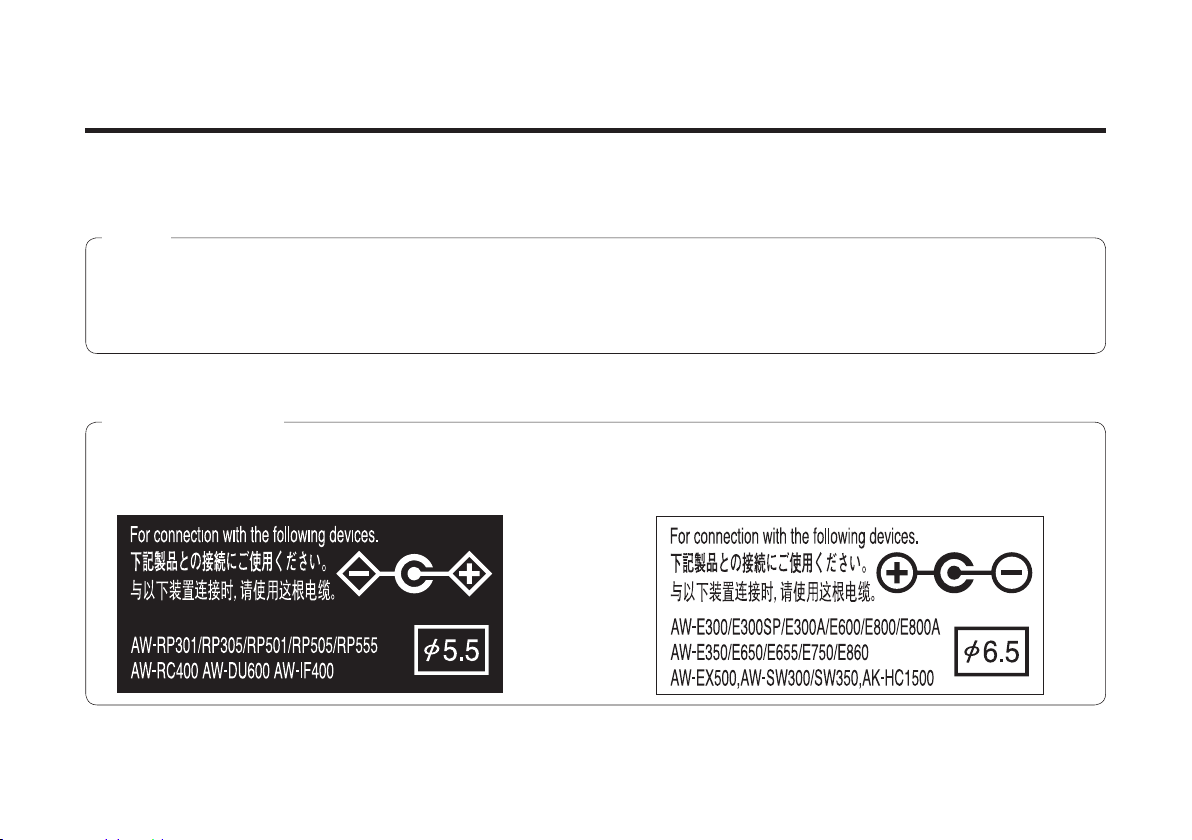

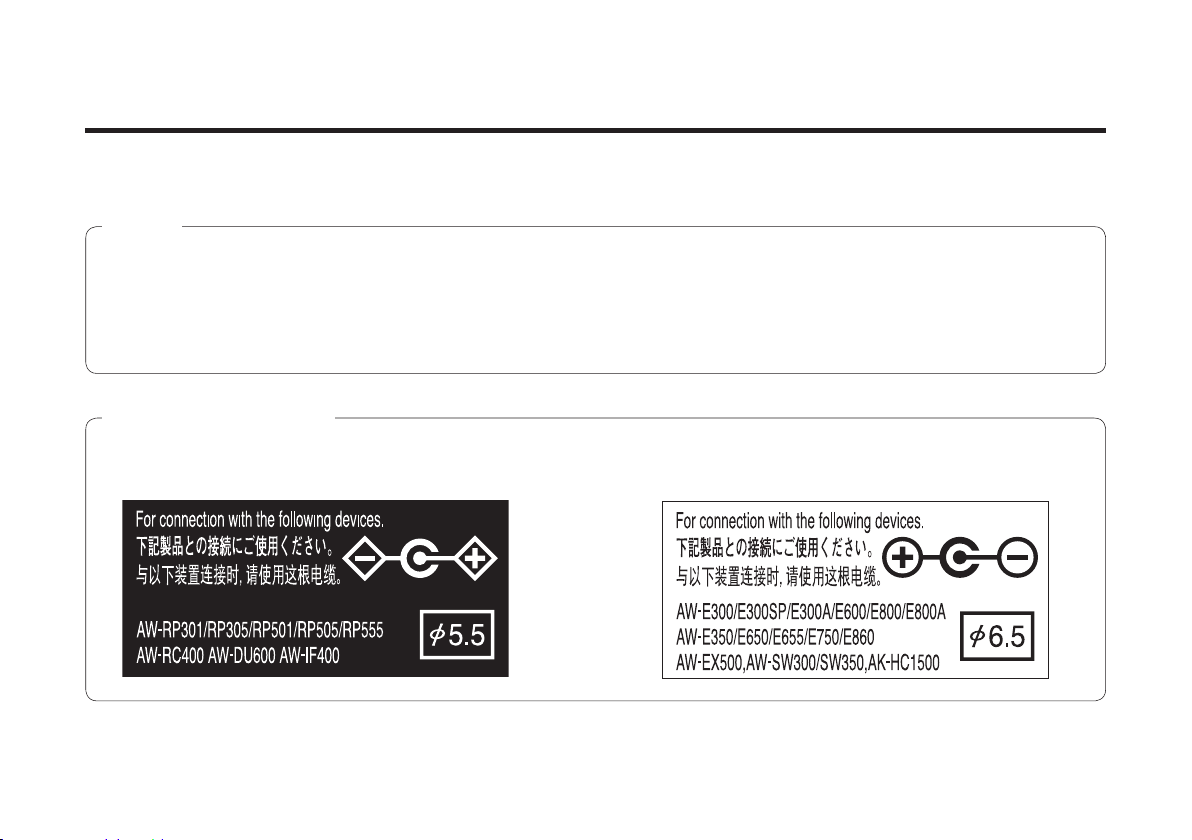

How to identify the cables
DC cable with ø5.5 plug
<Background color : Blue / Font color : White>
DC cable with ø6.5 plug
<Background color : Yellow / Font color : Black>
AW-PS510AN(VQTB0300-1)英.indd 4 2008/09/05 11:47:59

-5-
Precautions
Be sure to confirm the polarity display of the apparatus to connect.
Use the DC cable that meets the DC input polarity display of the apparatus to connect.
This AC adapter cannot be connected in series or in
parallel.
The supplied power plug conversion adapter
(for Japan) cannot be used in North America.
Handle the AC adapter with care.
Dropping the AC adapter or subjecting it to a strong
shock can cause a failure or an accident.
Operating temperature range 14 °F (–10 °C) to 113 °F
(+45 °C)
Avoid using it in a cold place below 14 °F (–10 °C) or a
hot place above 113 °F (+45 °C) because low or high
temperature will adversely affect the parts inside.
Switch power off before power cable connection or
disconnection.
Be sure to switch power off before connecting or
disconnecting the power cable.
Do not use the AC adapter outdoors since doing so
may cause trouble.
Do not use the AC adapter with the unit standing on
its side since doing so may cause trouble.
Install the AC adapter more than 3.3 ft. (1 meter) away
from the monitors.
AW-PS510AN(VQTB0300-1)英.indd 5 2008/09/05 11:47:59

-6-
Major operating controls and their functions

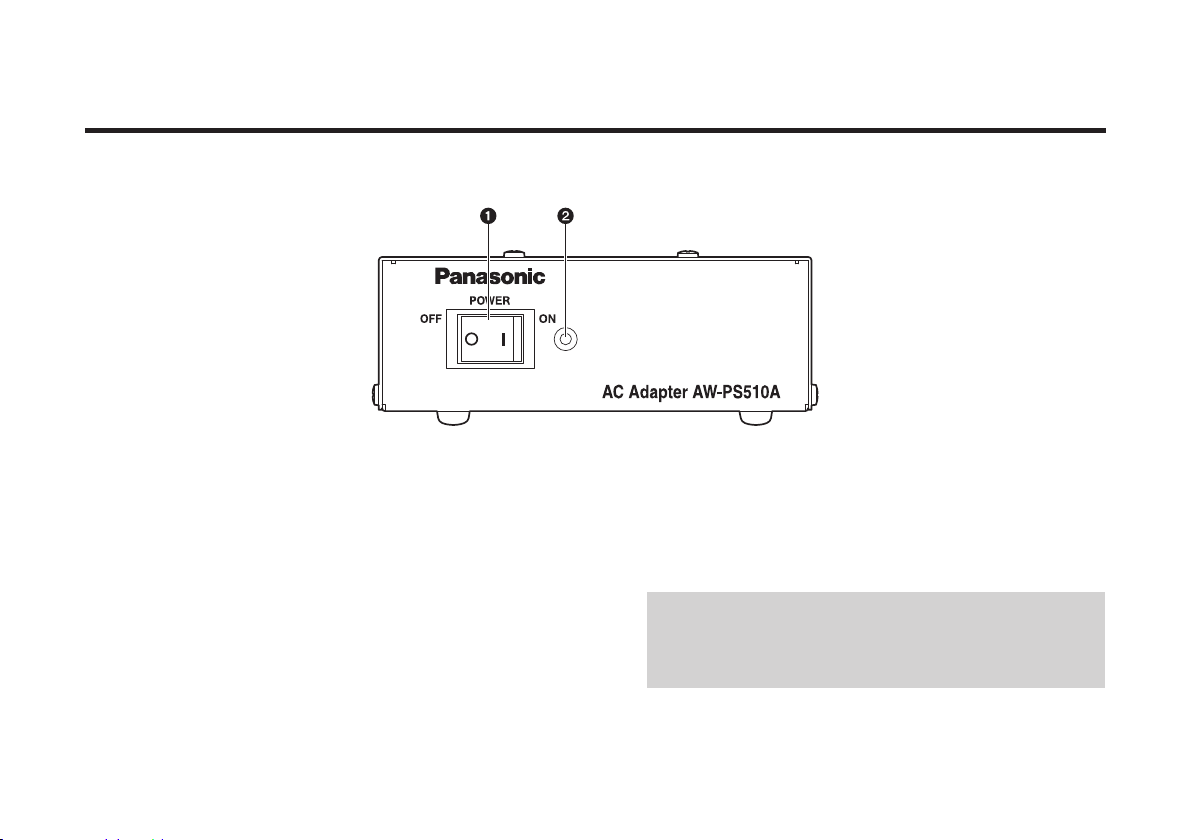

Front panel
Power switch [POWER ON/OFF]
Power is switched on when this switch is pressed to the
ON position (POWER Indicator lights), and is switched off
when the switch is pressed to the OFF position.
Power indicator
This lights up green when the power switch  is set to
ON.
It is off when the power switch  is set to OFF.
If a unit is not connected to the DC +12 V output
connector 3, it will take a few moments for the
indicator to go off after the power switch has
been set to [OFF].
AW-PS510AN(VQTB0300-1)英.indd 6 2008/09/05 11:47:59

-7-
Major operating controls and their functions
Rear panel
3DC +12 V output connector [12V OUT]
(4-pin round connector)
Connect one end of the supplied DC cable to this
connector and the other end to the DC +12 V input
connector [DC 12V IN] on the convertible camera and
its peripherals, on the multi-purpose camera and its
peripherals or on the live switcher.
Pin No. Signal name
1 GND
2 NC
3 NC
4 DC 12 V
AW-PS510AN(VQTB0300-1)英.indd 7 2008/09/05 11:48:00

-8-
Connection
The DC cable with the 5.5 mm diameter plug [Model No. VEEB0115A] and the DC cable with the 6.5 mm
diameter plug [Model No. VEEB0116A] have different “+” and “–” polarities, so check the markings on
the product to which the cable is to be connected and on the cable itself.
Switch off all the devices before making any connection.
Connect the DC +12 V OUT Connector of this adapter to the DC +12 V Input Connector on the convertible camera with the
supplied DC cable with ø6.5 plug.
Please use the DC cable that fits the DC 12 V input connector of the equipment when connecting it with other equipment.
Plug the AC cable to an AC outlet, and press the power switch of this adapter to the ON position.
AW-PS510AN(VQTB0300-1)英.indd 8 2008/09/05 11:48:00

-9-

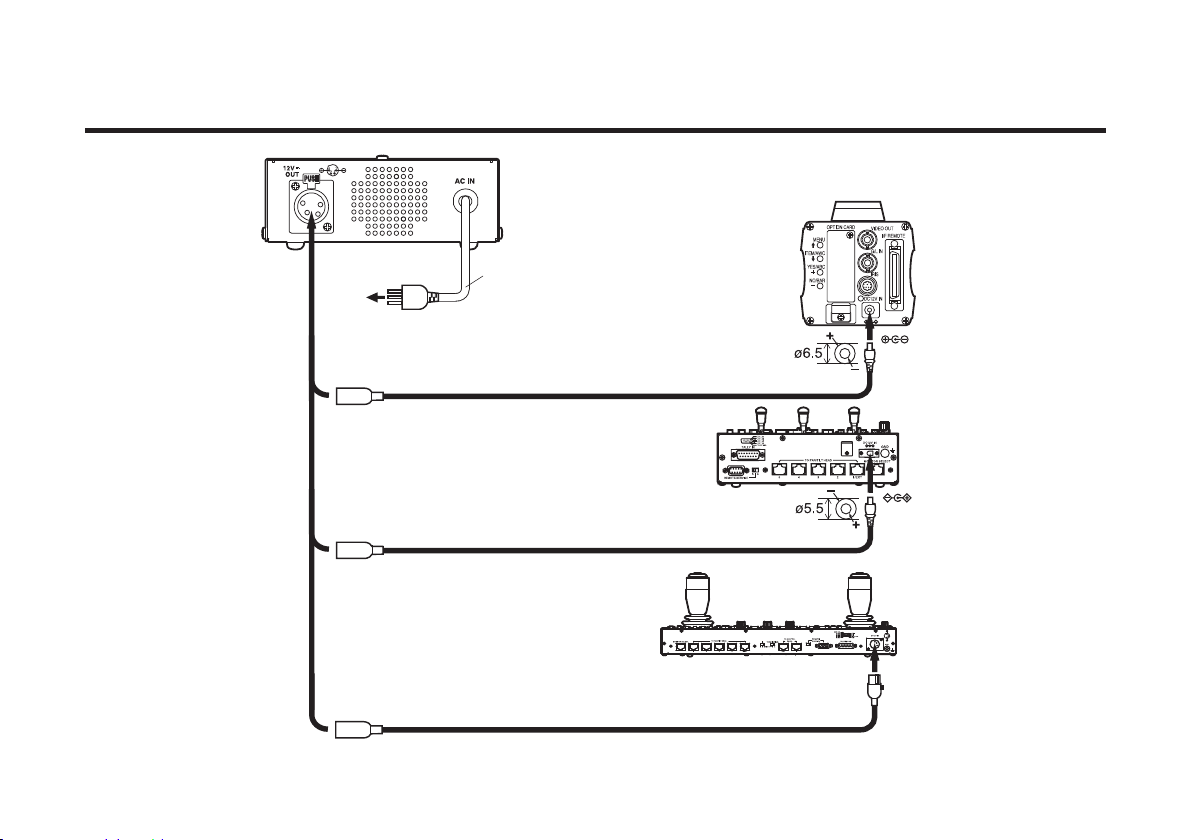

Connection
AC cable
DC cable with ø5.5 plug [Model No. VEEB0115A]
Compatible equipment:
Convertible cameras,
AK-HC1500,
AW-SW350, etc.
DC cable with ø6.5 plug [Model No. VEEB0116A]
AC adapter
AW-PS510A
DC cable with 4-pin round connector [Model No. VEEB0114A]
Compatible equipment:
AW-RP555,
AW-RC400,
AW-IF400,
AW-DU600, etc.
Compatible equipment:
AW-RP655,
AW-RP400,
AV-HS300,
AK-HRP150, etc.
AW-PS510AN(VQTB0300-1)英.indd 9 2008/09/05 11:48:01

-10-
Troubleshooting
Symptom Cause and remedial action
The DC +12 V voltage is not output
properly.
If a unit whose output exceeds the rating has been connected or
the connected unit is short-circuited, the DC +12 V voltage will
not be output properly owing to the activation of the overcurrent
protection circuit.
AW-PS510AN(VQTB0300-1)英.indd 10 2008/09/05 11:48:01

-11-
Appearance
Unit : inch (mm)
1-7/8 (47)
2 (51)
11-3/16 (284)
10-7/8 (275)
5-1/4 (132)
AW-PS510AN(VQTB0300-1)英.indd 11 2008/09/05 11:48:01

-12-
Maintenance
In order to maintain the product’s safety and performance, clean the product periodically as instructed
below.
Pull out the power cable plug, and wipe the AC adapter clean with a dry cloth.
If it is extremely dirty, dip a cloth into a diluted solution of kitchen detergent (neutral), squeeze it hard, and wipe the product
surfaces carefully.
Remove the dust and other foreign matter on the ventilation openings using a dry cloth.
Do not use benzine, paint thinner, or other volatile liquids.
When using a chemical duster, carefully read the caution notes on its use.
Notes
AW-PS510AN(VQTB0300-1)英.indd 12 2008/09/05 11:48:01

-13-
Specifications
Power input: AC 100 − 120 V 50/60 Hz 1.4 A
indicates safety information.
Power output: DC 12 V 5 A, with over-current protect circuit
Operating temperature ranges: 14 °F to 113 °F (–10 °C to +45 °C)
Allowable humidity ranges: 30 % to 90 % (no condensation)
Dimensions (W H D): 5-1/4” 1-7/8” 10-7/8” (132 47 275 mm) [excluding protrusions]
Weight: 3.6 lbs. (1.6 kg)
Finish: AV Ivory paint (color resembling Munsell 7.9Y 6.8/0.8)
Weight and dimensions indicated are approximate.
Specifications are subject to change without notice.
AW-PS510AN(VQTB0300-1)英.indd 13 2008/09/05 11:48:01

-14-
Accessories
Operating Instructions ......................................................................... 1
Warranty .............................................................................................. 1
DC cable with 4-pin round connector (approx. 6.6 ft. [2 meters])
[Model No. VEEB0114A] <UL Style 2464 218 AWG> ................. 1
DC cable with ø5.5 plug (approx. 9.9 ft. [3 meters])
[Model No. VEEB0115A] <UL Style 2464 218 AWG> ................. 1
DC cable with ø6.5 plug (approx. 9.9 ft. [3 meters])
[Model No. VEEB0116A] <UL Style 2464 218 AWG> ................. 1
Power plug conversion adapter (for Japan) ......................................... 1
AW-PS510AN(VQTB0300-1)英.indd 14 2008/09/05 11:48:01

-15-
Memo
AW-PS510AN(VQTB0300-1)英.indd 15 2008/09/05 11:48:01

F0907Y2098 D
Printed in Japan
PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY
UNIT COMPANY OF PANASONIC CORPORATION OF NORTH AMERICA
Headquarters:
3 Panasonic Way 4E-7, Secaucus, NJ 07094 [phone]
EASTERN ZONE:
3 Panasonic Way 4E-7, Secaucus, NJ 07094 [phone]
WESTERN ZONE:
3330 Cahuenga Blvd. West, Los Angeles, CA 90068 [phone]
Government office:
[phone]
Broadcast PARTS INFORMATION & ORDERING:
9:00 a.m. – 5:00 p.m. (PST) [phone]/24 Hr. Fax [phone]
Emergency after hour parts orders [phone]
TECHNICAL SUPPORT:
Emergency 24 Hour Service [phone]
Panasonic Canada Inc.
Panasonic Puerto Rico, Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 [phone]
Corporativo Panasonic de México
Moras No. 313, Col. Tlacoquemecatl del Valle, Del. Benito Juárez, México, Distrito Federal, C.P. 03200. 01 (55) 54 88 10 00
AVE 65de Inf, Km 9.5 Carolina, PR 00985 [phone]
© Panasonic Corporation 2008
AW-PS510AN(VQTB0300-1)英.indd 16 2008/09/05 11:48:01

このたびは、パナソニック製品をお買い上げいただき、まことにありがとうございます。
 取扱説明書をよくお読みのうえ、正しく安全にお使いください。
 ご使用前に「安全上のご注意」（4 ～ 9ページ）を必ずお読みください。
 保証書は「お買い上げ日・販売店名」などの記入を確かめ、取扱説明書とともに大切に保管してください。
保証書別添付
取扱説明書
ACアダプター
品番 AW-PS510AN
VQTB0300-1
AW-PS510AN(VQTB0300-1)日.indd 1 2008/09/05 13:47:17

- 2 -
もくじ
付属品 ................................................................................... 2
概 要 ................................................................................... 3
安全上のご注意 ................................................................... 4
使用上のお願い ................................................................ 10
各 部の名前とはたらき ..................................................... 11
■前 面 ........................................................................ 11
■背 面 ........................................................................ 12
接続のしかた .................................................................... 13
故障と思ったら ................................................................ 15
外形寸法図 ........................................................................ 16
お手入れのしかた ............................................................ 17
定 格 ................................................................................ 18
保証とアフターサービス ................................................. 19
付属品
取扱説明書 ...................................................................................................................................... 1 冊
保証書 .............................................................................................................................................. 1 式
4 ピン丸型コネクター付 DC ケーブル（約 2 m）[ 品番：VEEB0114A] ........................... 1 本
Φ 5.5 プラグ付 DC ケーブル
（約 3 m）[ 品番：VEEB0115A] .......................................... 1 本
Φ 6.5 プラグ付 DC ケーブル
（約 3 m）[ 品番：VEEB0116A] .......................................... 1 本
電源プラグ変換アダプター（国内用） .......................................................................................... 1 個
AW-PS510AN(VQTB0300-1)日.indd 2 2008/09/05 13:47:17

- 3 -
概 要
本機は、コンバーチブルカメラおよびその周辺機器、マルチパーパスカメラおよびその周辺機器、ライブスイッチャー用の
AC アダプターです。
・
Φ 5.5 プラグ付 DC ケーブル [ 品番：VEEB0115A] と、Φ 6.5 プラグ付 DC ケーブル [ 品番：VEEB0116A] は、
＋－の極性が違いますので、接続する機器とケーブルの表示に注意してください。
・
本機のご使用を終え廃棄されるときは、環境保全のため、専門の業者に廃棄を依頼してください。
ご注意
ケーブルの表示内容
・
Φ 5.5 プラグ付 DC ケーブル
< 背景色：青色、文字色：白色 >
・
Φ 6.5 プラグ付 DC ケーブル
< 背景色：黄色、文字色：黒色 >
AW-PS510AN(VQTB0300-1)日.indd 3 2008/09/05 13:47:18

- 4 -
安全上のご注意 必ずお守りください
お使いになる人や他の人への危害、財産への損害を未然に防止するため、必ずお守りいただくことを、次のよ
うに説明しています。
■ 表示内容を無視して誤った使い方をしたときに生じる危害や損害の程度を、次の表示で区分し、説明してい
ます。
■ お守りいただく内容の種類を、次の絵表示で区分し、説明しています。
（下記は、絵表示の一例です。）
この表示の欄は、「死亡または重傷などを負う可能性が想定される」内容です。
この表示の欄は、「傷害を負う可能性または物的損害のみが発生する可能性が想定され
る」内容です。
警告
注意
このような絵表示は、気をつけていただきたい「注意喚起」内容です。
このような絵表示は、してはいけない「禁止」内容です。
このような絵表示は、必ず実行していただく「強制」内容です。
AW-PS510AN(VQTB0300-1)日.indd 4 2008/09/05 13:47:18
