Subject : Change the DIGITAL P.C.B. with the switching of Driver IC.
Please use this supplement manual together with the service manual for Model No. DMP-BD75P/
PC(CHM1102002CE), DMP-BD75GA/GC/GN/GT/GW/PU(CHM1104018CE), DMP-BD755P(CHM1104028AE).

2
TABLE OF CONTENTS
PAGE PAGE
1 Block Diagram -----------------------------------------------------3
1.1. Digital P.C.B. Regulator Block Diagram --------------3
1.2. Digital (Back End Section) Block Diagram-----------4
1.3. IC Pin Terminal Chart -------------------------------------5
1.4. Digital (Front End Section) Block Diagram ----------6
2 Schematic Diagram-----------------------------------------------7
2.1. Interconnection Schematic Diagram ------------------7
2.2. AUDIO_DAC Section Schematic Diagram ----------8
2.3. AV Section Schematic Diagram ------------------------9
2.4. MTK Section Schematic Diagram (1/2)------------- 10
2.5. MTK Section Schematic Diagram (2/2) -------------11
2.6. DIGITAL_NET Section Schematic Diagram ------ 12
2.7. DDR Section Schematic Diagram ------------------- 13
2.8. FE Section Schematic Diagram(1/2) --------------- 14
2.9. FE Section Schematic Diagram(2/2) --------------- 15
3 Printed Circuit Board------------------------------------------ 16
3.1. Digital P.C.B. ---------------------------------------------- 16
4 Electrical Replacement Parts List------------------------- 25
5 How to distinguish between the Original P.C.B.
and New P.C.B. -------------------------------------------------- 29

3
1 Block Diagram
1.1. Digital P.C.B. Regulator Block Diagram
DIGITAL P.C.B. REGULATOR BLOCK DIAGRAM
22,23
P58001P1102
(REG.PW_DR5V)
IC58302
VIN
VOUT 3
2
1ON[H]
PW_X_SW5.9V
1 2
(REG.PW_AD5V)
IC56301
VIN VOUT 3
2
1
ON[H]
FROM
POWER P.C.B.
FROM
POWER P.C.B.
/
/
23
15
27 /32
9
18
5
IC55004-
P55001-
P_ON_H
DR_P_ON_H
IC51001- G22
FROM MTK
SECTION
IP55005
5V
(REG.PW_XSW3.3V)
IC58301
VDD VOUT 5
1
PW_AD5V
18
JK56001-
PW_DR5V
PW_XSW3.3V
IC51001-J20,J21,L20,L19,C14
JK51305-
19
P58001P1102
(REG.RESET)
IC58111
VDD VOUT 1
2RESET
IC51001-K23
(REG.PW_LED5V)
IC51002
VDD VOUT 5
1PW_LED5V
(REG.PW_XSW5V)
IC55006
VDD VOUT 5
15V IC55003-
(REG.PW_1.5V)
PW_1.5V PW_1.5V
2
IC55003-
1 2
IP55004
15,16,17
P58001P1102 PW_X_SW12.2V
FROM
POWER P.C.B.
7
2
5
3
IC58403
VIN
EN
SW
FB
IC58503
IC51001-DVCC18_IO_1
IC51001-DVCC10_K
IC52001-VDD,VDDQ
IC52201-VDD,VDDQ
(REG.PW_1.1V)
7
2
5
3
VCC
EN
SW
FB
Q58006
(REG.PW_DR12V)
PW_DR12V
4
IC58006
3
QR58001
PW_1.1V
5
1
2
6
PW_1.2V
C14,F14,F13,E14
C15,D15
IC51001-Y21,V5,W4,E7,F7
(REG.PW_1.2V)
VIN
Vo 1
5
8
Vcont
(REG.PW_USB5.1V)
IC59301
VIN
VOUT 3
2
1
ON[H]
1
P1103-
PW_USB_5.1V
GPIO1
IC51001- A7
FROM MTK
SECTION
11
P58001P1102 TO
LED P.C.B.
6
P58001P1102 TO
LED P.C.B.
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU
/
10 25 /44 /52
IC55004-

4
1.2. Digital (Back End Section) Block Diagram
AUDIO SIGNAL VIDEO SIGNAL
AB1
USB_DM0
A7
GPIO1
AB2
USB_DP0
AC3
GPIO6
A12
NS_XTALI
B12
NS_XTALO
X56301
5
7
1
IC59301
Vin
Vout
ON[H]
3
2
1
PW_5.9V
USB PORT
P1103
IC51301
(8bit NAND)
IC52001
DDR SDRAM
1Gbit
64M X 8bit NAND
FLASH MEMORY 1
TC- NFD0-7
2
TC- CAA0-13
3
TC- CADQ0-15
NAND I/F
DDR3_CHA
IC52201
DDR SDRAM
1Gbit
4
TC- CBA0-13
5
TC- CBDQ0-15
DDR3_CHB
IC51001
(PEAKS-PRO3)
DIGITAL BLOCK DIAGRAM
Control
Interface
(AUDIO D/A CONVERTER)
IC54004
Q56302
Clock
Divider
8X
Iterpolator Modulator
Audio
Data
Interface
SCF
LPF
8X
Iterpolator
Charge
Pump
Modulator
SCF
LPF
3
8
7
4
5
6
10
AOUTL
SMUTE
DIF
MCK
LRCK
CLK_LRCK_A
CLK_BCK_A
CLK_DATA0_A
BICK
SDTI AOUTR 9
AOLRCK
AOBCK
AOSDATA0
E11
CLK_MCK_A
AOMCK
D11
C11
A10
A19
JK56001
AUDIO OUT
AL
AR
VIDEO OUT
JK56001
V
VDACX_OUT
B13
CH2_P
A13
CH2_M
B14
CH1_P
A14
CH1_M
B15
CH0_P
A15
CH0_M
B16
CLK_P
A16
CLK_M
CEC
F20
HDMISCK
D23
HDMISD
E22
HPTLG
E23
1
3
4
6
7
9
10
12
16
15
JK56301
HDMI JACK
D2+
D2-
D1+
D1-
D0+
CLK+
D0-
CLK-
HDMISDA
HDMISCL
13 CEC
19 HOTPLG
6
3
1
4
BUFFER
BUFFER
AUDIO/VIDEO OUT
Q56301
T59301
POWER P.C.B.
5
4C
3D
E
G
F
B
K
A
5
7
8
10
11
13
1
DIG1
DIG2
DIG3
DIG4
DIG5
DIG6
2
6
9
12
14
14
15
21
19
20
23
24
26
27
A-K
DIG1-DIG6
DP7001
IC7001
(DISPLAY/LED DRIVE)
P1102 P58001
10
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU

5
1.3. IC Pin Terminal Chart
IC Pin Terminal Chart ( TC1-TC5)
emaNtroPoNniPoNniPemaNtroP
emaNtroPoNniPoNniPemaNtroP
TC IC51001 / PEAKS-PRO3 SIGNAL NAME IC52001 / SDRAM
1
TC IC51001 / PEAKS-PRO3 SIGNAL NAME IC52001 / SDRAM
2
IC Pin Terminal Chart
RA0
RA1
RA2
RA3
RA4
RA5
RA6
RA7
RA8
RA9
RA10
RA11
RA12
RA13
RDQ0
RDQ1
RDQ2
RDQ3
RDQ4
RDQ5
RDQ6
RDQ7
RDQ8
RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15
CADQ0
CADQ1
CADQ2
CADQ3
CADQ4
CADQ5
CADQ6
CADQ7
CADQ8
CADQ9
CADQ10
CADQ11
CADQ12
CADQ13
CADQ14
CADQ15
E3
F2
G2
H3
H7
H8
F8
F7
A2
C2
A3
A7
C8
D7
B8
C3
DQL0
DQL2
DQL6
DQL4
DQL7
DQL5
DQL3
DQL1
DQU5
DQU3
DQU7
DQU4
DQU2
DQU0
DQU6
DQU1
AE16
AD16
AC16
AB16
AD21
AE21
AC20
Y18
AE17
AD17
AC18
AA17
AA19
AC19
AA18
AB19
emaNtroPoNniPoNniPemaNtroP
TC IC51001 / PEAKS-PRO3 SIGNAL NAME IC52201 / SDRAM
4
RDQ0_B
RDQ1_B
RDQ2_B
RDQ3_B
RDQ4_B
RDQ5_B
RDQ6_B
RDQ7_B
RDQ8_B
RDQ9_B
RDQ10_B
RDQ11_B
RDQ12_B
RDQ13_B
RDQ14_B
RDQ15_B
CBDQ0
CBDQ1
CBDQ2
CBDQ3
CBDQ4
CBDQ5
CBDQ6
CBDQ7
CBDQ8
CBDQ9
CBDQ10
CBDQ11
CBDQ12
CBDQ13
CBDQ14
CBDQ15
E3
F2
G2
H3
H7
H8
F8
F7
A2
C2
A3
A7
C8
D7
B8
C3
DQL0
DQL2
DQL6
DQL4
DQL7
DQL5
DQL3
DQL1
DQU5
DQU3
DQU7
DQU4
DQU2
DQU0
DQU6
DQU1
U21
U20
T24
T25
M20
M23
M22
M21
R22
R23
P23
P22
P20
R20
R21
P21
AA12
AB15
AE13
AB12
AA15
Y12
Y16
AD13
AA16
AC14
AD14
Y15
AE14
AB14
CAA0
CAA1
CAA2
CAA3
CAA4
CAA5
CAA6
CAA7
CAA8
CAA9
CAA10
CAA11
CAA12
CAA13
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10(AP)
A11
A12(/BC)
A13
emaNtroPoNniPoNniPemaNtroP
TC IC51001 / PEAKS-PRO3 SIGNAL NAME IC52201 / SDRAM
3
RA0_B
RA1_B
RA2_B
RA3_B
RA4_B
RA5_B
RA6_B
RA7_B
RA8_B
RA9_B
RA10_B
RA11_B
RA12_B
RA13_B
AB23
V22
AC25
AC24
V23
AA23
U24
Y22
U25
Y23
W24
U23
W25
Y24
CBA0
CBA1
CBA2
CBA3
CBA4
CBA5
CBA6
CBA7
CBA8
CBA9
CBA10
CBA11
CBA12
CBA13
N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10(AP)
A11
A12(/BC)
A13
emaNtroPoNniPoNniPemaNtroP
TC IC51001 / PEAKS-PRO3 SIGNAL NAME IC51301 / 8BIT-NAND
5
C23
A25
B24
B25
C24
C25
D24
NFD0
NFD1
NFD2
NFD3
NFD4
NFD5
NFD6
NFD0
NFD1
NFD2
NFD3
NFD4
NFD5
NFD6
29
30
31
32
41
42
43
IO0
IO1
IO2
IO3
IO4
IO5
IO6
D25 NFD7 447DFN IO7
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU

6
1.4. Digital (Front End Section) Block Diagram
RFIP
RFIP2
RFIN
RFIN2
INA
INB
INC
IND
INE
INF
ING
INH
LASER
DETECTOR
LASER
DETECTOR
LASER
DETECTOR
BD
CD
DVD
FO/TR
ACTUATOR
SPINDLE
MOTOR
OPTICAL PICK-UP/TRAVERSE
P55001
BD/DVD
RF SIGNAL
DVD FOCUS AND TRACKING SIGNAL
BD FOCUS AND TRACKING SIGNAL
CD MAIN AND SUB SIGNAL
P55001
P55003
FOCUS/TRACKING ACTUATOR
STEPPING
MOTOR
SPINDLE MOTOR DRIVE
STEPPING MOTOR DRIVE
DIGITAL BLOCK
BACK END
SECTION
IC51001
(OPTICAL DISC CONTROLLER) SODC
RF SIGNALMOTOR DRIVE SIGNALTRACKING ERROR SIGNALFOCUS ERROR SIGNAL
SERVO BLOCK DIAGRAM
IC55003
LDOUT1 G_LD1_DVD
G_LD1_CD
G_LD1_BD
LDOUT2
LDOUT3
IMON
17
6
VMON
18
7
LDEN
19
8
P1
9
(Laser Diode Drive)
IC55004
(MOTOR/PWM/DRIVER)
P2
10
G4
TRINC
A2
FOIP FOIP
P5
R5
R4
J3
J2
J4
J1
IRNC
FEGIO6
FEGIO12
FEGIO5
FEGIO5
FEGIO12
FEGIO6
LDIN
4
PDOUT
5
D3
FPDODVD LPC3
Q55002
PW_5V
K6
V14
M3
K1
FETRAYPWM
TRO
K2
FOO
L4
TLO
E1
E2
F1
F2
H3
H4
G2
G1
M2
FEFMO2
L3
FEFMO
T.S.D
BEMF
DETECTER
Logic
CURR.
FEED
LEVEL
SHIFT
CURR.
LIMIT
OSC
PRE
Logic
PRE
Logic
FF
FF
OSC
OSC
CURR.
LIMIT
CURR.FEED
CURR.FEED
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT
LEVEL
SHIFT
PRE
Logic
PRE
Logic
FF
FF
OSC
OSC
CURR.
LIMIT
CURR.FEED
CURR.FEED
DETECTER
26.5k㱅
26.5k㱅
160k㱅
160k㱅
26.5k㱅
26.5k㱅
160k㱅
160k㱅
AVM/2
26.5k㱅
26.5k㱅
160k㱅
160k㱅
26.5k㱅
26.5k㱅
160k㱅
160k㱅
AVM/2
26.5k㱅
26.5k㱅
160k㱅
160k㱅
26.5k㱅
26.5k㱅
160k㱅
160k㱅
AVM/2
80k㱅
40k㱅
80k㱅
80k㱅
40k㱅
80k㱅
LDVM/2
40k㱅×2
PROTECT
STBY
BRAKE
CONTROL
LRPM
PRTLIM
62.6k㱅
62.6k㱅
39
41
42
43
44
45
47
48
50
51
52
53
54
28
29
30
31
32
33
34
35
36
37
38
40
DR12V
DR12V
U
V
W
MCOM
DR12V
TRVA+
TRVA-
TRVB+
TRVB-
G_SB+
G_SB-
G_SA+
G_SA-
16
14
27
26
25
24
22
21
20
19
18
17
11
10
9
8
7
6
5
4
3
2
1
15
13
12
23
G_TR+
G_TR-
G_FO2+
G_FO2-
G_FO1+
G_FO1-
LDM+
LDM-
G_TR+
G_TR-
G_FO2+
G_FO2-
G_FO1+
G_FO1-
M1
FEFDO SPIN
LDIN
DR12V
TKIN
TLIN
SAIN2
FCIN
DR5V
DR12V
DR5V
T1
FEGIO0 CTL1
FEGAINSW2 CTL2
LRPM
PRTLIM
V3
FEFG FEFG
FEFMO4
FEFMO3
N1
M4
DR5V
SAIN
SLIN2
SLIN1
DR5V
SAIN2
SAIN
SLIN2
SLIN1
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU
LDM-
LDM+
LDM-
LDM+
1
2
P55004
LOADING
MOTOR
P55002
N3

7

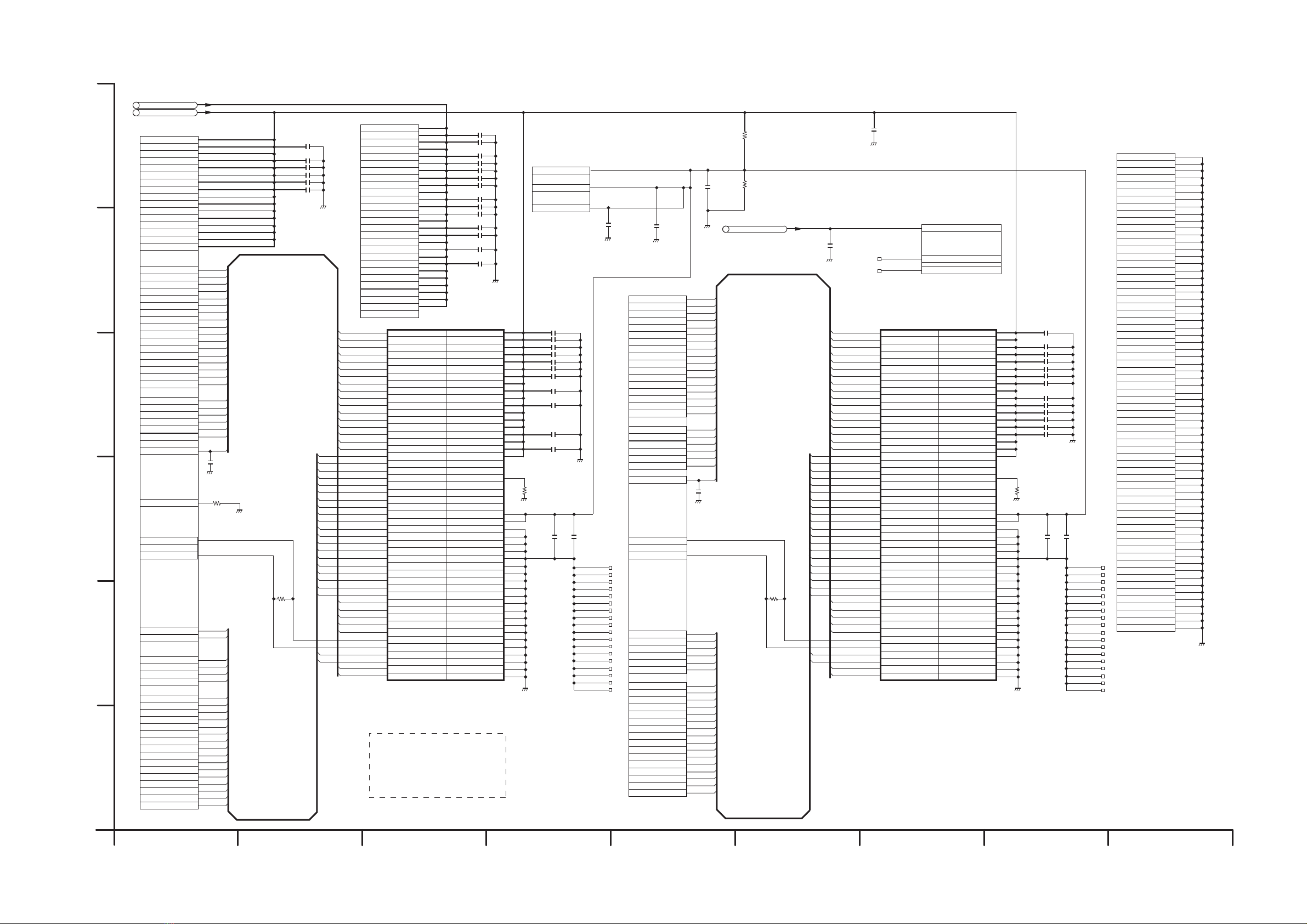

2 Schematic Diagram
2.1. Interconnection Schematic Diagram
DIGITAL P.C.B.
BD DRIVE
POWER P.C.B.
P55001
2
1
3
4
P1102
P58001
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
1
3
4
P1001
N
A
INTERCONNECTION
SCHEMATIC DIAGRAM
F
E
D
1
C
B
A
98765432
40
39
38
37
36
45
44
43
42
41
35
34
33
32
31
30
29
28
27
26
25
24
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
1
3
4
40
39
38
37
36
45
44
43
42
41
35
34
33
32
31
30
29
28
27
26
25
24
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
1
3
4
5
2
1
3
4
5
2
1
3
4
P7004
1
2
3
PJ7551
POWER_SW P.C.B.
GND
KEY_POWER 1
2GND
KEY_POWER
SW
GND_PD
VCC_+5PD
VREF_PD
SWB2
SWB1
RF+
RF-
SW3
SA(SB/F)
SB(SC/F)
SC(SD)
SD(SA)
A(B/a/A)
B(C/b/B)
C(D/c/C)
D(A/d/D)
GND1
LDI_BD
LDI_CD
GND1
TEMP
VCC
MON_CD/DVD
MON_BD
SEL_DVD
SEL_CD
NC
NC
GND1
GND_BDPD
LDI_DVD
FCS1-
TRK-
FCS1+
TRK+
FCS2-
FCS2+
B+
NC
NC
NC(GND)
A+
B-
A-
SW
GND_PD
VCC_+5PD
VREF_PD
SWB2
SWB1
RF+
RF-
SW3
SA(SB/F)
SB(SC/F)
SC(SD)
SD(SA)
A(B/a/A)
B(C/b/B)
C(D/c/C)
D(A/d/D)
GND1
LDI_BD
LDI_CD
GND1
TEMP
VCC
MON_CD/DVD
MON_BD
SEL_DVD
SEL_CD
NC
NC
GND1
GND_BDPD
LDI_DVD
FCS1-
TRK-
FCS1+
TRK+
FCS2-
FCS2+
B+
NC
NC
NC(GND)
A+
B-
A-
A+
B-
B+
A-
CLOSESW
LDM+
P55004
LDM-
OPENSW
GND
P55003
COM
W
V
U
GND
A+
B-
B+
A-
CLOSESW
LDM+
LDM-
OPENSW
GND
COM
W
V
U
GND
5
4
1
2
3
P55002
4
1
2
3
5
4
1
2
3
PW_X_SW5.9V
PW_X_SW5.9V
KEY3
KEY1
KEY2
PW_X_SW3.3V
REMOCON
KEY_POWER
USB_POWER
USB_DP
USB_DN
PW_LED5V
LED_CS
LED_CLK
LED_TXD
STANDBY_LED
GND
GND
PW_X_SW12.2V
PW_X_SW12.2V
PW_X_SW12.2V
PW_3.3V
P_ON_H
PW_X_SW5.9V
PW_X_SW5.9V
KEY3
KEY1
KEY2
PW_X_SW3.3V
REMOCON
KEY_POWER
USB_POWER
USB_DP
USB_DN
PW_LED5V
LED_CS
LED_CLK
LED_TXD
STANDBY_LED
GND
GND
PW_X_SW12.2V
PW_X_SW12.2V
PW_X_SW12.2V
PW_3.3V
P_ON_H
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU

8
2.2. AUDIO_DAC Section Schematic Diagram
F
E
D
1
C
B
A
98765432
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
9
IC54004
C1AB00003539
SMUTE
MCK
BCK
LRCK
SDTI
AOUTR
DIF
CVDD
VSS2
VDD
AOUTL
ZDF
VSS1
CP
VEE
CN
C54016
1
C54020
10
C54019
1
C54022
1
C54018
0.1
AOSDATA0 A10
AOBCK C11
AOMCLK D11
AOLRCK
CLK_DATA0_A
CLK_BCK_A
CLK_MCK_A
CLK_LRCK_A
E11
PW_3.3V
DN
G_MIXLOUT
AV
G_MIXROUT
AV
AGND
AV
DGND
AV
AOSDATA5 D10 CK54001
AOSDATA2 B10 CK54004
AOSDATA1 F11 CK54005
IC51001
RFKB76266A(BD75P/755P)
RFKB76266AC(BD75PC)
RFKB76266CT(BD75PU)
RFKB76266DAT(BD75GA)
RFKB76266DCT(BD75GC)
RFKB76266DNT(BD75GN)
RFKB76266DTT(BD75GT)
RFKB76266DWT(BD75GW)
RX54002
1.8KX4
1
2
4
6
8
3
5
7
C54114
50V 1000P
(BD75GA/GC/GN/GW/GT)
(BD75GA/GC/GN/GW/GT)
C54115
50V 1000P
AUDIO_DAC SECTION
SCHEMATIC DIAGRAM
(DIGITAL P.C.B(1/6))
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU

9
2.3. AV Section Schematic Diagram
F
E
D
1
C
B
A
98765432
AV SECTION
SCHEMATIC DIAGRAM
(DIGITAL P.C.B(2/6))
AVSS33_VDAC_R E17
AVDD33_VDAC_X D19
AVSS33_VDAC_X E19
AVDD33_VDAC_R D17
AVSS33_VDAC_BG E18
AVDD33_VDAC_BG C19
NS_XTALQ B12
NS_XTALI A12
AVSS33_XTAL D14
AVDD12_DMPLL F14
AVSS12_DMPLL E12
AVDD33_XTAL C14
AVSS12_APLL F12
AVDD12_APLL F13
AVSS12_27MPLL E13
TP_PLLG C12
TP_PLLG D12
AVDD12_27MPLL E14
DVCC33_IO_PWM G11
DVCC33_IO_PWM G10
DGND_PWM J12
DGND_PWM J13
DGND_PWM K12
VDACR_OUT C17
VDACG_OUT C18
VDACB_OUT B19
VDACX_OUT A19
AVDD12_HDMI C15
AVDD12_HDMI D15
AVDD33_HDMI D16
CH0_M A15
CH0_P B15
AVDD33_HDMI C16
AVDD12_HDMI F15
AVDD12_HDMI E15
AVDD33_HDMI F16
AVDD33_HDMI E16
CH1_P B14
CH1_M A14
CH2_P B13
CLK_M A16
CH2_M A13
CLK_P B16
CEC F20
HTPLG E23
HDMISCK D23
EXT_CAP A17
EXT_RES B17
HDMISD E22
C56008
0.1 C56012 1
PW_XSW3.3V
PS
G_MIXROUT
AU
G_MIXLOUT
AU
LB56501
J0JYC0000070
LB56503
J0JYC0000070
LB56308
J0JYC0000070
PW_3.3V
PS
LB56002
J0JYC0000070
PW_1.2V_A
PS
LB56502
J0JYC0000070
LB56504
J0JYC0000070
LB56307
J0JYC0000070
C56502
C56504
0.01
0.01
C56506
0.01
C56508
0.01
C56307
0.01
CK53009
CK53010
LB56506
J0JYC0000070
C56512
0.01
C56305
0.01
JK56001
K2HA2YYB0018
AR
V
AL
AGND
DGND
AGND
AU
DGND
PS
6
5
3
1
R56502
220
R56501
1M H0J270500156
X56501
C56509
18P
C56510
18P
1
G4 G3
G1 G2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
JK56301
K1FA119E0017
D2+
D2GND
D2-
D1+
D1GND
D1-
D0+
D0GND
CLK+
CLK-
CLKGND
D0-
RSV
HDMISDA
HDMISCL
CECGND
HOTPLG
+5V
CEC
CKS15
CKS16
CKS18
CKS19
CKS13
CKS2
CL56301
CL56303
CL56304
CL56305
CL56306
CL56302
CK56004
CK53007
CK53006
CK56008
CK56009
CK56010
LB56306
J0JYC0000070
RX56303
0X4
Q56301
B1ABDF000026
R56301
27K
R56302
100
GD
S
GD
S
4
5
6
3
2
1
C56303
1
C56302
1
IC56301
C0CBCDC00074
Q56302
B1CFGD000003
1
2
3
ON 5
VIN
GND
NC 4
VOUT
P_ON_H
PS
PW_5.9V
DN
R56503
2.2K
FS D18
R56007
560
CL56011
R56001
75
4
CK56004
G1C1R8JA0074
L56001
C56014
47P
C56013
47P
MCIN D9
SPDIF E9
CK56007
OPT_IEC
AU
1
2468
357
RX56302
10KX4
1
2468
357
RX56301
2KX4
1
2
4
6
8
3
5
7
RX56304
0X4
1
2
4
6
8
3
5
7
IC51001
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU
IC51001
RFKB76266A(BD75P/755P)
RFKB76266AC(BD75PC)
RFKB76266CT(BD75PU)
RFKB76266DAT(BD75GA)
RFKB76266DCT(BD75GC)
RFKB76266DNT(BD75GN)
RFKB76266DTT(BD75GT)
RFKB76266DWT(BD75GW)

10
2.4. MTK Section Schematic Diagram (1/2)
9876
F
54321
E
D
B
A
MTK SECTION(1/2)
SCHEMATIC DIAGRAM
(DIGITAL P.C.B(3/6))
NCNC
NC
NC
NC
NC
/WP
/WE
ALE
NC
NC
IO0
IO1
IO2
NC
IO3
CNELC
NC
NC
VSS
VCC
NC
NC
NC
NC
VSS
VCC
PRL
NC/CE
NC
IO4
R/B
/SE
NC
NC
NC
NC
IO5
IO6
IO7
NC
NC
/RE
NC
CNCN
1
2
3
4
5
6
7
8
9
10
11
12
13
39
40
41
42
43
44
45
46
47
48
38
37
36
14
15
16
17
18
19
20
21
22
23
24
35
34
33
32
31
30
29
28
27
26
25
IC51301
NAND I/F
ETHER I/F
NFD0
NFD1
NFD2
NFD3
NFD4
NFD5
NFD6
NFD7
NEALE
NEALE
NFCEN3
NFCEN4
NEWEN
NEWEN
NECLE
NECLE
NFRBN
NFRBN
NFRBN2
NFREN
NFREN
NFCEN
NFCEN
NFCEN2
NFCEN2
CK51302
CK51301
PW_3.3V
P
D21
C22
B23
A23
B22
C21
A22
NFALE
NFWCEN
NFCLE
NFRBN
NFREN
NFWEN
NFCEN2
A24
C23
B24
B25
A25
C24
C25
NFRBN2
NFD0
NFD1
NFD2
NFD3
NFD4
NFD5
D24
D25
NFD6
NFD7
NFD0
NFD1
NFD2
NFD3
NFD4
NFD5
NFD6
NFD7
D7 SCL
E8 SDA
NFRBN2
C51301
10 C51302 0.01 C51304 0.01 C51305 0.01 C51307 0.01 C51308 0.01 C51309 0.01 C51311 0.01 C51312 0.01 C51335 0.01 C51336 10
SFDQ
SFCK
AOSDATA3
SPLRCK
SPMCLK
CMD
CLK
IC51001
DATA2
DATA3
DATA0
DATA1
WP
CD
SPBCK
AOSDATA4
D20
CK51307
C20
C9
C10
A9
F10
E10
SPDATA
GPIO3
GPIO0
B9
C7
D8
CK51309
SFDI B20
CK51306
CK51332
CK51333
CK51334
CK51335
CK51336
CK51337
CK51338
CK51339
DVCC33_IO_6
DVCC33_IO
DVCC33_IO_3
DVCC33_IO_3
DVCC33_IO_2
DVCC33_IO
G12
M7
Y7
E20
F19
N7
DVCC33_IO P7
SFCS A20 CK51308
IC51001
RL51001
RL51002
1
1
2
4
6
8
3
5
7
RX51307
4.7KX4
1
2
4
6
8
3
5
7
RX51306
10KX4
R51322
10K
R51326
10K
8
10
9
7
6
5
4
3
2
1
B5 BD_M CKK5 TXVN_1
CKK6
CKK8
CKK10
JK59001
K2LC108B0105
CKK7
CKK3
A4 BD_P CKK4 TXVP_1
B4 TD_M CKK2 TXVN_0
A3 TD_P CKK1 TXVP_0
C59004
0.1
C59003
0.1
DMP-BD755P
DMP-BD75GA/GC/GN/GT/GW
DMP-BD75P/PC/PU
IC51001
RFKB76266A(BD75P/755P)
RFKB76266AC(BD75PC)
RFKB76266CT(BD75PU)
RFKB76266DAT(BD75GA)
RFKB76266DCT(BD75GC)
RFKB76266DNT(BD75GN)
RFKB76266DTT(BD75GT)
RFKB76266DWT(BD75GW)
IC51301
RFKB76266A(BD75P/755P)
RFKB76266AC(BD75PC)
RFKB76266CT(BD75PU)
RFKB76266DAT(BD75GA)
RFKB76266DCT(BD75GC)
RFKB76266DNT(BD75GN)
RFKB76266DTT(BD75GT)
RFKB76266DWT(BD75GW)
