Panasonic HC-X2 User manual

Operating Instructions <Quick Start Guide>
4K Video Camera
Model No.
HC-X2/HC-X20
Please read these instructions carefully before using this product, and save this
manual for future use.
More detailed operating instructions are available in “Operating Instructions
<Complete Guide>” (HTML format/PDF format). This can be viewed with a PC or
smartphone.
https://panasonic.jp/support/video/oi/X2/index.html
DVQX2257ZA
F0822GY0
GC
until
2022/08/25
HC-X20_X2GC-DVQX2257_eng.book 1 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

DVQX2257 (ENG)
2
Information for Your Safety
∫Concerning the battery
WARNING:
To reduce the risk of fire, electric shock or product damage,
0Do not expose this unit to rain, moisture, dripping or splashing.
0Do not place objects filled with liquids, such as vases, on this unit.
0Use the recommended accessories.
0Do not remove covers.
0Do not repair this unit by yourself. Refer servicing to qualified service
personnel.
CAUTION!
To reduce the risk of fire, electric shock or product damage,
0Do not install or place this unit in a bookcase, built-in cabinet or in another
confined space. Ensure this unit is well ventilated.
0Do not obstruct this unit’s ventilation openings with newspapers,
tablecloths, curtains, and similar items.
0Do not place sources of naked flames, such as lighted candles, on this unit.
The mains plug is the disconnecting device. Install this unit so that the mains
plug can be unplugged from the socket outlet immediately.
This unit is intended for use in moderate and tropical climates.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above 60 oC or
incinerate.
CAUTION
0Danger of explosion if battery is incorrectly replaced. Replace only with the
type recommended by the manufacturer.
0When disposing of the batteries, please contact your local authorities or
dealer and ask for the correct method of disposal.
HC-X20_X2GC-DVQX2257_eng.book 2 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Information for Your Safety
DVQX2257 (ENG) 3
∫Product identification marking
For Singapore only
For Thailand only
Product Location
4K Video Camera Bottom
AC adaptor Bottom
Battery charger Bottom
This telecommunication equipment conforms to NTC/NBTC technical
requirement.
AC Adaptor
Disconnect the AC mains plug from the AC mains socket when not in use.
Complies with
IMDA Standards
DB01017
HC-X20_X2GC-DVQX2257_eng.book 3 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

DVQX2257 (ENG)
4
Cautions for use
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
0If you use this unit on top of or near a TV, the pictures and/or sound on this unit may
be disrupted by electromagnetic wave radiation.
0Do not use this unit near cell phones because doing so may result in noise adversely
affecting the pictures and/or sound.
0Recorded data may be damaged, or pictures may be distorted, by strong magnetic
fields created by speakers or large motors.
0Electromagnetic wave radiation generated by microprocessors may adversely affect
this unit, disturbing the pictures and/or sound.
0If this unit is adversely affected by electromagnetic equipment and stops functioning
properly, turn this unit off and remove the battery or disconnect AC adaptor. Then
reinsert the battery or reconnect AC adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
If you record near radio transmitters or high-voltage lines, the recorded pictures and/or
sound may be adversely affected.
When this unit is turned on, do not use it in direct contact with the skin for a
long period of time.
0When using this unit for a long period of time, use a support such as a tripod. Low
temperature burns may result if any high temperature part of this unit or hot air from
the ventilation openings on the front side of the hand strap of this unit is in direct
contact with the skin for a long period of time.
Caution regarding the lens and the viewfinder
0Do not aim the lens or the viewfinder at the sun or strong light. Doing so may cause
the unit to malfunction.
Before using the unit
The date and time have not been set at the time of purchase. Before use, make sure
you set the clock and time zone so that date and time information is correctly recorded.
(l17)
0When using this product during rain or snow or when at the beach, be careful that
water, sand and/or dust do not get inside the camera.
0Clips recorded with devices other than this unit are not supported by this unit.
0Hold the handle or grip when carrying the camera, and handle it carefully.
HC-X20_X2GC-DVQX2257_eng.book 4 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Cautions for use
DVQX2257 (ENG) 5
0If you prepare to record important images, always shoot some advance test footage
to verify that both pictures and sound are being recorded normally.
Battery
0Always remove the battery from the unit after use.
LCD monitor and viewfinder
0The LCD monitor and viewfinder are managed with high precision so that at least
99.99 % of the dots are effective pixels and 0.01 % or less are invalid pixels and
always lit. This is not a malfunction and it has no effect whatsoever on the recorded
images.
Memory cards
The SD cards can be used with the camera.
0Do not perform the following operations when accessing the memory card (the card
1 access lamp/card 2 access lamp is flashing in orange).
– Removing the memory card
– Disconnecting battery or the AC adaptor without turning off the main unit
– Apply vibration of impact
0Keep the memory card out of reach of children to prevent swallowing.
Speed Class during shooting
The memory card to use differs depending on the file format and the recording
format.
Use memory cards compatible with the Speed Class or UHS Speed Class.
The recording may stop suddenly when a memory card not compatible with the
required Speed Class is used.
HC-X20_X2GC-DVQX2257_eng.book 5 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Cautions for use
DVQX2257 (ENG)
6
Speed Class and UHS Speed Class are the speed specification regarding continuous
writing. Check the display on the label and other information on the memory card.
Using commercially-available products
0When using a commercially-available USB cable, use a USB Type-C cable that
conforms with USB3.1 and that is a shielded product with a ferrite core. We
recommend using a cable that is within 1.5 m where possible.
0Use a commercially-available Premium High Speed HDMI cable.
0Use a commercially-available 5C-FB or equivalent double-shielded cable for the
BNC cable.
0For the cable that connects to the <LAN> terminal, use the one below.
– LAN cable (STP (Shielded Twisted Pair), category 5e or above, maximum 100 m)
0You can remotely control some of the camera's functions by connecting a remote
control unit (commercially-available) to the <REMOTE> terminal.
File
format
Recording bit rate
or recording
function
Supported memory
cards and Speed
Classes
Example of card
display
MOV/MP4
200 Mbps, 150 Mbps,
100 Mbps, Super
slow recording, VFR
recording
0SDXC memory card
with UHS Speed
Class 3
72 Mbps,
50 Mbps
0SDXC memory card
with UHS Speed
Class 1 or better
0SDXC memory card
with Speed Class 10
AVCHD All
0SDHC/SDXC
memory card with
Speed Class 4 or
better
HC-X20_X2GC-DVQX2257_eng.book 6 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Cautions for use
DVQX2257 (ENG) 7
About using a headphone
0Excessive sound pressure from earphones and headphones can cause hearing
loss.
0Listening at full volume for long periods may damage the user’s ears.
Exemption of liability
Panasonic is not liable in any way regarding following.
1Incidental, special, or consequential damages caused directly or indirectly by the
unit
2Damages, breakage of the unit, etc., caused by misuse or carelessness of the
customer
3When disassembly, repair, or modification of the unit is performed by the
customer
4Inconveniences, damnification, or damages by not being able to record and/or
display the video due to any reasons including failure or malfunction of the unit
and recording media
5Inconveniences, damnification, or damages resulting from malfunction of the
system combining with any third party equipment
6A liability claim or any claim for a privacy violation by an individual or a group that
was the subject of the video that the customer has shot (including recording) that
became public by any reason (including using with the network user
authentication turned OFF)
7The registered information is lost due to any reason (including initializing this unit
because the authentication information such as user name or password is
forgotten)
Be careful with regard to copyrights
Under copyright law, you may not use the images and audio you have recorded for
other than personal enjoyment without the permission of the copyright holder.
HC-X20_X2GC-DVQX2257_eng.book 7 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Cautions for use
DVQX2257 (ENG)
8
How to read this document
Models described in these operating instructions
0The illustrations of the products, menu screens, etc., may differ from the actual
items. Unless specifically stated otherwise, screen depictions and illustrations of the
unit are of HC-X2.
0Not all models may be available depending on the region of purchase.
0Model numbers are abbreviated as follows in these operating instructions:
Conventions used in this manual
0Words and phrases in [ ] brackets indicate content displayed in the LCD monitor.
0Words and phrases in < > brackets indicate design text used on this unit, such as
button names.
Model number Abbreviation used in these operating instructions
HC-X2 [X2]
HC-X20 [X20]
HC-X20_X2GC-DVQX2257_eng.book 8 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

DVQX2257 (ENG) 9
Contents
Information for Your Safety .......................................................................2
Cautions for use ........................................................................................4
Preparations before recording.................................................................10
Main specifications.................................................................................. 18
Trademark ...............................................................................................21
HC-X20_X2GC-DVQX2257_eng.book 9 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

DVQX2257 (ENG)
10
Preparations before recording

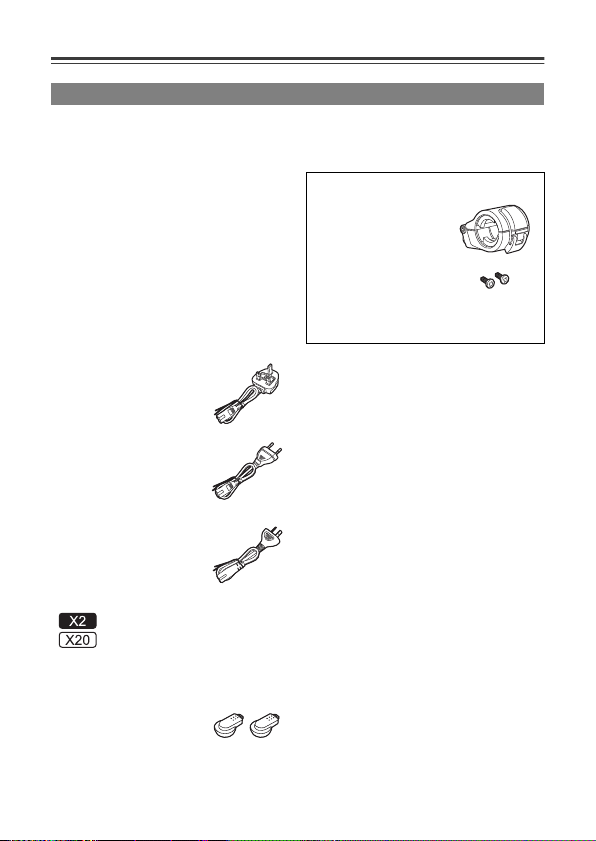

Accessories
Check the accessories before using this unit.
Product numbers correct as of August 2022. These may be subject to change.
Battery pack
AG-VBR59
(This is referred to as battery pack or
battery in this document.)
Battery charger
AG-BRD50*1
AC adaptor
SAE0011D
AC cable
0For AC adaptor
(A) K2CT3YY00034
0In Saudi Arabia,
always use (A)
(B) K2CQ2YY00082
(C) K2CJ2YY00152
Lens hood*2
1YE19R12S1Z
1YE4R12S0Z
Eye cup
DVYE1237Z
INPUT terminal cap
(x2)
VJF1468
*1 The AG-BRD50 is available for
purchase as an optional accessory
package containing a battery charger,
AC adaptor, and AC cable.
Individual battery chargers are sold
under the model number SAB0002A.
Contact your dealer to purchase
them.
*2 Pre-attached to the main unit.
*3 The microphone holder mounting
screws are supplied with the
microphone holder.
0Appropriately discard the AC cable cap
(if attached) and packing materials after
taking the product out.
0Keep the microphone holder mounting
screws and INPUT terminal cap out of
reach of children to prevent swallowing.
(A)
(B)
(C)
1AC2HCX2500Y
Microphone holder
Microphone holder
mounting screws*3
1PP1HCX2500Y
0Length 12 mm (x2)
HC-X20_X2GC-DVQX2257_eng.book 10 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG) 11
Description of parts
For “Description of parts”, refer to “Operating Instructions
<Complete Guide>”.
https://panasonic.jp/support/av/cam/x2e_01.html

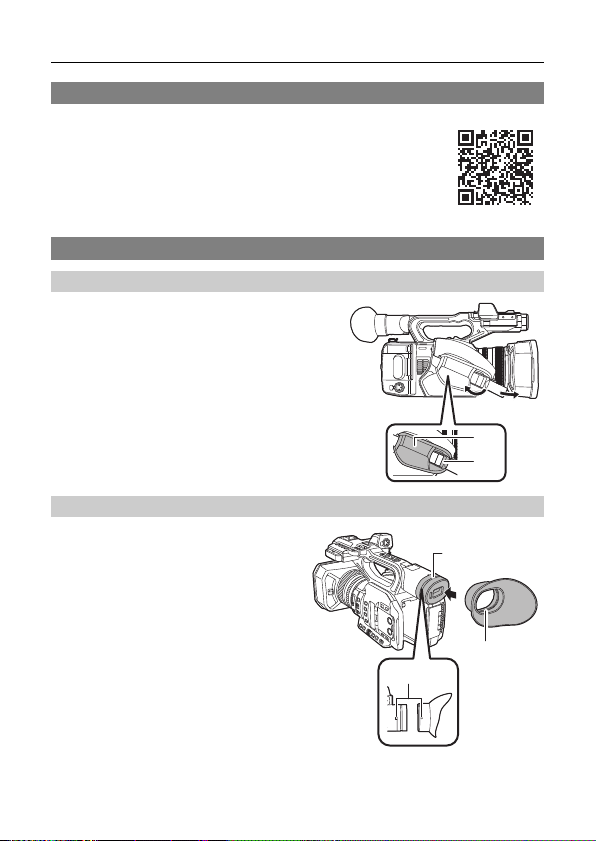

Attaching accessories
Adjusting the grip belt
0Adjust the grip belt so that it fits the size of your
hand.
0If the buckle is difficult to tighten, move the pad
forward and tighten the buckle again.
(A) Pad
(B) Buckle
1Open the buckle.
2Pull the end of the belt.
Attaching the eye cup
1Align the mounting mark
on the eye cup with the
mounting mark on the
eye cup mount.
(A) Ridge
(B) Groove
(C) Mounting mark
(A)
(1) (2)
(B)
(B)
(A)
(C)
HC-X20_X2GC-DVQX2257_eng.book 11 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG)
12
2Attach the eye cup so that the ridge inside it is aligned
with the groove on the eye cup mount.
Push the eye cup in until it reaches the mounting mark.
Attaching the external microphone
1Open the microphone holder.
Open buckle (1), and detach fitting (2) from hook (3).
2Attach the microphone holder
to the microphone holder
mounting section.
(A) Microphone holder
(B) Microphone holder mounting screws
0Attach using a commercially-available screwdriver.
0There will be some rubbing noises with the rubber when screwing in the
microphone holder mounting screws, but please ensure they are done up
tightly.
3Attach the external microphone to the
microphone holder, then close the buckle
to secure the external microphone.
Attach the fitting to the hook and close the buckle in the
direction indicated by the arrow.
(1) (2) (3)
(A) (B)
HC-X20_X2GC-DVQX2257_eng.book 12 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG) 13
4Connect the microphone cable
to the <AUDIO INPUT1>
terminal.
(C) <AUDIO INPUT1> terminal
(D) Microphone cable clamp
When wiring the microphone cable, use the
microphone cable clamp of this unit.
0Remove the microphone cable from the
<AUDIO INPUT1> terminal while pushing
the lever.
Power supply
A battery or the supplied AC adaptor can be used as the power supply for
the unit.
0The unit is compatible to following batteries. (As of August 2022)
– AG-VBR59 (supplied/optional, supports quick charging)
– AG-VBR89/AG-VBR118 (optional, supports quick charging)
0Use the supplied AC adaptor. Do not use the AC adaptor of another device.
0The supplied AC cable is dedicated for this unit. Do not use with any other device.
Also, do not use AC cable from other device on this unit.
Charging the battery
The battery is not charged at the time of purchase. Use only after charging sufficiently.
It is recommended that you have one extra battery.
0It is recommended to perform charging of the battery in a location with ambient
temperature of 10 °C to 30 °C (same for the battery temperature).
(D)(C)
HC-X20_X2GC-DVQX2257_eng.book 13 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG)
14

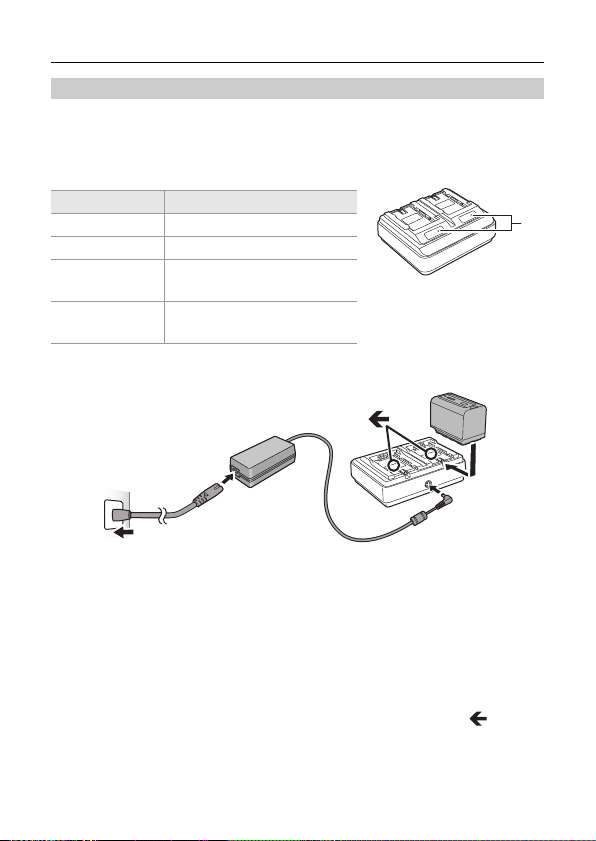

About the Battery Charger
This unit can charge two battery packs simultaneously and supports quick charging
batteries.
(A) CHARGE indicators <CHARGE1/CHARGE2>
Indicate the charge status as follows.
Charging the battery
1Connect the DC plug of the AC adaptor to the DC IN 12 V
connector of battery charger.
2Connect the AC mains lead to the AC adaptor.
0Perform step (2) first, and then step (3). Insert the AC mains lead all the way
in until it stops.
3Insert the battery into the battery charger.
0Slide the battery horizontally into the battery charger along the “ ” mark.
0The corresponding CHARGE indicator lights and charging starts.
0The CHARGE indicator turns off when charging is complete. Slide the battery
to remove it.
Indicator Charge status
Lit green Quick charging is in progress.
Lit orange Normal charging is in progress.
Blinking orange Charging has stopped due to
an error.
Off Charging is complete, or a
battery pack is not inserted.
(A)
(1)
(4)
(2)
(3)
HC-X20_X2GC-DVQX2257_eng.book 14 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG) 15

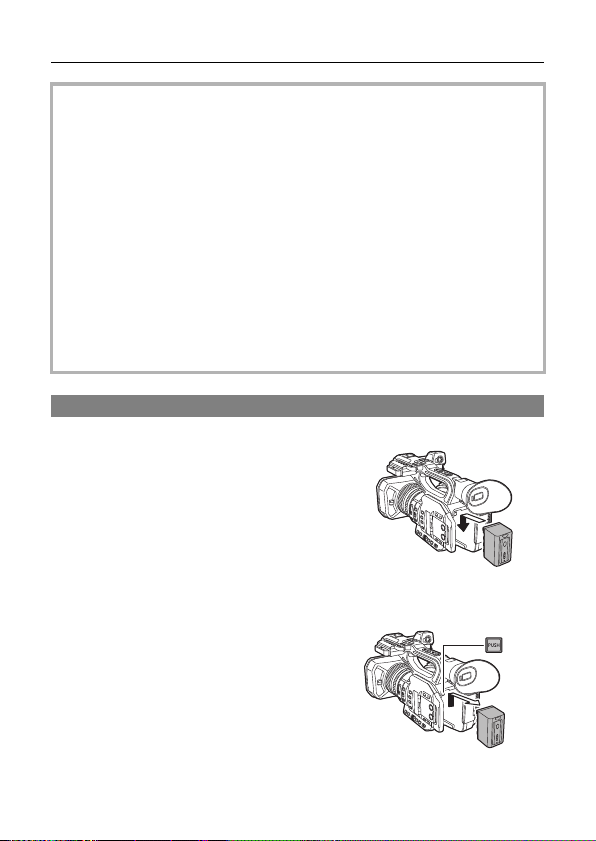

Attaching and removing the battery
1Install the battery by inserting
it in the direction shown in the
figure.
0Insert the battery until it clicks and locks.
Removing the battery
Make sure that the power switch is set to <OFF>
and the status indicator is turned off, and then
remove by holding onto it taking care not to drop.
(l16)
0While pressing the battery release button (A),
remove the battery.
0Do not use any other AC adaptors except the supplied one.
0We recommend using Panasonic batteries (l13).
0If you use other batteries, we cannot guarantee the quality of this product.
0Do not heat or expose to flame.
0Do not leave the battery(ies) in a car exposed to direct sunlight for a long period
of time with doors and windows closed.
0Do not expose to low air pressure at high altitudes.
0Do not expose to extremely low air pressure, as this may result in explosions or
leakage of flammable liquids and gases.
0The battery charger will determine the status of the battery after the battery is
mounted. Therefore, it may take some time until the charging lamp is to
illuminate. Mount the battery again if the charging lamp does not illuminate after
ten seconds or longer has elapsed.
0Mount the battery to be charged prioritized on the <CHARGE1> side when
charging.
(A)
HC-X20_X2GC-DVQX2257_eng.book 15 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG)
16

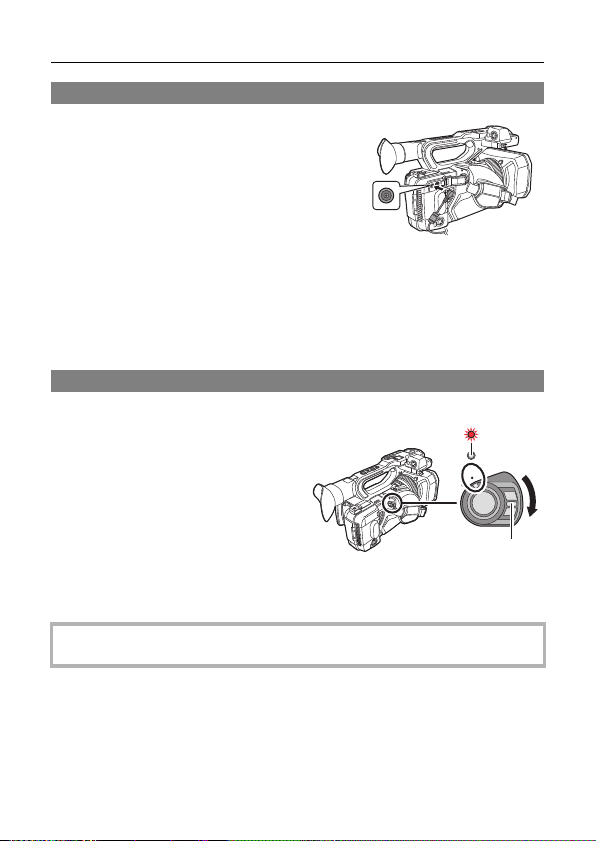

Connecting to the AC outlet
By connecting an AC adaptor to the
<DC IN 12V> terminal on this unit and switching
on the power of the unit, you can use it while it is
being supplied with power from the power outlet.
0Even when you use the AC adaptor for
recording images, keep the battery connected.
This allows you to continue the recording even
if a power failure occurs or the AC adaptor is unplugged from the AC outlet by
accident.
0The AC adaptor is in the standby condition when the mains plug is connected. The
primary circuit is always “live” as long as the mains plug is connected to an electrical
outlet.
Turning the unit on/off
1Set the power switch to
<ON> while pressing the
lock release button (A) to
turn on the unit.
0The status indicator (B) lights on.
To turn off the unit
Set the power switch to <OFF> while pressing the lock release button.
The status indicator goes off.
0To turn on the power again after [ECO MODE] functions, first switch the power
switch to <OFF>, then switch it back to <ON>.
ON
OFF
(A)
(B)
HC-X20_X2GC-DVQX2257_eng.book 16 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Preparations before recording
DVQX2257 (ENG) 17

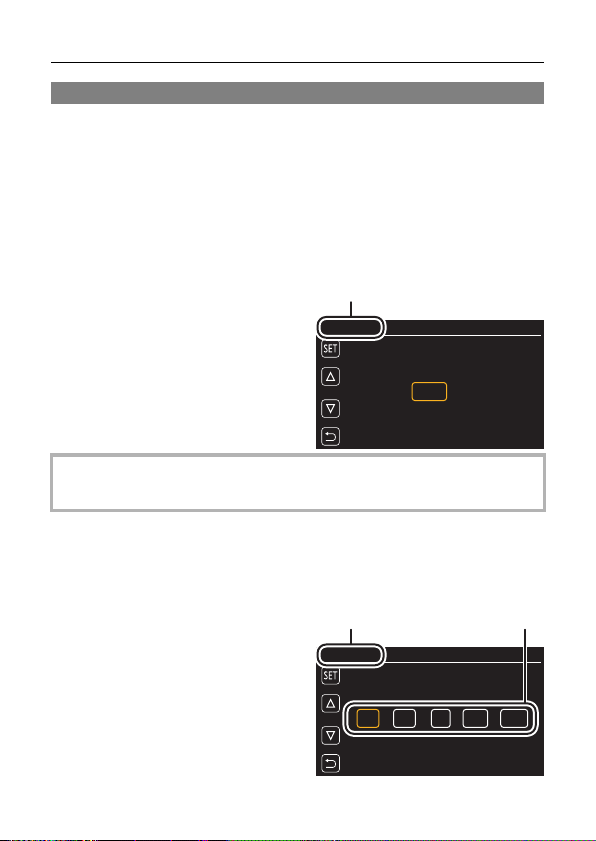

When turning on the power for the first time
The time zone, date, and time are not set when the unit is shipped.
[TIME ZONE] is displayed in the LCD monitor when the power is turned on for the first
time.
Follow the guidance and make the settings in the order of [TIME ZONE] and then
[CLOCK SETTING].
[TIME ZONE]
Set the time difference from the Greenwich Mean Time.
(A) [TIME ZONE]
1Set the time difference.
2Select [SET].
Once the setting for [TIME ZONE] is
completed, the [CLOCK SETTING]
screen is displayed.
[CLOCK SETTING]
Set the year, month, date, and time.
(A) [CLOCK SETTING]
(B) 0 : 0 1. JAN. 2022
1Set the year, month, date,
and time.
The year can be set between 2021
and 2037.
2Select [SET].
Once the setting is complete, the
camera image screen is displayed.
0The setting for the date/time of the main unit changes together with the time zone
settings.
ヌパホパパ
(A)
ホハハ
(A) (B)
ホハハ
(A) (B)
HC-X20_X2GC-DVQX2257_eng.book 17 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

DVQX2257 (ENG)
18
Main specifications
Power
Power consumption
7.28 V (when battery is used)
12 V (when the AC adaptor is used)
20.6 W (when the LCD monitor is used)
18.5 W (when the LCD monitor is used)
Ambient operating
temperature
0 °C to 40 °C
Ambient operating
humidity
10 % to 80 % (relative humidity, no condensation)
Mass Approx. 2040 g*1/Approx. 2490 g*2
Approx. 2000 g*1/Approx. 2430 g*2
*1 Main unit only (including grip belt), excluding lens
hood, battery, and supplied accessories
*2 Including lens hood, supplied battery, eye cup, 2 SD
cards, microphone holder and 2 INPUT terminal caps
External dimensions
(W×H×D)
173 mm×195 mm×344 mm
171 mm×195 mm×343 mm
Including lens hood, excluding eye cup and microphone
holder
Pickup device 1.0 type (1.0 q) MOS solid-state image sensing device for
colors
Total pixels: approx. 20,920,000 pixels
Number of effective
pixels
Approx. 15,030,000 pixels
Lens Optical image stabilizer lens, motorized 20× zoom
F value: F2.8 to F4.5
Focal length: f=8.8 mm to 176 mm
35 mm conversion: f=24.5 mm to 490 mm
Filter diameter 67 mm
HC-X20_X2GC-DVQX2257_eng.book 18 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Main specifications
DVQX2257 (ENG) 19
Wi-Fi
AC adaptor
Battery charger
USB terminal USB Type-C®×1, USB3.1 Gen1,
Host/device combined (switched with menu)
Device: USB mass storage functionality (read only)
Host: Supports bus power (5 V, 0.9 A)
USB tethering functionality
USB ethernet adaptor functionality
LCD monitor 8.8 cm (3.5 q) LCD monitor: approx. 2,760,000 dots
Viewfinder 1.0 cm (0.39 q) OLED (organic EL display):
approx. 2,360,000 dots
Video display area: approx. 1,770,000 dots
Compliance standard IEEE802.11b/g/n compliant
Frequency range used
(central frequency)
2412 MHz to 2462 MHz [1 to 11ch]
Encryption method Wi-Fi compliant WPA™/WPA2
™
Access method Infrastructure mode
Power source
Power output
100 V – 240 V 50 Hz/60 Hz, 1.2 A
79 VA (100 V ) – 99 VA (240 V )
12 V 3.0 A
Input voltage
Output voltage
12 V 3.0 A
8.4 V 4.0 A
HC-X20_X2GC-DVQX2257_eng.book 19 ページ ２０２２年７月２１日 木曜日 午前１１時３７分

Main specifications
DVQX2257 (ENG)
20
Battery pack (AG-VBR59)
The symbols on this product (including the accessories) represent the
following:
Voltage/capacity 7.28 V 5900 mAh 43 Wh
AC
DC
Class II equipment (The construction of the product is double-insulated.)
HC-X20_X2GC-DVQX2257_eng.book 20 ページ ２０２２年７月２１日 木曜日 午前１１時３７分
