Panasonic HDC-SD700 User manual

Operating Instructions
High Definition Video Camera
Model No. HDC-SD700
HDC-TM700
HDC-HS700
Before use, please read these instructions completely.
Please also refer to Operating Instructions (PDF format) recorded
on the CD-ROM containing the Operating Instructions (supplied).
You can learn about advanced operation methods and check the
Troubleshooting.
until
2010/3/1
VQT2M91
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 1 ページ ２０１０年２月１２日 金曜日 午後２時９分

2
VQT2M91 (ENG)
Information for Your Safety
∫Concerning the battery
Button-type battery: CR2025
WARNING:
TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR PRODUCT
DAMAGE,
≥DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE
PLACED ON THE APPARATUS.
≥USE ONLY THE RECOMMENDED
ACCESSORIES.
≥DO NOT REMOVE THE COVER (OR
BACK); THERE ARE NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS
UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE
UNIT IS WELL VENTILATED. TO
PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT
THE VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S
VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF
NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN
ENVIRONMENTALLY FRIENDLY
MANNER.
The socket outlet shall be installed near
the equipment and easily accessible.
The mains plug of the power supply cord
shall remain readily operable.
To completely disconnect this apparatus
from the AC Mains, disconnect the power
supply cord plug from AC receptacle.
Warning
Risk of fire, explosion and burns. Do not
disassemble.
Do not heat the batteries above the
following temperatures or incinerate.
Button-type battery 60 oC
Battery pack 60 oC
CAUTION
Danger of explosion if battery is
incorrectly replaced. Replace only with
the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to
the manufacturer’s instructions.
Warning
Keep the Button-Type battery out of the
reach of children. Never put Button-Type
battery in mouth. If swallowed call your
doctor.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 2 ページ ２０１０年２月１２日 金曜日 午後２時９分

3
(ENG) VQT2M91
Use only the recommended accessories.
≥Do not use any other AV multi cables and
USB cables except the supplied one.
≥When you use the cable which are sold
separately, please make sure to use the
one whose length is less than 3 metres.
≥Keep the Memory Card out of reach of
children to prevent swallowing.
∫Concerning the AC adaptor
-If you see this symbol-
∫Cautions for use
Keep the High Definition Video Camera as
far away as possible from electromagnetic
equipment (such as microwave ovens,
TVs, video games etc.).
≥If you use the High Definition Video
Camera on top of or near a TV, the
pictures and sound on the High Definition
Video Camera may be disrupted by
electromagnetic wave radiation.
≥Do not use the High Definition Video
Camera near cell phones because doing
so may result in noise adversely affecting
the pictures and sound.
≥Recorded data may be damaged, or
pictures may be distorted, by strong
magnetic fields created by speakers or
large motors.
≥Electromagnetic wave radiation generated
by microprocessors may adversely affect
the High Definition Video Camera,
disturbing the pictures and sound.
≥If the High Definition Video Camera is
adversely affected by electromagnetic
equipment and stops functioning properly,
turn the High Definition Video Camera off
and remove the battery or disconnect AC
adaptor. Then reinsert the battery or
reconnect AC adaptor and turn the High
Definition Video Camera on.
Product Identification Marking is
located on the bottom of unit.
How to replace the fuse
The location of the fuse differ according
to the type of AC mains plug (figures A
and B).
Confirm the AC mains plug fitted and
follow the instructions below.
Illustrations may differ from actual AC
mains plug.
1) Open the fuse cover with a
screwdriver.
2) Replace the fuse and close or attach
the fuse cover.
Information on Disposal in other
Countries outside the European
Union
This symbol is only valid
in the European Union.
If you wish to discard
this product, please
contact your local
authorities or dealer
and ask for the correct
method of disposal.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 3 ページ ２０１０年２月１２日 金曜日 午後２時９分

4
VQT2M91 (ENG)
Do not use the High Definition Video
Camera near radio transmitters or high-
voltage lines.
≥If you record near radio transmitters or
high-voltage lines, the recorded pictures
and sound may be adversely affected.
About connecting to a PC
≥Do not use any other USB cables except
the supplied one.
∫Indemnity about recorded
content
Panasonic does not accept any
responsibility for damages directly or
indirectly due to any type of problems that
result in loss of recording or edited content,
and does not guarantee any content if
recording or editing does not work properly.
Likewise, the above also applies in a case
where any type of repair is made to the unit
(including any other non-built-in memory/
HDD related component).
∫Cards that you can use with
this unit
SD Memory Card, SDHC Memory Card
and SDXC Memory Card
≥4 GB or more Memory Cards that do not
have the SDHC logo or 48 GB or more
Memory Cards that do not have the SDXC
logo are not based on SD Memory Card
Specifications.
≥Refer to page 18 for more details on SD
cards.
∫For the purposes of these
operating instructions
≥SD Memory Card, SDHC Memory Card
and SDXC Memory Card are referred to
as the “SD card”.
≥Functions that can be used for motion
picture recording/motion picture playback
are indicated by in these
operating instructions.
≥Functions that can be used for still picture
recording/still picture playback are
indicated by in these operating
instructions.
≥Pages for reference are indicated by an
arrow, for example: l00
These operating instructions are designed
for use with models ,
and . Pictures
may be slightly different from the original.
≥The illustrations used in these operating
instructions show model ,
however, parts of the explanation refer to
different models.
≥Depending on the model, some functions
are not available.
≥Features may vary, so please read
carefully.
≥Not all models may be available
depending on the region of purchase.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 4 ページ ２０１０年２月１２日 金曜日 午後２時９分

5
(ENG) VQT2M91
PreparationBasicAdvancedOthers
Information for Your Safety.....................2
Accessories..............................................6
Preparation
Before using
[1] Parts identification and
handling ........................................ 7
[HDC-SD700]/[HDC-TM700].......... 7
[HDC-HS700] ............................... 10
Setup
[1] Power supply.............................. 13
Charging the battery .................... 13
Inserting/removing the battery ..... 14
Charging and recording time........ 15
Connecting to the AC outlet ......... 17
[2] Recording to a card ................... 18
Cards that you can use with
this unit......................................... 18
Inserting/removing an SD card .... 19
[3] Turning the unit on/off ............... 20
Turning the power on and off with
the power button .......................... 20
Turning the power on and off with
the LCD monitor/viewfinder.......... 20
[4] Selecting a mode ....................... 21
[5] Adjusting LCD monitor/
viewfinder ................................... 22
How to use the touch screen ....... 22
Viewfinder adjustment.................. 22
[6] Setting date and time................. 23
Basic
Recording/Playback
[1] Selecting a media to record
[HDC-TM700/HDC-HS700] ......... 24
[2] Recording motion pictures ....... 25
[3] Recording still pictures ............. 26
[4] Intelligent auto mode................. 27
[5] Motion picture/
Still picture playback ................. 28
Setup
[1] Using the menu screen ............. 30
Language selection...................... 30
Advanced
Recording (Advanced)
[1] Zoom in/out function ................. 31
Zoom mode.................................. 31
Ring zoom.................................... 32
Extra optical zoom ....................... 32
[2] Optical image stabilizer
function....................................... 33
Editing
[1] Deleting scenes/
still pictures................................ 34
[2] Formatting .................................. 35
With a TV
[1] Watching Video/
Pictures on your TV................... 36
Others
Specifications ........................................38
About copyright.....................................42
Reading the Operating Instructions
(PDF format) ...........................................43
Contents
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 5 ページ ２０１０年２月１２日 金曜日 午後２時９分

6
VQT2M91 (ENG)

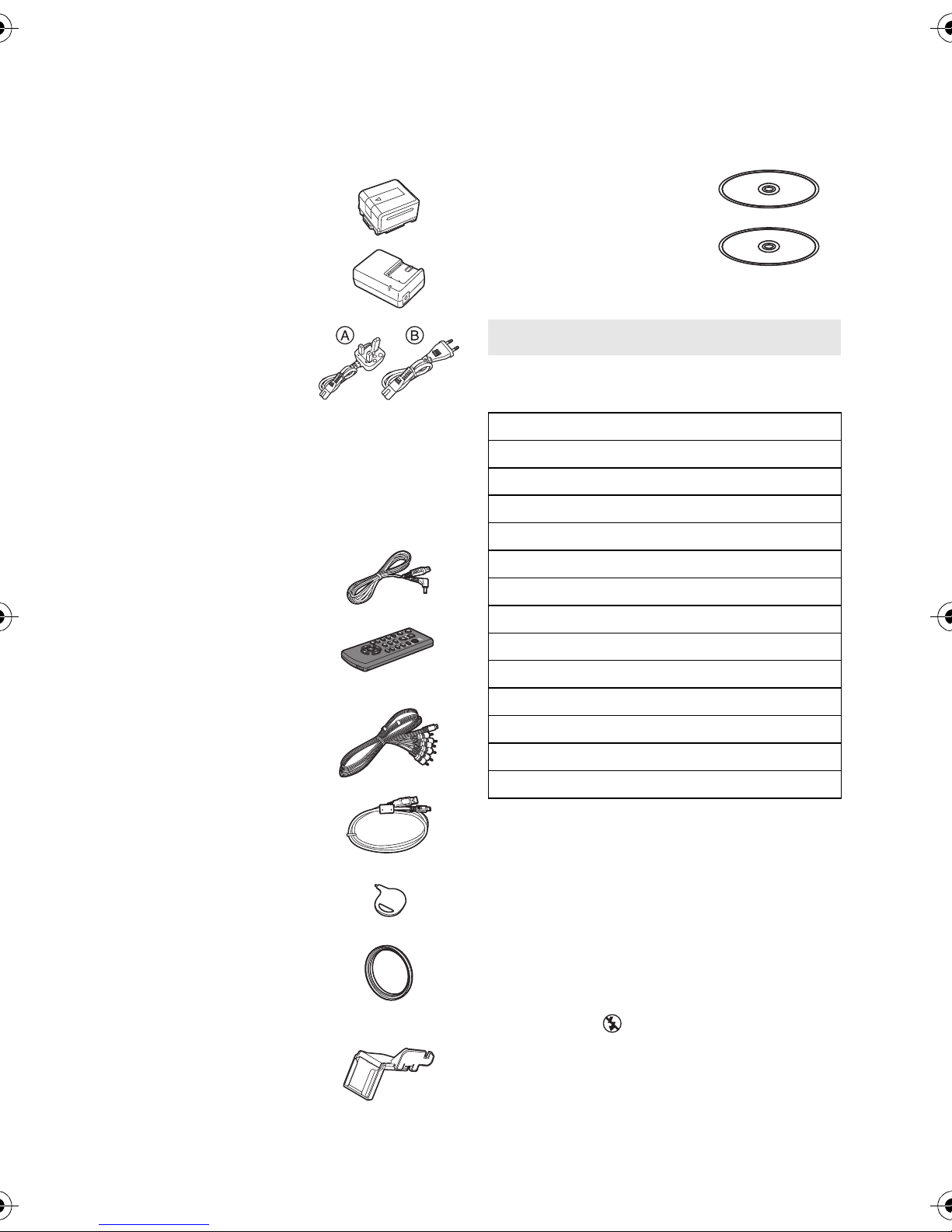

Accessories
Check the accessories before using this unit.
Product numbers correct as of Feb. 2010. These may be subject to change.
Some optional accessories may not be
available in some countries.
Battery pack
VW-VBG130
AC adaptor
VSK0698
AC cable
AK2CT39A00002
BK2CQ29A00002
AHong Kong Special Administrative
Region of China and Saudi Arabia
BAreas Other than Hong Kong Special
Administrative Region of China and
Saudi Arabia
DC cable
K2GJYDC00004
Remote control
(Battery built-in)
N2QAEC000024
AV multi cable
K1HY12YY0004
USB cable
K1HY04YY0032
Stylus pen
VGQ0C14
Lens hood
VDW2053
Shoe adaptor
(supplied for HDC-SD700/
HDC-TM700; not supplied
for HDC-HS700)
VYC0996
CD-ROM
Software
CD-ROM
Operating Instructions
VFF0613
Optional accessories
AC adaptor (VW-AD21E/EB-K)*1
Battery pack (lithium/VW-VBG130)
Battery pack (lithium/VW-VBG260)
Battery pack (lithium/VW-VBG6)*2
Battery pack holder kit (VW-VH04)
HDMI mini cable (RP-CDHM15, RP-CDHM30)
Wide conversion lens (VW-W4607H)
Wide end conversion lens (VW-WE08H)*3
Filter kit (VW-LF46NE)*4
Video DC light (VW-LDC103E)
Light bulb for video DC light (VZ-LL10E)
Stereo microphone (VW-VMS2E)*5
Shoe adaptor (VW-SK12E)
DVD burner (VW-BN2)
*1 The supplied DC cables cannot be used
on this unit.
*2 The battery pack holder kit/VW-VH04
(optional) is necessary.
*3 When using the VW-WE08H, set the zoom
to W (wide) side. The focus will be slightly
out when it is set to T (tele) side, so
remove the VW-WE08H when recording
set to T (tele) side.
*4 When using the VW-LF46NE, remove the
lens hood (supplied) and set to the flash
setting to
(OFF).
*5 External microphone may intrude into the
frame when recording. Set the zoom to
wide angle, and tilt the external
microphone upward so it will not intrude
into the frame. This will not affect the audio
being recorded.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 6 ページ ２０１０年２月１２日 金曜日 午後２時９分

7
(ENG) VQT2M91

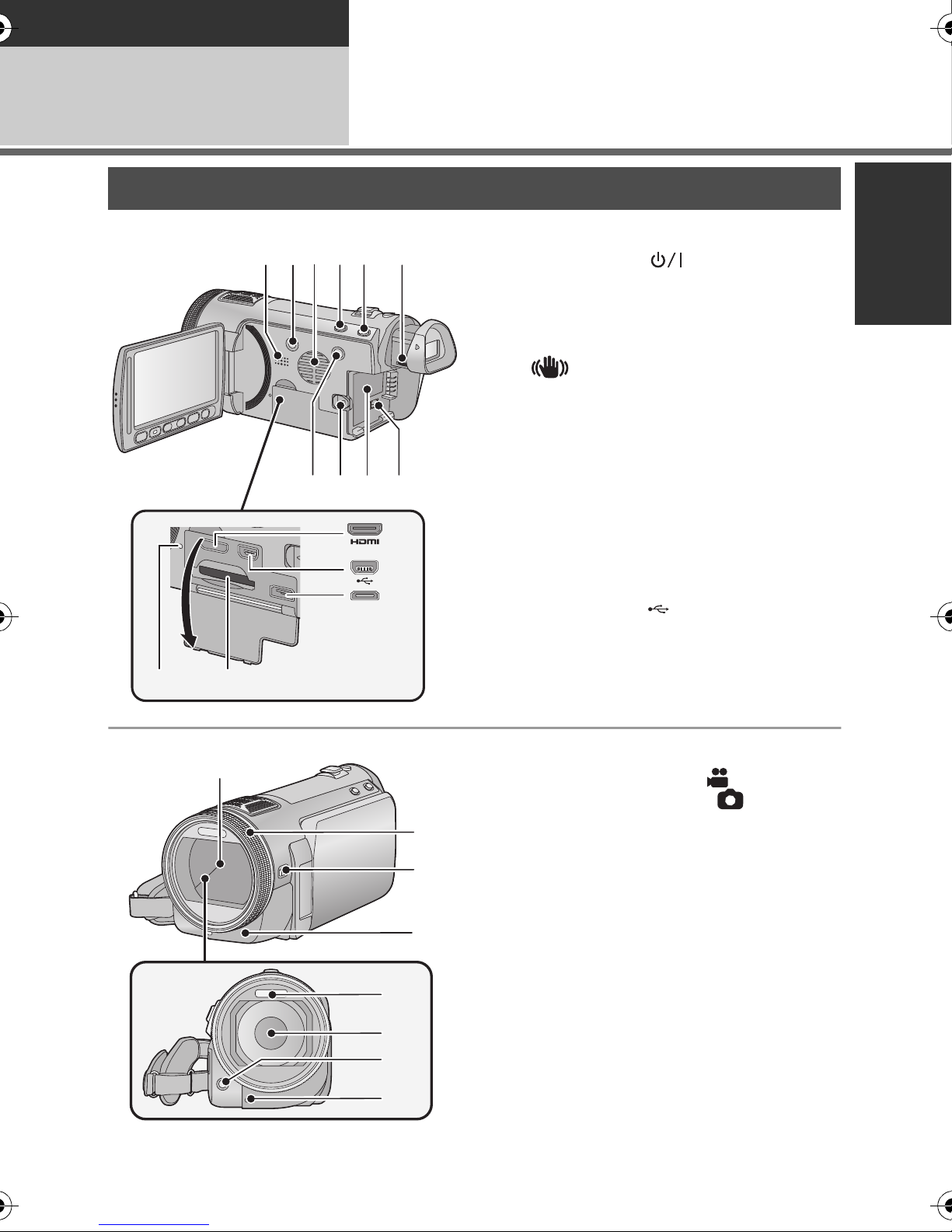

Preparation
Before using 1Parts identification and
handling
1 Speaker
2 Power button [ ] (l20)
3 Inlet (cooling fan)
4 Intelligent auto/Manual button
[iA/MANUAL] (l27)
5 Optical image stabilizer button
[ /O.I.S.] (l33)
6 Eyepiece corrector dial
7 1080/50p button [1080/50p]
8 Battery release lever [BATT] (l14)
9 Battery holder (l14)
10 DC input terminal [DC IN] (l17)
≥Always use the supplied AC adaptor or a
genuine Panasonic AC adaptor
(VW-AD21E/EB-K; optional).
11 HDMI mini connector [HDMI]
(l36)
12 USB terminal [ ]
13 AV multi connector (l36)
≥
Use the AV multi cable (only the supplied cable).
14 Card slot (l19)
15 Access lamp [ACCESS] (l19)
16 Lens cover
≥The lens cover opens in motion
picture recording mode or still picture
recording mode. (l21)
17 Multi manual ring
18 Camera function button
[CAMERA FUNCTION]
19 Remote control sensor
20 Built-in flash
21 Lens (LEICA DICOMAR)
22 AF assist lamp
23 Recording lamp
[HDC-SD700]/[HDC-TM700]
1089
23456
7
11
12
13
1
1415
16
17
18
19
20
21
22
23
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 7 ページ ２０１０年２月１２日 金曜日 午後２時９分

8
VQT2M91 (ENG)

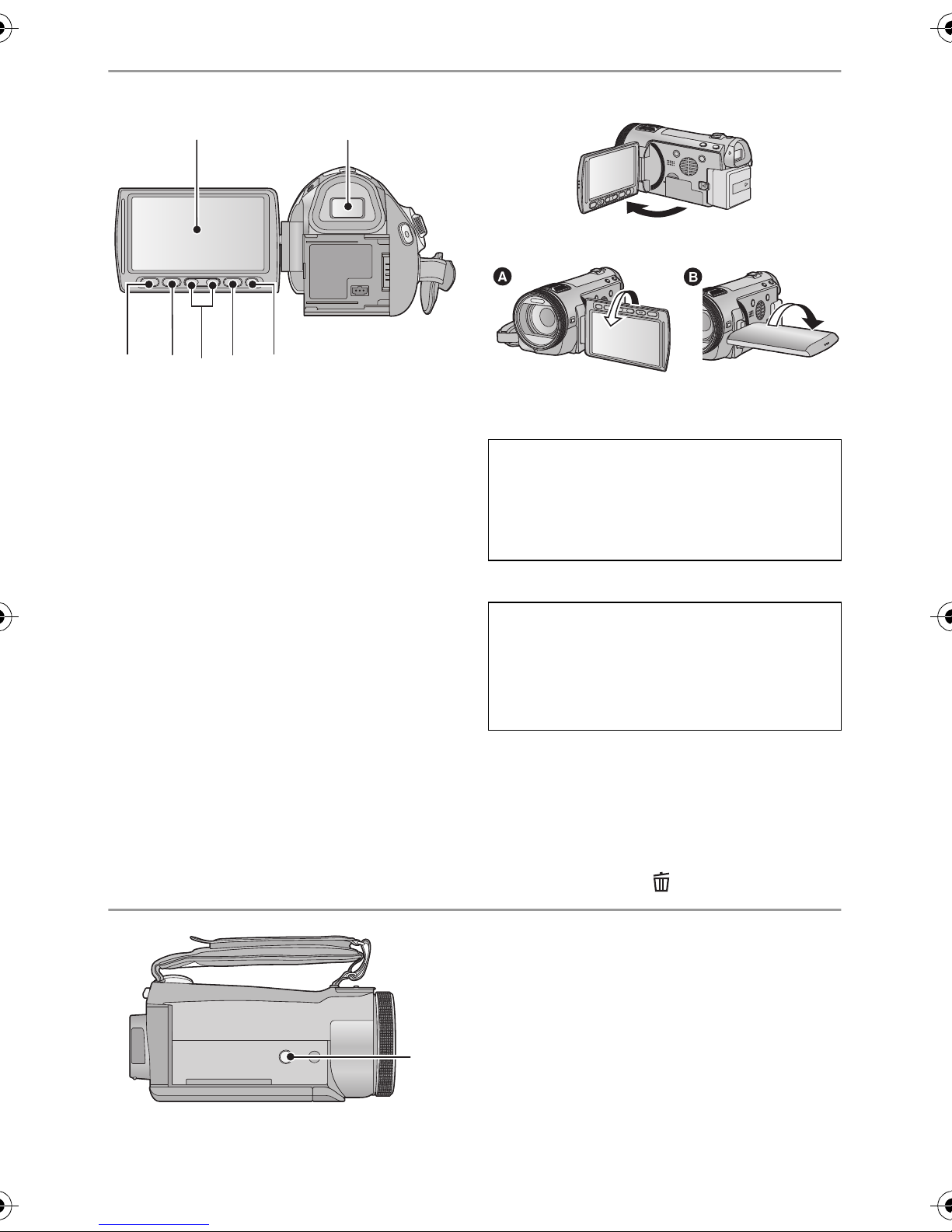

24 LCD monitor (Touch screen) ( l 22)
≥It can open up to 90o.
≥It can rotate up to 180oAtowards the lens
or 90o B towards the viewfinder.
25 Viewfinder
26 Quick menu button [Q.MENU]
27 Sub recording start/stop button
≥This button functions in the same manner
as the recording start/stop button.
28 Adjust zoom buttons (l31)
29 Menu button [MENU] (l30)
30 Delete button [ ] (l34)
31 Tripod receptacle
24 25
27
26 28 29 30
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the LCD monitor screen.
However, this is not a malfunction and
does not affect the recorded picture.
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the viewfinder screen.
However, this is not a malfunction and
does not affect the recorded picture.
31
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 8 ページ ２０１０年２月１２日 金曜日 午後２時９分

9
(ENG) VQT2M91
32 Shoe adaptor mounting part
33 Shoe adaptor cover
34 Shoe adaptor release lever
[SHOE ADAPTOR RELEASE]
35 Photoshot button [ ] (l26)
36 Zoom lever [W/T] (In motion picture
recording mode or still picture
recording mode) (l31)
Thumbnail display switch [ / ]/
Volume lever [sVOLr] (In playback
mode)
37 Status indicator (l20)
38 Internal microphones
39 Recording start/stop button (l25)
40 Mode dial (l21)
41 Shoulder strap fixture
42 Grip belt
Adjust the length of the grip belt so that it fits
your hand.
1Flip the belt.
2Adjust the length.
3Replace the belt.
43 Microphone terminal [MIC]
≥A compatible plug-in powered microphone
can be used as an external microphone.
≥Audio will be stereo (2 ch) with the
external microphone input.
≥When the unit is connected with the AC
adaptor, sometimes noise may be heard
depending on the microphone type. In this
case, please switch to the battery for the
power supply and the noise will stop.
44 Headphone terminal [ ]
≥Excessive sound pressure from
earphones and headphones can cause
hearing loss.
MIC
32
33
34
383635
39 40 41 42
43
44
37
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 9 ページ ２０１０年２月１２日 金曜日 午後２時９分

10
VQT2M91 (ENG)
1 Speaker
2 Power button [ ] (l20)
3 Inlet (cooling fan)
4 Intelligent auto/Manual button
[iA/MANUAL] (l27)
5 Optical image stabilizer button
[ /O.I.S.] (l33)
6 Eyepiece corrector dial
7 1080/50p button [1080/50p]
8 Battery release lever [BATT] (l14)
9 Battery holder (l14)
10 DC input terminal [DC IN] (l17)
≥Always use the supplied AC adaptor or a
genuine Panasonic AC adaptor
(VW-AD21E/EB-K; optional).
11 HDMI mini connector [HDMI]
(l36)
12 USB terminal [ ]
13 AV multi connector (l36)
≥
Use the AV multi cable (only the supplied cable).
14 Card slot (l19)
15 Access lamp [ACCESS] (l19)
16 Lens cover
≥The lens cover opens in motion
picture recording mode or still picture
recording mode. (l21)
17 Accessory shoe
18 Multi manual ring
19 Camera function button
[CAMERA FUNCTION]
20 Remote control sensor
21 Built-in flash
22 Lens (LEICA DICOMAR)
23 AF assist lamp
24 Recording lamp
[HDC-HS700]
1089
23 45 6
7
1
11
12
13
1415
16
18
17
19
20
21
22
23
24
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 10 ページ ２０１０年２月１２日 金曜日 午後２時９分

11
(ENG) VQT2M91
25 LCD monitor (Touch screen) ( l 22)
≥It can open up to 90o.
≥It can rotate up to 180oAtowards the lens
or 90o B towards the viewfinder.
26 Viewfinder
27 Quick menu button [Q.MENU]
28 Sub recording start/stop button
≥This button functions in the same manner
as the recording start/stop button.
29 Adjust zoom buttons (l31)
30 Menu button [MENU] (l30)
31 Delete button [ ] (l34)
32 Tripod receptacle
25 26
2827 29 30 31
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the LCD monitor screen.
However, this is not a malfunction and
does not affect the recorded picture.
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the viewfinder screen.
However, this is not a malfunction and
does not affect the recorded picture.
32
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 11 ページ ２０１０年２月１２日 金曜日 午後２時９分

12
VQT2M91 (ENG)
33 Photoshot button [ ] (l26)
34 Zoom lever [W/T] (In motion picture
recording mode or still picture
recording mode) (l31)
Thumbnail display switch [ / ]/
Volume lever [sVOLr] (In playback
mode)
35 HDD access lamp [ACCESS HDD]
36 Status indicator (l20)
37 Internal microphones
38 Recording start/stop button (l25)
39 Mode dial (l21)
40 Shoulder strap fixture
41 Grip belt
Adjust the length of the grip belt so that it fits
your hand.
1Flip the belt.
2Adjust the length.
3Replace the belt.
42 Microphone terminal [MIC]
≥A compatible plug-in powered microphone
can be used as an external microphone.
≥Audio will be stereo (2 ch) with the
external microphone input.
≥When the unit is connected with the AC
adaptor, sometimes noise may be heard
depending on the microphone type. In this
case, please switch to the battery for the
power supply and the noise will stop.
43 Headphone terminal [ ]
≥Excessive sound pressure from
earphones and headphones can cause
hearing loss.
MIC
373433
38 39 41
42
43
35 36
40
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 12 ページ ２０１０年２月１２日 金曜日 午後２時９分

13
(ENG) VQT2M91
Preparation
Setup 1Power supply
∫About batteries that you can use with this unit
The battery that can be used with this unit is VW-VBG130/VW-VBG260/VW-VBG6.
≥ This unit has a function to distinguish the batteries that can be used, and the
batteries (VW-VBG130/VW-VBG260/VW-VBG6) are compatible with this function.
(The batteries that are not compatible to this function cannot be used.)
≥ To use the VW-VBG6 for this unit, the battery pack holder kit VW-VH04 (optional) is required.
Important:
If the DC cable is connected to the AC adaptor, then the battery will not charge.
Remove the DC cable from the AC adaptor.
1Connect the AC cable to the AC adaptor and the AC outlet.
2Insert the battery into the AC adaptor by aligning the arrows.
It has been found that counterfeit battery packs which look very similar to the
genuine product are made available to purchase in some markets. Some of these
battery packs are not adequately protected with internal protection to meet the
requirements of appropriate safety standards. There is a possibility that these
battery packs may lead to fire or explosion. Please be advised that we are not liable
for any accident or failure occurring as a result of use of a counterfeit battery pack.
To ensure that safe products are used we would recommend that a genuine
Panasonic battery pack is used.

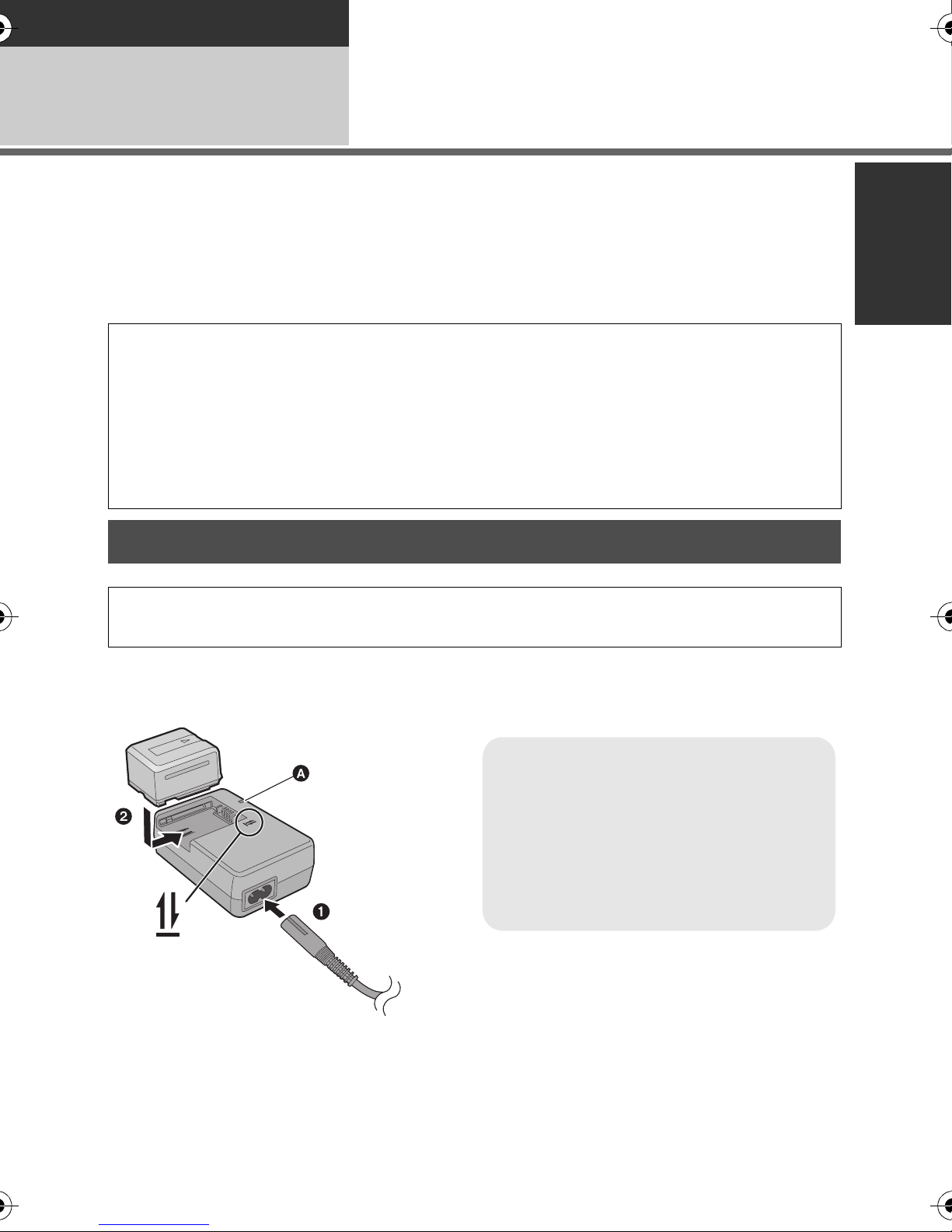

Charging the battery
When this unit is purchased, the battery is not charged. Charge the battery before
using this unit.
Charging lamp [CHARGE] A
Lights up:
Charging (Battery charging time: l15)
Goes off:
Charging completed
Flashing:
Be sure to connect the unit correctly
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 13 ページ ２０１０年２月１２日 金曜日 午後２時９分

14
VQT2M91 (ENG)
≥We recommend using Panasonic batteries. (l6, 15, 16)
≥If you use other batteries, we cannot guarantee the quality of this product.
≥Do not heat or expose to flame.
≥Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period
of time with doors and windows closed.
Install the battery by inserting it in the direction shown in the figure.
Inserting/removing the battery
Removing the battery
Be sure to hold down the power
button until the status indicator
goes off. Then remove the battery
while supporting the unit to prevent
it dropping.
Move the battery release lever in
the direction indicated by the
arrow and remove the battery
when unlocked.
BATT
AInsert the battery until it clicks and
locks.
CAUTION
Danger of explosion if battery is
incorrectly replaced. Replace only with
the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according to
the manufacturer’s instructions.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 14 ページ ２０１０年２月１２日 金曜日 午後２時９分

15
(ENG) VQT2M91
∫Charging/Recording time
≥Temperature: 25 oC/humidity: 60%
Charging and recording time
HDC-SD700
Battery model number
[Voltage/Capacity
(minimum)]
Charging
time
Recording
mode
Maximum
continuously
recordable time
Actual
recordable
time
Supplied battery/
VW-VBG130 (optional)
[7.2 V/1250 mAh]
2h35min
1080/50p,
HA, HG,
HX 1h40min 1h
HE 1 h 5 min
VW-VBG260 (optional)
[7.2 V/2500 mAh] 4h40min
1080/50p 3 h 10 min 1 h 55 min
HA, HG,
HX 3h15min 2h
HE 3 h 20 min
VW-VBG6 (optional)*
[7.2 V/5400 mAh] 9h25min
1080/50p 7 h 50 min 4 h 50 min
HA 8h5min 5h
HG, HX 8h10min
HE 5 h 5 min
HDC-TM700
Battery model number
[Voltage/Capacity
(minimum)]
Charging
time
Recording
mode
Maximum
continuously
recordable time
Actual
recordable
time
Supplied battery/
VW-VBG130 (optional)
[7.2 V/1250 mAh]
2h35min
1080/50p,
HA, HG,
HX 1h40min 1h
HE 1 h 5 min
VW-VBG260 (optional)
[7.2 V/2500 mAh] 4h40min
1080/50p 3 h 10 min 1 h 55 min
HA, HG,
HX 3h15min 2h
HE 3 h 20 min
VW-VBG6 (optional)*
[7.2 V/5400 mAh] 9h25min
1080/50p 7 h 50 min 4 h 50 min
HA 8h5min 5h
HG, HX 8h10min
HE 5 h 5 min
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 15 ページ ２０１０年２月１２日 金曜日 午後２時９分

16
VQT2M91 (ENG)
* The battery pack holder kit VW-VH04 (optional) is necessary.
≥These times are approximations.
≥The indicated charging time is for when the battery has been discharged completely.
Charging time and recordable time vary depending on the usage conditions such as
high/low temperature.
≥The actual recordable time refers to the recordable time when repeatedly starting/stopping
recording, turning the unit on/off, moving the zoom lever etc.
≥The batteries heat up after use or charging. This is not a malfunction.
HDC-HS700
Battery model
number
[Voltage/
Capacity
(minimum)]
Charging
time
Recording
destination
Recording
mode
Maximum
continuously
recordable
time
Actual
recordable
time
Supplied battery/
VW-VBG130
(optional)
[7.2 V/1250 mAh]
2h35min
HDD
1080/50p 1 h 30 min
55 min
HA, HG,
HX, HE 1h35min
SD
1080/50p 1 h 30 min 55 min
HA, HG,
HX, HE 1h35min 1h
VW-VBG260
(optional)
[7.2 V/2500 mAh]
4h40min
HDD
1080/50p 2 h 55 min 1 h 45 min
HA, HG,
HX, HE 3h 1h50min
SD
1080/50p 3 h 1 h 50 min
HA, HG,
HX, HE 3h5min 1h55min
VW-VBG6
(optional)*
[7.2 V/5400 mAh]
9h25min
HDD
1080/50p 7 h 15 min 4 h 30 min
HA, HG,
HX 7h30min
4h40min
HE 7h35min
SD
1080/50p 7 h 25 min 4 h 35 min
HA 7h40min
4h45min
HG, HX
7h45min
HE 4h50min
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 16 ページ ２０１０年２月１２日 金曜日 午後２時９分

17
(ENG) VQT2M91
The unit is in the standby condition when the AC adaptor is connected. The primary circuit is
always “live” as long as the AC adaptor is connected to an electrical outlet.
Important:
While the DC cable is connected to the AC adaptor, the battery will not charge.
≥Do not use the AC cable with any other equipment as it is designed only for this unit.
Also, do not use the AC cable from other equipment with this unit.
1Connect the AC cable to the AC adaptor and the AC outlet.
2Connect the DC cable to the AC adaptor.
3Connect the DC cable to the DC input terminal [DC IN].
≥When removing the AC adaptor, be sure to hold down the power button until the status
indicator goes off. Then remove the AC adaptor.
Battery capacity indication
≥The display changes as the battery capacity reduces.
####
If there is less than 3 minutes remaining, then will become red. If the battery
discharges, then will flash.
≥The remaining battery capacity is displayed when using the Panasonic battery that you
can use for this unit. The actual time can vary depending on your actual use.
≥If the actual remaining time exceeds 9 hours 59 minutes, the indication will stay green
and will not change until the remaining time falls below 9 hours 59 minutes.
≥When using the AC adaptor or batteries made by other companies, the remaining
battery capacity will not be shown.
Connecting to the AC outlet



DC IN

ADC output terminal
B
DC input terminal
Insert the DC cable matching the
[ ] mark of the DC input terminal.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 17 ページ ２０１０年２月１２日 金曜日 午後２時９分

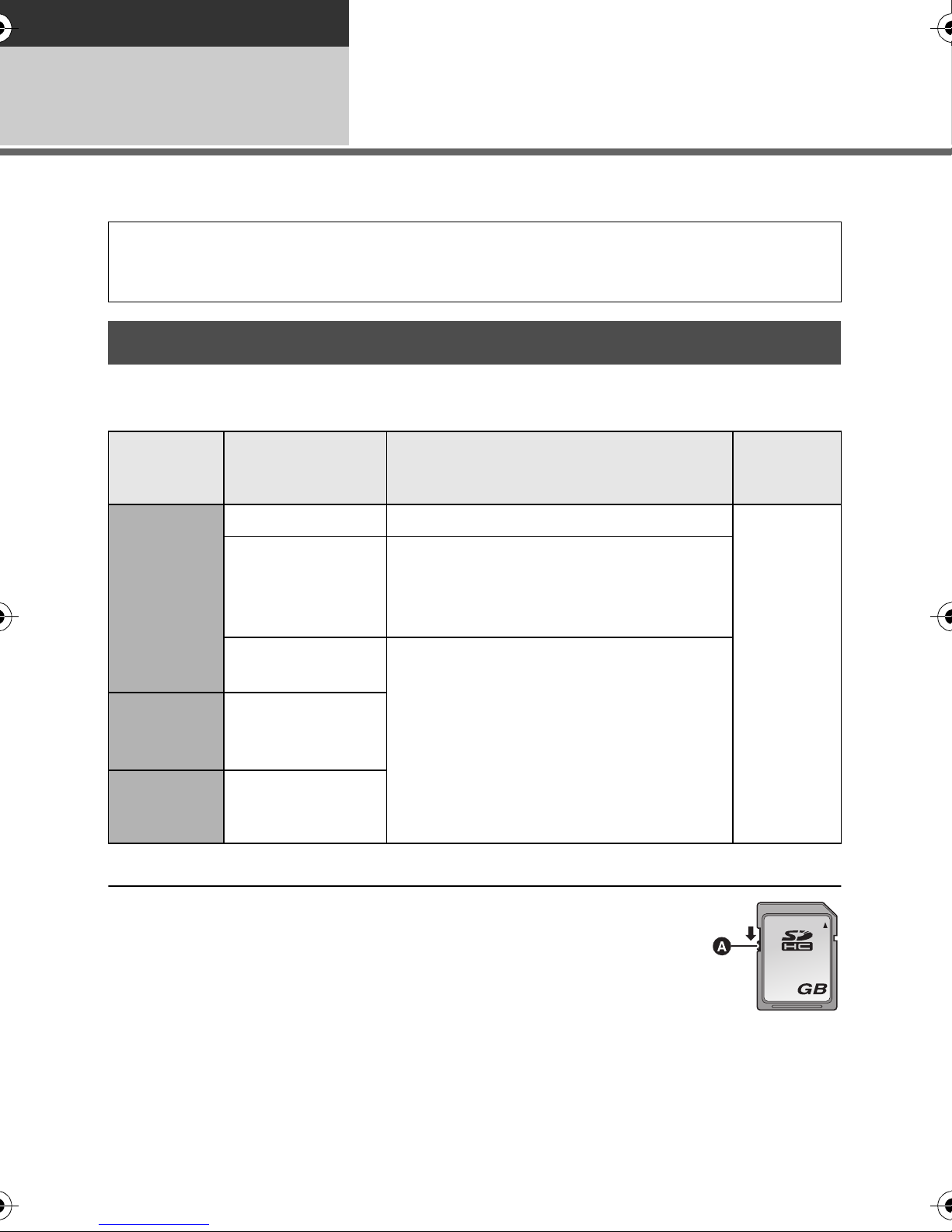

18
VQT2M91 (ENG)
Preparation
Setup 2Recording to a card
The unit can record still pictures or motion pictures to an SD card, built-in memory or HDD.
To record to an SD card, read the following.
Use SD cards conforming to Class 4 or higher of the SD Speed Class Rating* for
motion picture recording.
* The SD Speed Class Rating is the speed standard for successive writes.
≥Please confirm the latest information
about SD Memory Cards/SDHC Memory
Cards/SDXC Memory Cards that can be
used for motion picture recording on the
following website.
http://panasonic.jp/support/global/cs/e_cam
(This website is in English only.)
≥4 GB or more Memory Cards that do not
have the SDHC logo or 48 GB or more
Memory Cards that do not have the SDXC
logo are not based on SD Memory Card
Specifications.
≥When the write-protect
switch A on SD card is
locked, no recording,
deletion or editing will
be possible on the card.
≥Keep the Memory Card
out of reach of children to prevent
swallowing.
This unit (an SDXC compatible device) is compatible with SD Memory Cards, SDHC Memory
Cards and SDXC Memory Cards. When using an SDHC memory card/SDXC memory card with
other equipment, check the equipment is compatible with these memory cards.
Cards that you can use with this unit
Card type Capacity Motion picture recording
Still
recording
SD
Memory
Card
8 MB/16 MB Cannot be used.
Can be
used.
32 MB/64 MB/
128 MB/256 MB
Cannot be guaranteed in operation.
The recording may suddenly stop during
motion picture recording depending on
the SD card you use.
512 MB/1 GB/
2GB
Can be used.
SDHC
Memory
Card
4GB/6GB/8GB/
12 GB/16 GB/
24 GB/32 GB
SDXC
Memory
Card
48 GB/64 GB
32
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 18 ページ ２０１０年２月１２日 金曜日 午後２時９分

19
(ENG) VQT2M91
Caution:
Check that the access lamp has gone off.
1Open the LCD monitor.
2Open the SD card/terminal
cover and insert (remove) the
SD card into (from) the card
slot.
≥Face the label side Bin the direction
shown in the illustration and press it
straight in as far as it will go.
≥Press the centre of the SD card and then
pull it straight out.
3Securely close the SD card/
terminal cover.
≥Securely close it until it clicks.
≥Do not touch the terminals on the back of
the SD card.
≥Do not apply strong shocks, bend, or drop
the SD card.
≥
Electrical noise, static electricity or the failure
of this unit or the SD card may damage or
erase the data stored on the SD card.
≥When the card access lamp is lit, do not:
jRemove the SD card
jTurn the unit off
jInsert and remove the USB cable
jExpose the unit to vibrations or shock
Performing the above while the lamp is on
may result in damage to data/SD card or
this unit.
≥Do not expose the terminals of the SD
card to water, garbage or dust.
≥
Do not place SD cards in the following areas:
jIn direct sunlight.
jIn very dusty or humid areas.
jNear a heater.
jLocations susceptible to significant
difference in temperature (condensation
can occur).
jWhere static electricity or
electromagnetic waves occur.
≥To protect SD cards, return them to their
cases when you are not using them.
≥Refer to the Operation Instructions
(PDF format) about disposing of or giving
away the SD card.
Inserting/removing an SD card
When using an SD card not from Panasonic, or one previously used on other equipment,
for the first time on this unit, format the SD card. When the SD card is formatted, all of the
recorded data is deleted. Once the data is deleted, it cannot be restored.


Access lamp [ACCESS] A
≥ When this unit is accessing the SD card or
built-in memory, the access lamp lights up.
HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 19 ページ ２０１０年２月１２日 金曜日 午後２時９分

20
VQT2M91 (ENG)
Preparation
Setup 3Turning the unit on/off
You can turn the power on and off using the power button, the LCD monitor or the viewfinder.
Press the power button to turn on the power
AThe status indicator lights.
Opening the LCD monitor or extending the viewfinder turns on the power. Closing the LCD
monitor/viewfinder turns off the power.
During general use, you may find it convenient to turn the power on/off using the LCD
monitor or viewfinder.
∫To turn on the power
AThe status indicator lights.
∫To turn off the power
BThe status indicator goes off.
≥The power will not turn off unless the LCD monitor is closed and the viewfinder is retracted.
≥The power will not turn off while recording motion pictures even if the LCD monitor is
closed and the viewfinder is retracted.
≥In the following cases, opening the LCD monitor or extending the viewfinder does not turn
on the power. Press the power button to turn on the power.
jWhen the unit is purchased
jWhen you have turned off the power using the power button
Turning the power on and off with the power button
Turning the power on and off with the LCD monitor/viewfinder
To turn off the power
Hold down the power button
until the status indicator
goes off.

HDC-SD700&TM700&HS700GC-VQT2M91_mst.book 20 ページ ２０１０年２月１２日 金曜日 午後２時９分
