Panasonic HDC-SD800P User manual

Pa.aso.ic _
Owner's Manual
High Definition Video Camera
_o_e,.o.HDC-SD800P
Before connecting, operating or adjusting this product, please read the instructions completely.
AVCHD _ I"17OOLBY LEICA _,M
o,_,T_I olcoMAR_--
STEREOCREATOR
H_ml V TM
VQT3K35

Advanced IPla,,F, ac L'_
Motion picture playback using operation icon
For details on the basic playback operations, refer to page 36.
Touch I_1_ during playback to fast
forward.
(Touch "<4 to rewind.)
During Playback • The fast forward/rewind speed
Fast forward/
rewind playback _ increases if you touch 1_1_/,_1 again.
(The display on the screen changes
_1_ from I_1_ to _.)
[] • Normal playback is restored when you
1_1| touch I_/!!.
Skip playback
(to the start of a
scene)
Slow-motion
playback
During Pause
4!I
[]
Slide the LCD screen display right to left
(left to right) while touching it during
playback.
With the playback paused, continue
touching ||_-.
(41|| is for slow rewind playback)
Playback is slow while touching.
• Normal playback is restored when you
touch I_/!|.
• When slow-motion pictures are played
back in reverse, they will be shown
continuously at approximately 2/3 rd the
speed of normal playback (intervals of
0.5 seconds).
• Slow-motion playback for iFrame
scenes will be in 1 second intervals.
Frame-by-frame
playback
The motion
picture is
advanced one
frame at a time.
With the playback paused, touch II)'.
(Touch(11to advance the frames one
at a time in the reverse direction.)
• Normal playback is restored when you
touch _/ll.
• When the frames are advanced one at a
time in the reverse direction, they will be
shown in intervals of 0.5 seconds.
• Frame-by-frame playback for iFrame
scenes will be in 1 second intervals.
82
VQT3K35

Direct playback During Playback
Touch the Direct playback bar or slide
it while touching.
• The playback pauses temporarily and
skips to the position touched or slid to
while touching.
• Playback will start by releasing your
touching or sliding finger.
• Direct playback bar cannot be operated
with the remote control.
Creating still picture from motion picture
A single frame from the recorded motion picture can be saved as a still picture.
Picture size of the still picture to be recorded is _ (1920x 1080).
1 Pause at the scene you want to save asastill picture during
playback.
• It is convenient to use slow-motion playback and frame-by-frame playback.
2Press the O button fully.
• Date the motion picture was recorded wifl be registered as date of the still picture.
• Quality will be different from the normal still picture.
83
VQT3K35

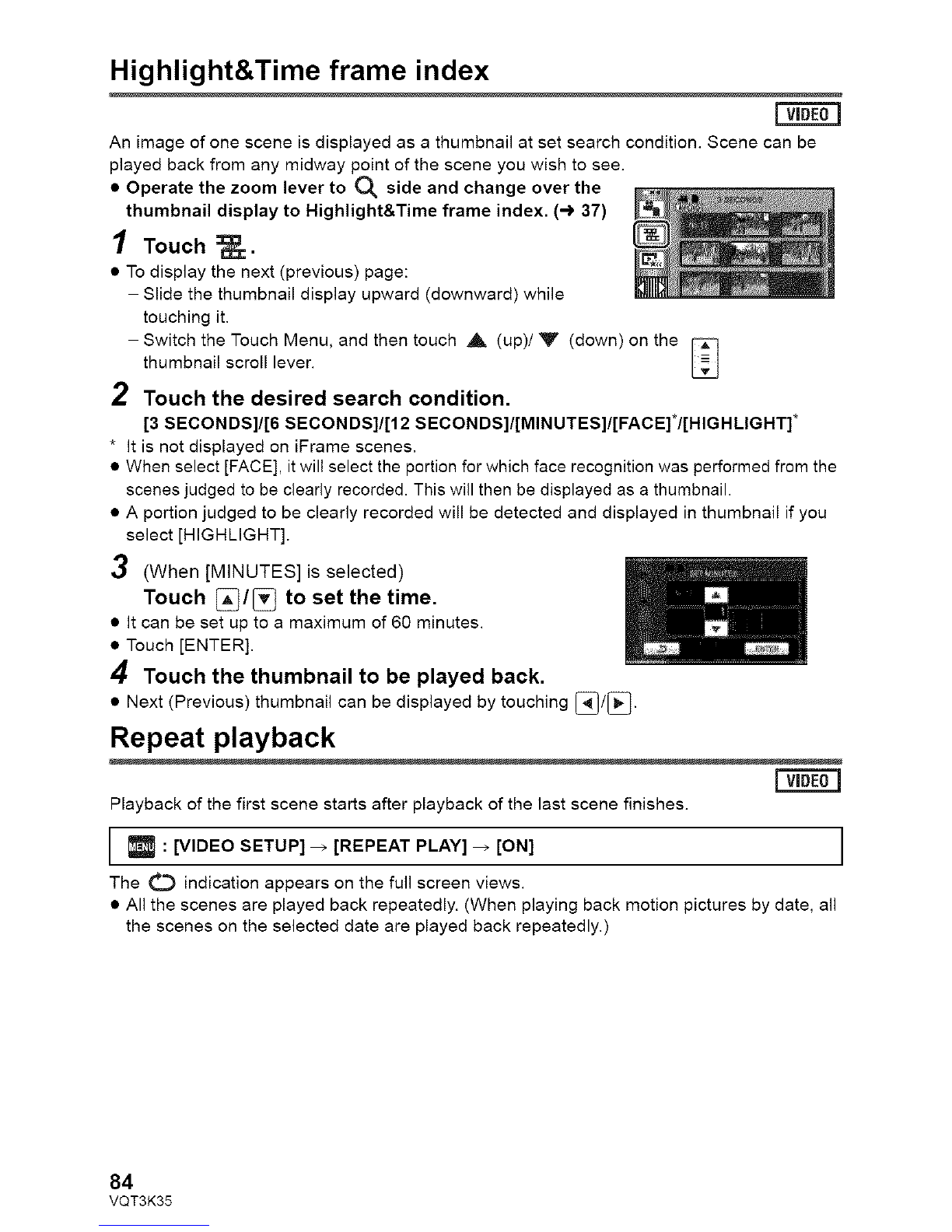

Highlight&Time frame index
An image of one scene is displayed as a thumbnail at set search condition. Scene can be
played back from any midway point of the scene you wish to see.
• Operate the zoom lever to O_ side and change over the
thumbnail display to Highlight&Time frame index. (-) 37)
1Touch
• To display the next (previous) page:
Slide the thumbnail display upward (downward) while
touching it.
Switch the Touch Menu, and then touch A (up)/V (down) on the
thumbnail scroll lever.
2Touch the desired search condition.
[3 SECONDS]I[6 SECONDS]/[12 SECONDS]I[MINUTES]I[FACE]*I[HIGHLIGHT]*
*it is not displayed an iFrame scenes.
• When select [FACE], it will select the portion for which face recognition was performed from the
scenes judged to be clearly recorded. This will then be displayed as a thumbnail.
• A portion judged to be clearly recorded will be detected and displayed in thumbnail if you
select [HIGHLIGHT].
3(When [MINUTES] is selected)
Touch _/_ to set the time.
• it can be set up to a maximum of 60 minutes.
• Touch [ENTER].
4Touch the thumbnail to be played back.
• Next (Previous) thumbnail can be displayed by touching _/[_.
Repeat playback
Playback of the first scene starts after playback of the last scene finishes.
: [VIDEO SETUP] _[REPEAT PLAY] _[ON] I
The O indication appears on the full screen views.
• All the scenes are played back repeatedly. (When playing back motion pictures by date, all
the scenes on the selected date are played back repeatedly.)
84
VQT3K35

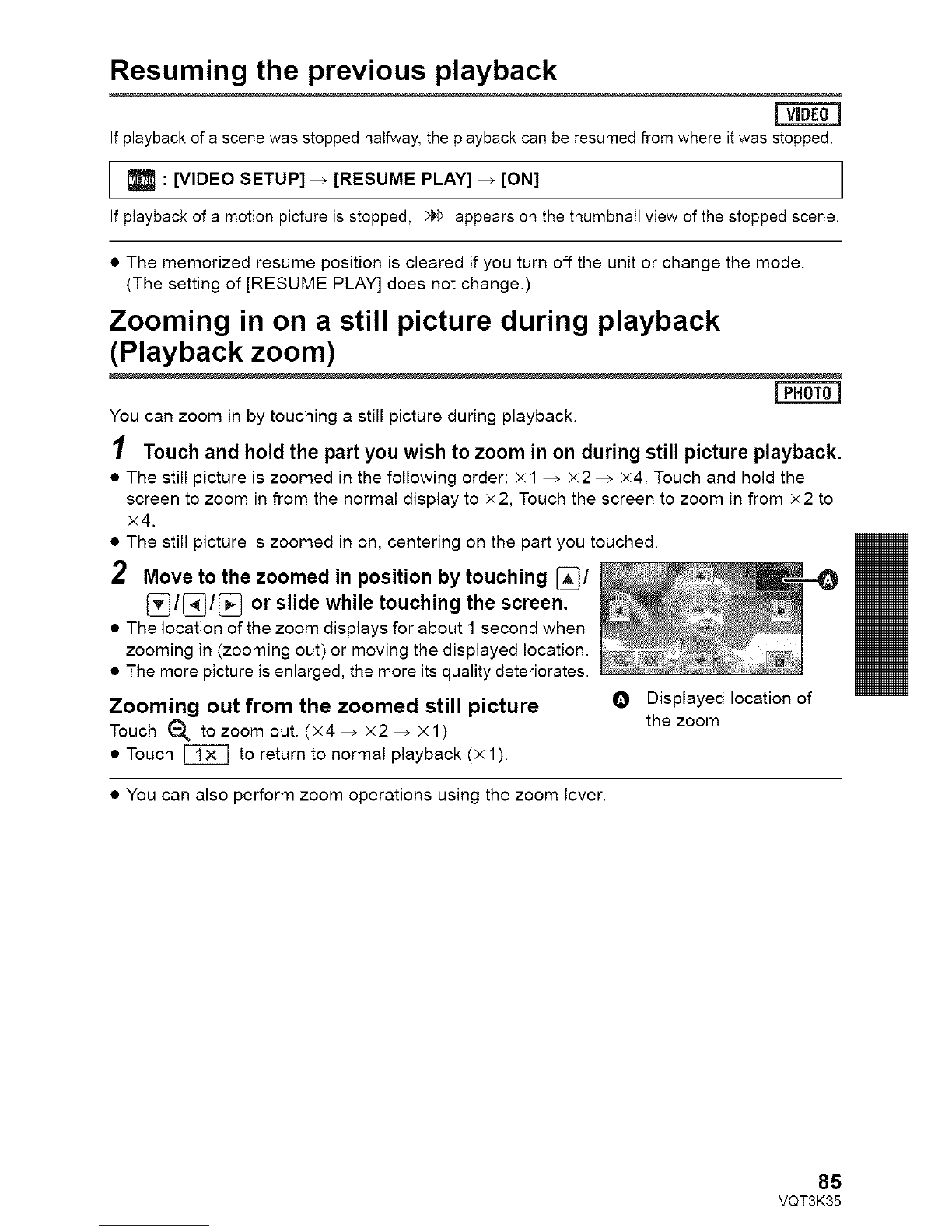

Resuming the previous playback
If playback of a scene was stopped halfway, the playback can be resumed from where it was stopped.
{_ : [VIDEO SETUP] _[RESUME PLAY] _[ON] I
If playback of a motion picture is stopped, _ appears on the thumbnail view of the stopped scene.
•The memorized resume position is cleared if you turn off the unit or change the mode.
(The setting of [RESUME PLAY] does not change.)
Zooming in on a still picture during playback
(Playback zoom)
You can zoom in by touching a still picture during playback.
1Touch and hold the part you wish to zoom in on during still picture playback.
• The still picture is zoomed in the following order: × 1 _ ×2 _ ×4. Touch and hold the
screen to zoom in from the normal display to ×2, Touch the screen to zoom in from ×2 to
×4.
• The still picture is zoomed in on, centering on the part you touched.
2Move to the zoomed in position by touching _/
(_1[_1[_ or slide while touching the screen.
• The location of the zoom displays for about 1 second when
zooming in (zooming out) or moving the displayed location.
• The more picture is enlarged, the more its quality deteriorates.
Zooming out from the zoomed still picture @ Displayedlocation of
the zoom
Touch _ tozoom out. (×4_ ×2_ ×1)
• Touch _ to return to normal playback (× 1).
• You can also perform zoom operations using the zoom lever.
85
VQT3K35

Playing back motion pictures/still pictures by date
The scenes or the still pictures recorded on the same day can be played back in succession.
1Touch the date select icon. (-) 26)
2Touch the playback date.
The scenes or the still pictures recorded on the date
selected are displayed as thumbnails.
3Touch the scene or the still picture to be ODate select icon
played back.
• Playing back of all the scenes or the still pictures returns if the unit is turned off or the mode
is changed.
• Even if AVCHD scenes are recorded on the same day, they are grouped separately in the
following cases. -1, -2... is added after the recording date displayed on the screen.
When the number of scenes exceeds 99
When the Interval recording is used
• Even if AVCHD scenes or 1080/60p scenes are recorded on the same day, they are
grouped separately when switching between AVCHD and 1080/60p recordings. -1, -2... is
added after the recording date displayed on the screen.
• Even if iFrame scenes are recorded on the same day, they are grouped separately in the
following cases.
When the number of scenes exceeds 99
When [NUMBER RESET] is performed
• Even if still pictures are recorded on the same day, they are grouped separately in the
following cases.
When the number of still pictures exceeds 999
When pictures are recorded in Hi-Speed Burst Shooting mode ( _ is indicated after the
date in the list by date)
When [NUMBER RESET] is performed
• _ is displayed after the date in the list by date for the still pictures created from the motion
picture. (-_ 83)
86
VQT3K35

Highlight Playback
Part that was recognized as clearly recorded is extracted from a long recording, and it can be
played back in a short time with effects and music added.
•Highlight playback cannot be used for iFrame scenes.
1Touch _. (-) 26)
2(Only when you would like to change the settings)
Touch [SET] to select the item to change.
[PRIORITY SETUP]: Select the target to give priority to p!ay back. (-> 88)
[PLAYBACK TIME]: select the time t0 P!aY back
[MUSIC SELECT]: Select the music to be played on playback. (-'> 88)
3Touch [START].
• When the [SCENE SETUP] is not changed in step 2, it will playback with the last recorded
date.
4Select the playback operation. (-_ 36, 82)
• When the playback is finished or stopped, the screen to select [REPLAY],
[SELECTAGAIN] or [EXIT] is displayed. Touch the desired item.
• Playing back of all the scenes returns if the unit is turned off or the mode is changed.
• Slow-motion playback, frame-by-frame playback, and direct playback bar operation are not possible.
• Highlight playback cannot be performed with interval-recorded motion pictures. (-,) 62)
• Scene setting
1 Touch [SELECT SCENES] or [SELECT DATE].
2(When [SELECT SCENES] is selected)
Touch the scenes to be played back.
• Up to 99 scenes can be selected in succession.
• When touched, the scene is selected and *,/ is displayed.
Touch the scene again to cancel the operation.
(When [SELECT DATE] is selected)
Touch the date to be played back.
• A maximum of 7 days can be selected.
• When touched, the date is selected and surrounded by red.
Touch the date again to cancel the operation.
3 Touch [Enter]/[ENTER].
87
VQT3K35

• Priority setting
1 Touch [FACE] or [FACE RECOG.].
•If you touch [FACE], any detected face, including the face of person registered for Face
Recognition, is given priority on playback.
2 (When [FACE RECOG.] is selected)
Touch a face to specify.
• You can specify up to 6 faces, which are to be played back in priority.
• When touched, the registered face is selected and surrounded
by red. Touch the registered face again to cancel the
operation.
• Touch [ENTER]. When a single face is specified, the name registered for that face is
displayed. When multiple faces are specified, the number of faces is displayed.
•Playback time setting
Touch the playback time.
• The playback time of [AUTO] is a maximum of approx. 5 minutes.
• Playback time may become shorter than the setting, or it may
not even play back if the part recognized as clearly recorded is _j_,_
short.
•Effect setting
Effects such as fade, slow-motion, still (pause), or digest playback are inserted.
1 Touch the desired effect.
[POP]: Recommended for enjoyable
situations such as party scene.
[CLASSICAL]: Recommended for slow moving
scene.
[NATURAL]: Recommended for scenery.
[DYNAMIC]: Recommended for fast moving scene such as sports scene.
[NONE]: Effect is off.
•When the effect setting is changed, music setting will be set the same as the effect setting.
(To set the effect setting and music setting to different settings, change the music setting
after setting the effect setting.)
2 Touch [ENTER].
•Music setting
1 Touch your favorite music.
• When [EFFECT SETUP] is set to [NONE], you will be able to
select [NO MUSIC]. When [NO MUSIC] is selected, the audio
recorded at the time of shooting is played back.
• To adjust the volume of music during playback or audio
testing, operate the volume lever. (-) 37)
2 Touch [ENTER].
To test the music audio
Touch [START].
• Touch the other music option to change the music to be tested.
• When you touch [STOP], the music playback stops.
88
VQT3K35

Changing the playback settings and playing back the
slide show
1Touch _.(-3'26)
2(Only when you would like to change the settings)
Touch [SET] to select the item to change.
[DATE SETUP]: Select the date to be played back.
[EFFECT SETUP]: Select the effect for playback. (-) 88)
[SLIDE INTERVAL]: Selects the intervalbetween still pictures at playback.
[MUSIC SELECT]: Select the music to be played on playback.
3(When [DATE SETUP] is selected)
Touch the playback date.
(When [EFFECT SETUP] is selected)
Touch the desired effect.
• When the effect setting is changed, music setting will be set
the same as the effect setting. (To set the effect setting and
music setting to different settings, change the music setting
after setting the effect setting.)
• When [EFFECT SETUP] is set, [SLIDE INTERVAL] cannot be set.
(When [SLIDE INTERVAL] is selected)
Touch the interval of playback for the slide show.
[SHORT]: Approx, 1 second
[NORMAL]: Approx, 5 seconds
[LONG]: Approx. 15 seconds
89
VQT3K35

(When [MUSIC SELECT] is selected)
Touch the desired sound.
•To adjust the volume of music during playback of the slide
show or audio testing, operate the volume lever. (._ 37)
• Touch [ENTER].
(To test the music audio)
Touch [START] and start the audio testing.
• Touch the other music option to change the music to be tested.
• When you touch [STOP], the music playback stops.
4Touch [START].
5Select the playback operation. (-_ 36)
• When the playback is finished or stopped, the screen to select [REPLAY],
[SELECTAGAIN] or [EXIT] is displayed. Touch the desired item.
90
VQT3K35

mm

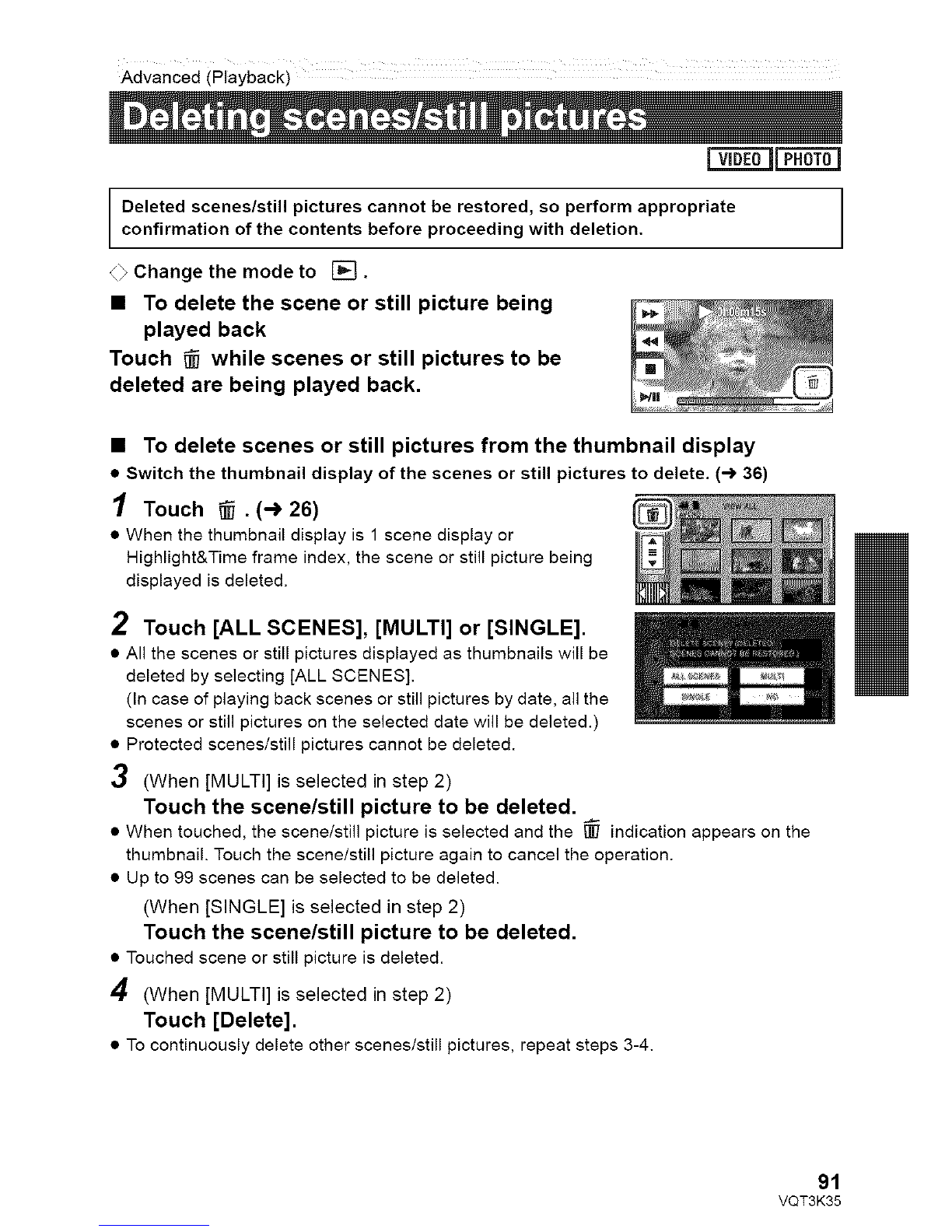

Deleted scenes/still pictures cannot be restored, so perform appropriate
confirmation of the contents before proceeding with deletion.
4_Change the mode to [].
•To delete the scene or still picture being
played back
Touch _while scenes or still pictures to be
deleted are being played back.
•To delete scenes or still pictures from the thumbnail display
• Switch the thumbnail display of the scenes or still pictures to delete. (-_ 36)
1Touch _.(-3'26)
• When the thumbnail display is 1 scene display or
Highlight&Time frame index, the scene or still picture being
displayed is deleted.
2Touch [ALL SCENES], [MULTI] or [SINGLE].
• All the scenes or still pictures displayed as thumbnails will be
deleted by selecting [ALL SCENES].
(In case of playing back scenes or still pictures by date, all the
scenes or still pictures on the selected date will be deleted.)
• Protected scenes/still pictures cannot be deleted.
3(When [MULTI] is selected in step 2)
Touch the scene/still picture to be deleted.
• When touched, the scene/still picture is selected and the _ indication appears on the
thumbnail. Touch the scene/still picture again to cancel the operation.
• Up to 99 scenes can be selected to be deleted.
(When [SINGLE] is selected in step 2)
Touch the scene/still picture to be deleted.
• Touched scene or still picture is deleted.
4(When [MULTI] is selected in step 2)
Touch [Delete].
• To continuously delete other scenes/still pictures, repeat steps 3-4.
91
VQT3K35

When you stop deleting halfway
Touch [CANCEL] while deleting.
•The scenes or still pictures that have already been deleted when the deletion is canceled
cannot be restored.
To complete editing
Touch [Return].
• You can also delete scenes by touching [MENU], selecting [EDIT SCENE] _ [DELETE]
[ALL SCENES], [MULTI] or [SINGLE].
• You can also delete still pictures by touching [MENU], selecting [PICT. SETUP]
[DELETE] _ [ALL SCENES], [MULTI] or [SINGLE].
• During Highlight Playback or Disc Playback when connected to a DVD burner (optional),
scenes/still pictures cannot be deleted.
• Scenes that cannot be played back (the thumbnails are displayed as [-_-]) cannot be
deleted.
• In case of [ALL SCENES], the deletion may take time if there are many scenes or still
pictures.
• If you delete scenes recorded on other products or still pictures conforming to DCF
standard with this unit, all the data related to the scenes/still pictures may be deleted.
• When still pictures recorded on an SD card by other products are deleted, a still picture
(other than JPEG) that cannot be played back on this unit, may be erased.
Dividing a scene (AVCHD, 1080/60p)
It is possible to divide an AVCHD or 1080/60p scene.
Any unwanted parts in the scene can be deleted after dividing.
• Change the mode to [] and touch the play mode select icon. Then set [VIDEO/
PICTURE] to [1080/60p] or [AVCHD]. (-) 36)
1Select the menu.
: [EDIT SCENE] _[DIVIDE] _[SET]
2Touch the scene to be divided.
3Touch _to set the dividing point.
• Using Slow-Motion Playback or Frame-by-Frame Playback
makes it easy to search for the point where you want to
divide the scene. (-) 82)
• Touch [YES] to continue dividing the same scene. To
continue dividing other scenes, touch [NO] and repeat steps
2-3.
4Touch [Return] to complete dividing.
• Unwanted parts can be deleted. (-) 91 )
I
92
VQT3K35

To delete all the divided points
: [EDIT SCENE] _[DIVIDE] _[CANCEL ALL]
•The scenes that were deleted after division cannot be recovered. I
• You cannot divide a scene if you are playing back a disc with a DVD burner (optional)
connected, or if the number of scenes of a given date would exceed 99 scenes.
• It may not be possible to divide scenes with a short recording time.
• Data that has been recorded or edited on another device cannot be divided and the divided
points cannot be deleted.
• If personal information in the divided scenes is deleted, the personal information is deleted
when the divided scenes are canceled.
Dividing a scene to partially delete (iFrame)
Divide the iFrame scene, and delete unnecessary parts.
This divides the recorded scenes in two and deletes the front half or back half.
The scenes that were deleted after division cannot be recovered.
•Change the mode to [] and touch the play mode select icon. Then set [VIDEO/
PICTURE] to [iFrame]. (-_ 36)
1Select the menu.
: [EDIT SCENE] _ [SPLIT&DELETE]
2Touch the scene to be divided.
3Touch _,_ to set the dividing point.
• Using Slow-Motion Playback or Frame-by-Frame Playback
makes it easy to search for the point where you want to
divide the scene. (-) 82)
• Set to at least 2 seconds for the portions to be deleted and
least 3 seconds for the portion that is to remain.
4Touch the part for deletion.
5Touch [YES] and confirm (play back) the part for deletion.
• When [NO] is touched, a confirmation message appears. Proceed to step 7.
6Stop the playback.
• A confirmation message appears.
7Touch [YES].
• To continue dividing and deleting other scenes, repeat steps 2-7.
To complete editing
Touch [Return].
I
• It may not be possible to divide scenes with a short recording time.
• The actual division may slightly slip off the previously designated dividing point.
93
VQT3K35

Deleting personal information
Deletes face recognition information from scenes in which faces were recognized.
•Change the mode to [] and touch the play mode select icon. Then set [VIDEO/
PICTURE] to [1080/60p] or [AVCHD]. (-) 36)
• Personal information is not recorded in the iFrame scenes.
1Select the menu.
I
:[VIDEO SETUP] _ [DELETE PERSONAL INFO] I
2Touch the desired scenes with personal information to be deleted.
• _- appears at scenes for which faces were recognized. Touch one of the scenes where
_ appears.
• _ will change to _ (red) when touched. Touch the _ (red) again to cancel the operation.
• Up to 99 scenes can be selected in succession.
3Touch [Delete].
• To continuously delete other personal information, repeat steps 2-3.
• Touch [Return] to complete the settings.
When you stop deleting halfway
Touch [CANCEL] while deleting personal information.
• The personal information that has already been deleted when the deletion is canceled
cannot be restored.
• During Disc Playback when connected to a DVD burner (optional), scenes/still pictures
cannot be deleted.
94
VQT3K35

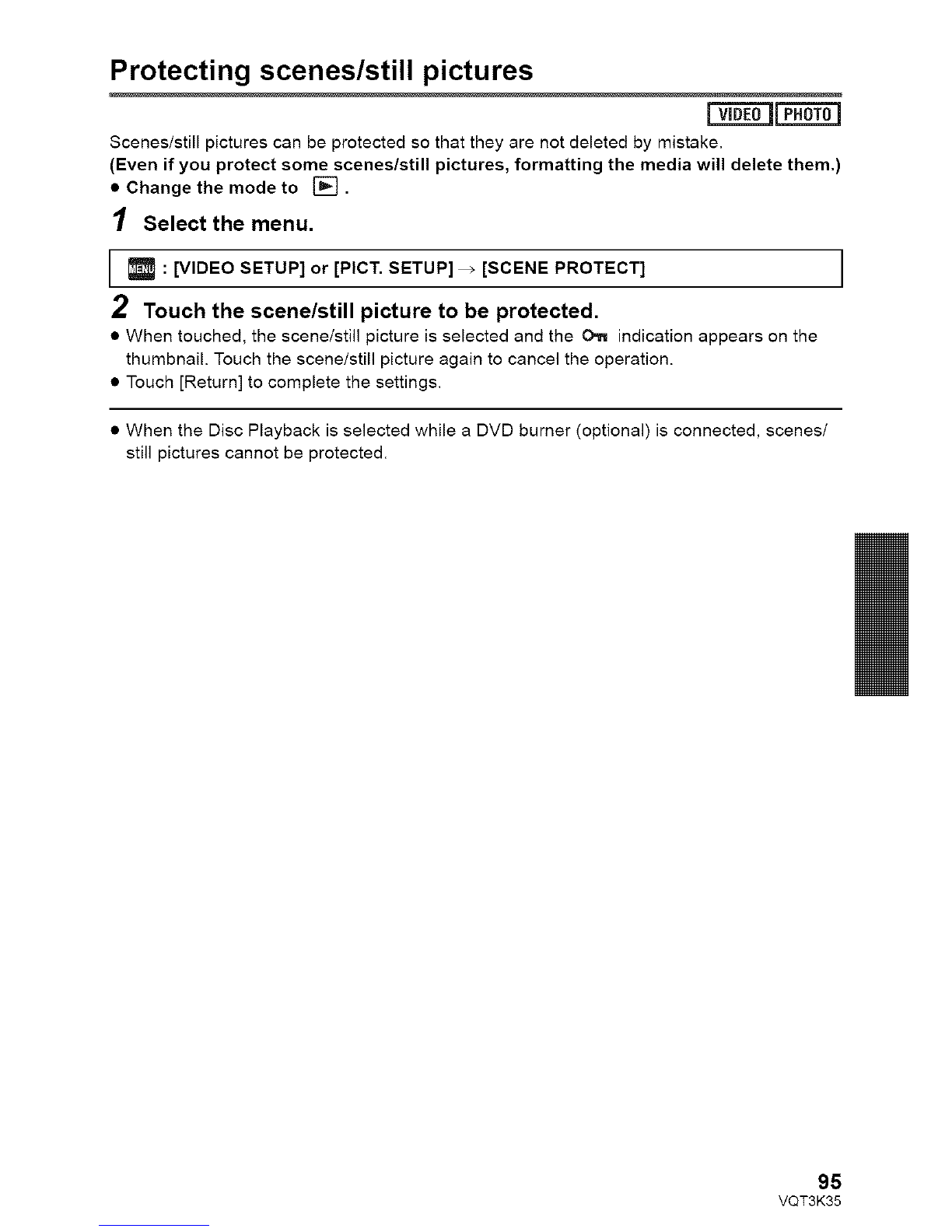

Protecting scenes/still pictures
Scenes/still pictures can be protected so that they are not deleted by mistake.
(Even if you protect some scenes/still pictures, formatting the media will delete them.
•Change the mode to [].
1Select the menu.
: [VIDEO SETUP] or [PICT. SETUP] _[SCENE PROTECT]
2Touch the scene/still picture to be protected.
• When touched, the scene/still picture is selected and the O_ indication appears on the
thumbnail. Touch the scene/still picture again to cancel the operation.
• Touch [Return] to complete the settings.
• When the Disc Playback is selected while a DVD burner (optional) is connected, scenes/
still pictures cannot be protected.
95
VQT3K35

r-K q
You can write the data selecting still pictures to be printed and the number of prints (DPOF
data) onto the SD card.
_} Change the mode to [] and touch the play mode select icon. Then set
[VIDEO/PICTURE] to [PICTURE]. (-> 36)
• What is DPOF?
DPOF (Digital Print Order Format) is a format which allows the user of a digital camera to
define which captured images on the SD card are to be printed, together with information on
the number of copies they wish to print. (Please note: Not all commercial printing services
support this feature at this time.)
1Select the menu.
: [PICT. SETUP] _[DPOF SET] _[SET]
2Touch the still picture to be set.
3Touch _/_ to set the number of
prints,
• Up to 999 prints can be selected. (Prints for set
number can be printed with a printer that supports
DPOF.)
• To cancel the setting, set the number of prints to [0].
4Touch [ENTER].
• To continuously set other still pictures, repeat steps 2-4.
• Touch [Return] to complete the settings.
To cancel all DPOF settings
: [PICT. SETUP] _ [DPOF SET] _ [CANCEL ALL]
I
I
• When the disc playback is selected while a DVD burner (optional) is connected, scenes/
still pictures cannot be set DPOF.
• You cannot add the recording date to pictures to be printed with the DPOF settings.
96
VQT3K35

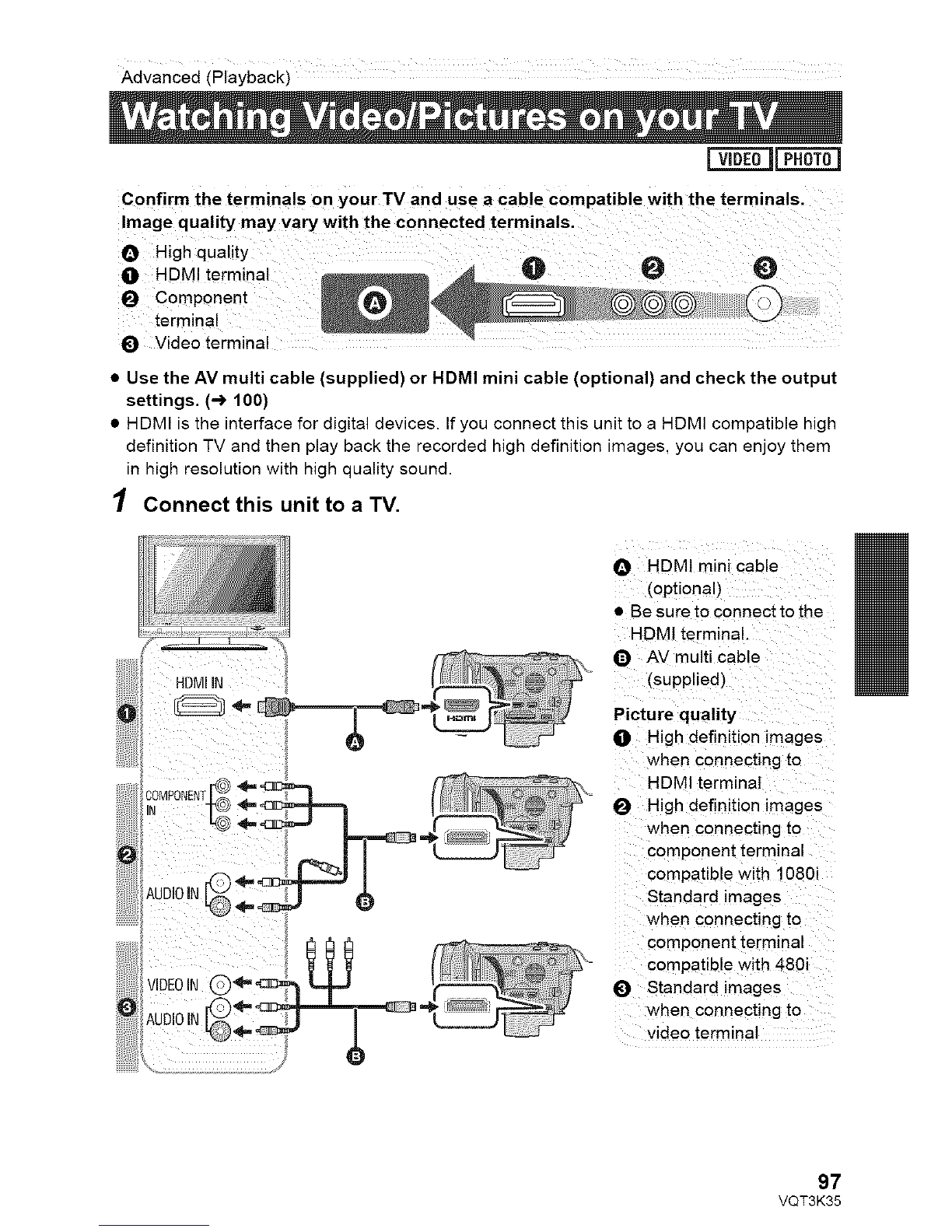

Advanced(Playback)
Confirm the terminals on your TV and use a cable compatible with the terminals.
Image quality may vary with the connected terminala.
n t-hnhn,,_lif\,""
Component
terminal
I_) Video terminal
• Use the AV multi cable (supplied) or HDMI mini cable (optional) and check the output
settings. (-_ 100)
• HDMI is the interface for digital devices. If you connect this unit to a HDMI compatible high
definition TV and then play back the recorded high definition images, you can enjoy them
in high resolution with high quality sound.
1Connect this unit to a TV.
O
0
0
HDMIiN
AUl
HDMt mini cable
(optional)
•Be sure to connect to the
HDMI terminal.
Q AV multi cable
(supplied)
Picture quality
OHigh definition images
when connecting to
HDMI terminal
High definition images
when connecting to
component terminal
compatible with 1080i
Standard images
when connecting to
component terminal
compatible with 480i
I_) Standard images
when connecting to
video terminal
97
VQT3K35

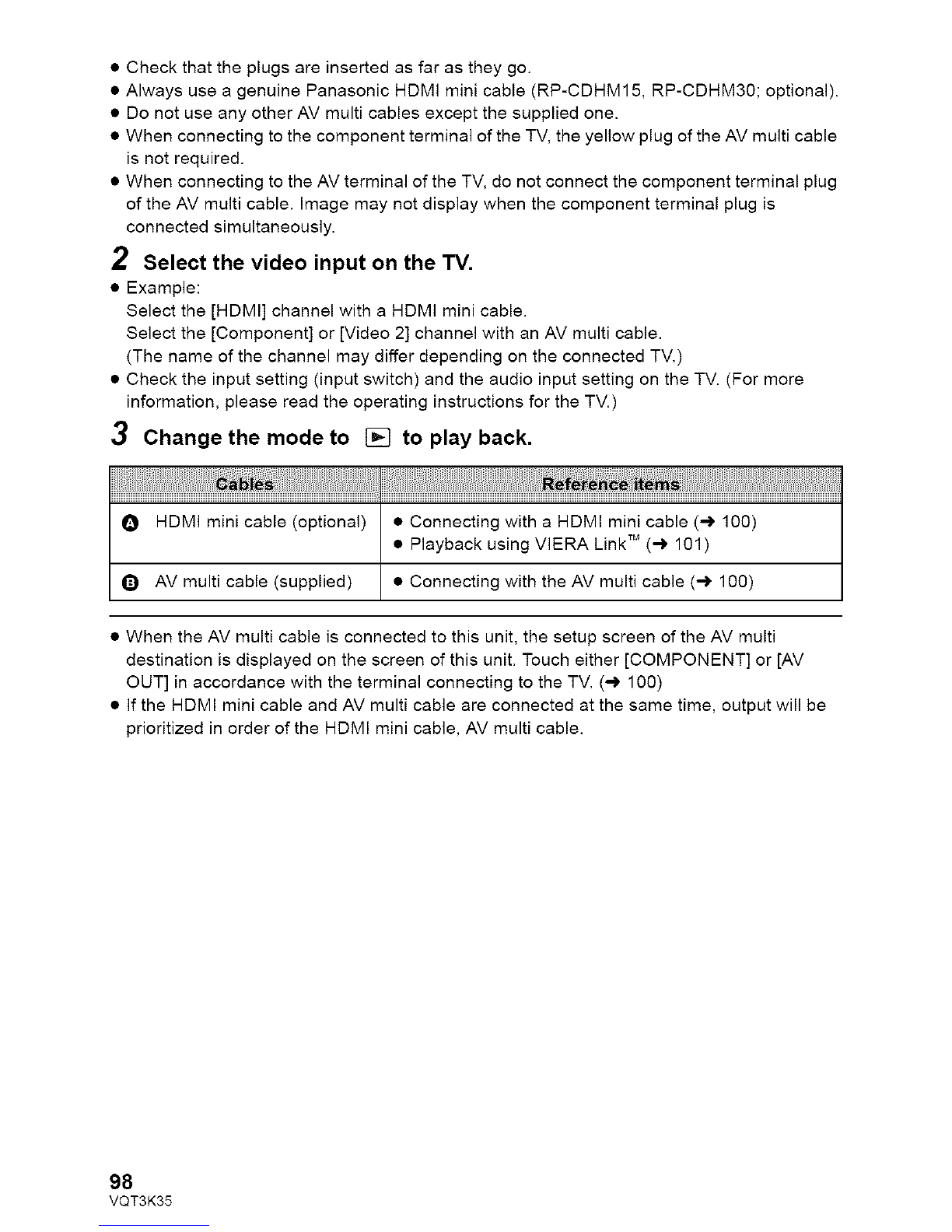

•Check that the plugs are inserted as far as they go.
• Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30; optional).
• Do not use any other AV multi cables except the supplied one.
• When connecting to the component terminal of the TV, the yellow plug of the AV multi cable
is not required.
• When connecting to the AV terminal of the TV, do not connect the component terminal plug
of the AV multi cable. Image may not display when the component terminal plug is
connected simultaneously.
2Select the video input on the TV.
• Example:
Select the [HDMI] channel with a HDMI mini cable.
Select the [Component] or [Video 2] channel with an AV multi cable.
(The name of the channel may differ depending on the connected TV.)
• Check the input setting (input switch) and the audio input setting on the TV. (For more
information, please read the operating instructions for the TV.)
3Change the mode to [] to play back.
!!!!!IHli!!ii!!iiiiiii!iii!i!i!ili !i!!i!! iiii!iiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiii!iiiiiil
O HDMI mini cable (optional) • Connecting with a HDMI mini cable (-) 100)
• Playback using VlERA Link TM (-) 101)
Q AV multi cable (supplied) •Connecting with the AV multi cable (-) 100)
• When the AV multi cable is connected to this unit, the setup screen of the AV multi
destination is displayed on the screen of this unit. Touch either [COMPONENT] or [AV
OUT] in accordance with the terminal connecting to the TV. (-) 100)
• If the HDMI mini cable and AV multi cable are connected at the same time, output will be
prioritized in order of the HDMI mini cable, AV multi cable.
98
VQT3K35

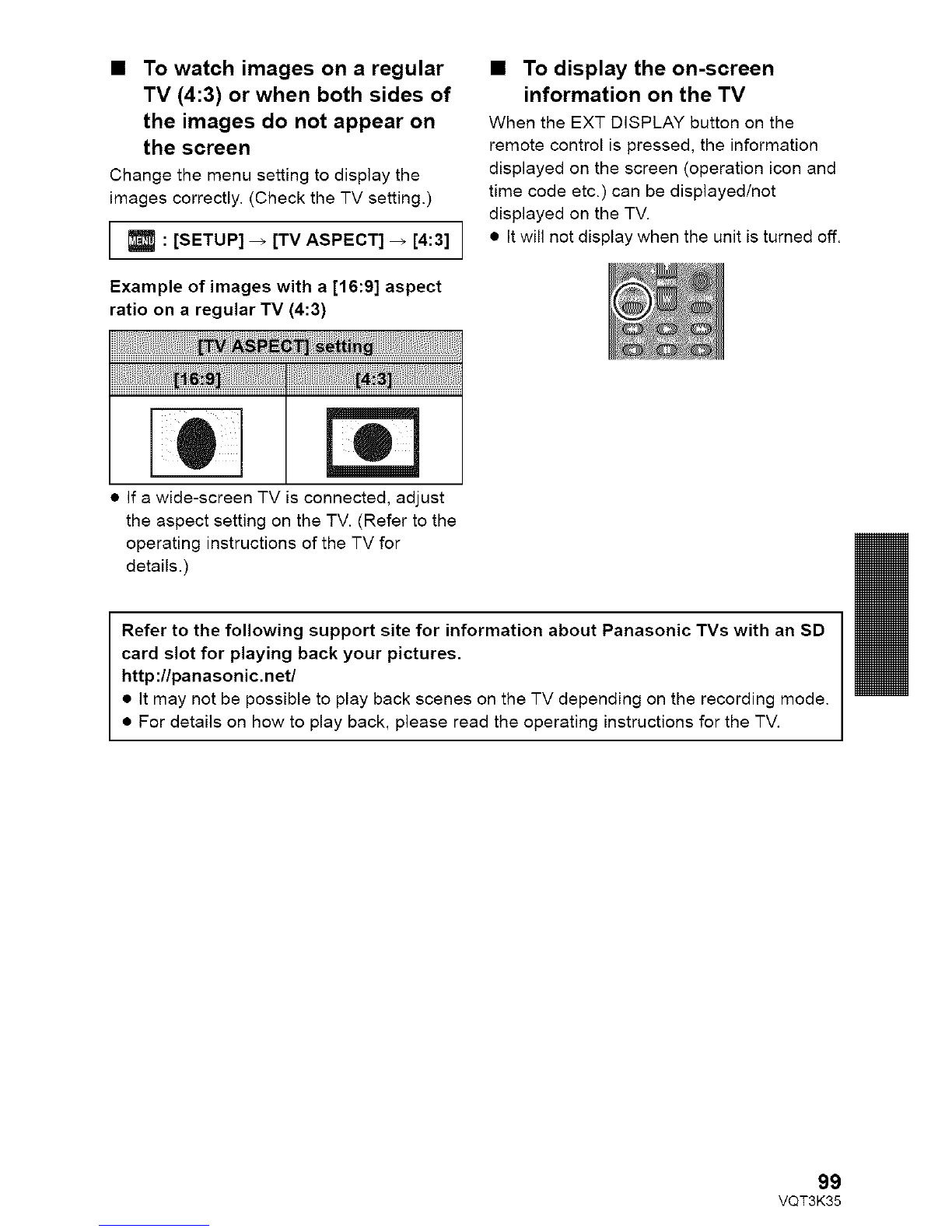

•To watch images on a regular
TV (4:3) or when both sides of
the images do not appear on
the screen
Change the menu setting to display the
images correctly. (Check the TV setting.)
: [SETUP] _[TV ASPECT] _[4:3] ]
J
Example of images with a [16:9] aspect
ratio on a regular TV (4:3)
If a wide-screen TV is connected, adjust
the aspect setting on the TV. (Refer to the
operating instructions of the TV for
details.)
•To display the on-screen
information on the TV
When the EXT DISPLAY button on the
remote control is pressed, the information
displayed on the screen (operation icon and
time code etc.) can be displayed/not
displayed on the TV,
•It will not display when the unit is turned off.
Refer to the following support site for information about Panasonic TVs with an SD
card slot for playing back your pictures.
http:llpanasonic.netl
• It may not be possible to play back scenes on the TV depending on the recording mode.
• For details on how to play back, please read the operating instructions for the TV.
99
VQT3K35

Connecting with a HDMI mini cable
Select the desired method of HDMI output.
: [SETUP] _[HDMI RESOLUTION] _[AUTO]l[1080p]l[lO80i]l[480p] I
•[AUTO] determines the output resolution automatically based on information from the
connected TV.
If the images are not output on the TV when the setting is [AUTO], switch to the method
[108Op], [1080i] or [480p] which enables the images to be displayed on your TV. (Please
read the operating instructions for the TV.)
• image will not display on TV for a few seconds in the following cases.
When the 1080/60p recording mode is turned on/off during Motion Picture Recording
Mode
When you touch the play mode select icon to select [1080/60p], and then touch [ENTER]
during Playback Mode.
Connecting with the AV multi cable
AV multi connector output setting can be changed.
: [SETUP] _[AV MULTI] _desired setting I
I
[COMPONENT]: when connecting to the component terminal
[AV OUT]: When connecting to the video terminal
Changing the component output setting
: [SETUP] _[COMPONENT OUT] _desired setting I
[480i]: When connecting to the component terminal on the TV compatible with 480i.
[!080i]; When connecting t ° the component terminal on the TV compatible with
1080i. (Playback is in high definition quality.)
100
VQT3K35
