Panasonic HX-DC2 User manual

Preparation
Basic
Advanced
(Recording)
Advanced
(Playback)
Copy/
Dubbing
With a PC
Others
Operating Instructions
Dual Camera
Model No. HX-WA20
HX-WA2
HX-DC2
Before use, please read these instructions completely.
until
2012/3/2
Model number suffix “EB” denotes UK model.
VQT4F67
1AG6P1P6510--(S)
HX-WA20EB-VQT4F67_mst.book 1 ページ ２０１２年２月１３日 月曜日 午後３時５７分

2 VQT4F67
Dear Customer,
We would like to take this opportunity to thank you for purchasing this
Panasonic Dual Camera. Please read these Operating Instructions
carefully and keep them handy for future reference. Please note that the
actual controls and components, menu items, etc. of your Dual Camera
may look somewhat different from those shown in the illustrations in
these Operating Instructions.
/
Information for Your Safety
WARNING:
To reduce the risk of fire, electric shock or product damage,
≥Do not let water or other liquids drip or splash inside the unit.
≥Do not expose accessories (battery pack, AC adaptor, SD memory
card and etc.) to rain, moisture, dripping or splashing.
≥Do not place objects filled with liquids, such as vases, on
accessories.
≥Use only the recommended accessories.
≥Do not remove covers.
≥Do not repair this unit by yourself. Refer servicing to qualified
service personnel.
WARNING:
To reduce the risk of fire, electric shock or product damage,
≥Do not expose this unit to rain, moisture, dripping or splashing.
≥Do not place objects filled with liquids, such as vases, on this unit.
≥Use only the recommended accessories.
≥Do not remove covers.
≥Do not repair this unit by yourself. Refer servicing to qualified
service personnel.
HX-WA20
HX-WA2
HX-DC2
HX-WA20EB-VQT4F67_mst.book 2 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 3
∫Concerning the battery
∫EMC Electric and magnetic compatibility
This symbol (CE) is located on the rating plate.
∫Product identification marking
CAUTION!
To reduce the risk of fire, electric shock or product damage,
≥Do not install or place this unit in a bookcase, built-in cabinet or in
another confined space. Ensure this unit is well ventilated.
≥Do not obstruct this unit’s ventilation openings with newspapers,
tablecloths, curtains, and similar items.
≥Do not place sources of naked flames, such as lighted candles, on
this unit.
The socket outlet shall be installed near the equipment and shall be
easily accessible.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above
60 oC or incinerate.
CAUTION
≥Danger of explosion if battery is incorrectly replaced. Replace only
with the type recommended by the manufacturer.
≥When disposing the batteries, please contact your local authorities
or dealer and ask for the correct method of disposal.
Product Location
Dual Camera /
Inner side of LCD monitor
Battery holder
HX-WA20
HX-WA2
HX-DC2
HX-WA20EB-VQT4F67_mst.book 3 ページ ２０１２年２月１３日 月曜日 午後３時５７分

4 VQT4F67
∫Information for Users on Collection and Disposal of
Old Equipment and used Batteries
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical
and electronic products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recycling of old
products and used batteries, please take them to
applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC
and 2006/66/EC.
By disposing of these products and batteries correctly, you will help
to save valuable resources and prevent any potential negative
effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products
and batteries, please contact your local municipality, your waste
disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic
equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European Union.
If you wish to discard these items, please contact your local
authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol
examples):
This symbol might be used in combination with a
chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical
involved.
Cd
HX-WA20EB-VQT4F67_mst.book 4 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 5
∫About recording formats and compatibility of the unit
≥The unit is an MP4 format (MPEG-4 AVC file standard) Dual Camera
for recording high-definition motion pictures.
≥AVCHD and MPEG2 motion pictures are different formats, and are not
therefore supported by the unit.
∫Indemnity about recorded content
Panasonic does not accept any responsibility for damages directly or
indirectly due to any type of problems that result in loss of recording or
edited content, and does not guarantee any content if recording or editing
does not work properly. Likewise, the above also applies in a case where
any type of repair is made to the unit (including any other non-built-in
memory related component).
∫Handling of built-in memory
This unit is equipped with the built-in memory. When using this
component, pay attention to the following points.
Back up data periodically.
The built-in memory is temporary storage. In order to avoid erasing data
due to static electricity, electromagnetic waves, breakage, and failures,
back up the data to a PC or disc. (l147)
≥The status indicator (l23, 28) illuminates in red while the SD card or
built-in memory is being accessed (initialization, recording, playback,
deleting etc.). Do not perform the following operations when the
indicator illuminates. It may damage the built-in memory or cause a
malfunction in the unit.
jTurn the unit off (remove the battery)
jInsert and remove the SD Card
jInsert and remove the USB cable
jExpose the unit to vibrations or shock
≥About disposing of or giving away this unit. (l187)
∫Cards that you can use with this unit
SD Memory Card, SDHC Memory Card and SDXC Memory Card
≥4 GB or more Memory Cards that do not have the SDHC logo or 48 GB
or more Memory Cards that do not have the SDXC logo are not based
on SD Memory Card Specifications.
≥Refer to page 38 for more details on SD cards.
HX-WA20EB-VQT4F67_mst.book 5 ページ ２０１２年２月１３日 月曜日 午後３時５７分

6 VQT4F67
∫For the purposes of these operating instructions
≥SD Memory Card, SDHC Memory Card and SDXC Memory Card are
referred to as the “SD card”.
≥Functions that can be used for motion picture recording/motion picture
playback are indicated by in these operating instructions.
≥Functions that can be used for still picture recording/still picture
playback are indicated by in these operating instructions.
≥Functions that can be used for audio recording/audio playback are
indicated by in these operating instructions.
≥Pages for reference are indicated by an arrow, for example: l00
≥“File” is used to mean “scene”, “still picture” and “audio file”.
These operating instructions are designed for use with models
, and . Pictures may be slightly different
from the original.
≥The illustrations used in these operating instructions show model
, however, parts of the explanation refer to different models.
≥Depending on the model, some functions are not available.
≥Features may vary, so please read carefully.
≥Not all models may be available depending on the region of purchase.
HX-WA20
HX-WA2
HX-DC2
HX-DC2
HX-WA20EB-VQT4F67_mst.book 6 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 7
Information for Your Safety............................................................... 2
Preparation
(Important)
About the Waterproof and Dustproof Performance of this
unit [HX-WA20]/[HX-WA2]................................................................ 11
Check before using underwater .................................................. 13
Using this unit underwater........................................................... 16

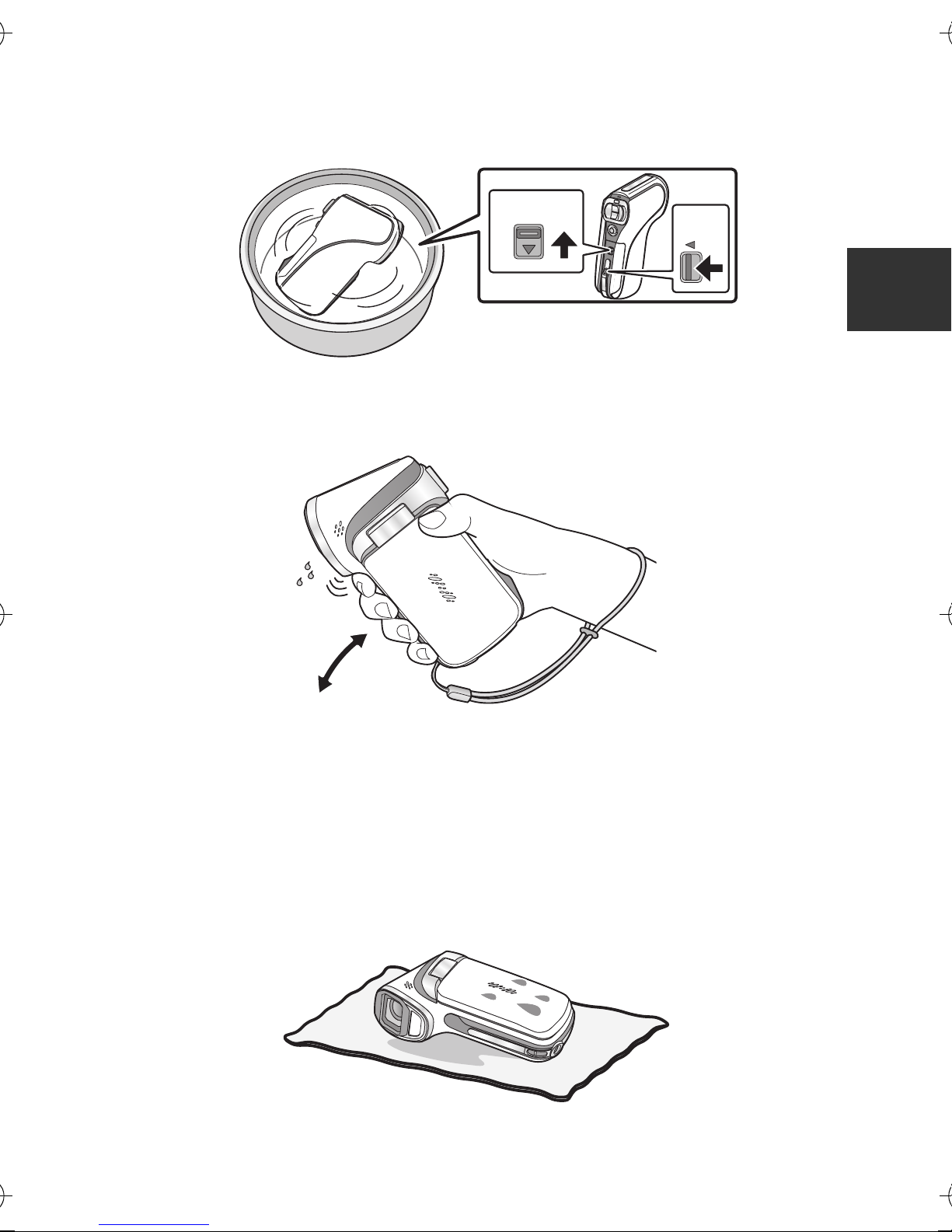

Caring of this unit after using it underwater................................. 16
Accessories...................................................................................... 21
Names and Functions of Main Parts .............................................. 23
HX-WA20/HX-WA2 ..................................................................... 23
HX-DC2....................................................................................... 26
Power supply.................................................................................... 29
Inserting/removing the battery..................................................... 29
Charging the battery ................................................................... 33
Charging and recording time....................................................... 35
Recording to a card ......................................................................... 38
Cards that you can use with this unit .......................................... 38
Inserting/removing an SD card.................................................... 40
Turning the unit on/off..................................................................... 44
About standby mode ................................................................... 44
About economy function ............................................................. 45
About the high temperature warning icon ................................... 46
Selecting a mode ............................................................................. 47
Setting date and time....................................................................... 48
Contents
HX-WA20EB-VQT4F67_mst.book 7 ページ ２０１２年２月１３日 月曜日 午後３時５７分

8 VQT4F67
Basic
Before recording .............................................................................. 50
Recording motion pictures ............................................................. 52
Recording still pictures ................................................................... 55
About recording still pictures during motion picture recording
and audio recording .................................................................... 58
Recording audio............................................................................... 59
Intelligent Auto Mode ...................................................................... 61
Motion picture/Still picture/Audio playback .................................. 64
Using the menu screen ................................................................... 68
Using Option Menu .......................................................................... 70
OPTION MENU 1........................................................................ 70
OPTION MENU 2........................................................................ 71
OPTION MENU 3........................................................................ 73
Advanced (Recording)
Using the zoom ................................................................................ 76
Double range zoom [HX-WA2]/[HX-DC2] ................................... 77
Zoom mode ................................................................................. 78
Image stabiliser................................................................................ 80
Recording in Slow Motion Mode [HX-WA20] ................................. 81
Burst recording ................................................................................ 83
Recording panorama still pictures................................................. 85
Recording underwater [HX-WA20]/[HX-WA2] ................................ 88
Record with colour balance and audio that are suitable for
recording underwater .................................................................. 88
Recording functions of menus ....................................................... 89
RECORDING MENU 1................................................................ 89
RECORDING MENU 2................................................................ 96
RECORDING MENU 3.............................................................. 100
RECORDING MENU 4.............................................................. 107
Manual recording ........................................................................... 109
White Balance ........................................................................... 109
Manual shutter speed/iris adjustment [HX-WA20] ..................... 111
Setting the focus and recording ................................................ 113
HX-WA20EB-VQT4F67_mst.book 8 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 9
Advanced (Playback)
Playback Operations ..................................................................... 114
Playback using operation icon .................................................. 114
Creating still picture from motion picture................................... 116
Cutting out a section of a panorama still picture ....................... 117
Zooming in on a still picture during playback
(Playback zoom) ....................................................................... 118
Various playback functions .......................................................... 120
Changing the playback settings and playing back the
slide show ................................................................................. 120
Displaying file information ......................................................... 122
Using the playback menu.............................................................. 124
PLAYBACK MENU 1................................................................. 124
PLAYBACK MENU 2................................................................. 126
Deleting scenes/still pictures/audio files..................................... 130
Protecting a file ......................................................................... 133
Watching Video/Pictures on your TV ........................................... 134
Connecting with a HDMI micro cable/
HDMI mini cable........................................................................ 139
TV format setting....................................................................... 139
Playback using VIERA Link .......................................................... 140
Copy/Dubbing
Copying from Built-in Memory to SD card .................................. 144
Dubbing images onto other video devices.................................. 145
HX-WA20EB-VQT4F67_mst.book 9 ページ ２０１２年２月１３日 月曜日 午後３時５７分

10 VQT4F67
With a PC
What you can do with a PC ........................................................... 147
End User License Agreement ................................................... 150
Operating environment ................................................................. 152
Installation ...................................................................................... 156
Connecting to a PC........................................................................ 157
Use as a card reader ................................................................ 158
Using the unit as a web camera................................................ 161
Starting HD Writer VE 2.0 .............................................................. 163
Reading the operating instructions of the software
applications ............................................................................... 163
If using Mac .................................................................................... 164
Uploading files to a web service .................................................. 166
Using the Eye-Fi™transfer feature .............................................. 169
Others
LCD Display Indications................................................................ 172
Messages........................................................................................ 176
Troubleshooting............................................................................. 176
Cautions for use............................................................................. 185
About copyright ............................................................................. 193
Recording modes/approximate recordable time ........................ 195
Approximate number of recordable pictures .............................. 197
Optional accessories..................................................................... 201
Specifications................................................................................. 202
Index ............................................................................................... 208
HX-WA20EB-VQT4F67_mst.book 10 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 11
This does not guarantee no destruction, no malfunction, or
waterproofing in all conditions.
* This means that this unit can be used underwater for specified time in
specified pressure in accordance with the handling method established
by Panasonic.
∫Handling of this unit
≥Waterproofing is not guaranteed if the unit is subject to an impact as a
result of being hit or dropped etc. If an impact to this unit occurs, it
should be inspected (subject to a fee) by a Panasonic’s Service Centre
to verify that the waterproofing is still effective.
≥The waterproof performance may be degraded due to the strong water
pressure when this unit is used deeper than 3 m underwater.
≥When this unit is splashed with detergent, soap, hot spring, bath
additive, sun oil, sun screen, chemical, etc., wipe it off immediately.
Preparation
(Important)
About the Waterproof and
Dustproof Performance of this unit
[HX-WA20]/[HX-WA2]
Waterproof/Dustproof Performance
This unit’s waterproof/dustproof rating complies with the
“IP58” rating. Provided the care and maintenance guidelines
described in this document are strictly followed, this unit can
operate underwater, to a depth not exceeding 3 m for a time
not exceeding 60 minutes. *
Waterproof Performance
This unit’s waterproof rating complies with the “IPX8” rating.
Provided the care and maintenance guidelines described in
this document are strictly followed, this unit can operate
underwater, to a depth not exceeding 3 m for a time not
exceeding 60 minutes. *
HX-WA20
HX-WA2
HX-WA20EB-VQT4F67_mst.book 11 ページ ２０１２年２月１３日 月曜日 午後３時５７分

12 VQT4F67
≥Waterproof function of this unit is for sea water and fresh water only.
≥Any malfunction caused by customer misuse, or mishandling will not
be covered by the warranty.
≥The inside of this unit is not waterproof. Water leakage will cause
malfunction.
≥Supplied accessories such as battery pack etc. are not waterproof.
(excluding handstrap)
≥Cards are not waterproof. Do not handle with a wet hand. Also, do not
insert wet card into this unit.
≥Do not leave this unit for a long period of time in places where
temperature is very low (at ski resorts or at high altitude etc.) or very
high (above 35 oC), inside a car under strong sunlight, close to a
heater, on the beach, etc. Waterproof performance may be degraded.
≥Foreign objects may adhere to the inner side of the rear door
(around the rubber seal or connecting terminals) when the rear
door is opened or closed in places with sand or dust etc. This
may result in the impairment of the waterproof performance if the
rear door is closed with foreign objects adhered. Be extremely
careful since it may result in malfunction etc.
≥If any foreign object has adhered to the inner side of the rear door,
remove with the supplied brush.
≥
If any liquid such as water droplets has adhered to this unit or inner
side of the rear door, wipe off with a soft dry cloth. Do not open or
close the rear door near the water, when underwater, using wet
hands, or when this unit is wet. It may cause water leakage.
∫When inner side of the lens is fogged (condensation)
It is not a malfunction or failure of this unit. It may be caused by the
environment in which this unit is used.
≥Be careful of condensation since it causes lens stains, fungus and unit
malfunction.
What to do when inner side of the lens is fogged
≥Turn off the unit and open the rear door in a place with constant
ambient temperature, away from high temperatures, humidity, sand
and dust. The fog will disappear naturally in about 2 hours with the rear
door open when the temperature of this unit gets close to the ambient
temperature.
≥Contact Panasonic’s Service Centre if the fogging does not disappear.
HX-WA20EB-VQT4F67_mst.book 12 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 13
Conditions in which inner side of the lens may be fogged
Condensation may occur and the inner side of the lens may be fogged
when this unit is used in areas that undergo a significant change in
temperature or in high humidity, such as the following:
≥When this unit is used underwater suddenly after being on a hot
beach etc.
≥When this unit is moved to a warm area from a cold area, such as
at a ski resort or at high altitude
≥When the rear door is opened in a high-humidity environment
1Open the rear door.
2Check that there are no foreign objects on the inner
side of the rear door.
≥If there are any foreign objects, such as lint, hair, sand, etc., on the
surrounding area, water will leak within a few seconds causing
malfunction.

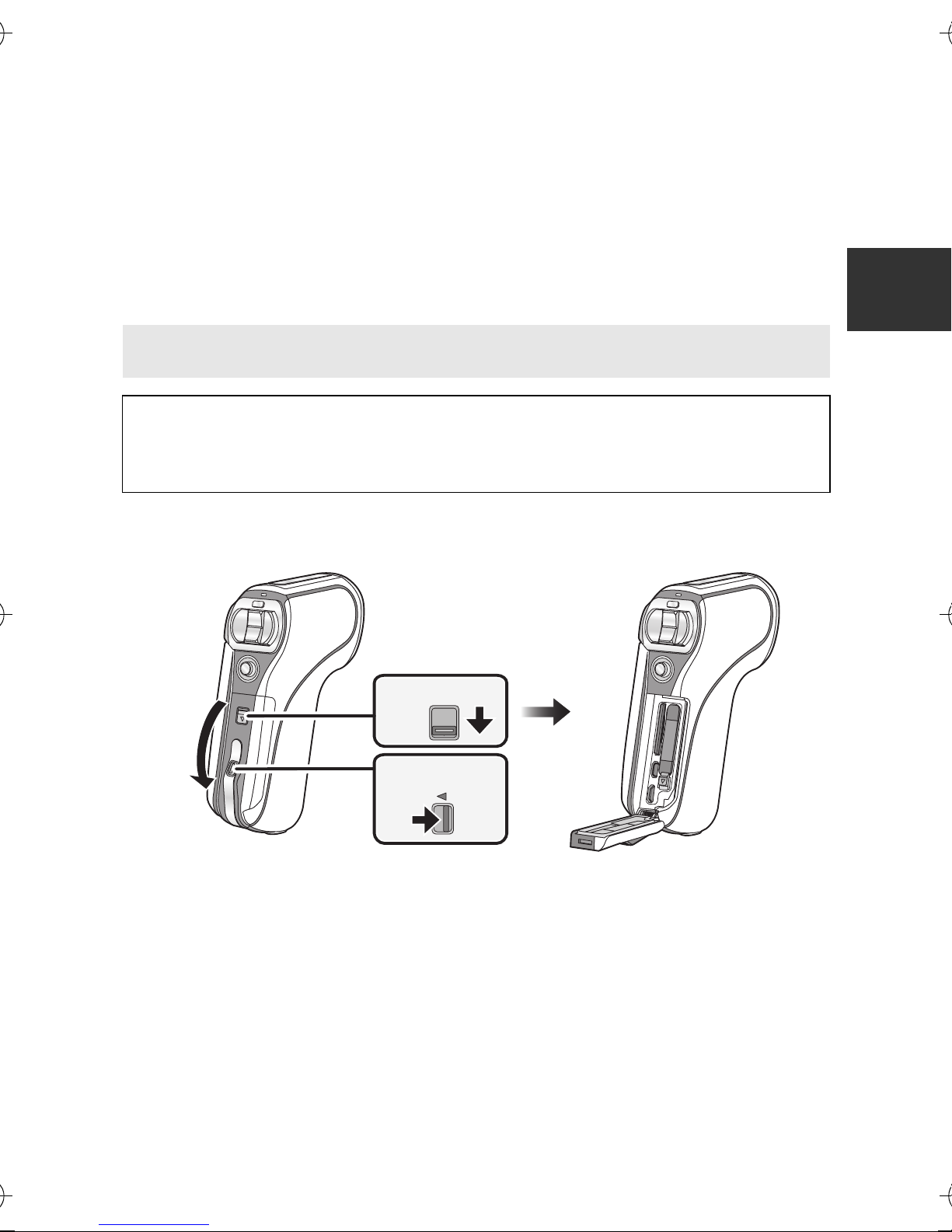

Check before using underwater
Do not open or close the rear door in places with sand and dust,
close to water, or with wet hands. Sand or dust adhering may
cause water leaks.
1Unlock the LOCK lever.
2Slide the open/close lever.
3Open the rear door.

LOCK
SD CARD/
BATTERY


HX-WA20EB-VQT4F67_mst.book 13 ページ ２０１２年２月１３日 月曜日 午後３時５７分

14 VQT4F67

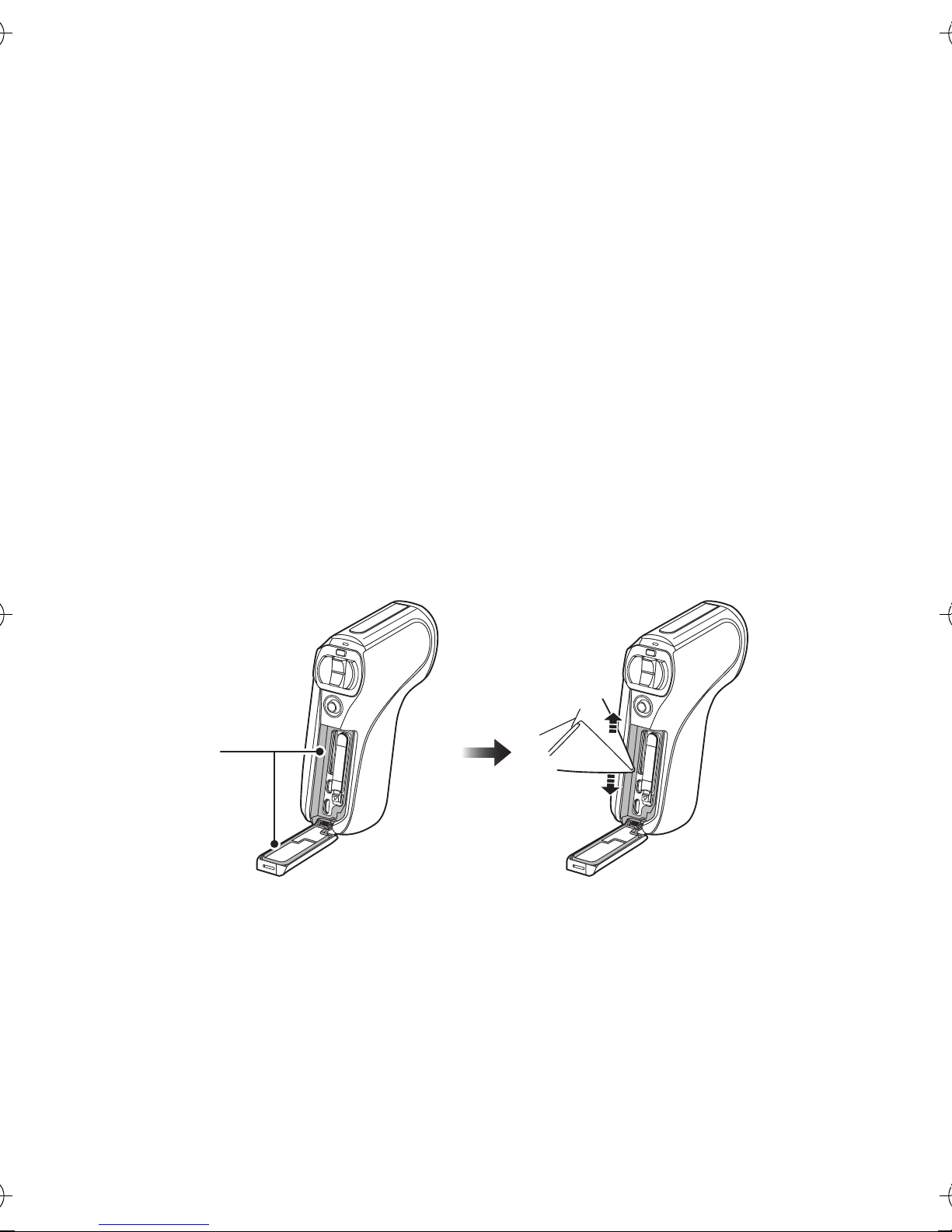

3If there is foreign matter adhering to the unit, use the
supplied brush to remove it.
≥Be extremely careful to remove any sand etc. that may adhere to the
sides and corners of the rubber seal.
≥Keep the brush out of reach of children to prevent swallowing.
≥Use the brush end with the short (hard) bristles to remove larger
foreign matter or damp sand from the unit.
ABrush (supplied)
≥Wipe it off with a dry soft cloth if there is any
liquid. It may cause water leaks and
malfunction if you use this unit with liquid
adhered.
4Check for cracks and deformation of the rubber seal
on the rear door.
≥The integrity of the rubber seals may decrease after about 1 year, with
use and age. To avoid permanently damaging this unit the seals should
be replaced once each year. Please contact Panasonic’s Service
Centre for related costs and other information.

HX-WA20EB-VQT4F67_mst.book 14 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 15

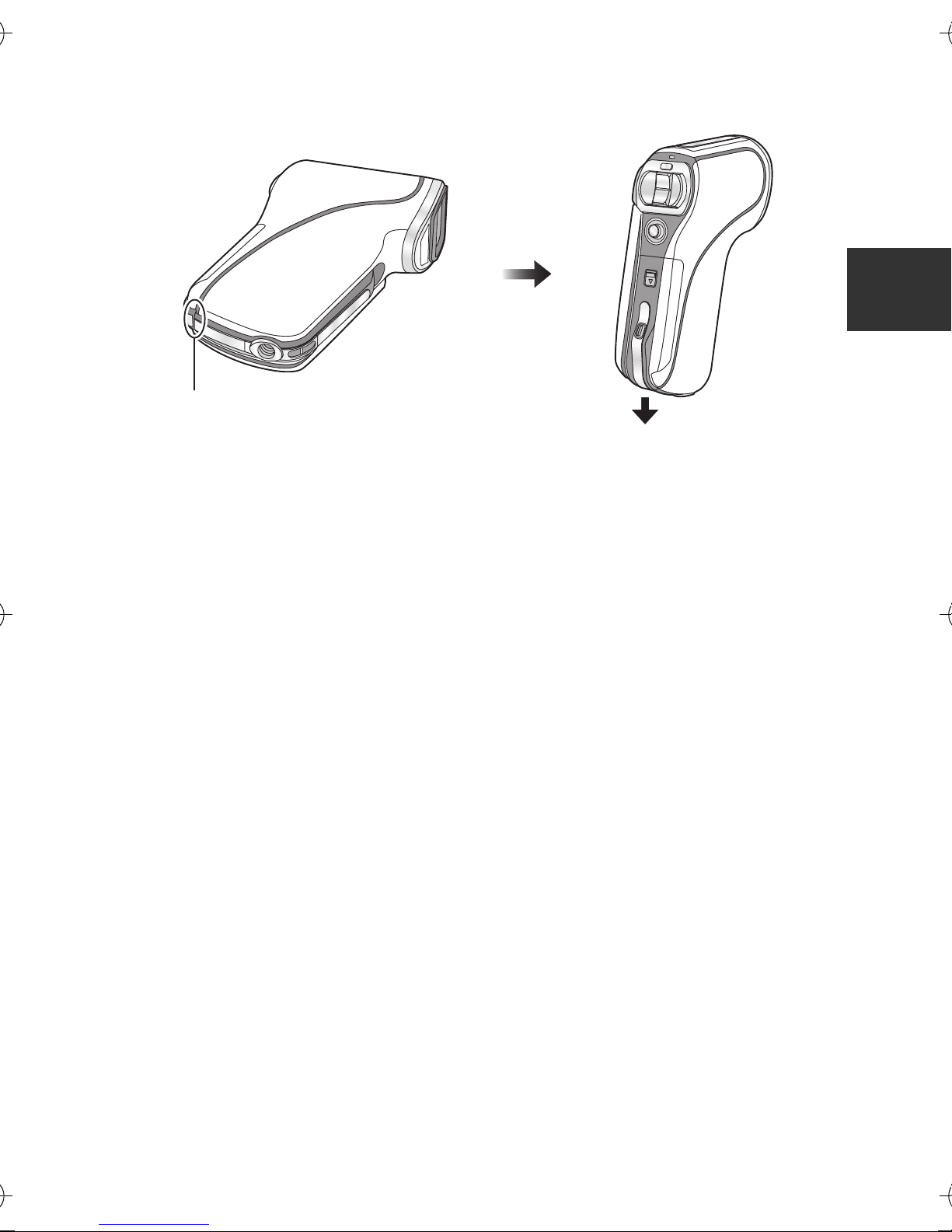

5Close the rear door securely.
1Close the rear door.
2Slide the open/close lever.
3Lock the LOCK lever.
≥Lock securely to the points where the red portion of the open/close
lever and LOCK lever are no longer visible.
≥To prevent water seeping into this unit, be careful not to trap foreign
objects such as liquids, sand, hair or dust etc.
∫About handling the brush
≥Before use, check that foreign matter has not adhered to the brush.
≥After use, remove any adhered foreign matter and clean in preparation
for next use.
LOCK
SD CARD/
BATTERY



HX-WA20EB-VQT4F67_mst.book 15 ページ ２０１２年２月１３日 月曜日 午後３時５７分

16 VQT4F67
≥Use this unit underwater at a depth of down to 3 m with the water
temperature between 0 oC and 35 oC.
≥Do not use this unit at a depth of over 3 m.
≥Do not use it in hot water over 35 oC (in the bath or hot spring).
≥
Do not use this unit underwater not longer than 60 minutes continuously.
≥Do not open or close the rear door.
≥Do not apply shock to this unit underwater. (Waterproof performance
may not be maintained, and there is a chance of water leak.)
≥
Do not dive into the water holding this unit. Do not use this unit in a location
where the water will splash strongly, such as rapid flow or waterfall. (Strong
water pressure may be applied, and it may cause malfunction.)
≥This unit will sink in the water. Take care not to drop this unit and lose it
underwater by securely placing the strap around your wrist or similar
measure.
≥Attaching a tripod with a 5.5 mm screw or larger may open a hole in
this unit through which water will leak.
Using this unit underwater
Caring of this unit after using it underwater
Do not open or close the rear door until the sand and dust is
removed by rinsing this unit with water.
Make sure to clean this unit after using it.
≥Thoroughly wipe off any water droplets, sand, and saline matter on
your hands, body, hair, etc.
≥It is recommended to clean this unit indoors, avoiding places where
water spray or sand may fall.
Do not leave this unit uncared for longer than 60 minutes after
using it underwater.
≥Leaving this unit with foreign objects or saline matter on it may
cause damage, discolouration, corrosion, unusual odour, or
deterioration of the waterproof performance.
HX-WA20EB-VQT4F67_mst.book 16 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 17
1Rinse with water with the rear door closed.
≥After use at the seaside or underwater, soak the unit in fresh water
pooled in a shallow container for 10 minutes or less.
2Drain water by holding this unit upside down and
shaking it lightly a few times.
≥After using this unit at the seaside or underwater, or after washing it,
water will remain at the speaker site of this unit for a while and it may
cause lower sound or sound distortion.
≥Fasten the strap firmly to prevent this unit from dropping.
3Wipe off water drops on this unit with a dry soft cloth
and dry this unit in a shaded area which is well
ventilated.
≥Dry this unit by standing it on a dry cloth.
SD CARD/
BATTERY
LOCK
HX-WA20EB-VQT4F67_mst.book 17 ページ ２０１２年２月１３日 月曜日 午後３時５７分

18 VQT4F67
≥Do not dry this unit with hot air from dryer or similar. It will deteriorate
the waterproof performance or cause failure due to deformation.
≥Do not use chemicals such as benzine, thinner, alcohol, or cleanser, or
soap or detergents.
4Confirm that there are no water droplets, open the
rear door, and wipe off any water droplets or sand left
inside using a soft dry cloth.
≥Water droplets may adhere to the card when the rear door is opened
without thoroughly drying. Also, water may accumulate in the gap
around the card compartment, the battery compartment or the terminal
connector. Be sure to wipe any water off with a soft dry cloth.
≥The water droplets may seep into this unit when the rear door is closed
while it is still wet, causing condensation or failure.
∫Wiping moisture from the unit
If there is moisture inside the rear door, wipe every crevice completely
clear of moisture.
(This moisture is not due to exposure to water)
AMoisture here
∫About the water draining design
This unit is designed so that water that entered the gaps around the
zoom button etc. drains out. For this reason, bubbles may appear when
the unit is immersed in water, but this is not a malfunction.
Draining water from the unit
Drainage holes are found on the bottom of the unit. Hold the unit
vertically, as shown, to drain off the water.

HX-WA20EB-VQT4F67_mst.book 18 ページ ２０１２年２月１３日 月曜日 午後３時５７分

VQT4F67 19
When draining, attach the hand strap to the unit and secure the hand
strap to your wrist to prevent the unit from dropping.
BDrainage holes

HX-WA20EB-VQT4F67_mst.book 19 ページ ２０１２年２月１３日 月曜日 午後３時５７分
