Panasonic Viera Link HX-WA10 Technical specifications

1AG6P1P6323--(S)
Basic Operating Instructions
Dual Camera
Model No.HX-WA10
Before use, please read these instructions completely.
More detailed instructions on the operation of this unit are contained
in “Operating Instructions (PDF format)” in the supplied CD-ROM.
Install it on your PC to read it.
GC GA GN VQT3P46

2VQT3P46
Information for Your Safety
Dear Customer,
We would like to take this
opportunity to thank you for
purchasing this Panasonic Dual
Camera. Please read these
Operating Instructions carefully and
keep them handy for future
reference. Please note that the
actual controls and components,
menu items, etc. of your Dual
Camera may look somewhat
different from those shown in the
illustrations in these Operating
Instructions.
WARNING:
TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
iDO NOT EXPOSE
ACCESSORIES (AC
ADAPTOR, USB CABLE,
BATTERY PACK, SD
MEMORY CARD AND ETC.)
TO RAIN, MOISTURE,
DRIPPING OR SPLASHING
AND THAT NO OBJECTS
FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL
BE PLACED ON THEM.
iUSE ONLY THE
RECOMMENDED
ACCESSORIES.
iDO NOT REMOVE THE
COVER (OR BACK); THERE
ARE NO USER
SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
CAUTION!
iDO NOT INSTALL OR
PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER
CONFINED SPACE.
ENSURE THE UNIT IS
WELL VENTILATED. TO
PREVENT RISK OF
ELECTRIC SHOCK OR
FIRE HAZARD DUE TO
OVERHEATING, ENSURE
THAT CURTAINS AND ANY
OTHER MATERIALS DO
NOT OBSTRUCT THE
VENTILATION VENTS.
iDO NOT OBSTRUCT THE
UNIT’S VENTILATION
OPENINGS WITH
NEWSPAPERS,
TABLECLOTHS,
CURTAINS, AND SIMILAR
ITEMS.
iDO NOT PLACE SOURCES
OF NAKED FLAMES, SUCH
AS LIGHTED CANDLES,
ON THE UNIT.
iDISPOSE OF BATTERIES
IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
THE SOCKET OUTLET SHALL
BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE
EASILY ACCESSIBLE.

VQT3P46 3
kConcerning the battery
kProduct identification marking
-If you see this symbol-
kCautions for use
For Australia and New Zealand
In the event of abnormal operation
(e.g. if the unit emits smoke or an
unusual smell), immediately stop
operating the unit and consult the
Panasonic Customer Care Centre
on 132600.
Keep this unit as far away as
possible from electromagnetic
equipment (such as microwave
ovens, TVs, video games etc.).
iIf you use this unit on top of or
near a TV, the pictures and/or
sound on this unit may be
disrupted by electromagnetic
wave radiation.
iDo not use this unit near cell
phones because doing so may
result in noise adversely affecting
the pictures and/or sound.
iRecorded data may be damaged,
or pictures may be distorted, by
strong magnetic fields created by
speakers or large motors.
iElectromagnetic wave radiation
generated by microprocessors
may adversely affect this unit,
disturbing the pictures and/or
sound.
iIf this unit is adversely affected by
electromagnetic equipment and
stops functioning properly, turn
this unit off and remove the
battery or disconnect AC adaptor.
Then reinsert the battery or
reconnect AC adaptor and turn
this unit on.
Do not use this unit near radio
transmitters or high-voltage lines.
iIf you record near radio
transmitters or high-voltage lines,
the recorded pictures and/or
sound may be adversely affected.
Warning
Risk of fire, explosion and
burns. Do not disassemble, heat
above 60 oCor incinerate.
CAUTION
Danger of explosion if battery is
incorrectly replaced. Replace
only with the same or equivalent
type recommended by the
manufacturer.
Dispose of used batteries
according to the manufacturer’s
instructions.
Product Location
Dual Camera Battery holder
Information on Disposal in
other Countries outside the
European Union
This symbol is
only valid in the
European Union.
If you wish to
discard this
product, please
contact your local
authorities or
dealer and ask for
the correct
method of
disposal.

4VQT3P46
IMPORTANT! PLEASE READ
kAbout handling the camera
iOpening and closing the battery cover or terminal cover in a sandy or
dusty environment may cause water to get inside the camera and
result in malfunction, so be especially careful in these environments.
iDo not touch the lens or terminals with dirty hands.
iDo not open or close the battery cover or terminal cover near or in
water, or with wet hands.

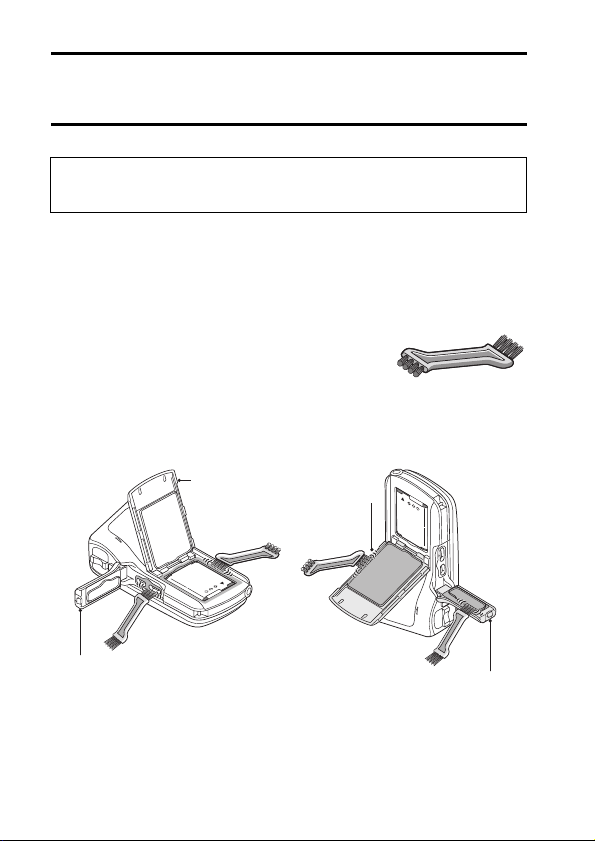

iIf there is moisture inside the battery cover or terminal cover, wipe it
completely dry, and use the supplied brush to remove any foreign
matter.
iIf there is water on the surface of the camera, use a soft dry cloth to wipe it
completely dry before opening the camera.
iAvoid dropping or hitting the camera, or subjecting it to strong
vibrations or shocks. Do not apply strong pressure to it.
hThe camera may malfunction or lose the ability to record images,
or the LCD monitor and/or exterior case may be damaged.
hThe waterproof capability may deteriorate.
iDo not sit with the camera in a pants pocket, or force it into a full briefcase
or bag.
iBe careful of accessories etc. dangling from the strap, which may press
against the LCD monitor and break it.
kCondensation (when the lens is cloudy)
iChanges in temperature or humidity may cause water to form on the
camera surfaces (condensation). Recorded images may appear
washed out. Some possible causes to be aware of are the following.
hUsing the camera in the water immediately after moving from a very
warm waterside setting, for example.
hMoving from cold surroundings, such as a ski slope, to warm
surroundings.
hOpening the battery cover or terminal cover in a humid environment.
iIf condensation has formed, try the following countermeasures.
hTurn off the camera and leave it with the battery door open it in a
location with a stable ambient temperature for about 2 hours. The
cloudiness will dissipate naturally when the camera adjusts to the
ambient temperature.
hIf cloudiness persists, open the battery cover and terminal cover in a
location away from heat and humidity, and leave the camera for
about 2 hours. (Do not open and close the covers near the
waterside.)

VQT3P46 5
kBe sure to take some test pictures beforehand
Before those important events, be sure to take some trial pictures to confirm
that the images and audio are being properly recorded.
kIndemnity about recorded content
Panasonic does not accept any responsibility for damages directly or
indirectly due to any type of problems that result in loss of recording or edited
content, and does not guarantee any content if recording or editing does not
work properly. Likewise, the above also applies in a case where any type of
repair is made to the unit (including any other non-built-in memory/HDD
related component).
kBe aware of copyrights
Under copyright law, your video and audio recordings cannot be used without
permission of the owner except for your personal use.
Note that photography may be restricted even if the purpose is for your
personal use only.
kPlease also read the “CAUTIONS FOR USE” (see page 180 in the
Operating Instructions (PDF format)).
kHandling of built-in memory
This unit is equipped with a 80 MB (approx.) built-in memory. When using this
component, pay attention to the following points.
iThe status indicator (page 24) illuminates while the SD card or built-in
memory is being accessed (reading, recording, playback, deleting etc.). Do
not perform the following operations when the lamp illuminates. It may
damage the built-in memory or cause a malfunction in the unit.
hTurn the unit off (remove the battery)
hEject the SD card from the camera
hInsert or remove the USB cable
hExpose the unit to vibrations or shock
iFor disposing of or transferring this unit, please see page 181 in the
Operating Instructions (PDF format).
Back up data periodically.
The built-in memory is temporary storage. In order to avoid erasing data
due to static electricity, electromagnetic waves, breakage, and failures,
back up the data to a computer or DVD disc. (See page 135 in the
Operating Instructions (PDF format))

6VQT3P46
kConcerning this unit’s recording method and compatibility
<Video compatibility>
iThis camera is an MP4 standard (MPEG-4AVC/H.264 format) digital movie
camera that records high-definition HDTV video.
The AVCHD and MPEG2 video formats are different and are therefore not
compatible.
iThis camera may degrade or be unable to play back videos recorded or
created with other products, and other products may degrade or not be
able to play back videos recorded with this camera, even if the products
support the MP4 format.
<Photo compatibility>
iThis unit is compliant with the unified standard DCF (Design rule for
Camera File system) established by JEITA (Japan Electronics and
Information Technology Industries Association) and with Exif
(Exchangeable Image File Format). Files which do not comply with the
DCF standard cannot be played back.
iThe file format of images supported by this unit is JPEG. (Not all JPEG
format files will be played back.)
iThis unit may degrade or not play back images recorded or created on
other products, and other products may degrade or not play back images
recorded on this unit.
kAbout the battery pack
iNever place the battery pack within the reach of infants. In the event that
the battery pack is swallowed, consult a doctor immediately.
kAbout the photos and illustrations in this manual
iThe product images, illustrations, menu displays etc. in this manual may
differ slightly from the actual product.
kFor the purposes of these operating instructions
iSD Memory Card, SDHC Memory Card and SDXC Memory Card are
referred to as the “SD card”.
iPages for reference are indicated by parentheses, for example: (page 00).

VQT3P46 7
CONTENTS
Information for Your Safety .....................................................................2
IMPORTANT: ABOUT THE WATERPROOF PERFORMANCE OF
THE CAMERA ....................................................................................9
MAINTENANCE AND WATERPROOF PERFORMANCE ...................10
After using in water ........................................................................18

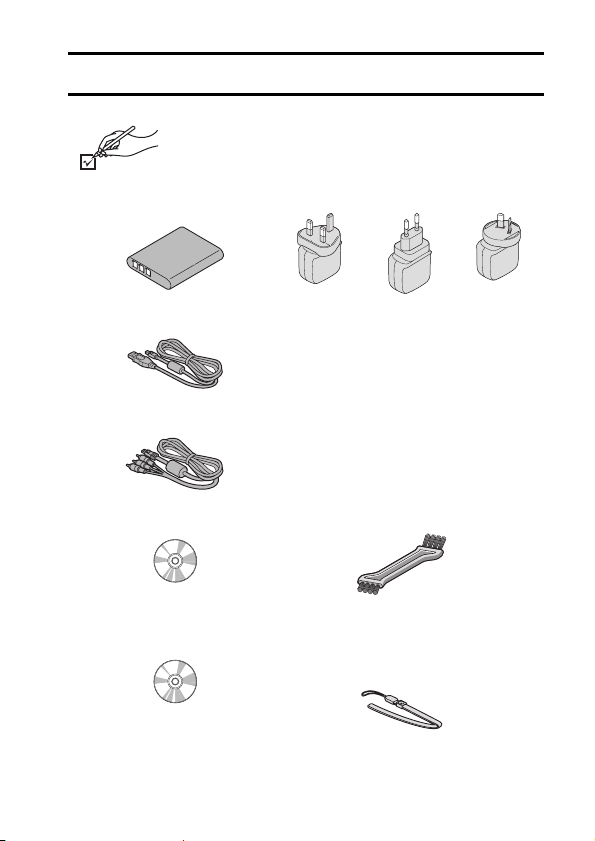

CHECKING THE INCLUDED ACCESSORIES ....................................19
ABOUT THE CARD ..............................................................................20
Media cards that can be used with this camera
(as of February 2011) ...............................................................20
SETUP
PARTS NAMES ....................................................................................22
CHARGING THE BATTERY PACK ......................................................25
INSTALLING THE CARD .....................................................................30
TURNING THE CAMERA ON AND OFF ..............................................32
Turning on the camera ..................................................................32
Turning off the camera ..................................................................33
DATE AND TIME SETTING .................................................................34
Date and time backup ...................................................................36
SWITCHING BETWEEN THE RECORDING MODE AND
PLAYBACK MODE ...........................................................................37
INTELLIGENT AUTO MODE ................................................................38
BASIC OPERATION
SHOOTING
VIDEO RECORDING ............................................................................40
TAKING PHOTOS ................................................................................41
MACRO-PHOTOGRAPHY (ZOOM) .....................................................42
PLAYBACK
PLAYING BACK VIDEOS AND PHOTOS ............................................43
How to save one frame from a video as a photo ...........................45
Deleting images .............................................................................46

8VQT3P46
OTHER DEVICES AND CONNECTIONS
CONNECTING TO A TV
CONNECTING TO A TV ...................................................................... 47
Connecting to a video input terminal ............................................ 48
Connecting to the HDMI terminal .................................................. 48
PLAYING BACK ON A TV ................................................................... 49
IMPORTANT MESSAGES AND ALERTS
OPTIONAL ACCESSORIES ................................................................ 50
SPECIFICATIONS ............................................................................... 51
ABOUT COPYRIGHT .......................................................................... 56
READING THE OPERATING INSTRUCTIONS (PDF FORMAT) ........ 57

VQT3P46 9
IMPORTANT: ABOUT THE
WATERPROOF PERFORMANCE OF
THE CAMERA
iThis camera is qualified JIS protection grade 8 (JIS IPX8) for waterproof
performance. It is waterproof up to a depth of 3 meters for at least 60
minutes.*
iThe supplied accessories are not waterproof (excluding handstrap).
* This means that the camera can be used underwater for a specified time in
a specified pressure in accordance with the handling method established by
Panasonic. It does not guarantee against destruction or malfunction, or
guarantee waterproofing, in all conditions.
Observe the following precautions and avoid using under water pressure
exceeding the guaranteed performance, or in an environment with excessive
dust or sand.
The waterproof capability is not guaranteed if the camera is subjected to an
impact as a result of being hit or dropped, etc.
If an impact to the camera occurs, consult with the store where it was
purchased or a service centre, and have it inspected (subject to a fee) to
verify that the waterproof capability has not been compromised.
Any damage due to water leakage that was caused by customer misuse or
mishandling is not covered by the warranty.
kHandling of the camera
iDo not leave the camera for a long period of time in places where the
temperature is very low (ski resort etc.) or very high (above 35 °C),
especially in strong sunlight, in a car sitting outside, close to a heater, on
the beach, etc. (The waterproof capability may be degraded.)
iThe inside of the camera is not waterproof. Do not open or close the
battery cover or terminal cover when you are close to the sea, a lake or a
river, or with wet hands.
iThe waterproof function of the camera applies only to sea water and fresh
water.
iOperation may not be possible, or the audio volume may be low, if snow or
water freezes on the zoom switch, speaker or microphone in cold
environments such as at a ski resort.

10 VQT3P46
MAINTENANCE AND
WATERPROOF PERFORMANCE
kBefore using the camera in water, please check the following
jCheck that there is no foreign matter adhering to the inside of any of
the covers.
hIf lint, hair, sand or the like is present, water may leak into the camera
in seconds and damage it.
hIf any liquid is adhering to the camera, wipe it off with a soft dry cloth.
Liquid on the camera may leak inside and damage the camera.
hIf there is any foreign matter adhering to the
camera, use the supplied brush to remove it.
hTake particular care to remove all traces of
foreign matter from the sides and corners of
the rubber seals, where minute particles of
sand or dust may adhere.
hUse the brush end with the short (hard) bristles to remove larger
foreign matter or damp sand from the camera.
kCare of the brush
iBefore using the brush, check that there is no foreign matter adhering to it.
iAfter using the brush, shake off any foreign matter and keep it where it will
stay clean.
Do not open or close any of the covers in sandy or dusty environments,
near the waterside, or with wet hands. Sand or dust adhering to the
camera can result in water getting inside.
Brush (supplied)
Terminal cover
Battery cover
Battery cover
Terminal cover

VQT3P46 11
kTo prevent water leaking into the camera, please observe the
following precautions before using it.
kCheck that there is sufficient battery power and card memory
remaining.
kDo not open or close the battery cover or terminal cover in places
with sand and dust, or with wet hands.
kAt the time of purchase, the battery cover lock is in the locked
position. When opening the battery cover, first release the lock.
1 Check that there is no foreign matter on the inner side of the battery
cover or terminal cover (where the rubber seal 1contacts the
camera body 2).
hIf the rubber seal inside the battery cover or terminal cover is cracked
or deformed, consult the store where the camera was purchased or a
nearby service centre.
Battery cover lock
Red part
(coloured label)
Terminal cover lock
1
1
2
2
Terminal cover
Battery cover
Hair, lint
Liquid
Crack,
deformation
Sand, dust

12 VQT3P46

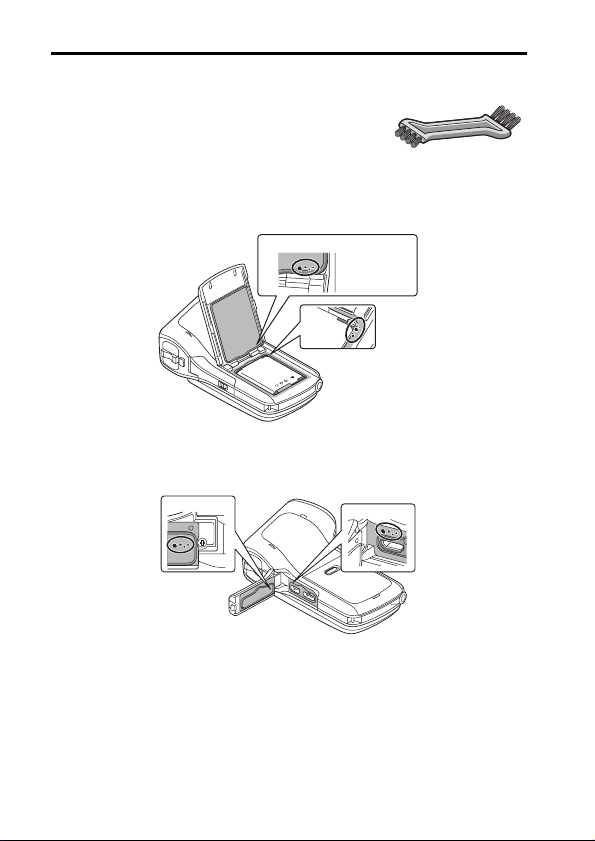

2 If there is foreign matter adhering to the camera, use the supplied
brush to remove it.
hIf there is any foreign matter, such as lint, hair,
sand, etc., on the parts indicated by the text
balloons in the illustration, water will leak
inside within seconds and may damage the
camera.
kExample of foreign matter inside the battery cover
kExample of foreign matter inside the terminal cover
Brush (supplied)
Rubber seal
Where the rubber seal
contacts the camera
body
Rubber seal Where the rubber seal
contacts the camera body

VQT3P46 13
iIf there is liquid on the surface, wipe it off with a soft dry cloth.
iThe integrity of the rubber seals decreases after about 1 year. It is strongly
recommended that you have the seals replaced (subject to a fee) at least
once a year at the store where the camera was purchased or at nearby
service centre.
3 1With the battery cover lock released, press the battery cover to
close it.
hTo prevent water seeping into the camera, make sure that foreign
matter such as liquids, sand, hair or dust is trapped between the
cover and the camera body.
2Push the battery cover lock to the left to lock it.
hThe coloured label is visible when the battery cover lock is not
completely closed. Be sure to close the lock completely so that the
coloured label is not visible.
3Close the terminal cover firmly until you hear it “click” shut and
the red part of the terminal cover lock is no longer visible.
hIf the camera is used without the covers securely closed, they may
open on their own.
1
3
2
Terminal cover lock
Battery cover lock

14 VQT3P46
HINT
iIf there is any foreign matter on the camera, use the supplied brush to
remove it.
iIf the camera is used in the following environments, foreign matter such as
sand or dust may inadvertently get caught in the gap between the battery
cover or terminal cover and the body.
hIn the sea or in waters in which sand is suspended.
hIn places with a lot of sand or dust, such as at the beach or in a
sandbox.
kUsing the camera underwater
iUse the camera underwater at a depth of up to 3 meters, water
temperature from 0 °C to 35 °C, and for not longer than 60 minutes
continuously. Before using the camera in water again, make sure that it has
been sufficiently dried.
iIf there is water or dirt on the camera, wipe it dry with a soft dry cloth and
leave it to dry in a well ventilated spot before using again.
iDo not open and close the battery cover or terminal cover while
underwater.
iDo not subject the camera to shock underwater. (The waterproof
performance may become impaired, and water may seep into the camera.)
iDo not dive into the water holding the camera. Do not use the camera in a
location where it might be impacted by forceful splashing, such as in a
strong current or a waterfall. (Strong water pressure may cause the
camera to malfunction.)
iThe camera will sink in water. Take care not to drop the camera and lose it
underwater, for example by making sure the hand strap is secured or by
some other measure.
iDo not use the camera in water warmer than 35 °C (in the bath or spa).
iIf the camera is splashed with detergent, soap, hot water, bath salts,
tanning oil, sun screen, chemicals, etc., wipe it off immediately.
iThe card and battery are not waterproof. Do not handle them with wet
hands. Also, do not insert a wet card or battery in the camera.

VQT3P46 15

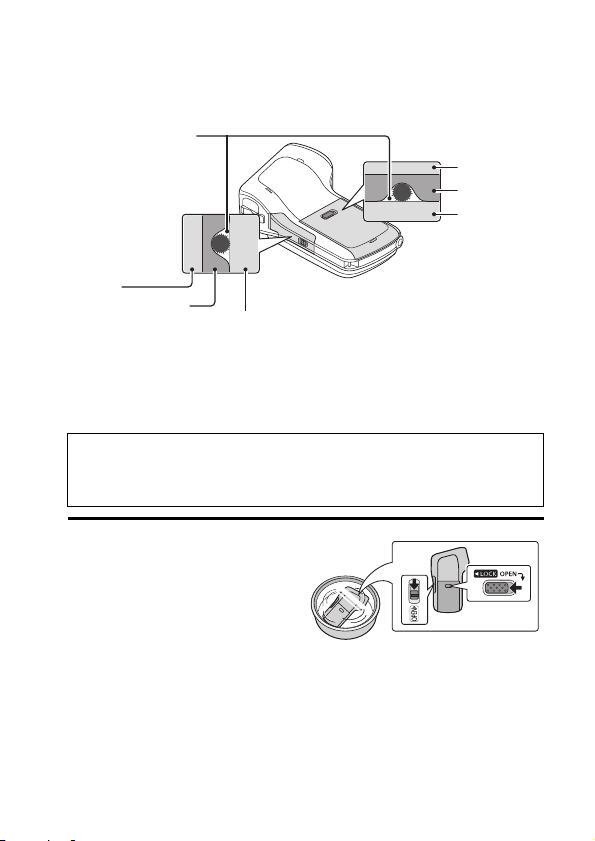

kCauses of water leak
iIf the camera is used in any of the following conditions, a gap may appear
between the camera body and the battery cover or terminal cover, resulting
in water seeping in and causing the camera to malfunction.
hWhen there is foreign matter, such as lint, hair, sand, etc., between the
battery cover or terminal cover and the camera body.
hWhen the rubber seal has deteriorated.
hWhen the lock on the battery cover and/or terminal cover is not closed.
kCare of the camera after using underwater
1 With the battery cover and
terminal cover closed, rinse
the camera with water; or, if it
was used in the sea, soak it in
a shallow container filled with
fresh water for about 10
minutes.
hLeaving the camera with
foreign objects or saline
matter on it may cause
damage, discolouration,
corrosion, unusual odor, or
deterioration.
The camera must be cleaned after it has been used underwater.
iRinse the camera in water, and do not open the battery cover or
terminal cover until all sand and dust have been removed.
iDo not soak the camera in water for more than 60 minutes.
Battery cove
r
Water can leak
inside through the
gap
Te r mi na l
cover
Rubber seal
Where the
rubber seal
contacts the
camera body
Rubber seal Where the rubber seal contacts the camera body

16 VQT3P46
2 Wipe off the water, place the camera on a dry cloth and leave it to dry
for a while in a well-ventilated shaded spot.
3 Check that there is no water on
the camera, and open the
battery cover and terminal
cover.
hMoisture may easily
accumulate in the grooves
inside the covers, so take care
that no water gets inside.
4 Wipe off any water or sand
inside the battery cover and
terminal cover with the
supplied brush or a soft dry cloth.
iAfter the camera has been used underwater or soaked in fresh water,
moisture may collect in the grooves around the card/battery compartment
and connection terminals. In addition, water droplets may adhere to the
card or battery if the battery cover is opened without sufficiently drying the
camera. Be sure to wipe off the water with a soft dry cloth in such cases.
iDo not open or close the battery cover or terminal cover with water
droplets still on the camera. The water droplets may seep into the camera,
causing condensation and malfunction.
<Wiping moisture from the camera>
iIf there is moisture inside the battery cover, wipe every crevice completely
clear of moisture.
*This moisture is not due to exposure to water.
Moisture
here

VQT3P46 17

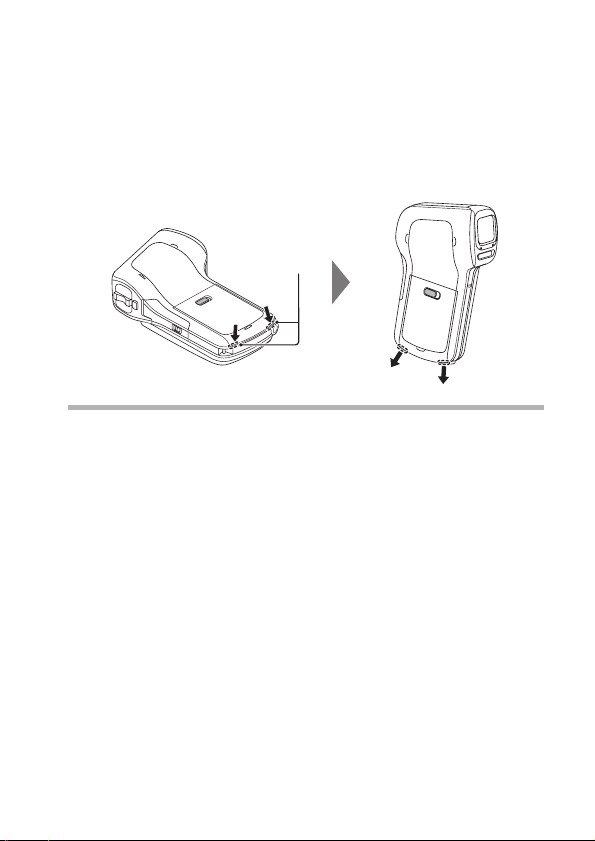

kAbout the water draining design
This camera is designed so that water that entered the gaps around the zoom
switch etc. drains out. For this reason, bubbles may appear when the camera
is immersed in water, but this is not a malfunction.
<Draining water from the camera>
iDrainage holes are found at two points on the bottom of the camera. Hold
the camera vertically, as shown, to drain off the water.
When draining, attach the hand strap to the camera and secure the hand
strap to your wrist to prevent the camera from dropping.
HINT
iUse a soft dry cloth to wipe water and dirt from the camera.
iAfter use at the seaside or underwater, make sure that the battery cover
and terminal cover are securely closed, and soak the camera in a shallow
container filled with fresh water for about 10 minutes.
iIf the zoom switch does not operate smoothly, it may be due to the
adhesion of foreign matter. Using the camera in this condition may cause a
malfunction such as locking up, so wash off any foreign objects by soaking
the camera in fresh water and rinsing it. After cleaning, check that the
zoom switch operates smoothly.
iAfter soaking or washing the camera, wipe the water from it with a soft dry
cloth and dry it in a well ventilated shaded spot.
iAfter soaking the camera in water, place it on a dry cloth and leave it to dry
for a while, and check to make sure that the water has drained from it.
iDo not use hot air from a hairdryer or the like to dry the camera. The
waterproof capability will deteriorate due to deformation.
iDo not use chemicals such as benzine, paint thinner, alcohol or cleanser;
do not use soap or detergents.
Drainage
holes

18 VQT3P46
After using in water
After using the camera in water, wash it with fresh water and dry it completely .
1 Turn off the camera, and close the battery cover and terminal cover
securely.
2 Wash the camera with fresh water.
h
Fill a shallow basin with fresh water, and immerse the closed camera for
about 10 minutes. Rotate the monitor unit several times to clean it
completely.
3 Dry the camera.
h
Use a dry cloth to wipe off any drops adhering to the camera, and leave
it to dry completely in a well-ventilated place away from direct sunlight.
h Do not use a hair dryer or the like to dry the camera. Exposing the
camera to high temperatures may cause the camera and/or waterproof
seal to become deformed.
h If there is salt, for example, on the unit,
the hinge portion of the battery cover
or terminal cover may become white.
Wipe the affected area with a cotton
swab moistened with water until the
white deposit is removed. After wiping,
use the supplied brush to lightly brush
the area.
h If moisture adheres to the microphone
or speaker, the volume may decrease
and it may become difficult to hear the
audio. Place the camera so that the microphone and speaker are facing
downward to remove the water, then wipe away the moisture. Allow the
camera to dry for a while before using it again.
h Do not insert any pointed object in the microphone or speaker holes.
(Doing so may damage the internal waterproof sheet and impair the
waterproof functionality.)
HINT
iThe sound cannot be recorded clearly when there is water inside the
microphone. Wipe off all droplets from the camera.
About the handstrap
iWash the handstrap in fresh water after detaching it from the camera.
iAfter washing, leave it to dry in a place away from direct sunlight.
Hinge part

VQT3P46 19
CHECKING THE INCLUDED ACCESSORIES
Check the accessories before using this unit.
Product numbers correct as of February, 2011.
These may be subject to change.
Battery pack
VW-VBX070
AC adaptor
1(GC) VSK0752
Hong Kong Special Administrative
Region of China and Saudi Arabia
2(GA) VSK0751
Areas Other than Hong Kong Special
Administrative Region of China, Saudi
Arabia
3(GN) VSK0753
Australia and New Zealand
USB cable
VFA0544
AV cable
VFA0543
CD-ROM
Software
Brush
VYC1064
CD-ROM
Operating Instructions
VFF0815
Handstrap
*To prevent the camera from dropping, be
sure to attach the handstrap (see page 56 in
the Operating Instructions (PDF format)).
VFC4703
iPlease dispose of packing materials properly.
iKeep the battery pack and the brush out of reach of children to prevent
swallowing.
123

20 VQT3P46
ABOUT THE CARD
Media cards that can be used with this camera
(as of February 2011)
Use SD cards conforming to Class 4 or higher of the SD Speed Class Rating*
for video recording.
* The SD Speed class Rating is the speed standard for successive writes.
See the card label to confirm the rating.
(Example)
This camera is compatible with SDXC devices (SD Memory Card/SDHC
Memory Card/SDXC Memory Card compatible devices). If using an
SDHC memory card/SDXC memory card in different device, please
confirm that it is compatible with the respective memory card.
Card type Capacity Video recording Photo
shooting
SD Memory
Card
8 MB/16 MB/
32 MB/64 MB/
128 MB/256 MB
Operation is not
guaranteed.
Operation
is not
guaranteed.
512 MB/
1 GB/ 2 GB
Can be used. Can be used.
SDHC Memory
Card
4 GB/6 GB/
8 GB/12 GB/
16 GB/
24 GB/32 GB
SDXC Memory
Card
48 GB/64 GB
Please confirm which of our SD Memory Cards/SDHC Memory Cards/
SDXC Memory Cards can be used with this product by visiting the
support web site at the address below.
http://panasonic.jp/support/global/cs/e_cam
(This website is in English only.)
