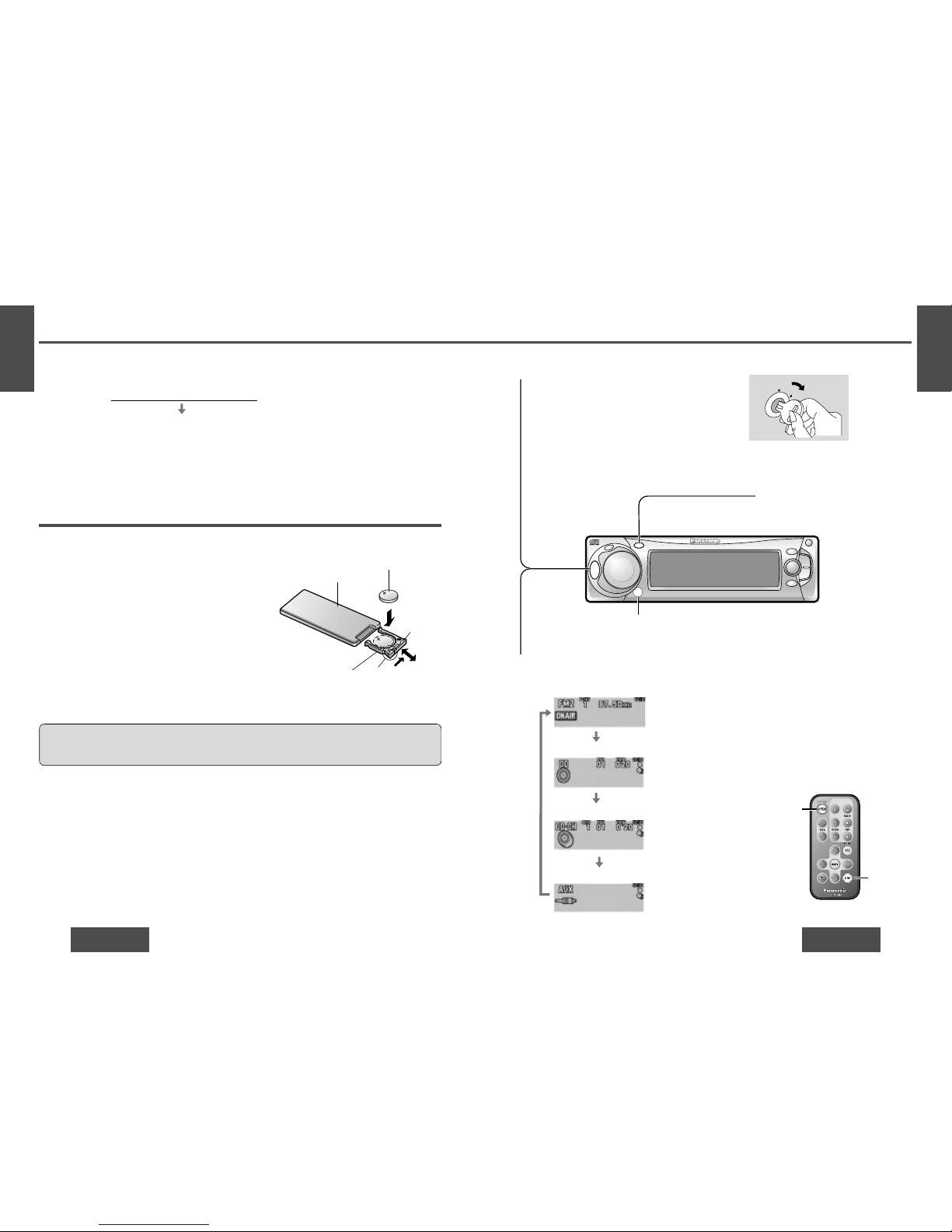

Before Reading these Instructions
You can operate this unit by pressing buttons on the main unit and the remote control unit.
∫These instructions describe buttons that are concerned with operations as follows.
Example: Press [P·SET "]or [P·SET #]/["]or [#].
∫Some operations can be activated by pressing buttons only on main unit or remote control unit.
Those cases are described in the instructions.
Example: Press [OPEN] on the main unit.
Battery Installation
1Remove the battery holder.
Pull the battery holder by the position B while pushing
position A in the direction indicated by the arrow.
2Install the battery on the battery holder.
Set a new battery properly with its “i” side facing up
as shown in the figure.
3Insert the battery holder.
Push the battery holder back into its original position.
Battery Notes
Remove and dispose of an old battery immediately.
Battery Information:
≥Battery type: Panasonic lithium battery (CR2025) (included)
≥Battery life: Approximately 6 months with normal use (at room temperature)
≥Do not disassemble or short the battery. Do not throw a battery into a fire.
≥Keep batteries away from children to avoid the risk of accidents.
≥Be careful to observe proper local disposal rules when you dispose of batteries.
Caution:
≥Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
[buttons on the main unit]/[remote control unit]
Point the remote control unit at the main unit’s sensor.
Remote Control Unit Preparation
Lithium battery
(included)
Back side
Position B
Position ABattery holder
Note:
≥When the power is switched on for the
first time, a demonstration message ap-
pears on the display.
To cancel this display, press [DISP] (dis-
play).
ACCON
[SOURCE]
(POWER)
[DISP]
(Display)
Power
Turn the key in the ignition until the accessory in-
dicator lights.
ON: Press [SRC] (PWR)/[SOURCE] (POWER).
OFF:Press and hold [SRC] (PWR)/[SOURCE]
(POWER) again for more than 1 second.
≥After turning off the ignition key, a security
message is displayed, and the panel removable
alarm that reminds you to take the panel is acti-
vated.
(When security function is set to on ➡page 28)
1
Source
Press [SRC] (SOURCE)/[SOURCE] to change the source.
2
Radio
CD player
CD changer control
AUX-IN setting
(When a CD is in the player.)
(When a CD changer is con-
nected and magazine is in the
changer.) (➡page 20)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOT MATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
Remote control signal sensor

E
N
G
L
I
S
H
4
CQ-DF602W 13
E
N
G
L
I
S
H
3
CQ-DF602W
12
General (Continued)
Mute/Attenuation
ON: Press [MUTE].
OFF: Press again.
Setting range:
0 to 40
Open/Close the Front Panel
OPEN: Press [OPEN] on the front panel.
CLOSE: Raise the panel by hand.
: No sound.
Caution:
≥To avoid damaging the front panel, do not push it down or place objects on it while it is open.
≥Do not pitch your finger or hand in the front panel.
≥Do not insert foreign matter into the disc slot.
Note:
≥The sound level for each source is stored in
memory.
(There is one volume setting for AM radio band
and one volume setting for FM radio band.)
: Decrease the volume to 1/10.
Close
Decreasing volume range depends on setting.
(➡page 28)
Display Change
When Power is ON
Press [DISP] (display).
Press and hold [DISP] (display) for more than 2 seconds.
≥The audio indicator is displayed and returns to the previous display.
≥When the indicator lights, the audio function (S·HDB/SUB·W) is now
activated.
Press [DISP] (display) again to cancel.
Display and light off (when it is turned on.)
If you press a button, the light is turned on, the mode display appears
for 5 seconds, and the light is turned off again.
When Power is OFF
Press [DISP] (display).
Mode display
Mode and spectrum analyzer display
Mode and clock display
Clock display
Display and light off
Spectrum Analyzer (S·A) display
If you press a button, the mode and spectrum analyzer display
appear for 5 seconds.
Note:
≥Set the Spectrum Analyzer (S·A) display pattern in a separate procedure. (➡page 26)
≥: Displays before adjusting the clock. (➡page 28)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOT MATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
[VOL "]
[VOL #]
(Volume)
[MUTE] [DISP]
(Display)
PUSH
MENU
VOLUME
Volume
On the main unit:
Turn [VOLUME] dial
Clockwise: Up
Counterclockwise: Down
On the remote control unit:
[VOL "]: Up
[VOL #]: Down
Down Up

E
N
G
L
I
S
H
6
CQ-DF602W 15
E
N
G
L
I
S
H
5
CQ-DF602W
14
Radio
Band
Press [BAND] to change the band.
2
Radio Mode
Press [SRC] (SOURCE)/[SOURCE] to change to
the radio mode.
1
Tuning
[TUNE $]/[$]: Up
[TUNE %]/[%]: Down
Press and hold [TUNE $]or [TUNE %]/[$]or
[%] for more than 0.5 seconds, then release.
Seeking will start.
3
[SOURCE]
["] [#]
(Preset station/
select)
[%] [$] (Tune)
[1] to [6]
(Preset station)
[BAND]
(Auto preset memory)
FM1 FM2
FM3AM
Radio mode display
FM stereo indicator
One-Touch Selection of a Preset Station
Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.
Manual Preset
Memory
Manually save a station in
the preset memory.
Entering numbers directly on the remote control unit
1Select a band and frequency (step 1, 2and 3on the previous
page).
2Press and hold [1] to [6] for more than 2 seconds to memorize.
Auto Preset
Memory (APM)
Automatically save rela-
tively strong stations in
the preset memory.
1Select a band (steps 1and 2 on
the previous page).
2Press and hold [BAND] (APM) for
more than 2 seconds.
Note:
≥Existing saved stations are overwritten with new stations after following this procedure.
Preset Station
Calling
1Select a band (steps 1and 2on the previous page).
2Press [P·SET "]or [P·SET #]/["]or [#]to select the preset
number for tuning in the preset station.
(Press [1] to [6] on the remote control unit.)
Note:
≥Frequency setting can be performed even after selecting a preset number.
1Select a band and frequency (steps 1, 2and 3on the previous
page).
2Press and hold [P·SET "]or [P·SET #]/["]or [#]for more than
2 seconds until the preset number blinks.
3Press [P·SET "]or [P·SET #]/["]or [#]to select a preset num-
ber (1j6).
4Press and hold [P·SET "]or [P·SET #]/["]or [#]for more than
2 seconds to memorize.
Scanning:
≥The display blinks once, and a re-
ceiving station is saved in the
memory. Preset number
≥The 6 strongest available stations will be automatically saved in the mem-
ory under preset number 1to 6.
≥Once set, the preset stations are sequentially scanned for 5 seconds
each. (Scanning)
≥Press [P·SET "]or [P·SET #]/["]or [#]for the broadcast you want
to listen to.
(Press [1] to [6] on the remote control unit.)
Caution:
≥To ensure safety, never attempt to preset sta-
tions while you are driving.
[P·SET "] [P·SET #]
(Preset station/select)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOT MATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
Note:
≥When pressing [MENU] in radio mode,
the following display appears. This is
because radio mode does not have any
menu settings.

E
N
G
L
I
S
H
8
CQ-DF602W 17
E
N
G
L
I
S
H
7
CQ-DF602W
16
CD Player
Note:
≥Loading a disc when the power is off allows the
power to be turned on.
Track Selection
[TRACK 5]/[$]: Advance to the next track.
[TRACK 6]/[%]: Back to the beginning of the
current track.
Back to the previous track.
(Press twice.)
Open the front panel.
Press [OPEN] on the front panel.
1
Insert the disc.
Playback will start automatically after the unit
recognized the loaded disc as an ordinary
music CD. (When a CD-R or CD-RW which has
CD-DA formatted data as the same as an ordi-
nary music CD is loaded, this unit recognizes it
as an ordinary music CD.)
Close the front panel manually.
2
CD Player Mode
(When CD is in the player.)
Press [SRC] (SOURCE)/[SOURCE] to change to CD
player mode.
Playback will start automatically.
Listening to a CD
Disc Insert and Playback
Stop and Disc Eject
1Press [OPEN] on the front panel.
2Press [<] (eject) to stop CD play and eject the
disc.
(Eject)
<
Label side
Close
CD player mode display
≥Do not insert a disc when this indicator
lights.
≥Lights when the disc is loaded/played.
Scan, random and repeat indicator
Track Search
Press and hold.
[TRACK 5]/[$]: Fast forward
[TRACK 6]/[%]: Fast backward
Release to resume the regular play.
Note:
≥Ejecting the disc when the unit is in the CD player
mode allows the power to be turned off.
Track number Track playing time
Pause
Press [BAND] ([ [ /1).
Press [BAND] ([ [ /1) again to cancel.
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOT MATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
[SRC] (SOURCE)
SOURCE
MOSFET 50W X 4
[SOURCE]
[%] [$]
(Track)
[DISP]
(Display)
[BAND]
(Pause)
Caution:
≥Only 12 cm CD, CD-DA data recorded CD-R and CD-RW discs are available for this unit.
≥This unit does not support CD text display.
≥This unit does not support MP3 disc playback.
≥Refer to page 35 about notes on CD-Rs/RWs.
≥To avoid damaging the front panel, do not push it down or place objects on it while it is open.
≥Do not use irregular shaped discs.
≥Do not use discs that have a seal or label attached.
≥Do not insert foreign matter into the disc slot.

E
N
G
L
I
S
H
10
CQ-DF602W 19
E
N
G
L
I
S
H
9
CQ-DF602W
18
CD Player (Continued)
Menu Setting on CD Player Mode
Random Play
Default: OFF
Repeat Play
Default: OFF
Press [BAND] (SET) to change setting.
12 3Menu Submenu Setting
Scan Play
Default: SCAN OFF
Press [P·SET "]or
[P·SET #]/["]or [#]to
select .
∫ REP
: All the available tracks plays in a random se-
quence.
: Cancel
OFF
ON
Press [BAND] (SET) to change setting.
: Repeat the current track.
: Cancel
OFF
ON
Direct setting on the remote con-
trol unit when the menu is not
displayed
Press [4] (RAND) to change setting.
Press [6] (REP) to change setting.
Note:
≥Operations except setting should be performed after
returning to the mode display.
≥Press [MENU], [DISP] (display) to return to the reg-
ular mode.
Only for the remote control unit
Press [5] (SCAN) to change setting.
Press [MENU]/[SEL] (MENU)
during CD playing to display
“CD”tab.
: The first 10 seconds of each track
plays in sequence.
: Cancel
Press [P·SET "]or
[P·SET #]/["]or [#]to
select .
∫ RAND
When the menu is not displayed
[MENU] [DISP] (Display) [BAND] (Setting)
[P·SET "][P·SET #] (Submenu)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOTMATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
[SEL] (MENU)
["] [#]
(Submenu)
[5] (SCAN) [4] (RAND)
[6] (REP)
[BAND] (Setting)
[DISP] (Display)
PUSH
MENU
VOLUME
(Press.)

E
N
G
L
I
S
H
12
CQ-DF602W 21
[SOURCE]
[%] [$]
(Track)
[DISP]
(Display)
["] [#]
(Disc)
E
N
G
L
I
S
H
11
CQ-DF602W
20
CD Changer Control
CD changer functions are designed for optional Panasonic CD changer unit.
Preparation:
≥Connect the CD changer, and load a magazine (disc).
Note:
≥Loading a magazine when the power is off allows the power to be turned on.
≥Ejecting the magazine when the unit is in the CD changer mode allows the power to be turned off.
≥This unit does not support CD-ROM, CD-R or CD-RW playback through the CD changer. Use the CD changer
to listen to normal music CD exclusively.
≥This unit does not support CD text display of the CD changer control.
≥Pausing does not function in the CD changer mode.
CD Changer Mode
(When a CD changer is connected and a maga-
zine is in the changer.)
Press [SRC] (SOURCE)/[SOURCE] to change to
CD changer mode.
Playback starts automatically.
Note:
≥: Load a magazine
with CDs.
≥: Magazine is ejected
in the CD changer
mode.
1
Disc Selection
[DISC "]/["]: Next disc.
[DISC #]/[#]: Previous disc.
CD changer mode display
2
Scan, random and repeat indicator
≥Lights when the changer (magazine) is
connected.
≥Lights when the disc is played.
Track Selection
[TRACK 5]/[$]: Advance to the next track.
[TRACK 6]/[%]: Back to the beginning of the
current track.
Back to the previous track.
(Press twice.)
3Track Search
Press and hold.
[TRACK 5]/[$]: Fast forward
[TRACK 6]/[%]: Fast backward
Release to resume the regular play.
Disc number Track number
Track playing time
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOT MATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4

E
N
G
L
I
S
H
14
CQ-DF602W 23
E
N
G
L
I
S
H
13
CQ-DF602W
22
CD Changer Control (Continued)
Random Play
Default: OFF
Scan Play
Default: SCAN OFF
Repeat Play
Default: OFF
Press [MENU]/[SEL] (MENU)
during CD changer playing to
display
“CD-CH”tab.
Press [P·SET "]or
[P·SET #]/["]or [#]to
select .
∫ RAND
Disc Random Play
Default: OFF
Press [P·SET "]or
[P·SET #]/["]or [#]to
select .
∫ D·RAND
Press [P·SET "]or
[P·SET #]/["]or [#]to
select .
∫ REP
Disc Scan Play
Default: DISC SCAN OFF
Disc Repeat Play
Default: OFF
Press [P·SET "]or
[P·SET #]/["]or [#]to
select .
∫ D·REP
Press [BAND] (SET) to change setting.
: All the available tracks on all discs in the maga-
zine plays in a random sequence.
: Cancel
OFF
ON
Press [BAND] (SET) to change setting.
: All the available tracks on the current disc plays
in a random sequence.
: Cancel
OFF
ON
Press [5] (SCAN) to change setting.
Press [BAND] (SET) to change setting.
: Repeat the current track.
: Cancel
OFF
ON
Press [BAND] (SET) to change setting.
: Repeat the current disc.
: Cancel
OFF
ON
Press and hold [5] (SCAN) for more than 2 seconds to change
setting.
Direct setting on the remote con-
trol unit when the menu is not dis-
played
Press [4] (RAND) to change setting.
Press and hold [4] (RAND) for more
than 2 seconds to change setting.
Press [6] (REP) to change setting.
Press and hold [6] (REP) for more
than 2 seconds to change setting.
Only for the remote control unit
: Cancel
: Cancel
Menu Setting on CD Changer Mode
2Submenu 3Setting
Note:
≥Operations except setting should be performed after
returning to the mode display.
≥Press [MENU], [DISP] (display) to return to the reg-
ular mode.
1Menu
: The first 10 seconds of each track on all
discs plays in sequence.
: The first 10 seconds of the first track of all
the discs plays in sequence.
When the menu is not displayed
[MENU] [DISP] (Display) [BAND] (Setting)
[P·SET "][P·SET #] (Submenu)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOTMATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
[SEL] (MENU)
["] [#]
(Submenu)
[5] (SCAN) [4] (RAND)
[6] (REP)
[BAND] (Setting)
[DISP] (Display)
PUSH
MENU
VOLUME
(Press.)

E
N
G
L
I
S
H
16
CQ-DF602W 25
E
N
G
L
I
S
H
15
CQ-DF602W
24
Audio Settings [AUDIO]
Note:
≥Operations except setting should be performed after
returning to the mode display.
≥Press [MENU], [DISP] (display) to return to the reg-
ular mode.
BAS
(Bass)
TRE
(Treble)
1Press [TUNE $]or [TUNE %]/[$]or [%]to select “BAS”.
2Press [P·SET "]/["]: Increase the bass.
Press [P·SET #]/[#]: Decreases the bass.
1Press [TUNE $]or [TUNE %]/[$]or [%]to select “TRE”.
2Press [P·SET "]/["]: Increases the treble.
Press [P·SET #]/[#]: Decreases the treble.
BAL
(Balance)
FAD
(Fader)
Press [TUNE $]/[$]: Right enhanced.
Press [TUNE %]/[%]: Left enhanced.
Press [P·SET "]/["]: Front enhanced.
Press [P·SET #]/[#]: Rear enhanced.
Press [P·SET "]or [P·SET #]/["]or [#]to change setting.
Press [TUNE $]/[$]: Increase the level.
Press [TUNE %]/[%]: Decrease the level.
3Setting
Bass and Treble
You can adjust the bass and treble sound.
Default: BAS (Bass) 0
TRE (Treble) 0
Setting range: j12 to i12 (by 2 steps)
Subwoofer Level
You can change the subwoofer volume
level.
Default: 0
Setting range:j∞(Subwoofer mute),
j6 to i6 (by 2 steps)
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select
.
2Press [BAND] (SET)
to set.
∫ S·HDB
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ BAS/TRE
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ BAL/FAD
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ SUB WOOFER
Balance and Fader
You can adjust the sound balance among
the front, rear, right and left speakers.
Default: BAL (Balance) Center
FAD (Fader) Center
Setting range: 15 levels each
12
Audio menu display
Menu Submenu
S·HDB (Super High
Definition Bass)
Especially for rock music, the bass-sound
will be more powerful.
Default: OFF
Setting range: OFF, BOOM, TIGHT
1Press [MENU]/[SEL]
(MENU).
2Press [TUNE $]or
[TUNE %]/[$]or [%]to
select “AUDIO”tab.
: The bass sounds of the speakers are
strongly emphasized.
: The bass sounds of the speakers are mod-
erately emphasized. (The sounds of the sub-
woofer can be heard clearly.)
: S·HDB is non-active.
[MENU] [DISP] (Display) [BAND] (Setting)
[P·SET "][P·SET #] (Submenu/setting)
[TUNE $][TUNE %] (Menu/setting)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOTMATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
Note:
≥When S·HDB is on, the indicator (S·HDB
BOOM or TIGHT) is shown on the audio
indicator display. (➡page 13)
["] [#]
(Submenu/
setting)
[%] [$] (Menu/setting)
[BAND] (Setting)
[DISP] (Display)
PUSH
MENU
VOLUME
Note:
≥When subwoofer level is set “j∞”, the indicator
(SUB·W) is not shown on the audio indicator dis-
play. (➡page 13)
(Press.)

E
N
G
L
I
S
H
18
CQ-DF602W 27
E
N
G
L
I
S
H
17
CQ-DF602W
26

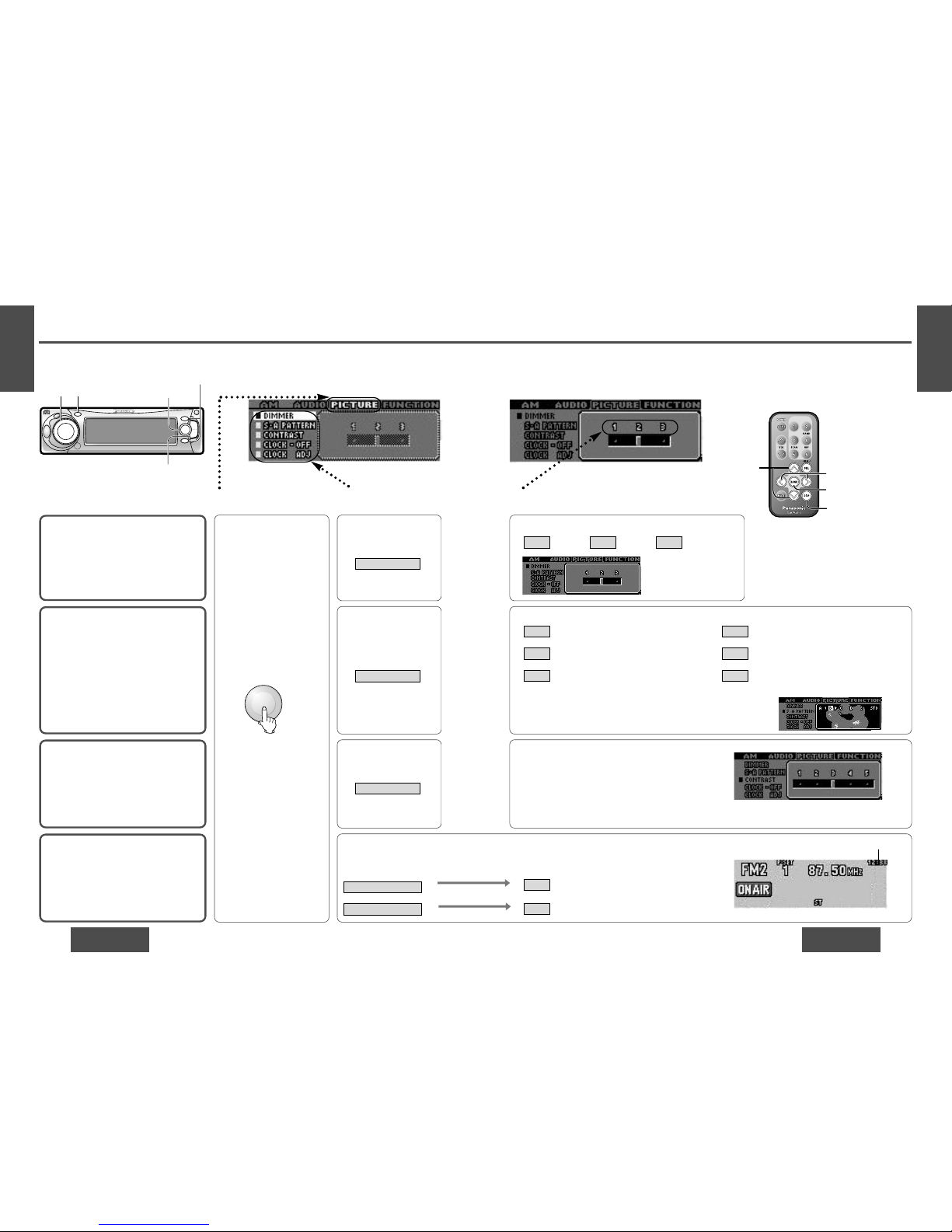

Picture (Display) Settings [PICTURE]
Press [TUNE $]or [TUNE %]/[$]or [%]to change setting.
Press [TUNE $]/[$]: Decreases the contrast.
Press [TUNE %]/[%]: Increases the contrast.
: Display showing a cube that continues to
change.
: Display showing a globe that continues
to change.
: Display showing the image of a soccer.
C
B
A
Note:
≥Change the display to show the Spectrum Analyzer (S·A) display.
(➡page 13)
: Display showing a text pattern.
: Display showing the image of a circuit.
: Standard spectrum analyzer display
(9 bands).
STD
E
D
: Clock display ON
: Clock display OFF
OFF
ON
Note:
≥Operations except setting should be performed after
returning to the mode display.
≥Press [MENU], [DISP] (display) to return to the reg-
ular mode.
Clock display
3Setting
2Press [BAND] (SET) to set.
Spectrum Analyzer (S·A)
Display Pattern
Default: Pattern A
Variety: 6 types
Contrast
Allows you to adjust the display contrasts
for better viewing.
Default: 3
Setting range: 1 to 5
Clock on the Mode Display
Default: ON
(“jj:jj”will appear before
adjusting the clock.)
(Clock adjustment ➡page 28)
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ S·A PATTERN
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ CONTRAST
Picture (display) menu display
1Menu 2Submenu
Dimmer (display brightness
setting range)
Default: 3
Setting range: 1 to 3
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ DIMMER
1Press [P·SET "]or
[P·SET #]/["]or
[#]to select
Press [TUNE $]or [TUNE %]/[$]or [%]to change setting.
: Bright : Medium : Dark
123
[MENU] [DISP] (Display) [BAND] (Setting)
[P·SET "][P·SET #] (Submenu/setting)
[TUNE $][TUNE %] (Menu/setting)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOTMATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
["] [#]
(Submenu/
setting)
[%] [$] (Menu/setting)
[BAND] (Setting)
[DISP] (Display)
PUSH
MENU
VOLUME
∫ CLOCK-ON
∫ CLOCK-OFF
1Press [MENU]/[SEL]
(MENU).
2Press [TUNE $]or
[TUNE %]/[$]or [%]to
select “PICTURE”tab.
(Press.)
Increase Decrease

1Press [P·SET "]or
[P·SET #]/["]or
[#]to select .
2Press [BAND] (SET)
to set.
∫ CLOCK ADJ
E
N
G
L
I
S
H
20
CQ-DF602W 29
E
N
G
L
I
S
H
19
CQ-DF602W
28

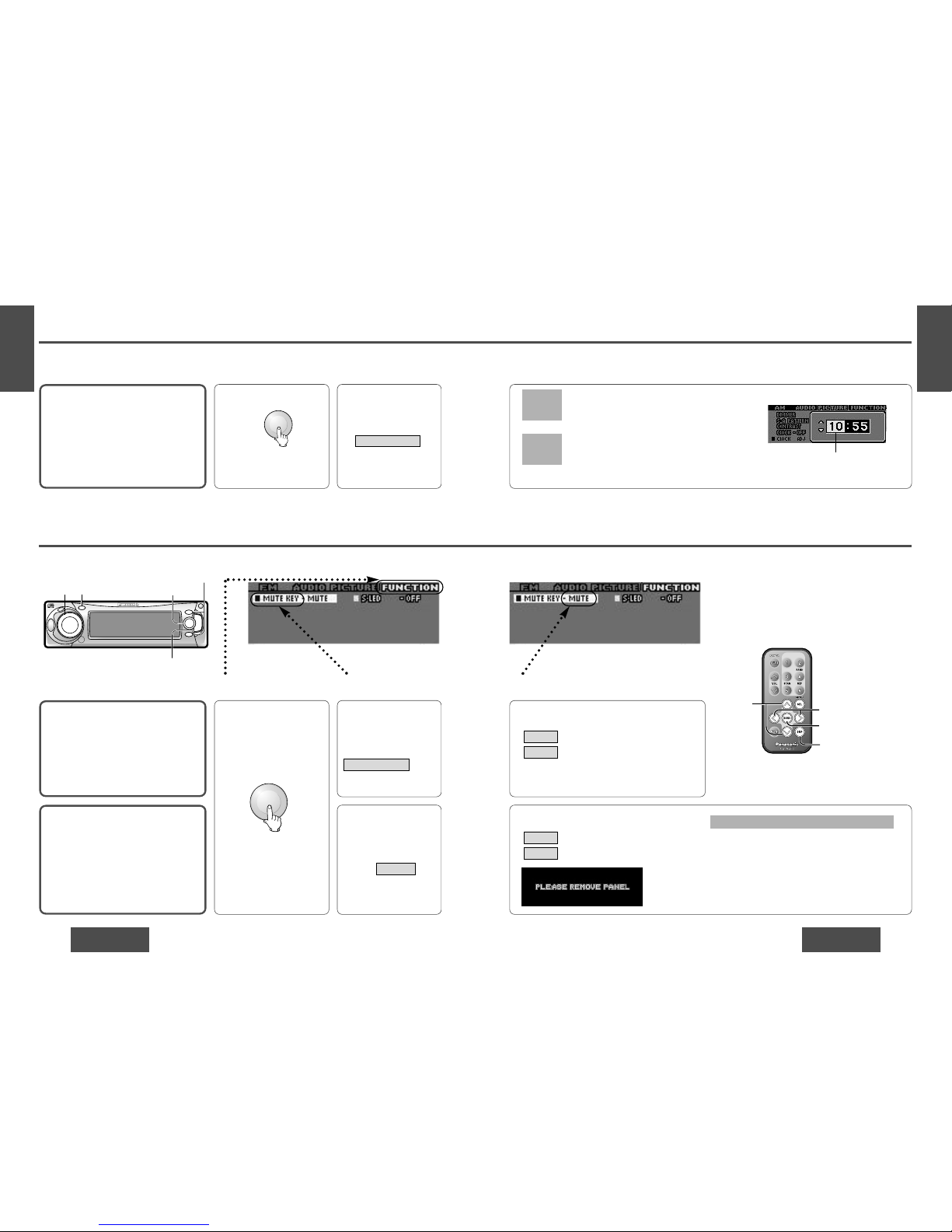

Clock Basics
Press [BAND] (SET) to change setting.
: No sound.
: Decrease the volume to 1/10.
(Attenuation)
ATT
MUTE
Press [BAND] (SET) to change setting.
: Security function is active.
: Security function is non-active.
OFF
ON
Security Function
When the key in the ignition is turned OFF.
≥Security message will be active.
≥The panel removable alarm will be active.
When the removable face plate is removed.
≥The security indicator blinks. (➡page 41)
3Setting
Mute/Attenuation
You can select how much to lower the
volume when [MUTE] is pressed.
Default: MUTE
Security Function
The security indicator blinks when the re-
movable face plate is removed from the
unit.
Default: ON
Press [P·SET "]or
[P·SET #]/["]or [#]
to select .
∫ MUTE KEY
Press [P·SET "]or
[P·SET #]/["]or [#]
to select .
∫ S-LED
Function menu display
1Menu 2Submenu
3Setting1Menu 2Submenu
Clock Adjustment
(24 hour system)
Default: “ADJUST”(not adjusted.)
Function Settings [FUNCTION]
1Press [MENU]/[SEL]
(MENU).
2Press [TUNE $]or
[TUNE %]/[$]or [%]to
select “FUNCTION”tab.
Note:
≥Operations except setting should be performed after
returning to the mode display.
≥Press [MENU], [DISP] (display) to return to the reg-
ular mode.
Hours
set.
Minutes
set.
1[TUNE %]/[%]: The hour display highlights.
2[P·SET "]/["]: Put forward.
[P·SET #]/[#]: Put back.
1[TUNE $]/[$]: The minutes display highlights.
2[P·SET "]/["]: Put forward.
[P·SET #]/[#]: Put back. Highlighted.
[MENU] [DISP] (Display) [BAND] (Setting)
[P·SET "][P·SET #] (Submenu/hour/minute)
[TUNE $][TUNE %] (Menu/setting)
SRC
DISP P.SET
CQ-DF602W
N 5
O 6
W
X
; / 1
OPEN
BAND TUNE
TRACK
PWR
MUTE
PUSH
CD RECEIVER WITH FULL DOTMATRIX DISPLAY
DISC
SET/APM
MENU
VOLUME
SOURCE
MOSFET 50W X 4
["] [#]
(Submenu/
setting)
[%] [$] (Menu/setting)
[BAND] (Setting)
[DISP] (Display)
PUSH
MENU
VOLUME
PUSH
MENU
VOLUME
1Press [MENU]/[SEL]
(MENU).
2Press [TUNE $]or
[TUNE %]/[$]or [%]to
select “PICTURE”tab.
(Press.)
(Press.)
3Press [BAND] (SET) to set.
