Safety Information
CAUTION:
• PLEASE FOLLOW THE LAWS AND REGULATIONS
OF YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE
THIS APPLIANCE TO RAIN, SPLASHING, DRIP-
PING OR MOISTURE.
6503WII01eng06.2.202:33PMページ2

2
3
CQ-VD6503W
English
Upgrade Options
Safety Information................................................2
Upgrade Options ..................................................3
Contents................................................................3
Installation Guide .................................................4
Electrical Connections ........................................8
Contents
Display Unit
CQ-VD6503W
Expansion Module
(CY-EM100N, option)
Hands-Free Kit featuring
Bluetooth®technology
(CY-BT100N, option)
CD Changer
(CX-DP880, option)
DVD Changer
(CX-DH801W, option)
Rear Monitor
iPod
®
TV Tuner
(CY-TUP133W,
CY-TUN133W option)
6503WII01eng06.2.202:33PMページ3

3
4CQ-VD6503W
English
Installation Guide

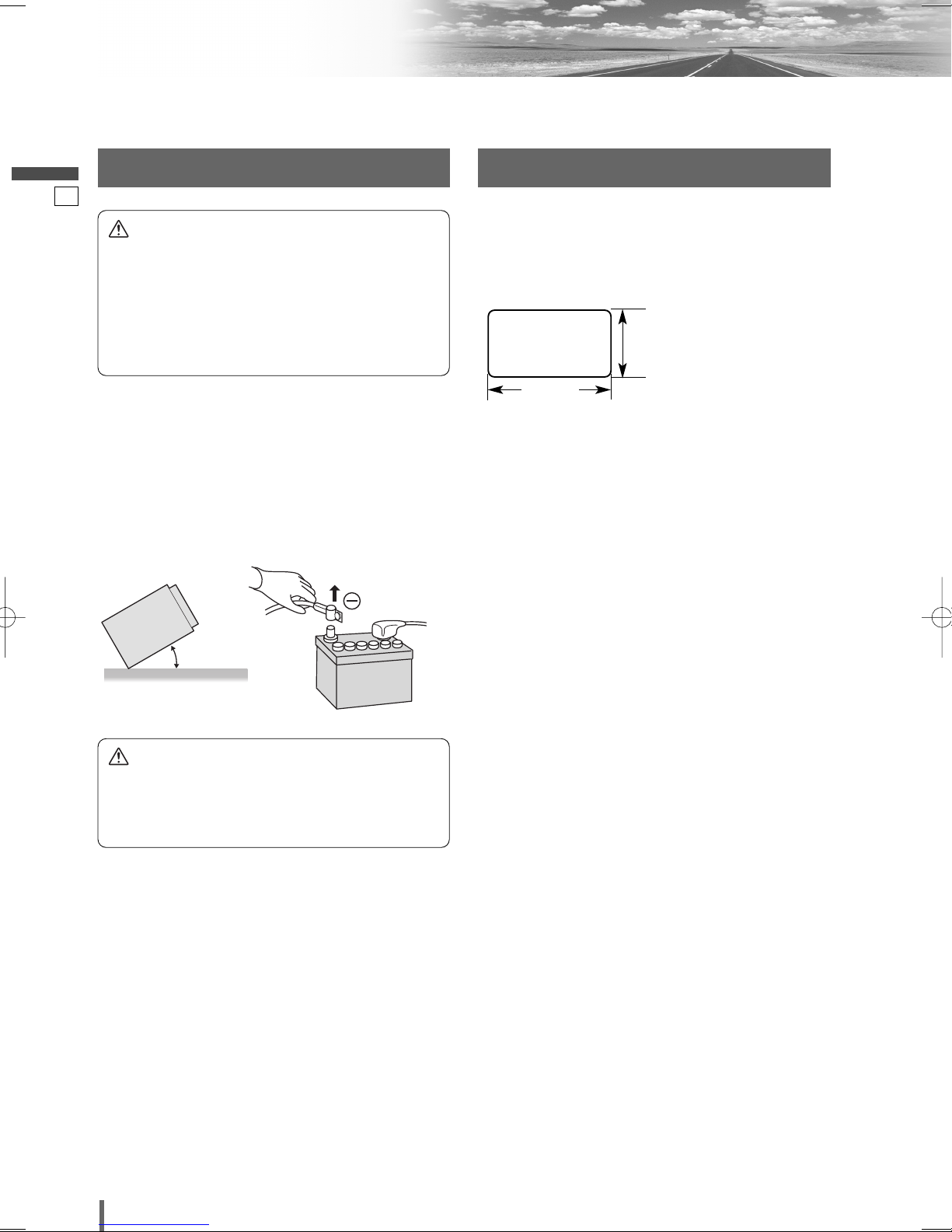

Preparation Dashboard Installation
¡Before installation, check the radio operation with
antenna and speakers.
¡Disconnect the cable from the negative (–) battery ter-
minal (see caution below).
¡The unit should be installed in a horizontal position
with the front end up at a convenient angle, but not
more than 30°.
Installation Opening
The unit can be installed in any dashboard having an
opening as shown below. The dashboard should be 4.5
mm – 6 mm thick in order to be able to support the unit.
Installation Precautions
This product should be installed by a professional
installer, if possible.
In case of difficulty, please consult your nearest author-
ized Panasonic Service Centre.
1. This system is to be used only in a 12 V DC battery
system (car) with negative ground.
2. Follow the electrical connections carefully (a page 8-
16). Failure to do so may result in damage to the unit.
3. Connect the power lead after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the pos-
itive terminal (+) of the battery or fuse block (BAT) ter-
minal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before con-
necting it to this unit.
0 – 30°
182 mm
111.6 mm
Caution
¡Do not disconnect the battery terminals of a car with
trip or navigational computer since all user settings
stored in memory will be lost. Instead take extra
care with installing the unit to prevent shorts.
Caution
¡Please follow the laws and regulations of your
province or country for installation of the unit.
¡When bending the mounting tab of the mounting
collar with a screwdriver, be careful not to injure
your hands and fingers.
¡We strongly recommend you to wear gloves for
installation work to protect yourself from injuries.
6503WII01eng06.2.202:33PMページ4

4
5
CQ-VD6503W
English
<YFX994C134ZA>
Lock Cancel Plate
e2

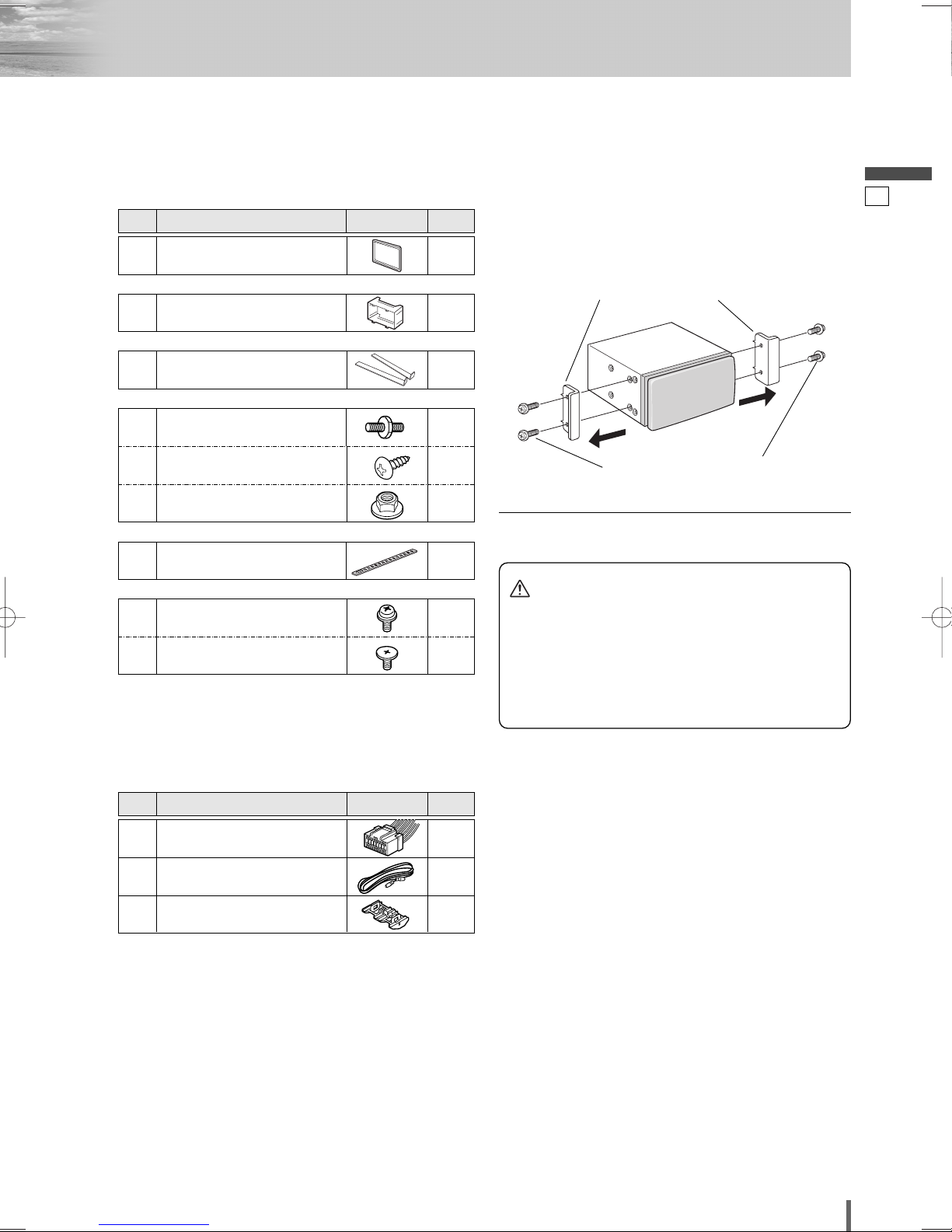

❏Transportation Bracket Removal
Be sure to remove the transportation brackets before
use (installation). Use round head screws (5 mmøx 8
mm) for installation. (apage 7)
Be careful not to lose these screws.
Round Head Screw (5 mmøx 8 mm)
Transportation Bracket
❏Installation Hardware
(For Installation)
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and
service.
¡Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
¡Mounting Collar wis mounted on the main unit at
shipment.
¡Use the supplied screws for installation exclusively. In
case of losing any of them, please order the specific
screw.
Qty.DiagramItemNo.
Trim Plate
<YFC054C088ZA>
q1
Mounting Collar
<YFX214C437ZA>
w1
Rear Support Strap
<YEFG044C002>
<ZZBISVD6503>
u1
Round Head Screw
(5 mmø x 8 mm)
i2
Flat-Head Screw
(5 mmø x 8 mm)
o6
<ZZBISVD7001A>
Mounting Bolt (5 mmø)
r1
Tapping Screw
(5 mmøx 16 mm)
t1
Hex. Nut (5 mmø)
y1
❏Before Installation
Caution
¡Do not press the panel forcefully.
¡Do not scratch the panel with fingernails or any hard
objects.
¡Do not bump the front panel.
aFailure to observe the above may damage or
break the glass on the surface of the touch panel.
❏Installation Hardware
(For Wiring)
Qty.DiagramItemNo.
Power Connector
(ISO connector)
<YEAJ012890>
!0 1
Reverse Extension Cord
!1 1
Clip Connector
!2 1
6503WII01eng06.3.66:32PMページ5

5
6CQ-VD6503W
English
Installation Guide (continued)
❏Mounting Procedures (A) (When using Mounting Collar w)
Mounting and removing the Display Unit
Note:
¡The car model, installation conditions and combination
of the units used may impose some restrictions on
opening and closing the monitor as well as on the
angle and position to which the monitor can be adjust-
ed.
IMPORTANT
When this unit is installed in dashboard, ensure that there
is sufficient air flow around the unit to prevent damage
from overheating. Do not block any ventilation holes on
the unit.
q
w
e
r
t
Insert the Mounting Collar winto the dash-
board, and bend the mounting tabs out with
a screwdriver.
Establish the rear connection of the unit.
After fixing Power Connector !0, fix the rear
of the unit to the car body by either method
(a) or (b).
Insert the unit into Mounting Collar w.
Secure the clamp plate of Mounting Collar w
to the hook.
Insert Trim Plate q.
After installation reconnect the negative (–)
battery terminal.
Snapping point
q
w
e
t
(a) Using the Rear Support Strap u.(b) Using the Rubber Cushion (option)
Fire wall of car
3 mmø
tTapping Screw
(5 mmø x 16 mm)
uRear Support
Strap
rMounting Bolt
(5 mmø)
To the unit
To the unit
rMounting Bolt
(5 mmø)
Rear Support
Bracket
(Provided on
the Car)
Rubber Bushing
(option)
yHex. Nut
(5 mmø)
Method for Fixing the Rear of the Unit
r
6503WII01eng06.2.202:33PMページ6

6
7
CQ-VD6503W
English
❏Mounting Procedures (B)
(When not using Mounting Collar w)
Use the brackets supplied with your car when mounting
this unit. The bracket shape and mounting method vary
with car manufacturers, car types and manufacturing
year. Please consult your nearest dealer or installer.
❏Removing Procedures
qRemove the trim plate q.
wLock release.
qInsert the lock cancel plate euntil you hear a
click.
wPull the unit out.
ePull the unit out with both hands.
q
w
Note: Use pliers to bend the
fingers on the bracket vertically.
Select mounting screws according to the hole
positions and hole shape of the bracket.
iRound Head Screw
(5 mmø x 8 mm)
Note:
Recycle the Round Head Screws that fixed the
transportation brackets for two more
positions. (apage 5)
oFlat-Head Screw
(5 mmø x 8 mm)
6503WII01eng06.2.202:33PMページ7

7
8CQ-VD6503W
English
FUSE 15AFUSE 15AFUSE 15A
8mmMAX
>PBT< JAM- S Aa
AV-OUT
CAMERA-IN
3
5
6
2 41

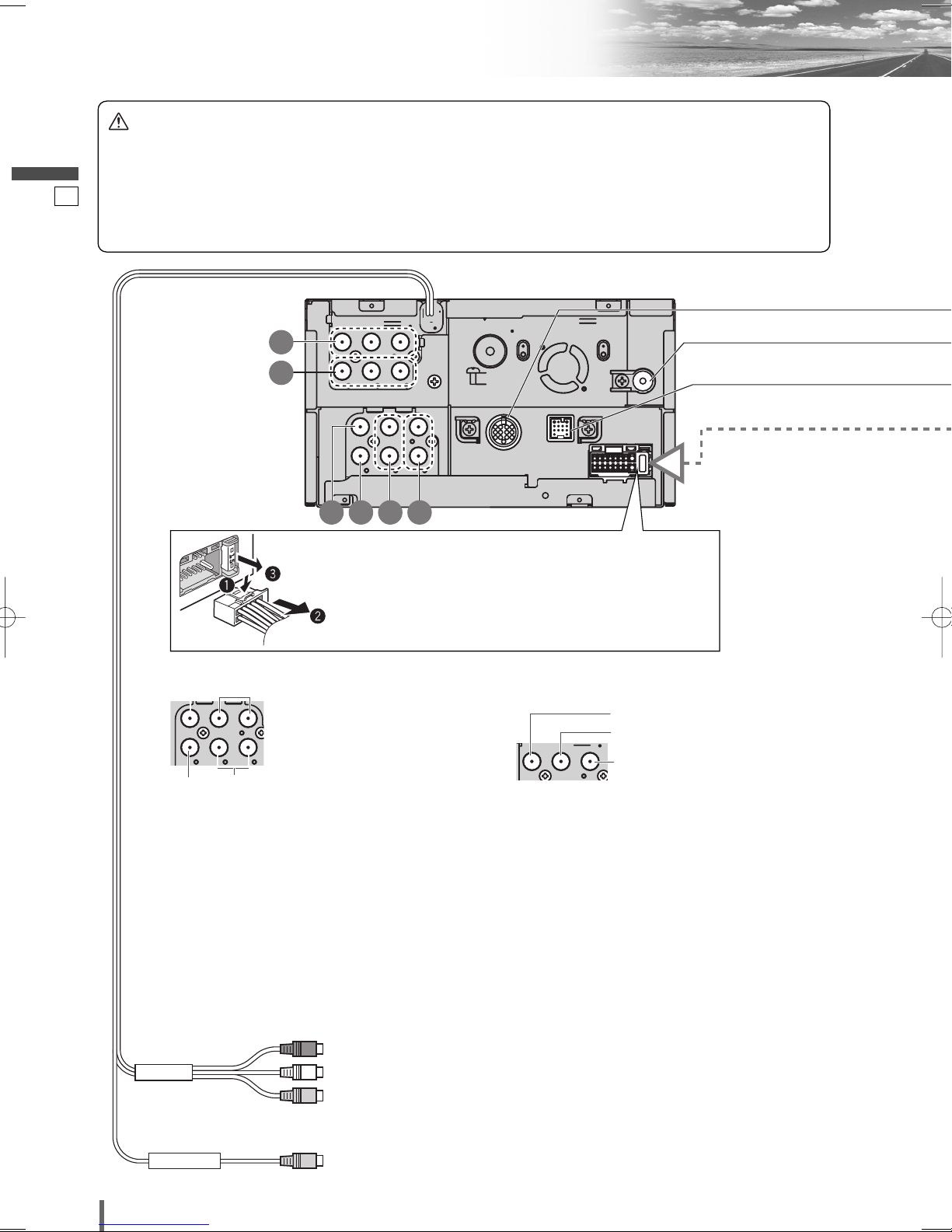

Electrical Connections
Caution
¡This unit is designed for use in a car having a 12 V negative ground battery system.
¡Be sure to insulate any exposed wires from the car chassis. Bundle all cables and keep cable terminals free from
any metal parts.
¡Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery
may clear the memory.
¡Run the cords avoiding the spots where the temperature can be extremely high.

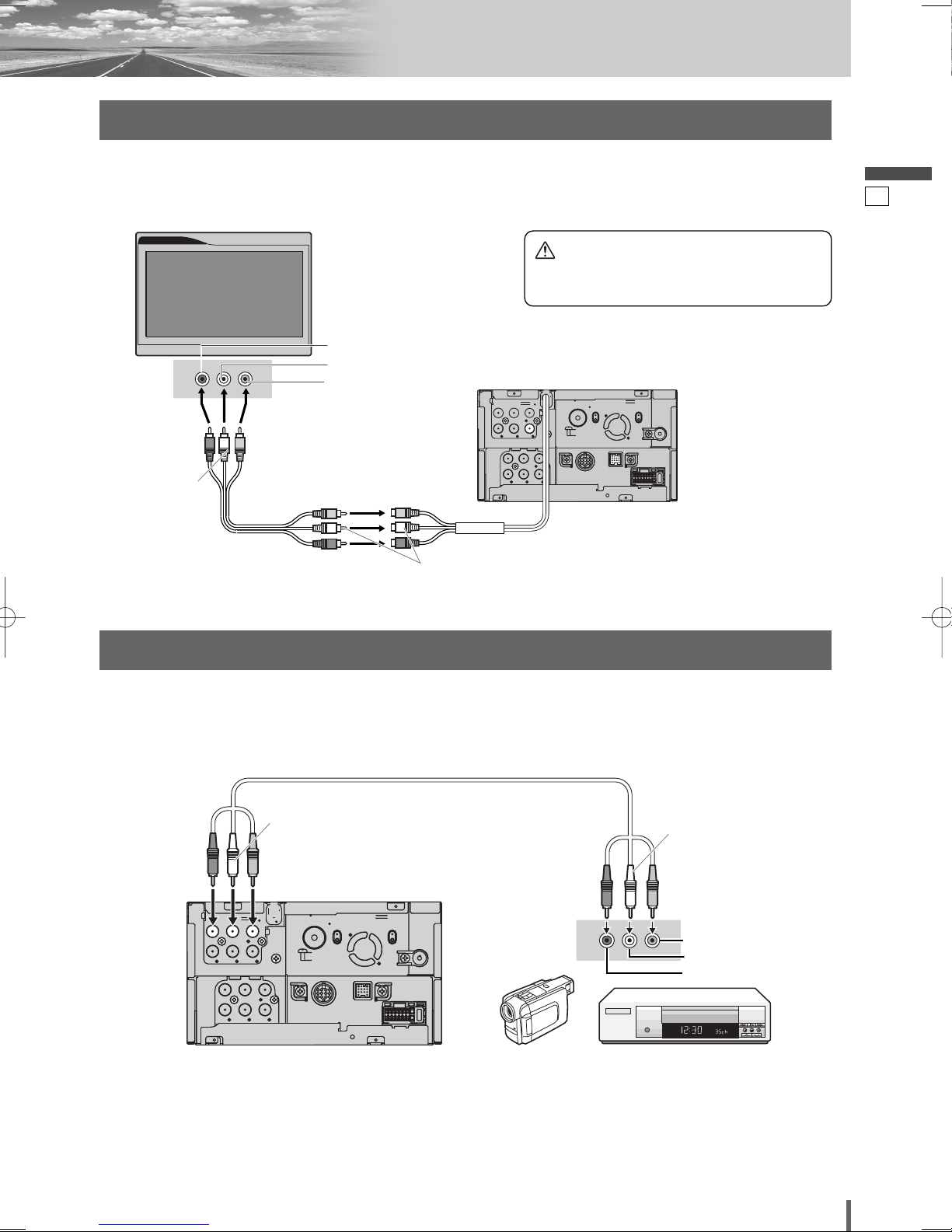

Video Output Terminal (AV-OUT)
Connect the rear monitor. (apage 15)
Pre-Out Connector (front)
To external amplifier.
Pre-Out Connector (rear)
To external amplifier.
Pre-Out Connector (center)
To external amplifier. Video Input Terminal (AV1-IN)
Video Input Terminal (AV2-IN)
Note: When an external device is connected
to the system-up connector, the audio termi-
nals, {(R)(Red), (L)(White)}, of AV2-IN are
disabled.
Connect a VCR, camcorder, other brand’s car
navigation system, etc. (apage 15)
Camera Input Terminal (CAMERA-IN)
Connect a rear view camera. (apage 16)
(R)(Red)
(L)(White)
(Yellow)
(Yellow)
(R)(Red)
(Black) (White)
(Red)
(Black)
(L)(White)
(Yellow)
q
Pre-Out Subwoofer connector (mono)
To external amplifier.
w
e
r
t
y
Fuse (15 A) Refer fuse replacement to your nearest
authorized Panasonic Service Centre. Do not try fuse
replacement by yourself.
CQ-VD6503W
(Rear)
6503WII01eng06.3.66:32PMページ8

8
9
CQ-VD6503W
English
FRONT SP
SIDE BRAKE
REVERSE
ACC
BATTERY 15A
REAR SP
Note:
¡To prevent from damage to the unit, be sure to follow the wiring diagrams below.
¡Be sure to fully plug in the connectors. Secure them with clamps and tapes.
¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or
your dealer if other methods are required.
: This book refers to connections to the Panasonic car navigation system that will come onto the market in the
future. Descriptions regarding the car navigation system are boxed with a dotted line.
Radio Antenna Connector (RADIO ANT IN)
RGB Connector
To the Panasonic Car Navigation System (available in future).
System-up Connector
To external devices equipped with system-up connector.
!0 Power Connector
Motor Antenna Relay Control Lead (Blue)
(To motor antenna) (Max. 100 mA)
This lead is not intended for use with a switch actuated power
antenna.
External Amplifier Control Power Lead (Blue/white stripe)
To an external amplifier.
Note:
¡Use the power control lead of the TV tuner for TV
tuner connection.
¡Connect both the power control lead of the TV tuner
and the amplifier control connector of the external
amplifier when the TV tuner and external amplifier are
connected at the same time.
Navi Mute Lead (Orange)
Connect to the Navi Mute Lead of the Panasonic car
navigation system. (available in future)

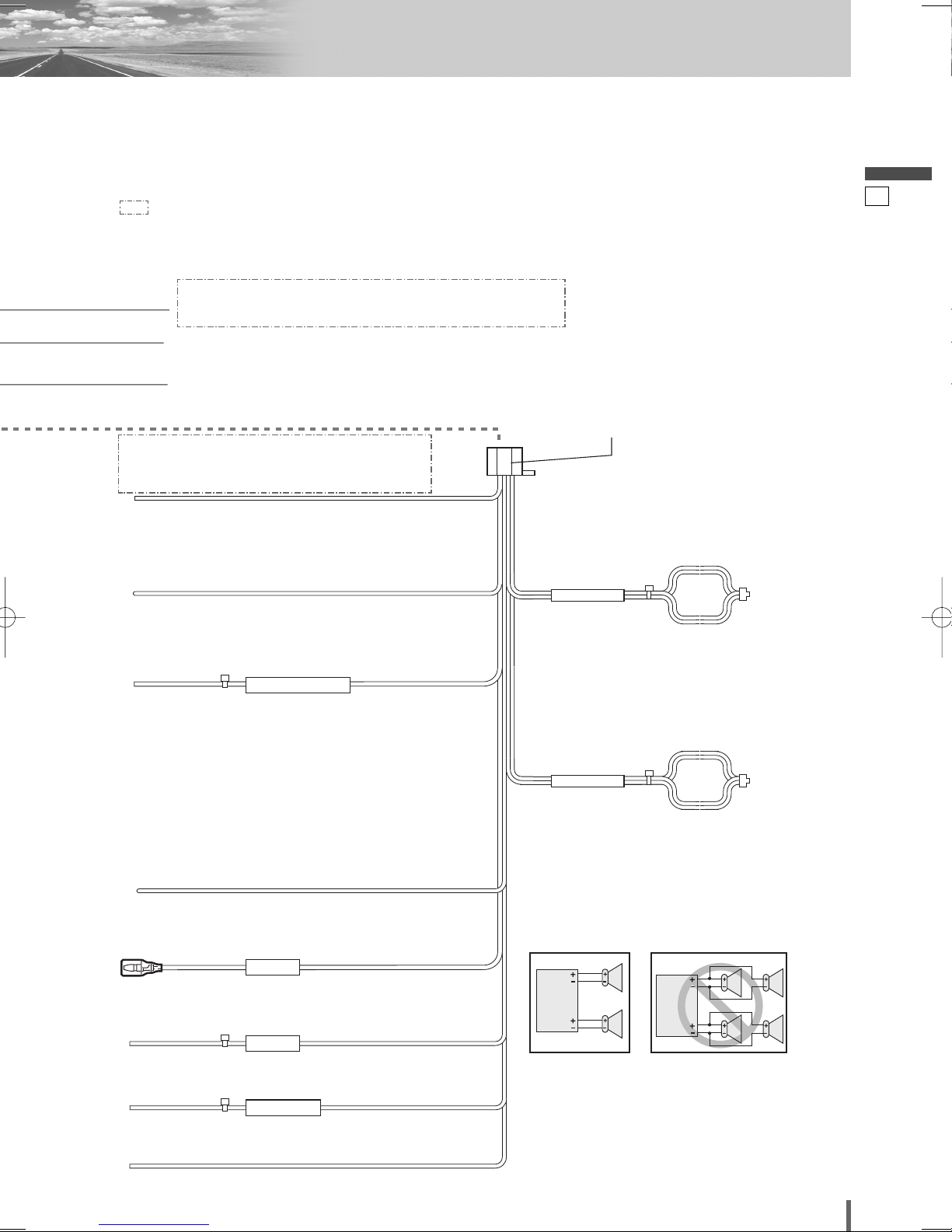

Side Brake (Parking Brake) Connection Lead (Bright green)
Be sure to wire the side brake (parking brake) for safety and pre-
venting accidents. (apage 10)
Reverse Lead (Violet/white stripe)
When connecting the rear view camera, use the reverse
lead. (apage 16)
Battery Lead (Yellow)
To the car battery, continuous +12 V DC.
Power Lead (Red)
To ACC power, +12 V DC.
Front Right + (Gray)
Front Right – (Gray/black stripe)
Front Left + (White)
Front Left – (White/black stripe)
Rear Right + (Violet)
Rear Right – (Violet/black stripe)
Rear Left + (Green)
Rear Left – (Green/black stripe)
Speaker connections
• Do not connect more than one speaker to one set of
speaker leads (except for connecting to a tweeter).
• Do not use a 3-wire type speaker system having a
common earth lead.
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
Note: Use a Reverse Extension Cord !1 if needed.
6503WII01eng06.2.202:33PMページ9

9
10 CQ-VD6503W
English
—
+
SIDE BRAKE
The side brake (parking brake) switch position varies with car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
qAttach a Clip Connector !2 to the end of the side
brake (parking brake) connection lead.
wThe Clip Connector !2 is connected to the power
source side lead of the side brake (parking brake)
lever.
Connecting the Side Brake (Parking Brake) Connection Lead
Hand brake Foot brake
Side Brake (Parking Brake) Connection
Lead (Bright green)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
Side brake (parking brake) switch
Car chassis
Battery
Brake light
!2 Clip Connector
Side Brake (Parking Brake) Connection Lead
(Bright green)
Comes up to this point.
Power source side lead
Caution
¡For safety, be sure to ask your nearest professional installer to do this connection.
Electrical Connections (continued)
6503WII01eng06.2.202:33PMページ10

10
11
CQ-VD6503W
English
Connection with TV Tuner
Note:
¡Refer to the operating instructions for the connected devices, in addition.
FUSE 15AFUSE 15AFUSE 15A
8mmMA X
>PBT< JAM- S Aa
PWR-CONT
TV Tuner
CY-TUP133W/
CY-TUN133W (option)
CQ-VD6503W
(Rear)
(Video)
(Yellow)
System-up Connector
(supplied with CY-TUP133W/
CY-TUN133W)
System-up Connector
!0 Power Connector
Power Control
Lead
RCA Cord
(supplied with CY-TUP133W/CY-TUN133W)
External Amplifier Control Power Lead
Note:
¡Connect both the power control lead of the TV
tuner and the amplifier control connector of the
external amplifier when the TV tuner and external
amplifier are connected at the same time.
Power Connector
(supplied with CY-TUP133W/
CY-TUN133W)
Clip Connector
(option)
6503WII01eng06.3.66:32PMページ11

11
12 CQ-VD6503W
English
Electrical Connections (continued)
CHANGER IN
BATTERY 5 A
ACC
FUSE 15 AFUSE 15 AFUSE 15 A
8mmMAX
>PBT< JAM-S Aa

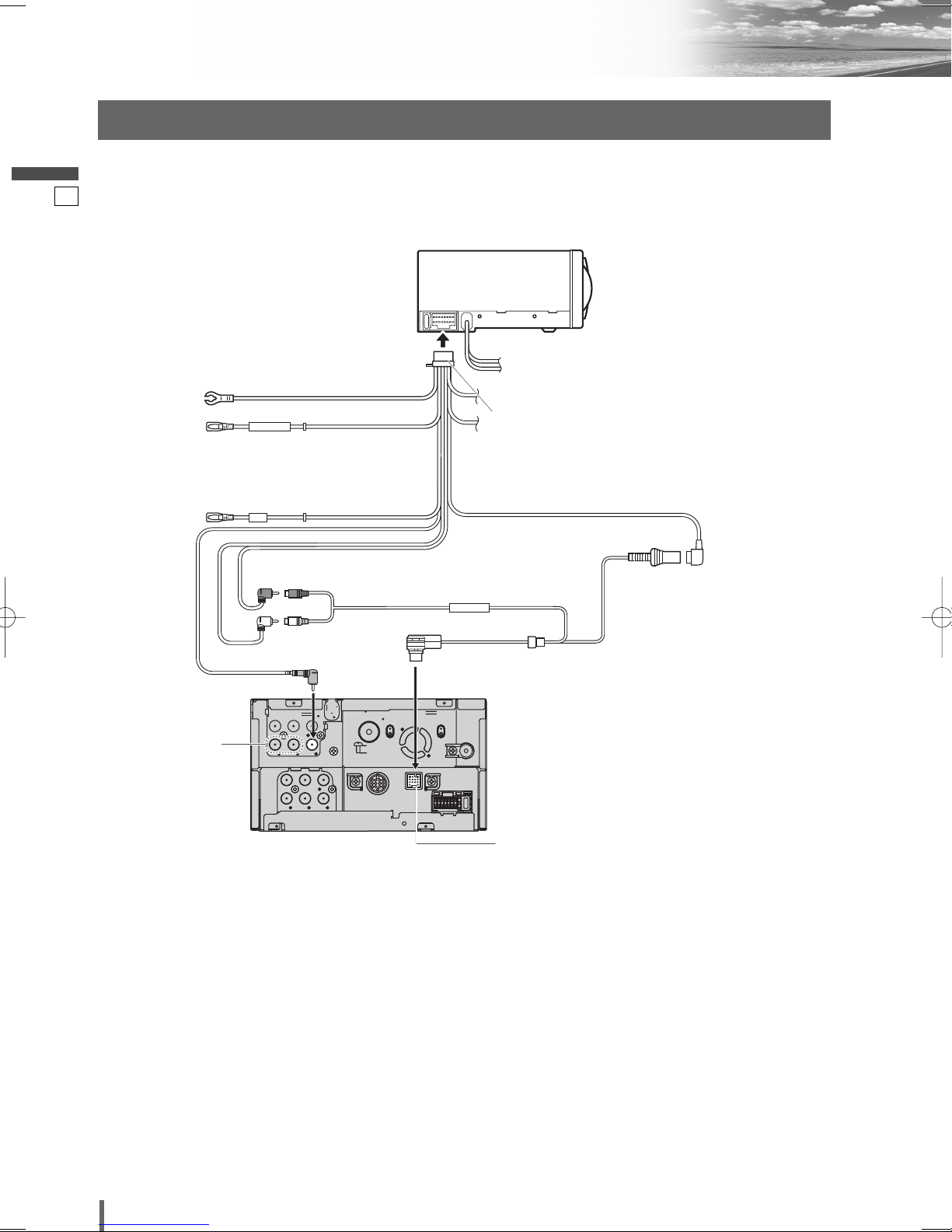

Connection with DVD Changer (CX-DH801W)
CQ-VD6503W
(Rear)
RCA Cord (Video)
(Yellow)
(L) (White)
(R) (Red)
DIN Connector
DIN Cord (Black)
DVD Changer
CX-DH801W (option)
Battery Lead
(Yellow) To the car battery, continuous +12 V DC
Power Lead (Red) (not used)
(not used)
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
Note:
¡Refer to the operating instructions for the connected devices, in addition.
Power Connector
(Supplied with CX-DH801W)
Conversion Cable for DVD/CD Changer
(CA-CC30N, option)
System-up
connector
6503WII01eng06.2.202:33PMページ12

FUSE 15AFUSE 15AFUSE 15A
8mmMAX
>PBT< JAM- S Aa
CHANGER IN
12
13
CQ-VD6503W
English
(L) (White)
(R) (Red)
DIN Connector
Conversion Cable for DVD/CD
Changer (CA-CC30N, option)

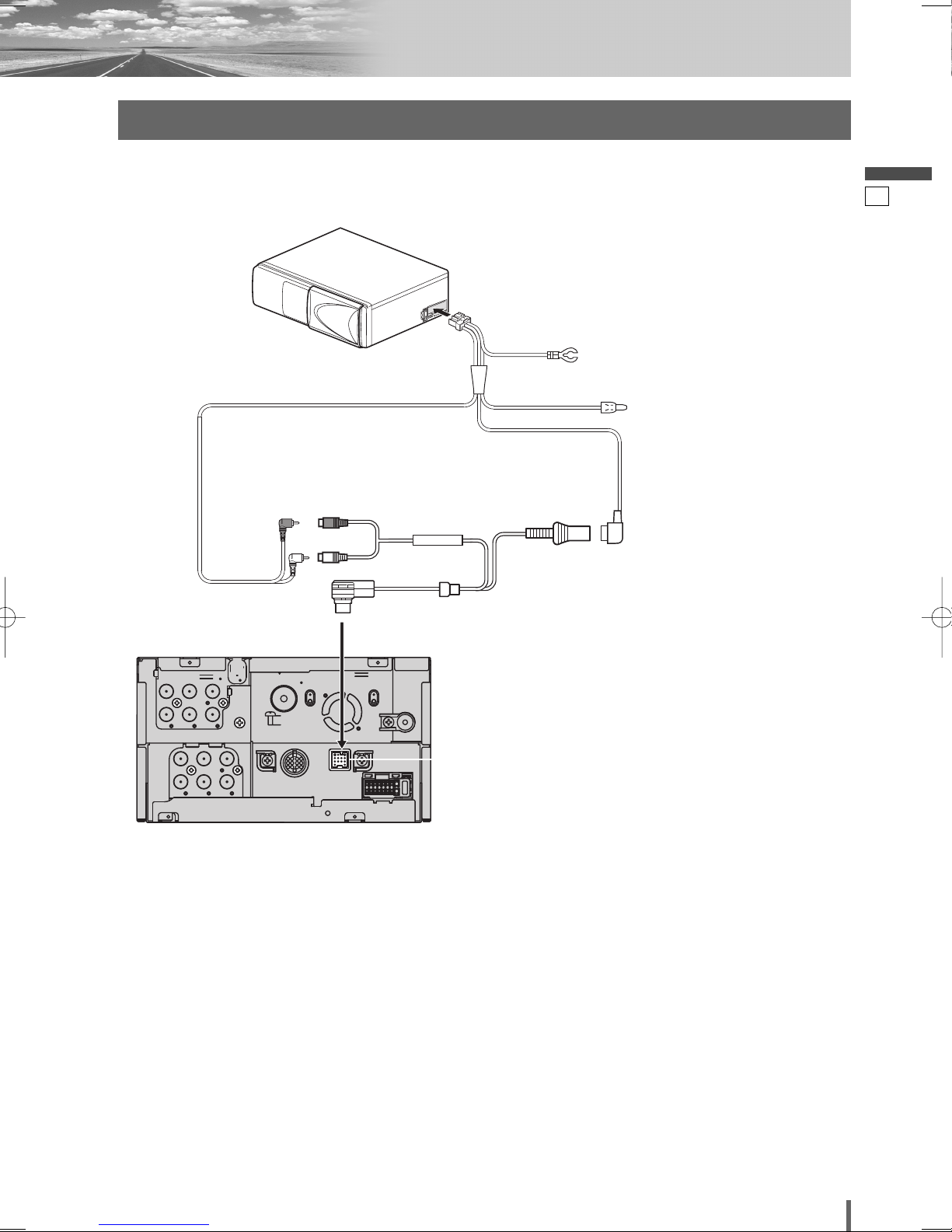

Connection with CD Changer (CX-DP880)
CQ-VD6503W
(Rear)
System-up connector
DIN Cord (Black)
CD Changer
CX-DP880 (option)
Power Connector
(Supplied with CX-DP880)
RCA Cord
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
Ground Lead (Black)
To a clean, bare metallic part of the car
chassis
Note:
¡Refer to the operating instructions for the connected devices, in addition.
6503WII01eng06.2.202:33PMページ13

13
14 CQ-VD6503W
English
Electrical Connections (continued)
CHANGER IN
VIDEO-CNT
FUSE 15AFUSE 15AFUSE 1 5A
8mmMAX
>PBT< JAM-S Aa

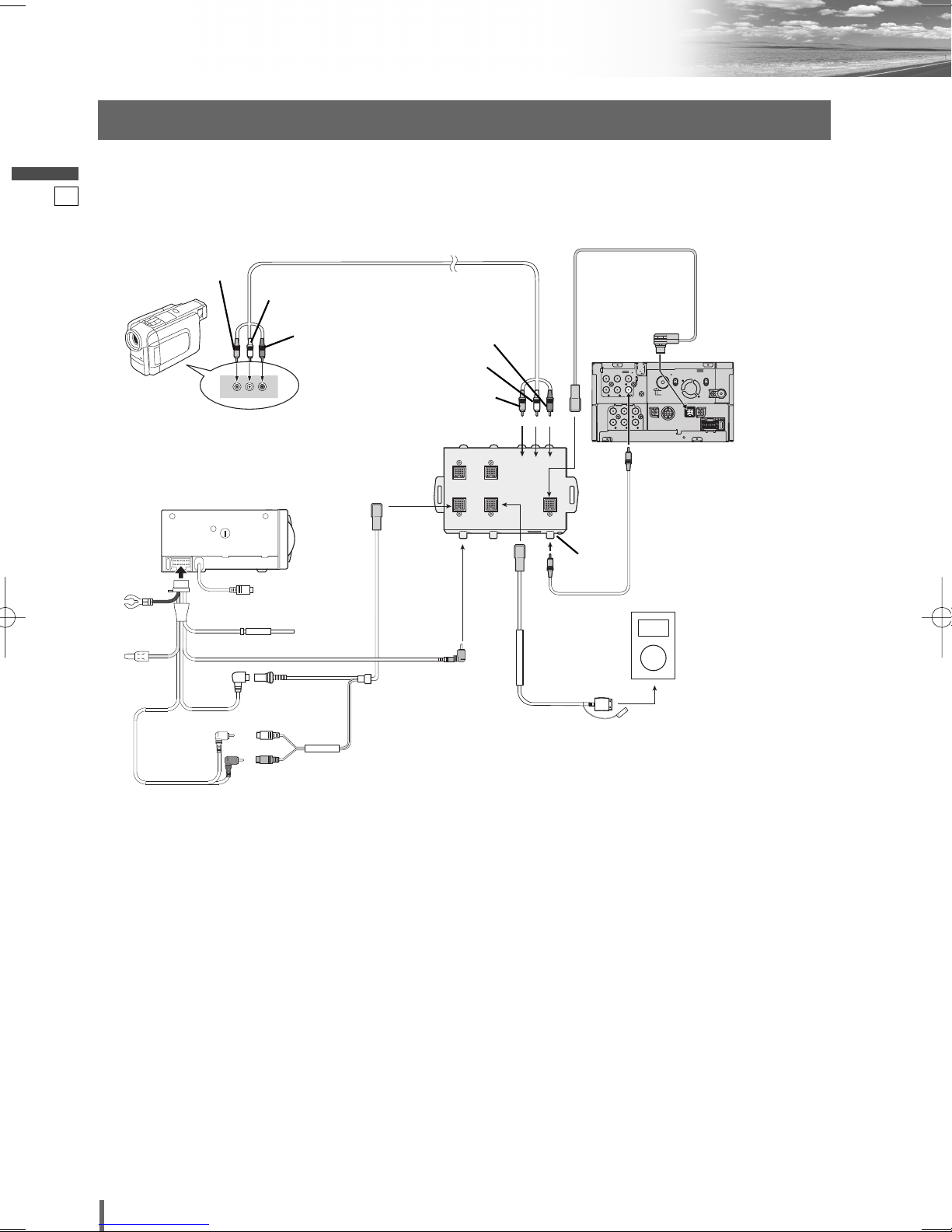

Connection with Expansion Module (CY-EM100N)
CQ-VD6503W
(Rear)
Note:
¡Refer to the operating instructions for the connected devices, in addition.
VIDEO OUT
AUDIO OUT
VIDEO OUT
DVD Changer
CX-DH801W (option)
Expansion Module
CY-EM100N (option)
Conversion Cable
for DVD/CD
Changer (CA-
CC30N, option)
Direct Cable for iPod
(CA-DC300N, option)
(Video) (Yellow)
(Video)
(Yellow)
(Video)
(Yellow)
(L) (White)
(L) (White)
RCA cord
(option)
(R) (Red)
(R) (Red)
(Video) (Yellow)
(L) (White)
(R)
(Red)
Head unit/Expansion Module
Connecting cable
(Supplied with CY-EM100N)
Camcorder
(option)
iPod
System-up
Connector
6503WII01eng06.2.202:33PMページ14

14
15
CQ-VD6503W
English
Connection with Rear Monitor
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
COLOR LCD MONITOR
VM1500
Panasonic
STAND BY (R)
ON (G)
FUSE 15AFUSE 15AFUSE 15A
8mmMAX
>PBT< J AM-S Aa
AV-OUT
CQ-VD6503W
(Rear)
RCA Cord
(option) (R) (Red)
(R) (Red)
(L) (White)
(L) (White) (Video) (Yellow)
(Video) (Yellow)
Example:
Rear Monitor
Video Input
Audio Right
Audio Left
Caution
¡For people sitting in the front seats, please
enjoy only audio during driving.
FUSE 15 AFUSE 15 AFUSE 15A
8mmMAX
>PBT< JAM-S Aa
INTELLIGENT SYSTEM
BS G-CODE
POWER
Connection with VCR or Camcorder
CQ-VD6503W
(Rear)
(R)
(Red)
(L)
(White)
(Video)
(Yellow)
VCR (option)
Camcorder
(option)
(R) (Red)
(L) (White)
(Video) (Yellow)
RCA Cord
(option)
Video Output
Audio Right
Audio Left
Note:
¡Refer to the operating instructions for the connected devices, in addition.
¡Please observe what shapes the connectors of the connecting devices are and where each of them is connected to in
order to establish a proper connection.
Example:
6503WII01eng06.2.202:33PMページ15

15
16 CQ-VD6503W
English
Electrical Connections (continued)
P
N
D
2
L
P
a
n
a
s
o
n
i
c
REVERSE
R
FUSE 15AFUSE 15 AFUSE 15A
8mmMAX
>PBT< J AM-S Aa
CAMERA-IN
Connecting the Reverse Lead
If using an optional rear view camera, the reverse lead must
be connected.
Connect the reverse lead (violet/white stripe) to the positive (+)
lead of the reverse lamp (the lamp with a clear lens that lights
when the transmission gear is shifted into the reverse position).
Note:
¡Connect the reverse lead after cutting the terminal at the end.
¡Use a Reverse Extension Cord !1 if needed.
Connection with Rear View Camera
Rear View Camera (option)
(Video)
(Yellow)
RCA Cord (option)
Rear View Camera
Control Unit (option)
CQ-VD6503W (Rear)
(Video)
(Yellow)
!0 Power Connector
Reverse lamp Clip connector
(option) Battery Car chassis
Transmission gear
!1 Reverse Extension Cord
(Violet/white stripe)
Reverse Lead
(Violet/white stripe)
Camera Input
Camera Input Terminal
(Yellow)
Check the reverse lamp.
Take it out of the back of
the tail lamp mount.
Note:
¡Refer to the operating instructions for the connected devices, in addition.
6503WII01eng06.2.202:33PMページ16

16
17
CQ-VD6503W
English
6503WII01eng06.2.202:33PMページ17
