Panasonic CQ-DFX572N User manual

ORDERNo. ACED020271C8
AUTOMOTIVE CONSUMERELECTRONICS
CQ-DFX572N
MP3 CD Player / Receiver with CD Changer Control
SPECIFICATIONS
Specification*
General
Power Supply DC 12V (11V - 16V),
Test Voltage14.4V
NegativeGround
Current Consumption Less than2.5A(CD mode, 0.5W×
4-Speaker)
MaximumPower Output 50W×4(at 4 )
Power Output 22W×4(DIN45 324, at 4 )
Speaker Impedance 4-8
External Input Impedance 10k (AUX IN)
External Input Sensitivity Max. 2V (AUX IN)
Pre-AMP Output Voltage 2.5V (CD mode)
Pre-AMP Output Impedance 200
Sub-Woofer Output Voltage 2.5V
FM StereoRadio
FrequencyRange 87.5- 108MHz
UsableSensitivity 6dB/ V (S/N 30dB)
StereoSeparation 35dB (at 1kHz)
MWRadio
FrequencyRange 531 - 1,602kHz
1

UsableSensitivity 29 dB/ V (S/N 20dB)
LW Radio
FrequencyRange 153 - 279kHz
UsableSensitivity 34dB/ V (S/N 20dB)
CD Player
Sampling Frequency 8 times over sampling
DAConverter MASH 1bit/4DAC system
ErrorCorrection System Panasonicsuper decoding
algorithm
Pick-UpType Astigma 3-beam
Light Source SemiconductorLaser
Wavelength 780nm
FrequencyResponse 5Hz - 20kHz (±1dB)
Signal toNoise Ratio 90dB
Total HarmonicDistortion 0.01%(1kHz)
Wowand Flutter Belowmeasurablelimits
Channel Separation 70dB
MP3Decoding MPEG1AudioLayer3/ MPEG2
AudioLayer3
Bit Rate (MPEG1AudioLayer3) 32kbps-
256kbps, VBR (VariableBit
Rate)
(MPEG2AudioLayer3) 16kbps-
160kbps, VBR (VariableBit
Rate)
Sampling Frequency (MPEG1AudioLayer3) 32kHz,
44.1kHz, 48kHz
(MPEG2AudioLayer3)
22.05kHz, 24kHz
Dimensions** (W× H × D) 178×50×150mm
Weight** 1.6kg
*Specificationsand thedesign are subject topossible
modification without notice duetoimprovements.
** Dimensionsand Weight shownare approximate.
2002 Matsushita Communication Industrial Co., Ltd. All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
2

1. FEATUERS
-ACD-Rand aCD-RWthat holdCD-DA data can be reproduced.
-ACD-Rand CD-RWthat holdMP3 data can be reproduced.
-RDS(RadioData System)
-Anti-Theft System
2. REPLACEING THE FUSE
Use fuses of the same specifiedrating (15amps). Using different substitutes orfuses with
higherratings, orconnecting the unit directlywithout a fuse, couldcause fire ordamage tothe
unit.
3. MAINTENANCE
Yourproducts is designedand manufacturedtoensure the minimumof maintenance. Use a soft
clothforroutine exteriorcleaning. Neveruse benzine, thinnerorothersolvents.
4. RADIO ALIGNMENT
Donot align the AM/FM package block. Whenthe package block is necessary, it will be supplied
alreadyalignedat the factory.
5. CD DECK ALIGNMENT
This model has no servoalignment points because microcomputercontrols the servocircuit.
6. LASER PRODUCTS
3

7. DIMENSIONS

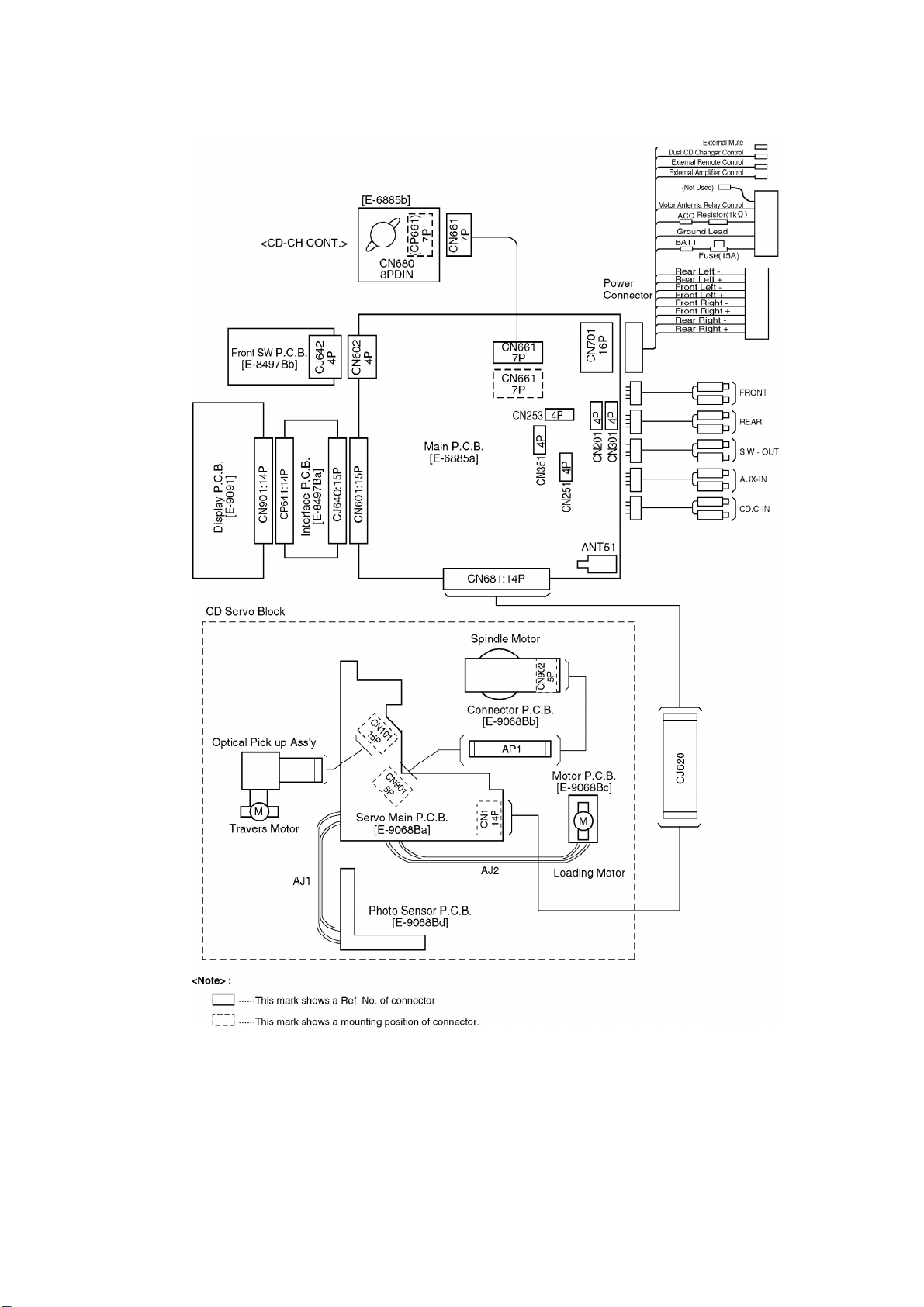

8. WIRING CONNECTION
4

9. TERMINALS DESCRIPTION
9.1. MainBlock
IC601 : C2CBJG000197
5

Pin
/
No.
Port Description I/
OVol.(V)
FMAMCD
1 CH.SENS CD changer1/2
detection I5.25.15.2
2 ST FM stereosignal I 5.25.25.2
3 EJECT EJECT.KYE detection I 5.15.15.1
4 AVSS Ground - 0 0 0
5EXTMUTE TEL/NAVI mute I 5.35.35.3
6 CH 1/2 CD changer1/2 O 5.05.05.0
7 AVREF1 Reference voltage - 5.05.05.0
8 SUB.SO LCD data I 3.33.3 0
9LCD.DI LCD data O 1.21.55.0
10 SUB.SI LCD clock O 1.51.51.5
11 CH.DATA CD changerdata I 0 0 0
12 (NC) - - - - -
13 CH.CLK CD changerclock I 0 0 0
14 CH.REM CD changerremote
control O5.05.05.0
15 <K4> BZ
OUT BEEP output O 0 0 0
16 CD.SO CD data I 2.42.52.3
17 CD.SI CD data O 5.0 0 0
18 CD.SCK CD clock O 5.05.05.0
19 S.W.UP Wake up O 5.05.0 0
20 CD.RST CD Reset O 5.05.05.0
21 AMP.CNT External AMP control O 5.05.05.0
22 ANT.CNT Antenna control O 5.05.0 0
23 S-HDB ON
/OFF (NC) - - - - -
24 SUB W
FREQ
SEL(NC)
- - - - -
25 (NC) - - - - -
26 (NC) - - - - -
27 AMP
MUTE Mute control O 5.05.05.0
28 CD ON CD ON output O 5.05.05.0
29 CD MUTE CD mute detection O 0.3 0 0
30 CD SW2
(NC) - - - - -
31 SPE.A Spectrumanalyzer 4.84.84.8
32 SPE.B Spectrumanalyzer 4.84.84.8
33 VSS1 (Connecting toGround) - 0 0 0
6

Pin
/
No.
Port Description I/
OVol.(V)
FMAMCD
34 SPE.C Spectrumanalyzer 4.84.74.7
35 ILL.CNT ILL control O 0 0 5.0
36 SCL Electronic volume clock O 4.44.44.4
37 SDA Electronic volume data I/
O4.44.44.4
38 S.LED S LED control O 0 0 0
39 EJ. ILL Eject LED control O 5.15.1 0
40 SEL Spectrumanalyzer O 0.50.40.5
41 PLL.DI PLL data O 0 0 0
42 PLL.DO PLL data I 5.25.25.2
43 PLL.CLK PLL clock O 5.05.05.0
44 PLL.CE PLL Control chipenabe O 0 0 0
45 PANEL PANELON/OFF
detection I 0 0 0
46 OP/CL PANELOPEN/CLOSE
detection I5.15.1 0
47 NC - - - - -
48 LCD 5V
CNT +5V powersupply control O5.05.05.0
49 (NC) - - - - -
50 NC - - - - -
51 DIM1 Dimmercontrol 1 O 0 0 0
52 DIM2 Dimmercontrol 2 O 0 0 0
53 DECK V
CONT
(NC)
- - - - -
54 AF.MUTE Audiomute control O 5.05.05.0
55 (NC) - - - - -
56 INV.CNT INV powercontrol O 5.05.0 0
57 MAIN CNT Mainpowercontrol O 4.8 44.8
58 ACC ACC detection I 5.05.05.0
59 RDS
DATA RDS data input I 2.8 0 0
60 RESET Reset input I 5.05.05.0
61 M.W.UP Mainwake up request I 4.94.94.9
62 BATT Batterydetection I 5.05.05.0
63 RDS CLK RDS clock input I 2.5 0 0
64 CH.STRB CD changerstrobe I 0 0 0
65 ROTARY 1 Rotaryencoder1 O 0 0 0
66 ROTARY 2 Rotaryencoder2 O 0 0 0
67 VSS0 Ground - 0 0 0
7

Pin
/
No.
Port Description I/
OVol.(V)
FMAMCD
68 VDD1 +5V powersupply - 5.05.05.0
69 X2 Crystal oscillator - 3.13.13.1
70 X1 Crystal oscillator I 2.42.42.4
71 VPP Vpp - 0 0 0
72 SUB X2 Crystal oscillator - 3.13.13.1
73 SUB X1 Crystal oscillator I 2.42.42.4
74 VDD0 +5V powersupply - 5.05.05.0
75 AVREF Reference voltage - 5.05.05.0
76 SD FM/AM signal meter I 0 0 0
77 INIT.A Initialize set up A I 0 0 0
78 INIT.B Initialize set up B I 0 0 0
79 A.IN Spectrumanalyzer I 0 0 0
80 (NC) - - - - -
Note :
Voltage measuerments are with respect to ground, with avoltmeter
(Internal resistance :10M ohms.)
9.2. DisplayBlock
IC901 : C0HBA0000048
Pin
No. Port Description I/O Volt.
/
(V)
1 - 59 SEG1 -
SEG59 LCD Segment O 3.2
60 -
69 COM10 - COM1 LCD Common O 3.2
70 -
74 KS1 - KS5 KeyData Output O 5.3
75 KS6 (NC) - - -
76 KI1 KeyData Input I 0
77 KI2 KeyData Input I 0
78 KI3 Connecting toGND - 0
79 KI4 Connecting toGND - 0
80 KI5 Connecting toGND - 0
81 P1 LCD Segment O 5.3
82 P2 (NC) - - -
83 P3 (NC) - - -
84 P4 (NC) - - -
85 VDD +5V PowerSupply - 5.3
86 VLCD LCD Control Voltage I 8.3
8

Pin
No. Port Description I/O Volt.
/
(V)
87 VLCD0 LCD Control Voltage 0 6.3
88 VLCD1 LCD Control Voltage 1 4.7
89 VLCD2 LCD Control Voltage 2 3.2
90 VLCD3 LCD Control Voltage 3 1.6
91 VLCD4 LCD Control Voltage 4 I 0
92 VSS Connecting toGND - 0
93 TEST Connecting toGND - 0
94 OSC0 CR Oscillator I 3.0
95 OSC1 CR Oscillator I 0
96 INH Inhibit Input - 5.3
97 DO LCD Data Output O 4.9
98 CE LCD ChipEnable Input I 0
99 CLK LCD Clock Input I 4.9
100 DI LCD Data Input I 0
9.3. CD Servo Block
IC501 : MN101C28LAC2
Pin
/
No.
Port Description I/O Volt.
/
(V)
1 VREF- Reference voltage forADC
(GND) - 0
2 PA0 (Connecting toGND) - 0
3 PA1 Disc-Insensor I 2.9
4 PA2 Feederarm SW I 3.0
5 PA3 Disc-Out sensor I 3.0
6 PA4 ClampSW I 0
7 PA5 InnerSW I 3.3
8 PA6 Disc-Insensor I 1.5
9 PA7 Not used - 3.3
10 VREF+ Reference voltage forADC
(+3.3V) - 3.3
11 VDD Powersupply(+3.3V) - 3.3
12 OSC2 Systemclock (7.37MHz) O 1.6
13 OSC1 Systemclock (7.37MHz) I 1.5
14 VSS Ground - 0
15 XI (Connecting toGND) - 0
16 XO (NC) Noconnection - -
17 MMOD (Connecting toGND) - 0
18 SOM Serial data output O 0.5
19 SIM Serial data input I 0.5
9

Pin
/
No.
Port Description I/O Volt.
/
(V)
20 SCK Shift clock forserial data I 3.0
21 SB01/P03 Noconnection - -
22 SUBC CD-TEXTdata I 0
23 SBCK CD-TEXTclock O 3.3
24 P06 (NC) Noconnection - -
25 RESET Reset input I 3.3
26 MDATA MPU communication data O 1.0
27 MCLK Shift clock forMDATA O 2.5
28 SCK Shift clock forserial data I 2.2
29 STAT ServoLSI status I 0
30 TM4IO/
P14 Noconnection - -
31 POBF MP3 DSP status I 0
32 DATAREQ MP3 DSP NEXTdata
request I 3.0
33 CD. ON CD operation mode I 3.2
34 DQSY CD-TEXT/SUBQ sync. I 0
35 BLKCK BLKCK signal I 3.3
36 SQCK Clock forsub. code data I 1.5
37 SUBQ Sub. code data I 0
38 SBT2/ P32 (Connecting toGND) O 0
39 MLD MPU command load O 3.3
40 ACK MP3 DSP acknowledge O 0
41 IOSEL ServoLSI mode setting O 3.3
42 VDD2 Powersupplyforflash
write - 3.3
43 VPP Powersupplyforflash
write - 3.3
44 DSPP0 MP3 DSP data (bit0) I/O 0
45 DSPP1 MP3 DSP data (bit1) I/O 0
46 DSPP2 MP3 DSP data (bit2) I/O 0
47 DSPP3 MP3 DSP data (bit3) I/O 0
48 DSPP4 MP3 DSP data (bit4) I/O 0
49 DSPP5 MP3 DSP data (bit5) I/O 0
50 DSPP6 MP3 DSP data (bit6) I/O 0
51 DSPP7 MP3 DSP data (bit7) I/O 0
52 PCS MP3 DSP chipselect O 0
53 PWE MP3 DSP write enable O 0
54 PRE MP3 DSP readenable O 1.3
55 PIBE MP3 status fordata input I 3.3
56 DSPRST DSP reset O 3.3
57 PRST ServoLSI reset O 2.2
58 STAT ServoLSI status I 0
10
