Panasonic MIB3E MQB37w BTWIFI User manual

MIB3E_MQB37w_BTWIFI
USER MANUAL for Skoda
Octavia
24.01.2019 Continental

CONTENT
GENERAL INSTRUCTIONS ..…………………………………………….3
TECHNICAL INFORMATION ..………………………………….…..…..4-5
INTRODUCTION TO OPERATION ..………………………………........6
PRIVACY SETTINGS INFORMATION……………………………........7
MANAGE FAVOURITES……………………………..…..……………........8
RADIO OVERVIEW……………………………..…..……………………........9
BLUETOOTH - SEARCHING FOR MOBILE PHONES .…….10
BLUETOOTH - CREATING A CONNECTION ………………….….…11
BLUETOOTH - DEAUTHORIZE A MOBILE TELEPHONE ………12
BLUETOOTH - INTERACTING WITH MOBILE PHONE .………..13
SMART LINK ...……………………………………………………………..…14
VEHICLE INFORMATION……………………………………………..……15
MEDIA - RADIO, USB, BT AND SMARTLINK ...……………...……16
DRIVER ASSISTANCE ...……………………………………………..…17
SOUND ADUJSTMENTS….…………………………………………….……18
SYSTEM SETTINGS ...………………………………………………...……19
LEGAL INFORMATION ….………………………………………………..…20
REGULATORY INFORMATION –CE MARKET.………………………21
REGULATORY INFORMATION –FCC / ISED….………………22-24
2
Continental

GENERAL INSTRUCTIONS
Warning!
The MIB3 can distract your attention from the traffic
conditions. You could cause an accident and place yourself
and others in danger.
- Always devote your complete attention to the traffic
situation.
- Only operate the MIB3 when traffic and driving
conditions are appropriate.
- Set the volume to a level that allows you to hear important
sounds outside the vehicle e.g. horns, sirens and alarms.
- High volumes can cause hearing damage.
- Always route the connection cable of the external device
such that is does not restrict you when driving.
Caution
- In some countries, some Infotainment functions can no
longer be selected when the vehicle is running faster than
a certain speed. This is not a malfunction, but complies
with the national legal regulations.
The MIB3 includes protective circuits that prevent
damage to the device as far as possible:
-If the supply voltage is too low or too high, or if the
MIB3 becomes too hot, the MIB3 will switch off
automatically.
- Never open the MIB3 yourself in the event of a fault!
Take the faulty device to be repaired by a competent
specialist repairer. We recommend that you use a service
center for this work as this will ensure that trained
workshop staff and the necessary parts and tools will be
available.
3
Continental

TECHNICAL INFORMATION
The product MIB3 is developed and produced by Panasonic Automotive Systems Europe GmbH.
The product is an integrated car entertainment systems. The MIB3 Entry series can support (depending on
purchased configuration) several sources like MP3, USB (external connection box), Bluetooth, Wifi, AM/FM
radio, android auto, Apple CarPlay and MirrorLink.
Power supply voltage: Nominal: DC +12 [V]
Temperature range: -40 to +80 [degree C]
RF technical specification –Bluetooth 4.2
Frequency range: 2402 MHz–2480 MHz
Maximum conducted RF Output Power: 4 dBm or 2.5 mW
Antenna gain: -6.6 dBi to +1.3 dBi
Modulation: FHSS
For units with Wifi
RF technical specification –2.4GHz Wifi:
Frequency range (no DFS): 2412 MHz –2484 MHz
Maximum conducted RF Output Power: 17 dBm or 50 mW
Antenna gain: -10dBi to +0.4 dBi
Modulation: DSSS / OFDM
4
Continental

TECHNICAL INFORMATION
For units with Wifi
RF technical specification –5GHz Wifi:
Frequency Range (no DFS):
Bandwith1:
5 150 - 5 350 MHz: 5180 MHz; 5200 MHz; 5220 MHz; 5240 MHz
5 735 - 5 835 MHz: 5745 MHz; 5765 MHz; 5785 MHz, 5805 MHz, 5825 MHz
Bandwith2:
5 150 - 5 350 MHz: 5190 MHz; 5230 MHz
5 735 - 5 835 MHz: 5755 MHz; 5795 MHz
Bandwith3:
5 150 - 5 350 MHz: 5210 MHz
5 735 - 5 835 MHz: 5775 MHz
Maximum conducted RF Output Power: 14 dBm or 25 mW
Antenna gain: -5,4 dBi to +0,7 dBi
Modulation: OFDM
5
Continental

INTRODUCTION TO OPERATION

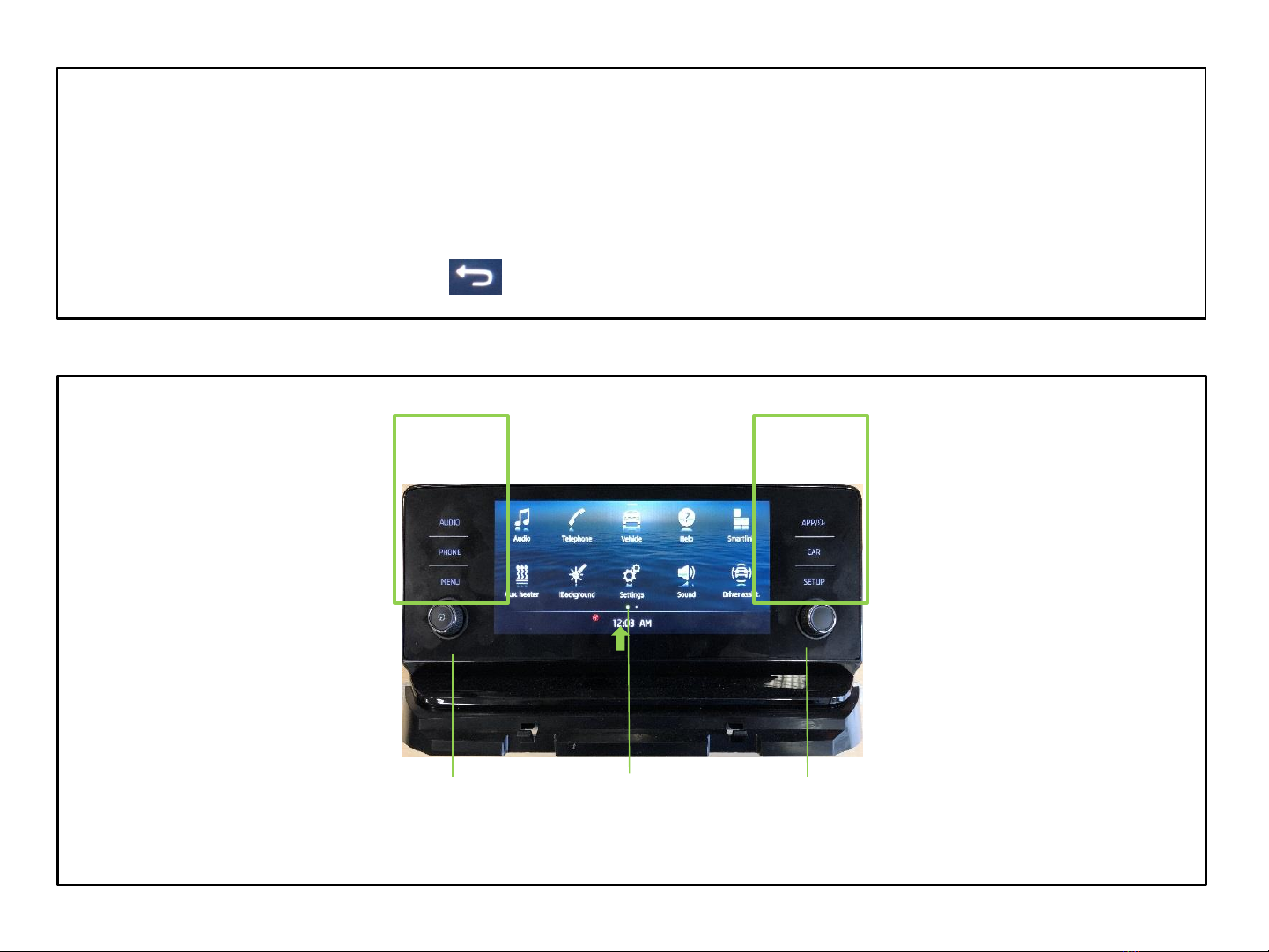

Long press on left control dial ①allows to switch the device on and off. Turning left control dial ①allows to
change settings like volume. The MIB3 allows access to different menus with the function keys ②located
around the display or the icons directly on the touch screen ④. Right control dial ③allows to browse
through menus e.g. ‚Settings‘ and select options by pressing. Sliding over the touch screen ④left and right
shows different pages. Pages within MIB3 are indicated by small dots at the bottom of the display (see green
arrow). Within menus the return icon allows to return to previous page.
②
①③④
②
6
Continental

PRIVACY SETTTINGS INFORMATION
-- No available in Octavia --
The MIB3 allows to adjust the privacy settings. The user can choose,
which information will be provided to connected services.
1. Touch and hold a finger at the position of the green arrow.
Moving the finger down will open a second menu.
2. Select ‚Essential data only‘ to adjust the level of privacy. For more
information press the info icon (see green arrow).
3. Select the appropriate privacy level:
Essential data only: Services are deactivated. Only legally
required services use data.
Personal data: Services use only vehicle data and user data.
Use my position: Services use position data, vehicle data and
user data.
Share my position: Primary and secondary users can also
retrieve position data via the Skoda Connect portal or the app.
①
②
③
7
Continental

MANAGE FAVOURITES
The MIB3 allows to create shortcuts (‚favourites‘) for user friendly
control of the device.
1. Touch and hold at the position of the green arrow and move
down. This will open a second menu.
2. Long press on one of the ‚Empty‘ icon .
3. Choose one of the features or select another page by sliding left
or right.
4. To remove an already set ‚favourite‘, long touch the icon and
press the ‚bin‘ icon (green arrow).
①
②
③
8
④
Continental

RADIO - OVERVIEW
Press the left control dial to switch the radio on.
1. The AM/FM/DAB Radio can be started by pressing the function
key ‚AUDIO‘ or the touch screen by toching the icon ‚Audio‘.
2. The main Media screen of MIB3_EI HU, shows a favorite list. The
currently played radio channel or media source can be added by
pressing the ‘+’ icon. Also, from this screen, already added favorites
can be deleted.
3. Touching the ’!Radio’ icon allows to choose between different
sources like AM, FM and DAB bands.
4. Touching any of the available bands shows available channels
within the selected band. Automatic scanning of channels can be
done by touching the update icon.
5. Manual channel scanning can be done by touching the scan icon.
①
②
③
9
④
Continental
⑤

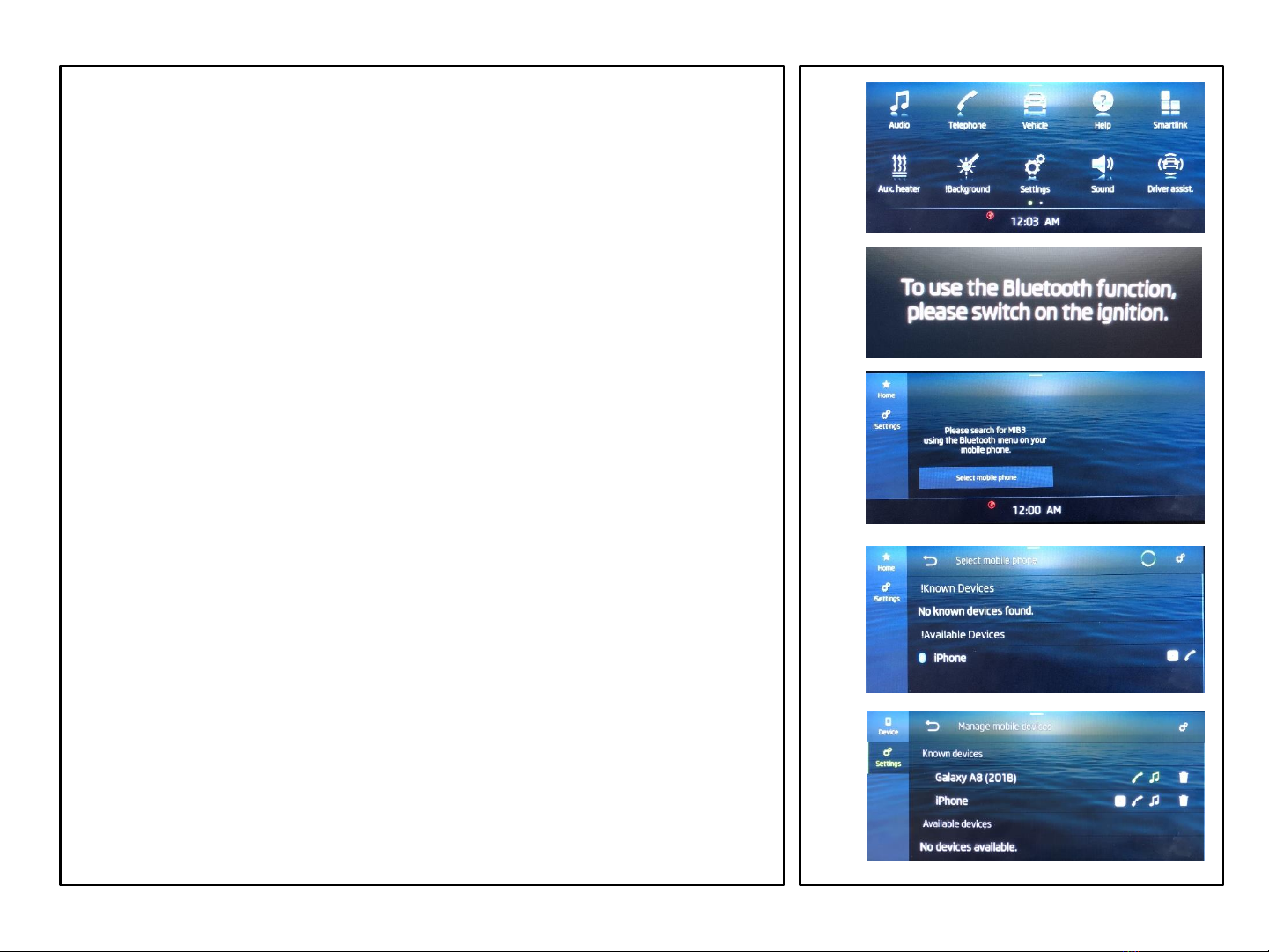

BLUETOOTH - SEARCHING FOR MOBILE PHONES
The MIB3 will search for devices that support Bluetooth´s Hands
Free Profile (HFP) and Audio Streaming Profile (A2DP/AVRCP).
1. Activate Bluetooth on your mobile phone. If necessary make the
mobile phone visible to other devices.
2. On the display press ‚Telephone‘ (note: the follwoing steps can
only be done with ignition turned on).
3. Press ‚Select mobile phone‘to select available devices.
4. If the mobile phone has not been connected to the MIB3 before,
it will be shown under ‚!Available Devices‘.
5. Select the mobile phone from the list of available devices e.g. the
sample mobile iPhone.
①
②
③
④
⑤
10
Continental

BLUETOOTH –CREATING A CONNECTION
①
②
③
④
Each mobile phone needs to be paired by exchanging a password.
The pairing process can be started either from MIB3 or the mobile
phone, if the car device does not show the mobile phone.
1. On the MIB3 screen select one of the available mobile phones to
connect.
2. Confirm the pairing process. A passkey is exchanged. Confirmation
needs to be done on MIB3 and the mobile phone. Allow data
transfer on the mobile phone
3. Confirm the next screen with ‚OK‘.
4. The chosen mobile phone appears under Known devices e.g.
iPhone.
11
Continental

BLUETOOTH –DEAUTHORIZE A MOBILE PHONE
-- this function is currently unavailable –①
②
④
Deauthorization can be conducted in the menu ‚Telephone‘.
1. Enter the menu ‚Telephone‘or press function key ‚Phone‘.
2. Select on the connected device on the screen.
3. Press the icon .
4. Press on the icon ‚bin‘ next to the device which should be
deauthorized.
12
Continental

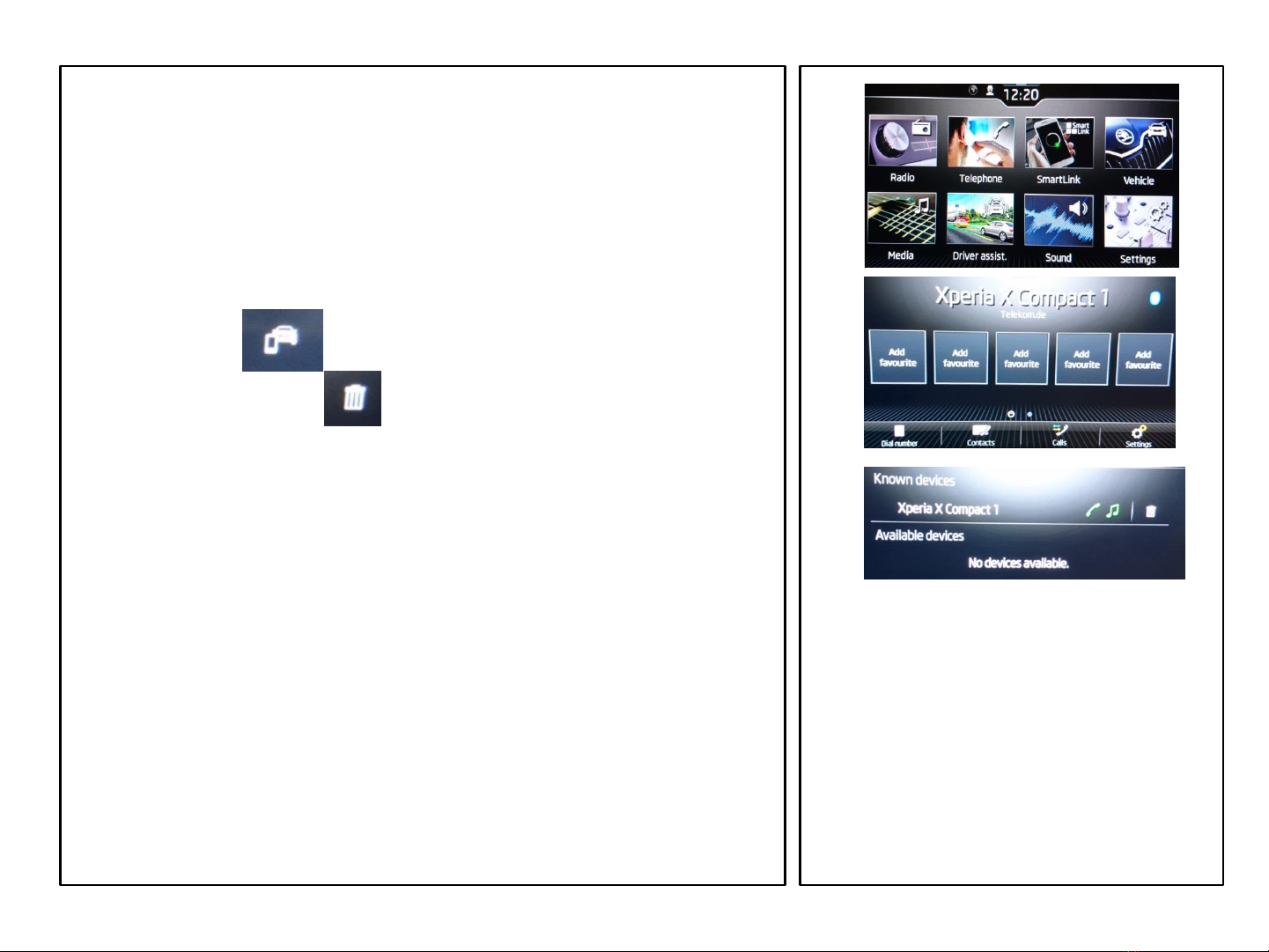

BLUETOOTH –INTERACTING WITH A MOBILE PHONE
①
②
③
④
After successfully connecting to a mobile phone several new options
will be available.
1. Select the function key ‚Phone‘ or the icon ‚Telephone‘on the touch
screen to receive more options.
2. The ‚Telephone‘ screen will show the name of the connected
phone on the top. Pressing the ‚+‘ icon allows to add contacts
directly from the address book.
3. The icon ‚Dial number‘ allows to make phone, Emergency, and
Breakdown calls.
4. The icon ‚Contacts‘ opens the address book of the mobile phone.
5. The icon ‚Calls‘ shows incoming and outgoing calls. The icon
‚Settings‘ allows to change the mobile phone, individualize
the user profile, and change Mobile phone reminder and
simultaneous call settings.
13
Continental

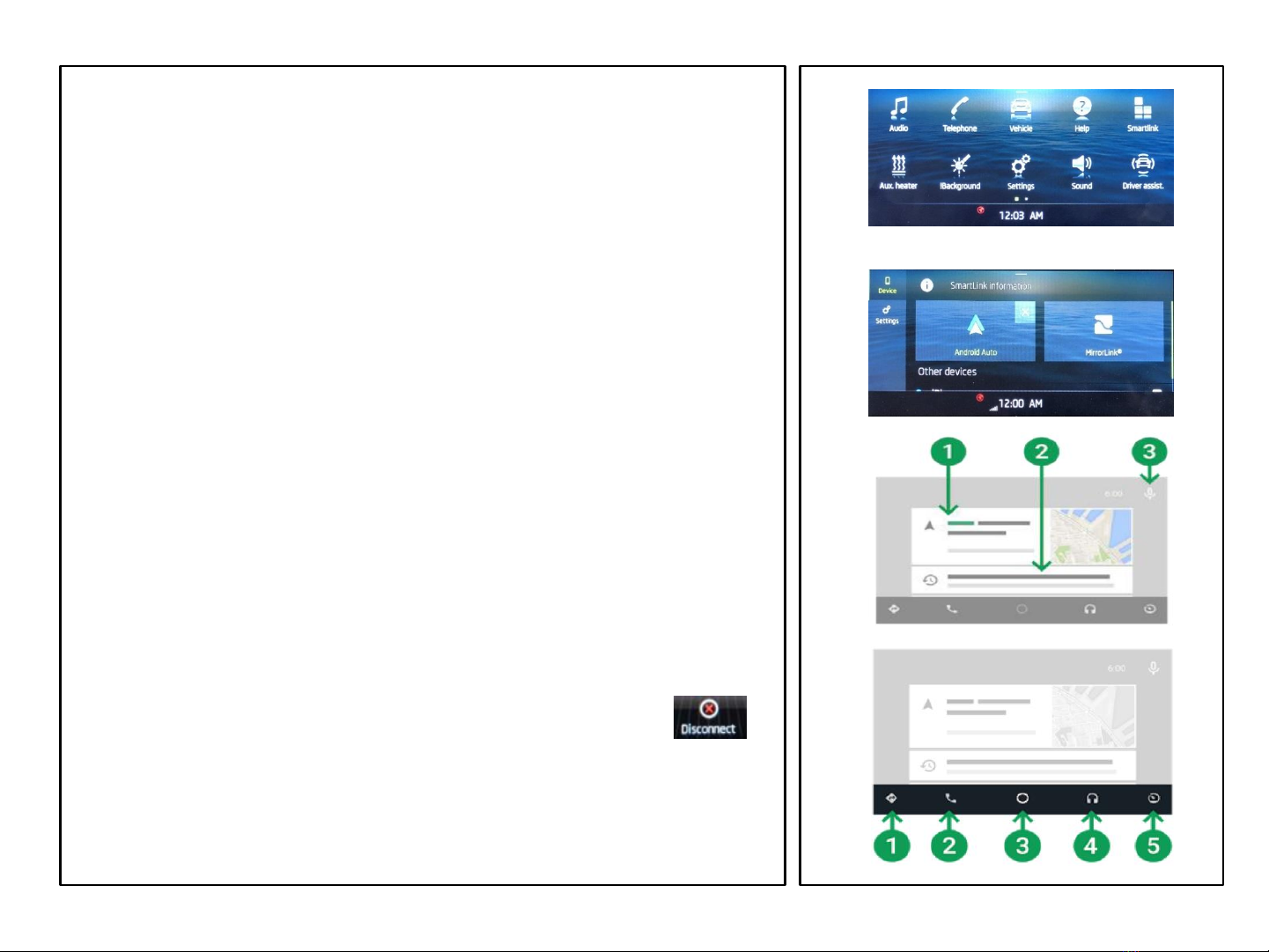

SmartLink –Android Auto & MirrorLink
①
②
③
④
1. Select the menu ‚SmartLink‘.
2. Connect the mobile phone with the USB cable.
3. Select one of two options: Android Auto or MirrorLink. Confirm the
pairing (exchange of key) on the MIB3 and the mobile phone. Allow
data transfer on the mobile phone. Please note that the mobile
phone needs to have the relevant apps installed.
4. Different Android Auto features can be found at the bottom of the
screen:
1. Navigation / Maps
2. Communication / phone calls
3. Home screen
4. Music and audio
5. Return to MIB3 applications.
The MIB3 will use GPS signal and media data from the mobile phone.
5. To disconnect the mobile phone use the ‘disconnect’ icon .
14
Continental

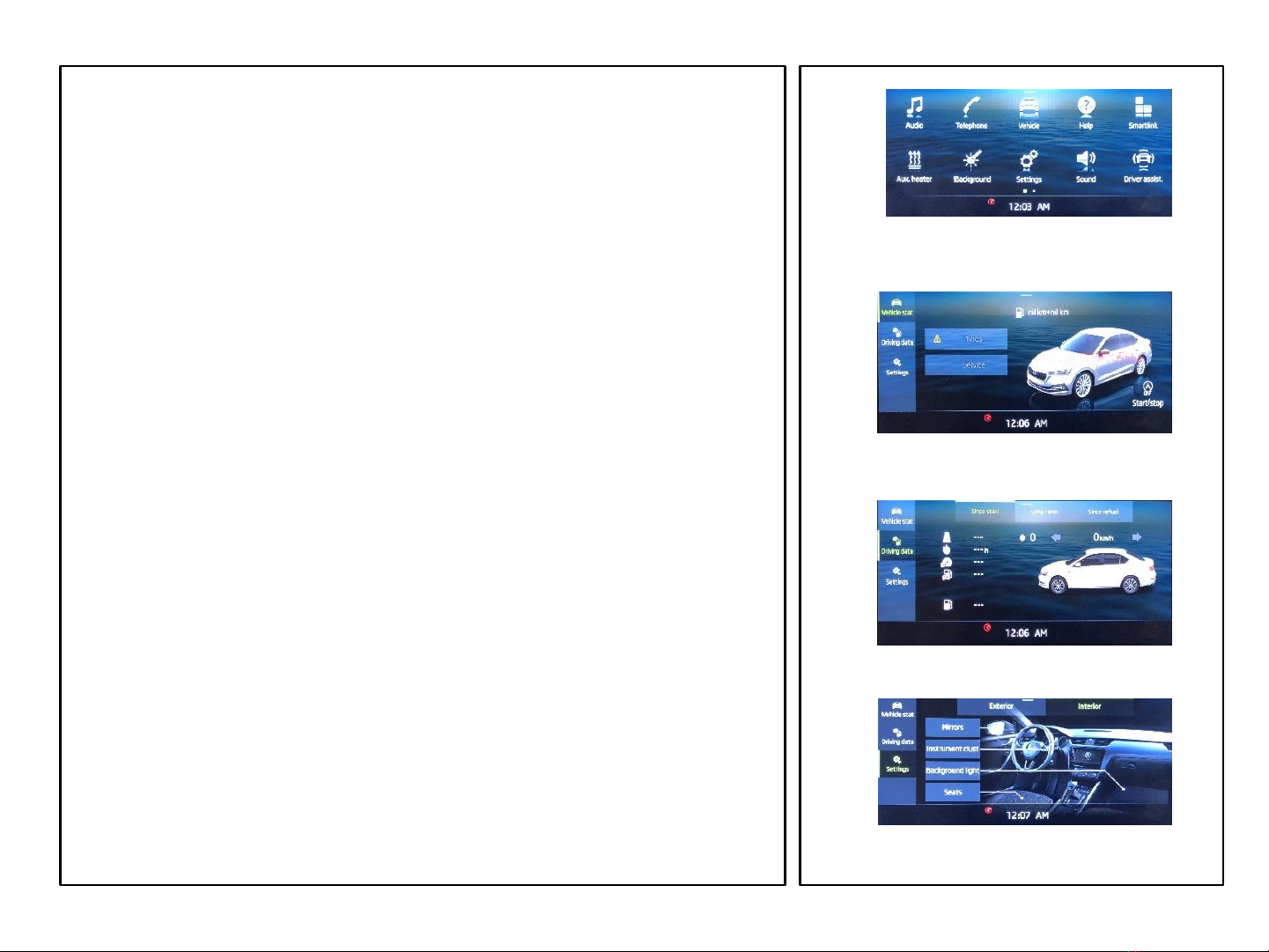

VEHICLE INFORMATION
①
②
③
④
Vehicle information can be displayed by the MIB3.
1. On the default menu screen, select the ‘Vehicle’ icon or press the
‘CAR’ function key.
2. Several menus can be accessed by selecting the icon ‘!Vehicle stat’.
3. Driving data can be accessed by touching such icon.
4. All other vehicle settings can be accessed by selecting the
‘Settings’ icon.
15
Continental

MEDIA –RADIO, USB, BT AND SMARTLINK
①
②
③
④
In this menu, several audio media sources can be selected for
playing.
1. On the default menu screen, select the ‘Audio’ icon or press the
‘Audio’ function key.
2. When touching ‘!Media’, different media sources can be selected
such as USB1 or USB2, Bluetooth audio or Smart link.
3. When selecting USB1, USB2 or BT audio sources, a media files list
opens with the common media playing and browsing functionalities.
4. The media player can be shown by swipping from right edge to
left.
5. All other media settings can be accessed by touching the
‘!Settings’ icon and selecting ‘!Media Settings’.
16
Continental
⑤

Driver Assistance
-- this function is currently unavailable –①
②
③
In this menu, driver assistance functions can be accessed and
adjusted such as cruise control, lane assist, driver alert system, etc..
1. On the default menu screen, select the ‘Driver assist.’ icon to
access driver assistance functionalities.
2. In the ‘Driver assist.’ screen, graphical representations for many
driver assistance functions are presented and allow the user to
switch the functions on and off.
3. A complete list of driver assistance functions can be accessed and
adjusted by selecting the settings icon .
17
Continental

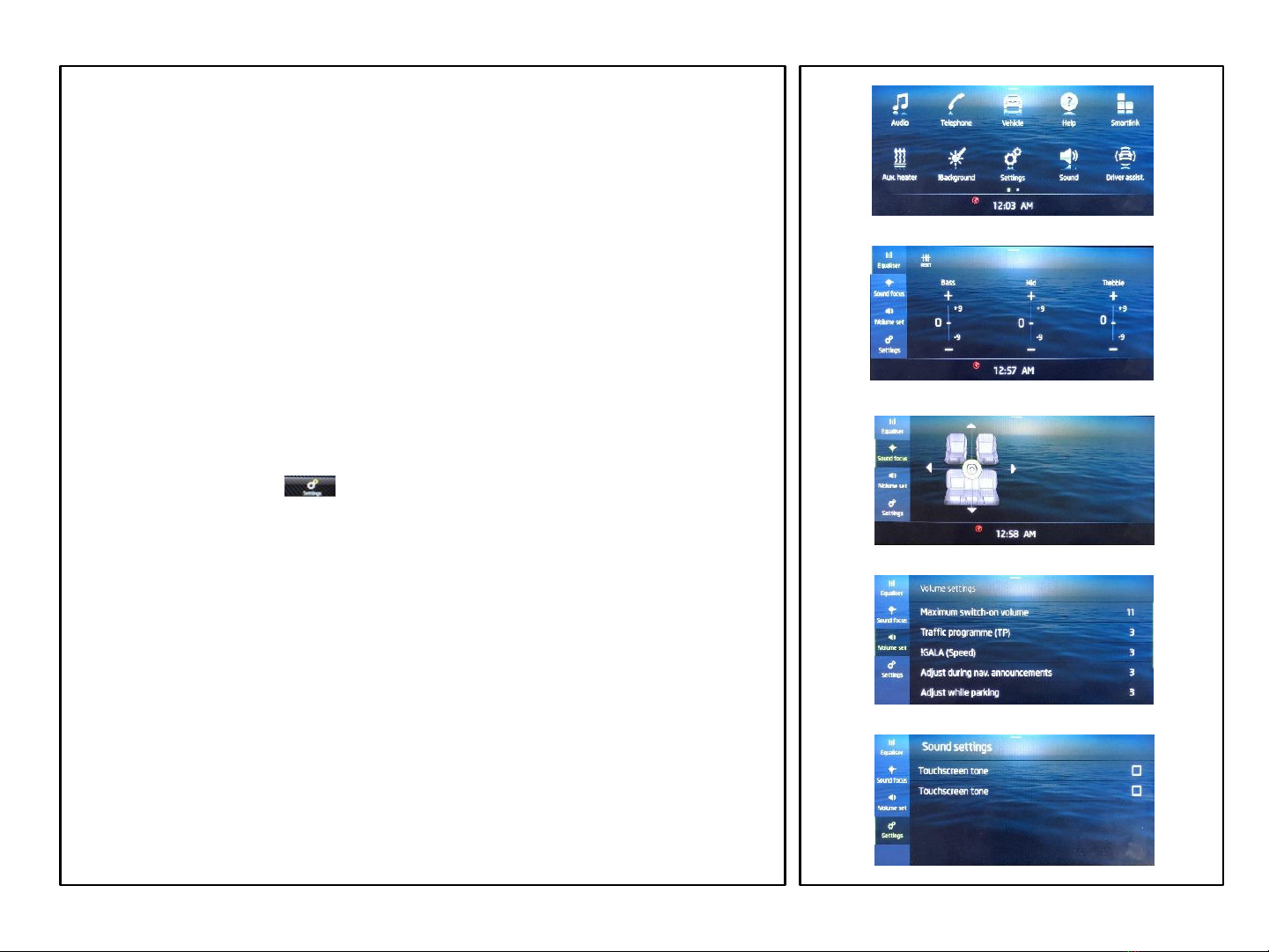

SOUND ADJUSTMENT
①
②
③
④
MIB3 provides several options to individualize the sound in the car.
1. Select the icon ‚Sound‘ to view more options.
2. The ‚Equalizer‘ menu allows basic adjustments to the sound.
3. The ‚Sound focus‘ allows to control the focus point within the car.
4. The icon ‚Volume‘ provides options to individualize the volume of
other systems and functions.
5. The icon ‚Settings‘ allows to enable or disable touchscreen
and menu button tone.
18
⑤
Continental

SYSTEM SETTINGS
MIB3 system settings allow making a various amount of changes.
1. Select the icon ‚Settings‘ on the touch screen.
2. The following options are available:
19
No.
Name
Description
1
Screen
Screen off (in seconds), brightness and other functions
2
Time and date
Time and date
3
Language
Allows to change the current language
4
Additional
keypad languages
Individual
adding of characters
5
Units
Changing
units
6
WLAN
Creating hot spot (for devices with WLAN)
7
Manage
apps
Activating data transfer to Apps and managing Apps
8
Connect via Bluetooth
Switch on/off Bluetooth, control visibility of BT and BT
-name
9
Factory
settinsgs
Resetting the device complete or by individual functions
10
System
information
Displaying hardware and software information
11
Updates
Software updates for the head
unit
12
Copyright
s
Thirt
party copyright information
13
Configuration wizard
Guided tour to set needed functions of MIB3
3. Using the icon leads to the previous page.
Continental

LEGAL INFORMATION
①
②
③
The MIB3 system allows to obtain fast legal information about the
system.
1. On second page of the default menu screen (swipe left) then
select the ‘Legal’ Icon.
2. The ‘Legal’ screen shows brief legal information and additional QR
codes. With your mobile phone QR camera application, scan one the
QR codes to visit the Skoda-Connect web pages for further legal
information (②, ③).
20
Continental
