Panasonic SLSW850 - PORT. CD PLAYER User manual

AD9907178C8

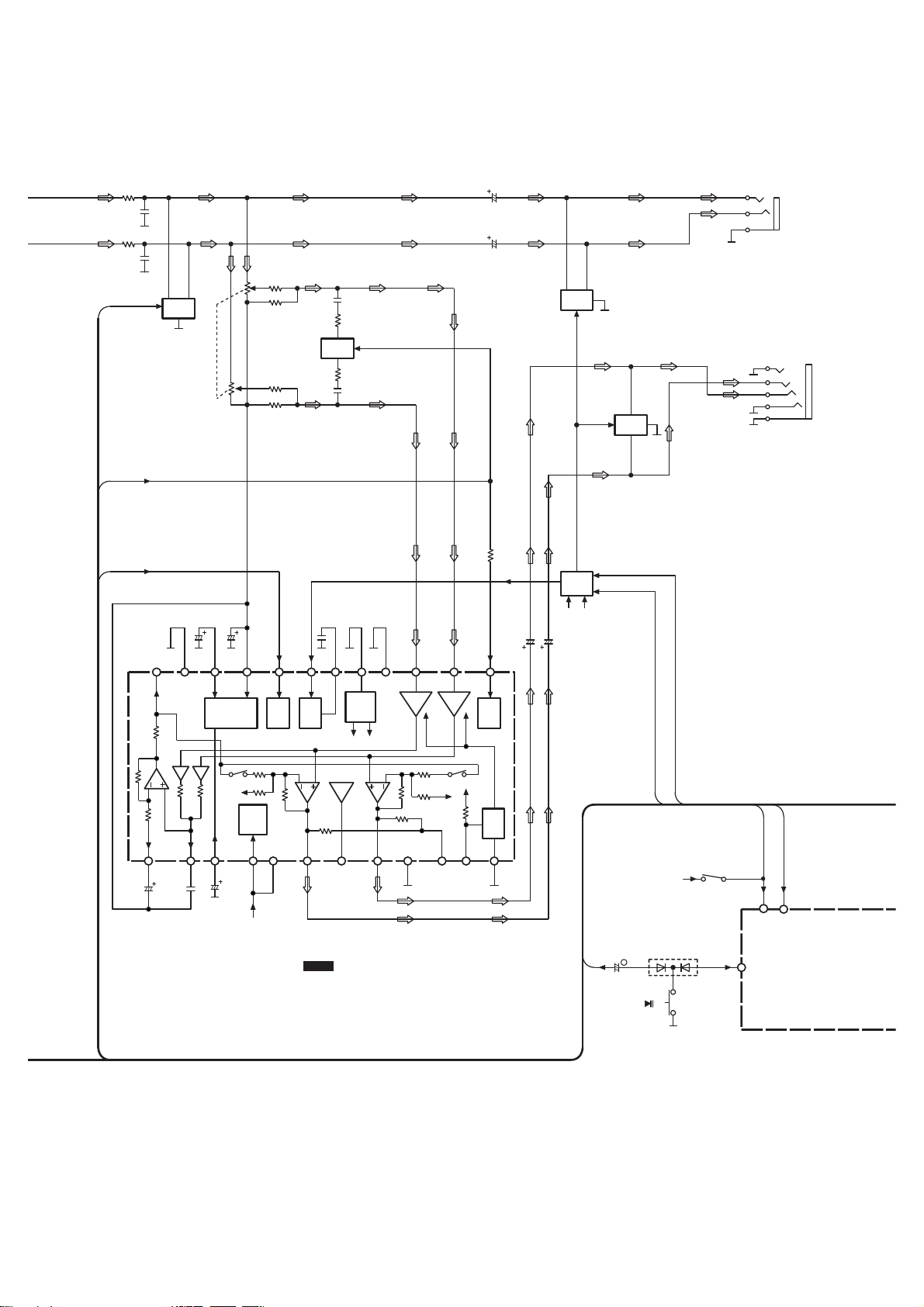

PortableCD Player
SL-SW850
Traverse Deck:RAE0220ZMechanismSeries
Colour
(S)............SilverType
Areas
EB............Great Britain.
EG............Europeand Russia.
GC............Asiaand Saudi Arabia.
GN............Oceania.
SPECIFICATIONS
Specification

Audio
No. ofchannels: 2 channels(left and right,
stereo)
Frequencyresponse: 20 to 20,000 Hz(+0.5dB, -1.5dB)
Outputvoltage: 0.6V(50k )
S/N: more than 94 dB*
Wowand flutter: Belowmeasurablelimit
DAconverter: 1 bit, MASH
Headphones outputlevel: Max. 9mW+9mW/16
(adjustable)
Pickup
Lightsource: Semiconductorlaser
Wavelength: 780 nm
General
Operational temperature range: 0°C-40°C
Rechargeabletemperature
range: 5°C-40°C
Power supply: DC 4.5V
Power consumption
Power source ANTI-SHOCK OFF/ON
When Using ACadaptor 2.8W/3.0W
When Using Battery(DC3V) 0.3W/0.35W
When recharging: Approx. 5.4W
Playtime
[When used in hold mode, at25°C(77°F)temperature and on
flatand stablesurface]
Batteries used ANTI-SHOCK OFF/ON
2“AA”(LR6)alkaline
batteries About20h/About25h
Ni-cd Rechargeablebatteries
(RFKFP3GAVABA) About10h/About12h
Theplaytime maybeless depending on theoperating
conditions.
Recharging time: About3h
Dimensions(WxHxD): 133x24.7x141.5mm
Weight: 327g with batteries
282g withoutbatteries
*These specificationswere measured in theANTI-SHOCK off
mode.
Note:
Specificationsare subjectto changewithoutnotice.
Weightand dimensionsare approximate.
1999 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorizedcopying and distribution isaviolation oflaw.

1. Precaution ofLaser Diode
CAUTION:
Thisproduct utilizes alaserdiodewiththeunitturned"on",
invisiblelaserradiation isemittedfrom thepickup lens.
Wavelength:780 nm
Maximum outputradiation powerfrom pickup:100 W/VDE
Laserradiation from thepickup lensissafetylevel, butbesurethe
followings:
1. Donotdisassembletheoptical pickup unit, since radiation from
exposedlaserdiodeisdangerous.
2. Donotadjust thevariableresistor on thepickup unit. Itwas
alreadyadjusted.
3. Donotlookat thefocuslensusing optical instruments.
4. Recommend nottolookat pickup lensfor along time.
ACHTUNG:
Dieses Produkt enthalteineLaserdiode. Imeingeschalteten
Zustand wird unsichtbareLeserstrahlung von derLasereinheit
abgestrahlt.
Wellenlage:780 nm
MaximaleStrahlungsleistung derLasereinheit:100 W/VDE
DieStrahlung anderLasereinheitist ungefahrlich, wenn folgende
Punkte beachtet werden:
1. DieLasereinheitnichtzerlegen, dadieStrahlung ander
freigelegtenLaserdiodegefahrlichist.
2. DenwerkseitigjustiertenEinstellreglerderLasereinhitnicht
verstellen.
3. NichtmitoptischenInstrumentenindieFokussierlines blicken.
4. NichtuberlangereZeitindieFokussierlines blicken.

2. Accessories
-Stereoheadphones ......................................... 1pc.
(RFEV708P-HS)
-Hand grip........................................................... 1pc.
(RGQT0006-K)
-Ni-Cdrechargablebatteries
withcarrying case...................... ...................... 1pc.
(RFKFP3GAVABA)
ForEB area
-ACadaptor ........................................................ 1pc.
(RFEA403B-S)
ForEGarea
-ACadaptor ........................................................ 1pc.
(RFEA401E-3S)
ForGC area
-ACadaptor ........................................................ 1pc.
(RFEA403Z-S)
ForGN area

-ACadaptor ........................................................ 1pc.
(RFEA403A-S)
-Plug adaptor...................................................... 1pc.
(SJP5213-2)
3. Operating Instructions
4. Handling Precautions for Traverse Deck
The laserdiode inthe traverse deck (optical pickup) maybreak downdue to potential difference
causedbystatic electricity
of clothes orhumanbody.
So, be careful of electrostatic breakdownduring repairof the traverse deck (optical pickup).

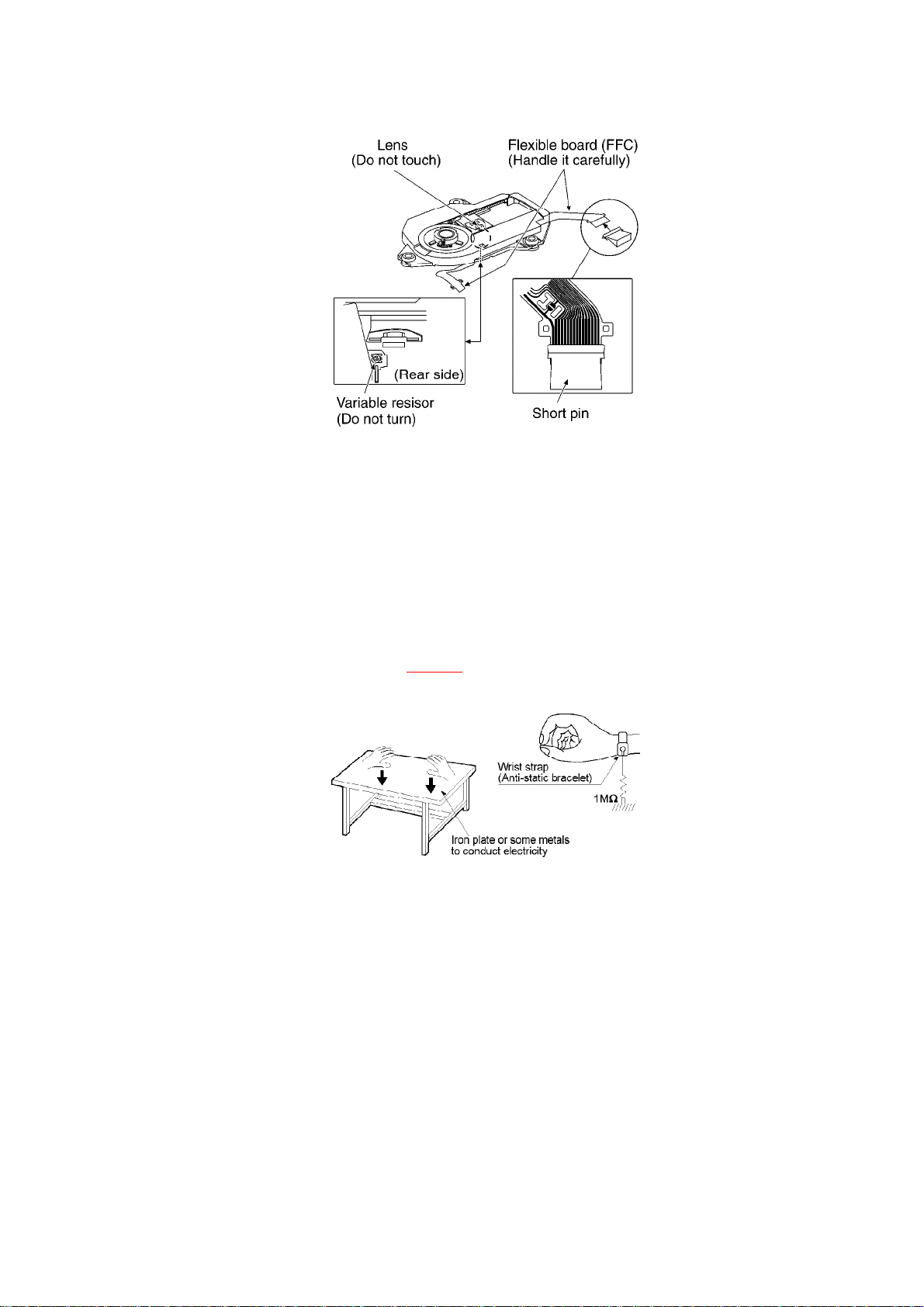

4.1. Handling thetraverse deck (optical pickup)
1. Thetraverse deck (optical pickup)isanextremely
high-precision construction and must notbesubjected
toimpact, excessivevibration, or othertypes ofrough
handling.
2. Inordertopreventstaticelectricitydamagetothelaser
diode, use ashortpinor similartool toshorttheoptical
pickup’sflexiblecircuitboardsaftertheyhavebeen
disconnectedfrom themaincircuitboard.
3. Handletheflexiblecircuitboardswithcare;excessive
force couldcause themtobebroken.
4. Donotturn thepre-set variableresistor (for adjustmentof
thelaserpower);ithas beenadjustedat thefactory.
(as shownin Fig. 1 )
Fig. 1

4.2. Grounding for electrostaticbreakdownprevention
1. Humanbodygrounding
Use theanti-staticwrist straptodischargethestatic
electricityfrom your body.
2. Worktablegrounding
Putaconductivematerial (sheet) or steel sheet on the
area wheretheoptical pickup isplaced, and ground
thesheet. (as shownin Fig. 2 )
Fig. 2
Caution:
Thestaticelectricityofyour clothes will notbegrounded
through thewrist strap.
So, take carenottolet your clothes touchthetraverse deck
(optical pickup).

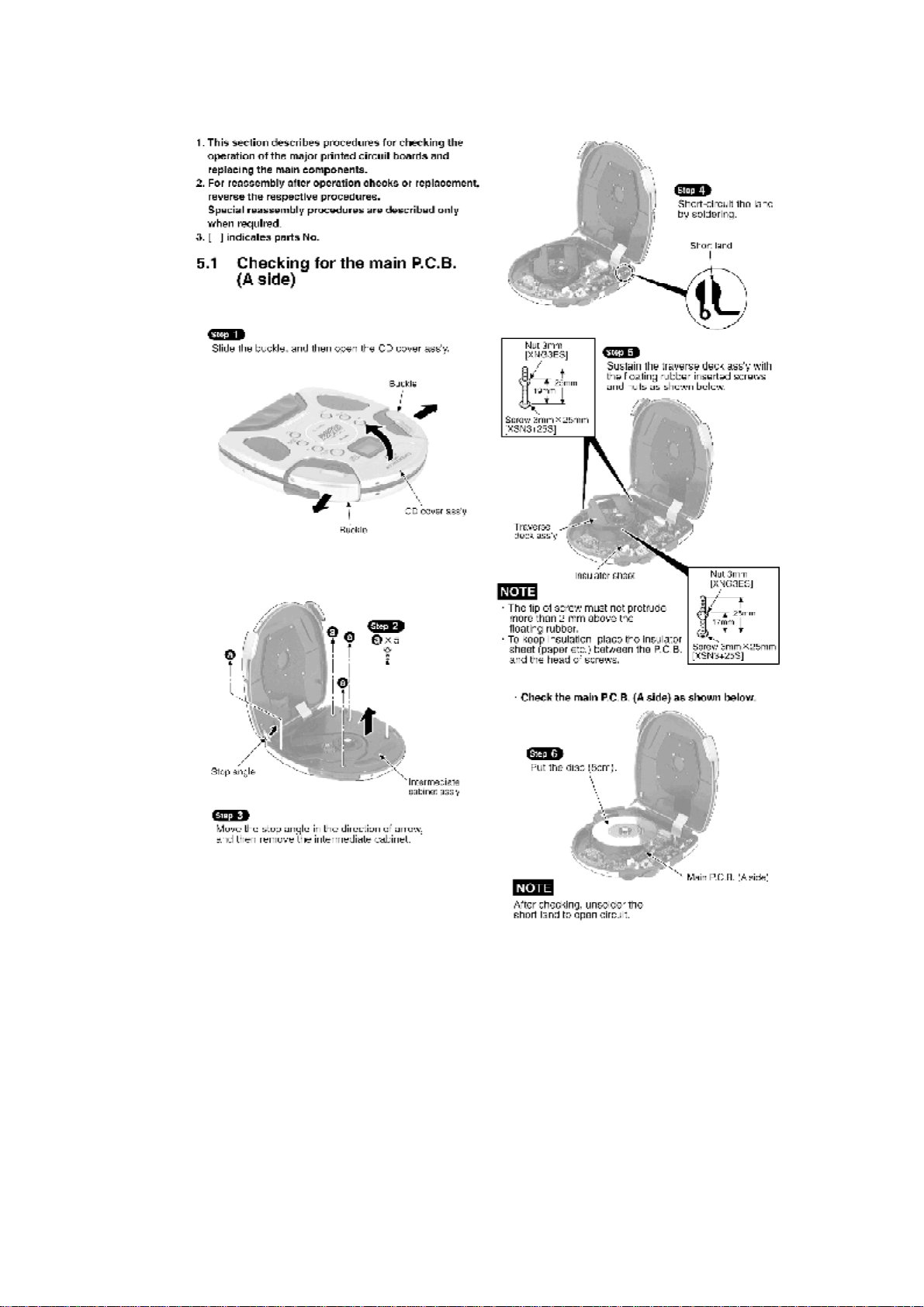

5. Operation Checks and ComponentReplacement
Procedures

6. Checking the Operation Problemson the Traverse
Deck (Optical Pickup)
Make sure to followthe procedures belowto check the operation problems of the traverse deck
(optical pickup) before replacing it.
Replace the traverse deck onlyafterthe problemis identified.
