Panasonic KX-TC1105ALB User manual

Preparation Basic Operation Advanced Operation Useful Information
Cordless Phone
Model No. KX-TC1105ALB
KX-TC1105ALN
Operating Instructions
Charge the battery for about 10 hours before initial use.
PLEASE READ BEFORE USE
AND SAVE. Caller ID Compatible
KX-TC1105ALB

Before Initial Use
2
For Australia
When you subscribe to Caller ID services from your telephone operator
this telephone will display the caller’s phone number. When available
from your telephone operator, this telephone will also display the number
of the second call or call waiting.
For New Zealand
Caller ID, where available, is telephone company service. After
subscribing to Caller ID, this phone will display a caller’s phone number.
Thank you for purchasing your new Panasonic cordless
telephone.
For your future reference
Serial No. Date of purchase
(found on the bottom of the unit)
Name and address of dealer

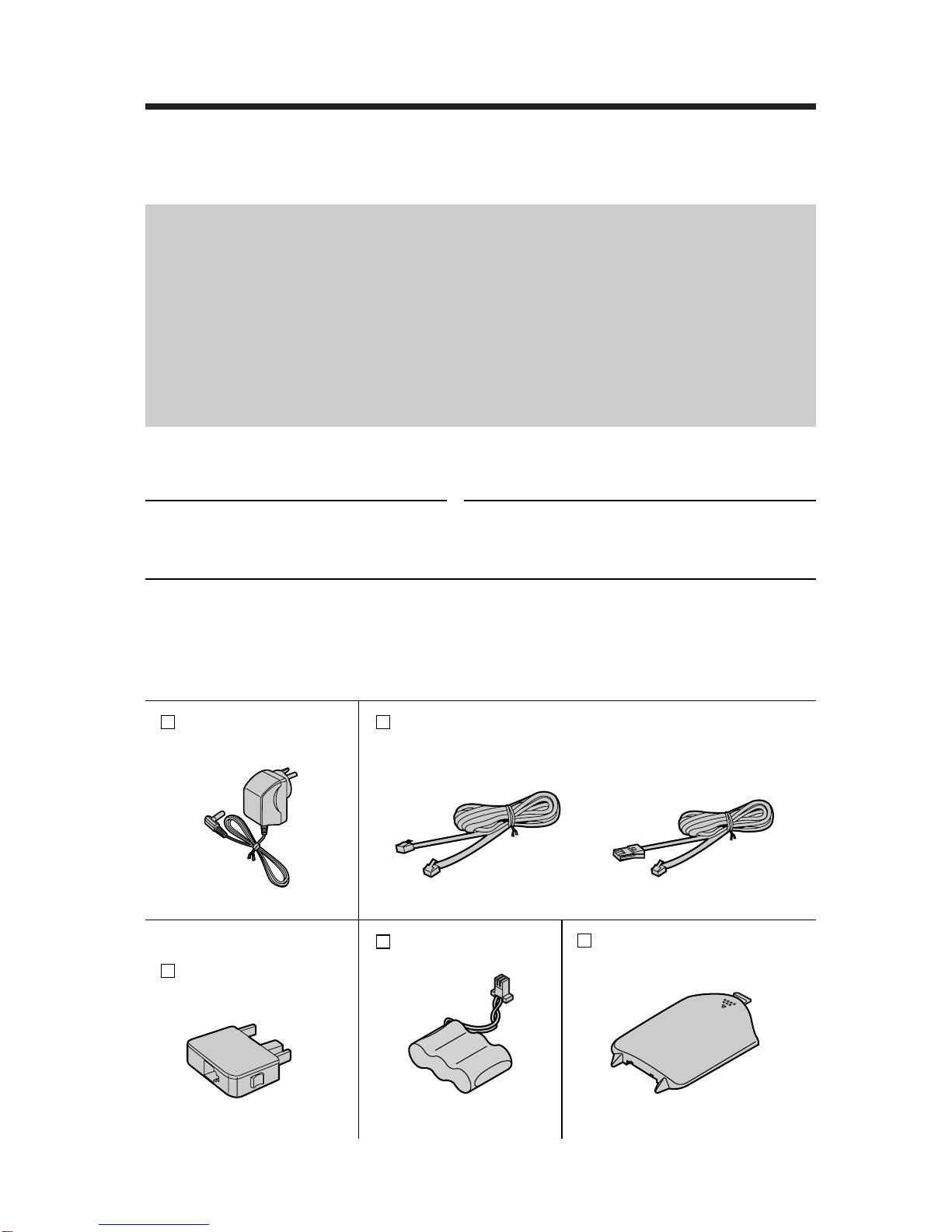

Accessories (included)
AC Adaptor (p. 8)
one
Telephone Line Cord (p. 8)
For Australia
one
Battery (p. 9)
one
Handset Cover (p. 9)
one
Attach or keep original receipt to assist with any repair under warranty.
For Australia only
Telephone Plug
(p. 8)
one
For New Zealand

For Best Performance
3
Battery Charge
A rechargeable Nickel Cadmium (Ni-Cd)
battery powers the handset. Charge the
battery for about 10 hours before initial
use. Make sure the handset faces forward
as shown.
•Clean the handset and the base unit
charge contacts with a soft, dry cloth
once a month. Clean more often if the
unit is subject to grease, dust or high
humidity. Otherwise the battery may not
charge properly.

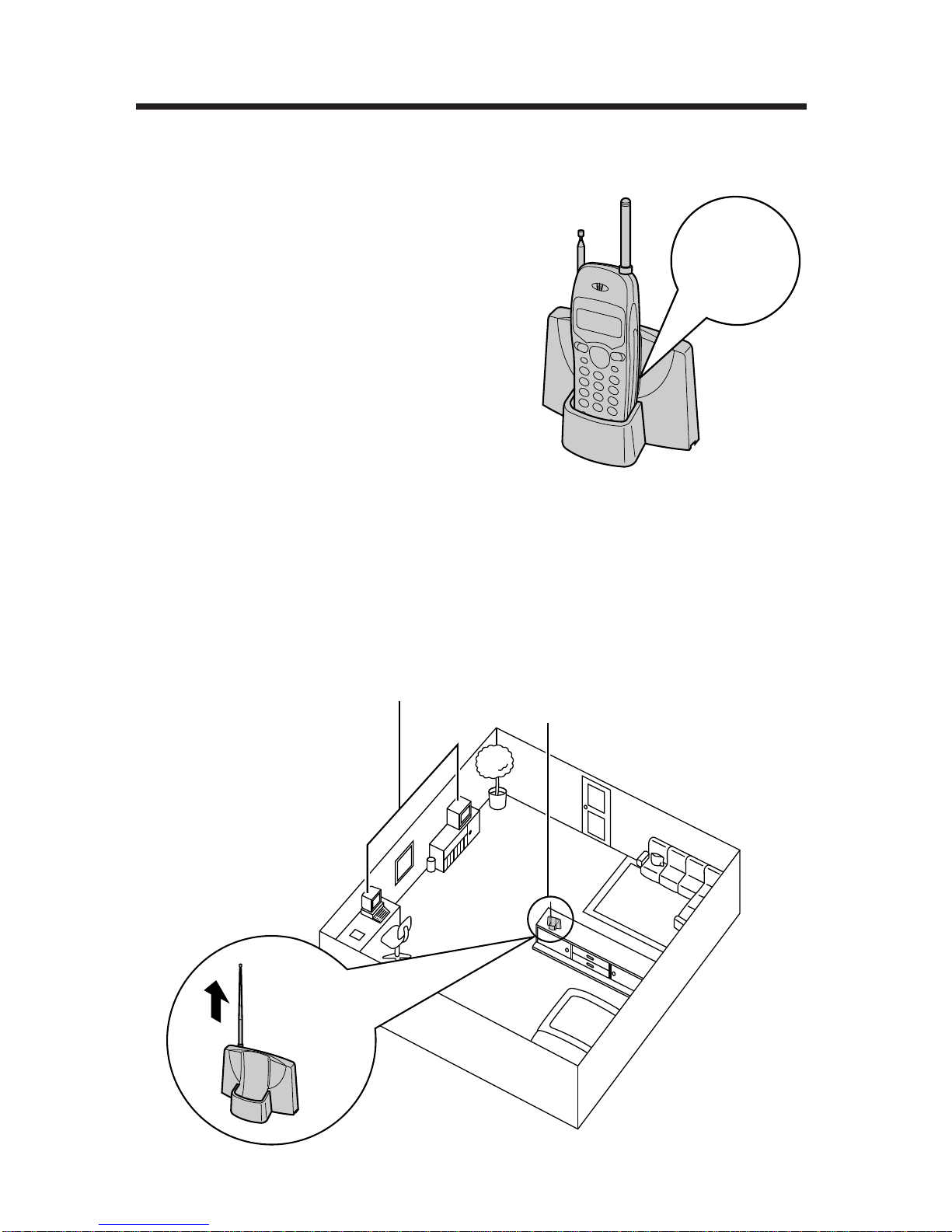

Base Unit Location
Calls are transmitted between the base unit and the handset using wireless
radio waves. For maximum distance and noise-free operation, the
recommended base unit location is:
Away from electrical appliances such
as a TV, personal computer,
cellular phone, charging units.
In a HIGH and CENTRAL location
with no obstructions such as walls.
Extend the
antenna fully.
The battery
is beneath
this cover.

Contents
4
Preparation
Location of Controls ................5
Display.......................................6
Settings .....................................8
Connections..............................8
Installing the Battery in the
Handset ....................................9
Battery Charge .........................9
Programmable Functions ......11
Selecting the Ringer
Volume...................................12
Setting the Auto Talk Feature ...13
Basic Operation
Making Calls............................14
Answering Calls......................16
Caller ID Service.....................16
Using the Caller List...............18
Viewing the Caller List............18
Calling Back from the Caller
List..........................................20
Editing the Caller’s Phone
Number ..................................21
Storing Caller List Information
in the Directory .......................22
Erasing Caller List
Information..............................23
Advanced Operation
Using the Directory.................24
Storing Names and Numbers
in the Directory .......................24
Steps for Entering Names and
Symbols..................................26
Finding Items in the Directory ..28
Dialling from the Directory......30
Editing an Item in the
Directory .................................31
Erasing an Item from the
Directory.................................32
Special Features.....................33
How to Use the PAUSE Button
(For Analog PBX Line/Long
Distance Service Users).........33
Call Waiting and Caller ID
compatible
(For Australia only).................33
RECALL Button......................34
Useful Information
Battery Replacement..............36
Wall Mounting.........................37
Adding Another Phone ..........38
Before Requesting Help.........39
Safety Instructions.................42
Important Information............44

Location of Controls
5
Preparation

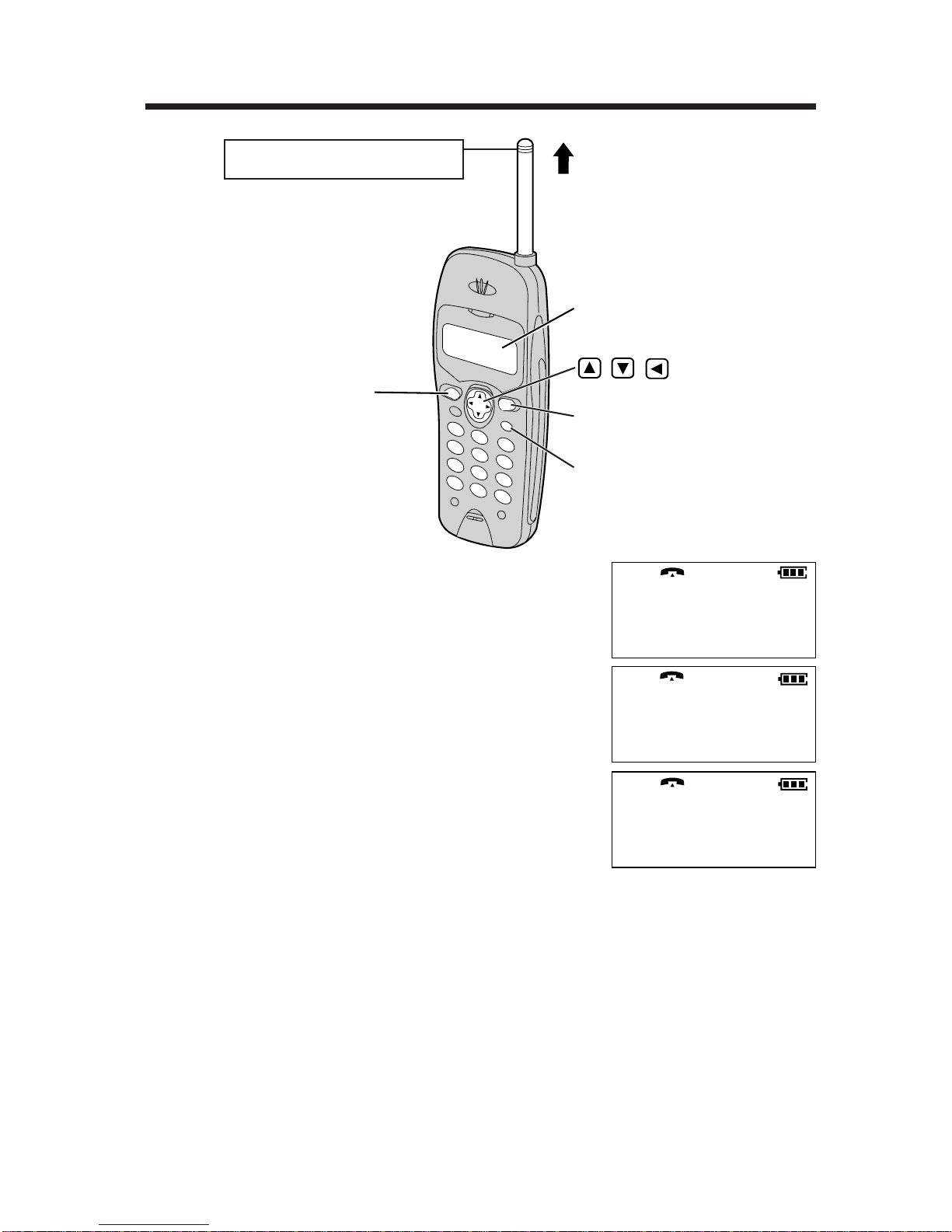

Handset
(TALK) Button
(p. 14, 20)
Antenna (p. 14)
Navigator Key
( , , , OK)
(p. 11, 15, 18, 24)
Display (p. 6)
(FUNCTION/EDIT)
Button (p. 11, 24)
(RECALL)
Button (p. 33, 34)
Charge Contacts (p. 10)
(EXIT/CH) (Channel)
Button (p. 11, 14)
(PAUSE) Button
(p. 25, 33)
(REDIAL) Button
(p. 14, 15)
Base unit
INUSE/
CHARGE
CALLERID
CALLER ID
Indicator (p. 17)
IN USE/CHARGE
Indicator (p. 9)
Antenna (p. 3, 8)
Charge Contacts (p. 10)

Display
6
The handset shows you instructions and information on the display.
These display prompts are shown below.
The battery needs to be charged. Place the
handset on the base unit to charge the battery
(p. 9).
The display will show the number of new calls
when or OK is pressed. To search from
the most recent call, press (New key). To
search from the oldest call, press (Old key)
(p. 18).
During a conversation, the display shows the
length of the call (ex. 1 hour, 6 minutes and 35
seconds). The battery strength is also displayed
(p. 9).
The handset has lost communication with the
base unit. Move closer to the base unit.
While programming, the handset lost
communication with the base unit. Move closer
to the base unit.
When a call is received, the display shows the
caller’s phone number after the first ring.
This is an information from the Caller List.
The display shows:
 the caller’s phone number,
 the time and date of the last call
 (ex. Jan. 12, 11:20 AM), and
 the number of times called (ex. 3 times).
Recharge battery
Out of range
Save error
01-06-35
12 new calls
G=New F=Old
0211115555
0355667788
11:20A JAN12 ×3

7
Preparation
No items stored
This display will be shown when:
—the Caller List is empty,
—the directory list is empty, or
—there are no stored items in the dialling button
you pressed in the directory.
A second call is received during a coversation
(For Australia Only) (p. 33).
When trying to store an item or Caller List
information in the directory, the directory memory
is full (p. 22, 25).
This is a name from the directory. The stored
name and phone number are displayed.
Memory is full
Ann
1234567890
0266667777
----Waiting----

8
•USE ONLY WITH Panasonic AC ADAPTOR KX-TCA1AL.
•The AC adaptor must remain connected at all times. (It is normal for the
adaptor to feel warm during use.)
•To connect a standard telephone on the same line, see page 38.
•If your unit is connected to a PBX which does not support Caller ID
services, you cannot access those services.
•The unit is not designed to be used with rotary (pulse dialling) services.

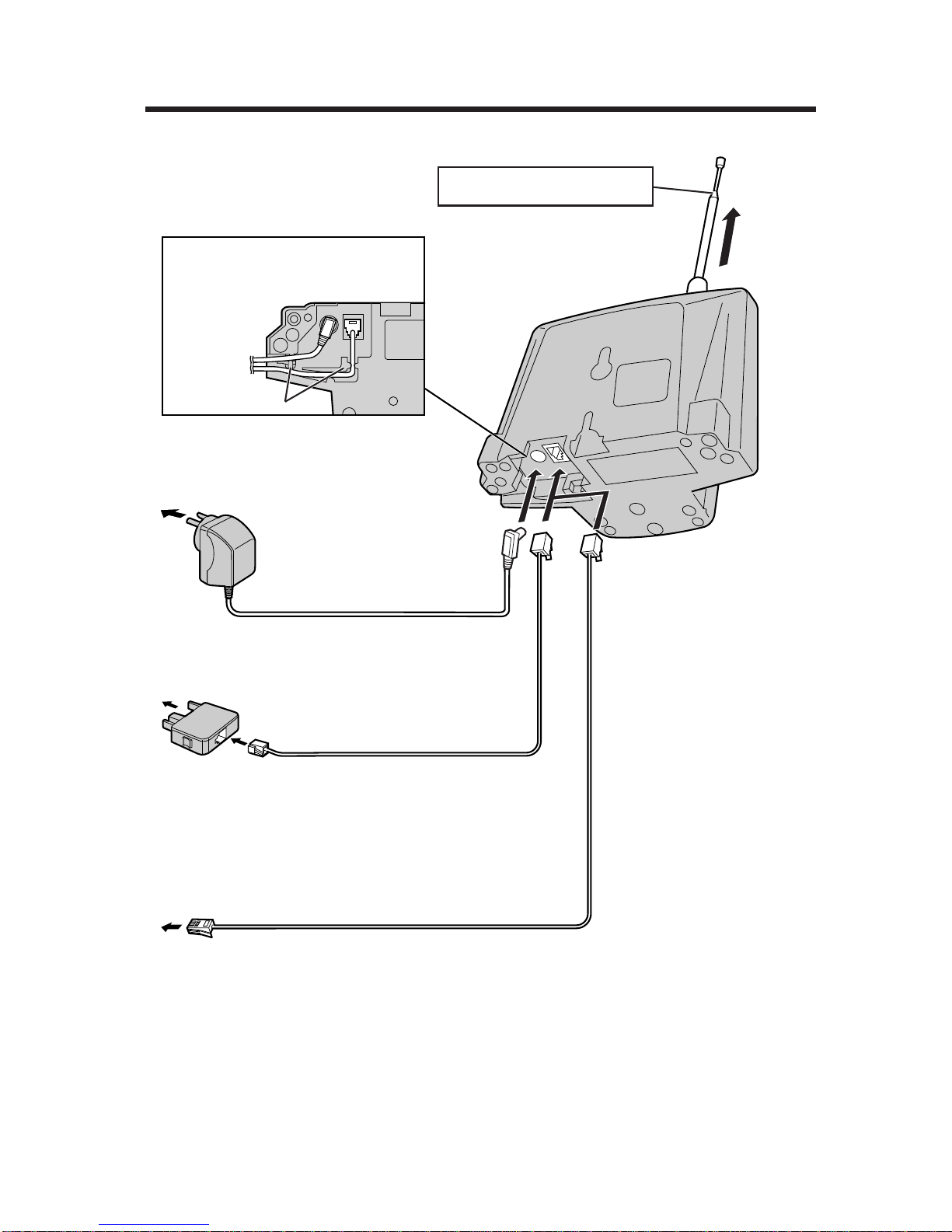

Settings
Extend the antenna fully.
Telephone Line Cord
AC Adaptor
To Power Outlet
(AC 230–240 V, 50 Hz)
Fasten the cords to prevent
them from being disconnected.
Bottom of
the base
unit
Telephone Line Cord
Hooks
To Socket
Telephone Plug
OR
For Australia
For New Zealand
To Single-Line
Telephone Jack
Connections

9
Preparation
Display prompt Battery strength
Battery Charge

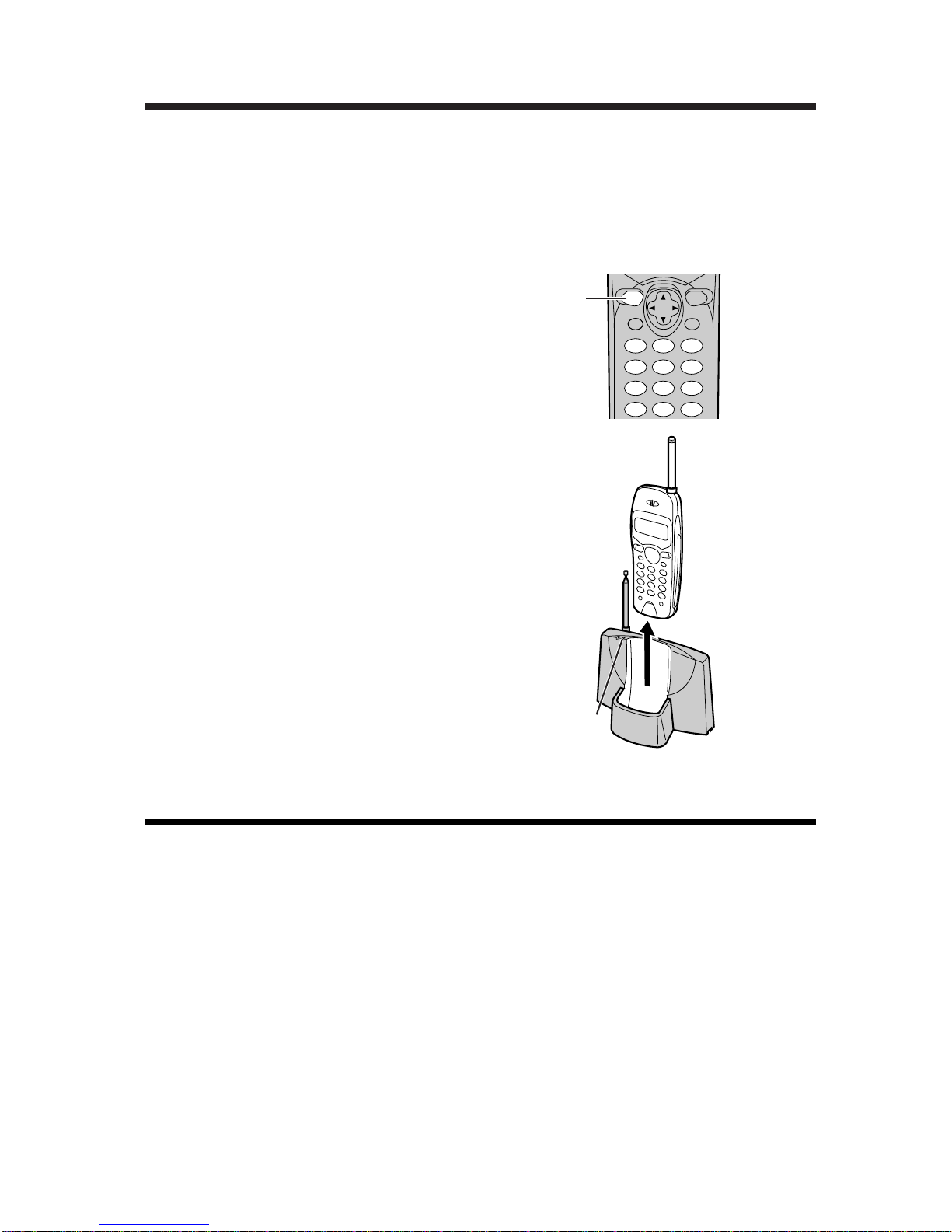

Place the handset on the base unit
and charge for about 10 hours before
initial use.
•Make sure that the confirmation tone
sounds when the handset is placed
on the base unit.
•The IN USE/CHARGE indicator
lights.
Battery strength
You can check the present battery strength on the display.
The battery strength is as shown in the chart below.
Fully charged
Medium
Low
Needs to be recharged.(flashing)
IN USE/CHARGE
Indicator

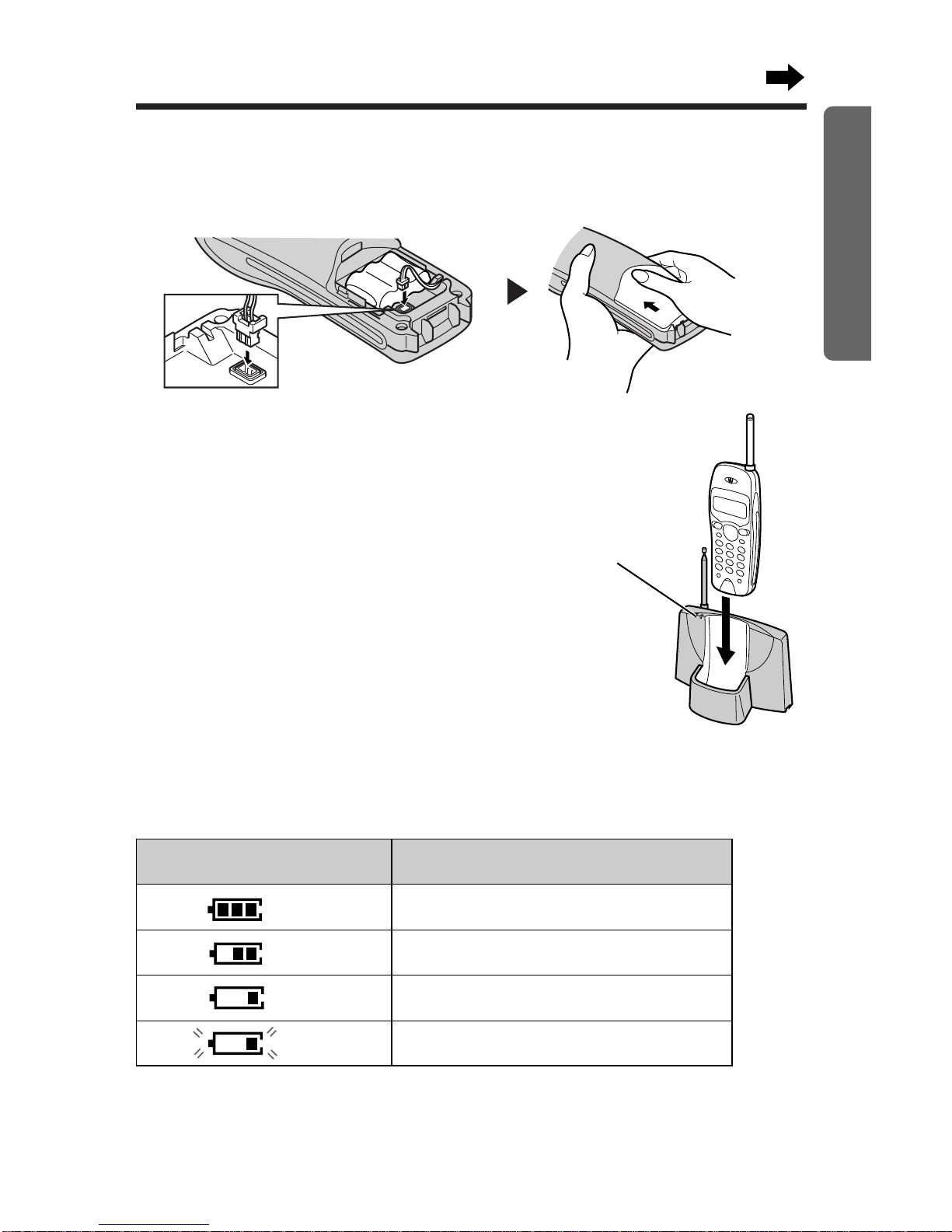

Installing the Battery in the Handset
Install the battery and close the handset cover, locking it into place.

Settings
10
While in use (TALK) 8 hours
While not in use (Standby)
Recharge
Recharge the battery when:
— “Recharge battery” is displayed,
— “ ” flashes on the display, or
— the handset beeps intermittently while it is in
use.
•If you DO NOT recharge the handset battery for more than 30 minutes,
the display will keep indicating “Recharge battery” and/or “ ” will
continue to flash.
•To fully recharge the battery the handset should be left in the base unit
for 10 hours.
20 days
Approx. battery life
Standby mode (The handset is off the base unit.)
The handset goes into the standby mode after you finish using the handset
(making/answering a call, viewing the Caller List or directory items etc.).
The display is blank, but the handset can receive calls.
The battery life is conserved in this mode.
•Battery life may be shortened depending on usage conditions, such as
viewing the Caller ID Caller List or directory items and ambient
temperature.
•Clean the handset and the base unit charge contacts with a soft, dry
cloth once a month. Clean more often if the unit is subject to
grease, dust or high humidity. Otherwise the battery may not charge
properly.
•If the battery is fully charged, you do not have to place the handset on the
base unit until “Recharge battery” is displayed and/or “ ” flashes.
This will maximize the battery life.
•The battery cannot be overcharged.
Battery information
After your Panasonic battery is fully charged (p. 9):
Operation
Recharge battery

Programmable Functions
11
Preparation
H Set recall time
Talk switching
H Save directory
Ringer volume
Program
You can program the following function items using the handset near the
base unit. The display shows the programming instructions. See the
corresponding pages for function details.
Make sure that the unit is in the standby mode.
Press (FUNCTION/EDIT).
<Function menu>*
To use the directory (p. 25).
To select the ringer volume (p. 12).
To select the recall time (p. 34).
To set the auto talk feature (p. 13).
<Function menu>*
During programming
*To select a desired function item, press or repeatedly until the
arrow points to the item. Then press OK to go to the next step.
•You can exit the programming mode any time by pressing (EXIT/CH).
•If you do not press any buttons for 60 seconds, the unit will return to the
standby mode.
Press OK.

Programmable Functions
12
Selecting the Ringer Volume
You can program the ringer volume to HIGH, LOW or OFF. If set to OFF,
the unit will not ring. Your phone comes from the factory set to HIGH.
Make sure that the unit is in the standby mode.
LOW
HIGH Ringer
Low ❚❚❚❚❚❚ High
GF
Ringer
Low ❚ ❚ High
GF
1
Press (FUNCTION/EDIT).
2
Press or repeatedly to select
“Ringer volume”. Then press OK
(Yes key).
3
Press or to select the desired
volume.
•The selected volume is displayed and
rings.
•To turn the ringer OFF, press and
hold until 2 beeps sound.
•The handset will return to the standby
mode.
Save directory
H Ringer volume
GF H OK=Yes
OFF Ringer off
GF
H Save directory
Ringer volume
GF H OK=Yes
or
To turn the ringer ON, press or in
step 3.
•The ringer will sound at the LOW level.
until 2 beeps

13
Preparation
Setting the Auto Talk Feature
The Auto Talk feature allows you to answer a call by lifting the handset off
the base unit without pressing (TALK). To view caller’s information on the
display after lifting the handset, turn this feature OFF. Your phone comes
from the factory set to ON.
Make sure that the unit is in the standby mode.
•You can exit the programming mode any time by pressing (EXIT/CH).
•To answer a call when the Auto Talk feature is OFF, lift the handset off
the base unit, and press (TALK).
1
Press (FUNCTION/EDIT).
2
Press or repeatedly until the arrow
points to “Program”.
3
Press OK (Yes key).
4
Press or repeatedly until the arrow
points to “Talk switching”.
5
Press OK (Yes key).
6
Press or to select “On” or “Off”.
Press OK (Save key).
•A beep sounds.
•To return to the standby mode, press
(EXIT/CH).
Auto talk :Off
GF H OK=Save
Auto talk :On
H Program
GF H OK=Yes
H Talk switching
GF H OK=Yes

Making Calls
14
1
Press (TALK).
2
Dial a phone number.
•The dialled number is displayed.
•After a few seconds, the display will show
the length of the call.
3
To hang up, press (TALK) or place the
handset on the base unit.
(EXIT/CH)
(REDIAL)
Extend the antenna fully.
Display
,,
(TALK)
•If “Out of range” is displayed and an alarm tone sounds in step 1,
move closer to the base unit or place the handset on the base unit, and
try again.
To redial the last number dialled
Press (TALK)
➡
(REDIAL).
If noise interferes with the conversation
Press (EXIT/CH) to select a clearer channel or move closer to the base unit.
1112222
00-00-00

15
Basic Operation
1. Enter a phone number.
•If you misdial, press . Digits are erased
from the right.
•To cancel, press (EXIT/CH).
2. Press (TALK).
1112222
To dial after confirming the entered number
•After a few seconds, the display will show the length of the call.
3. To hang up, press (TALK) or place the handset on the base unit.
To select the receiver volume
Press or while talking.
•Each time you press or , the
volume level will change.
•The display will return to the length
of the call.
HIGH
LOW
Loud
Low ❚❚❚❚❚❚ High
GF
Loud
Low ❚ ❚ High
GF
Backlit handset keypad
The handset dialling buttons will light when you press a button or lift the
handset off the base unit, and flash when a call is received. The lights will
go out about 10 seconds after pressing a button, lifting the handset or
answering a call.
Backlit LCD display
The backlit handset display will stay on for about 10 seconds after pressing
a handset button or lifting the handset off the base unit.
To redial after confirming the last number dialled
Press (REDIAL)
➡
(TALK).

Answering Calls
16
(TALK)
CALLER ID Indicator
When a call is received, the unit rings and the CALLER ID indicator on the
base unit flashes quickly. If you subscribe to a Caller ID service, the calling
party information will be displayed after the first ring (see below). In order
to view the CALLER ID information, please wait until the second ring to
answer a call.
If the handset is off the base unit,
press (TALK).
•You can also answer a call by
pressing any dialling button (0) to (9),
(*) or (#) (— Any Key Talk).
OR
If on the base unit, just lift up.
(This is not possible when the Auto Talk
feature is set to OFF. See page 13.)
This unit is compatible with a Caller ID service offered by your telephone
company. After subscribing to a Caller ID service, the calling party’s
information will be displayed on the handset after the first ring.
The unit can record information of up to 50 different callers, including the
time and date the call was received and the number of times called, in the
Caller List. The Caller List information is sorted from the most recent to the
oldest call. When the 51st call is received, the oldest call is deleted.
Using the list, you can automatically call back a caller. You can store the
callers’ names and numbers from the Caller List in the directory.
When a second call is received while talking, the new caller’s phone number
will be displayed (For Australia only) (p. 33).

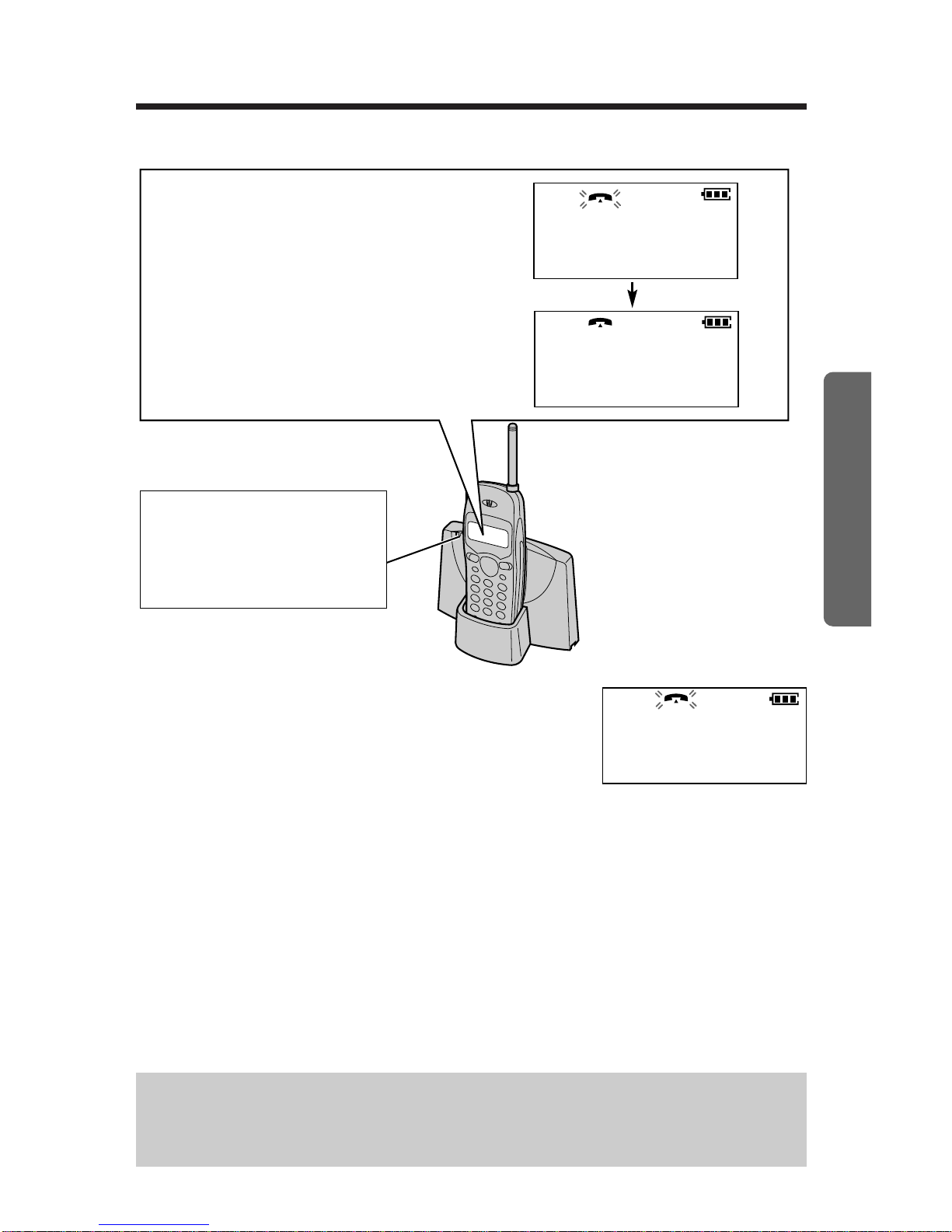

Caller ID Service

17
Basic Operation
The display shows the caller’s phone
number after the first ring.*
After you answer the call, the display will
show the length of the call.
How caller information is displayed when a call is received
021111555
00-00-00
TINA ROBINSON
021111555
*Private name display
If you receive a call from one of the same phone
numbers stored in the directory, the caller’s name
will be displayed.
• To use this function, names and phone numbers
must be stored in the directory (p. 24).
•Caller information cannot be displayed in the following cases:
— If the caller dialled from an area which does not provide a Caller ID
service, the display will show “Out of area”.
— If the caller has requested not to display his/her information, the
display will show “Private caller”.
•If your unit is connected to a PBX which does not support Caller ID
services, you cannot access those services.
•If the name display service is available in your area, the display will show
callers’ names. For further information, please contact your telephone
company.
The CALLER ID indicator
light will flash quickly
when a call is being
received.
For New Zealand Users:
Your telephone company may not support the second caller display
feature.

Using the Caller List
18
Viewing the Caller List
Caller list information includes the caller’s phone number, the time and
date the call was received, and the number of times that caller called.
When new calls have been received, the CALLER ID indicator flashes
slowly on the base unit.
Make sure that the unit is in the standby mode.
1
Press or OK to enter the
Caller List.
•The number of new calls is
displayed.
2
To search from the most recent call,
press (New key).
To search from the oldest call, press
(Old key).
•To scroll between callers, press
or .
3
To exit the list, press (EXIT/CH).
•The handset will return to the
standby mode.
(EXIT/CH)
, ,
, OK
Display
•Once new calls have been checked, “√” will be added.
•If “No items stored” is displayed in step 1, the Caller List is empty.
•If more than one call is received from the same caller, the date and time
of the most recent call will be recorded. If the same caller calls again, the
call entry with “√” will be deleted.
2 new calls
G=New F=Old

19
Basic Operation
Ex. When you search from the most recent call:
Press or OK.
Press .
Press .
Press .
Press .
To return to the previous caller,
press .
To exit the Caller List,
press (EXIT/CH).
•The handset will return to the
standby mode.
Display meaning:
√: You have checked this caller information, answered the call
or called back the caller.
×2-×9: The number of times the same caller called (up to 9).
After checking, “×2” – “×9” will be replaced with “√”.
2 new calls
G=New F=Old
02223334444
3:10P JUN10
NANCY BROWN
0244448888
1:54P JUN 9 ×2
0123456789012345 →
10:38A JUN 9 √
*If you receive a call from one of the
same phone numbers stored in the
directory, the caller’s name will be
displayed. (Private name display).
** If an arrow (→) is displayed after the
number, the whole phone number
has not been shown. Press (#) (→)
to see the remaining numbers. Press
(*) (←) to return to the previous
display.
← 678901
10:38A JUN 9 √
*
** Press (#) (→).
Press (*) (←).

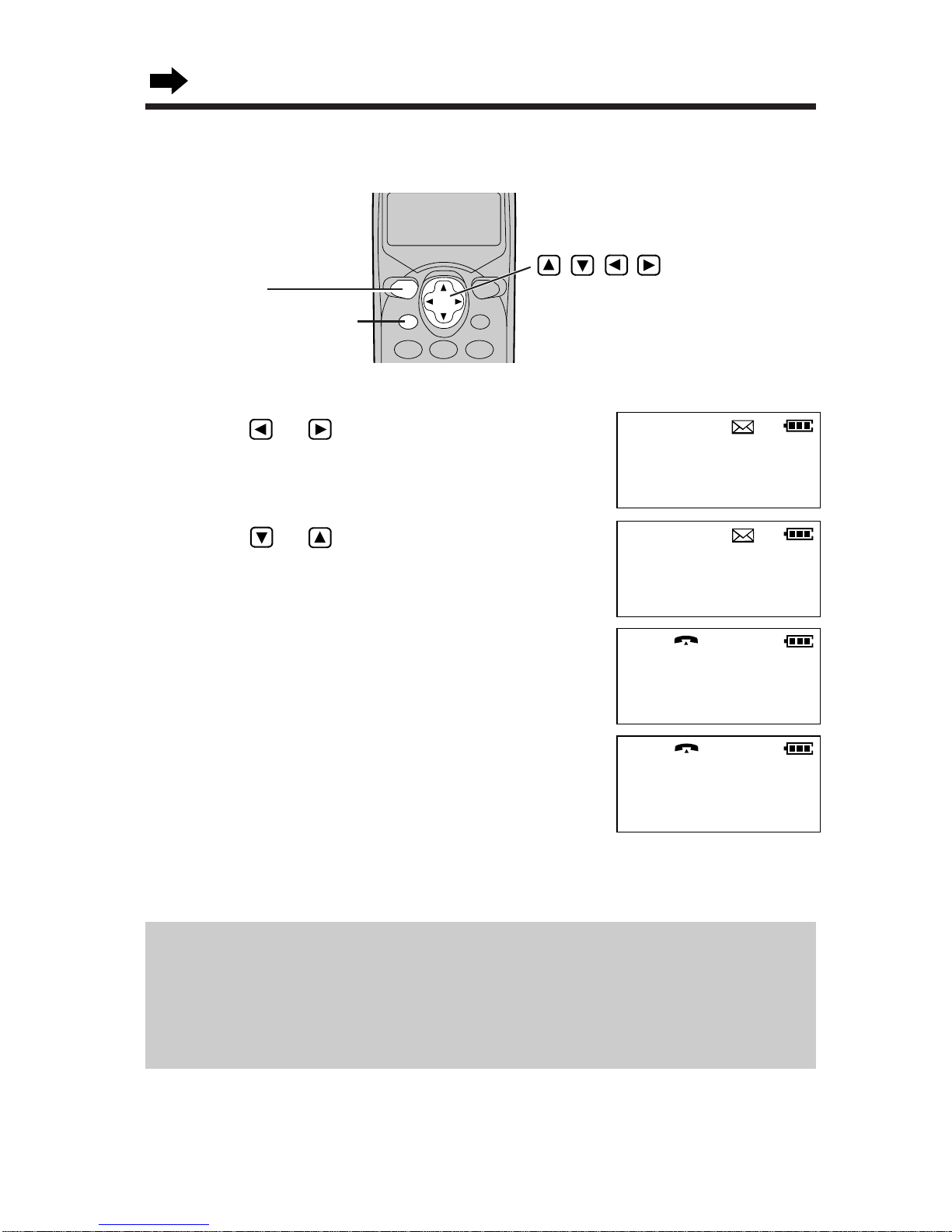

Using the Caller List
20
1
Press or OK to enter the Caller List.
2
Press or repeatedly to find the
desired caller.
3
Press (TALK).
•The displayed phone number is dialled
automatically.
Calling Back from the Caller List
, , , OK
(TALK)
(FUNCTION/EDIT)
•If you need to edit a phone number, see page 21.
•If a phone number is not displayed in the caller information, you cannot
call back that caller.
3 new calls
G=New F=Old
0234567890
00-00-00
0234567890
11:20A JAN12 ×3
For New Zealand Users:
Your telephone service provider may charge you for a local call when it
is dialled with an area code prefix. If the charge for a local call is
unacceptable, only the 7-digits of the local number should be dialled
from your telephone. Do not dial the “0” prefix or the area code digit.
