Step by step
for KX-UDS/UDT series installation

2
© Panasonic Corporation 2017 2
This document describes about step by step for KX-UDS/UDT series installation.
Abstract about this document
Revision history
Date Version Revision Firmware version
Aug 21, 2012 Ver. 1.0 Initial Release All versions
Dec 21, 2012 Ver. 1.1 To add example of how to site survey. UDS124CE: 01.202 or later
UDS124 : 01.002 or later
July 3, 2017 Ver. 1.2 To add taking few minutes before to be able to do handover after finishing registration.
Add page 47 All versions

3
© Panasonic Corporation 2017 3

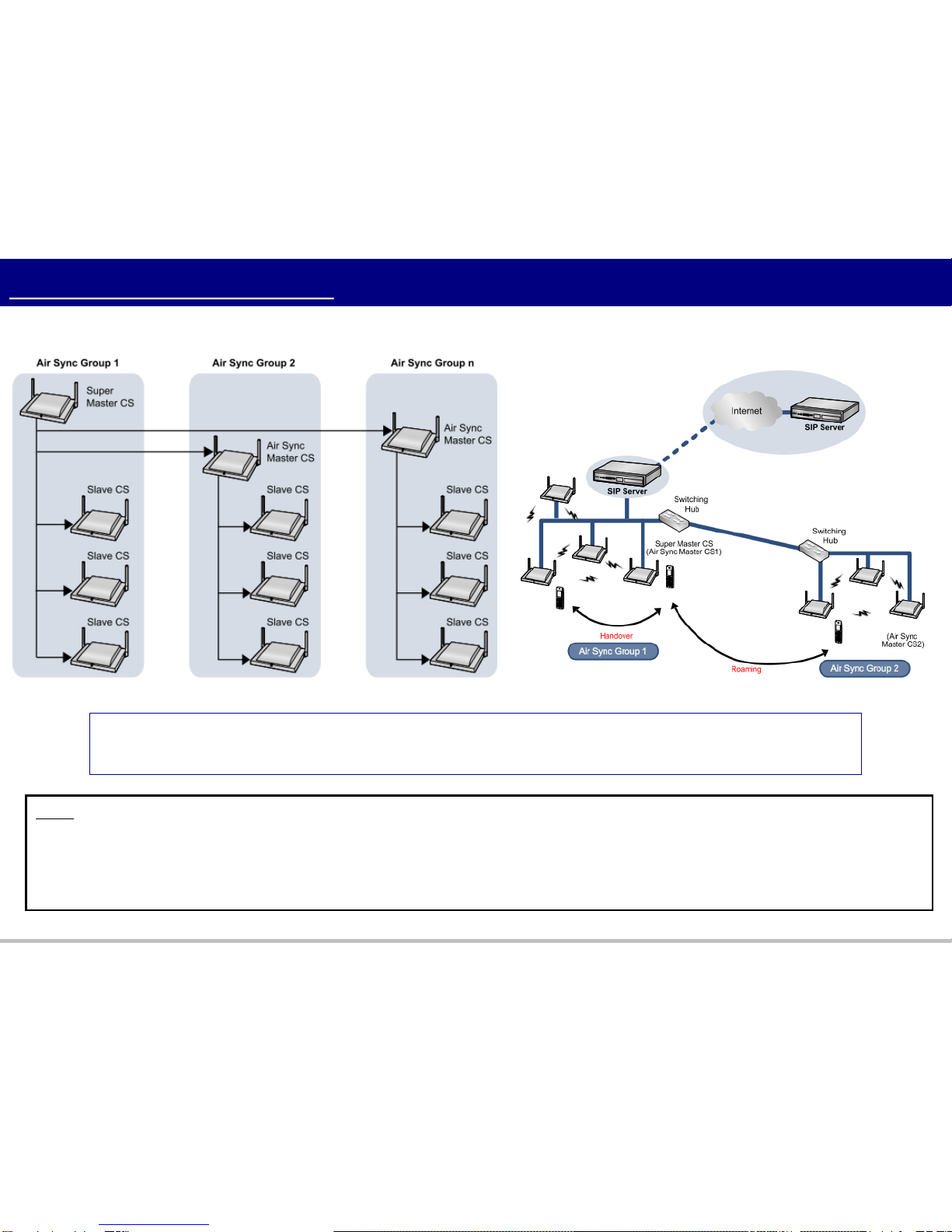

The Air Sync Master CS of Air Sync Group 1 is the most important CS.
It is called the “Super Master CS”.
Note
• You can move between the coverage areas of CSs during a conversation, without disrupting the call.
This is called "Handover" and is only possible within the same Air Sync Group.
• The system requires one Super Master CS to control the system as a whole.
The Air Sync Master CS of Air Sync Group 1 becomes the Super Master CS.
System configuration
CS
CS
CS
PS
PS
PS
CS CS
CS
Up to 8Air Sync Group
Up to 32 CSs for each Group
Up to 255 PSs under one System

4
© Panasonic Corporation 2017 4
SIP Server
Master Slave
Slave
Site Survey
CS Registration
Configuration
Handset Registration
Case: 1 Hop To Master from each Slave
SIP Server
Master Slave
Slave
Case: Multi Hops To Master from each Slave
Tree Survey is not required in the case there is
only 1 hop to Master from each slave.

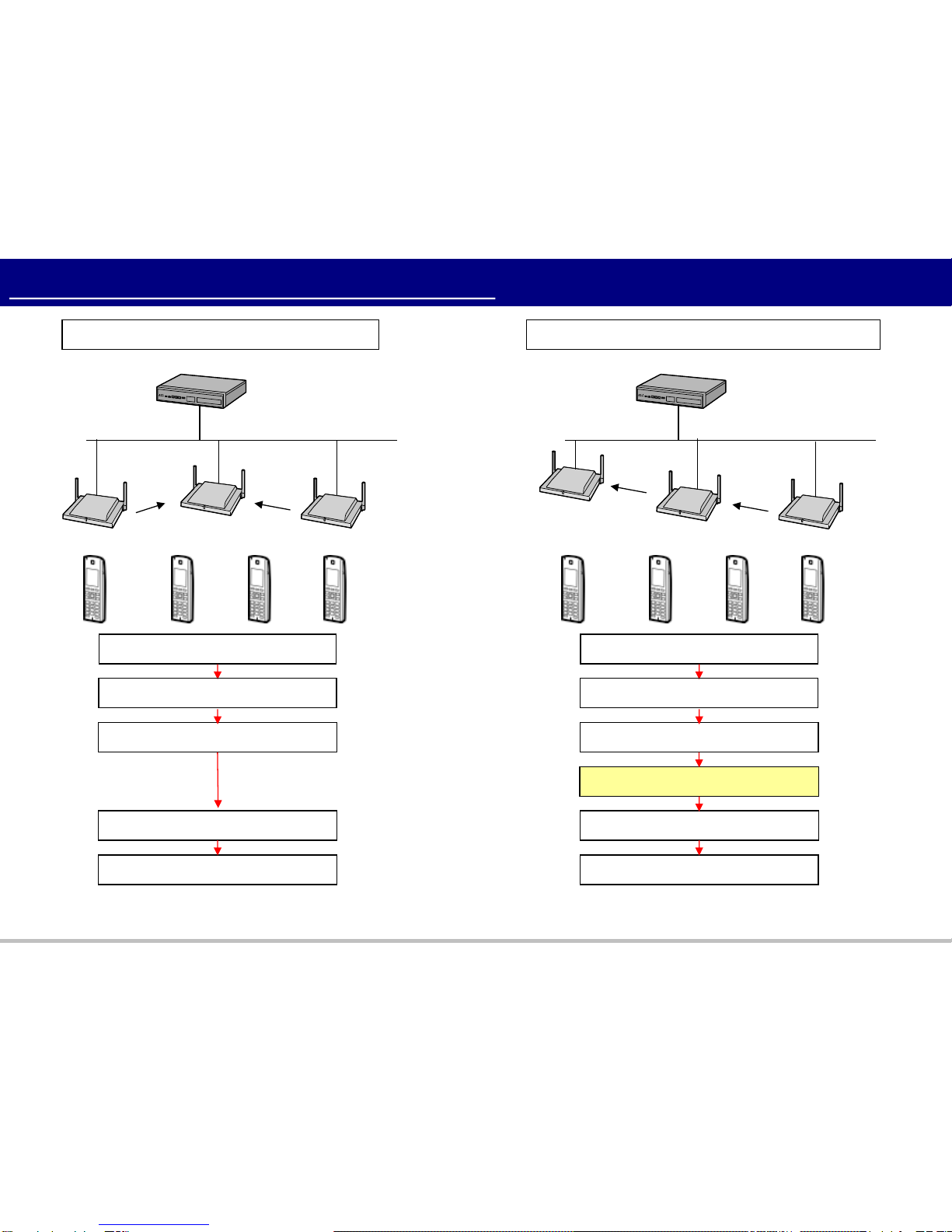

Overview of installation process
Basic Network Configuration
Site Survey
CS Registration
Configuration
Handset Registration
Tree Survey
Basic Network Configuration
PSPSPSPS PSPSPSPS
Up to 7Hops (8 levels)
Master : 1st level

5
© Panasonic Corporation 2017 5
1. Site Survey
2. Basic Network Configuration
3. CS Registration
4. Tree Survey
5. Configuration
6. PS Registration
Procedure
Appendix

6
© Panasonic Corporation 2017 6
1. Site Survey
2. Basic Network Configuration
3. CS Registration
4. Tree Survey
5. Configuration
6. PS Registration
・Use 2 CSs to conduct the site survey to
check radio signal strength.
・Check the radio signal strength by the color
of the CS’s LED.
・After confirming the CS coverage area
for air synchronization, confirm the speech
quality.
1.1 Site Survey
1.2 How to setup Maintenance mode
1.3 Example of How to site survey
1.4 Example of How to make site MAP
Procedure
Appendix

7
© Panasonic Corporation 2017 7
1. Insert AC adapter cable to the CS
(Assume this cell station will be Site
Survey Master Cell Station) with
pressing RESET switch.
LED
Green > Amber > OFF > Green/Red/Amber flashing alternately
1. Press RESET switch for 1 second, then the
LED turns on Red and Green flashing alternately.
2. Put Site Survey Master CS into appropriate
position.
LED
Red fast flash > Red and Green flashing alternately
[This LED pattern indicates Site Survey master (signal generator) mode.]
2. Release the RESET Switch when the LED
flashes [Green/Red/Amber] alternately,
then the IP address is set to [192.168.0.241]
1.1 Site Survey <Step1> : Turn on Site Survey Master CS
・You can set Site Survey Master mode from normal mode or fixed IP mode.
Fixed IP mode
LED
Green > Amber > OFF > Red flashing
Normal mode
1. Insert AC adapter cable to the CS.
(Assume this cell station will be Site
Survey Master Cell Station) .
Note:
LED indicates as above explanation when you start site
survey with non-active CS.
Reset button for site survey mode is available even if the
CS has already run in the system. In this case, LED
becomes green generally.

8
© Panasonic Corporation 2017 8
1. Insert AC adapter cable to another CSs (Assume this CS will be Slave CS).
(This Cell Station go into Site Survey signal receiver mode)
Indications Description
Red and Green
alternate flashing Site survey signal generator mode (Site survey Master Mode)
Slow green flashing Receiving site survey signal
condition is good
Slow amber flashing Receiving site survey signal
condition is not good
Slow red flashing No find site survey signal (After
getting IP address)
Moderate Red flashing No find site survey signal (Before
getting IP address)
LED Status:
It takes around a minute to be sync again, if
slave CS is not sync with master CS during
Red LED status.
Master
Slave
1.1 Site Survey <Step2> : Turn on Slave CS and
Confirm the coverage area
2.Place Slave CS closet to Site Survey
Master CS and confirm LED is slow
green flashing.

9
© Panasonic Corporation 2017 9
3. Place Site survey Master CS where Slave CS was, and then place Slave CS
closest to current location of Master CS.
4. Confirm whether the LED of Slave CS is slow green flashing. If it is not slow green
flashing, move Slave CS around to find a location where its LED turns slow green flashing.
5. Repeat steps 3 for all other locations.
1.1 Site Survey <Step3> : Confirm the coverage area (Next place)
Master
Slave
Master
Slave

10
© Panasonic Corporation 2017 10
1. Place a CS in the location confirmed for the Air Sync Master CS in
the previous site survey.
2. Supply power to the CS.
3. Start “CS Area Check” mode from Maintenance mode in PS.
＊See “Section 1.2”.
In this mode, you will hear a cyclic tone from receiver.
4. Walk around the CS to confirm the CS’s service area.
If the radio strength level and Error Rate are at acceptable levels,
you will continue hearing a tone from the PS and 2 lines on the
LCD of the PS light green.
Note : If there is an area where you can’t hear a tone and
the 2 lines of the LCD don’t light green, relocate the CS.
5. After confirming the service area, press [CANCEL] on the PS
to stop the tone.
6. Relocate the CS to another location.
7. Walk around the CS to confirm the CS’s service area.
8. Repeat steps 4 to 7 for all the locations so that the CSs will
provide service for whole area.
9. After finishing CS Area Check, turn off the PS.
(Please refer to “41-003” about explanation with visual information.)
1.1 Site Survey <Step4> : Site Survey by using PS and
Confirm CS coverage area
After Site Survey, you should exit Site Survey Master mode (press RESET button while power is
supplied to CS), and turn off all CS used for Site Survey once.
Site Survey from
Handset

11
© Panasonic Corporation 2017 11
1.Turn on the PS by pressing and holding the POWER/CANCEL key.
2. After turning on the PS, a blank screen will be displayed.
At this time, press and hold the TALK/SP-PHONE key for about 8 seconds.
3. Press the left soft key, press [8],
and then press [1].
4. Press OK.
Display during CS Area Check on the screen

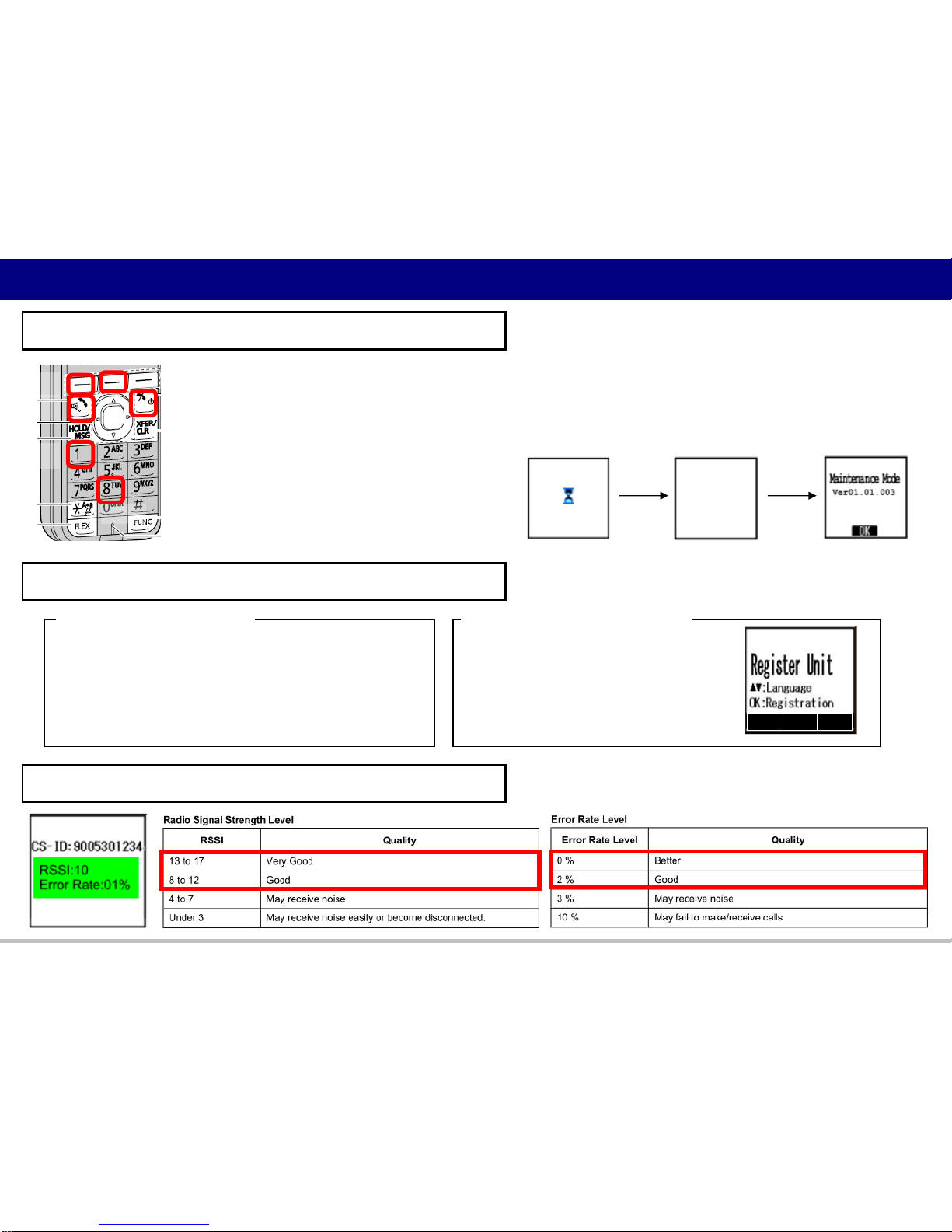

1.2 How to setup Maintenance mode and CS Area Check of the PS
How to setup Maintenance mode
How to setup CS Area Check mode
1
3-2
3-1
4
1 ⇒2 3 ⇒4
With registered PS With Un-registered PS
1. Enter “Maintenance mode”.
(See above)
2. Select “CS Area Check”,
and press “OK” twice.
1. Turn on PS.
2. Press “MON.” button.
3. Press “OK”. MON.
MENU OK
2
3-3

12
© Panasonic Corporation 2017 12
1. Set CS Area check mode using PS and walk around the site survey Master CS
to confirm the CS Cover Area (Recommended condition is RSSI over 8 and
Error Rate under 02% ), then place Slave CS into the cover area of Master CS.
2. Confirm whether the LED of Slave CS is slow green flashing. If it is not slow green
flashing, move Slave CS around to find a location where its LED turns slow green flashing.
3. Place the Master CS where the Slave CS was, and Repeat steps 1 for all other locations.
1.3 Example of How to Site Survey （by CS Area check using PS）
Master
CS Area check using PS
CS Cover Area
CS Cover Area
Even if you confirm the CS Area check using PS,
Finally you need to confirm radio signal between
Master CS and Slave CS by LED status.
If you plot a MAP with value(RSSI/Error),
It’s a better way to site survey smoothly.
（When you need to change the CS
location，you can confirm the MAP）
CS Cover Area

13
© Panasonic Corporation 2017 13
2．Please write down radio signal value（RSSI and Error Rate）around the next CS
location and the important places such as a meeting room on the floor MAP.
When you need to change the CS location, you can confirm the MAP.
1. Please write down the each CS MAC addresses on the floor MAP.
When you have some network troubles, you can confirm which CS cannot access
on the MAP（The MAC address is written on the rear side of each CS.）
1.4 Example of How to make a Site MAP
CS Area check
CS Cover Area
Example of Site MAP1
（CS MAC address）
CS1
（Location1）
Example of Site MAP2
（Radio signal condition）
CS2
（Location2）

14
© Panasonic Corporation 2017 14
1. Site Survey
2. Basic Network Configuration
3. CS Registration
4. Tree Survey
5. Configuration
6. PS Registration
How to exit Site Survey Master mode of the CS
Press RESET switch again for 1 seconds while
the LED flashes [Green/Red] alternately.
(Once CS has been turned off after you set the
CS as site survey mode, CS resets
automatically after above procedure.
Please exit from Site Survey Master mode before
you execute “Basic Network Configuration”.
Air Sync Group:
To obtain steady air synchronization over a wide
area, it is necessary to create Air Sync Groups.
Procedure
2.1 Definition of IP address
2.2 Basic Network Configuration
・Basic Network Setting
・Air Settings
Appendix
Please turn off the CSs used for Site Survey.

15
© Panasonic Corporation 2017 15
SIP Server
Master Slave
Slave
Only 1 Air Synchronization Group
SIP Server
Super Master Slave
Slave
Master Slave
Slave
Group 1
Group 2
Multiple Air Synchronization Group
Static/Dynamic
Static/Dynamic
Static
・・・・・ ・・・・・
・・・・・
The CSs are assigned IP address by Static or Dynamic (DHCP server).
Default setting is DHCP.
Notice
・The IP address of Super Master must be Static setting.
・In case you set IP address from Web UI and use provisioning, see “Section 5.1.2”.
2.1 Definition of IP Address
Static setting
・Enter IP address from Web UI.
・Assign specific IP address using DHCP server function.

16
© Panasonic Corporation 2017 16
This step is no need if you use DHCP server.
1. Turn on the CS
(Super Master・Slave・
Air Sync Master)
while holding
RESET Switch.
LED: Green > Amber > OFF > Green/Red/Amber alternate flashing
2. Release the RESET Switch when
the LED flashes [Green/Red/Amber] alternately,
then the IP address is set to [192.168.0.241].
3. Log in to http://192.168.0.241/
4. Input ID and password for administrator.
ID : admin
Password : adminpass
5. After log in, Configure network settings
of CS and click [Save].
[Network] → [Basic Network Setting]
6. Log in to the Web user interface again
using the newly assigned IP address for the CS.
2.2 Basic Network Configuration <Step1> : Basic Network Setting

17
© Panasonic Corporation 2017 17

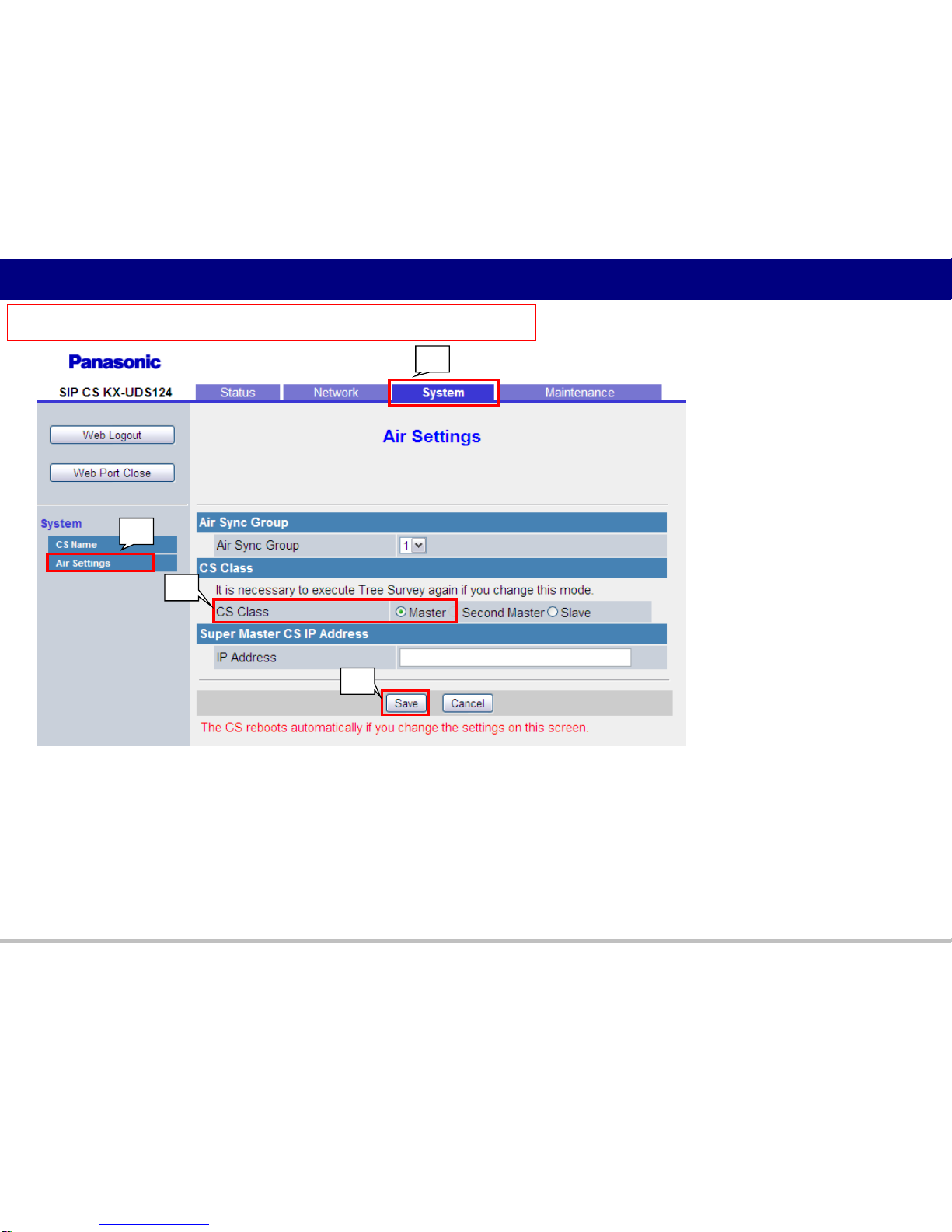

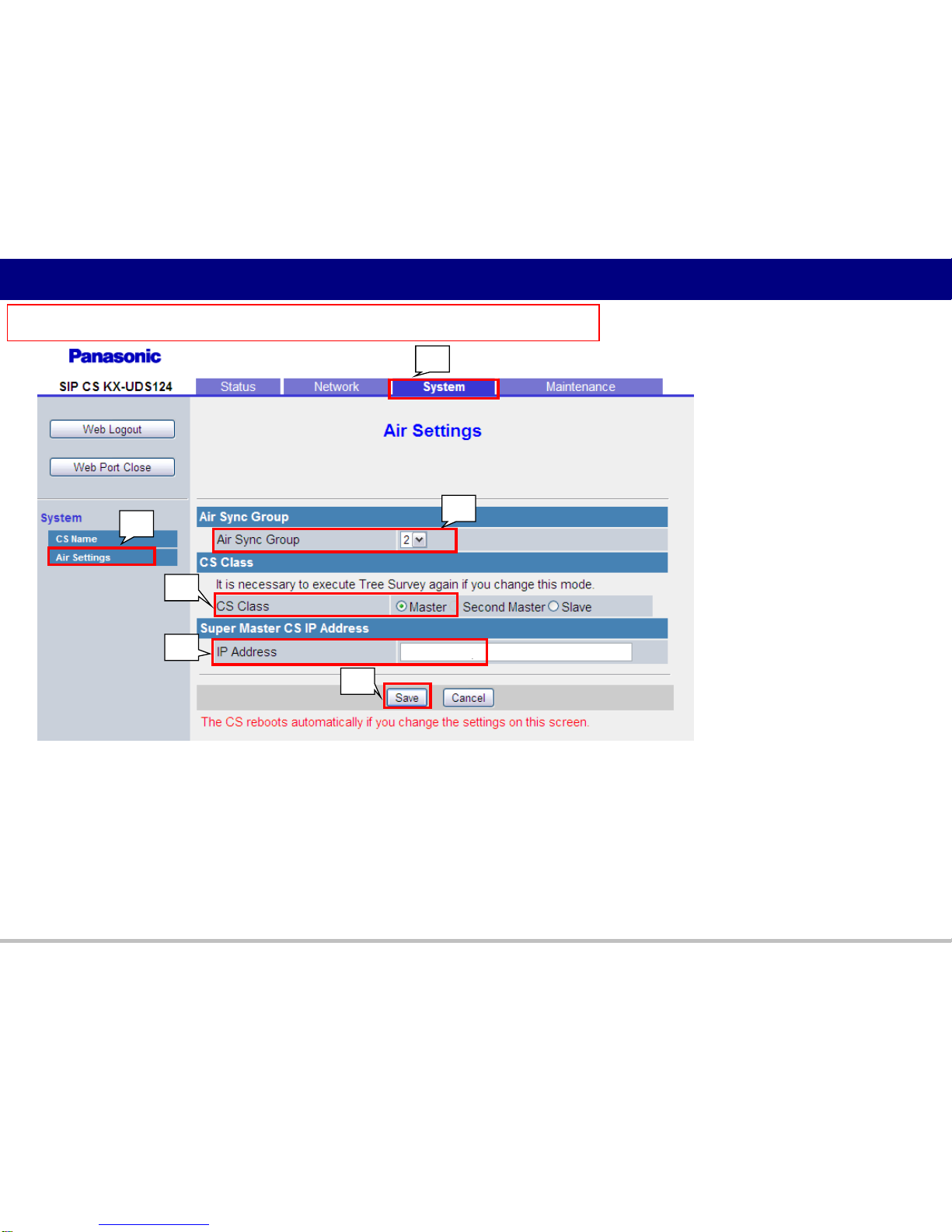

In the case of Super Master CS (Air Sync Group 1)
1. In the [System] tab, select [Air Settings].
[System] → [Air Settings]
2. In CS Class, select “Master”.
3. Click [Save].
・The CS will restart automatically.
・The CS is now set as the Super Master CS. You may exit Site Survey Mode.
2.2 Basic Network Configuration <Step2> : Air Settings
1.
1.
3.
2.

18
© Panasonic Corporation 2017 18
In the case of Air Sync Master CS (Air Sync Group 2～8)
1. In the [System] tab, select [Air Settings]. [System] → [Air Settings]
2. Select an Air Sync Group (Group 2～8).
3. In CS Class, select “Master”.
4. Enter the IP address of the Super Master CS in IP Address.
・When the IP address of the Super Master CS is unknown, see “Appendix B”.
5. Click [Save].
・The CS will restart automatically.
・The CS is now set as an Air Sync Master CS. You may exit Site Survey Mode.
2.2 Basic Network Configuration <Step3> : Air Settings
1.
1.
3.
5.
2.
4. 192.168.0.99

19
© Panasonic Corporation 2017 19
1. Site Survey
2. Basic Network Configuration
3. CS Registration
4. Tree Survey
5. Configuration
6. PS Registration
Notice
• During CS Registration, make sure that all
unregistered CSs that are not in the Air Sync
Group are turned off.
• Repeat CS Registration for each Air Sync
Group.
•Confirm the MAC address of each CS before
registering it.
Connect all CSs in the Air Sync Group
to the network and turn them on.
3.1 CS Registration
3.2 Delete CS Registration
3.3 Add CS Registration
Procedure
Connect the CSs to the LAN only after completing basic network configuration.
Appendix

20
© Panasonic Corporation 2017 20
After CS registration
In the case of one Air Sync Group
Master Slave Master Slave
1. Log in to Super Master CS.
2. In the [System] tab,
select [CS Management].
[System] → [CS Management]
3. Select the number of CS (1~31) which you
want to register in the air sync group.
(Don’t count Super master CS)
4. Click [Start CS Registration] and then click [OK].
5. When all CSs are registered, this sequence
completes automatically.
3.1 CS Registration <Step1> : CS Registration
Notice
When IP address of the Super Master CS is unknown, see “Appendix B”.
Please see “Appendix C” about the detail of LED.
(If all CSs displayed in “CS Registered List”, CS Registration is completed even if CS’s LED is different.)
You cannot register the following CSs:
• CSs that are not connected to the network
• CSs that cannot receive radio signals from the Air Sync Master CS
• Please refer to “41-003” for causes other than the above.
LED
Master : Green
Slave : Green
far Slave : Red slow flash
Slave
LED
Master : Green
Slave : Red slow flash
far Slave : Red slow flash
Slave
ID and Password for
administrator
ID : admin
Password : adminpass
2.
2.
4.
Cancel
4.
5.
3.
