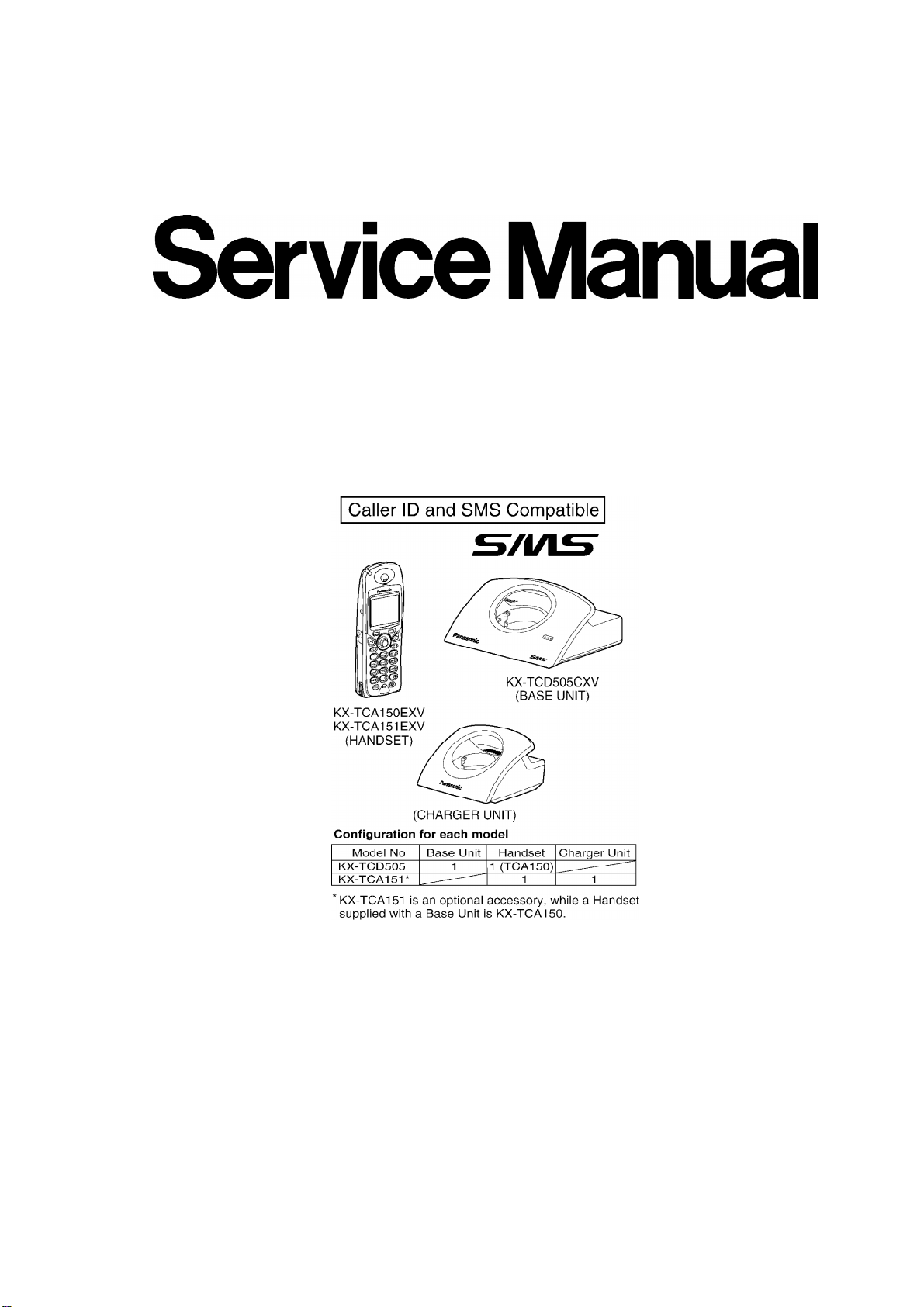

Panasonic KX-TCD505CXV User manual

ORDERNO. KM40309199C2
Telephone Equipment
KX-TCD505CXV / KX-TCA150EXV / KX-TCA151EXV
Digital Cordless Phone
Violet Version
(for Czech)
(for Slovakia)
SPECIFICATIONS
1

2003 PanasonicCommunications Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. ABOUT LEAD FREE SOLDER (PbF: Pb free)
Note:
Inthe information below, Pb, the symbol forleadinthe periodic table of elements, will referto
standardsolderorsolderthat contains lead.
We will use PbF solderwhendiscussing the leadfree solderusedinourmanufacturing process
whichis made fromTin(Sn), Silver(Ag), and Copper(Cu).
This model, and others like it, manufacturedusing leadfree solderwill have PbF stampedon
the PCB. Forservice and repairwork we suggest using the same type of solderalthough, with
some precautions, standardPbsoldercanalsobe used.
Caution
-PbF solder has amelting point that is50°F ~70°F (30°C~ 40°C)
higher than Pb solder. Please use asoldering iron with
temperature control and adjust itto 700°F ± 20°F (370°C± 10°C). In
2

case of using high temperature soldering iron, please be careful
not to heat too long.
-PbF solder will tend to splash ifitisheated much higher than its
melting point, approximately1100°F (600°C).
-Ifyou must use Pb solder on aPCB manufactured using PbF
solder, remove as much of the original PbF solder as possibleand
be sure that anyremaining ismelted prior to applying the Pb
solder.
-When applying PbF solder to doublelayered boards, please check
the component side for excess which mayflow onto the opposite
side (See the figure below).
1.1. Suggested PbF Solder
There are several types of PbF solderavailable commercially. While this product is
manufacturedusing Tin, Silver, and Copper
(Sn+Ag+Cu), you canalsouse Tinand Copper(Sn+Cu) orTin, Zinc, and Bismuth(Sn+Zn+Bi).
Please check the manufac
turer’s specific instructions forthe melting points of theirproducts and anyprecautions for
using theirproduct withother
materials.
The following leadfree (PbF) solderwire sizes are recommendedforservice of this product:
0.3mm, 0.6mm and 1.0mm.
1.2. How to recognize that Pb Free solder isused
1.2.1. Base Unit PCB
3

(Component View)
(FlowSolderSide View)
Note:
The location of the “PbF“ mark is subject tochange without notice.
1.2.2. Handset PCB
(Component View)
(FlowSolderSide View)
Note:
The location of the “PbF“ mark is subject tochange without notice.
1.2.3. ChargerUnit PCB
Note:
The location of the “PbF“ mark is subject tochange without notice.
2. FOR SERVICE TECHNICIANS
ICs and LSIs are vulnerable tostatic electricity.
Whenrepairing, the following precautions will helpprevent recurring malfunctions.
1. Cover the plasticparts boxes with aluminum foil.
2. Ground the soldering irons.
3. Use aconductive mat on the worktable.
4. Donot touch ICor LSI pins with bare fingers.
3. CAUTION
Dangerof explosion if batteryis incorrectlyreplaced. Replace onlywiththe same orequivalent
type recommendencedbythe manufacturer.
Dispose of usedbatteries according tothe manufacture’s Instructions.
4. BATTERY
4.1. BatteryInstallation
Please ensure the batteries are insertedas shown. part shouldbe insertedfirst.
Close the coveras indicatedbythe arrow.
4

-When you replace the batteries, part shouldbe removed first.
4.2. BatteryCharge
At the time of shipment, the batteries are not charged. To charge, place the handset on the base
unit.
Please charge the batteries forabout 7 hours before initial use. During charging, the charge
LED will light as shownbelow.
The handset whichpoweris off will be turnedon automaticallywhenit is placedon the base
unit.
The handset will not operate while it is on the base unit.
If you do not recharge the handset batteryformore than15 minutes, the displaywill flash
whenthe handset is liftedoff the base unit.
5

Note forService:
-The batterystrength maynot be indicated correctlyifthe batteryis
disconnected and connected again, even after itisfullycharged.
Inthat case, byrecharging the batteryas mentioned above, you
will get acorrect indication of the batterystrength.
-Confirmation of Antenna Pict ( ) indication:
IfAntenna Pict isindicated, charge time isabout 7hours.
However, ifAntenna Pict isflashing, charge time becomes long.
4.3. BatteryInformation
AfteryourPanasonic batteryis fullycharged:
Ni-MH Batteries (typical 700 mAh)
Operation Operating Time
While inuse (TALK) 10 hrs approx.
While not inuse (Standby) 120 hrs approx.
Ni-CdBatteries (typical 250 mAh)
Operation Operating Time
While inuse (TALK) 4 hrs approx.
While not inuse (Standby) 40 hrs approx.
-Times indicated are for peak performance.
-The batteryoperating time maybe shortened depending on usage
conditions and ambient temperature.
-Clean the charge contacts of the handset and the base unitwith a
soft, drycloth. Clean ifthe unitissubject to grease, dust or high
humidity.
Otherwise the batterymaynot charge properly.
-The batteries cannot be overcharged unless theyare repeatedly
removed and replaced.
-For maximum batterylife, itisrecommended that the handset not
6

be recharged until the batteryicon flashes .
4.4. Replacing the Batteries
If the icon flashes aftera fewtelephone calls evenwhenthe handset batteries have
beenfullycharged, bothbatteries must be replaced.
-Charge new batteries for approximately7hours before initial use.
(The telephone line cord must not be connected to the telephone
socket at thistime).
When replacing the batteries, ensure that the correct batterytype
isselected.
-When replacing the batteries, be sure to set up the batterytype
even ifyou install the same type of batteries to initialise battery
remaining memoryof your handset.
-The factorypreset is .
-To exitthe operation, press anytime.
-Donot use non-rechargeablebatteries. Ifnon-rechargeable
batteries are fitted and start charging, itmaycause the leakage of
the batteryelectrolyte.

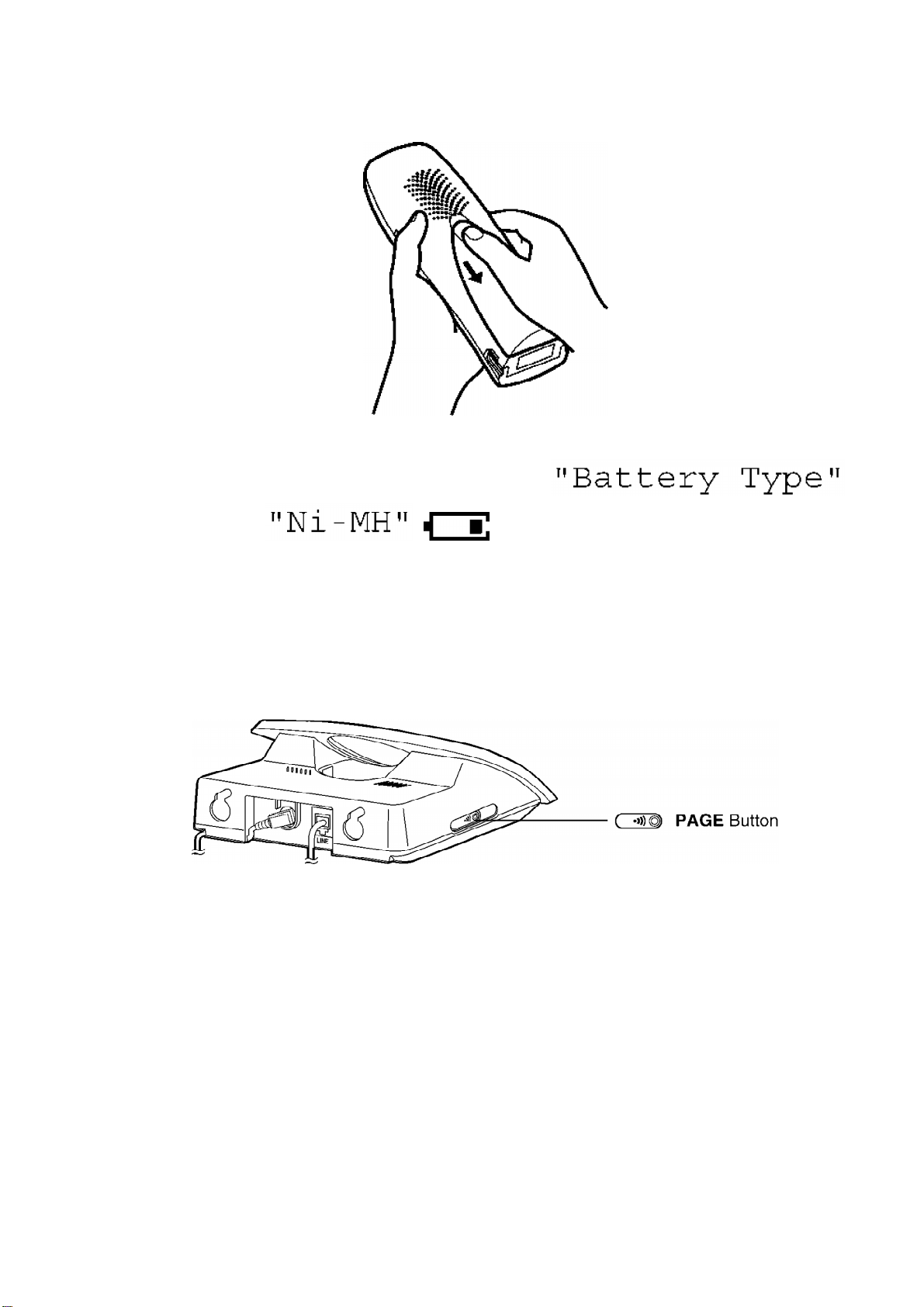

-Press the notch on the cover firmlyand slide itas indicated bythe
arrow. Replace both batteries and close the cover then charge the
handset for about 7hours.
7

Please orderPanasonic P03P(Ni-MH) orP03H(Ni-Cd) batteries.
Note forService:
-When Ni-Cdbatteies are fitted with the
setting in , icon might disappear and stop
charging even ifthe handset ison the cradlefor avoiding
overcharge.
5. LOCATION OF CONTROLS
5.1. Base Unit

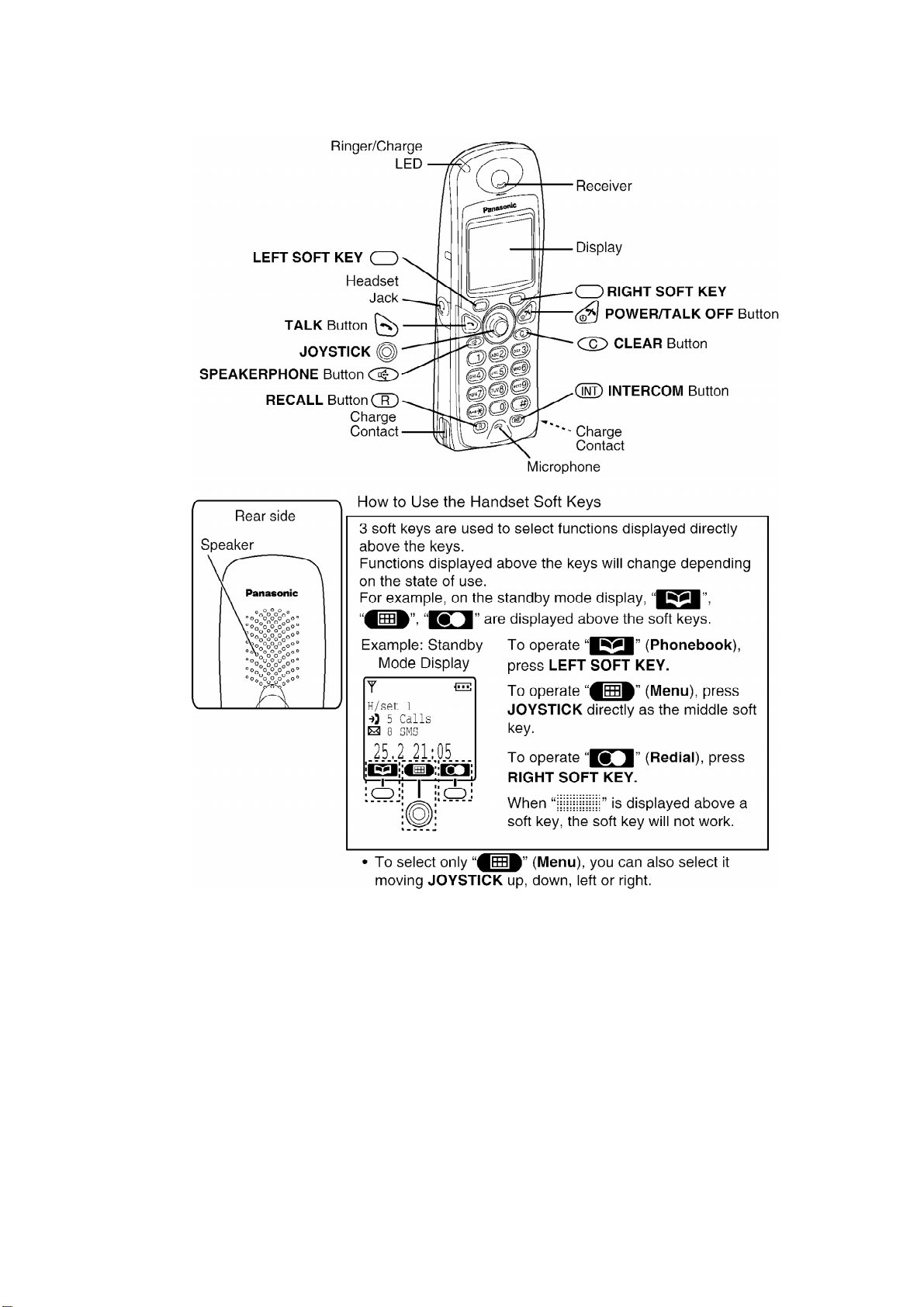

5.2. Handset
8

9

6. SETTINGS
Environment
Donot use this unit nearwater. This unit shouldbe kept awayfromheat sources suchas
radiators, cookers, etc. It shouldalsonot be placedinrooms where the temperature is less than
5°C orgreaterthan40°C. The AC adaptoris usedas the maindisconnect device. Ensure that the
AC outlet is located/installednearthe unit and is accessible.
Location
-For maximum distance and noise-free operation, place your base
unit:
-Awayfrom electrical appliances such as TVs, radios, personal
computers or other phone.
-Inaconvenient, high, and central location.
6.1. Connection
6.1.1. Base Unit

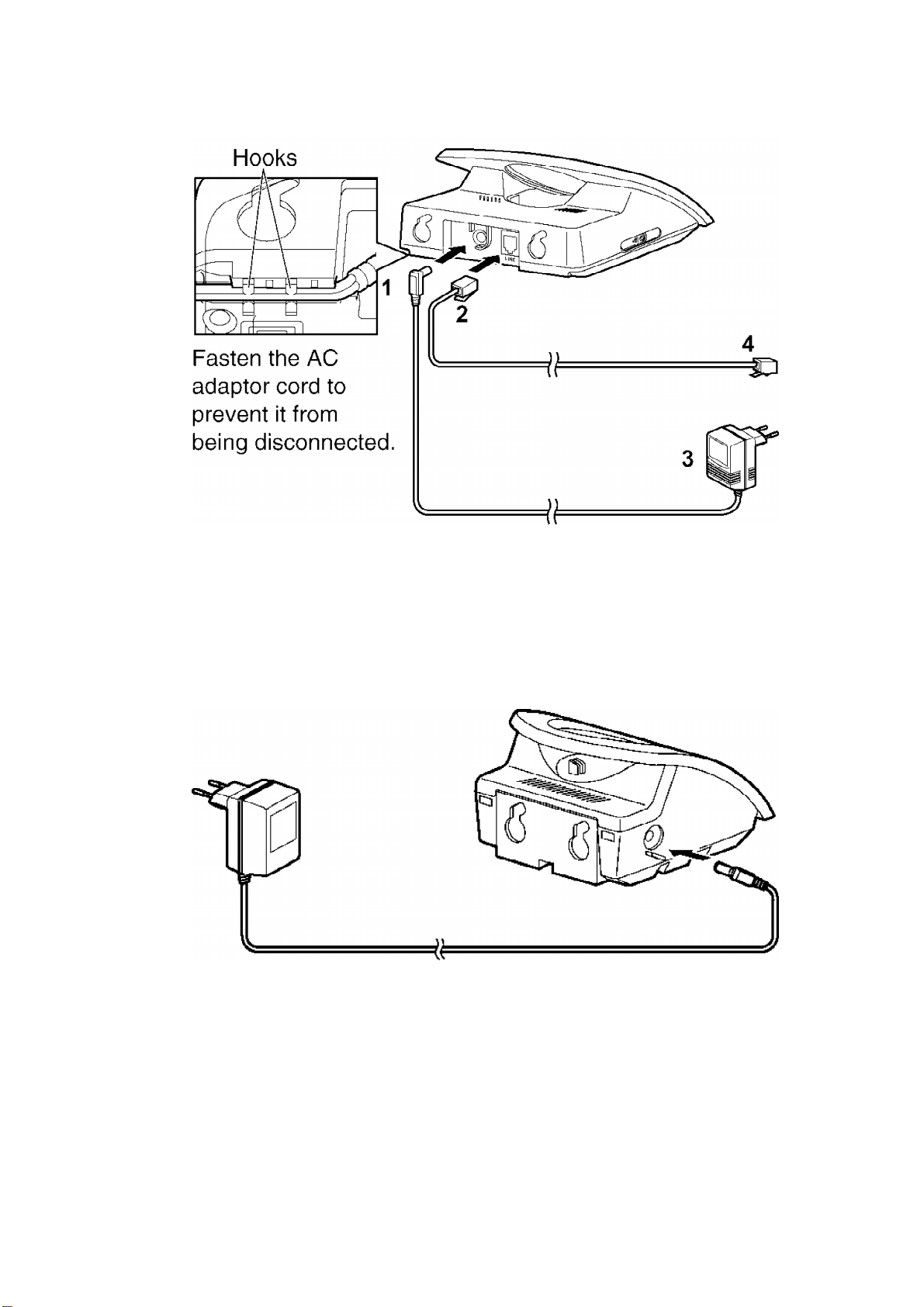

Plug inthe AC adaptorand the telephone line cordinorder1, 2, 3, 4.
