Panasonic KX-TD7590CE User manual

DECT Portable Station
Model No. KX-TD7590CE
Operating Instructions
– Thank you for purchasing a DECT Portable Station.
– Charge the battery for about 6 hours before initial use.
– For more details, please refer to the User Manual Addendum
for the KX-TD7590CE.
– In this manual, the last letter of each model number is omitted.
Getting Started................. 2
Display (LCD)................... 5
Key Operations ................ 7
Selecting the Display
Language ..................... 9
Making a Call ................. 10
Receiving a Call............. 12
Holding a Call................. 13
Transferring a Call.......... 14
Key Lock Setting............ 14
Using the Directory ........ 15
PS Programming............ 25
Editing Labels of Flexible
CO Button on LCD..... 32
Other information ........... 34
Safety Instructions.......... 37
CONTENTS
Regulations................... 40
Attention!!...................... 40
RF Specifications.......... 40
English .................... 1–40
Deutsch ................. 41–80
Français............... 81–120
Nederlands ........ 121–160
English Deutsch Français Nederlands
TD7590-E(01~24) 00.8.11 7:57 PM Page 1

2
GETTING STARTED

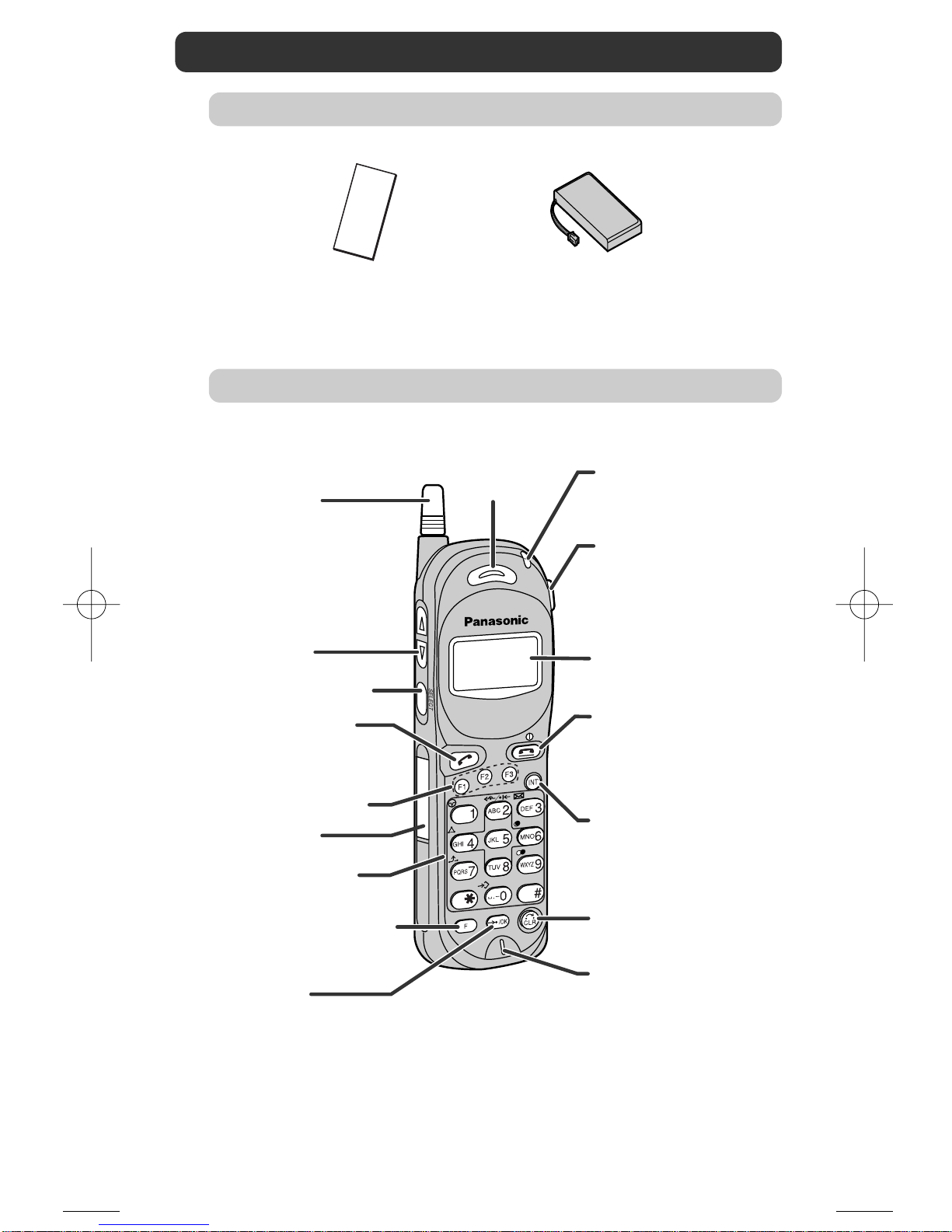

ACCESSORIES
PORTABLE STATION (PS)
Rechargeable Battery
PSP1F6122485
Operating Instructions
PSQX2035Z
HEADSET Jack
CALL/CHARGE
Indicator
UP/DOWN
Buttons DISPLAY
CANCEL/POWER
Button
INTERCOM
Button
CLEAR/TRANSFER
Button
MICROPHONE
SELECT Button
TALK Button
FLEXIBLE CO
Buttons
(F1 through F3)
I/O Port*
DIAL Buttons
FUNCTION/
KEY-LOCK Button
AUTO/OK
Button
RECEIVER
Antenna
KX-TD7590
*For service use only.
TD7590-E(01~24) 00.8.11 4:56 PM Page 2

3
Cord
(Red) Cord
(Black)
Connect the battery cord
and install the battery.
GETTING STARTED (CONT.)
SETTING UP
Connect the charger to a power outlet using
the AC adaptor.
2
1
Open the battery cover.
Close the cover.
Cord Holder
To Power Outlet
AC Adaptor
Charger
TD7590-E(01~24) 00.8.11 4:56 PM Page 3

4
To power “ON”, press (CANCEL/POWER) button
about 5 seconds, until “KX-TD7590” is displayed.
To power “OFF”, press button for a short time.
NOTE:
•The charger can be wall mounted.
•The PS and charger get warm during charging. This is
normal and not dangerous.
•Be sure to complete charging before initial use.
•Keep magnetically sensitive items away from the
charger.
•It takes longer to charge the PS if you put the backside
of the PS forward in the charger.
GETTING STARTED (CONT.)
4Register your PS in the system.
• Consult your dealer.
POWER
Charge the battery for about
6 hours.
• See pages 36 and 38 for more
details about the battery.
• When charging has been
completed, the charge indicator
will change from red to green.
3
To power
outlet
Charge indicator
Charger
TD7590-E(01~24) 00.8.11 4:56 PM Page 4

5

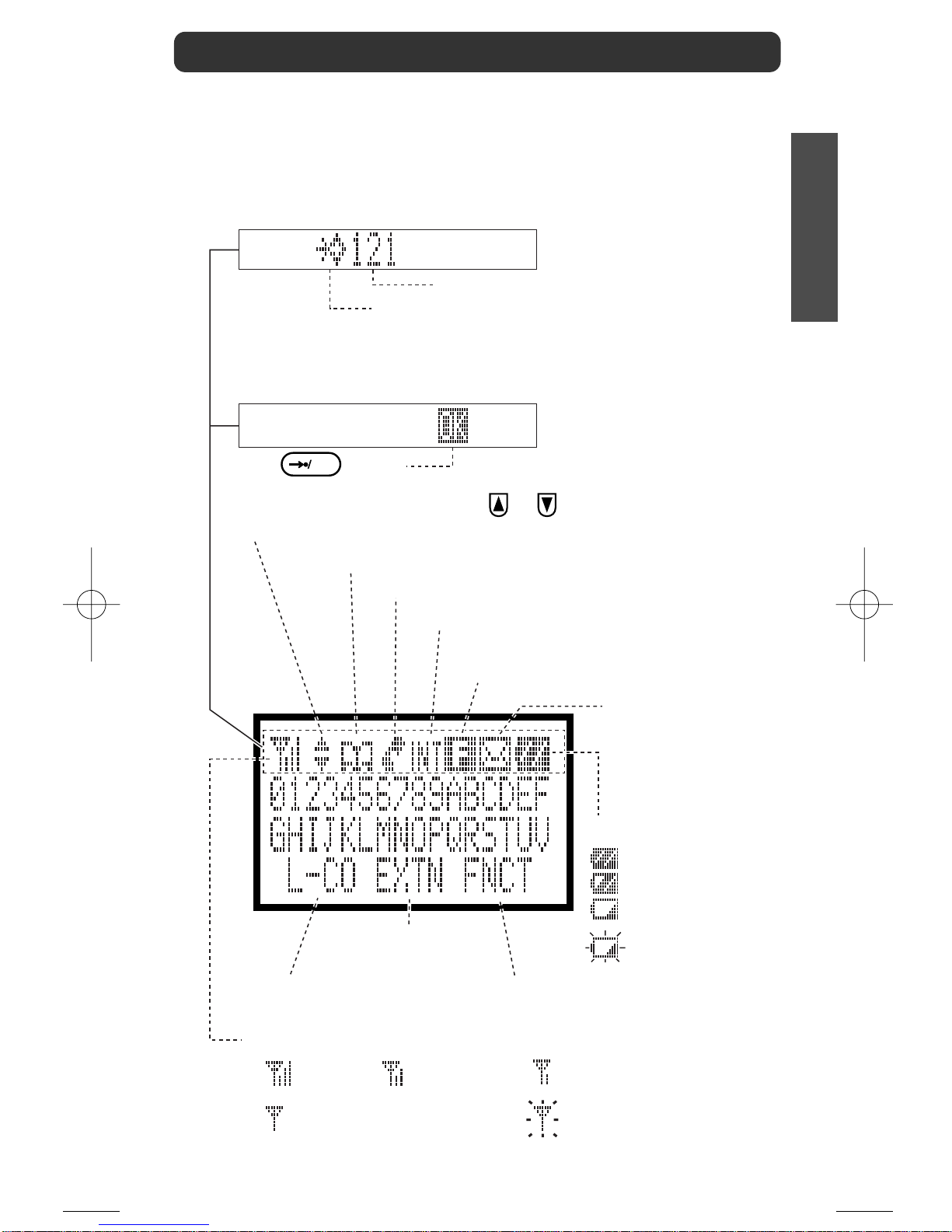

DISPLAY (LCD)
The display has 4 lines with 16 characters per line. At the
top of the display,the related symbols show information
for certain call activities.
The selected
function for F1 The selected function for F3
Battery strength:
fully charged
medium
low
needs to be
charged
The selected
function for F2
In the PS Programming mode:
(e.g.)
In Modify Book /
Edit Flexible CO buttons /
Enter Password mode:
In Modify Book / Select Directory mode
In PS Programming mode
The PS Programming menu number
A message from
another extension
has been received
In off-hook status
In off-hook status for intercom
The strength of radio signals from the Cell Station:
Press (OK).
Change the display by pressing or , if there are other
items out of the display
OK
Best
Good
Out of range
May catch noise
Catches noise easily
or disconnects
(flashing)
In function mode
— to use combination buttons
TD7590-E(01~24) 00.8.11 4:56 PM Page 5

6
DISPLAY (CONT.)
After powering ON, the following display appears.
1 Jan 1:00
[1-290]
L-CO F2 F3
NEED REPAIR
N
Vibration mode
Meeting mode
Key Lock ON mode
Ringer ON mode
Ringer OFF mode
Other icons
FWD
DND
If the following display appears, consult your dealer.
(N: 1–3)
TD7590-E(01~24) 00.8.11 4:56 PM Page 6

7
The following buttons can be activated by display
operations when they are available. These buttons can
also be activated using a combination of buttons. The
description and button combinations are as follows.
PAUSE Button (+)
Used to insert a pause between numbers.
FWD/DND Button (+)
Used to set the Call Forwarding or Do Not Disturb
(DND) features.
MESSAGE Button (+)
Used to leave a notification for the called party or
call back the message sender.
CONFERENCE Button (+)
Used to establish a three party conversation.
TONE Button (+)*
Used to change the dialling mode temporarily to
tone (pulse to tone conversion).
FLASH Button (+)
Used to disconnect the current call and to make
another call.
HOLD Button (+)
Used to place a call on hold.
FKEY LIST Display Button (+)
Used to display the selected features of the Flexible
CO Buttons.
REDIAL Button (+)
Used to display the last 5 numbers you called.
PS-PROGRAM Button (+)
Used to enter the PS-Programming mode.
0
F
9
F
8
F
7
F
6
F
5
F
4
F
3
F
2
F
1
F
KEY OPERATIONS
TD7590-E(01~24) 00.8.11 4:56 PM Page 7

8
*The TONE button is not available on the KX-TD816/
KX-TD1232FR, KX-TD816/KX-TD1232NE,
KX-TD816/KX-TD1232SL.
You can shift F-KEY functions (see pages 7 and 8) by
pressing the (up) or (down) buttons.
For operations using these buttons, refer to “DPT
Features” in the KX-TD816/KX-TD1232 User Manual.

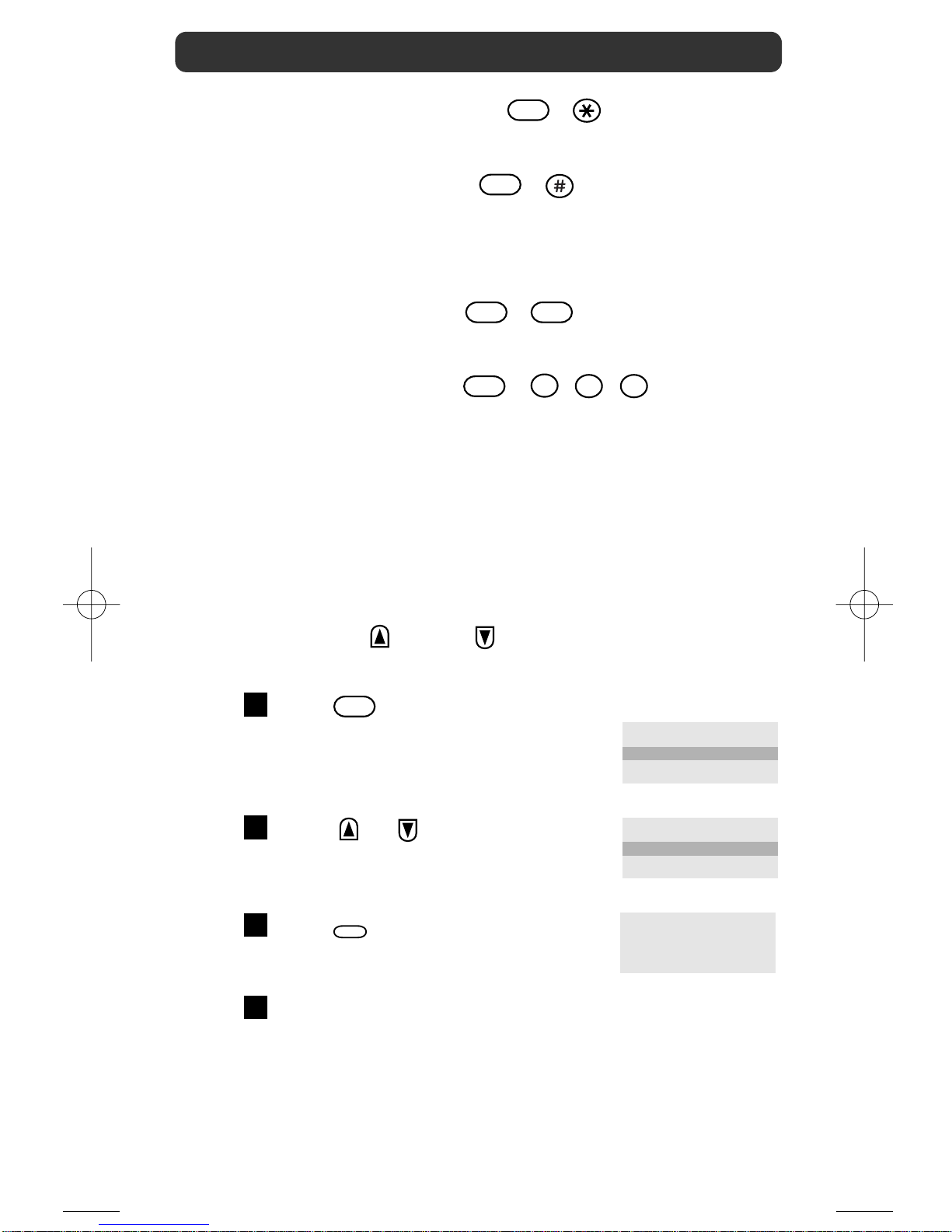

KEY OPERATIONS (CONT.)
Press (function).
Press or repeatedly until
the desired button is displayed.
Press (select).
Continue with the required
operations.
4
SELECT
3
2
F
1
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
PAUSE (KEY1)
TONE (KEY5)
FKEY LIST (KEY8)
T
WAVESEARCH Button (+)
Used to search the best Cell Station.
EDIT MODE Button (+)
Used to select a mode to edit on Directories (except
the PBX Extension Dialling Directory) or in
pre-dialling.
PROGRAM Button (+)
Used to enter programming mode.
Flexible CO Button ( +//)
Used to edit the Flexible CO buttons.
F3
F2
F1
F
F
F
F
F
TD7590-E(01~24) 00.8.11 4:56 PM Page 8

9
SELECTING THE DISPLAY LANGUAGE
Press .
Press .
To select “DISPLAY SETTING”,
press or repeatedly.
Press .
To select “LANGUAGE”, press
or repeatedly.
Press .
Press .
To select the desired language,
press or repeatedly.
Press .
To exit the Display Setting mode,
press (Cancel).
10
SELECT
9
8
SELECT
7
SELECT
6
5
SELECT
4
3
0
2
F
1
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
Back Menu
ANSWER SETTING
DISPLAY SETTING
ANSWER SETTING
DISPLAY SETTING
BEEP SETTING
Back Menu
BACKLIGHT
LANGUAGE
LANGUAGE
AUTO
CHANGE=SELECT
BACKLIGHT
LANGUAGE
STANDBY DISPLAY
NOTE:
•If your PS is assigned to the Digital Super Hybrid
System while the setting is still “AUTO”, the
displaying language will depend on the setting of the
system.
NEDERLANDS
AUTO
ENGLISH
Deutsch
FRANCAIS
ITALIANO
LANGUAGE
FRANCAIS
TD7590-E(01~24) 00.8.11 4:56 PM Page 9

10
MAKING A CALL
Press (intercom).
Dial the extension number.
Talk after the called party answers.
Press after you
finish the conversation.
4
3
2
INT'
1
Display example
Press .
Dial the line access code.
Dial the phone number.
Talk after the called party answers.
Press after you
finish the conversation.
5
4
3
2
1
Press / / (assigned as
flexible CO).
Dial the phone number.
Talk after the called party answers.
Press after you finish the
conversation.
4
3
2
F3
F2
F1
1
Specific line access
INTERCOM CALLS
OUTSIDE CALLS
201
01234567
01234567
Automatic line access or Selecting a CO line group
Display example
Display example
TD7590-E(01~24) 00.8.11 4:57 PM Page 10

11
MAKING A CALL (CONT.)
This unit automatically saves the last five numbers that you
dialled (outgoing log). You can make a call by selecting the
desired log number.
REDIALLING A NUMBER IN THE CALL LOG
Display example
Back Menu
PS-DIALING
OUTGOING LOG
PS-DIALING
OUTGOING LOG
PBX-STA-DIALING
0123456789
Press .
OR
To redial an outgoing call, press
+ (REDIAL) and go to
.
To select “OUTGOING LOG”,
press or repeatedly.
Press .
To search the desired log number,
press or repeatedly.
Press or / / or
for about 2 seconds.
SELECT
F3
F2
F1
5
4
SELECT
3
2
4
9
F
SELECT
1
NOTE:
•It is possible to dial the desired number first and then
Press or / / (predialling).
•If you misdial, press + (FLASH), and enter
the correct number. When predialling, press (clear)
to clear each digit from the last one, and enter the
correct number.
•You can also hang up by placing the portable station
on the charger.
•Make sure “ ” is displayed before making a call.
•If “ ” flashes, move towards the Cell Station and try
again.
CLR
6
F
F3
F2
F1
TD7590-E(01~24) 00.8.11 4:57 PM Page 11

12
RECEIVING A CALL
Press .
OR
Press / / .
• When receiving a call, the names on
the bottom line on the LCD will
flash rapidly.
OR
Press (Intercom call only).
OR
Just lift up the PS from the
charger (quick Answering).
To hang up, press .
OR
Put the PS on the Charger.
2
INT'
F3
F2
F1
1
When you receive a call, the PS rings or vibrates, and the
CO line number or extension number of the receiving call
appears on the display.
NOTE:
•To select vibration mode, see page 34.
•Quick Answering is available only when Quick
Answering mode is set to “ON” in PS programming.
• If a headset is connected to your PS, you can select
Automatic Answer Mode; OFF (default), intercom
calls automatically, or all calls automatically. To select
Automatic Answer Mode, see pages 25 and 26.
Display example
(When LINE 1 is
calling)
L-CO F2 F3
F2 F3
L-CO
TD7590-E(01~24) 00.8.11 4:57 PM Page 12

13
Press / / (CO calls).
• When the line is on hold, the names
on the bottom line on the LCD will
flash slowly.
OR
Press (Intercom calls).
INT'
F3
F2
F1
1
You can place a call on hold. Exclusive hold is also
possible so that no other extension can retrieve the call.
HOLDING A CALL
PLACING A CALL ON HOLD
RETRIEVING A CALL ON HOLD
Press + (HOLD),
+ (HOLD) during a
conversation.
7
F
7
F
1
Display example
(When LINE 1 is on
hold)
L-CO F2 F3
L-CO F2 F3
L-CO
PLACING A CALL ON EXCLUSIVE HOLD
Press + (HOLD) during
a conversation.
7
F
1
Press / / (CO calls).
• When the line is on exclusive hold,
the names on the bottom line on the
LCD will flash rapidly in doublets.
OR
Press (Intercom calls).
INT'
F3
F2
F1
1
RETRIEVING A CALL ON EXCLUSIVE HOLD
(When LINE 1 is on
exclusive hold)
L-CO F2 F3
L-CO F2 F3
L-CO
TD7590-E(01~24) 00.8.11 4:57 PM Page 13

14
KEY LOCK SETTING
You can lock the dialling buttons. Incoming calls can be
answered, but no outgoing calls can be dialled.
If this is set, “ ” is displayed on the LCD.
25 Dec 11:37
[1-290]
L-CO F2 F3
KEYPAD UNLOCK
PRESS F FOR 2SEC
To set or cancel, press for
2 seconds while on-hook.
F
1
TRANSFERRING A CALL
To transfer a call, press
(transfer) to enter the extension
number. To retrieve the call, press
/ / corresponding to the
flashing name on the bottom line
on LCD.
F3
F2
F1
CLR
1
25 Dec 11:36
[1-290]
L-CO F2 F3
KEYPAD LOCK
PRESS F FOR 2SEC
Display example
TD7590-E(01~24) 00.8.11 4:57 PM Page 14

15
USING THE DIRECTORY
There are 5 types of directory features as follows.
PS Dialling Directory:
You can store 100 private names and phone numbers of
outside parties. All directory items are stored in alphabetical
order.
PBX System Speed Dialling Directory:
You can make a call via the system by selecting system
assigned names and phone numbers. To store the names and
numbers (500 max.), consult your dealer.
PBX Extension Dialling Directory:
You can make a call via the system by selecting system
assigned extension names and numbers. To store the names
and numbers, consult your dealer.
PBX Station Speed Dialling Directory:
You can make a call via the system by selecting your
privately-assigned names and phone numbers.
Shortcut Directory:
You can store feature numbers for the PBX. You can store
shortcut numbers for the PS programming menu. See the
KX-TD7590 User Manual Addendum for details.
NOTE:
•The CO line access code must be entered to store a
phone number of an outside party in the PBX Station
Speed Dialling Directory. It is not required in the PS
Dialling Directory.
•It is not possible to edit or erase items in the PBX
System Speed Dialling and PBX Extension Dialling
Directories.
•Use ( delete) to delete each character or
number .
•Use ( left) or ( right) to move the
cursor to change or enter a character or number.
•Press to exit Directory mode.
F2
F1
F3
TD7590-E(01~24) 00.8.11 4:57 PM Page 15

16
USING THE DIRECTORY (CONT.)
STORING NAMES AND NUMBERS IN THE DIRECTORY
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
Back Menu
MODIFY BOOK
PS-PROGRAM
Back Menu
PS-DIALING
SHORTCUT
Back Menu
PS-DIALING
SHORTCUT
Andy Patterson
2101234567
NEW EDIT DEL
ENTER NAME
[ 30 STORED ]
[ 70 REMAINS ]
Press .
Press .
Press .
To select “PS-DIALING”, press
or repeatedly.
Press .
Press (NEW).
• If there is nothing stored, this step
is omitted.
F1
6
SELECT
5
4
SELECT
3
F
2
F
1
PS Dialling Directory
TD7590-E(01~24) 00.8.11 4:57 PM Page 16

17
USING THE DIRECTORY (CONT.)
Enter a name (16 characters max.)
(see Table 1 and Table 2 on pages
23 and 24).
Press .
Enter a phone number (32 digits
max.).
Press .
Select a ringer pattern by
pressing or and press .
(see page 25).
• The connected PBX system should
be the latest version to use this
ringer pattern.
SELECT
11
OK
10
9
OK
8
7
Panasonic
ENTER PHONE-NO.
0123456789
MELODY4
DEFAULT
BELL1
BELL5
BELL6
MELODY1
STORED
Display example
Panasonic
*: In this setting, the ringer pattern is subject to the “Ringer
Pattern–CO” setting.
*
TD7590-E(01~24) 00.8.11 4:57 PM Page 17

18
USING THE DIRECTORY (CONT.)
Back Menu
PS-DIALING
SHORTCUT
SHORTCUT
PBX-STA-DIALING
Back Menu
Andy Patterson
2101234567
EDIT DEL
EDIT DEL
EDIT DEL
Press .
Press .
Press .
To select “PBX-STA-DIALING”,
press or repeatedly.
Press .
Press or until nothing is
displayed.
Press (EDIT).
Enter a name (10 characters
max.) (see Table 1 and Table 2 on
pages 23 and 24).
Press .
Enter a phone number.
• Maximum digits depend on the PBX
system, refer to User Manual
Addendum of KX-TD7590 for
details.
Press .
OK
11
10
OK
9
8
F2
7
6
SELECT
5
4
SELECT
3
F
2
F
1
PBX Station Speed Directory
Panasonic
Panasonic
ENTER PHONE-NO.
0123456789
STORED
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
Back Menu
MODIFY BOOK
PS-PROGRAM
TD7590-E(01~24) 00.8.11 4:57 PM Page 18

19
USING THE DIRECTORY (CONT.)
Display example
Back Menu
PAUSE (KEY1)
TONE (KEY5)
Back Menu
MODIFY BOOK
PS-PROGRAM
Back Menu
PS-DIALING
SHORTCUT
PS-DIALING
SHORTCUT
PBX-STA-DIALING
RING PATTERN-INT
111
NEW EDIT DEL
[ 1 STORED ]
[ 9 REMAINS ]
PS PBX
ENTER MENU NO.
111
RING PATTERN-INT
111
STORED
Press .
Press .
Press .
To select “SHORTCUT”, press .
Press .
To store a new number, press
(NEW).
• If there is nothing stored, this step is
omitted.
To select PS programming,
press (PS).
Enter the number.
Press .
• You can edit the name if you want.
Press .
OK
10
OK
9
8
F1
7
F1
6
SELECT
5
4
SELECT
3
F
2
F
1
SHORTCUT Directory
TD7590-E(01~24) 00.8.11 4:58 PM Page 19

20
USING THE DIRECTORY (CONT.)
PS Dialling Directory/PBX Station Speed Directory
Press .
Press or repeatedly until
the desired directory feature is
displayed.
Press .
Press the dialling buttons
repeatedly and enter a few of the
first letters of the desired name.
(see pages 23 and 24).
Press .
Press or repeatedly until
the desired item is displayed.
Press , or / / .
OR
Press for 2 seconds.
SELECT
F3
F2
F1
INT'
7
6
OK
5
4
SELECT
3
2
SELECT
1
Display example
Back Menu
PS-DIALING
OUTGOING LOG
Back Menu
PS-DIALING
OUTGOING LOG
Andy Patterson
2101234567
L-CO F2 F3
Pa
Panasonic
0123456789
L-CO F2 F3
Panasonic-SCD
9876543210
L-CO F2 F3
DIALLING BY SELECTING THE NAME ENTRY
In the PS-Dialling Directory, in the PBX Station Speed
Directory, and in the SHORTCUT Directory, you can dial
by either selecting the name entry or the number entry.
TD7590-E(01~24) 00.8.11 4:58 PM Page 20
