Panasonic KX-TGA650B - Cordless Extension Handset User manual

– 1 –
For assistance, please call: 1-800-211-PANA(7262)
5.8 GHz Expandable Cordless Handset
Model No. KX-TGA650
Installation Manual
PLEASE READ BEFORE USE AND SAVE.
This handset is an accessory cordless handset, for use with Panasonic base units
KX-TG6500/KX-TG6502/KX-FG6550. This installation manual only describes the steps
necessary to start up the handset. Please read the base unit operating instructions for
further details.
Installation

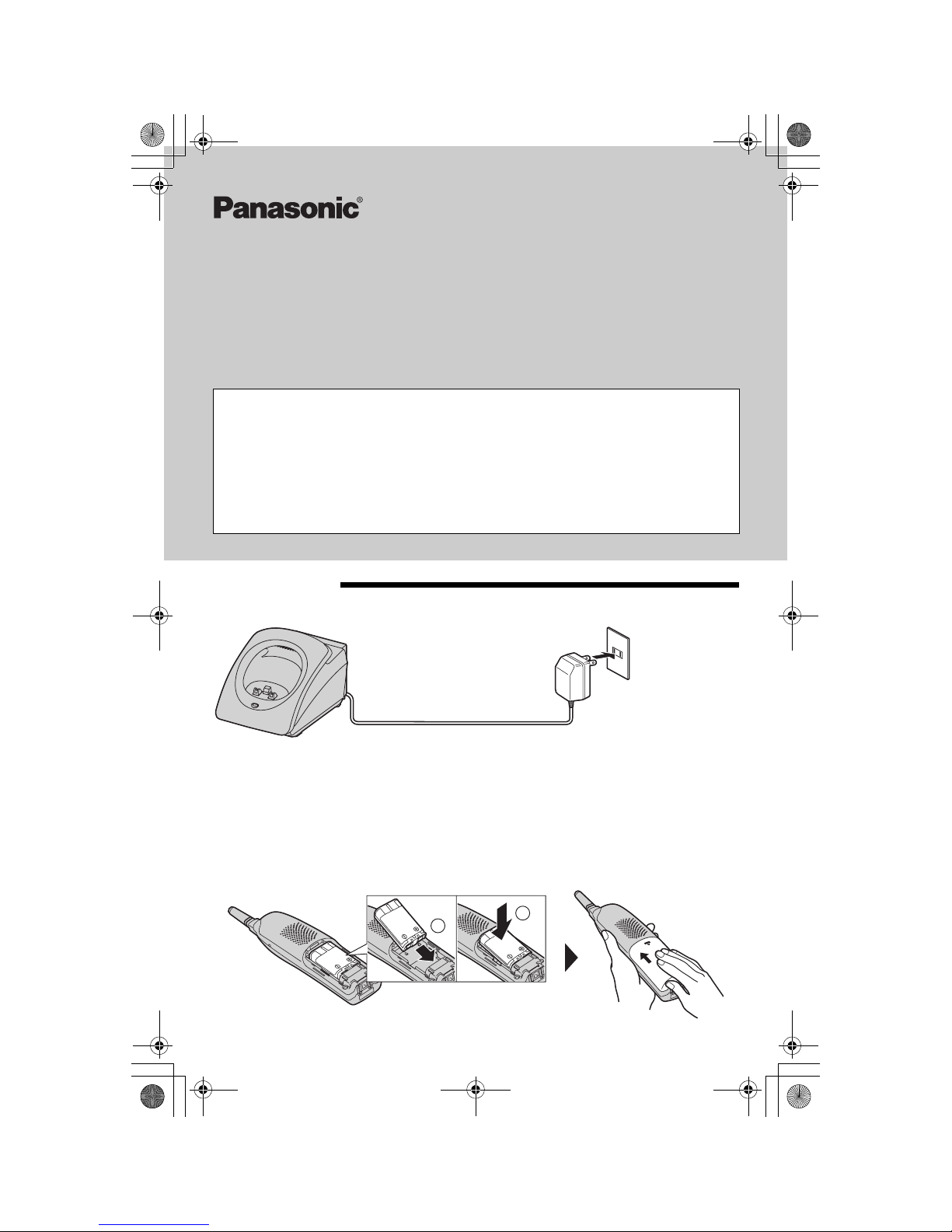

Connecting the Charger unit
•USE ONLY WITH Panasonic AC ADAPTOR KX-TCA1 (Order No. KX-TCA1-G).
•The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
•The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the
adaptor may cause it to become disconnected.
Installing the battery
Insert the battery (1), and press it down until it snaps into the compartment (2).
Close the cover.
PQQX14269YA S0604-2075
Accessories (included) For extra orders, call 1-800-332-5368.
ACharger Unit . . . . . . . . . . . . . . . . . . . . . . . . .1
Charger Order No. PQLV30024ZB
AC Adaptor Order No. KX-TCA1-G (KX-TCA1)
AHandset Cover. . . . . . . . . . . . . . . . . . . . . . . .1
Order No. PQYNTG6500BR
ABattery . . . . . . . . . . . . . . . . . . .1
Order No. HHR-P104
ABelt Clip . . . . . . . . . . . . . . . . . .1
Order No. PQKE10377Z5
Power Outlet
(AC 120 V, 60 Hz
)
AC Adaptor
1
2
TGA650.fm Page 1 Wednesday, July 13, 2005 3:16 PM

– 2 –
Charging the battery
Place the handset on the charger and charge for
6 hours before initial use.
•The unit beeps once, the CHARGE indicator
lights and “Charging” is displayed.
•When the battery is fully charged, “Charge
completed” is displayed if there are no new
calls in the Caller List.
•Recharge the battery when:
—“Recharge battery” is displayed on the
handset,
—“
3” flashes, or
— the handset beeps intermittently while it is in
use.
•If the battery has been discharged, the handset will display “Charge for 6 HRS” and
“4” when you place the handset on the charger. The handset will not work unless the
battery is charged. Continue charging.
Handset battery information
After your Panasonic battery is fully charged, you can expect the following performance:
• Clean the charge contacts of the handset and the charger with a soft, dry cloth
once a month. Clean more often if the unit is subject to grease, dust or high
humidity. Otherwise the battery may not charge properly.

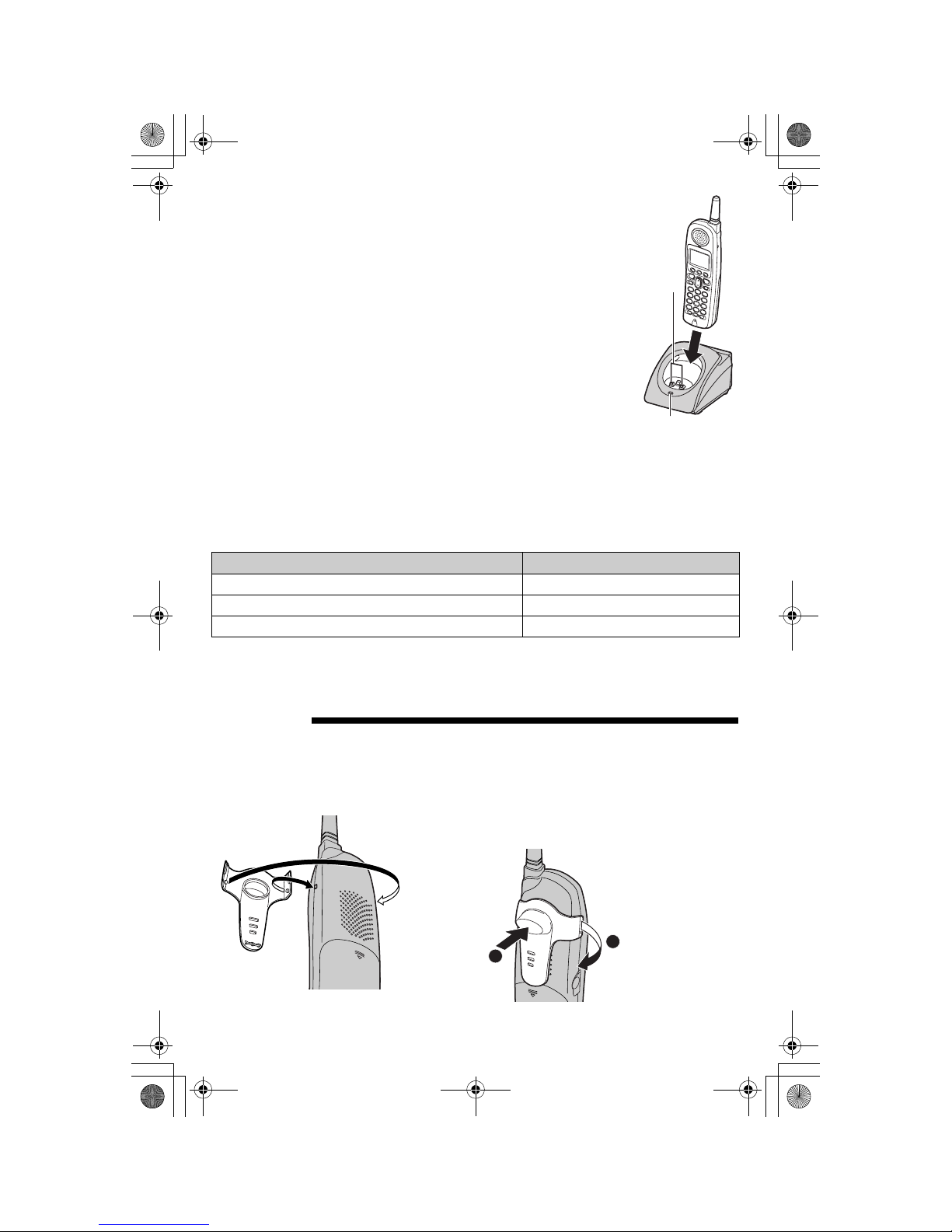

Belt Clip
You can hang the handset on your belt or pocket using the included belt clip.
To attach the belt clip To remove the belt clip
Operation Operating time
While in use (TALK) Up to 5 hours
While not in use (Standby) Up to 11 days
While using the Clarity Booster feature Up to 3 hours
Charge Contacts
CHARGE Indicator
B
A
While pressing the top of the clip (1),
pull the right edge in the direction of the
arrow (2).
TGA650.fm Page 2 Wednesday, July 13, 2005 3:16 PM

– 3 –
For assistance, please call: 1-800-211-PANA(7262)
Registration
This cordless handset, KX-TGA650, must be registered to a KX-TG6500/KX-TG6502/
KX-FG6550 base unit. The handset will be assigned the extension number at registration.
Only one handset can be registered at a time. Charge the battery fully. Make sure the
base unit and the other handsets are not being used.
Have both the handset and base
unit nearby during registration.
•Base unit model shown here is KX-TG6500/KX-TG6502.
The handset display shows the instructions as shown on the
right.
•The registered number “[1]” to “[4]” is shown on the top right of the display.
•You can stop registration by pressing [OFF] on the handset and pressing [LOCATOR/
INTERCOM/TRANSFER] on the base unit.
•Do not try to register KX-TGA650 to a KX-TG5200/KX-TG5202/KX-TG5210/KX-TG5212/
KX-TG5230/KX-TG5240/KX-TG5243/KX-FPG391 base unit. If you do, “Wrong handset
Refer to manual” will be displayed. The correct base unit for this handset KX-TGA650
is KX-TG6500/KX-TG6502/KX-FG6550.
1Base unit: Press and hold [LOCATOR/INTERCOM/TRANSFER] for 3 seconds.
•On the KX-TG6500/KX-TG6502, the CHARGE indicator flashes. After the CHARGE
indicator starts flashing, the rest of the procedure must be completed within 1 minute.
•On the KX-FG6550, “HS REGISTRATION” is displayed. The rest of the procedure
must be completed within 1 minute.
2Handset:
(1) Press the soft key ( ).
(2) Wait until a long beep sounds and the display
shows the new extension number.
•Registration is complete.
To cancel the handset registration, please see your base unit Operating Instructions.
OK
OK
BACK
BACK
CHARGE Indicator
[LOCATOR/INTERCOM/
TRANSFER]
To operate “ ”,
press the right soft key.
OK
1
Press LOCATOR
on base unit
for 3 sec.
Then press OK
[-]
L
Press LOCATOR
on base unit
for 3 sec.
Then press OK
L
BACK PLAY OK
OK
SP I PRIVACY 1
Handset
Registering
IN USE
[
- ]
SP I PRIVACY 1
Handset [2]
Registered
IN USE
[
2 ]
Ex. Extension number 2
TGA650.fm Page 3 Wednesday, July 13, 2005 3:16 PM

– 4 –
Selecting the display language
You can select either “English” or “Spanish” as the display language. The factory preset is
“English”.
Press [MENU] N[d] or [B]to select “Initial setting” NSoft key ( ) N
N[d] or [B]to select “Change language” N
Soft key ( ) NSoft key ( )
to select “Español”, or soft key ( ) to select “English” NSoft key ( ) for
Spanish, or soft key ( ) for English
N [OFF]
Optional Headset
Connecting an optional headset to the handset allows a hands-free phone conversation.
Please use only a Panasonic KX-TCA60, KX-TCA86, KX-TCA88, KX-TCA88HA,
KX-TCA91, KX-TCA92 or KX-TCA98 headset. To order, call the accessories telephone
number on page 1.
Connecting an optional headset
Open the headset jack cover, and insert the headset plug into the headset jack as shown
below.
•Headset sold separately. Model shown here is KX-TCA88.
Wall Mounting
The charger can be wall mounted. Connect the AC adaptor. Install screws using the wall
template (see below). Mount the charger ( A ). Slide it down ( B ), then slide down to the
right (
C ) until it is secured.
SELECT
SELECT
ENGLISH
GUARDAR
SAVE
Headset Jack
A
B
C
Screws
To Power
Outlet
2.45 cm
(31⁄32")
2.45 cm
(31⁄32") Wall Template
TGA650.fm Page 4 Wednesday, July 13, 2005 3:16 PM

– 5 –
For assistance, please call: 1-800-211-PANA(7262)
FCC and Other Information
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TO
EMERGENCY NUMBERS:
1. Remain on the line and briefly explain to the dispatcher the reason for the call.
2.
Perform such activities in the off-peak hours, such as early morning or late evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Operating near 5.8 GHz electrical appliances may cause interference. Move away from the
electrical appliances.
FCC RF Exposure Warning:
To comply with FCC RF exposure requirements, the handset unit may be carried and
operated with only the specific provided belt-clip. Other non-tested belt-clips or similar
body-worn accessories may not comply and must be avoided.
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some
Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If
noise occurs, use an optional headset accessory or the speakerphone option (if
applicable) when using this phone. Consult your audiologist or Hearing Aid manufacturer
about the availability of Hearing Aids which provide adequate shielding to RF energy
commonly emitted by digital devices.
TGA650.fm Page 5 Wednesday, July 13, 2005 3:16 PM

– 6 –
CAUTION:
To reduce the risk of fire or injury to persons, read and follow these instructions.
1. Use only the battery(ies) specified.
2. Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste
management codes for special disposal instructions.
3. Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may
cause burns or injury to the eyes or skin. The electrolyte may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to conductive
materials such as rings, bracelets, and keys. The battery and/or conductor may
overheat and cause burns.
5. Charge the battery(ies) provided with or identified for use with this product only in
accordance with the instructions and limitations specified in this manual.
A nickel metal hydride battery that is recyclable powers the product you
have purchased. Please call 1-800-8-BATTERY for information on how to
recycle this battery.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR ANY TYPE OF MOISTURE.
•The AC adaptor is used as the main disconnect device, ensure that the AC outlet is
located/installed near the unit and is easily accessible.
For your future reference
Serial No. Date of purchase
(found on the bottom of the unit)
Name and address of dealer
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is prohibited
without the written consent of Panasonic Communications Co., Ltd.
©2004 Panasonic Communications Co., Ltd. All Rights Reserved.
Panasonic World Wide Web address: http://www.panasonic.com
for customers in the USA or Puerto Rico
For customer inquiries:
•Visit our website: http://www.panasonic.com/support
•Contact us via the web at: http://www.panasonic.com/contactinfo
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infantería, Km. 9.5,
Carolina, Puerto Rico 00985
If you need assistance with the setup or operation,
please call 1-800-211-PANA(7262)
For hearing or speech impaired TTY users, TTY : 1-877-833-8855
TGA650.fm Page 6 Wednesday, July 13, 2005 3:16 PM

Unidad portátil inalámbrica expandible de 5.8 GHz
Modelo KX-TGA650
Manual de instalación
LÉALO ANTES DE LA UTILIZACIÓN Y LUEGO GUÁRDELO.
Esta unidad portátil es una unidad inalámbrica accesoria utilizable con las unidades base
KX-TG6500/KX-TG6502/KX-FG6550 de Panasonic. Este manual de instalación sólo
describe los pasos necesarios para poner en funcionamiento la unidad portátil. Lea las
instrucciones de funcionamiento de la unidad base para más detalles.
Instalación
Conecte la unidad de carga
•USAR SÓLO CON EL ADAPTADOR DE CA KX-TCA1 (Nº. de pedido: KX-TCA1-G) de
Panasonic.
•El adaptador de CA debe permanecer conectado en todo momento. (Es normal que el
adaptador se caliente durante su uso.)
Instalación de la batería
Inserte la batería (1), y empújela hacia abajo hasta que encaje con un chasquido
en el compartimento (2).
Cierre la cubierta.
Accesorios (incluidos) Para más pedidos, llame al 1-800-332-5368.
AUnidad de carga . . . . . . . . . . . . . . . . . . . . . .1
Nº. de pedido de la unidad de carga:
PQLV30024ZB
Nº. de pedido del adaptador de CA:
KX-TCA1-G (KX-TCA1)
ACubierta de la unidad portátil. . . . . . . . . . . . .1
Nº. de pedido: PQYNTG6500BR
ABatería . . . . . . . . . . . . . . . . . . .1
Nº. de pedido: HHR-P104
APresilla para el cinturón . . . . . .1
Nº. de pedido: PQKE10377Z5
Toma de corriente
(120 V CA, 60 Hz)
Adaptador de CA
1
2
– (1) –
TGA650.fm Page 7 Wednesday, July 13, 2005 3:16 PM

Carga de la batería
Coloque la unidad portátil en la unidad de carga y
cárguela durante 6 horas antes de empezar a usarla.
•La unidad emite un pitido, el indicador CHARGE se
ilumina, y “Cargando” aparece en pantalla.
•Cuando la batería está completamente cargada,
aparece “Carga completada” si no hay llamadas
nuevas en la lista de personas que llaman.
•Recargue la batería cuando:
—“Recargar batería” aparece en la unidad
portátil,
—“
3” parpadee, o
— la unidad portátil emita pitidos intermitentes
mientras está en uso.
•Si la batería se ha descargado, la unidad portátil mostrará en pantalla “Cargar por
6Hrs.” y “4” cuando coloque la unidad portátil sobre la unidad de carga. La unidad
portátil no funcionará a no ser que la batería esté cargada. Siga cargando.
Información sobre la batería de la unidad portátil
Una vez que la batería de Panasonic está completamente cargada, puede esperar el
siguiente rendimiento:
• Limpie los contactos de carga de la unidad portátil y de la unidad de carga con un
paño suave y seco una vez al mes. Límpielos más a menudo si la unidad está
sometida a grasa, polvo o a humedad de nivel alta. De lo contrario, puede que la
batería no se cargue correctamente.
Presilla para el cinturón
La unidad portátil se puede colgar en el cinturón o en el bolsillo por medio de la presilla
para el cinturón suministrada.
Para poner la presilla para el cinturón Para quitar la presilla para el cinturón
Operación Tiempo de operación
En uso (HABLAR) Hasta 5 horas
En espera (Espera) Hasta 11 días
Mientras está en uso la función de refuerzo de la recepción Hasta 3 horas
Contactos de carga
Indicador CHARGE
B
A
A la vez que presiona la parte superior
de la presilla (1), tire del borde derecho
en dirección de la flecha (2).
– (2) –
TGA650.fm Page 8 Wednesday, July 13, 2005 3:16 PM

Registro
Esta unidad portátil inalámbrica KX-TGA650 debe registrarse en una unidad base
KX-TG6500/KX-TG6502/KX-FG6550. A la unidad portátil se le asignará su número de
extensión al registrarla. Sólo se puede registrar una unidad portátil cada vez. Cargue la
batería completamente. Asegúrese de que la unidad base y las demás unidades
portátiles no se están utilizando.
Tenga a mano tanto la unidad portátil como la unidad
base durante el registro.
•El modelo de la unidad base mostrado aquí es un KX-TG6500/KX-TG6502.
La pantalla de la unidad portátil muestra las instrucciones tal y
como aparecen a la derecha.
•El número registrado “[1]” a “[4]” aparece en la esquina superior derecha de la pantalla.
•Puede detener el proceso de registro presionando [OFF] en la unidad portátil y
presionando [LOCATOR/INTERCOM/TRANSFER] en la unidad base.
•No intente registrar la unidad portátil KX-TGA650 en la unidad base KX-TG5200/
KX-TG5202/KX-TG5210/KX-TG5212/KX-TG5230/KX-TG5240/KX-TG5243/KX-FPG391.
Si lo hace, “
Wrong handset Refer to manual ” se visualizará en la pantalla. La unidad
base correcta para esta unidad portátil es KX-TG6500/KX-TG6502/KX-FG6550.
1 Unidad base: Mantenga presionado [LOCATOR/INTERCOM/TRANSFER]
durante 3 segundos.
•En la pantalla de KX-TG6500/KX-TG6502, el indicador CHARGE parpadea. Después
de que el indicador CHARGE empiece a parpadear, el resto del procedimiento debe
completarse antes de que pase 1 minuto.
•En la pantalla de KX-FG6550, se visualizará “HS REGISTRATION”. El resto del
procedimiento debe completarse antes de que pase 1 minuto.
2Unidad portátil:
(1) Presione la tecla blanda ( ).
(2) Espere hasta que suene un pitido largo y que la
pantalla muestre el nuevo número de extensión.
•El registro ha finalizado.
Para cancelar el registro de la unidad portátil, consulte las instrucciones de
funcionamiento de la unidad base.
OK
OK
BACK
BACK
Indicador CHARGE
[LOCATOR/INTERCOM/
TRANSFER]
Para accionar “ ”,
presione la tecla blanda
derecha.
OK
1
Press LOCATOR
on base unit
for 3 sec.
Then press OK
[-]
L
Press LOCATOR
on base unit
for 3 sec.
Then press OK
L
BACK PLAY OK
OK
SP I PRIVACY 1
Handset
Registering
IN USE
[
- ]
SP I PRIVACY 1
Handset [2]
Registered
IN USE
[
2 ]
Ej. Número de extensión 2
– (3) –
TGA650.fm Page 9 Wednesday, July 13, 2005 3:16 PM

Selección del idioma de la pantalla
Puede seleccionar “English” (Inglés) o “Español” como el idioma de la pantalla. El idioma
preconfigurado en fábrica es “English” (Inglés).
Presione [MENU] N [d]o [B] para seleccionar “ Initial setting ” N
NTecla blanda ( ) N[d]o [B]para seleccionar “Change language” N
NTecla blanda ( ) NTecla blanda ( ) para seleccionar “Español”, o la tecla
blanda ( ) para seleccionar “English” NTecla blanda ( ) para español, o la
tecla blanda ( ) para inglés N[OFF]
Auricular opcional
La conexión de un auricular opcional a la unidad portátil permite conversar telefónicamente
con las manos libres. Por favor, utilice solamente un auricular KX-TCA60, KX-TCA86,
KX-TCA88, KX-TCA88HA, KX-TCA91, KX-TCA92 o KX-TCA98 de Panasonic. Para hacer
un pedido, llame al número de teléfono de accesorios indicado en la página 1.
Conexión de un auricular opcional
Abra la cubierta de la toma del auricular, e inserte allí la clavija del auricular como se indica
abajo.
•El auricular se vende por separado. El modelo mostrado aquí es un KX-TCA88.
Montaje en pared
La unidad de carga se puede montar en la pared. Conecte el adaptador de CA. Introduzca
los tornillos usando la plantilla de pared (ver abajo). Monte la unidad de carga (A).
Deslícela hacia abajo (B), luego deslícela hacia abajo y a la derecha (C) hasta que
quede bien sujeta.
SELECT
SELECT
ESPAÑOL
ENGLISH GUARDAR
SAVE
Toma del auricular
A
B
C
Tornillos
A la toma
de corriente
2.45 cm
(31⁄32")
– (4) –
2.45 cm
(31⁄32") Plantilla de pared
TGA650.fm Page 10 Wednesday, July 13, 2005 3:16 PM

✄
TGA650.fm Page 11 Wednesday, July 13, 2005 3:16 PM

TGA650.fm Page 12 Wednesday, July 13, 2005 3:16 PM
