Getting Started
DECT Portable Station
Model No. KX-UDT111
Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this
manual for future use.
Outline
This manual briefly describes basic information about the installation of
the PS (Portable Station) handset and the charger.
Related Documentation
Operating Instructions
Describes information about the installation and operation of the
handset and the charger.
Administrator Guide
Describes information about the programming and maintenance of the
SIP Cell Station Unit.
Installation Guide
Briefly describes basic information about the installation of the SIP Cell
Station Unit.
Manuals and supporting information are provided on the Panasonic
Web site at:
http://panasonic.net/pcc/support/sipphone
Document Version: 2012-04

Note
RIn this manual, the suffix of each model number is omitted unless
necessary.
2
Other Information

For Your Safety
To reduce the risk of injury, loss of life, electric shock, fire, malfunction,
and damage to equipment or property, always observe the following
safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level of
hazard and injury caused when the denotation is disregarded and
improper use is performed.
WARNING
Denotes a potential hazard that
could result in serious injury or
death.
CAUTION
Denotes a hazard that could
result in minor injury or damage to
the unit or other equipment.
The following symbols are used to classify and describe the type of
instructions to be observed.
This symbol is used to alert users to a specific operating
procedure that must not be performed.
This symbol is used to alert users to a specific operating
procedure that must be followed in order to operate the unit
safely.
WARNING
General Safety
For safety reasons, do not physically modify the product or
any optional equipment.
3
For Your Safety

To prevent possible fire or electric shock, do not expose this
product to rain or moisture.
Follow all warnings and instructions marked on this product.
To reduce the risk of electric shock, do not disassemble this
product. Only qualified personnel should service this product.
Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly can cause
electric shock.
Unplug the AC adaptor from the AC outlet and have the
product serviced by qualified service personnel in the following
cases:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into this product.
C. If the product has been exposed to rain or water.
D. If the product does not operate according to this manual.
Adjust only the controls that are explained in this manual.
Improper adjustment of other controls may result in
damage and may require service by a qualified technician
to restore the product to normal operation.
E. If the product has been dropped or damaged.
F. If product performance deteriorates.
Do not insert objects of any kind into this product through
openings, as they may touch dangerous voltage points or
short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on or in the product.
The use of excessive sound volume through earphones,
headphones, or headsets may cause hearing loss.
Switch off the device when in the proximity of areas with
potentially explosive atmospheres such as fuel/chemical
storage facilities or blasting operations.
4
For Your Safety

Consult the manufacturer of any personal medical devices,
such as pacemakers, to determine if they are adequately
shielded from external RF (radio frequency) energy. (The
product operates in the frequency range of 1880 MHz to 1900
MHz and the output peak power level is less than 0.25 W.)
Do not use the product in health care facilities if any
regulations posted in the area instruct you not to do so.
Hospitals or health care facilities may be using devices
sensitive to external RF (radio frequency) energy.
Unplug the charger from AC outlet if it emits smoke, an
abnormal smell or makes unusual noise. These conditions can
cause fire or electric shock. Confirm that smoke has stopped
and contact an authorised service centre.
The batteries pose a choking hazard. Keep the batteries out of
reach of children.
This handset earpiece is magnetised and may retain small
ferrous objects.
Installation
Do not install the product in any other way than described in
relevant manuals.
The product may only be installed and serviced by qualified
service personnel.
The AC adaptor should only be connected to the type of
electric power supply specified on the charger label. If you are
not sure of the type of power supply to your home, consult
your dealer or local power company.
Do not allow anything to rest on the power cord. Do not locate
the charger where the power cord may be stepped on or
tripped on.
5
For Your Safety

Placement
Do not place the product on an unstable surface, as a fall may
cause serious internal damage.
CAUTION
The AC adaptor is used as the main disconnect device.
Ensure that the AC outlet is installed near the product and is
easily accessible.
The product should never be placed near or over a radiator or
other heat source.
Use only the AC adaptor, batteries and charger indicated in
this manual.
Do not dispose of the batteries in a fire. They may explode.
Check with local authorities for special disposal instructions.
Do not open or disassemble the batteries. Released
electrolyte is corrosive and may cause burns or injury to the
eyes or skin. The electrolyte is toxic if swallowed.
Exercise care in handling batteries in order not to short the
batteries to conductive materials such as rings, bracelets, and
keys. The batteries and/or conductor may overheat and cause
burns.
Charge the batteries provided with, or identified for use with,
this product only in accordance with the instructions and
limitations specified in this manual.
There is a danger of explosion if the batteries are incorrectly
replaced.
6
For Your Safety

When you leave the product unused for a long period of time,
unplug the AC adaptor from the outlet.
Do not use a microwave oven to dry this product.
Do not use the AC adaptor if it has been submerged in water.
7
For Your Safety

Important Safety Instructions
When using your telephone equipment, basic safety precautions,
including those below, should always be followed to reduce the risk of
fire, electric shock and injury to persons.
RDo not use the product near water, for example, near a bathtub, wash
bowl, kitchen sink, or laundry tub, in a wet basement, or near a
swimming pool.
RDo not use the telephone in the vicinity of a gas leak to report the leak.
RDo not mix old and new batteries.
SAVE THESE INSTRUCTIONS
8
Important Safety Instructions

Accessory Information

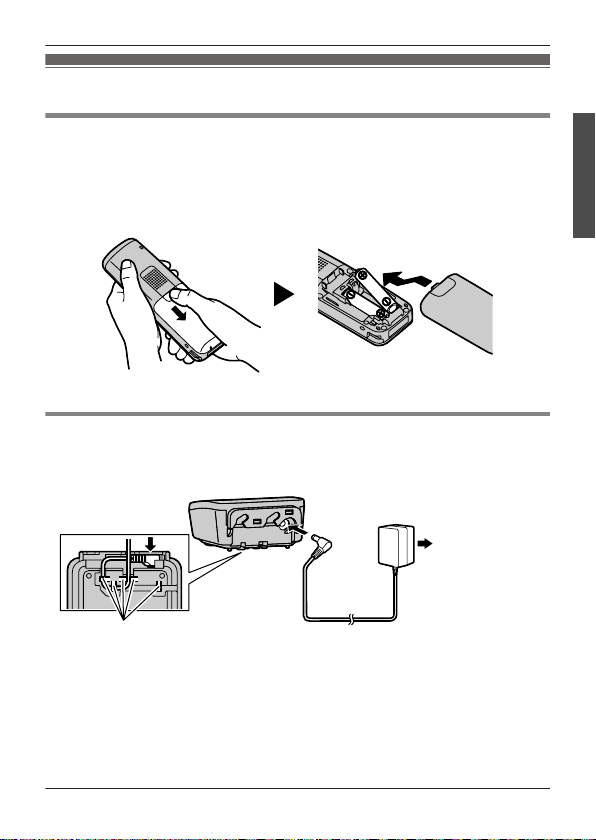

Included Accessories
AC adaptor (1) Charger (1)
[Part No.]
PNLV226CE
Belt Clip (1) Belt Clip Holder (1)
Battery*1 (2) Battery Cover*2 (1)
*1 Rechargeable AAA Ni-MH 1.2 V, 700 mAh batteries
*2 The battery cover comes attached to the handset.
Note
RThe illustrations may differ from the appearance of the actual product.
9
Accessory Information

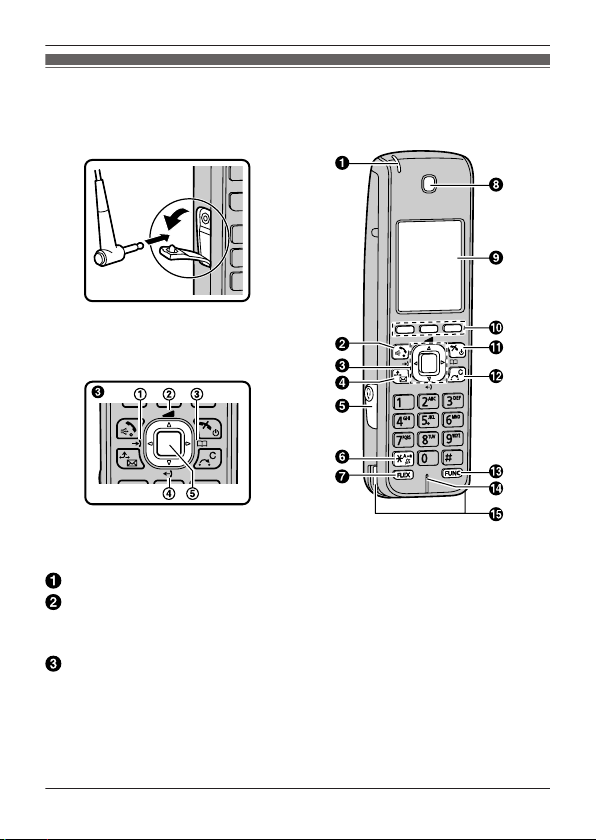

Location of Controls
The headset is an optional
accessory.
Open the cover.
Ringer/Charge Indicator
TALK/SP-PHONE (Speakerphone) Key
Used to make or answer calls, or toggle between Receiver mode
and Hands-free*1 mode during a conversation.
Navigator Key
The Navigator Key includes four arrow keys and a centre key. The
arrow keys are used to adjust the ringer/receiver volume or move
the cursor to select an item. The centre key is used to confirm a
selection. If in standby mode, pressing the keys perform the
following functions:
10
Location of Controls
