Panasonic AW-E860L User manual

Printed in Japan
Gedruckt in Japan
Imprimé au Japon
Stampato in Giappone
Impreso en Japón
VQTB0093 F0505S0 D
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
E
FRANÇAIS DEUTSCH ENGLISH
ITALIANOESPAÑOL
Convertible Camera
AW-E860L
Before attempting to connect, operate or adjust this product,
please read these instructions completely.

- 1 (E) -
1indicates safety information.
$DO NOT REMOVE PANEL COVER BY
UNSCREWING.
To reduce the risk of electric shock, do not remove
cover. No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, KEEP THIS EQUIPMENT AWAY
FROM ALL LIQUIDS-USE AND STORE ONLY
IN LOCATIONS WHICH ARE NOT EXPOSED
TO THE RISK OF DRIPPING OR SPLASHING
LIQUIDS, AND DO NOT PLACE ANY LIQUID
CONTAINERS ON TOP OF THE EQUIPMENT.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE,
USE THE RECOMMENDED ACCESSORIES
ONLY.
Note:
The rating plate (serial number plate) is on the
bottom of the unit.
ENGLISH VERSION
- 58 (S) -
ESPAÑOL
Accesorios estándar
Hoja de goma ..................................................................... 1
Adaptador de montaje ........................................................ 1
Tornillos .............................................................................. 2
Espaciador de montaje ....................................................... 1
Información sobre la eliminación para los usuarios de equipos eléctricos y electrónicos usados (particulares)
La aparición de este símbolo en un producto y/o en la documentación adjunta indica que los productos eléctricos y
electrónicos usados no deben mezclarse con la basura doméstica general.
Para que estos productos se sometan a un proceso adecuado de tratamiento, recuperación y reciclaje, llévelos a los
puntos de recogida designados, donde los admitirán sin coste alguno. En algunos países existe también la posibilidad
de devolver los productos a su minorista local al comprar un producto nuevo equivalente.
Si desecha el producto correctamente, estará contribuyendo a preservar valiosos recursos y a evitar cualquier posible
efecto negativo en la salud de las personas y en el medio ambiente que pudiera producirse debido al tratamiento inadecuado de
desechos.
Póngase en contacto con su autoridad local para que le informen detalladamente sobre el punto de recogida designado más
cercano.
De acuerdo con la legislación nacional, podrían aplicarse multas por la eliminación incorrecta de estos desechos.
Para empresas de la Unión Europea
Si desea desechar equipos eléctricos y electrónicos, póngase en contacto con su distribuidor o proveedor para que le informe
detalladamente.
Información sobre la eliminación en otros países no pertenecientes a la Unión Europea
Este símbolo sólo es válido en la Unión Europea.
Si desea desechar este producto, póngase en contacto con las autoridades locales o con su distribuidor para que le informen sobre
el método correcto de eliminación.

- 2 (E) -
ENGLISH
The information marking of this product may be found on the
bottom of the product.
The serial number of this product may be found on the
bottom of the product.
You should note the serial number of this product in the
space provided and retain this book as a permanent record
of your purchase to aid identification in the event of theft.
Model No.
Serial No.
CONTENTS
Preface ............................................................................... 3
Features .............................................................................. 4
Special notes on operation ................................................. 5
Precautions ......................................................................... 6
Major operating controls and their functions ....................... 8
Mounting ........................................................................... 12
Flange back adjustment (For zoom lens) ......................... 14
Iris gain control in a lens ................................................... 15
Connections ...................................................................... 16
Adjustment ........................................................................ 21
Use mode setting .............................................................. 27
Menu item setting ............................................................. 29
Setting and changing the optional cards ........................... 50
Setting to initial set ............................................................ 51
Appearance ...................................................................... 55
Specifications .................................................................... 56
Standard accessories ....................................................... 58
Caution:
Before attempting to connect or operate this product,
please read these instructions completely.

- 3 (E) -
• The Panasonic AW-E860L is a digital signal processing
colour video camera that incorporates three 2/3” wide
CCDs. A digital video signal processing system is packed
in a compact, lightweight body while assuring high picture
quality, high reliability and high performance.
• System setup and adjustments can be easily performed by
following the setup menu.
• Connection to peripheral devices, such as a RCU, a RCB
and a lens and the camera pan/tilt unit enables a wide
variation of system configurations.
• Option cards may also be installed.
❈The following cards are not available for AW-E860;
· AW-PB301 Component studio card:
Use AW-PB305.
· AW-PB302 RGB card:
The camera unit contains this function.
· AW-PB303 High-sensitivity card
· AW-PB304 SDI card:
Use AW-PB504.
· AW-PB306 Studio SDI card:
Use AW-PB506.
· AW-PB307 SVGA card
· AW-PB309 WEB card
· AW-PB310 IEEE 1394 card
Preface
Note
In order to protect the environment when the convertible
camera is to be discarded at the end of its service life,
ask a specialized contractor to dispose of it properly.

- 4 (E) -
ENGLISH
1. Digital video signal processing for high quality, high
reliability, high performance, lightweight and compact
size.
2. Resolution: 850 lines (HIGH BAND DTL: ON),
S/N ratio: 63 dB (DNR ON)
3. Minimum illumination: 0.4 lx (F1.7, Night Eye H mode)
4. SET UP menu for system check and readjustments.
5. Built-in automatic controls, including ATW, ELC, and
AGC.
6. CCD readout is switchable between field and frame
modes. Vertical resolution can be stepped up in frame
mode and it is effective for shooting still objects.
7. The built-in synchronized scanning system reduces
noise in computer graphics.
8. Various correction circuits permit video reproduction with
high fidelity.
9. Chroma detail correction enables clear shots of dark
colour objects.
10. A dark detail circuit provides natural edge correction to
any object in a dark scene.
11. The 12-axis digital colour matrix enables users’ to create
images of their choice.
12. Four use modes for each of your specific applications
can be selected.
13. Full colour bar is indicated on the monitor screen.
14. Remote control with a RCU, RCB or a hybrid control
panel.
15. Aspect ratio is 16:9 and 4:3 selectable.
Features

- 5 (E) -
Special notes on operation
• Turn power off before connecting or disconnecting cables.
• Connection or disconnection of any studio cable, RCB
cable or other cable to any unit of equipment must be
performed while power is off.
• While the camera is in automatic mode;
Shooting of bright objects in ELC operation mode may
result in a smeared picture unique to the CCD.
The ATW function under fluorescent illumination can
adversely change the white balance.
• There is a cooling fan inside. It is an expendable part, and
must be replaced about every 30000 hours. (Whenever fan
replacement is necessary, be sure to ask the store where
you purchased the set.)

- 6 (E) -
ENGLISH
Precautions
DON’TS
• Do not attempt to disassemble the camera, remote control
unit (RCU) or other units. In order to prevent electric
shock, do not remove screws or covers. There are no
user-serviceable parts inside.
• Do not abuse the camera. Avoid striking, shaking, etc.
The camera contains sensitive components which could be
damaged by improper handling or storage.
• Do not let the lens remain uncapped when the camera is
not in use. If the lens is not installed, do not leave the lens
mount hole uncovered.
• Do not touch the surface of the lens or prism.
• Do not use strong of abrasive detergents when cleaning
the camera body.
• Do not aim the camera toward the sun, no matter whether
it is turned on or not.
• Do not expose the camera or remote control unit (RCU) to
rain or moisture, and do not try to operate the equipment in
wet conditions. Do not operate the camera or RCU if it
becomes wet.
• Do not operate the camera or remote control unit (RCU)
outdoors during a lightning storm.
• Do not use the camera in an extreme environment where
high temperatures or high humidity exist.
• Do not leave the camera and remote control unit (RCU)
turned on when not in use. Do not unnecessarily turn the
camera power on and off repeatedly. Do not block the
ventilation slots.
• Do not cover the port otherwise block ventilation during
operation. Internal heat buildup can cause a fire.

- 7 (E) -
Precautions
DOS
• Refer any servicing to qualified service personnel.
• Handle the camera with care.
• Protect the precision made lens by placing the lens cap
over when the camera is not in use. If the lens is not
installed, protect the surface of the prism by placing the
body cap into the lens mount hole.
• Use a mild blower or lens cleaning tissue designed for
coated lenses, to clean the surface of the lens or prism in
the event that it should become dirty.
• Use a dry cloth to clean the camera if it is dirty. In case the
dirt is hard to remove, use mild detergent and wipe gently.
• Use caution when operating the camera in the vicinity of
spot lights or bright lights, as well as light reflecting objects
and surfaces.
• Take immediate action if ever the camera or RCU should
become wet. Turn the power off and have the unit checked
by an authorized service facility.
• Follow normal safety precautions to avoid personal injury.
• Use the camera in an environment where the temperature
is within –10°C to +45°C and the relative humidity is within
30 % to 90 %.
• Always turn the power off when the camera is not going to
be used. Operate the camera and RCU only when there is
adequate ventilation.

- 8 (E) -
ENGLISH
Major operating controls and their functions
<Front view> <Top view>
<Side view>

- 9 (E) -
Major operating controls and their functions
1Lens mount
2/3” Standard bayonet type (B4 mount) lens or a
microscope adapter can be mounted.
2Lens fixing ring knob
Rotate the lens fixing ring knob counterclockwise and
remove the lens mount cap. Mount the lens on the
camera and rotate the lens fixing ring knob clockwise in
order to fix the lens securely.
3Mounting hole
A screw hole (1/4” - 20 UNC) for mounting the camera on
a wall, ceiling with a mounting bracket or tripod.
4Cooling fan
• Do not cover the port or otherwise block ventilation
during operation. Internal heat buildup can cause a fire.
• The cooling fan has a service life of about 30000 hours.
(at a room temperature of 25°C) Replace the fan that
has come to the end of its service life. (If the fan is used
at a room temperature of 35°C and above, replace it
about 30% sooner.)
Whenever fan replacement is necessary, be sure to ask
the store where you purchased the set.
5Expansion slot
Remove the cover, and connect the expansion card box.
For details, refer to the manual for expansion card box.

6MENU switch (MENU/A)
A menu will appear on the monitor screen when this
switch is pressed for about 5 seconds. This item can be
selected by pressing the switch while the menu is on the
screen.
7ITEM/AWC switch (ITEM/AWC/S)
The item just below can be selected by pressing this
switch while the menu is on the screen. When the menu
is not displayed or the camera is in shooting mode, the
automatic white balance control can be set with this
switch.
8YES/ABC switch (YES/ABC/+)
The Sub Menu for each item of the Main Menu is
displayed when this switch is pressed while the Main
Menu is on the screen.
While the Sub Menu is displayed, any setting can be
brought up to a higher value with this switch. When the
menu is not displayed or the camera is in shooting mode,
the automatic black balance control can be set with this
switch.
9NO/BAR switch (NO/BAR/–)
The item just below can be selected by pressing this
switch while the Sub Menu is on the screen.
While the Sub Menu is displayed any setting can be
brought down to a lower value with this switch. When the
menu is not displayed or the camera is in shooting mode,
the colour bar and the shooting conditions are alternately
indicated by pressing the switch.
:Video output connector (VIDEO OUT)
A composite video signal is provided at this connector.
;Iris connector (IRIS)
Input terminal for lens with an iris control function.
- 10 (E) -
ENGLISH
Pin No. Signal
1 Return Control
2 Not Used
3 GND
4 Auto/Manual Control
5 Iris Control
6 Lens Power
Pin No. Signal
7 Iris Follow
8 Auto/Remote Control
9 Not Used
10 Not Used
11 Not Used
12 Not Used

<I/F Remote connector (I/F REMOTE)
Input terminal dedicated to control signals from the
optional remote control box (RCB) (WV-CB700A, etc.)
and the RCU (WV-RC700A, WV-RC550, etc.) and the
camera pan/tilt unit (AW-PH400, etc.).
• WV-CB700A is connected through the optional RCB
cable (AW-CA50T10/AW-CA50B10).
• WV-RC700A/WV-RC550 is connected through the
optional RCU cable (AW-CA50A26).
• AW-CB400 is connected through the optional camera
control cable (AW-CA50T8).
=Power indicator
Red LED lamp lights to indicate that the specified DC
power is supplied to the camera.
>DC 12 V input connector (DC 12V IN)
12 V DC is supplied through the DC power supply cable
(DC cable with ø6.5 plug supplied with AW-PS505A).
(Recommended AC adapter: AW-PS505A)
?Cable clamp
Clamp the DC power supply cable connected to the DC
12 V input connector to prevent it from slipping out.
@G/L input connector (G/L IN)
Signals synchronized with the reference signal are to be
supplied to this connector when the camera is to be
synchronized with the reference signal BB.
AOptional card slot
Slot for inserting an optional card. For details, refer to the
manual for optional cards.
- 11 (E) -
Major operating controls and their functions
Cautions
1. Connect this to a DC 12 V class 2 power supply only.
2. To prevent fire or shock, the UL listed wire
VW-1, style 1007 should be used as for the cable for
DC 12 V input connector.

- 12 (E) -
ENGLISH
Mounting
• Lenses of any make can be mounted on the camera as
long as they are equipped with a 2/3” standard bayonet.
• Use the lens extension cable AW-CA12T12A (6”/15 cm) if
your lens cable is too short.
1. Lens mounting
Rotate the lens fixing ring knob counterclockwise and
remove the lens mount cap. Mount the lens on the
camera and rotate the lens fixing ring knob clockwise in
order to fix the lens securely. Connect the camera cable
to the IRIS connector on the back panel of the camera.
Control cable
Camera cable
To lens I/F connector
of camera pan/tilt unit
To iris connector
Lens fixing ring
knob

- 13 (E) -
Mounting
2. Camera mounting
1. To mount a camera on a pan/tilt head or a mounting
bracket or the like, attach the mounting adapter
(supplied) to the bottom of the camera in case of bottom
mounting.
2. Fix the camera mounting base, pan/tilt unit, and tripod
securely in the screw hole (1/4”-20UNC) of the camera or
the mounting adapter.
3. If the camera cannot be securely fixed, mount the camera
on a mounting bracket or the like with the supplied rubber
sheet between the camera and it.
4. To mount the camera on the pan/tilt head, use a driver in
order to fix it securely.
$Preventing the camera from falling or coming off
OWhen attaching a camera to the pan/tilt head (AW-PH400,
etc.), follow the directions in the Operating Instructions to fix
the camera firmly in position.
In addition, link the camera to the pan/tilt head using the safety
chain and the mounting screws to help ensure the camera
does not fall.
OWhen attaching the camera on any mounting or other pan/tilt
head, check that the mounting can safely bear the total weight
of the camera, lens, connection cables, etc., fix the camera
firmly in position using the prescribed tool, and take
appropriate measures to prevent the camera from falling.
When changing the camera mounting adapter, use a
screwdriver or similar tool to tighten the screws firmly.
Mounting adapter
Camera mounting bracket (WV-831)

- 14 (E) -
ENGLISH
Flange back adjustment (For zoom lens)
1. Fully open the iris by shooting a dark object. (Iris
selection switch should be set to M.)
2. Loosen the flange back lock knob.
3. Aim the camera at any object over 2 meters away from
the camera.
4. Set the lens to its TELE end first and adjust its focus with
the focus ring.
5. Set the lens to its widest angle next and adjust its focus
with the flange back adjust ring.
6. Adjust the focus ring and the flange back adjust ring
alternately for the best focus within the zooming range.
Tighten the flange back lock knob upon completion of
focusing.
7. Turn the iris selection switch to Position A.
FOCUS ring
Flange back lock knob
Flange back adjust ring

- 15 (E) -
Iris gain control in a lens
An iris gain control hole is usually provided in the front of the
lens. Adjustment of the iris gain, with a screwdriver through
the hole may be done as follows. (Shape and location of the
hole may vary depending on the type of lens.)
1. Turn the iris selection switch to Position A (AUTO).
2. Rotate the iris gain control to the maximum gain, but in a
range where no hunting or oscillating of the iris ring
develops.
Iris gain control (G, S)
Automatic iris power zoom lens

- 16 (E) -
ENGLISH
Connections
Caution:
The connection and installation should be done by qualified service personnel or system installers.
Refer any servicing to qualified service personnel.
$Connection of device with a composite input connector
• Connection to any device which has a composite input connector, such as a video monitor or a VTR, must be made through
the VIDEO OUT connector.
• Power supply to the camera must be through the DC cable with ø6.5 plug supplied with AW-PS505A.
• For DC power supply, use the optional AC adapter AW-PS505A.
VIDEO OUT
connector Video monitor
AC adapter AW-PS505A
VIDEO IN
75 Ωcoaxial cable
DC cable with ø6.5 plug
supplied with AW-PS505A

- 17 (E) -
Connections

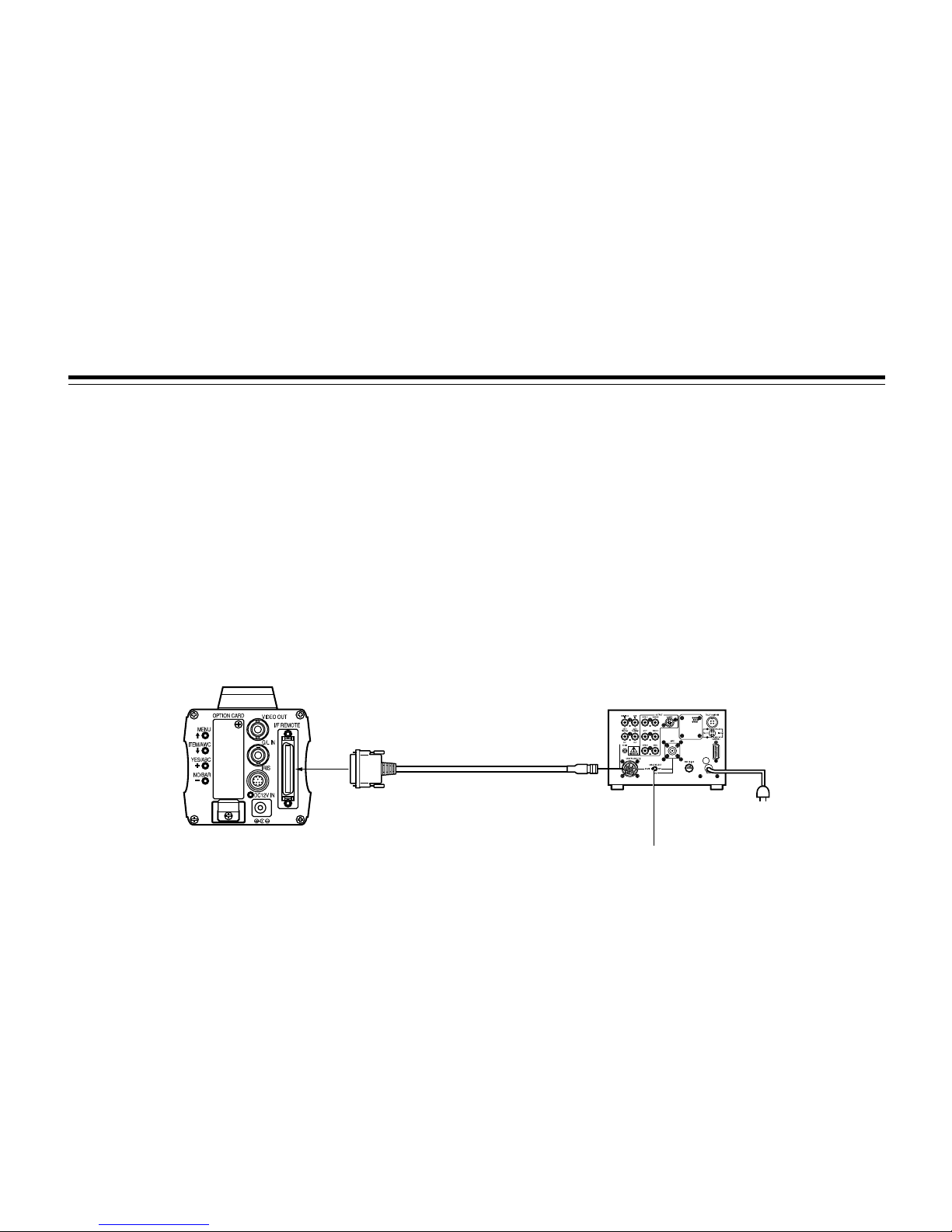

Connection to the RCU (WV-RC700A, WV-RC550) is made
through the optional RCU cable AW-CA50A26.
1. Turn RCU power off before connecting cables.
2. Set the cable selection switch of the RCU to MULTI
(in case of using the WV-RC700A).
3. Connect the 50-pin connector of the RCU cable to the I/F
REMOTE connector of the camera.
4. Turn RCU power on and the power indicator lamp will
light. The camera can now be remote controlled by the
RCU.
Notes:
• The maximum extension distance between the camera
and WV-RC700A is 300 m. The maximum extension
distance between the camera and WV-RC550 is 100 m.
• Use the following options for cable extension.
Studio cable WV-CA26U15 (15 m/50 ft)
WV-CA26U30 (30 m/100 ft)
WV-CA26U100 (100 m/330 ft)
Cable joint adapter
WV-CA26T26
$Connection of a remote control unit (RCU)
Set to MULTI
WV-RC700A
RCU cable
AW-CA50A26 (15 m)

- 18 (E) -
ENGLISH
$Connection of a remote control box (RCB)
The RCB (WV-CB700A) and the camera must be connected
with the optional RCB cable AW-CA50T10.
1. Turn RCB power off before connecting cables.
2. Connect the 50-pin connector of the RCB cable to I/F
REMOTE connector of the camera. The 10-pin connector
must be connected to the RCB.
3. Turn RCB power on and the camera can be controlled
remotely by the RCB.
Notes:
• The monitor output signals of the RCB attenuate and
deteriorate with cable length. It is recommended that the
signals from the monitor output be used for monitoring
purposes only.
• No gen-lock signal is available from the RCB.
• If a longer distance (more than 3 m) is desired between the
camera and the RCB, use the following optional cable.
AW-CA50B10 and WV-CA10B02 (2 m)
WV-CA10B25 (25 m)
WV-CA10B50 (50 m)
AC adapter AW-PS505A
Video signal IN
RCB WV-CB700A
RCB cable AW-CA50T10 (3 m)
MONITOR OUT
DC cable with ø6.5 plug
supplied with AW-PS505A
RCB

- 19 (E) -
Connections
$Connection with multiple cameras (Colour lock mode)
An example of connection for VBS/BB input (Colour
lock mode).
• One of the multiple cameras is used as the source of
reference signals.
• Supply a synchronizing signal (BB) to the G/L input
connectors of each cameras.
• Do not switch off the camera used for supplying the
reference signals.
• Adjust the SC-phase and H-phase at the video output
connector.
VIDEO OUT
CAMERA
Camera for external sync
(or special effect generator)
G/L IN
VIDEO OUT
OUTPUTINPUT
Video output
To special effect generator or monitoring system
Video distributor
WJ-300C
External sync
signal (BB)
