Panasonic Lumix DMC-SZ5 User manual

Basic Operating Instructions
Digital Camera
Model No. DMC-SZ5
Before use, please read these instructions completely.
More detailed
instructions on
the operation of this camera
are contained in “Operating
Instructions for advanced
features (PDF format)” in the
supplied CD-ROM. Install it on
your PC to read it.
EB
Model number suffix “EB” denotes UK model.
Web Site: http://www.panasonic-europe.com
VQT4J99
F0712MR0
until
2012/10/25
DMC-SZ5EB-VQT4J99_mst.book 1 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
2
Dear Customer,
We would like to take this opportunity to thank you for purchasing this Panasonic Digital
Camera. Please read these Operating Instructions carefully and keep them handy for
future reference. Please note that the actual controls and components, menu items, etc.
of your Digital Camera may look somewhat different from those shown in the
illustrations in these Operating Instructions.
Carefully observe copyright laws.
•Recording of pre-recorded tapes or discs or other published or broadcast material for
purposes other than your own private use may infringe copyright laws. Even for the purpose
of private use, recording of certain material may be restricted.
Information for Your Safety
∫Product identification marking
WARNING:
To reduce the risk of fire, electric shock or product damage,
•Do not expose this unit to rain, moisture, dripping or splashing.
•Use only the recommended accessories.
•Do not remove covers.
•Do not repair this unit by yourself. Refer servicing to qualified service personnel.
The socket outlet shall be installed near the equipment and shall be easily
accessible.
Product Location
Digital Camera Bottom
DMC-SZ5EB-VQT4J99_mst.book 2 ページ ２０１２年７月１２日 木曜日 午後３時５１分

3
(ENG) VQT4J99
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from
our DoC server:
http://www.doc.panasonic.de
Contact to Authorized Representative:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15,
22525 Hamburg, Germany
This product is intended to be used in the following countries.
Austria, Belgium, France, Germany, Ireland, Italy, Luxembourg, Netherlands,
Portugal, Spain, Switzerland, United Kingdom
In France, this equipment may only be used indoors.
This product is intended for general consumer. (Category 3)
This product on purpose to connect to access point of 2.4 GHz WLAN.
DMC-SZ5EB-VQT4J99_mst.book 3 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
4
∫About the battery pack
•Do not heat or expose to flame.
•Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with
doors and windows closed.
∫About the AC adaptor (supplied)
•The unit is in the standby condition when the AC adaptor is connected. The primary circuit is
always “live” as long as the AC adaptor is connected to an electrical outlet.
CAUTION
•Danger of explosion if battery is incorrectly replaced. Replace only with the type
recommended by the manufacturer.
•When disposing the batteries, please contact your local authorities or dealer and ask for
the correct method of disposal.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC or
incinerate.
CAUTION!
To reduce the risk of fire, electric shock or product damage,
•Do not install or place this unit in a bookcase, built-in cabinet or in another
confined space. Ensure this unit is well ventilated.
DMC-SZ5EB-VQT4J99_mst.book 4 ページ ２０１２年７月１２日 木曜日 午後３時５１分

5
(ENG) VQT4J99
∫Cautions for Use
•Do not use any other USB connection cables except the supplied one or a genuine
Panasonic USB connection cable (DMW-USBC1: optional).
•Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
•If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise adversely
affecting the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields
created by speakers or large motors.
•Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,
disturbing the pictures and/or sound.
•If this unit is adversely affected by electromagnetic equipment and stops functioning properly,
turn this unit off and remove the battery or disconnect AC adaptor (supplied)/AC adaptor
(DMW-AC5E: optional). Then reinsert the battery or reconnect AC adaptor and turn this unit
on.
Do not use this unit near radio transmitters or high-voltage lines.
•If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound
may be adversely affected.
DMC-SZ5EB-VQT4J99_mst.book 5 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
6
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and
batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and
used batteries, please take them to applicable collection points, in
accordance with your national legislation and the Directives 2002/
96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help
to save valuable resources and prevent any potential negative
effects on human health and the environment which could
otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products
and batteries, please contact your local municipality, your waste
disposal service or the point of sale where you purchased the
items.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the
European Union]
These symbols are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer
and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol.
In this case it complies with the requirement set by the Directive for
the chemical involved.
Cd
DMC-SZ5EB-VQT4J99_mst.book 6 ページ ２０１２年７月１２日 木曜日 午後３時５１分

7
(ENG) VQT4J99
Contents
Information for Your Safety ......................................................................................... 2
Before Use .................................................................................................................... 7
Standard Accessories.................................................................................................. 8
Names and Functions of Main Parts ........................................................................ 10
Inserting and Removing the Card (optional)/the Battery ........................................11
Charging the Battery.................................................................................................. 12
Sequence of operations ............................................................................................ 13
Smartphone operations............................................................................................. 15
Reading the Operating Instructions (PDF format) .................................................. 17
Installing supplied software ...................................................................................... 18
Message Display ........................................................................................................ 19
Troubleshooting ......................................................................................................... 21
Specifications ............................................................................................................. 24
Before Use
∫Care of the camera
•Do not subject to strong vibration, shock, or pressure.
•This camera is not dust/splash/water proof.
Avoid using the camera in places with a lot of dust, water, sand, etc.
∫About Condensation (When the lens is fogged up)
•Condensation occurs when the ambient temperature or humidity changes. Be careful of
condensation since it causes lens stains, fungus and camera malfunction.
•If condensation occurs, turn the camera off and leave it for about 2 hours. The fog will
disappear naturally when the temperature of the camera becomes close to the ambient
temperature.
DMC-SZ5EB-VQT4J99_mst.book 7 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
8
Standard Accessories
Check that all the accessories are supplied before using the camera.
Product numbers correct as of July 2012. These may be subject to change.
1 Battery Pack
(Indicated as battery pack or battery
in the text)
Charge the battery before use.
2 AC Adaptor
Can be used for charging and
playback.
3 USB Connection Cable
4 CD-ROM
•Software
•Operating Instructions for advanced
features
Install on your PC before use.
5 Hand Strap
•SD Memory Card, SDHC Memory Card and
SDXC Memory Card are indicated as card in
the text.
•The card is optional.
You can record or play back pictures on
the built-in memory when you are not
using a card.
•Consult the dealer or your nearest Service
Centre if you lose the supplied accessories.
(You can purchase the accessories
separately.)
3
VFC4297VFF1053
K1HY08YY0015
12
45
DMW-BCK7E VSK0775
DMC-SZ5EB-VQT4J99_mst.book 8 ページ ２０１２年７月１２日 木曜日 午後３時５１分

9
(ENG) VQT4J99
Sales and Support Information
Customer Communications Centre
•For customers within the UK: 0844 844 3899
•For customers within Ireland: 01 289 8333
•For further support on your product, please visit our website:
www.panasonic.co.uk
Direct Sales at Panasonic UK
•Order accessory and consumable items for your product with ease and confidence by
phoning our Customer Communications Centre Monday–Thursday 9:00 a.m.–5:30 p.m.,
Friday 9:30 a.m.–5:30 p.m. (Excluding public holidays)
•Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
•Most major credit and debit cards accepted.
•All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
•It couldn’t be simpler!
•Also available through our Internet is direct shopping for a wide range of finished products.
Take a browse on our website for further details.
∫Optional Accessories
¢The AC Adaptor (optional) can only be used with the designated Panasonic DC Coupler
(optional). The AC adaptor (optional) cannot be used by itself.
Some optional accessories may not be available in some countries.
Battery Pack DMW-BCK7
AC Adaptor¢DMW-AC5
DC Coupler¢DMW-DCC10
USB Connection Cable DMW-USBC1
AV Cable DMW-AVC1
Class 10 64 GB SDXC Memory Card
Class 10 32 GB SDHC Memory Card
Class 10 16 GB SDHC Memory Card
Class 10 8 GB SDHC Memory Card
Class 10 4 GB SDHC Memory Card
Class 4 16 GB SDHC Memory Card
Class 4 8 GB SDHC Memory Card
Class 4 4 GB SDHC Memory Card
Class 4 2 GB SD Memory Card
RP-SDU64GE1K
RP-SDA32GE1K/RP-SDU32GE1K/RP-SDRA32GEK
RP-SDA16GE1K/RP-SDU16GE1K/RP-SDRA16GEK
RP-SDA08GE1K/RP-SDU08GE1K/RP-SDRA08GEK
RP-SDU04GE1K/RP-SDRA04GEK
RP-SDNA16GEA
RP-SDNA08GEA
RP-SDNA04GEA
RP-SDNA02GEA
DMC-SZ5EB-VQT4J99_mst.book 9 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
10
Names and Functions of Main Parts
1 Motion picture button
2 Shutter button
3 Power button
4Flash
5 Microphone
6 Speaker
•Be careful not to cover the speaker
with your finger. Doing so may make
sound difficult to hear.
7Wi-Fi
RTransmitter
8 Zoom lever
9Lens
10 Lens barrel
11 Self-timer indicator
AF Assist Lamp
12 LCD monitor
13 [MODE] button
14 Charging lamp
Wi-Fi connection lamp
15 [Wi-Fi] button
16 [(] (Playback) button
17 Cursor buttons
18 [DISP.] button
19 [MENU/SET] button
20 [Q.MENU]/[ ] (Delete/Cancel)
button
21 Strap eyelet
•Be sure to attach the strap when
using the camera to ensure that you
will not drop it.
22 [AV OUT/DIGITAL] socket
•This socket is also used when
charging the battery.
23 Tripod receptacle
•A tripod with a screw length of
5.5 mm (0.22 inch) or more may
damage this unit if attached.
24 Card/Battery door
25 DC coupler cover
•When using an AC adaptor
(DMW-AC5E: optional), ensure that
the Panasonic DC coupler
(DMW-DCC10: optional) and AC
adaptor are used.
•Always use a genuine Panasonic AC
adaptor (DMW-AC5E: optional).
26 Release lever


1
11
8910
26
2017 18
23 5416
21
12
23 24
13 14
19 22
7156
25
DMC-SZ5EB-VQT4J99_mst.book 10 ページ ２０１２年７月１２日 木曜日 午後３時５１分

11
(ENG) VQT4J99
Inserting and Removing the Card
(optional)/the Battery
•Check that this unit is turned off.
•We recommend using a Panasonic card.
1Slide the release lever in the direction
of the arrow and open the card/battery
door.
•Always use genuine Panasonic batteries
(DMW-BCK7E).
•If you use other batteries, we cannot
guarantee the quality of this product.
2Battery: Being careful about the
battery orientation, insert all the way
until you hear a locking sound and
then check that it is locked by lever A.
Pull the lever Ain the direction of the
arrow to remove the battery.
Card: Push it securely all the way until
you hear a “click” while being careful
about the direction in which you insert it.
To remove the card, push the card until it clicks, then pull the
card out upright.
B: Do not touch the connection terminals of the card.
31: Close the card/battery door.
2: Slide the release lever in the
direction of the arrow.
Note
•Keep the Memory Card out of reach of children to prevent
swallowing.
DMC-SZ5EB-VQT4J99_mst.book 11 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
12
Charging the Battery
•The battery that can be used with this unit is DMW-BCK7E.
•The battery is not charged when the camera is shipped. Charge the battery before use.
• Charge the battery with the AC adaptor (supplied) indoors [10 o C to 30 o C (50 o F to 86 o F)].
Insert the battery to this unit, and then connect this unit to the AC
adaptor A(supplied) or a PC B.
CTo power outlet
DUSB connection cable (supplied)
When using the AC adaptor (supplied), observe the following points as improper
connections may cause malfunctions.
•Do not use any other USB connection cables except the supplied one or a genuine
Panasonic USB connection cable (DMW-USBC1: optional).
•Do not use any other AC adaptors except the supplied one.
•Do not use the AC adaptor (supplied) or the USB connection cable (supplied/optional) with
other devices.
•Check that this unit is turned off.
∫About the charging lamp (E)
Lit red: Charging.
Off: Charging has completed. (Charging time: Approx. 180 min)
DMC-SZ5EB-VQT4J99_mst.book 12 ページ ２０１２年７月１２日 木曜日 午後３時５１分

13
(ENG) VQT4J99

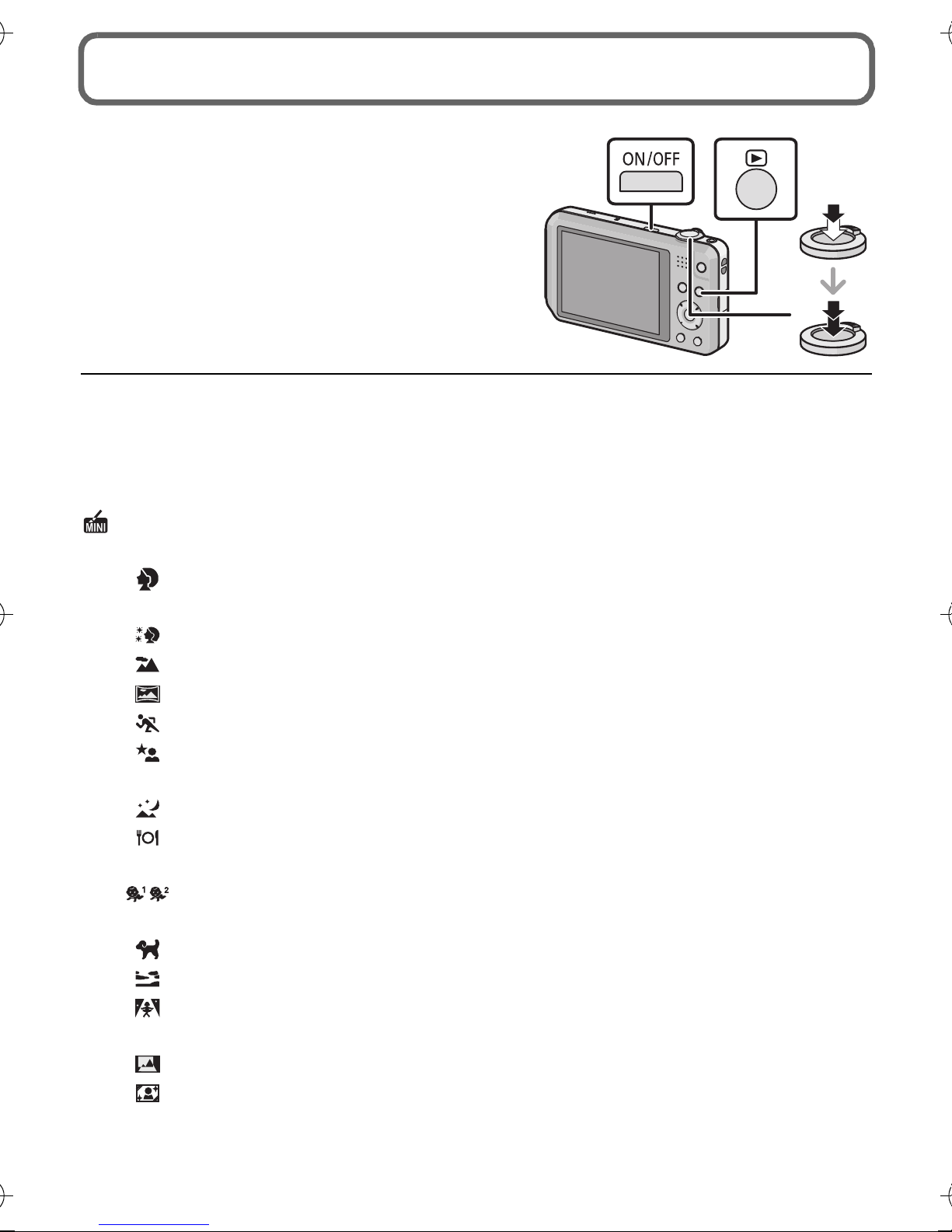

Sequence of operations
1Press power button.
•The clock is not set when the camera is
shipped. Set the date and time before
using the camera.
2Press the shutter button halfway
to focus and then press it fully to
take the picture.
∫Selecting the Recording Mode
Press [MODE] to select the Recording Mode.
¦: Take pictures with automatic settings.
!: Take pictures with your own settings.
: Take pictures to make them look like a diorama. (also known as Tilt Shift Focus)
Û: Take pictures according to scene.
: This mode allows you to improve the appearance of the persons concerned
and make their skin tones look healthier.
: Take a portrait emphasising the skin softness.
: This allows you to take pictures of a wide landscape.
: You can take panorama pictures.
: You can take pictures of a fast-moving subject.
: This allows you to take pictures of a person and the background with near
real-life brightness.
: This allows you to take vivid pictures of the nightscape.
: This mode allows you to take pictures of food with a natural hue without
being affected by the ambient light.
: These take pictures of a baby with a healthy complexion. When you use the
flash, the light from it is weaker than usual.
: You can set your pet’s birthday and name.
: This allows you to take vivid pictures of the red colour of the sun.
: This mode minimises the jitter of the subjects, and enables you to take
pictures of these subjects in dimly lit rooms.
: This mode is best suited for taking pictures through clear glass.
: Record the image with a frame around it.
DMC-SZ5EB-VQT4J99_mst.book 13 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
14
∫Recording Motion Pictures
Start recording by pressing the motion picture button.
•Stop the recording by pressing the motion picture button again.
•Maximum time to record motion pictures continuously is 29 minutes 59 seconds. The
maximum available recording time continuously is displayed on the screen.
∫Setting the Menu
Press [MENU/SET] to display the menu screen to change the recording function,
camera settings, and other settings.
∫Playing Back Pictures ([Normal Play])
Press [(].
•Press 2or 1to select the picture.
∫Deleting Pictures
Select the picture, and then press [ ].
•Confirmation screen is displayed. Picture is deleted by selecting [Yes].
DMC-SZ5EB-VQT4J99_mst.book 14 ページ ２０１２年７月１２日 木曜日 午後３時５１分

15
(ENG) VQT4J99

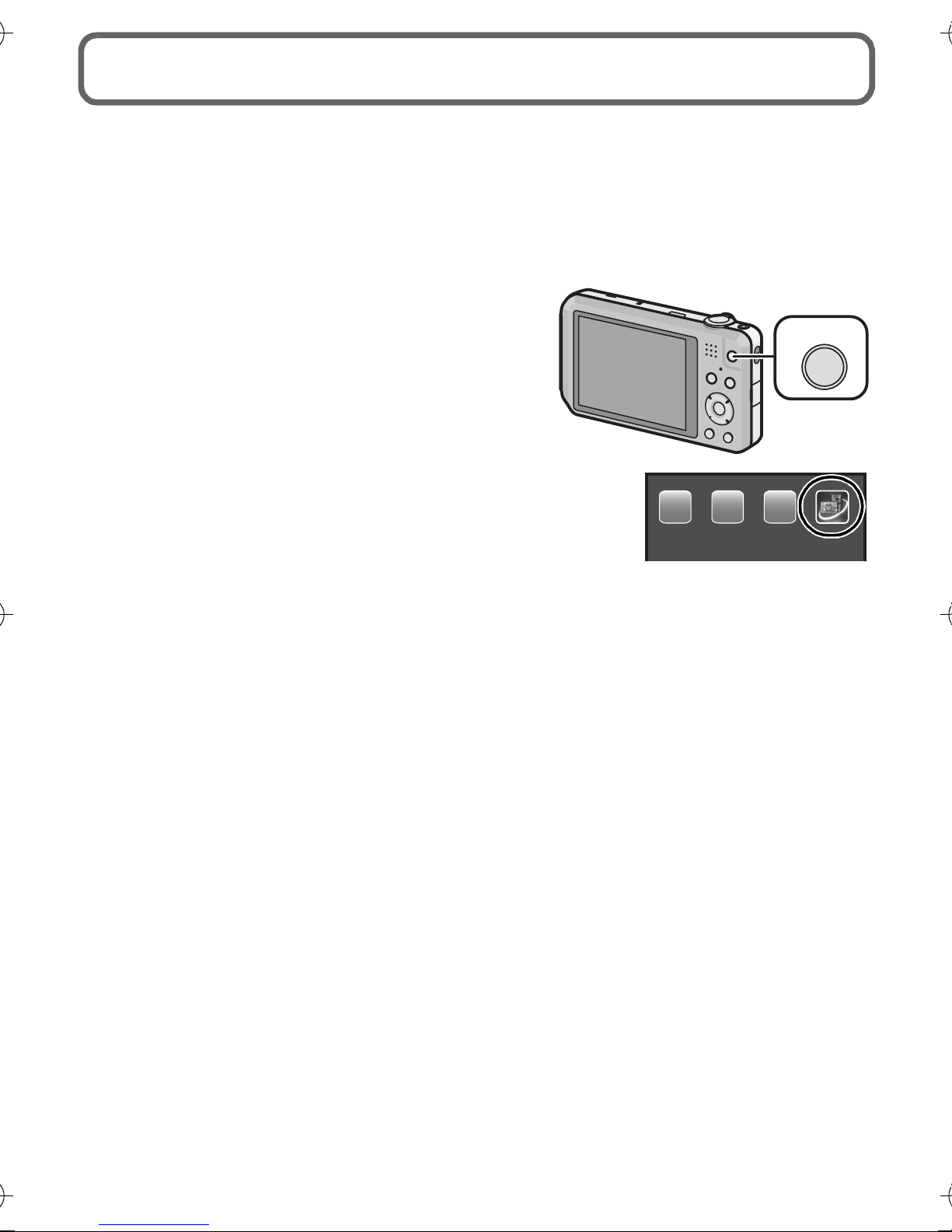

Smartphone operations
You can operate the camera from a smartphone by connecting these two devices via
Wi-Fi.
•The connection requires the smartphone application “LUMIX LINK”.
•Refer to the “Wi-Fi connection guide” for the installation of “LUMIX LINK” and the connection
with a smartphone.
1Press and hold [Wi-Fi].
•The screen that notifies the camera is
waiting to get connected with a smartphone
is displayed.
2Start up “LUMIX LINK” on your
smartphone.
•When the connection is complete, images stored in this
unit is displayed on the smartphone screen.
Wi-Fi
LUMIX LINK
DMC-SZ5EB-VQT4J99_mst.book 15 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
16
∫Operations you can perform on a smartphone
•Read the [Help] in the “LUMIX LINK” menu for further details on how to operate.
¢The screen differs depending on the operating system.
Feature Description of functions
Wireless shooting You can record images with this unit by controlling from
the smartphone.
•Recorded images are saved in the camera.
Playing back images on a
smartphone screen
You can play back images in the camera on a
smartphone screen.
Saving images on a
smartphone
You can save images in the camera on a smartphone.
Uploading photos on SNS
(Social Networking
Service)
You can upload images in the camera or a smartphone
on SNS.
Setting the menu items You can set the camera’s menu items on a smartphone.
Recording location
information
Using the location information function of a smartphone,
you can record location information onto the images
taken by the camera.
9
100-0001
1/9
DMC-SZ5EB-VQT4J99_mst.book 16 ページ ２０１２年７月１２日 木曜日 午後３時５１分

17
(ENG) VQT4J99
Reading the Operating Instructions
(PDF format)
More detailed instructions on the operation of this camera are contained in
“Operating Instructions for advanced features (PDF format)” in the supplied
CD-ROM. Install it on your PC to read it.
∫For Windows
1Turn the PC on and insert the CD-ROM containing the Operating
Instructions (supplied).
2Click the [Operating Instructions].
3Select the desired language and
then click [Operating Instructions]
to install.
ATo return to the install menu.
4Double click the “Operating
Instructions” shortcut icon on the
desktop.
∫When the Operating Instructions (PDF format) will not open
You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to browse
or print the Operating Instructions (PDF format).
Insert the CD-ROM containing the Operating Instructions (supplied), click Band then
follow the messages on the screen to install.
(Compatible OS: Windows XP SP3/Windows Vista SP2/Windows 7)
•You can download and install a version of Adobe Reader that you can use with your OS from
the following Web Site.
http://get.adobe.com/reader/otherversions/
DMC-SZ5EB-VQT4J99_mst.book 17 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
18
Installing supplied software
•The supplied CD-ROM includes the following software.
–PHOTOfunSTUDIO 8.4 SE (Windows XP/Vista/7)
–LoiLoScope 30 day full trial version (Windows XP/Vista/7)
(This will only install a shortcut to the trial version download site.)
•Before inserting the CD-ROM, close all running applications.
1Check the environment of your PC.
•Operating environment of “PHOTOfunSTUDIO 8.4 SE”
–OS:
WindowsRXP (32bit) SP3,
Windows VistaR(32bit) SP2,
WindowsR7 (32bit/64bit) and SP1
–CPU:
PentiumRIII 500 MHz or higher (WindowsRXP),
PentiumRIII 800 MHz or higher (Windows VistaR),
PentiumRIII 1 GHz or higher (WindowsR7)
–Display:
1024k768 pixels or more (1920k1080 pixels or more recommended)
–RAM:
512 MB or more (WindowsRXP/Windows VistaR),
1 GB or more (WindowsR7 32bit),
2 GB or more (WindowsR7 64bit)
–Free hard disk space:
450 MB or more for installing software
•Refer to the operating instructions of “PHOTOfunSTUDIO” (PDF) for further
operating environment.
2Insert the CD-ROM with the supplied software.
•When you insert the supplied CD-ROM, the install menu will start.
3Click on the [Applications] on the install menu.
4Click on the [Recommended Installation].
•Proceed with installation according to messages appearing on the screen.
Note
•The software compatible with your PC will be installed.
•“PHOTOfunSTUDIO” is not compatible with Mac.
DMC-SZ5EB-VQT4J99_mst.book 18 ページ ２０１２年７月１２日 木曜日 午後３時５１分

19
(ENG) VQT4J99
Message Display
Confirmation messages or error messages will be displayed on the screen in some
cases.
The major messages are described below as examples.
[Some pictures cannot be deleted]/[This picture cannot be deleted]
•Pictures not based on the DCF standard cannot be deleted.
>Format the card after saving necessary data on a PC etc.
[Built-in memory full]/[Memory card full]/[Not enough space on built-in memory]/
[Not enough memory on the card]
•There is no space left on the built-in memory or the card.
•When you copy pictures from the built-in memory to the card (batch copy), the pictures are
copied until the capacity of the card becomes full.
[Memory card error.
This card cannot be used in this camera.
Format this card?]
•It is a format that cannot be used with this unit.
>Insert a different card and try again.
>Reformat on this unit after saving necessary data using a PC, etc. Data will be deleted.
[Please turn camera off and then on again]/[System Error]
•This message appears when the camera is not operating properly.
>Turn the camera off and on. If the message persists, contact the dealer or your nearest
Service Centre.
[Insert SD card again]/[Try another card]
•An error has occurred accessing the card.
>Insert the card again.
>Insert a different card.
[This battery cannot be used]
•Use a genuine Panasonic battery. If this message is displayed even when a genuine
Panasonic battery is used, contact the dealer or your nearest Service Centre.
•If the battery terminal is dirty, clean it and remove any objects.
DMC-SZ5EB-VQT4J99_mst.book 19 ページ ２０１２年７月１２日 木曜日 午後３時５１分

VQT4J99 (ENG)
20
[Failed to connect wireless access point]/[Connection failed]/[No destination
found]
•Check following regarding the wireless access point.
>The wireless access point information set on this unit is wrong. Check the
authentication type, encryption type, and encryption key.
>Power of the wireless access point is not turned on.
>Setting of the wireless access point is not supported by this unit.
•Check the network setting of the destination.
•Radio waves from other devices may block the connection to a wireless access point.
Check other devices that are connected to the wireless access point and devices that use
the 2.4 GHz band.
DMC-SZ5EB-VQT4J99_mst.book 20 ページ ２０１２年７月１２日 木曜日 午後３時５１分
